Annke Camera - Dual Light Night Surveillance

Annke Camera - Dual Light Night Surveillance — What it is and who it’s for.

Rugged indoor and outdoor surveillance for steady daily monitoring.

Key Benefits — What it helps the customer do.

You catch visitors and ignore stray animal triggers.

Features — Its main functions.

• Auto switches to color night video.
• Cuts 99% of false alarms.

Specifications — Size, materials, power, compatibility, and other known details.

IP67 rated housing, PoE connection, 2.8mm lens, and slot for 512GB SD.

What’s Included — Items in the package.

One wired camera unit and mounting brackets.

How to Use — Brief setup or use instructions.

Wall mount it, attach an Ethernet cord, and open the ANNKE APP to view streams.

Frequently Asked Questions — Answer two common questions using verified information.

Needs WiFi?No, Ethernet ensures stability. Remote viewing?Free app works .

• Smart CCTV Systems
• Dual Light Nights
• PoE Cameras
• AI Motion Detection
• All Weather Security

• Biblical Mysteries video channel
• Smart Electronics and Connected Devices
• Smart Electronics and Everyday Accessories
• Featured Gadgets and Useful Devices

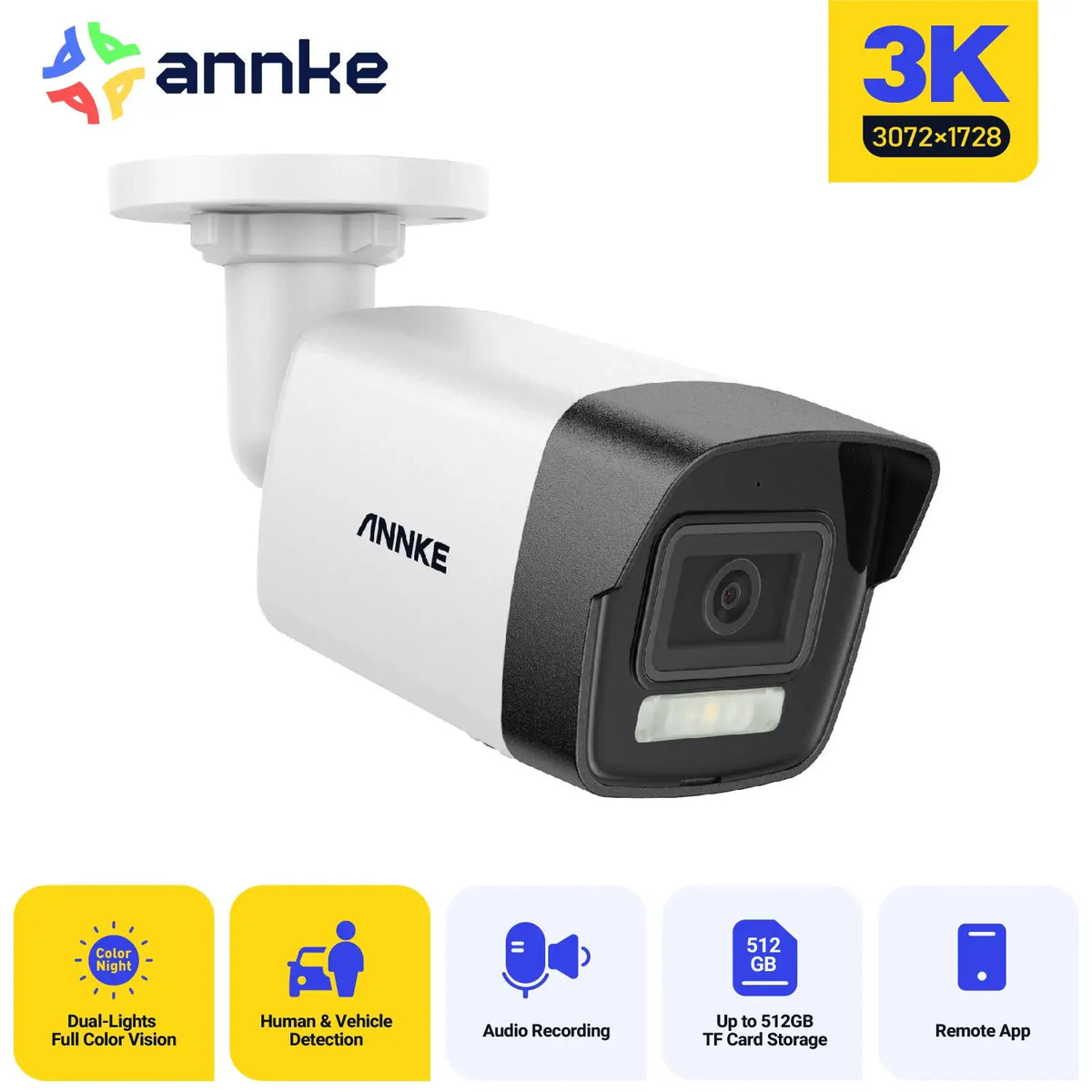

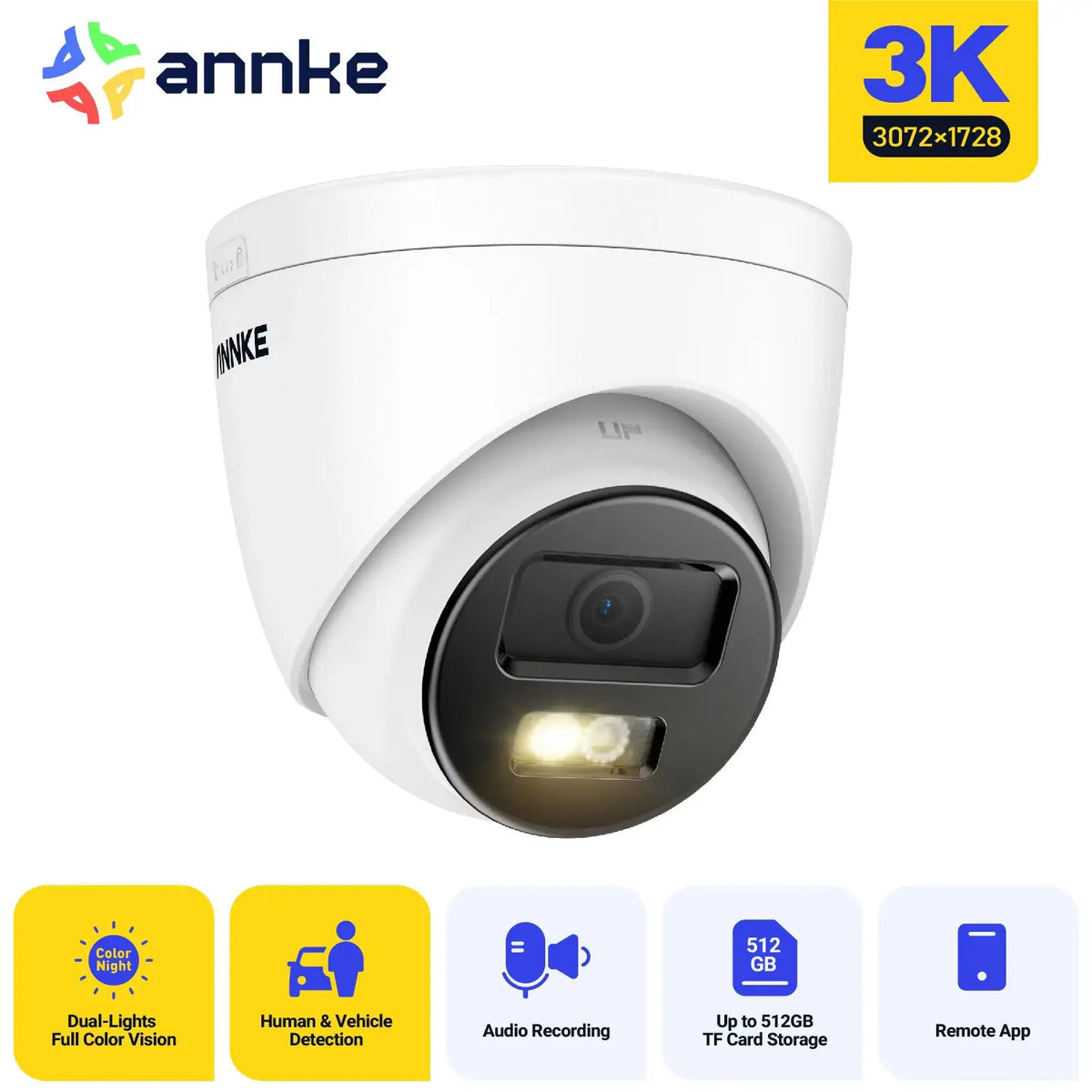

• 3K/5MP IP Camera
• Camera: Image Sensor: 1/3" Progressive Scan CMOS
• Max resolution: 3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
• Main Stream: 50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720) 60 Hz:20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
• Substream: 50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360) 60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
• Video Bitrate: 32 Kbps - 6 Mbps
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Input: Built-in Microphone, record with audio
• Lens: 2.8 mm
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Angle of View: Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
• Supplement Light Type: Smart Dual-Light, IR, White Light
• Supplement Light Range: Up to 30 m
• Motion detection 2.0: Supoort, include Human & Vehicle detection
• Image Enhancement: BLC, HLC, 3D DNR
• Wide Dynamic Range: 120 dB WDR
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• API: Open Network Video Interface Version 18.12
• Region of Interest (ROI): 1 fixed region for main stream
• Privacy Mask: 4 programmable polygon privacy masks
• General Function: Mirror,rotate,password protection, remote access
• Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• General: Housing: Metal & Plastic
• Color: White & Black
• Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB
• Hardware Reset: Yes
• Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
• Operating Temperature: -22 °F – 140 °F/-30 °C – 60 °C
• Indoor/Outdoor Use: Indoor/Outdoor
• Interface Protection: IP67
• Dimension (L X W X H): 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
• Weight: 0.6 lb./270 g

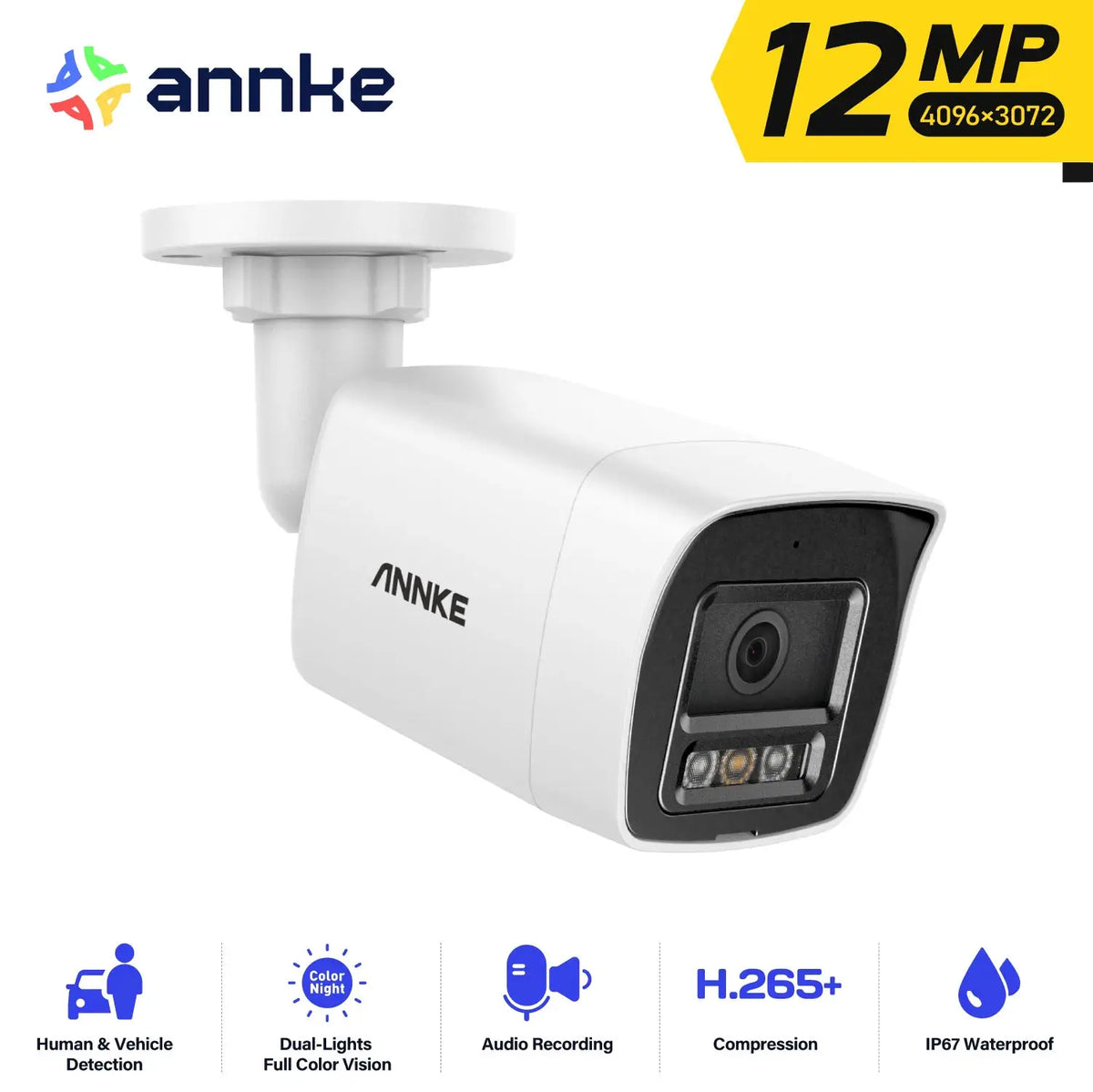

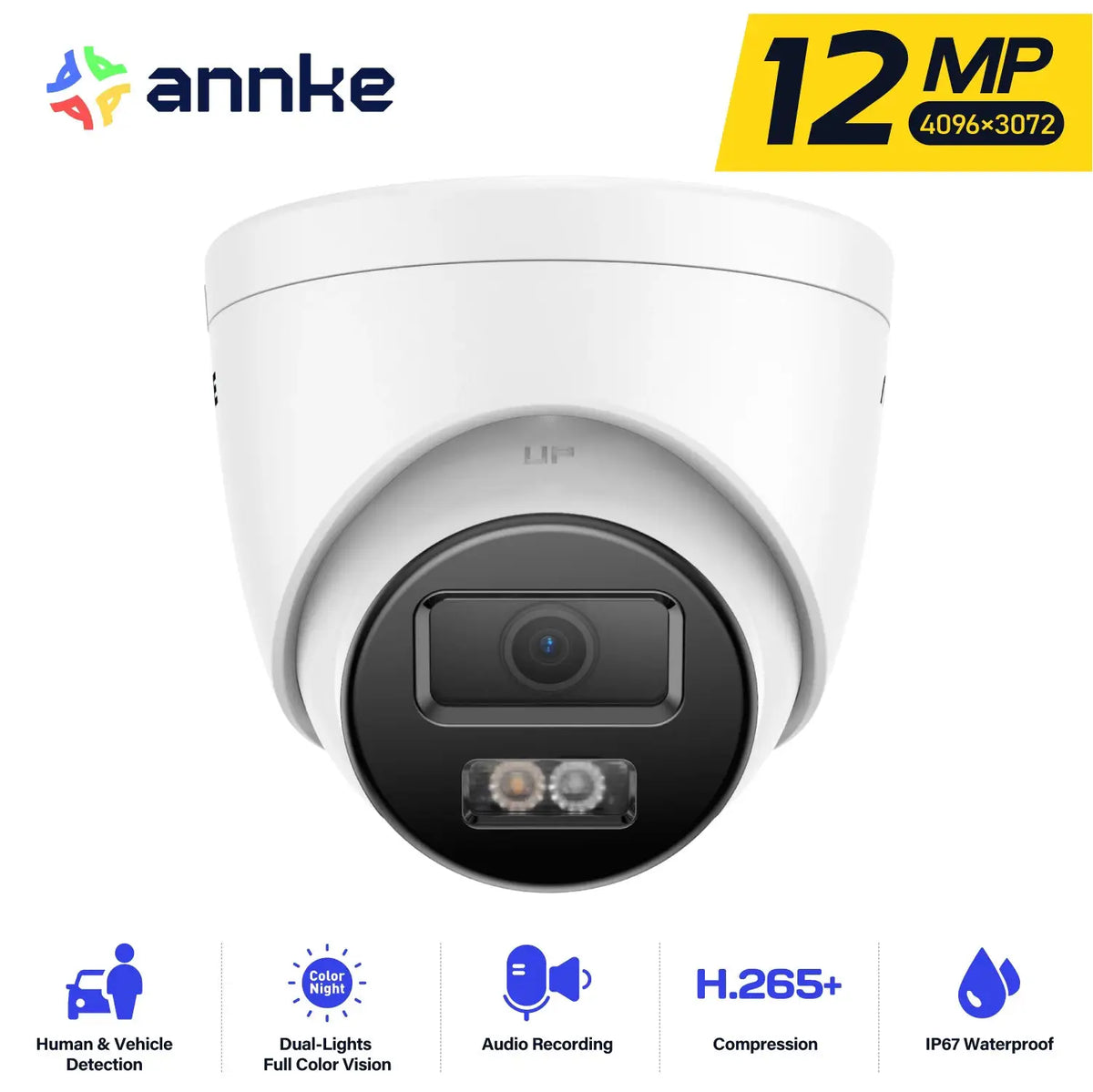

• 12MP IP Camera
• Camera: Image Sensor: 1/2.7" Progressive Scan CMOS
• Max resolution: 4096*3072(12MP)
• Main Stream: 50 Hz: 10 fps@4096*3072, 12.5 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720) 60 Hz: 10 fps@4096*3072, 15 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720)
• Substream: 50 Hz: 12.5 fps (1280*720, 640*480, 640*360) 60 Hz: 15 fps (1280*720, 640*480, 640*360)
• Video Bitrate: 32 Kbps - 16 Mbps
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
• Angle of View: Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
• API: Open Network Video Interface Version 19.12 (Profile S, Profile T, Profile G)
• General Function: Rotate mode, mirror, password protection, remote access
• Weight: 0.6 lb./285 g

Product identification: Annke 3k Camera - Dual Light Night Surveillance. Confirm model, specifications and included items for the selected variant.
