SPECIFICATIONS

Battery Included: no

Brand Name: NJTY

Certification: CE,RoHS

Choice: yes

DIY Supplies: Electrical

Dimensions: 245*90*33MM

Display Type: Digital Only

Duty Cycle: 1%-99%

High-concerned chemical: none

Measuring Capacitance Range: 6nF/60nF/600nF/6μF/60μF/600μF/6mF/100mF

Measuring Current Range: 60A/600A/1000A

Measuring Inductance Range: /

Measuring Resistance Range: 600Ω/6kΩ/60kΩ/6MΩ/60MΩ

Measuring Voltage Range: 600mV/6V/60V/600V/1000V

Model Number: 826D

Operating Temperature: 0~40°C

Origin: Mainland China

Power Supply: 2*1.5V AA Batteries (not included)

Semi-finishedproduct: No

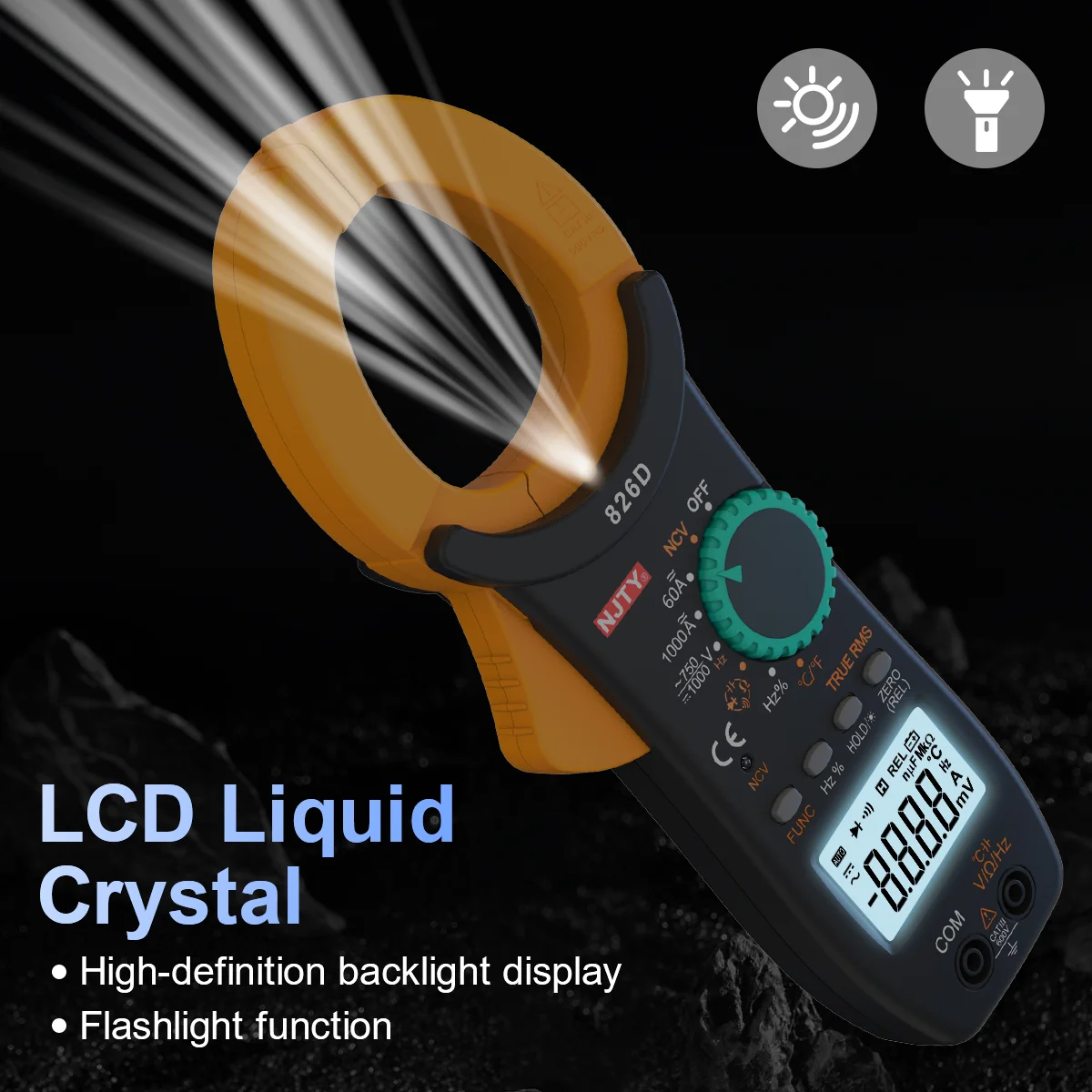

Digital Clamp Meter, AC/DC 1000A 6000 Counts Ampere Meter Measuring Current  Voltage Capacitance Resistance NCV Temperature Frequency Duty Cycle 1%-99% with A Carry Bag Professional Electrician Tools Detect Car Battery DC Current 55mm Large Jaw

Extra-Large 55mm Jaw for Industrial Applications
Massive 55mm jaw opening handles thick industrial cables, automotive battery leads, and multiple conductors simultaneously - perfect for HVAC systems and motor control panels.

Non-Invasive High-Current Measurements
Measure up to 1000A AC/DC without disconnecting circuits. Ideal for troubleshooting automotive starter systems, industrial machinery, and electrical distribution panels.

Complete Multifunction Electrical Testing
Combines voltage (1000V), current (1000A), temperature (-50°C to 1300°C)(-67°F to 2372°F) , frequency (10Hz-10MHz), and capacitance (6nF-100mF) in one professional tool.

Advanced Features for Modern Diagnostics
Duty cycle measurement (1%-99%) and low resistance testing (1-60mΩ) for precise analysis of motor controls, sensors, and electrical components.

Professional-Grade Safety & Convenience
Built-in NCV detection, auto-ranging, and rugged design meet industrial standards. Includes carrying case for complete field service readiness.

Advanced Frequency & Duty Cycle Measurement
10Hz-10MHz frequency range and 1%-99% duty cycle testing perfect for motor controls, PWM signals, and automotive computer systems diagnostics.

High-Precision Resistance & Capacitance Testing
1-60mΩ micro-resistance measurement for contact testing and 6nF-100mF capacitance range for accurate component-level circuit analysis.

Industrial-Grade Electrical Diagnostics
Measure up to 1000V AC/DC voltage and 1000A current with professional accuracy. Ideal for industrial equipment, automotive systems, and heavy-duty electrical maintenance.Ultra-Wide Temperature Range for Extreme Conditions
Unique -50°C to 1300°C (-67°F to 2372°F)capability monitors everything from freezer systems to engine exhaust and industrial furnaces with precision.

Complete Professional Features Package
Built-in NCV detection, continuity buzzer, auto-ranging, and robust construction - your all-in-one solution for field service and workshop diagnostics.

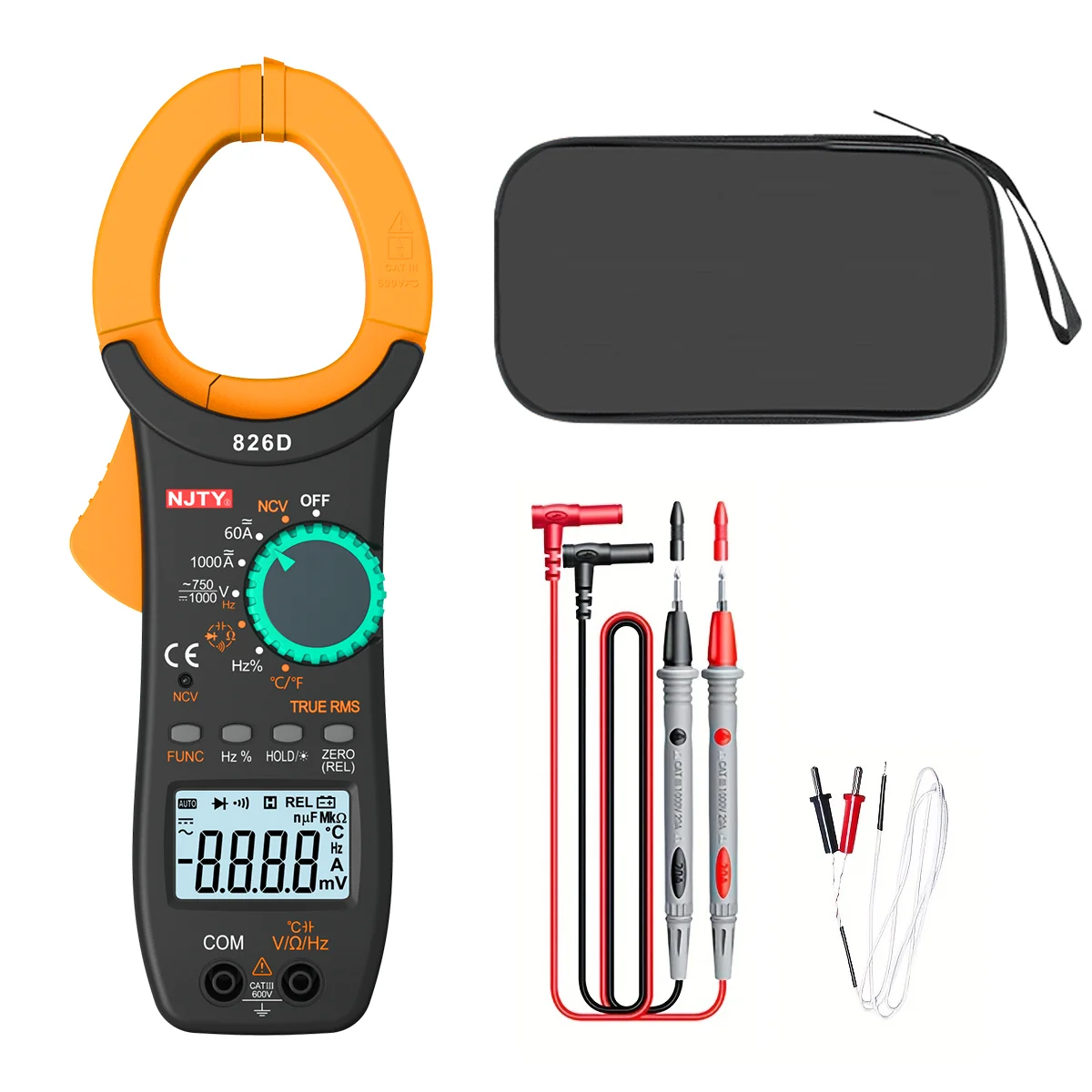

Package List: (Without Battery)

1 * Digital 826D Clamp Meter
1 * Test Probes
1 * Thermocouple
1 * User Manual

1 * Carry bag

1 * Lanyard
