Datouboss three three zero zeroW Hybrid Solar Inverter two fourV Pure Sine Wave Inverter Charger five zero zero zeroW Pv Input one two zeroA Mppt Solar Charge Controller Off Grid Wifi Monitoring Ups one zeroMs Transfer

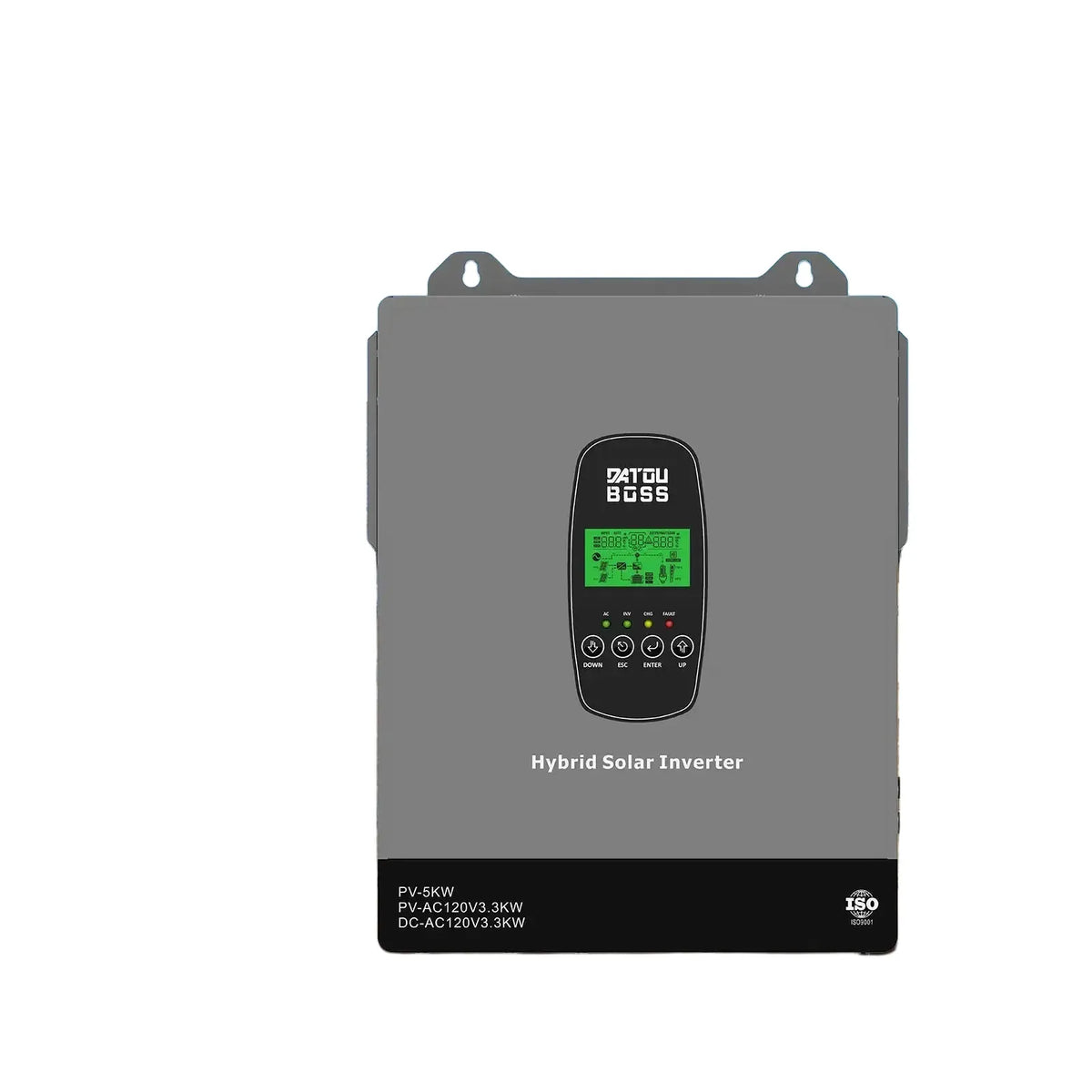

24V Hybrid Solar Power Inverter 3300W

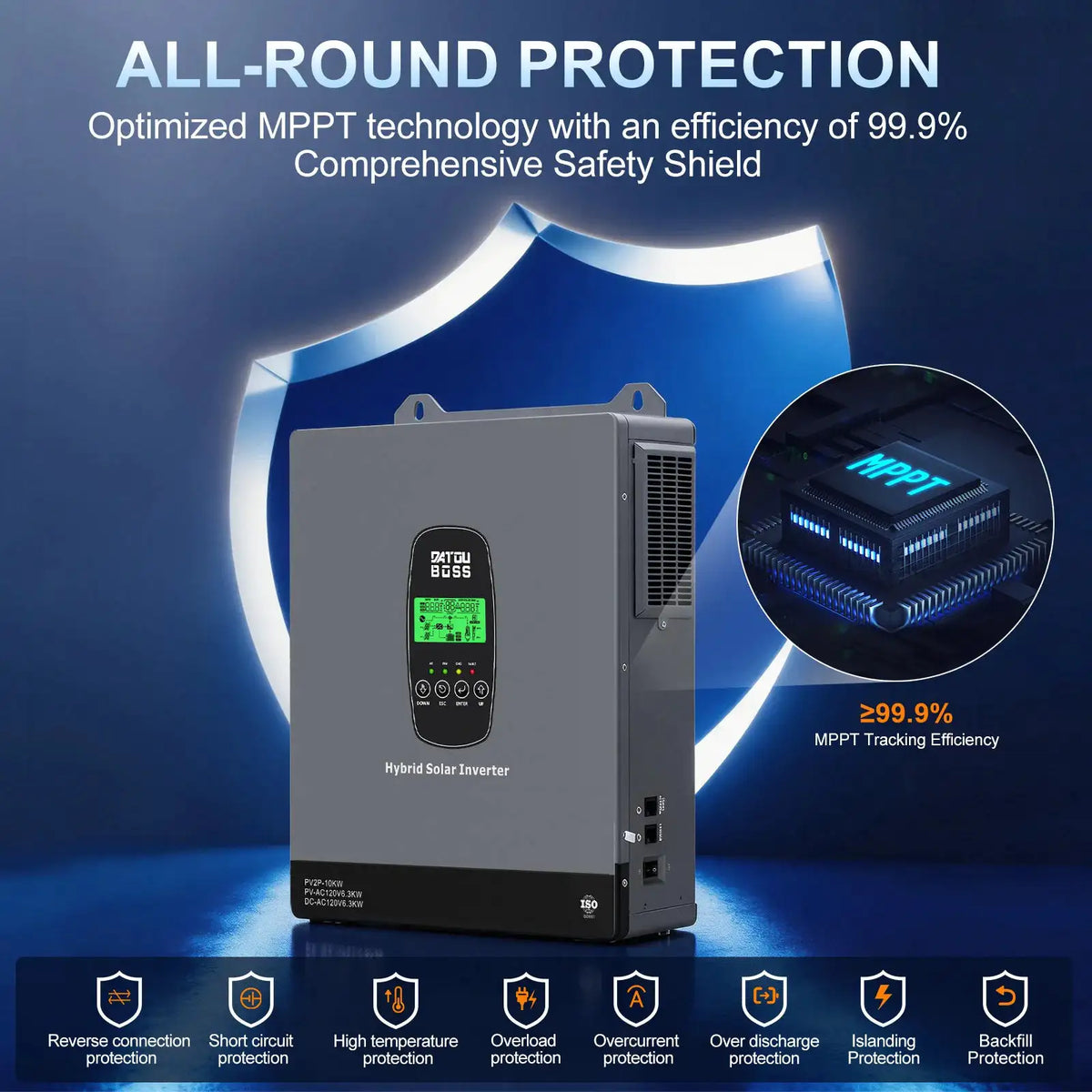

Power your home or RV with the 24V Hybrid Solar Power Inverter. 3300W pure sine wave output delivers reliable backup while ≥99.9% MPPT efficiency maximizes daily solar harvest.

Key Features

• Pure Sine Wave Output Ships clean 3300W continuous electricity to protect TVs, computers, and power tools.
• Ultra-High MPPT Tracking Captures sun energy across a wide 40V–450VDC panel range for faster battery fills.
• Instant Transfer Switch Bridges grid gaps in just 10ms so your router and security cameras never drop offline.

Product Description

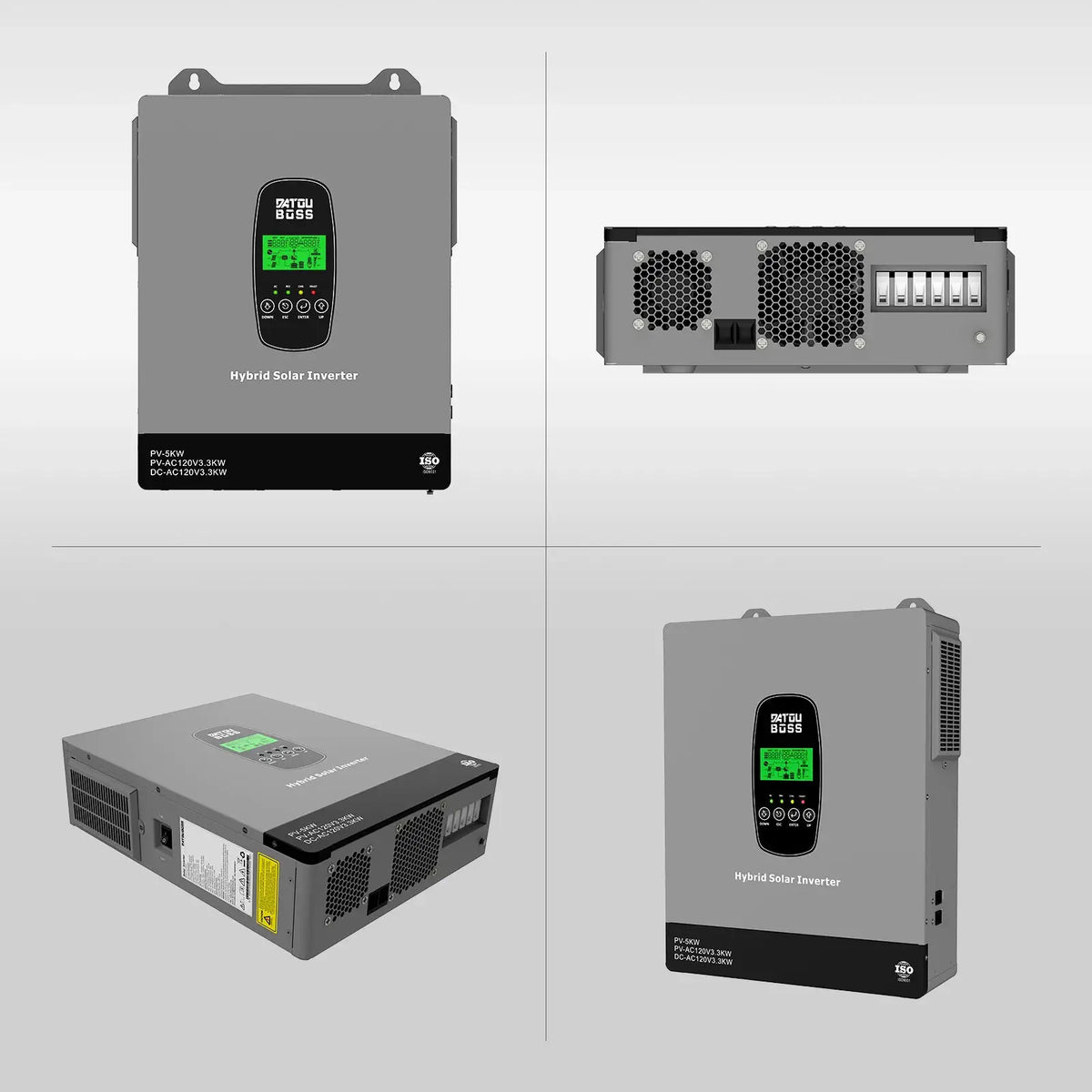

The DT2433U packs an inverter, solar controller, AC charger, and automatic transfer switch into one wall mounted chassis. Intelligent routing shifts power between batteries, sunlight, and utilities without manual tweaking. You simply plug in and let it manage your energy flow.

Product Overview

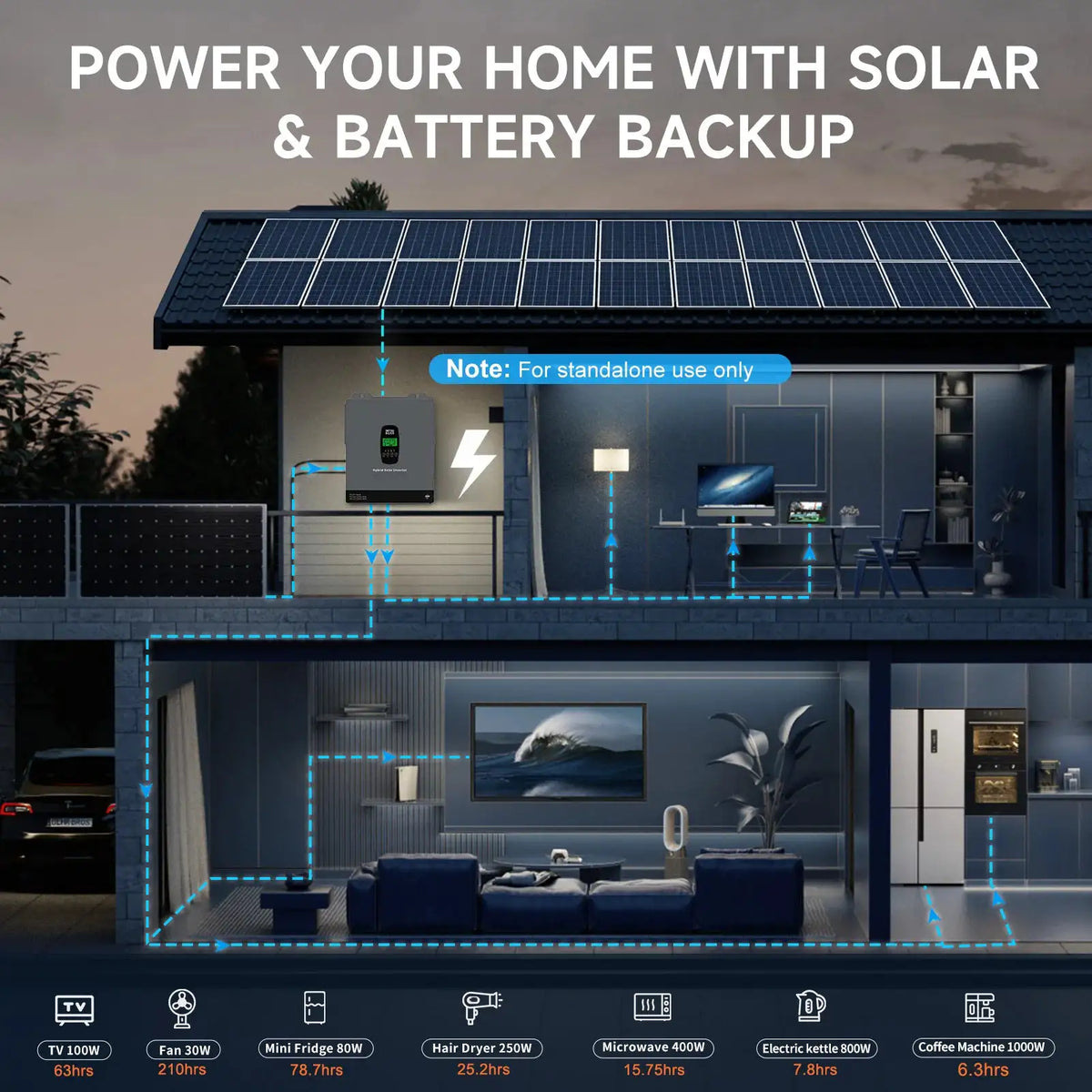

This hybrid system stores excess daytime sun for nighttime use. It swaps cleanly between grid and off grid modes so your essential loads stay powered.

Key Benefits

• Slash Monthly Bills Run heavy appliances on stored sunlight instead of peak rate grid power.
• Safeguard Sensitive Gear Prevent data loss or fried motors during sudden brownouts.

Features

• 120A Solar Charge Pushes rapid current into your battery bank for quicker recovery after cloudy days.
• 80A AC Boost Tops up reserves quickly when utility power returns.

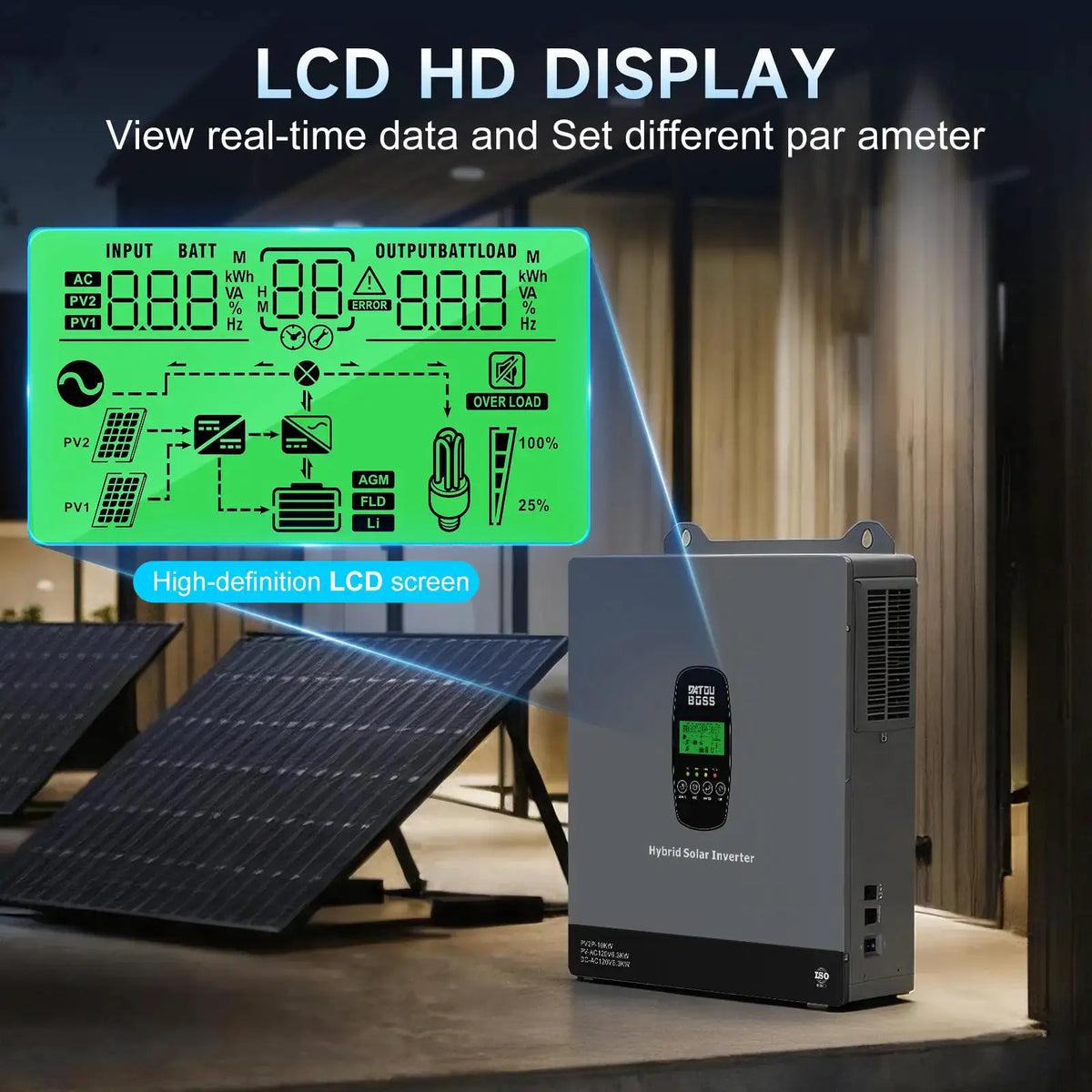

• Digital Communication Syncs with optional WiFi apps or wired RS485 links for live dashboard viewing.

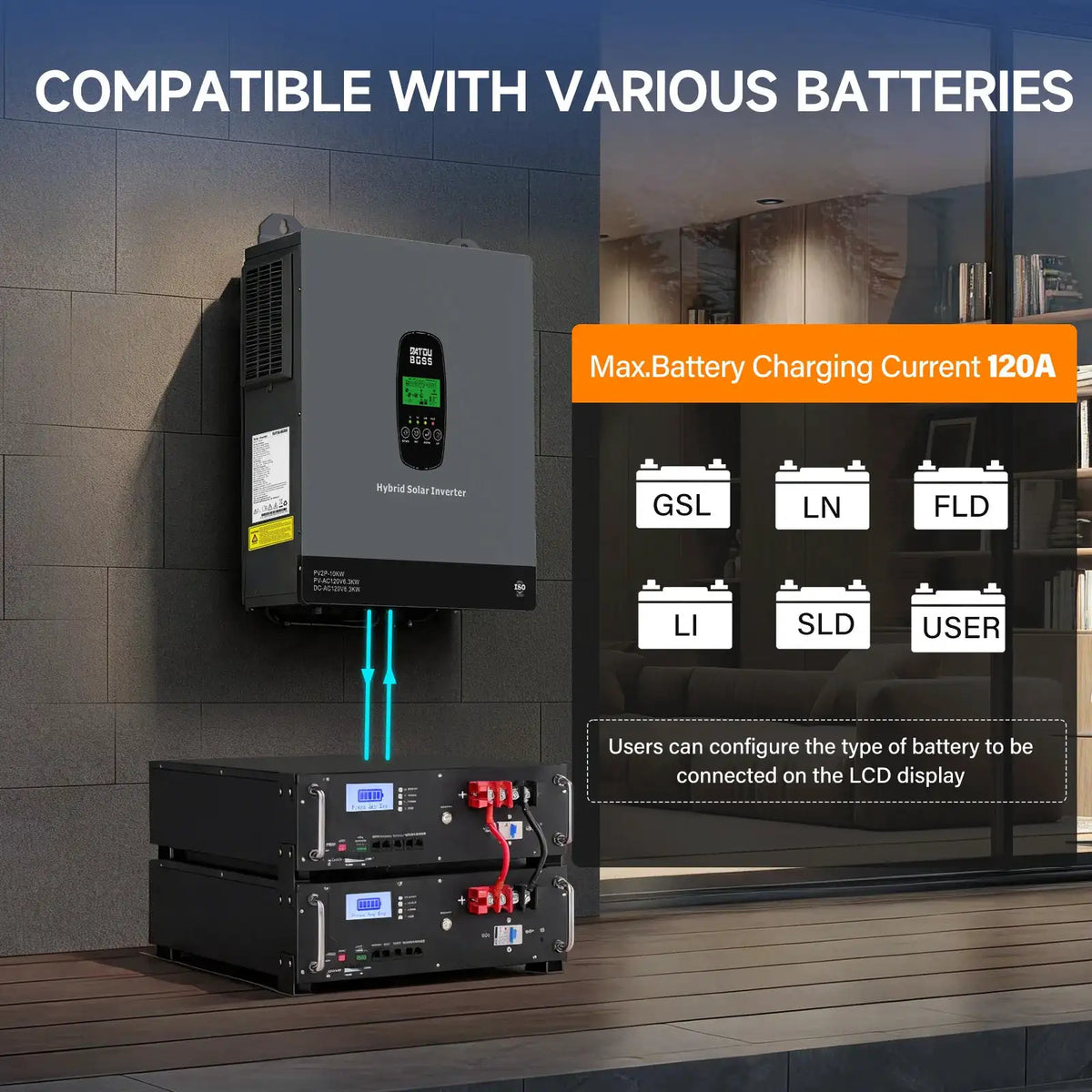

• Universal Battery Fit Pairs easily with modern lithium stacks or traditional flooded lead acid units.

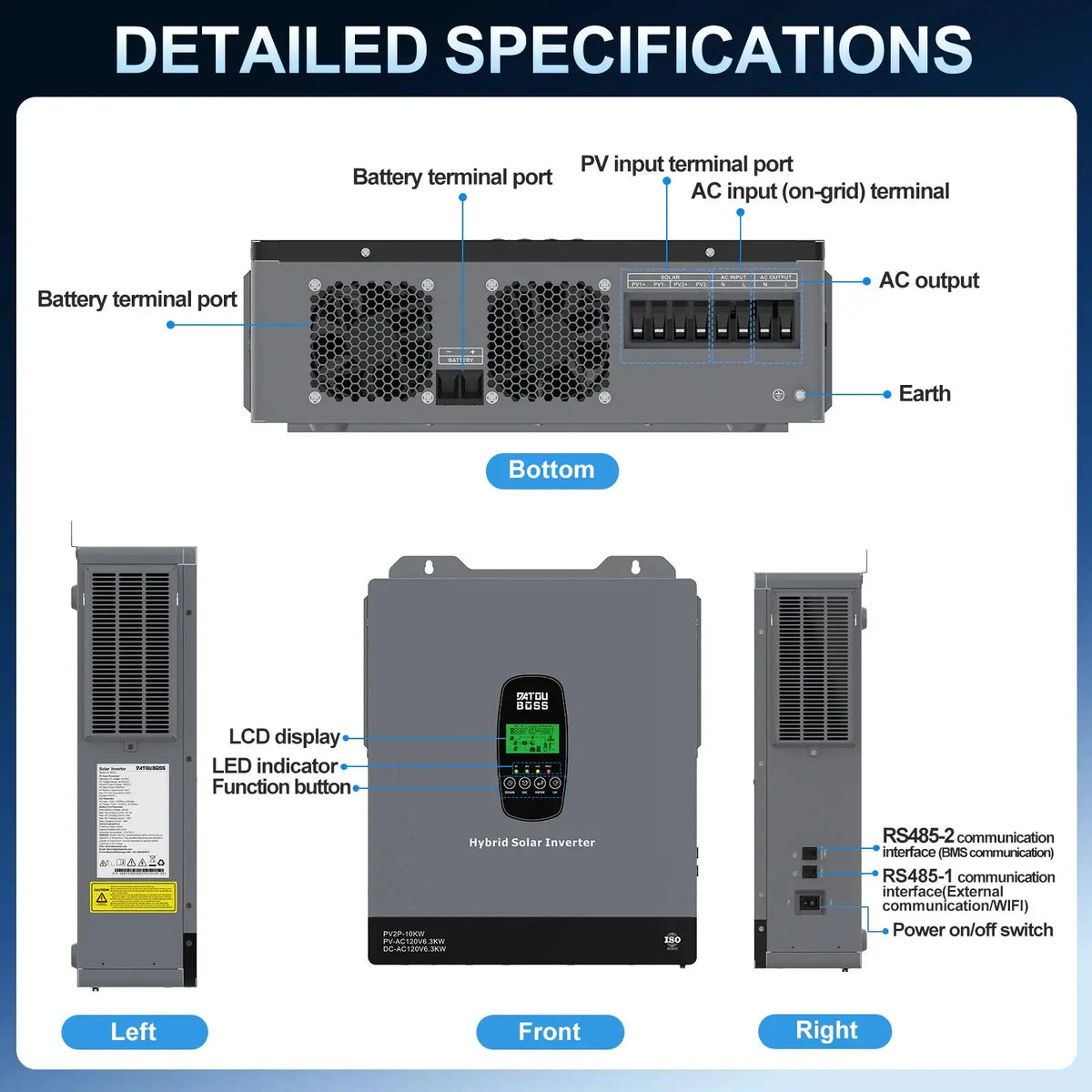

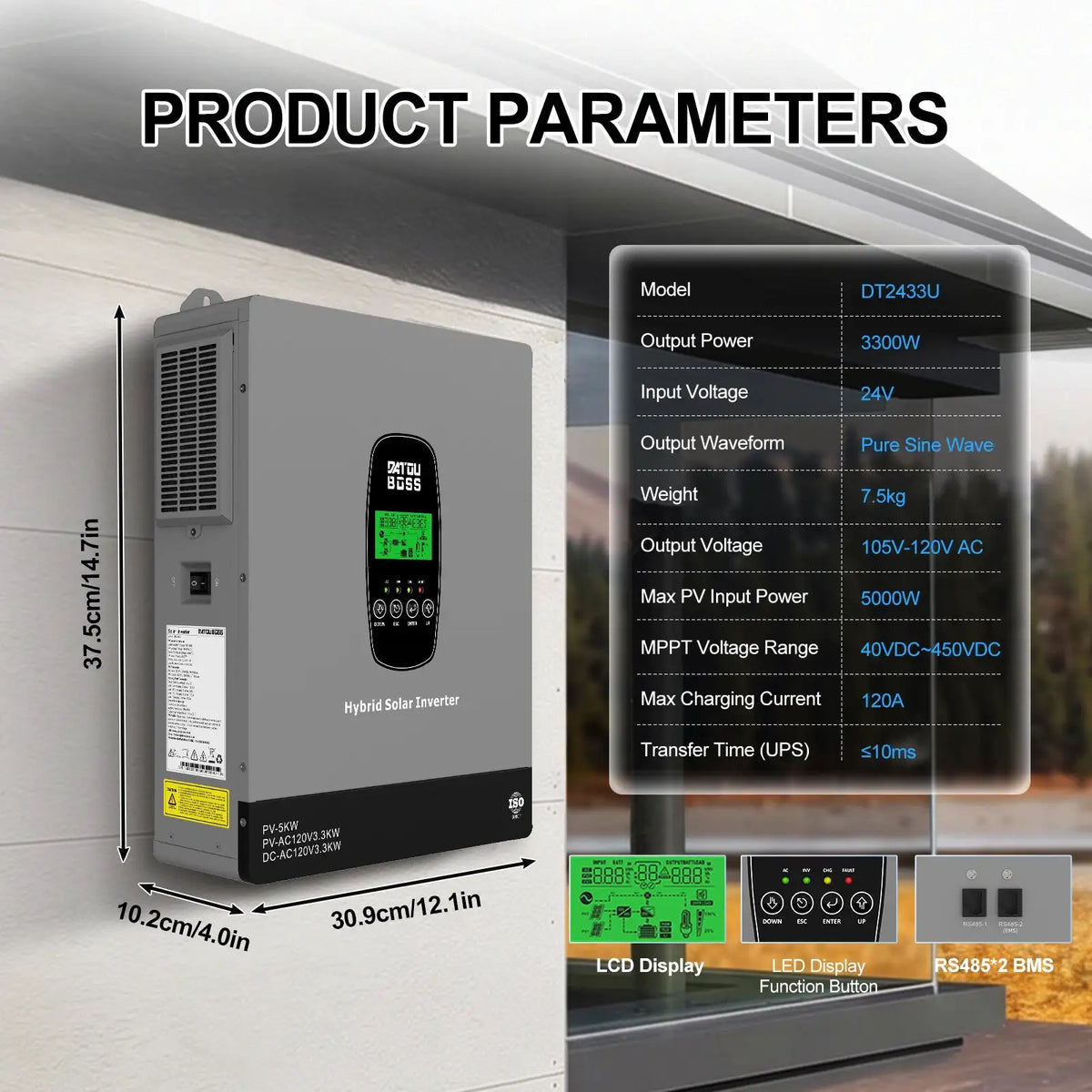

Specifications

• Nominal Voltage 24V system design.
• Peak Panel Input Handles up to 5000W at 500VDC max.
• Frequency Stable 60Hz single phase output.
• Physical Build Measures 45.0 x 35.2 x 16.7 cm. Weighs 7.5 kg.

What’s Included

Wall mount inverter, anchor bolts kit, communication cable, and printed quick start guide.

How to Use

Secure the bracket to a solid wall near your battery enclosure. Hook the DC leads to the battery first, attach your solar array to the PV ports, then connect AC loads and grid lines. Flash the WiFi dongle to log into the tracking portal and set your priority modes.

Customer Benefits

You command your own energy independence without hiring electricians for complex panel work. Smart load shedding keeps your fridge and lights running longer on limited storage.

Ideal Uses

• Residential solar storage retrofits.
• Recreational vehicle and camper electrical systems.
• Remote cabins and weekend workshops.

Who It’s For

Homeowners chasing lower bills, overlanders building mobile power hubs, and facility managers needing silent backup generators.

5 Frequently Asked Questions

Q: Will this run my refrigerator continuously?
A: Yes. The 3300W pure sine wave rating comfortably handles compressor startup surges and steady running loads.

Q: Do I need extra controllers for multiple solar strings?
A> No. The built-in MPPT tracks up to 5000W directly, so standard parallel arrays connect straight to the PV terminals.
