SPECIFICATIONS

Battery Included: no

Brand Name: NJTY

Certification: CE,RoHS

Choice: yes

DIY Supplies: Electrical

Display Type: Digital Only

High-concerned chemical: none

Measuring Capacitance Range: 60nF/600nF/6uF/60uF/600uF/6mF/100mF

Measuring Current Range: 60A/600A

Measuring Inductance Range: /

Measuring Resistance Range: 1-60MΩ

Measuring Voltage Range: 600mV/6V/60V/600V

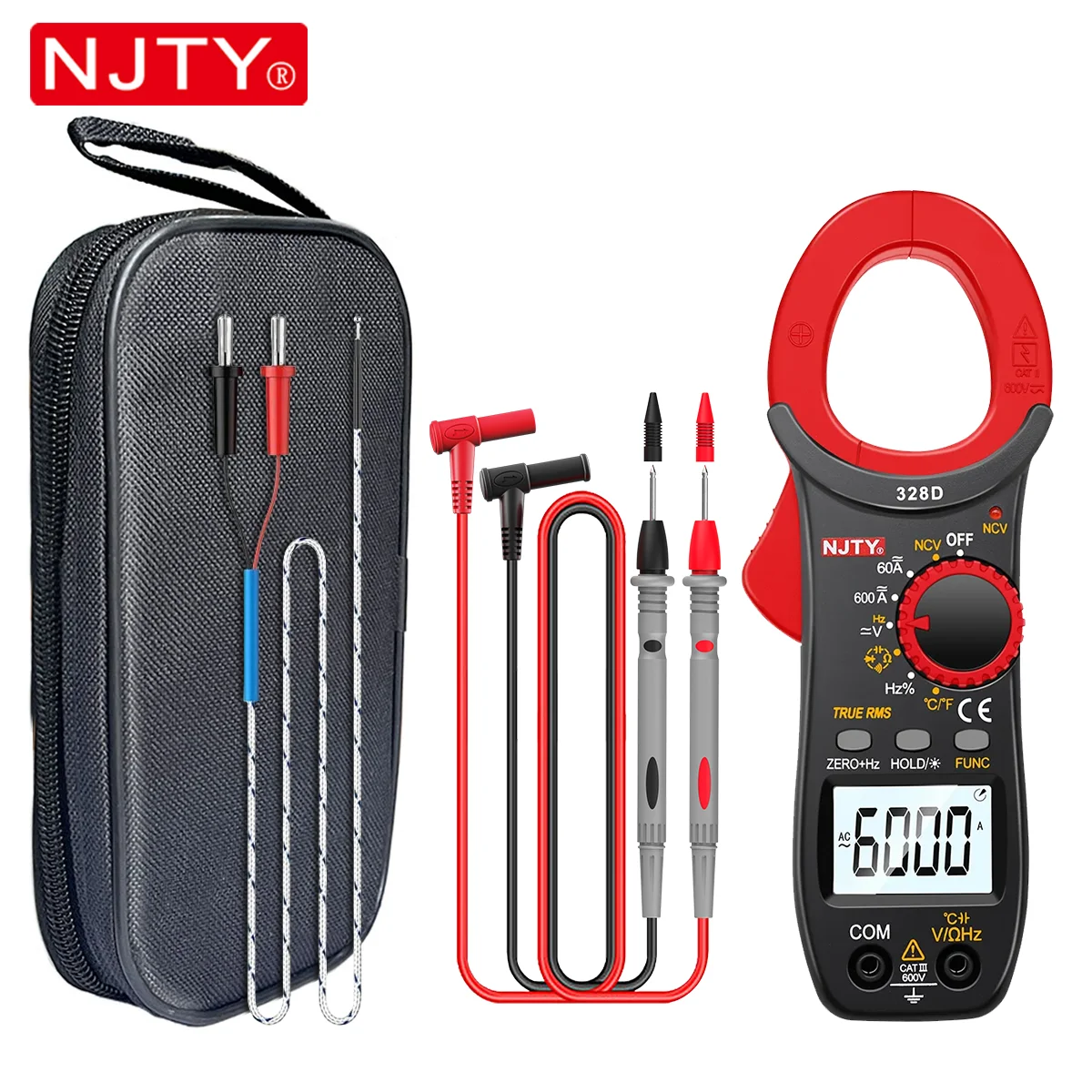

Model Number: 328D

Operating Temperature: 0 - 50 ℃

Origin: Mainland China

Semi-finishedproduct: No

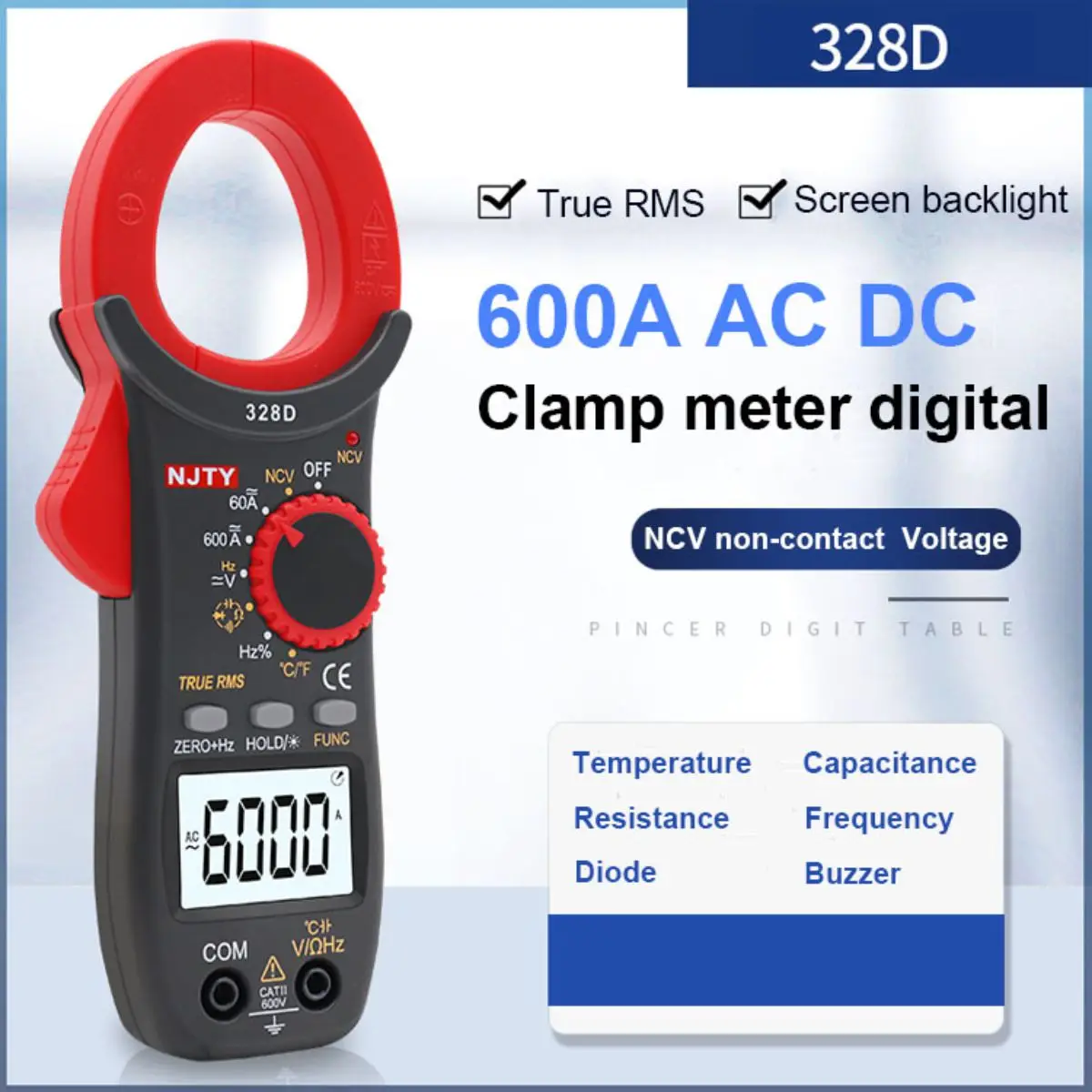

Why Choose This Clamp Meter?

For the professional who values accuracy and efficiency, this isn't just a clamp meter—it's your diagnostic partner. It eliminates the need for multiple tools by delivering True-RMS accuracy, a comprehensive feature set, and critical safety features like NCV and CAT III rating in one rugged, portable device. Stop compromising. Equip yourself with the tool that delivers reliable data and peace of mind on every job.

Technical Specifications at a Glance:

• DC Voltage: 600mV/6V/60V/600V | Accuracy: ±(0.5% +5 digits)

• AC Voltage (True RMS): 6V/60V/600V | Accuracy: ±(1.0% +4 digits)

• AC/DC Current: 60A/600A | Accuracy: ±(2.5% +3 digits)

• Resistance: 600Ω to 60MΩ

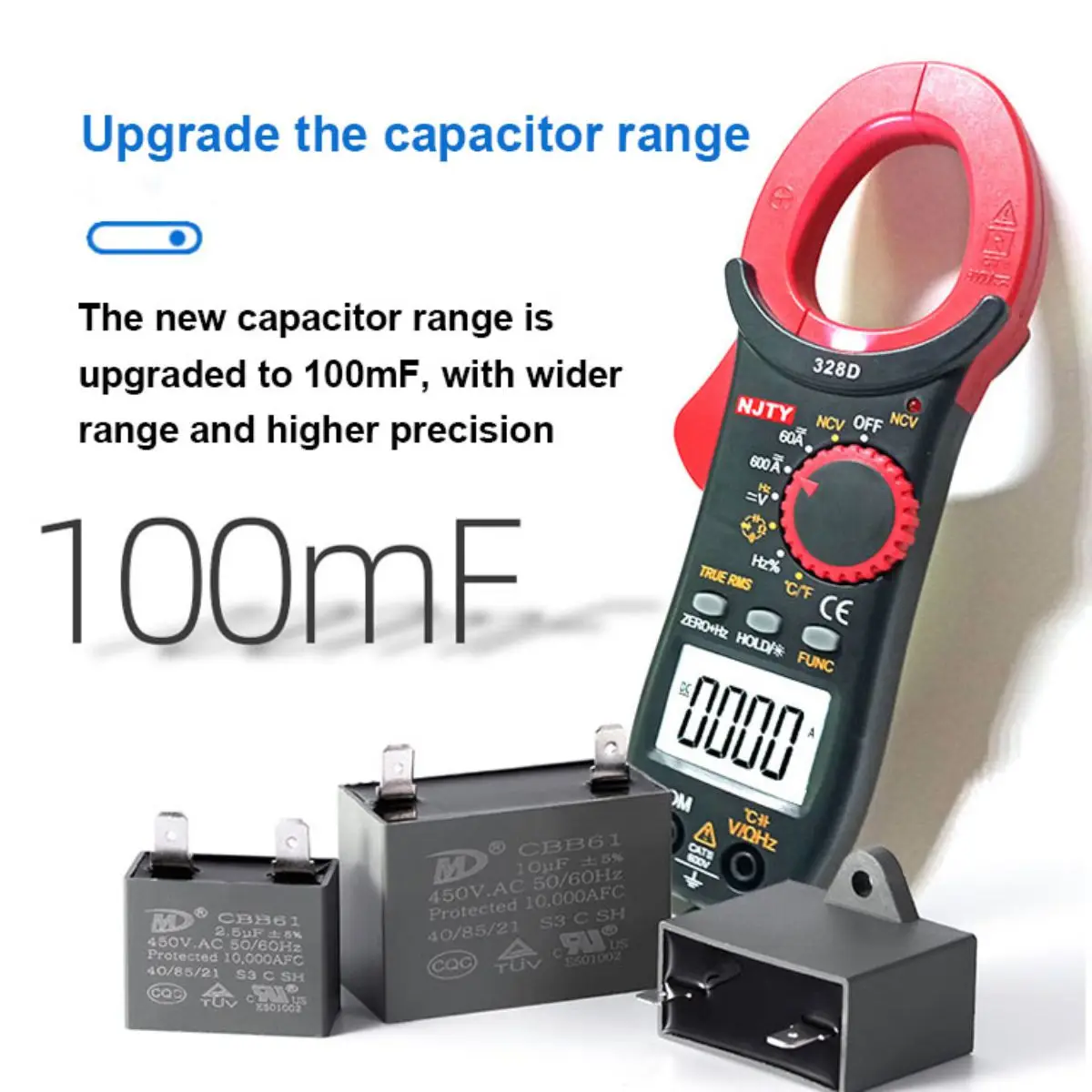

• Capacitance: 60nF to 100mF

• Frequency: 60Hz to 10MHz

• Temperature: -20°C to 1000°C (-4°F to 1832°F)

• Jaw Open Size: 25mm

• Battery: 2x AAA (not Included)

1. Tackle any job, from quick checks to complex diagnostics.

• True-RMS Accuracy: Get reliable readings on non-linear loads (VFDs, motors, modern lighting). Don't just guess—measure true power conditions.

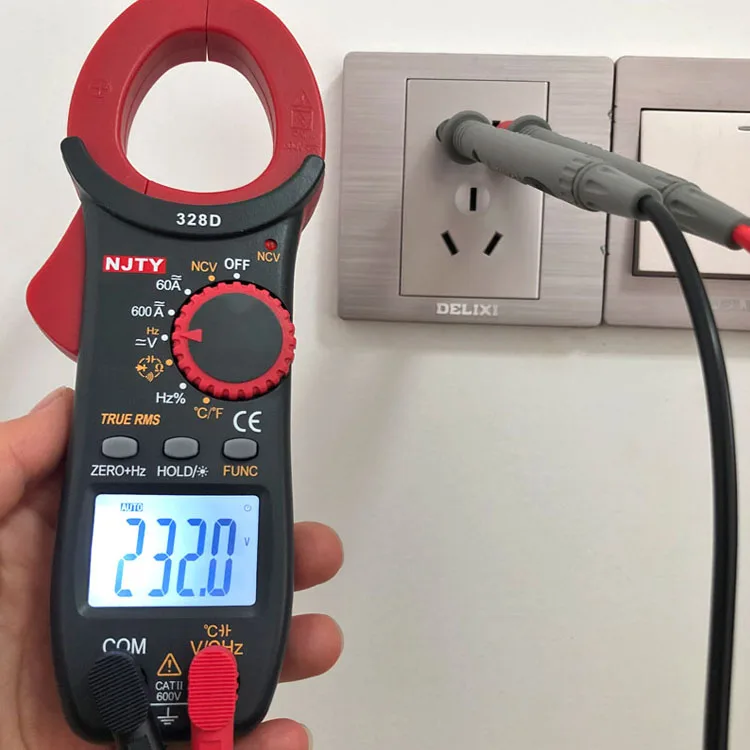

• All-in-One Measurement: Precisely measure AC/DC Voltage (up to 600V), AC/DC Current (up to 600A), Resistance, Capacitance, Frequency, Temperature, and test Diodes & Continuity.

• 25mm Jaws: Easily clamp around thick cables and bus bars.


2. See every detail with confidence, even in tough conditions.

• High-Resolution Display: The 6000-count backlit LED screen provides razor-sharp resolution, so you can see minute changes and read values in low-light environments.

• Professional-Grade Accuracy: With DC voltage accuracy as high as ±0.5%, you can trust the meter for critical troubleshooting and verification.

• Fast and Responsive: A 3 readings/second update rate keeps pace with live circuits, allowing you to spot fluctuations in real-time.

3. Work smarter and safer

• Safety Certified: Rated CAT III 600V, meeting strict international standards for working on building installation circuits.

• Non-Contact Voltage (NCV) Detection: Safely identify live wires without making contact. The warning LED flashes rapidly for voltages over 20V.

• Data Hold & Auto Power Off: Freeze the display for hard-to-reach areas and save battery life with automatic shutoff after 15 minutes of inactivity.

• Compact and Lightweight: Weighing only 165g and sized to fit in your hand, it’s the perfect companion for on-the-go technicians.

• Durable Design: Built to perform in a wide operating temperature range (0°C to 40°C).
