Annke Channel POE NVR System

Annke Channel POE NVR System

Explore the Annke Channel POE NVR System and review the specifications below to choose the configuration that fits your needs.

Capture every detail on your property in stunning 4K clarity. This ANNKE network video recorder connects sixteen ip cameras seamlessly.

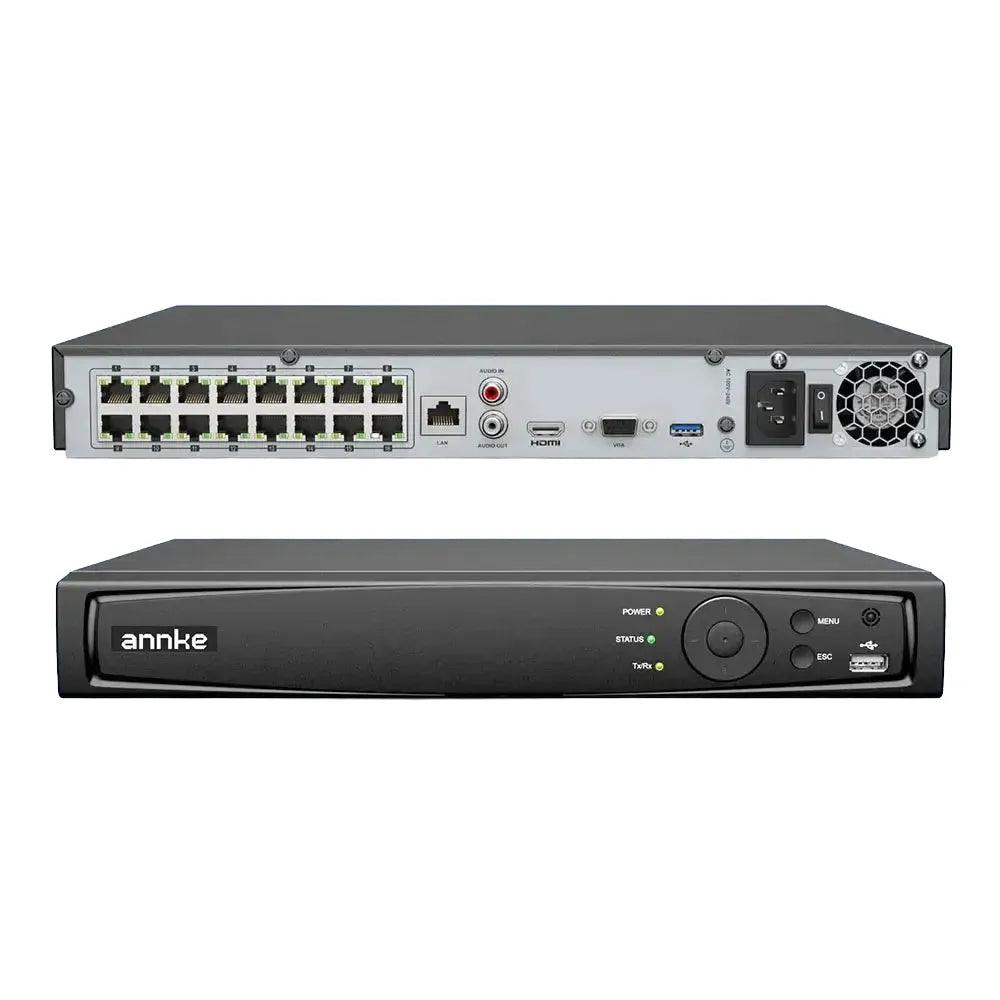

1.Annke Channel POE NVR System

AnnKe 8MP 16CH POE Video Recorder 4K H.265+ NVR For Home Surveillance Security

2. Key Features

• 16-Channel PoE Inputs Powers and connects up to sixteen compatible IP cameras directly. Removes the need for external power boxes.
• Deep Learning AI Screening Filters moving humans and vehicles across all channels. Cuts false alarms triggered by leaves or shadows.
• Dual SATA Bay Design Accepts two standard hard drives for maximum archive space. Guarantees continuous recording without gaps.

3. Product Description

Your complete surveillance command center delivers uninterrupted monitoring and crisp playback. The integrated ethernet port pushes live streams smoothly to local monitors. High definition video output shows exact details on modern displays. You regain total control over your premises with reliable day-and-night tracking. Rugged internals operate safely through seasonal temperature swings.

4. Annke Channel POE NVR System

A central management hub built for residential estates and small commercial sites. Designed for property owners and facility managers who require dependable camera grouping. Consolidates scattered feeds into one streamlined interface for rapid oversight.

5. Key Benefits

• Eliminate Unwanted Alerts Smart zone mapping ignores static backgrounds completely.
• Extend Archive Length Advanced hevc encoding shrinks file sizes without losing picture quality.
• Access Footage Anywhere Simple configuration unlocks live viewing from smartphones or tablets.

6. Features

Supports precise smart triggers like line crossing boundary entry and exit tracking logs. Records simultaneously across sixteen channels at full frame rates. Offers hybrid video outputs with hdmi reaching ultra-high resolution and vga supporting standard screens. Handles incoming data flow at 160 megabits per second for smooth multi-view watching.

7. Specifications

• Physical Dimensions Measures 15.2 inches wide by 12.4 inches deep and exactly two inches tall.
• Operating Range Functions reliably from negative ten celsius to fifty-five celsius.
• Power Draw Consumes under fifteen watts when drives and cameras are detached.
• Unit Weight Registers 6.6 pounds for stable shelf or rack positioning.

8. What’s Included

The box contains the primary nvr chassis, calibrated power brick, serial communication cable, wired mouse, installation brackets, and setup guide. Internal memory drives are excluded so you can choose your exact capacity preference.

9. How to Use

Place the unit in a dry indoor cabinet. Slide compatible hard drives into the rear slots. Plug each ip camera squarely into the numbered poe jacks. Tie the hdmi cord to your television screen. Assign static ip addresses through the onboard menu. Open the official mobile library to start reviewing archived clips remotely.

10. Customer Benefits

You keep full possession of all saved files without recurring subscription charges. Ultra-sharp playback makes spotting license plates and facial recognition effortless during review. Intelligent event tagging trims long search sessions down to targeted timestamps.

11. Ideal Uses

Suited for front yard patrols driveway access logging retail window observation warehouse corridor sweeps and gated neighborhood gate monitoring.

12. Who It’s For

Engineered for independent upgrade projects and certified installer deployments. Fits anyone scaling their protection from a basic four-camera layout up to a comprehensive sixteen-channel array.

13. 5 Frequently Asked Questions

• Will this system work with third-party security cameras? Yes, standard onvif compatible units pair effortlessly with this recorder.

• Can I upgrade the internal storage myself? Definitely, dual sata ports welcome standard 3.5 inch drives up to eight terabytes per bay.

14. Shop Now

• Professional Grade Security Systems
• AI Powered Surveillance NVRs
• 4K PoE Camera Recorders
• Wireless Free Monitoring Equipment
• Commercial Grade Alarm Solutions

Footer

• Biblical Mysteries video channel Our Videos
• Browse annke channel poe nvr system productsOurlum.com
• Explore annke channel poe nvr system collections Ourlum.com Collections
• Browse annke channel poe nvr system products Ourlum.com Best Sellers

• NVR
• Video & Audio — Video Compression — H.264+/H.264/H.265/H.265+
• IP Video Input — 16CH PoE
• Video Output — HDMI up to 4K, VGA up to 1080p
• Audio Input/Output — 1/1 RCA
• Incoming/Outgoing Bandwidth — 160/80 M
• Max. Recording Resolution — Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
• Max. Playback Resolution — Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
• Max. Playback Channel — 16CH
• Max. Playback Capacity — 1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
• Hard Drive — HDD — 2 SATA Interface
• HDD Capacity — Up to 8 TB Capacity for each disk
• External Interface — Network Interface — RJ45 X1 (10/100/1000 M)
• PoE — 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at
• USB — 2X USB 2.0
• Smart Function — Deep learning — 16-ch Human and vehicle targets detection(Need IP camera support)
• 4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP)
• Smart Event — Line crossing detection, intrusion detection, region entrance detection, region exiting detection(Need IP camera support)
• General — Operating Power — AC 100-240 V
• Power Consumption — ≤ 15 W (Without HDD and PoE)
• PoE: Max. 25.5W for Single Port
• Working Temperature — 14 °F — 131 °F/-10 °C — 55 °C
• Dimensions (W X H X D) — 15.2” X 12.4” X 2.0”/385 X 315 X 52 mm
• Weight (Without Hard Disk) — 6.6 lbs./3 kg

Before ordering the Annke Channel POE NVR System, check the selected variant, included items, and compatibility details.
