Annke Nvr Surveillance Kit

Annke Nvr Surveillance Kit

Explore the Annke Nvr Surveillance Kit and review the specifications below to choose the configuration that fits your needs.

Guard your home with the Annke 8CH 12MP POE NVR. Captures crisp 4K video, links eight cameras, streams live feeds to your phone. Protect your space daily.

• ANNKE NVR
• 4K Surveillance
• PoE Video Recorder
• 12MP Security Camera
• Remote Monitoring

1.Annke Nvr Surveillance Kit

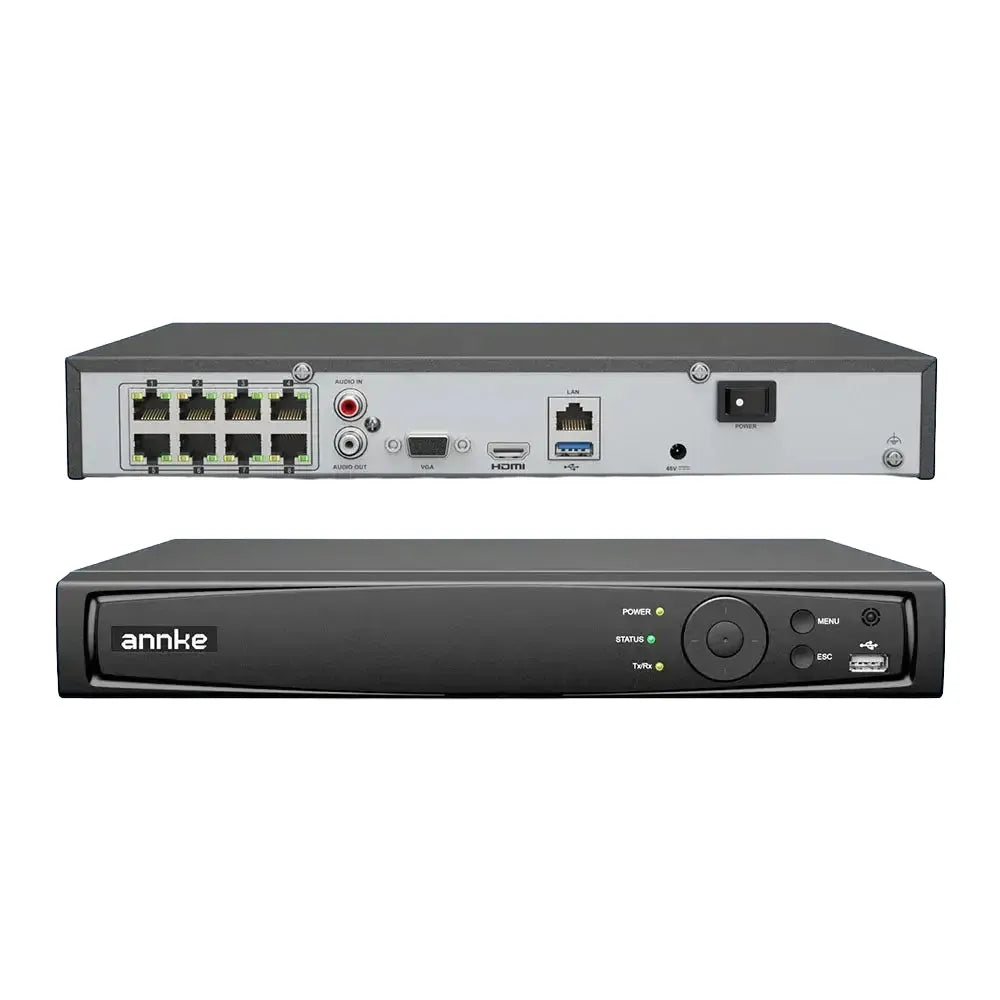

Annke 8-Channel 12MP PoE Network Video Recorder with H.265+ Compression and Integrated Hard Drive Storage

2. Key Features

• Built-in PoE Ports Plug up to eight cameras directly into the chassis without extra switches.
• H.265+ Compression Cuts bandwidth usage while preserving clear frame details.
• Smart Detection Filters human and vehicle shapes to stop unnecessary alert noise.

3. Product Description

You install this ANNKE NVR to centralize every exterior and interior lens. The 4K Surveillance engine saves massive storage space without dropping picture clarity. Pair compatible gear and the PoE Video Recorder runs quietly in the background. Access archive files on demand via 12MP Security Camera integration. Manage zones through reliable Remote Monitoring tools on your handset.

4. Annke Nvr Surveillance Kit

This network recorder unifies your entire camera layout into one accessible hub. It handles mixed resolution inputs from different brands and routes feeds straight to your local disk. You oversee everything from a single compact panel.

5. Key Benefits

Onboard deep learning removes false triggers caused by shifting shadows or stray animals. You save hours by skipping irrelevant clips. Smart event tagging keeps your most important moments front-loaded in the timeline.

6. Features

• Dual Display Outputs HDMI delivers 4K signals while VGA handles standard monitors.

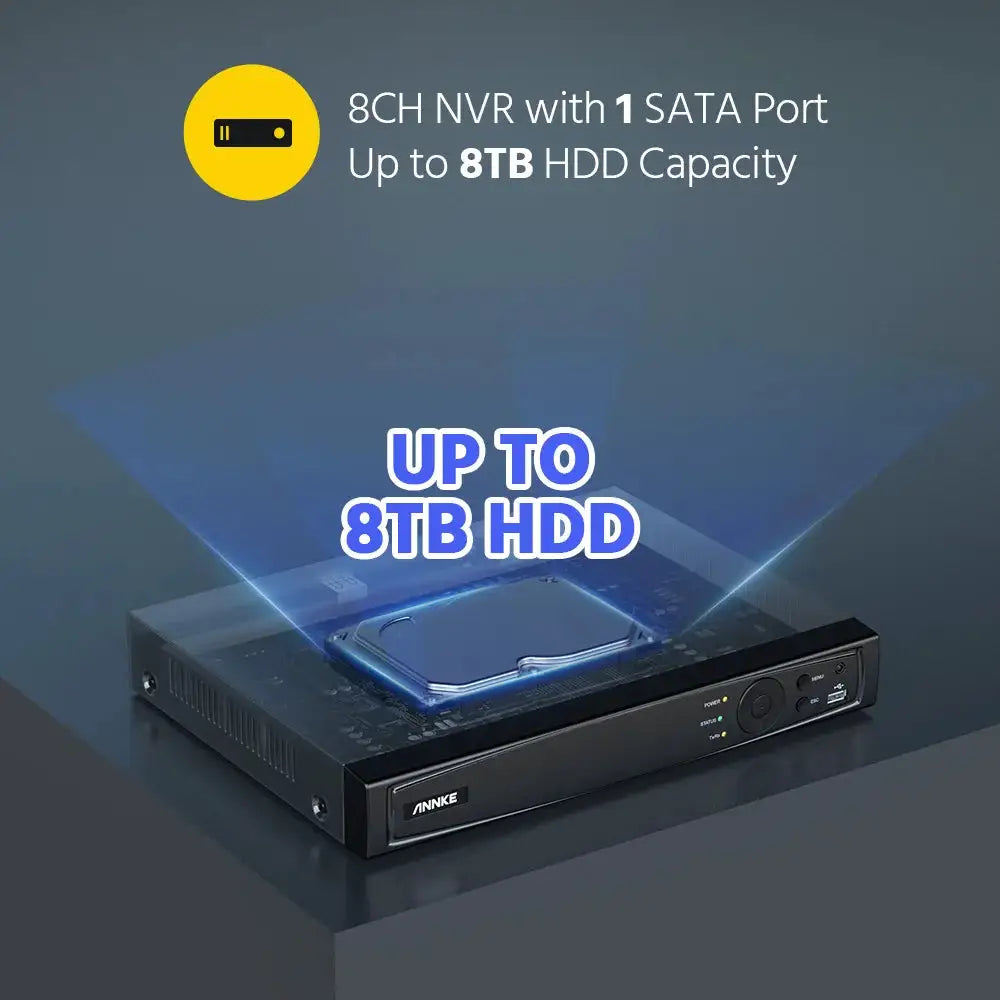

• Expandable Storage Accepts up to an 8 TB SATA drive for extended backup cycles.
• Dedicated Apps configuration lets you launch live views on iPhone or Android.

7. Specifications

Measurements sit at 12.4 inches wide, 9.4 inches tall, and 1.9 inches deep. The bare unit weighs just over two pounds. Power draws steady DC 48V with minimal heat buildup. Network throughput caps at 80 Mbps for both upload and download lanes.

8. What’s Included

• Main Recording Unit
• DC 48V Power Adapter
• Pre-Mounted 2.5 Inch Drive Space
• Mounting Hardware Pack

9. What’s Included — Items in the package.

The carton arrives ready to mount with the internal drive tray pre-slotted. You receive the matching power brick, Ethernet patch cables, and the user manual for guided walkthroughs.

10. How to Use

Attach your PoE cameras to the front RJ-45 ports and connect the HDMI cable to your display. Open the network settings to assign unique IP addresses. Download the Annke Vision app, scan the QR code, and enable motion alerts for coverage.

11. Customer Benefits

Sharp edge rendering captures license plates and facial features without grain. Rapid scrubbing jumps straight to flagged timeframes. Straightforward menus erase complex technical hurdles during initial wiring.

12. Ideal Uses

Line perimeter fences with linked units to catch trespassers before they cross thresholds. Small retailers can track staff movements and shelf restocking patterns throughout busy weekends.

13. Who It’s For

Residential owners upgrading from analog systems will love the plug-and-play PoE design. Commercial floor managers needing precise incident tracking will rely on the dedicated filtering routines.

14. 5 Frequently Asked Questions

• Does the system record without internet connectivity? Verified operation confirms yes, local drives handle continuous loops offline.
• Can I expand this setup with brand new lenses later? Confirmed expansion works, the protocol supports ONVIF standards for broader additions.

• NVR
• Video & Audio — Decoding Format — H.264+/H.264/H.265/H.265+
• IP Video Input — 8CH PoE
• Video Output — HDMI up to 4K (4096 × 2160), VGA up to 1080p(1920 × 1080)
• Audio Input/Output — 1/1 RCA
• Incoming/outgoing Bandwidth — 80/80 Mbps
• Max Recording Resolution — Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
• Max Playback Resolution — Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
• Max Playback Channel — 8CH
• Max Playback Capacity — 1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
• Hard Drive — HDD — 1 SATA Interface
• HDD Capacity — Up to 8 TB Capacity
• External Interface — Network Interface — 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
• PoE — 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at
• USB interface — USB 2.0*2
• Smart Function — Deep learning — 8-ch Human and vehicle targets detection(Need IP camera support)
• 4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP)
• Smart Event — Line crossing detection, intrusion detection, region entrance detection, region exiting detection(Need IP camera support)
• General — Operating Power — DC 48 V
• Power Consumption — ≤ 10 W (Without HDD and PoE)
• PoE: Max 25.5 W for Single Port
• Working Temperature — 14 °F ~ 131 °F/-10 °C ~+55 °C
• Dimensions (W X H X D) — 12.4” X 9.4” X 1.9”/315 X 240 X 48 mm
• Weight (Without Hard Disk) — 2.2 lbs/1 kg

Before ordering the Annke Nvr Surveillance Kit, check the selected variant, included items, and compatibility details.
