SPECIFICATIONS

Auto Power Off: After 15 minutes of inactivity

Battery Included: no

Brand Name: HYTAIS

Certification: CE,RoHS

Choice: yes

DIY Supplies: Electrical

Display: 6000 counts

Display Type: Digital Only

Frequency: 10Hz ~ 20kHz

High-concerned chemical: none

Measuring Capacitance Range: 0.1nF-60mF

Measuring Current Range: 0.10A-600A/0.10A-600A

Measuring Resistance Range: 0.1Ω-60MΩ

Measuring Voltage Range: 0.1MV-600V

Model Number: TS-18D

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Semi-finishedproduct: No

temp: -50℃ ~ 1000℃ (-58℉ ~ 1832℉)

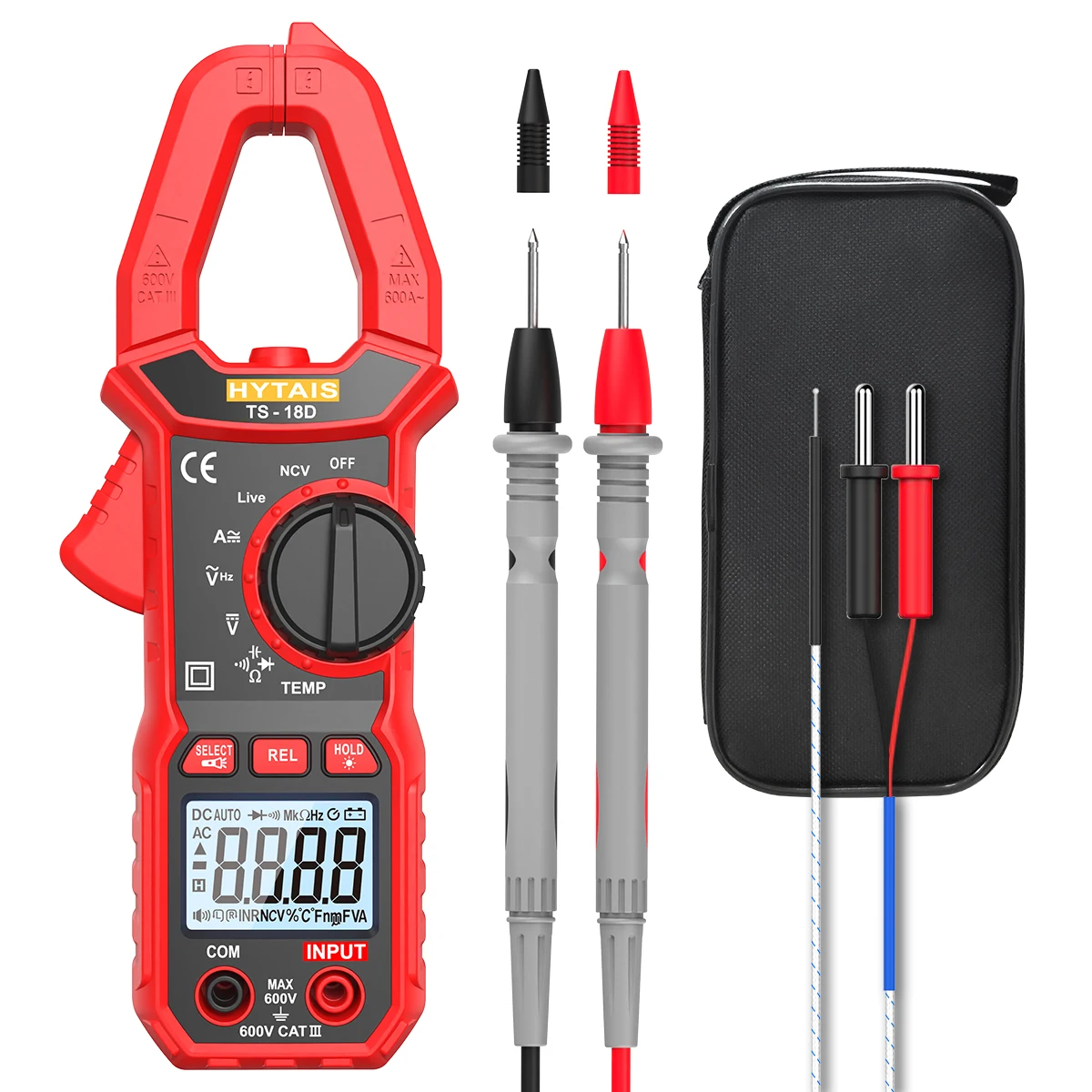

HYTAIS TS18D True RMS 6000 Counts Digital Clamp Meter Multimeter Auto Ranging AC DC Current Clamp Tester Voltage Capacitance Resistance Frequency Temperature Diode Continuity NCV Non Contact Voltage Detection Live Wire Identification Data Hold Backlight Flashlight

Product Parameters

• Model: TS18D

• Display: 6000 counts, large LCD with backlight and flashlight

• Jaw Opening: 27 mm (1.02 inches) for conductors up to that diameter

• Power Supply: 2 × 1.5V AAA batteries (not included)

• Auto Power Off: After 15 minutes of inactivity

• Safety Rating: CAT III 600V, double insulation

• Overload Protection: 600V full‑range protection

• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)

• Storage Temperature: -10°C ~ 60°C (14°F ~ 140°F)

• Relative Humidity: <80% (non‑condensing)

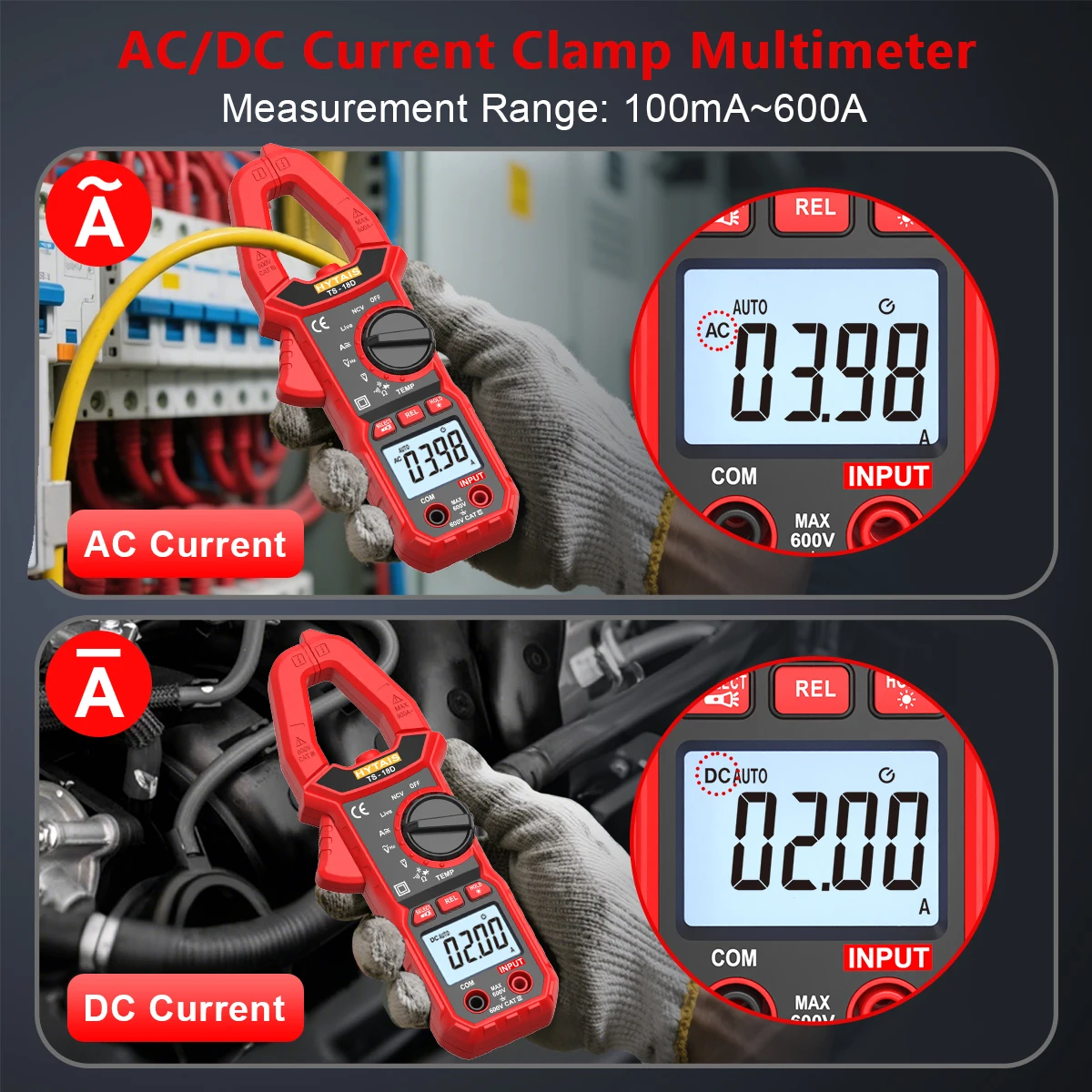

• AC Current (ACA): Range 0.10A ~ 600A, Accuracy ±(2.5% + 10)

• DC Current (DCA): Range 0.10A ~ 600A, Accuracy ±(2.5% + 15)

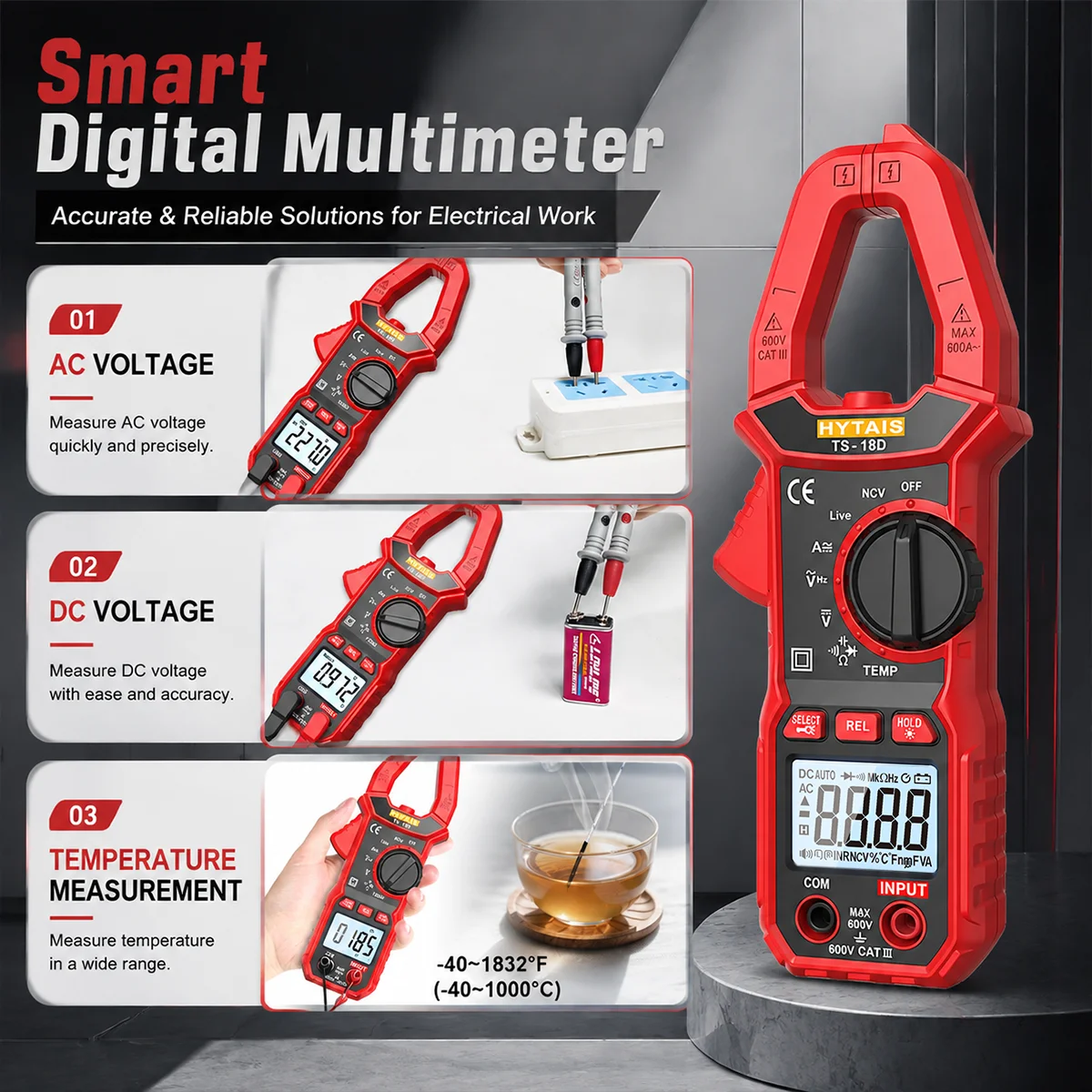

• AC Voltage (ACV): Range 0.010V ~ 600V, Accuracy ±(1.0% + 5)

• DC Voltage (DCV): Range 0.1mV ~ 600V, Accuracy ±(0.8% + 5)

• Frequency: Range 10Hz ~ 20kHz, Accuracy ±(0.1% + 5)

• Capacitance: Range 0.1nF ~ 60mF, Accuracy ±(4.0% + 5)

• Resistance: Range 0.1Ω ~ 60MΩ, Accuracy ±(0.8% + 5)

• Temperature: Range -50°C ~ 1000°C (-58°F ~ 1832°F) – thermocouple type K (typical)

Product Features

1.True RMS Measurement – Delivers accurate readings even on non linear loads and distorted waveforms, outperforming average responding meters in complex electrical environments.

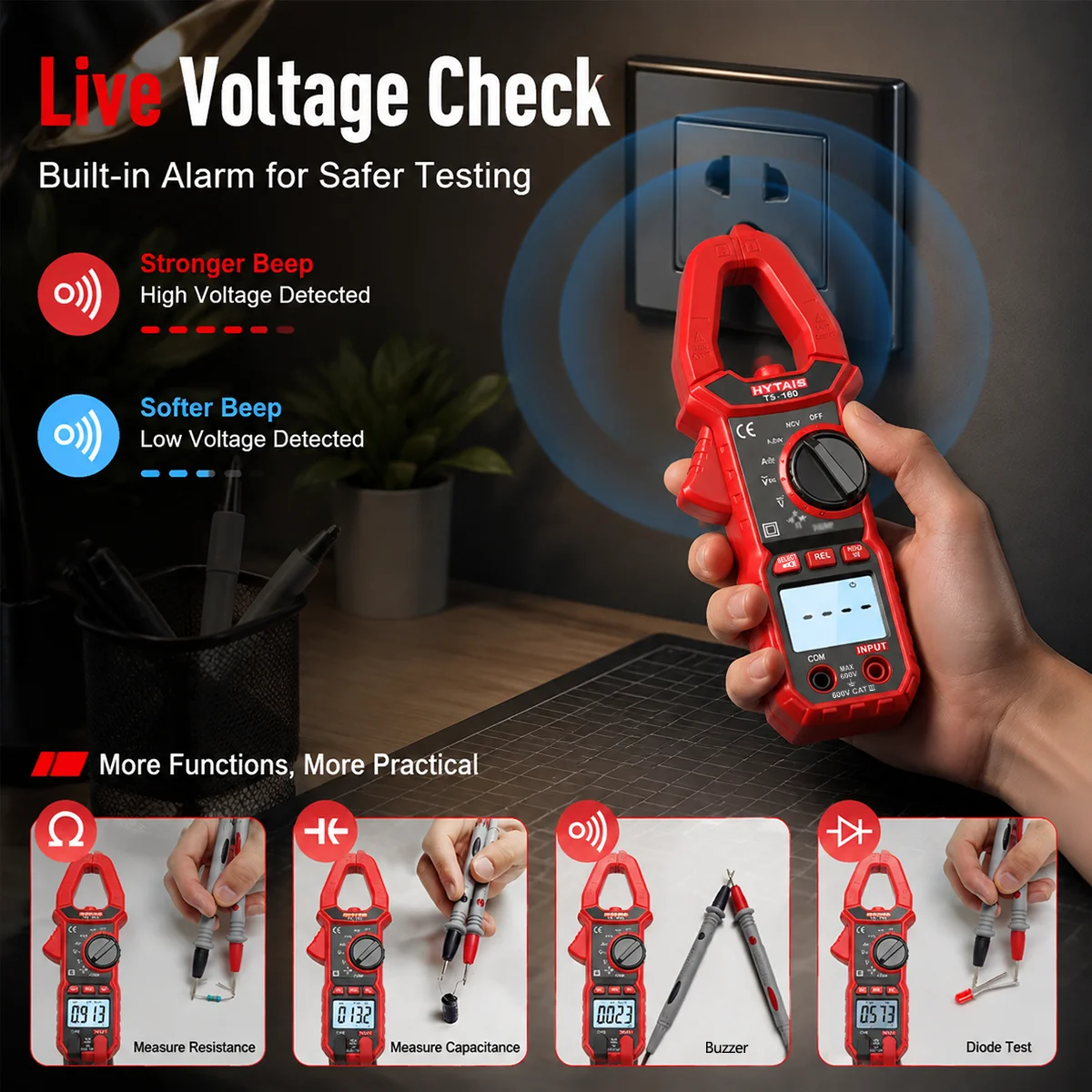

2.Non Contact Voltage (NCV) Detection – Safely senses AC voltage without touching bare wires. Place the jaw 8 15mm from the object; the display segments and buzzer indicate field strength in four levels.

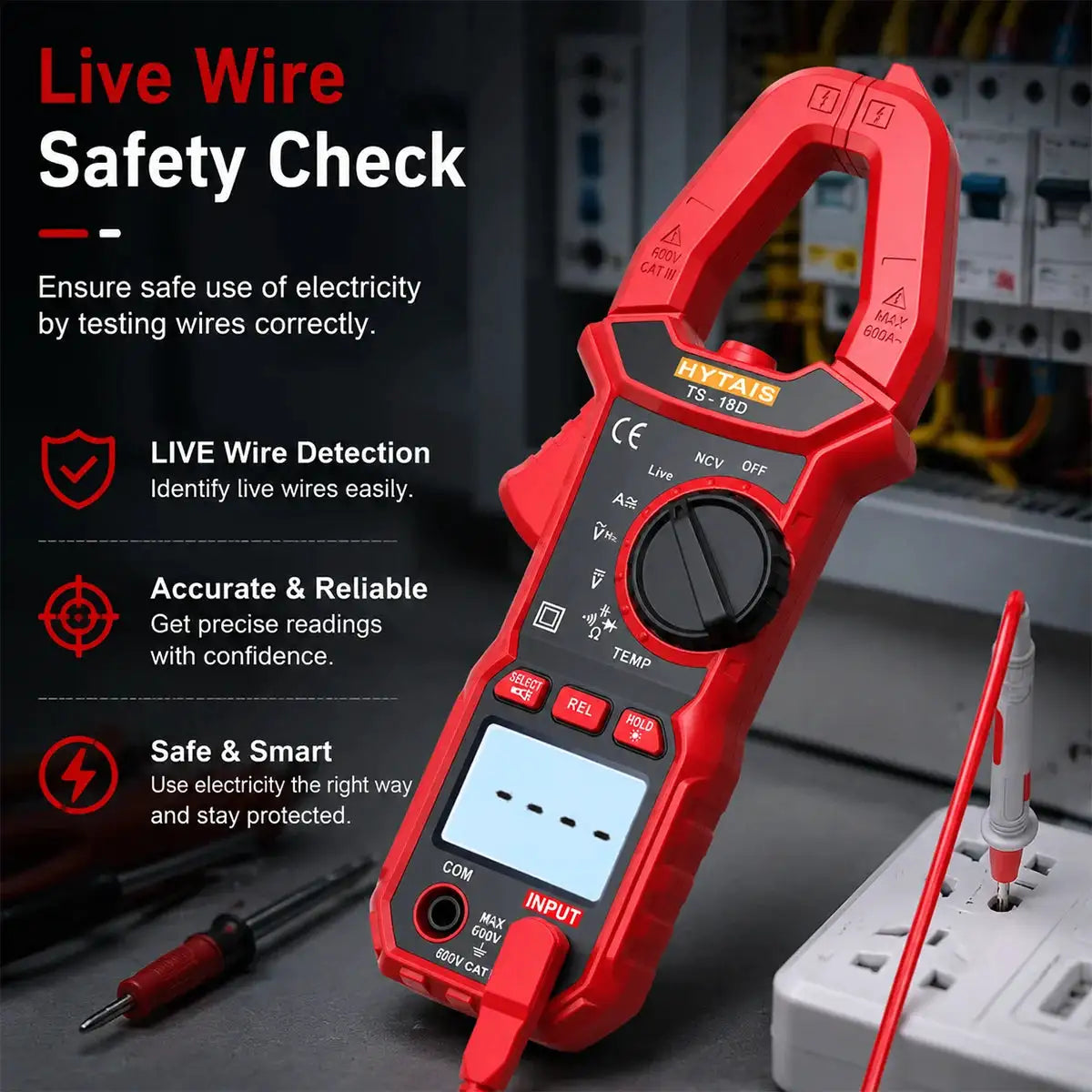

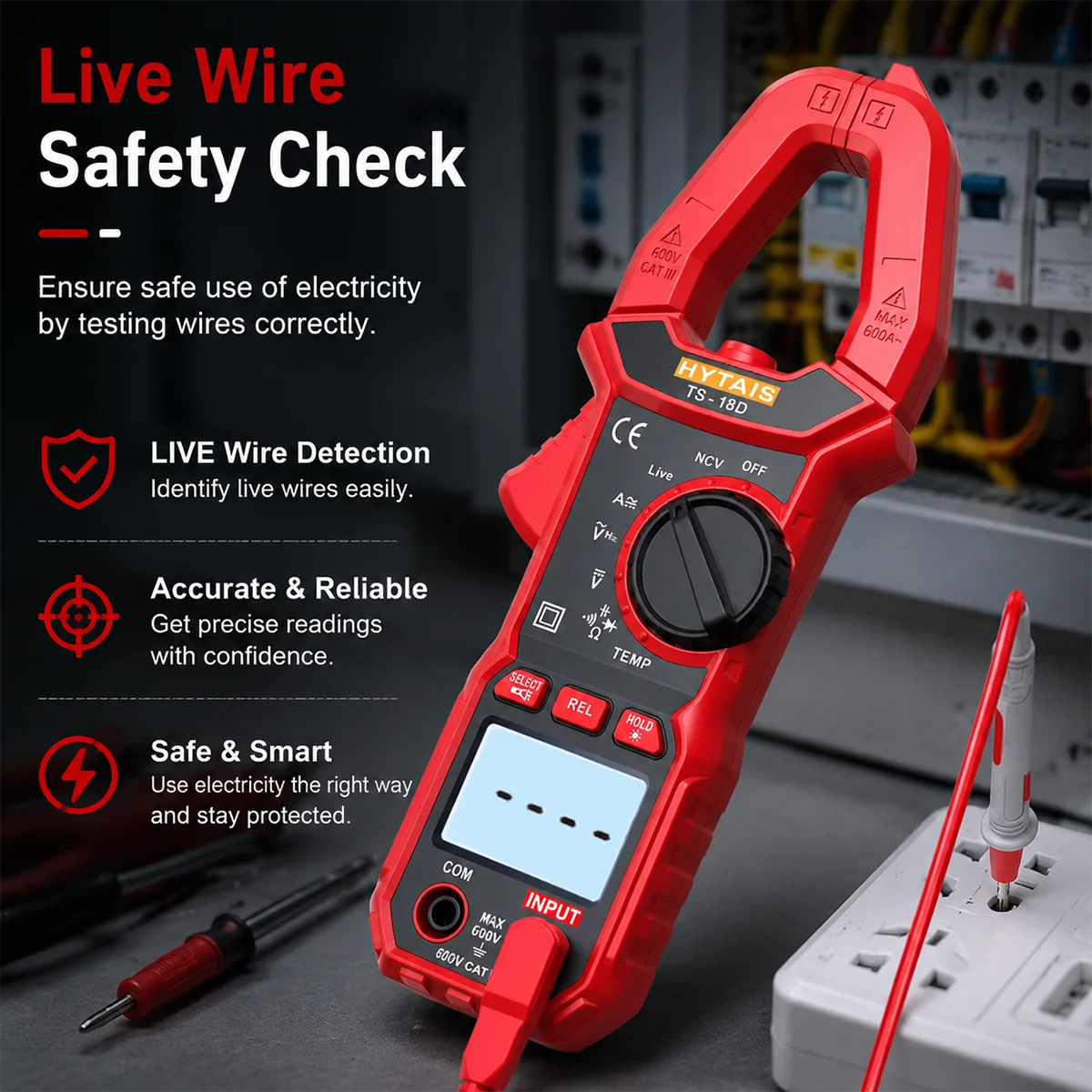

3.Live Wire Identification – Quickly tells live from neutral. Touch the red probe to a wire; a discontinuous beep and “ H” on the screen indicate live, while no sound and “LIVE” show neutral – adds safety during troubleshooting.

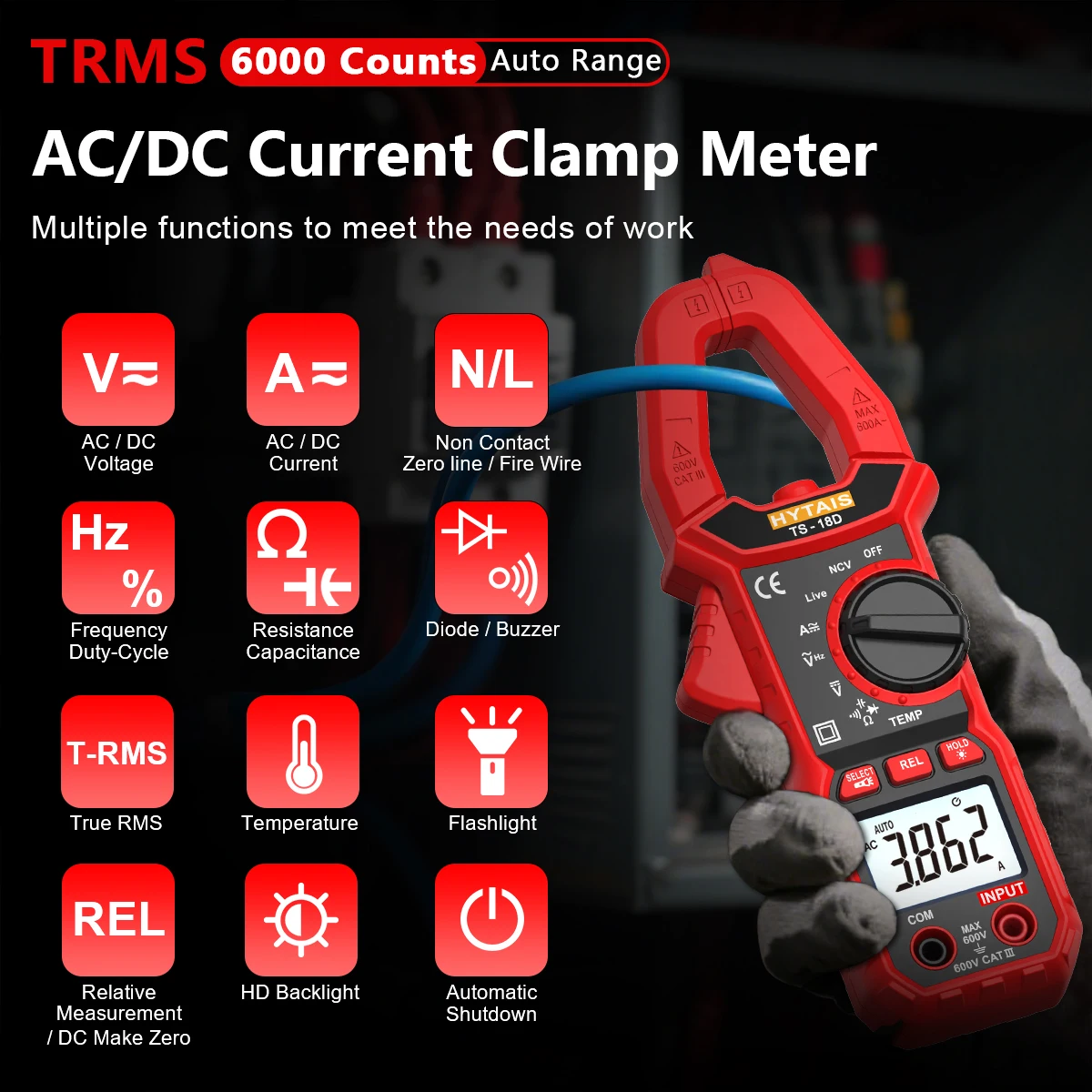

4.Comprehensive 8 in 1 Measurement Capabilities – One tool covers AC/DC current (up to 600A), AC/DC voltage (up to 600V), resistance (up to 60MΩ), capacitance (up to 60mF), frequency (10Hz 20kHz), temperature ( 50℃ to 1000℃ via thermocouple), diode test, and continuity buzzer (<50Ω triggers sound).

5.Auto Ranging Operation – The meter intelligently selects the correct range for each measurement, making it extremely user friendly for both professionals and beginners.

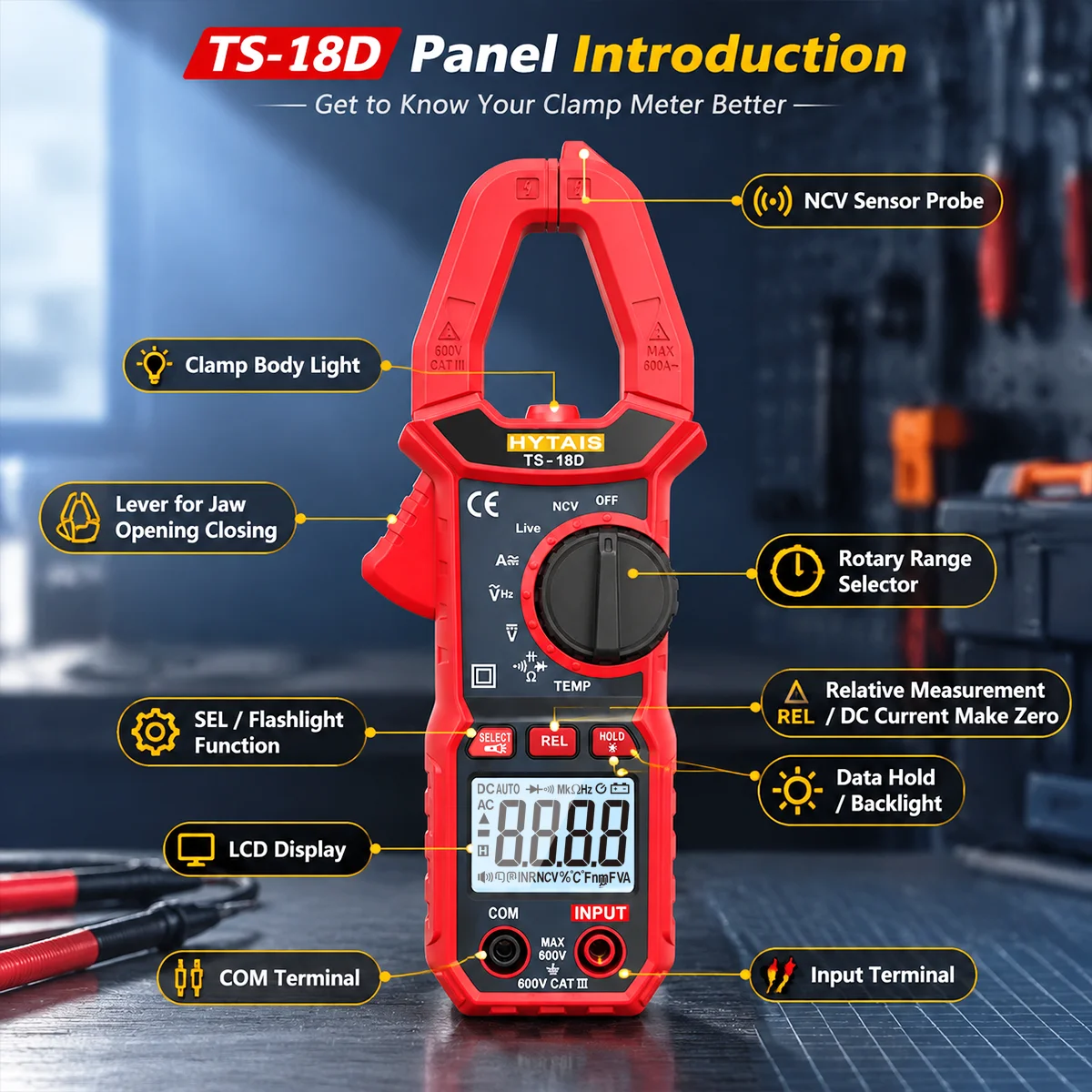

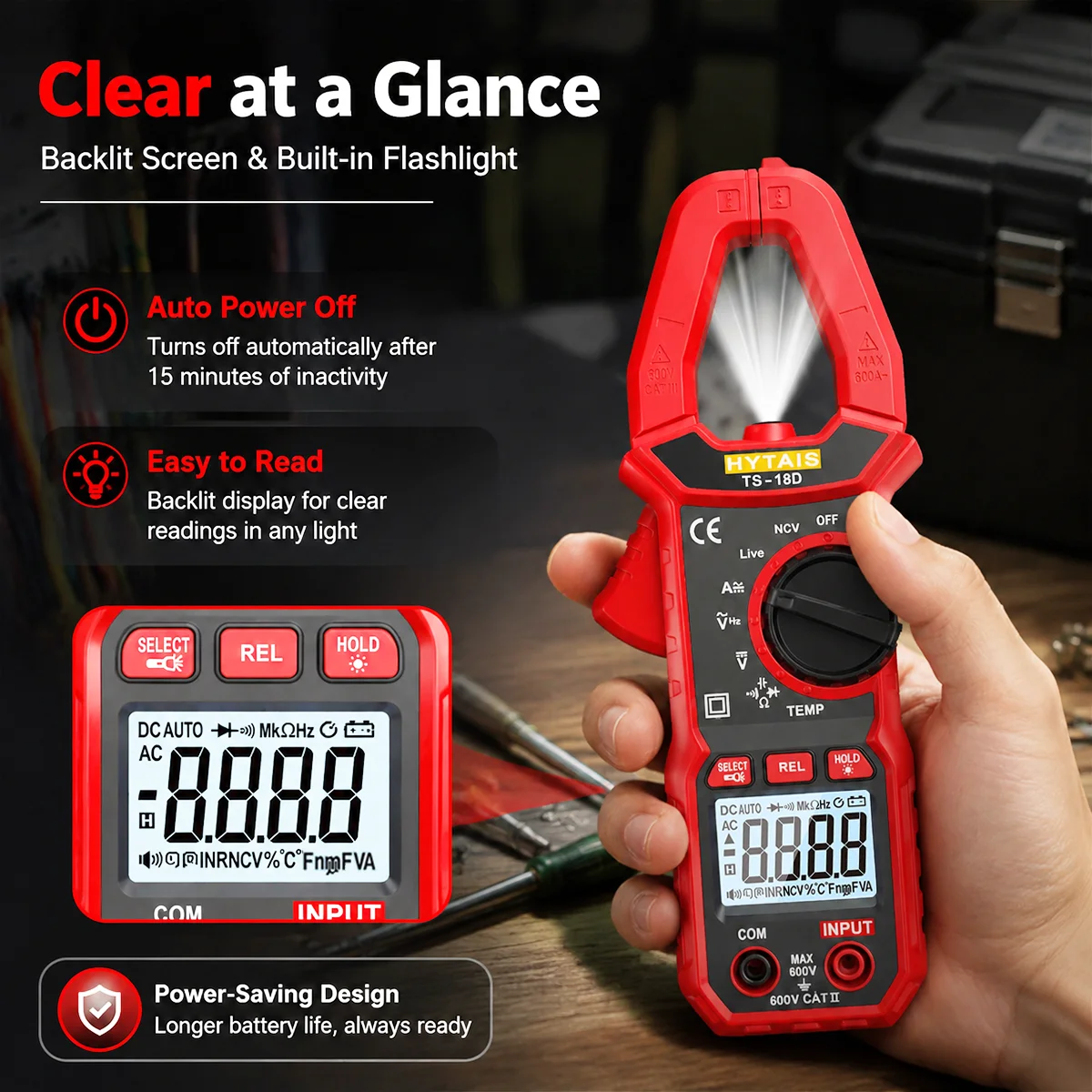

6.High Precision 6000 Count Display – Large, clear LCD with backlight and built in LED flashlight ensures easy reading even in dark electrical closets, behind appliances, or outdoors at night.

7.Data Hold & Relative Zeroing – Freeze any reading on screen with a single press for convenient recording. The REL button also resets the display to zero before DC current measurements, improving accuracy.

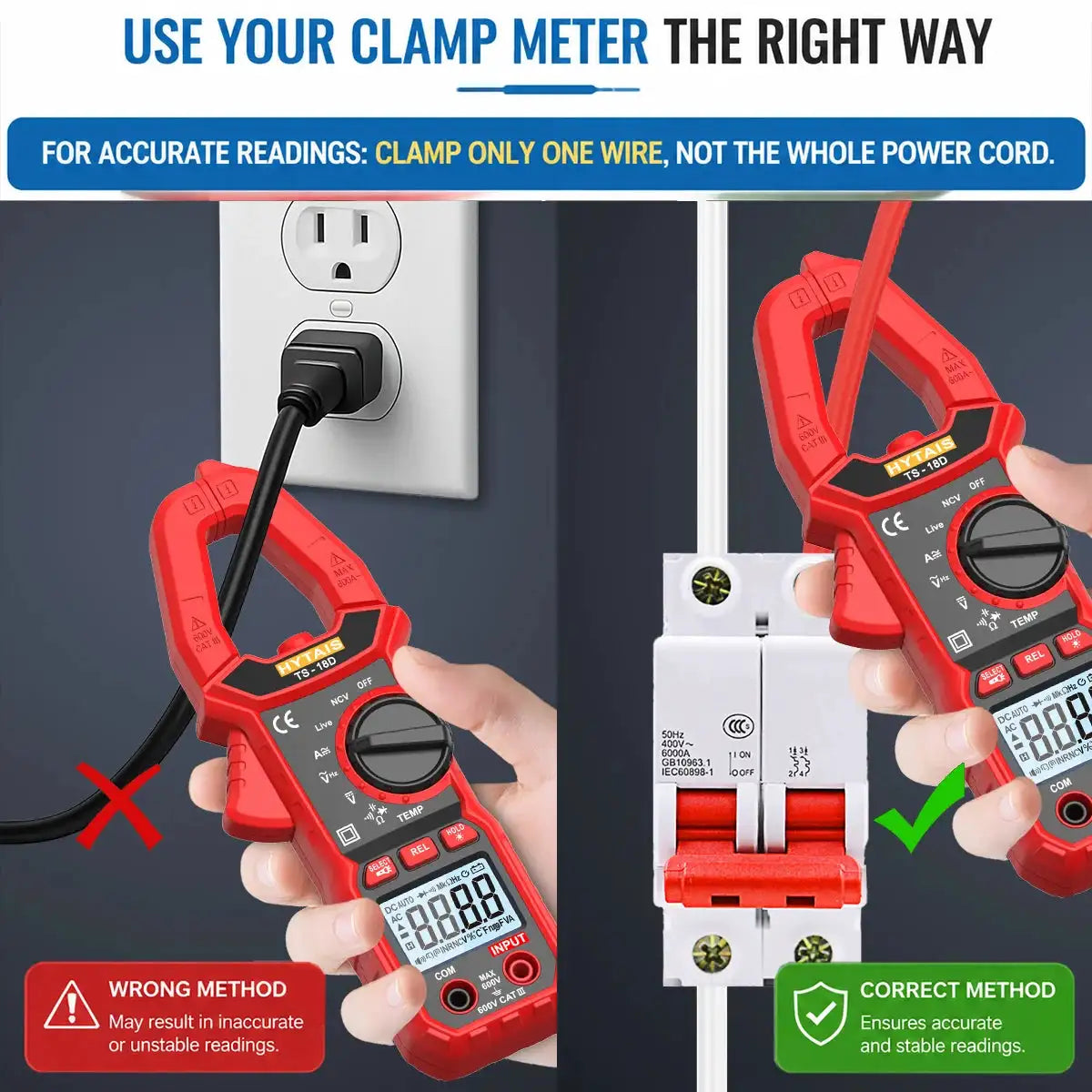

8.Non Intrusive Clamp Design – Measure current without disconnecting wires or interrupting the circuit. Simply press the trigger, open the 27mm jaw, clamp around a single conductor, and read the value instantly.

9.Built in Safety Protections – Full range 600V overload protection, CAT III 600V double insulation rating, low battery indicator, and auto power off after 15 minutes of inactivity safeguard both the user and the meter.

10.Versatile Application Scenarios – Perfect for electricians, HVAC technicians, automotive repair, industrial maintenance, and DIY household projects – handles everything from small electronics to heavy duty equipment.

11.Ergonomic & Lightweight Build – Compact, portable design with a comfortable grip reduces hand fatigue during extended use, and the single opening jaw conforms to natural operating habits for quick one handed measurements.
