YIZHAN 60MP 48MP 4K Electronic Digital Microscope For Soldering 1080P HDMI VGA USB Industrial Camera 150xLens FoldBracket Remote

Name: YIZHAN 60MP 48MP 4K Electronic Digital Microscope For Soldering 1080P HDMI VGA USB Industrial Camera 150xLens FoldBracket Remote
Brand: OurLum
Price: 439.99 USD
Availability: InStock
Rating: 4.91 (54 reviews)

~~$483.99~~ $439.99

9% off Free Shipping

Color 13MP HDMI VGA

Magnification SONY Chips 150X SONY Chips 150X

This discount is based on purchasing the main product

Secure Payment

Fast Delivery

Money Back Guarantee

24/7 Support

Quality Assurance

Shipping:

Free shipping on all orders . See details

Delivery:

Estimated between Oct 06, 2026 and Oct 08, 2026 Ships within 1-3 business day after payment clears. | SHOP Track Order | Ourlum Orders | Track Orders

Returns:

30 days returns. 100% Money back guaranteed. See details

Shop with confidence. FAQs

OurLum Money Back Guarantee.

Get the item you ordered or your money back. WHY TRUST OURLUM Learn more. ALL FAQs

YIZHAN 60MP 48MP 4K Electronic Digital Microscope For Soldering 1080P HDMI VGA USB Industrial Camera 150xLens FoldBracket Remote

~~$483.99~~ $439.99

13MP HDMI VGA SONY Chips 150X China Mainland

SPECIFICATIONS

Battery Included: no

Brand Name: YIZHAN

Certification: CE,EAC,FCC,RoHS,UL,KC

Drawtube: Monocular

Features: High Definition,Handheld,Portable,Digital

Features1: 150X

Features10: usb microscope

Features11: microscope trinocular

Features12: digital electronic microscope

Features13: digital microscope for soldering

Features14: base microscope

Features15: stand for microscope

Features16: camera for trinocular microscope

Features17: microscope repair

Features18: microscope stereo

Features2: HD

Features3: VGA HDMI USB

Features4: mini microscope

Features5: 2026 new

Features6: Assemble

Features7: microscope for cell phone

Features8: backlight for microscope

Features9: 4K

High-concerned chemical: none

Is Smart Device: Yes

Magnification Ratio: 500X & Under

Material: Metal

Model Number: YIZHAN-4011-150

Origin: Mainland China

Power Source: Others

Resolution Range: 180 NM - 500 NM

Semi-finishedproduct: No

Theory: Video Microscope

YIZHAN Model: YIZHAN-4011-150

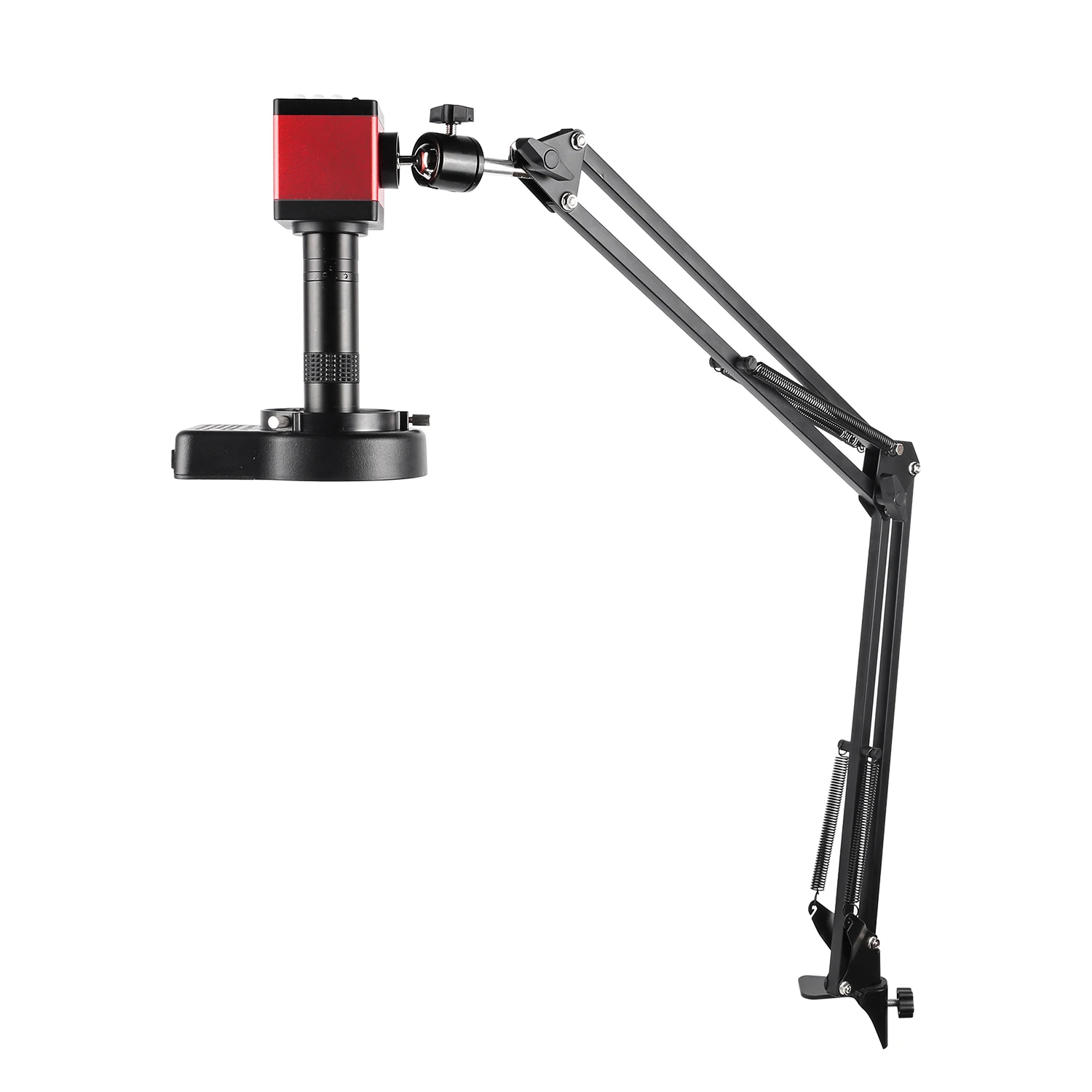

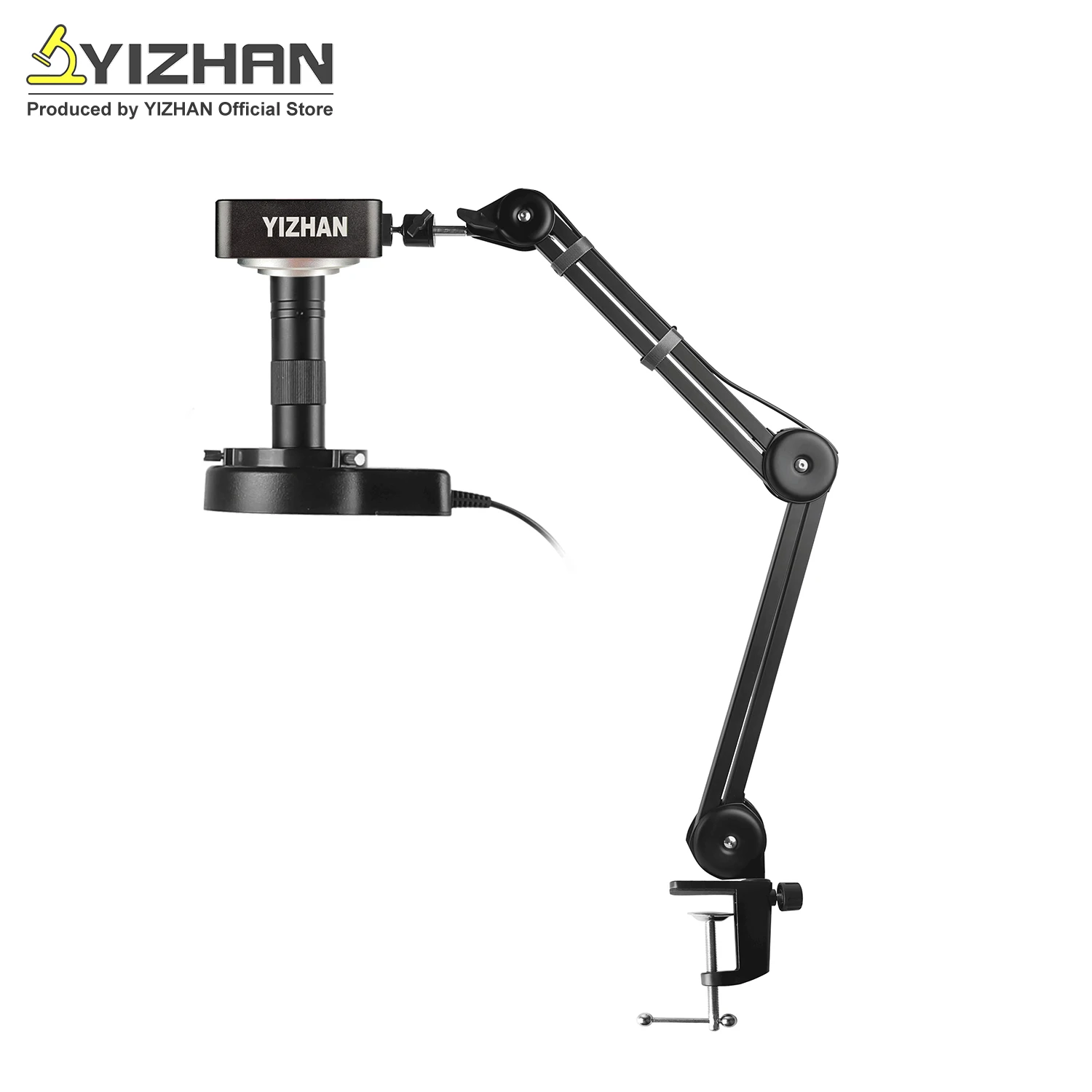

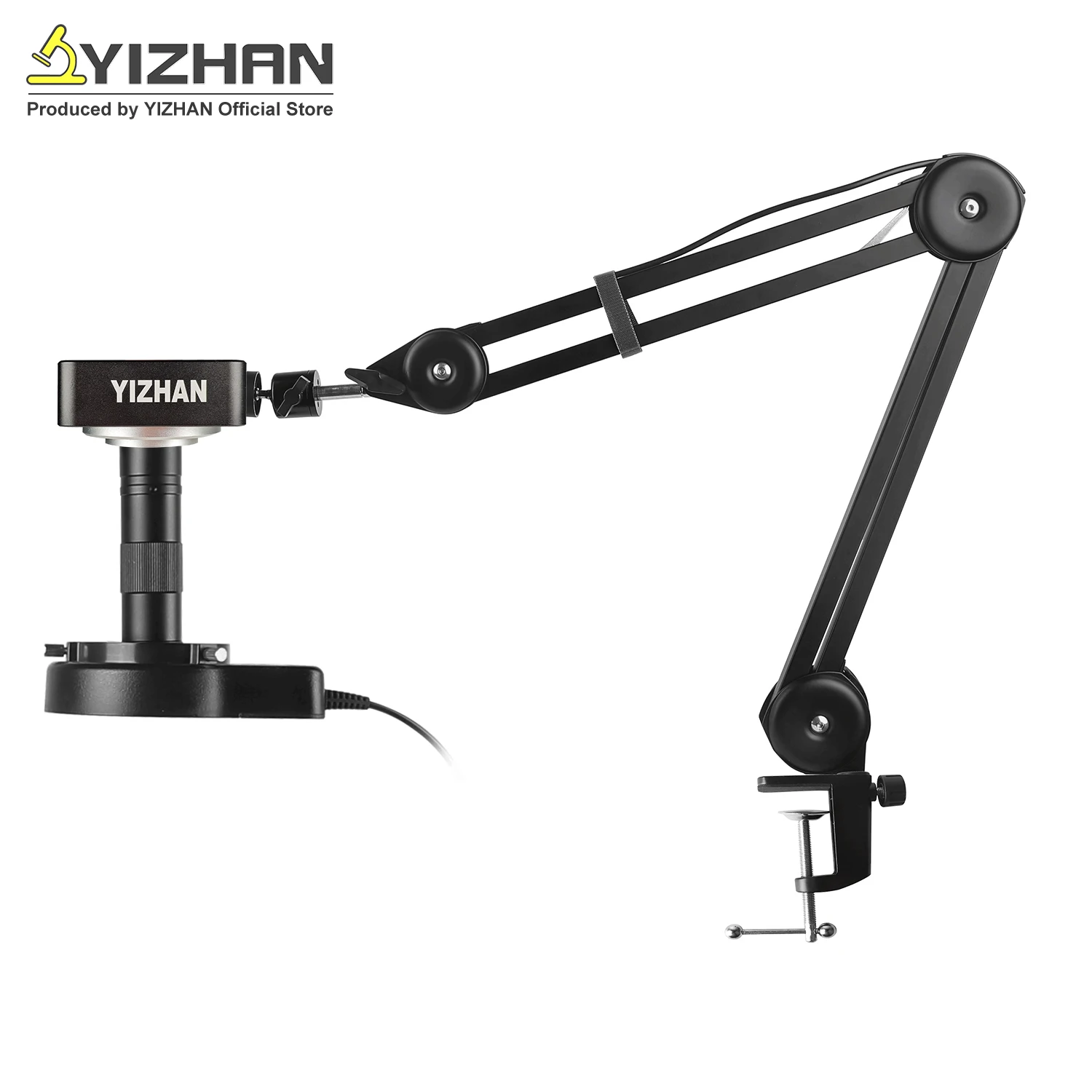

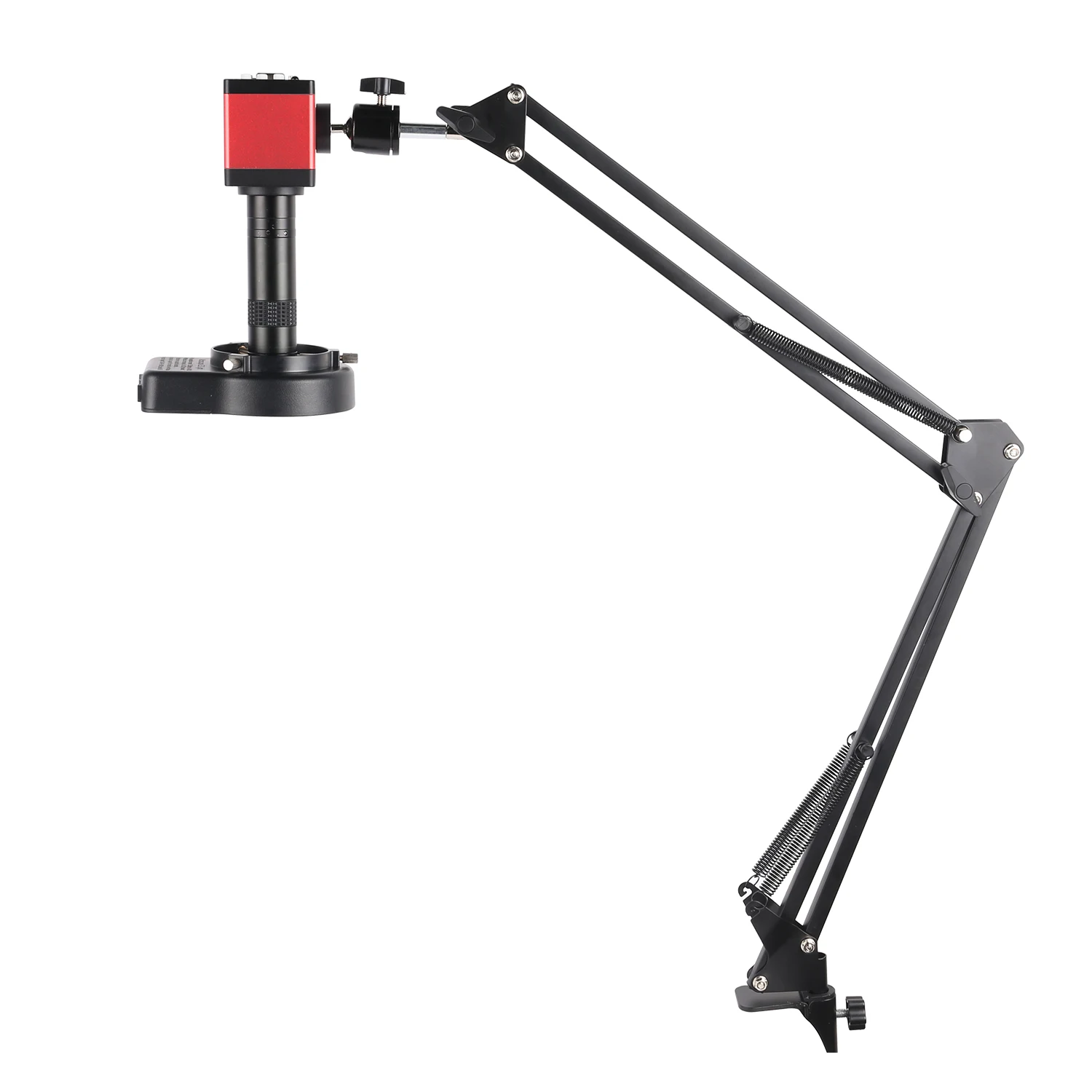

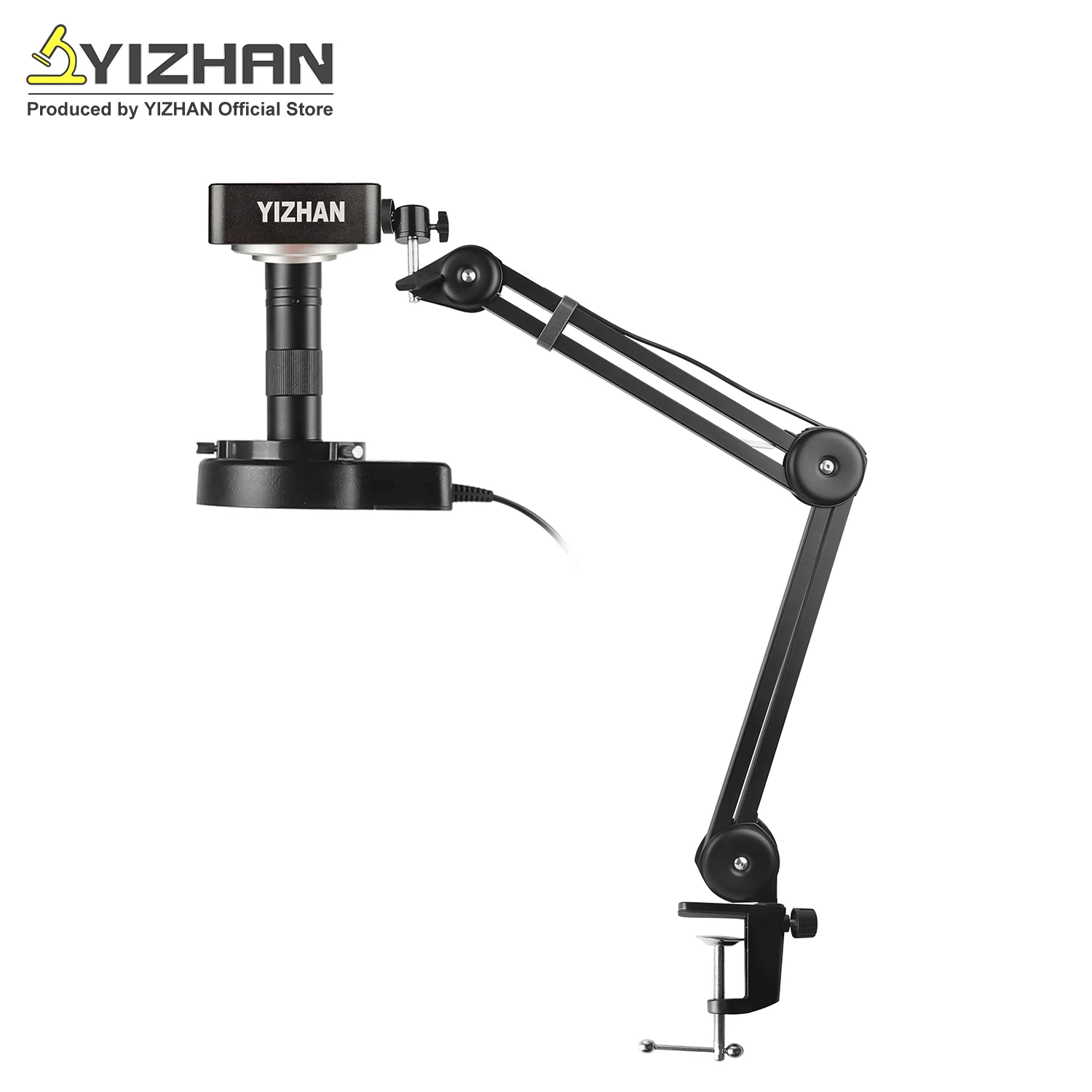

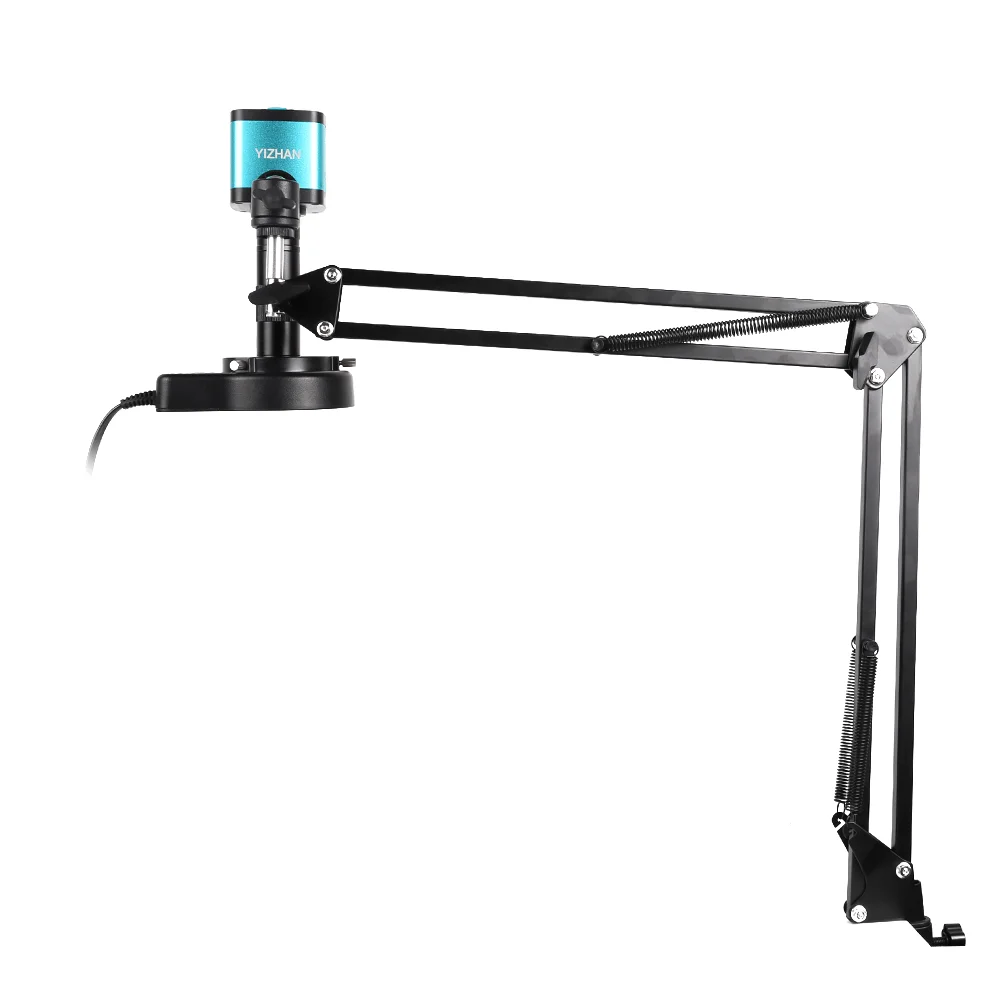

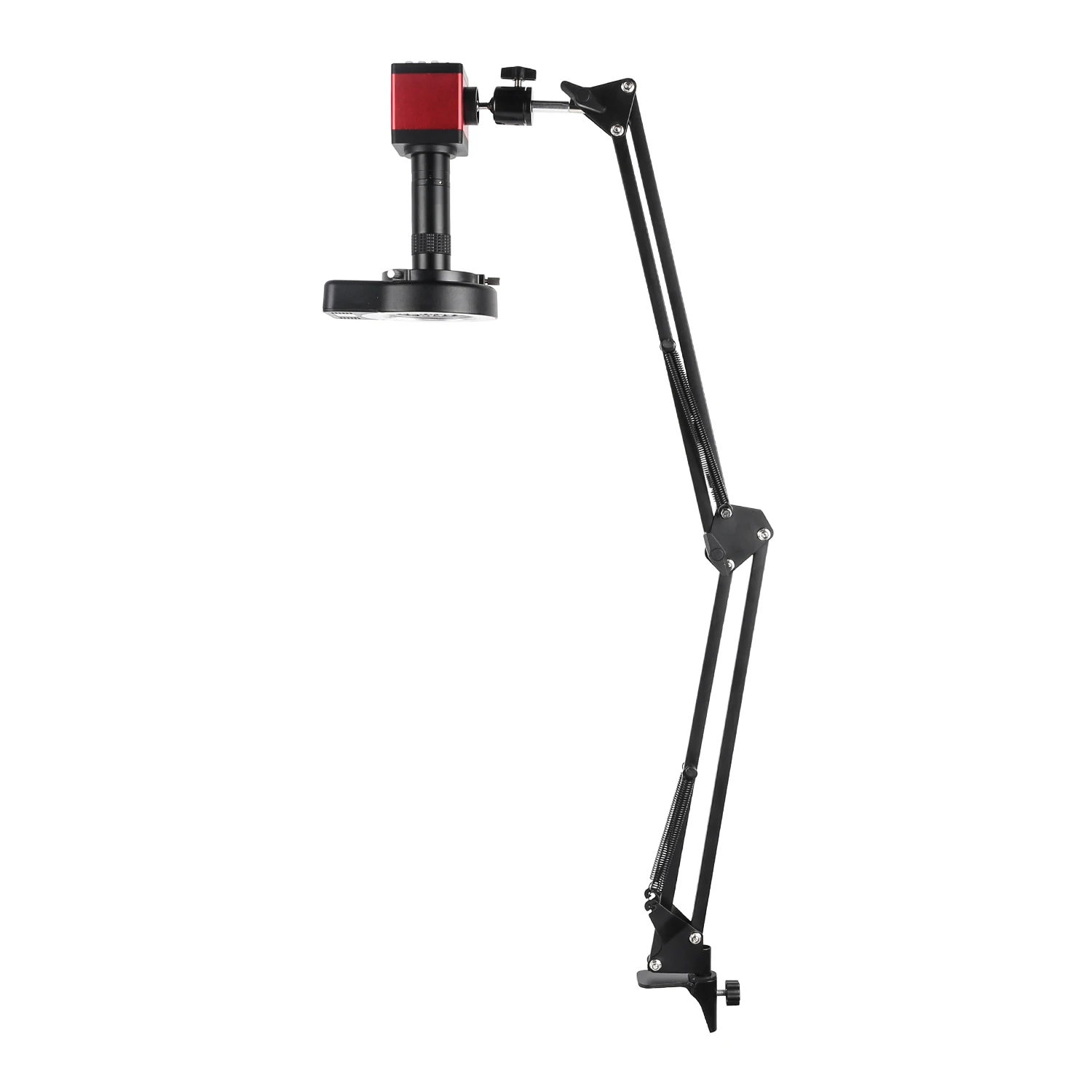

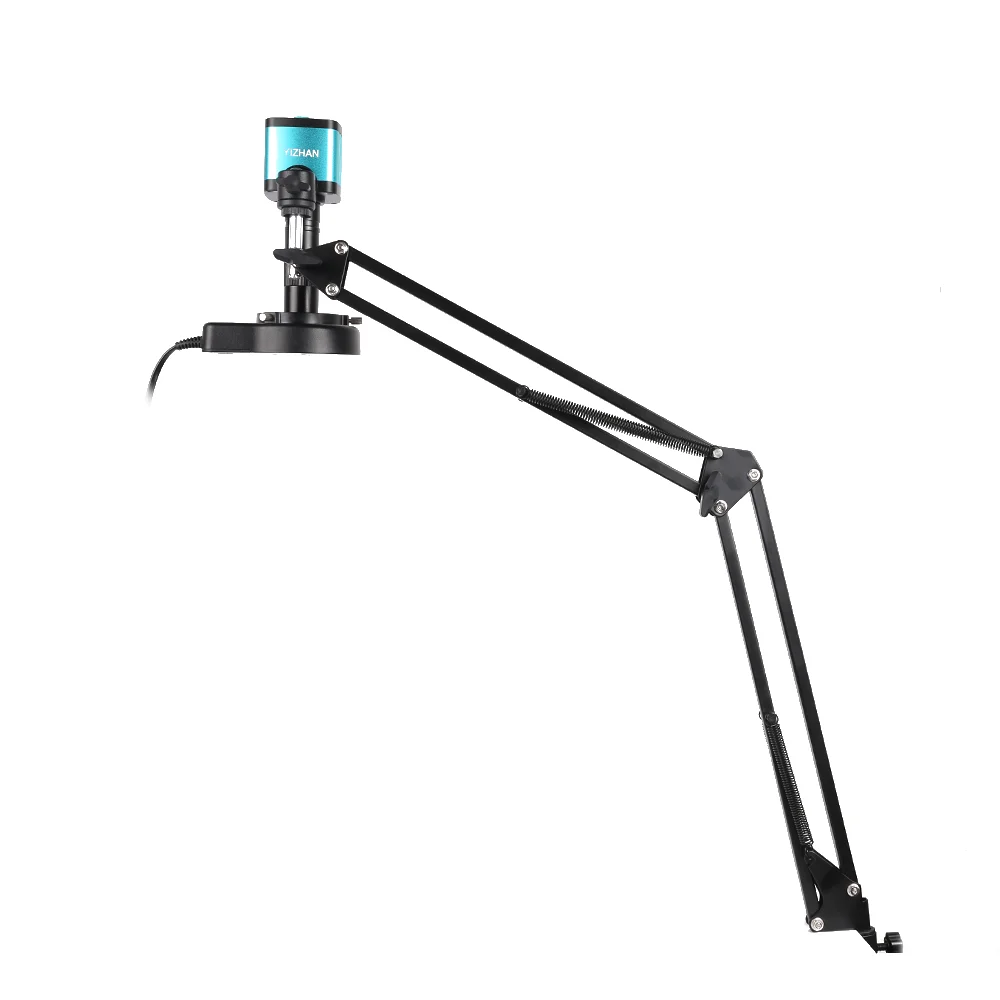

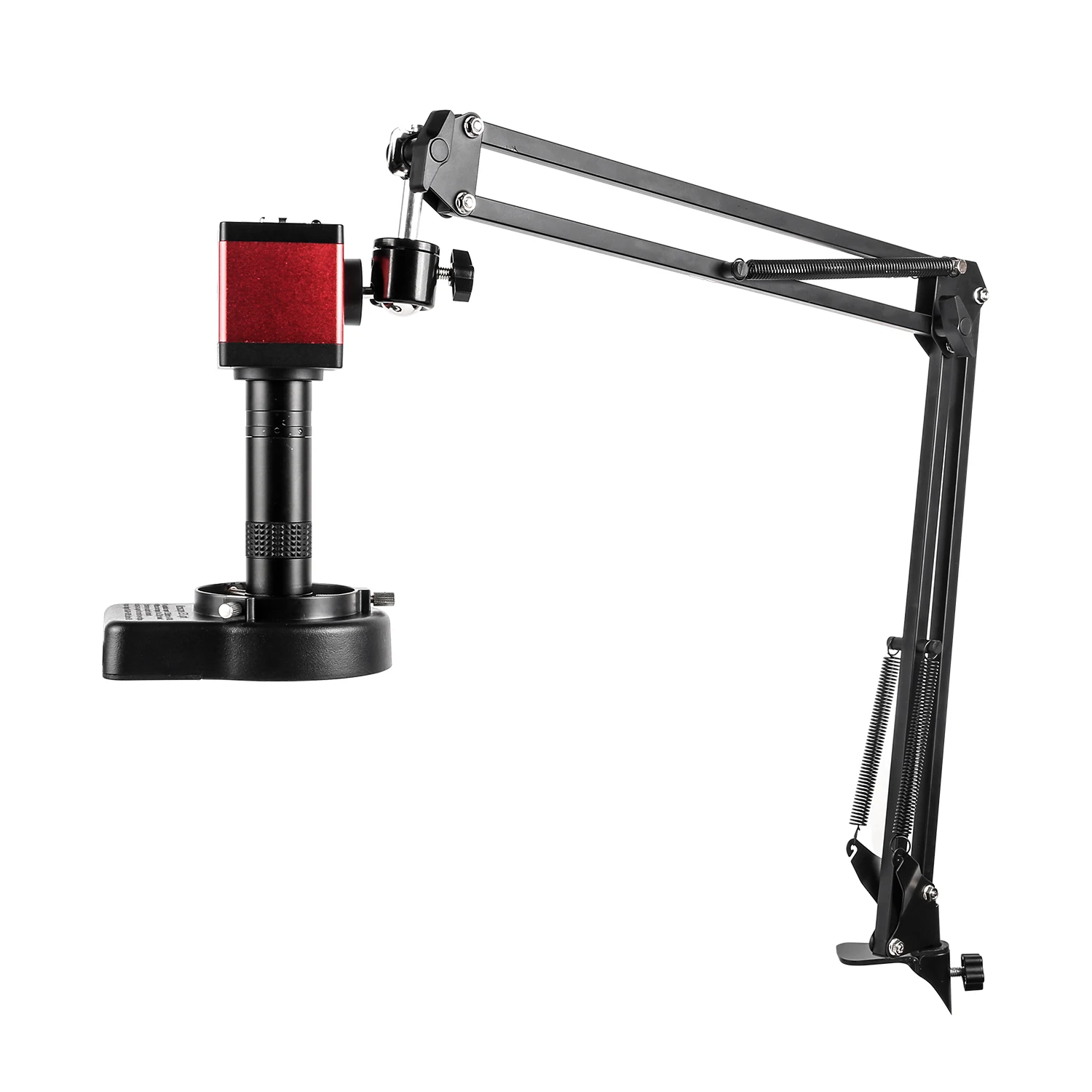

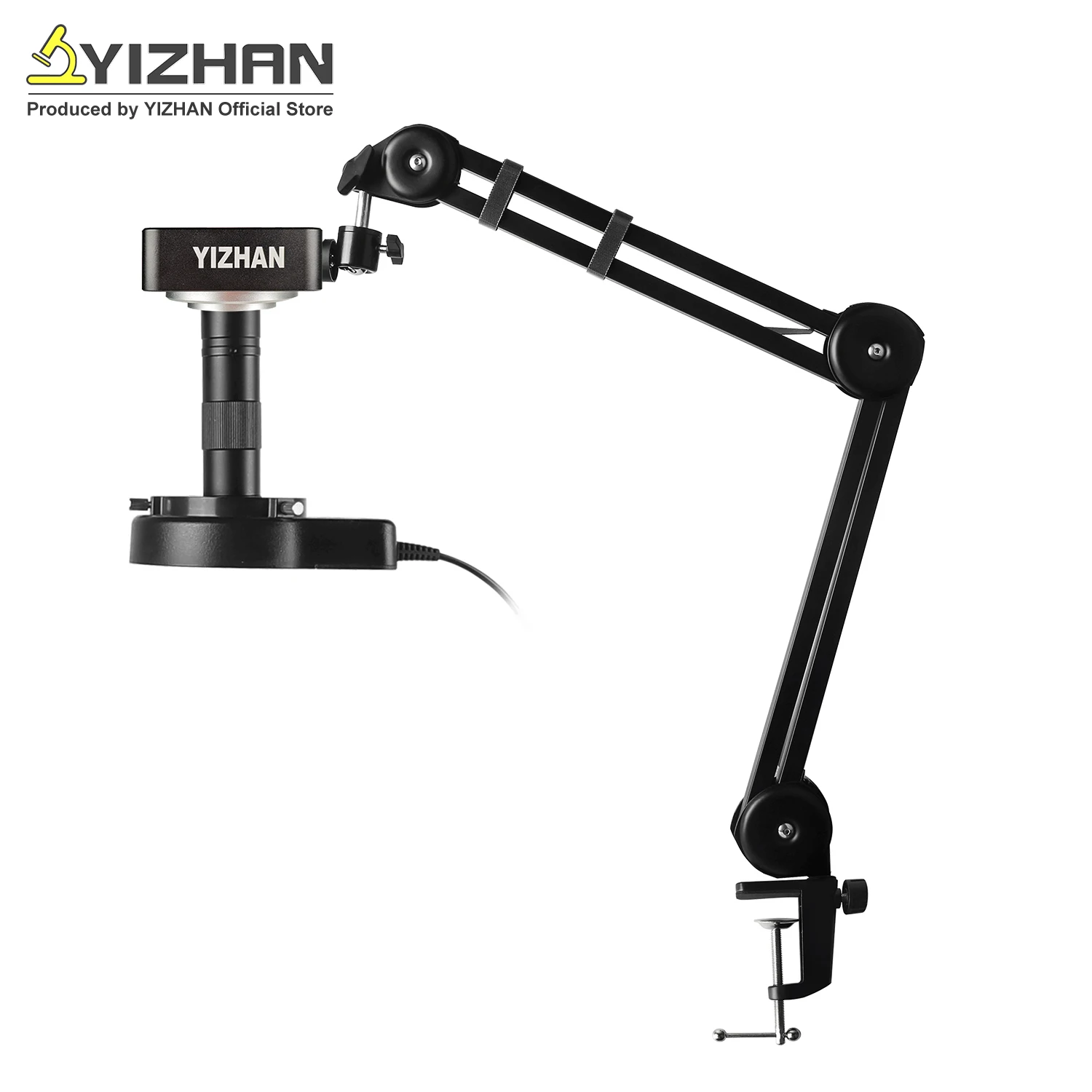

HD digital microscope, the bracket can be rotated Lifting to suit your needs, while the lens supports 1-150X continuous zoom. It can definitely be a fine helper for your daily work. QC inspection, Education purpose inspection, Print industrial, Industrial inspection, PCB material, Jewellery & stamp collection, Textile Industrial, Biological inspection

Video microscopes are easy to operate and widely used.

1. Zoology, biology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology.

2. In the textile industry, it is used in the inspection of raw materials and cotton wool fabrics.

3. In the electronics industry, it is used as operating tools such as transistor soldering, mobile phone electronic maintenance, watch maintenance and inspection.

4. In biological anatomy, applied to local anatomy.

5. In the manufacture of precision parts, it is applied to the device of machine tools, the observation of the working process, the inspection and assembly of precision parts.

6. Surface quality of lenses, prisms or other transparent substances, and quality inspection of precision scales.

7. Cultural relics, books, coins, calligraphy and paintings, the inspection

8. Widely used in textile products, chemical chemistry, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, archaeological research and many other fields.

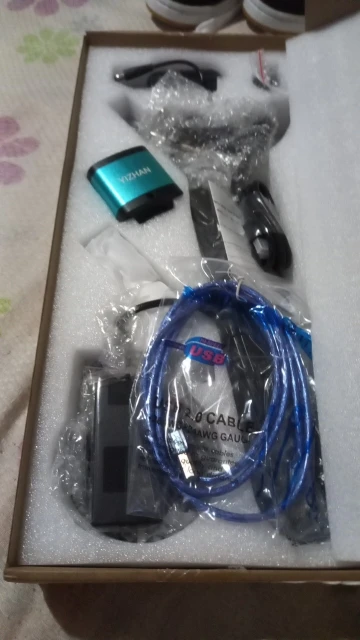

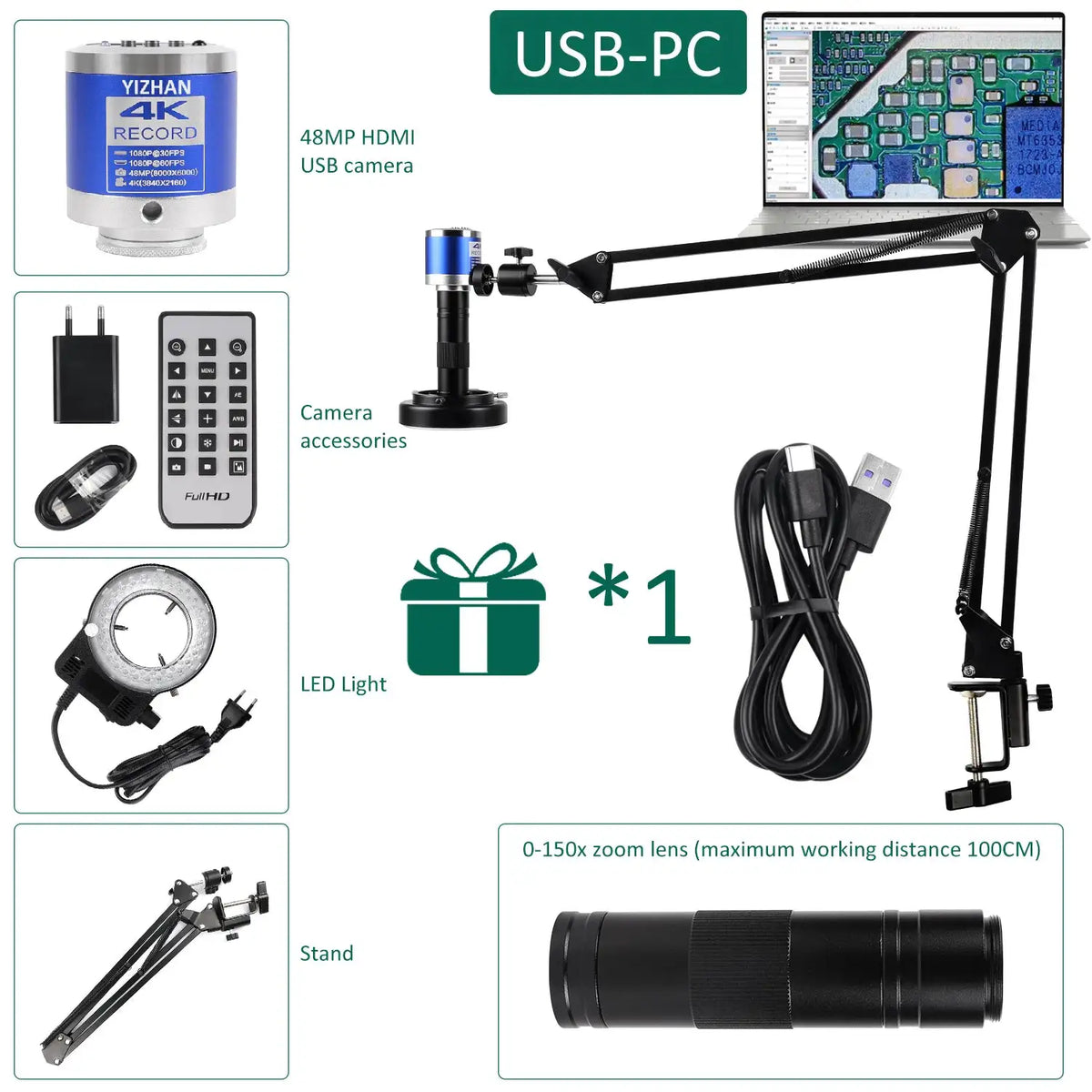

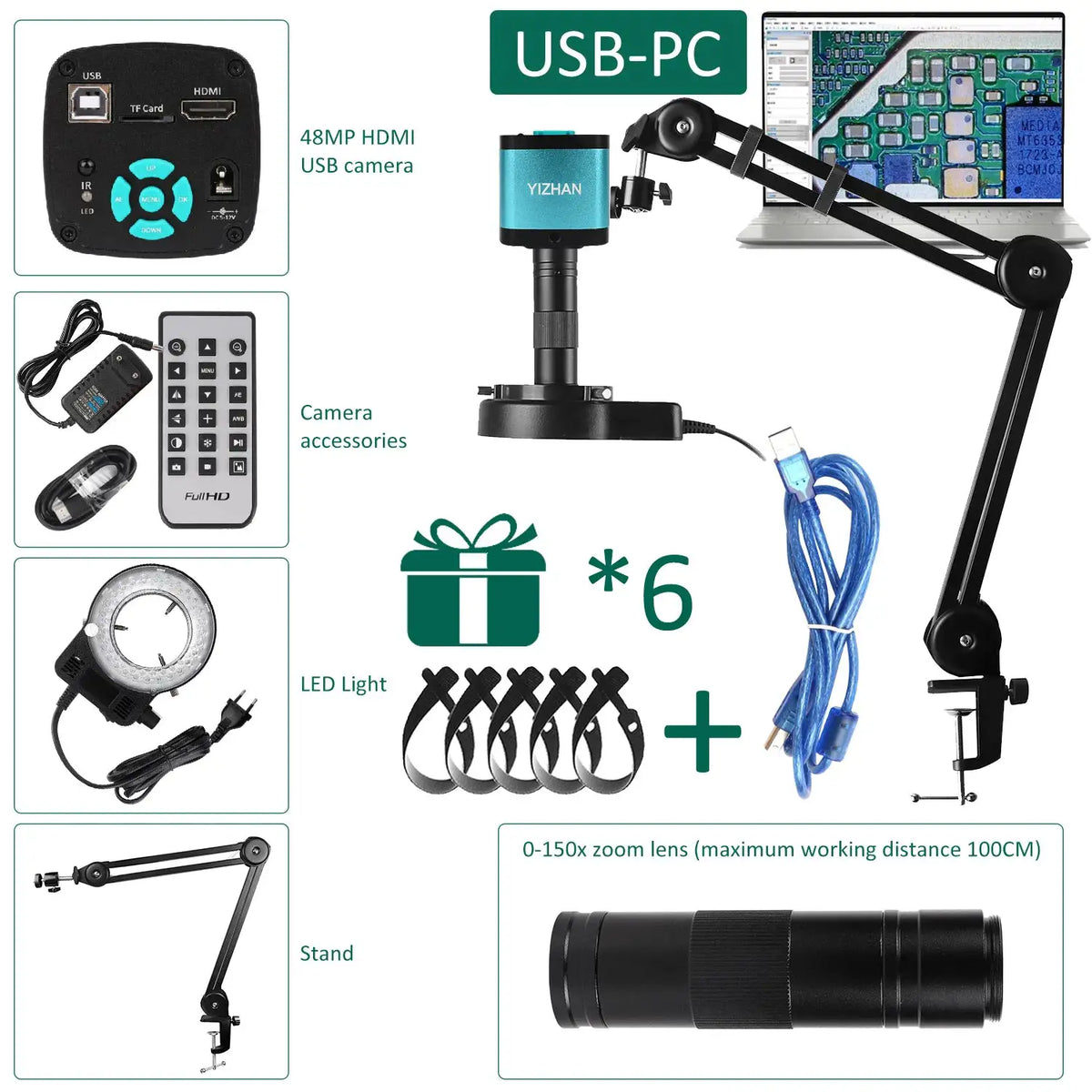

Package list

1* Corresponds to camera set

1* 1-150x zoom lens

1* Light

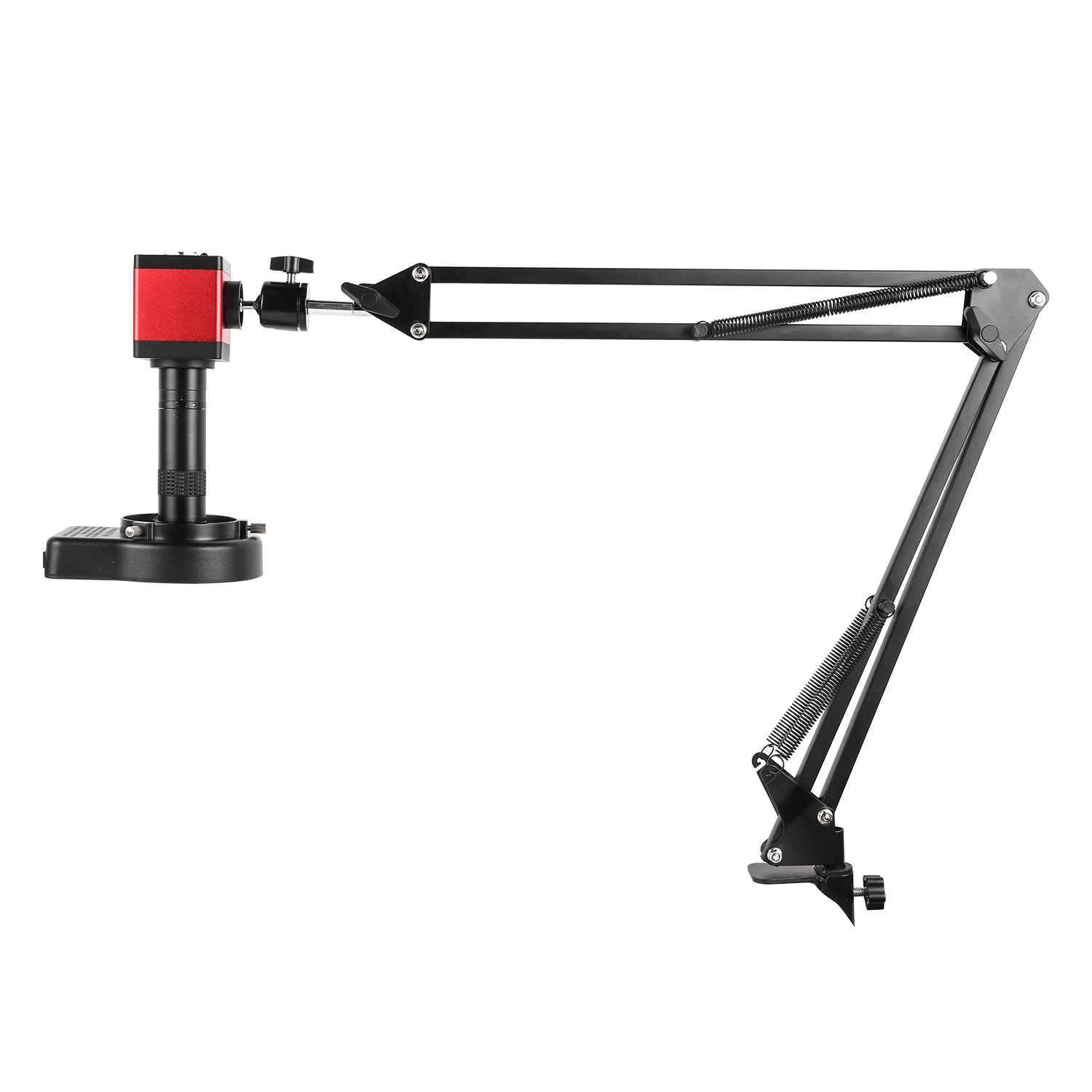

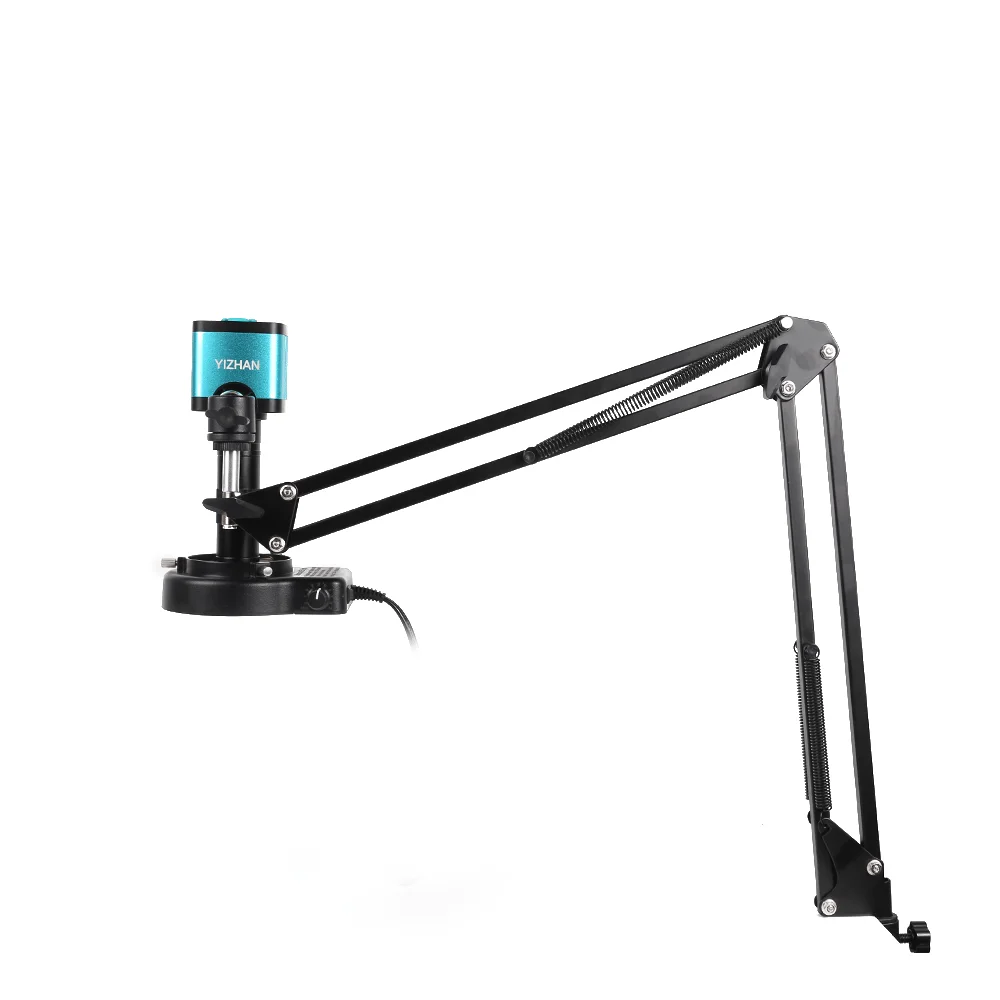

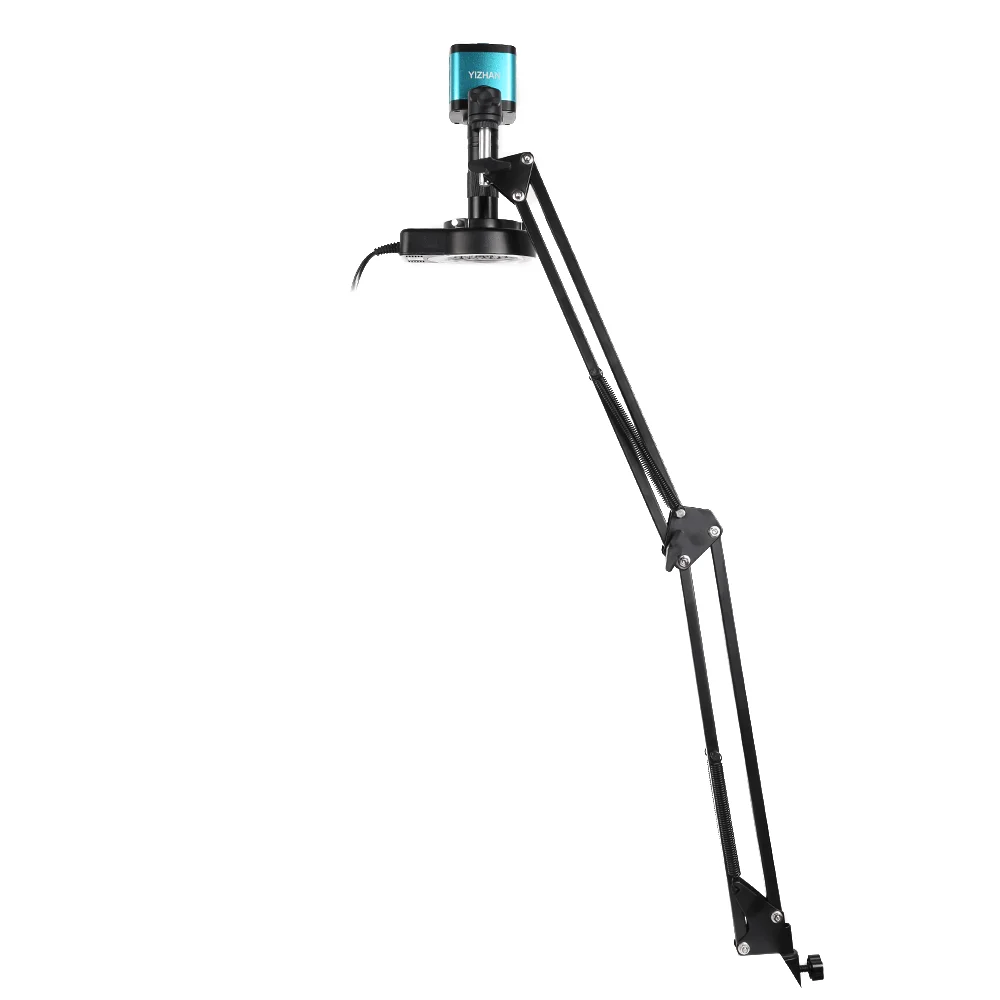

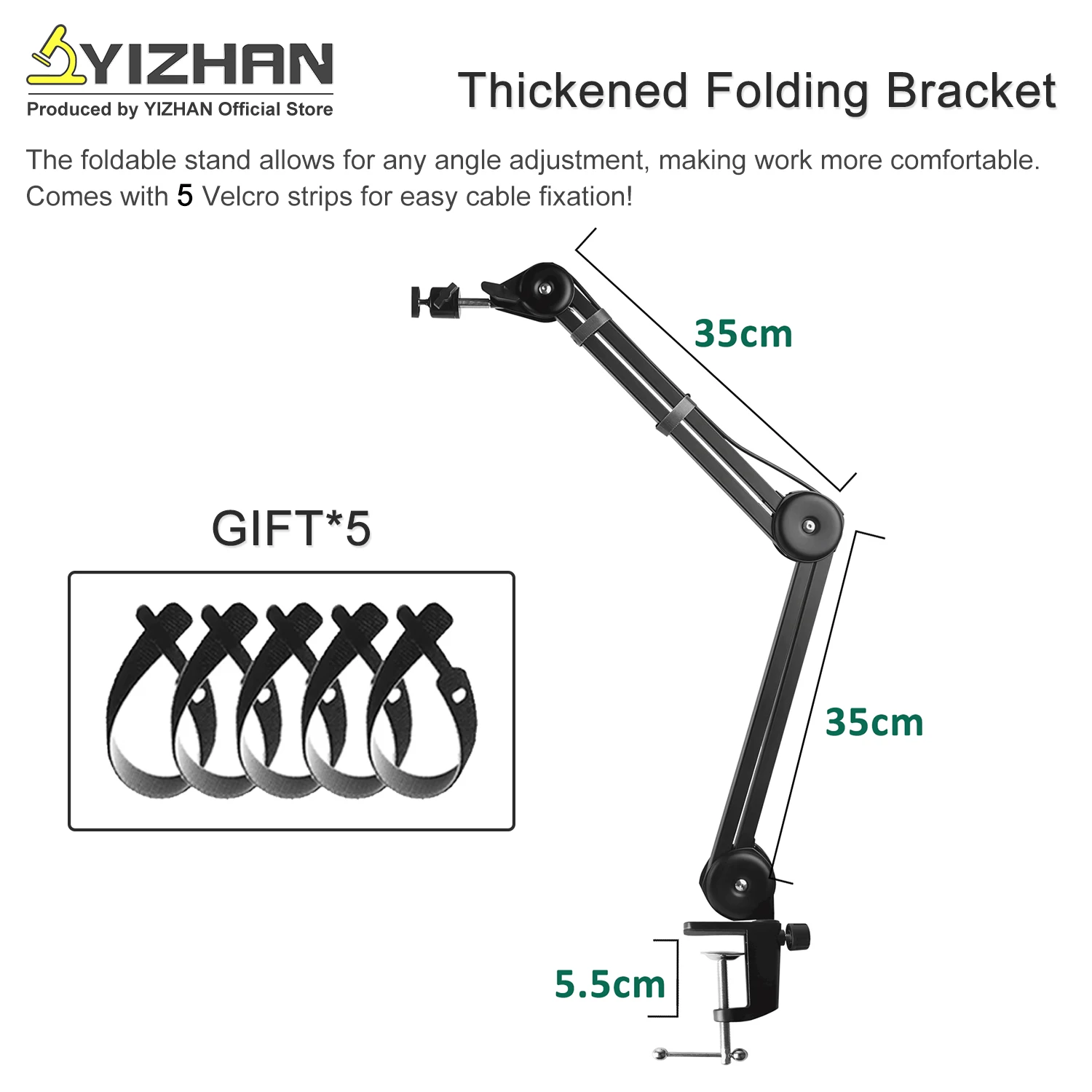

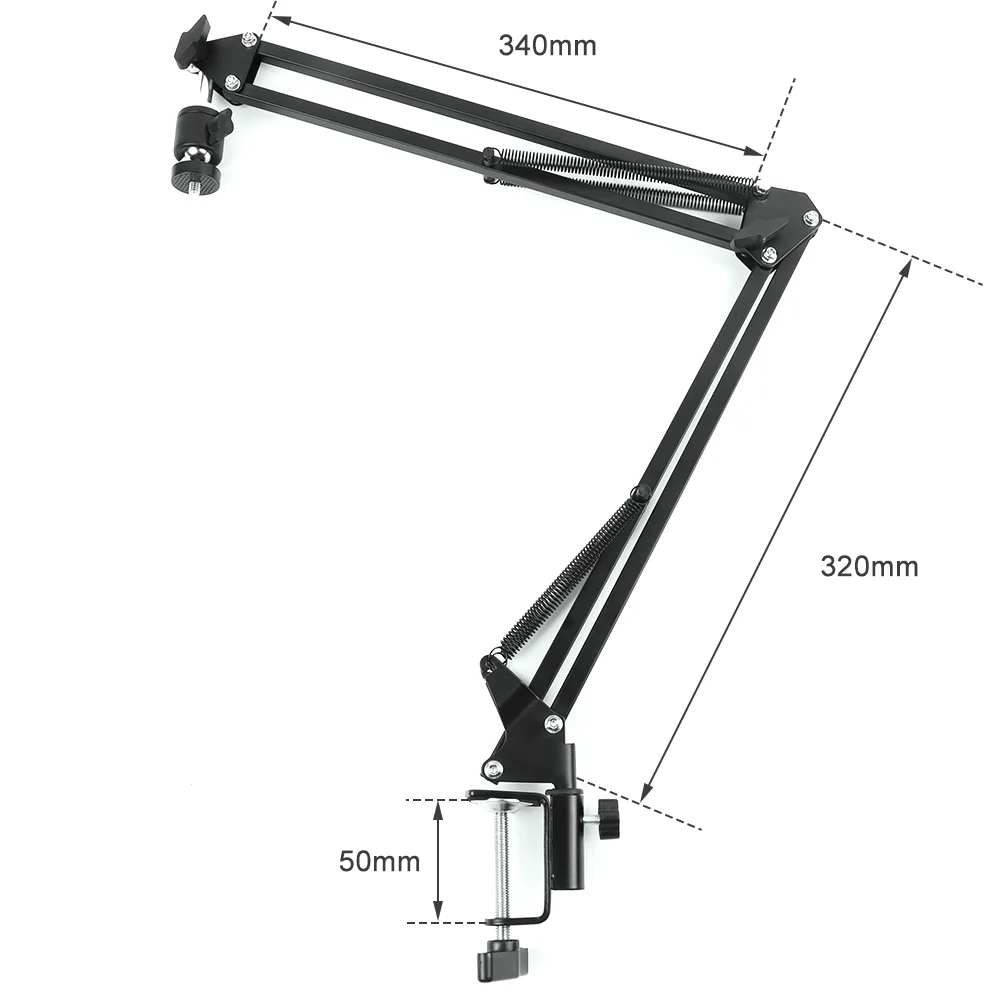

1* Folding bracket / Optional ordinary style bracket and enhanced style bracket

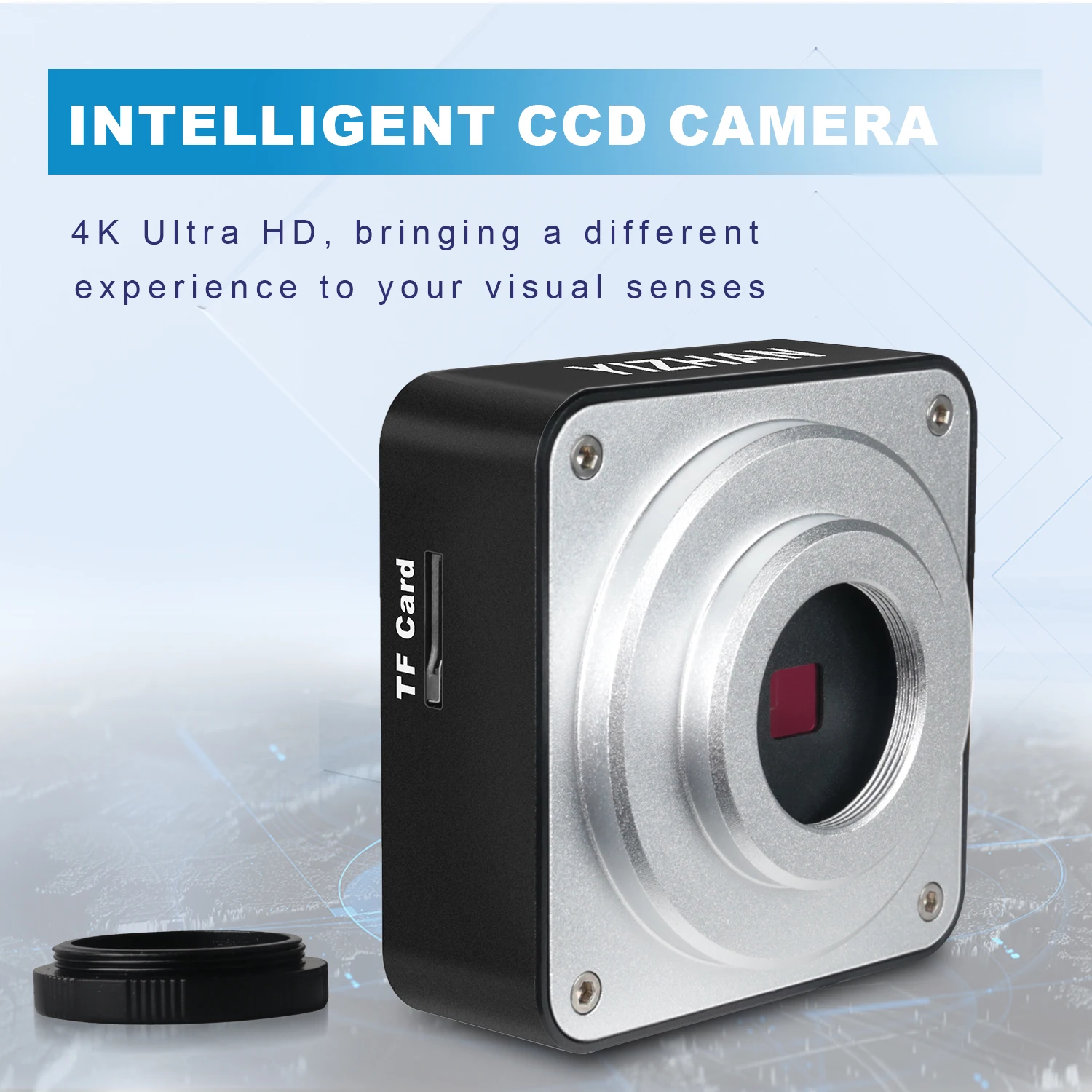

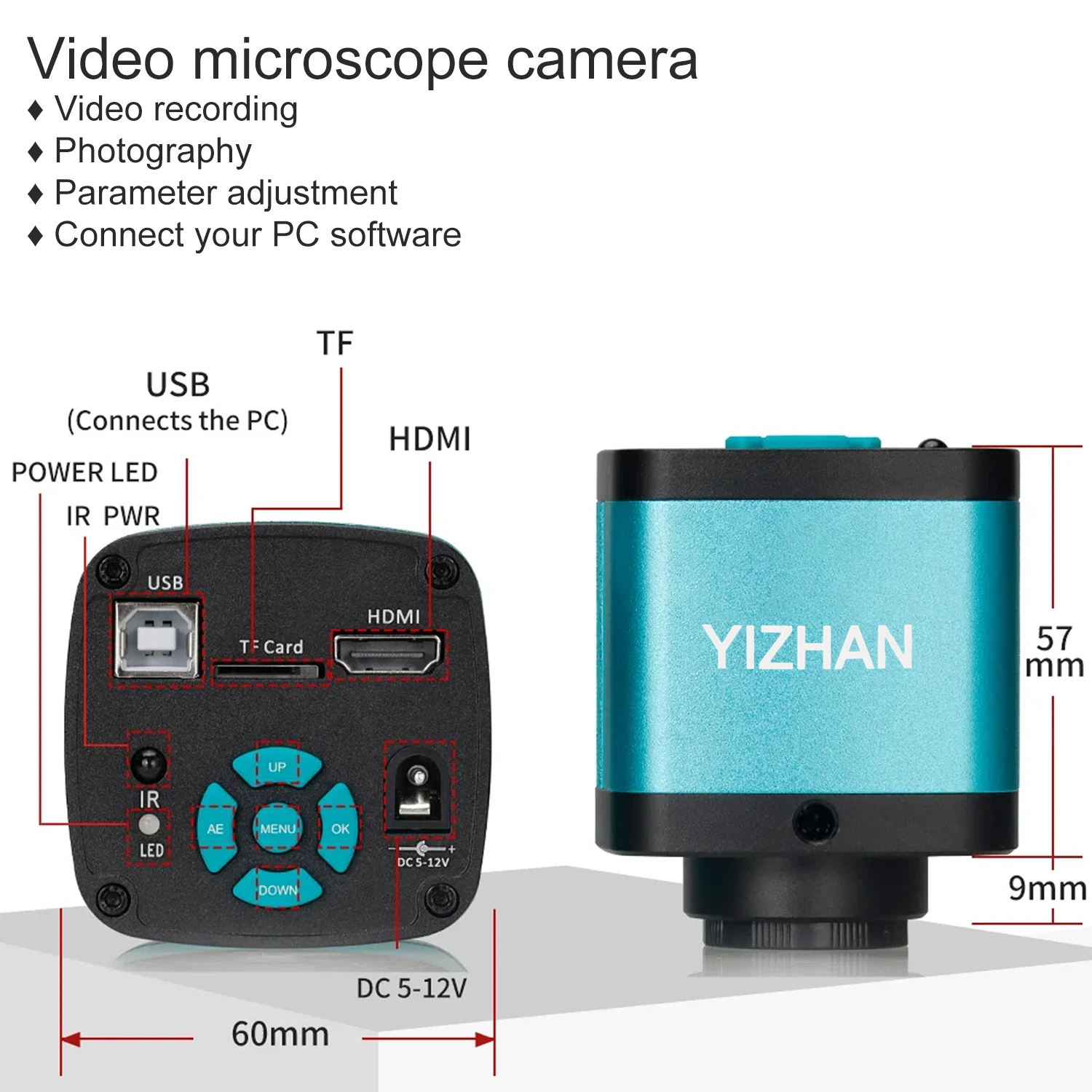

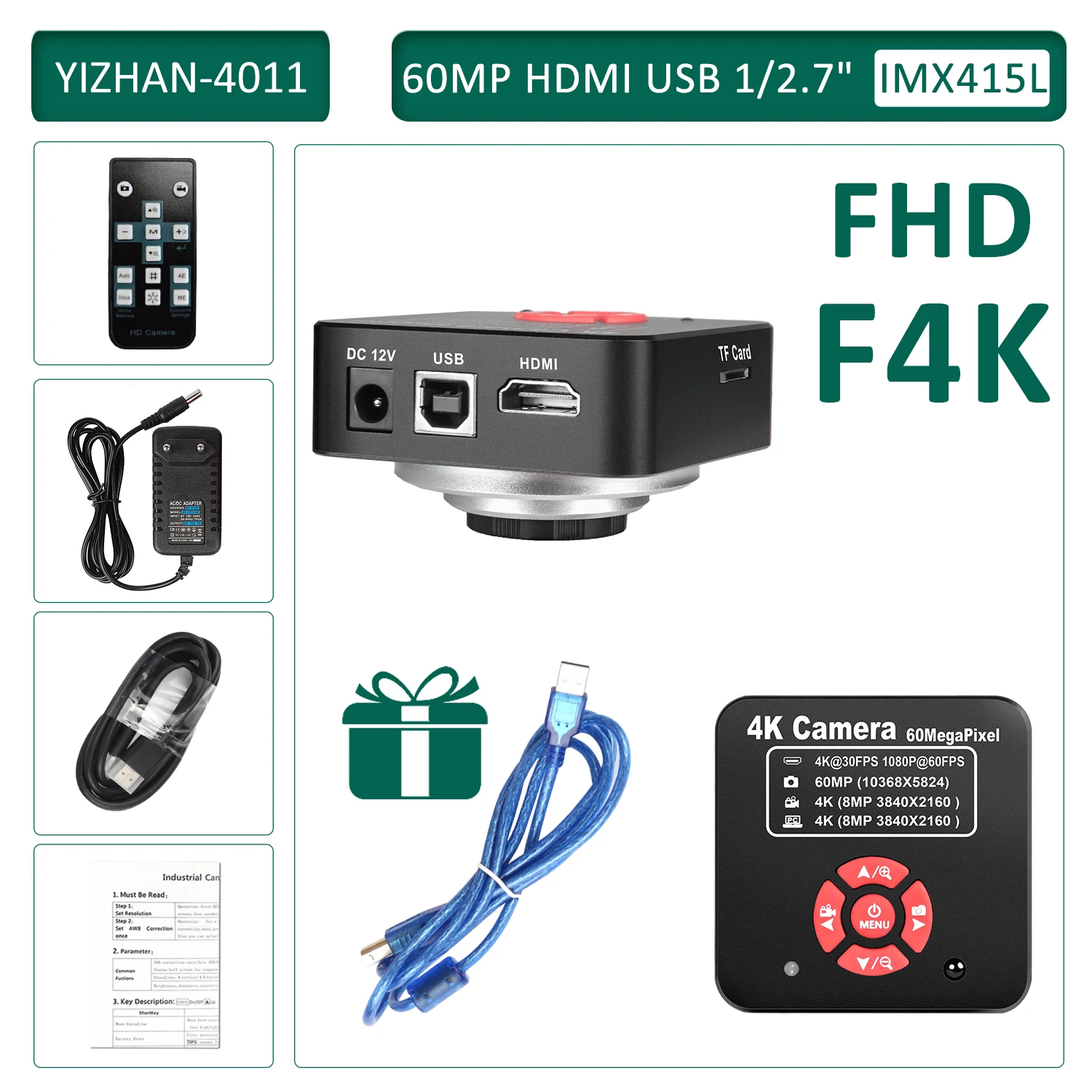

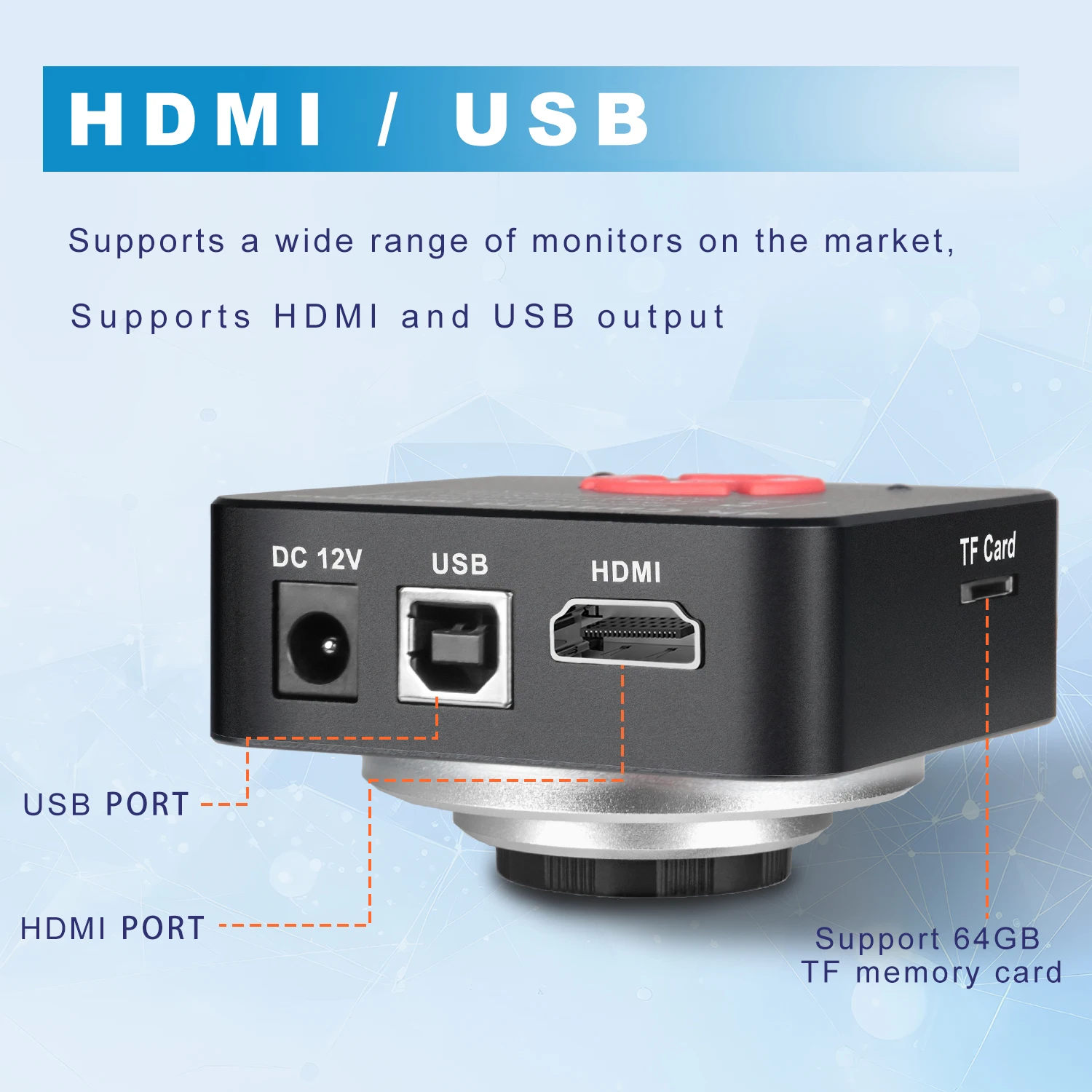

60MP 4K HDMI USB Camera / YIZHAN-4011

Sony Chip: IMX415L

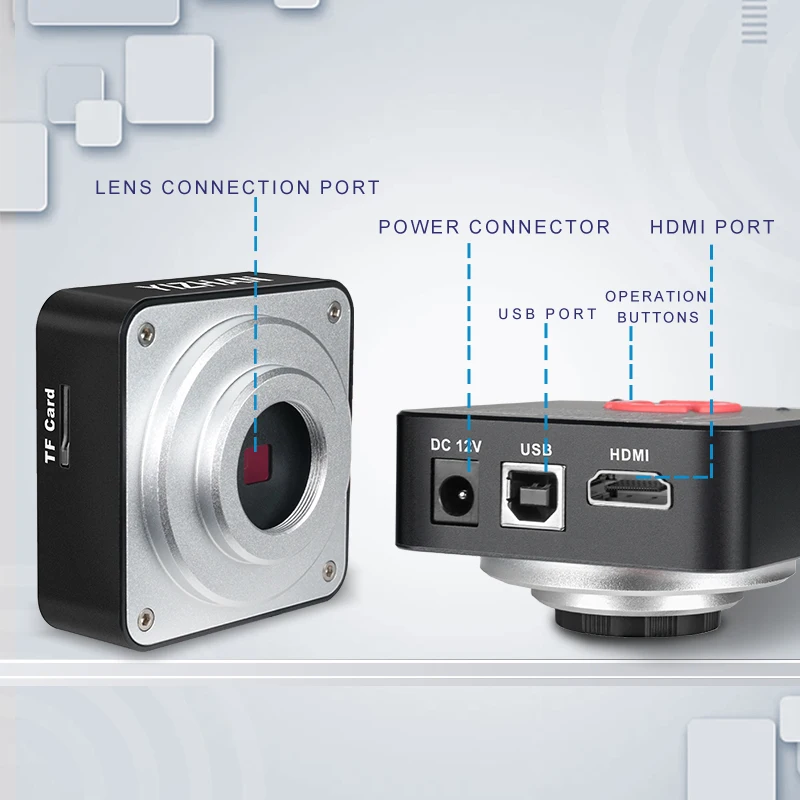

Video Interface：HDMI USB-PC TF Card

Record：4K/1080p

Photo：Max 60MP(10368x5888)/4K

HDMI:4K/1080p

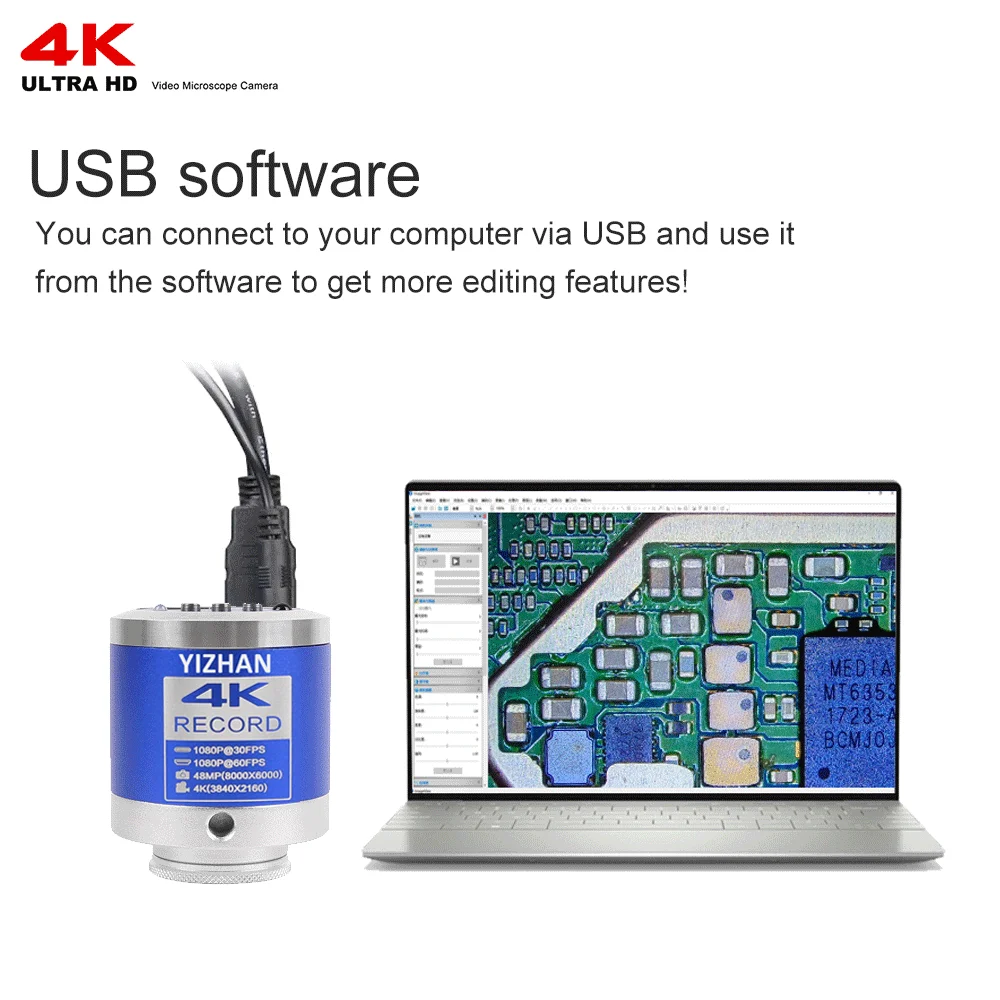

USB:4K/2K/1080p

Lens:CS

working voltage:12V

working current:190mA

optical format:1/2.7"

pixel size:1.5um*1.5um

scanning mode:progressive

shutter mode:electronic shutter"

dynamic range:69dB

S/N radio:40dB

OSD language:11 languages: Chinese/English/Traditional Chinese/Japanese/French/Spanish/German/Italian/Portuguese/Russian/Arabic

AWB mode:One-shot white balance/manual/auto

Cross:Support 4 groups: 32 horizontal and vertical lines

line:Color/line width adjustable"

B/W:√

negative:√

mirror flip:√

Freeze:√

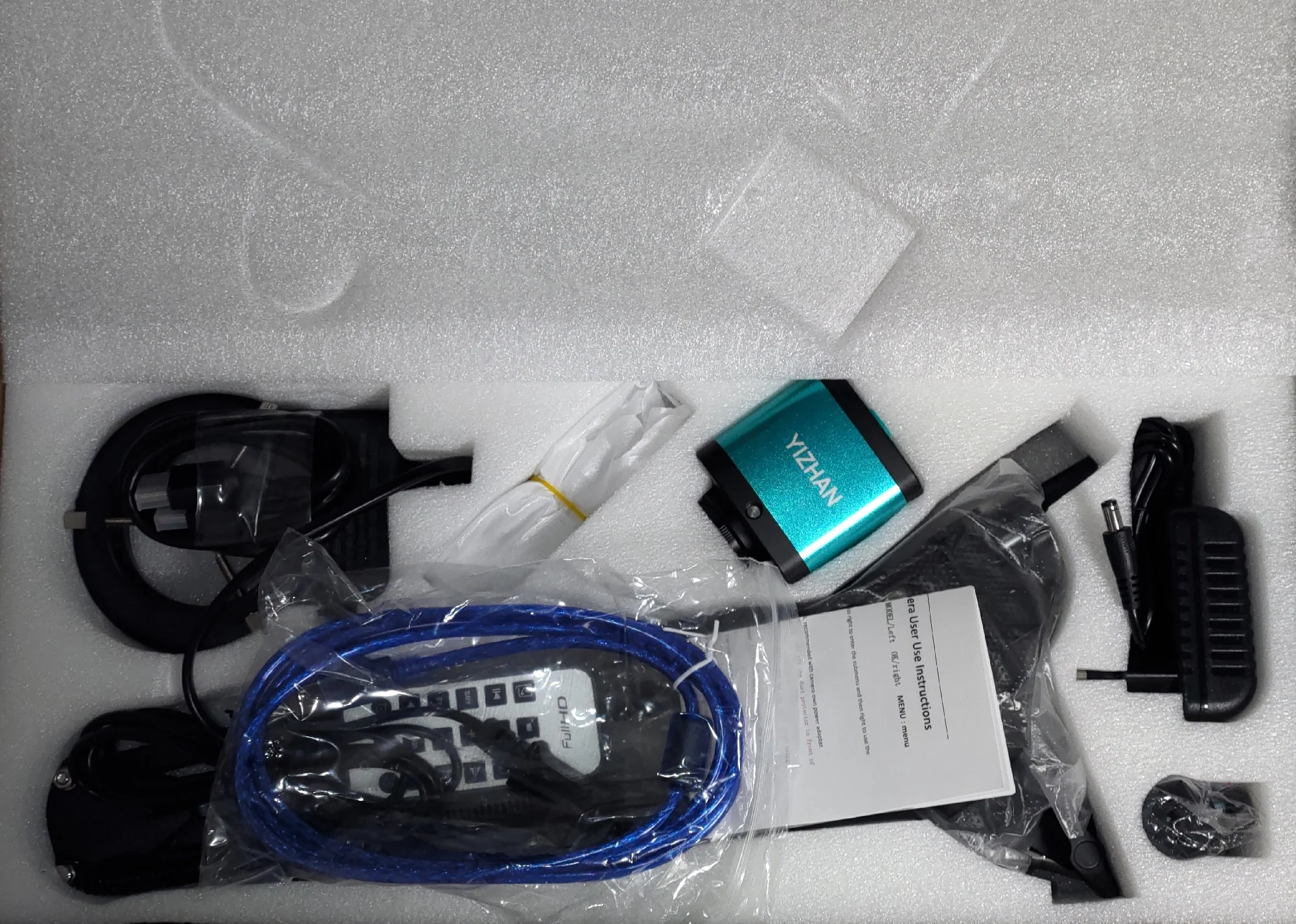

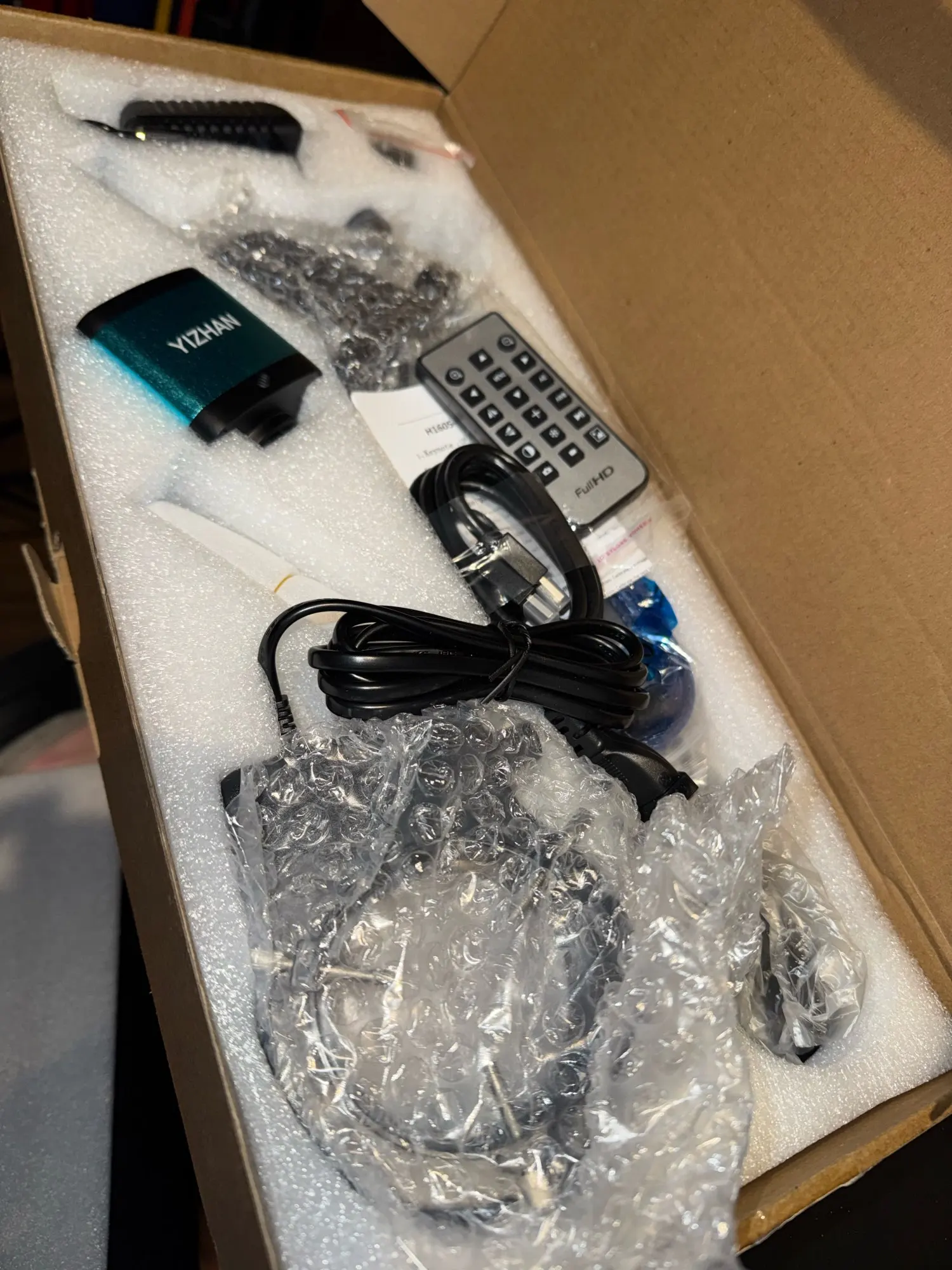

Packing List of camera set:

1* Camera body

1* Power adapter

1* HDMI cables

1* USB cable

1* Remote control (no battery due to logistics requirements)

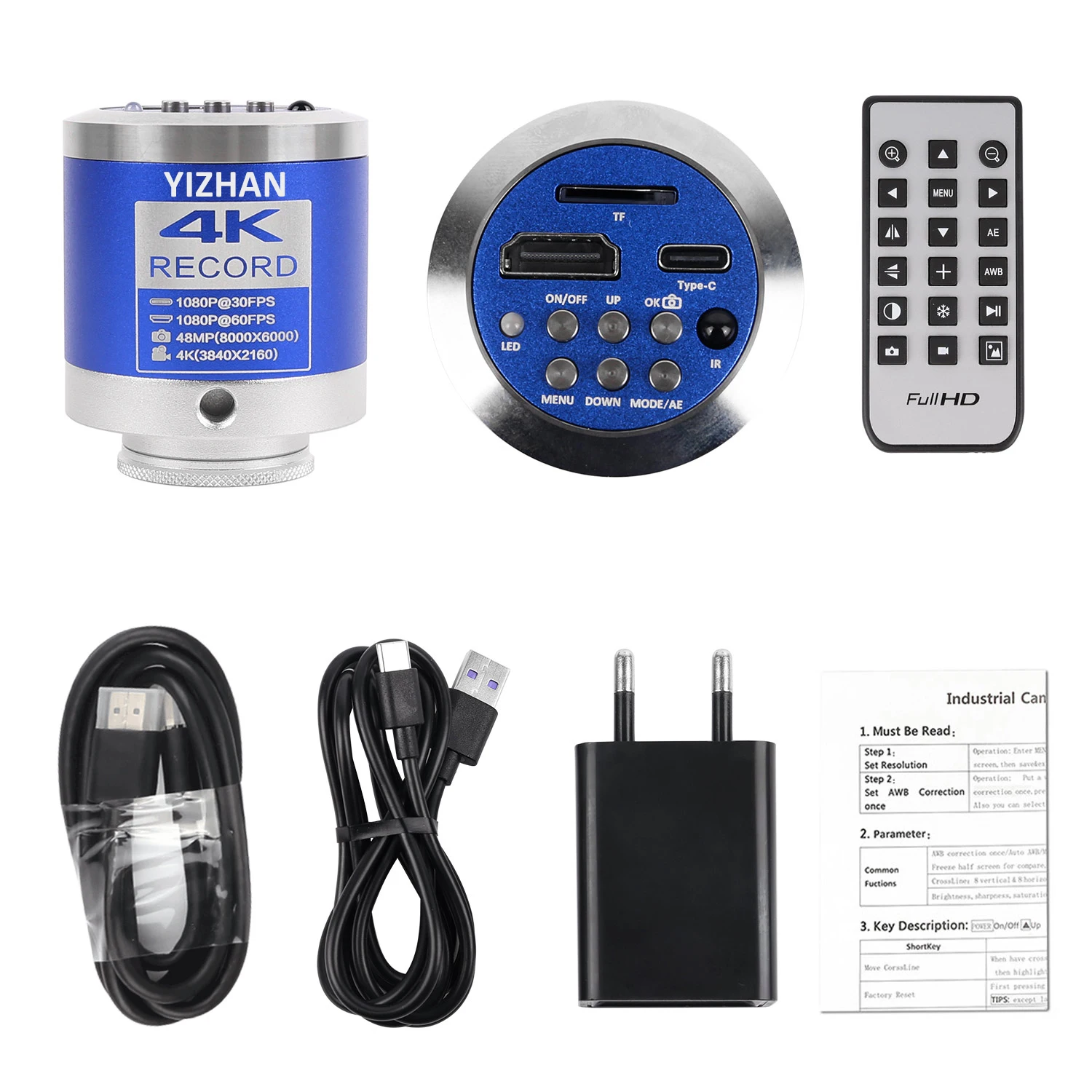

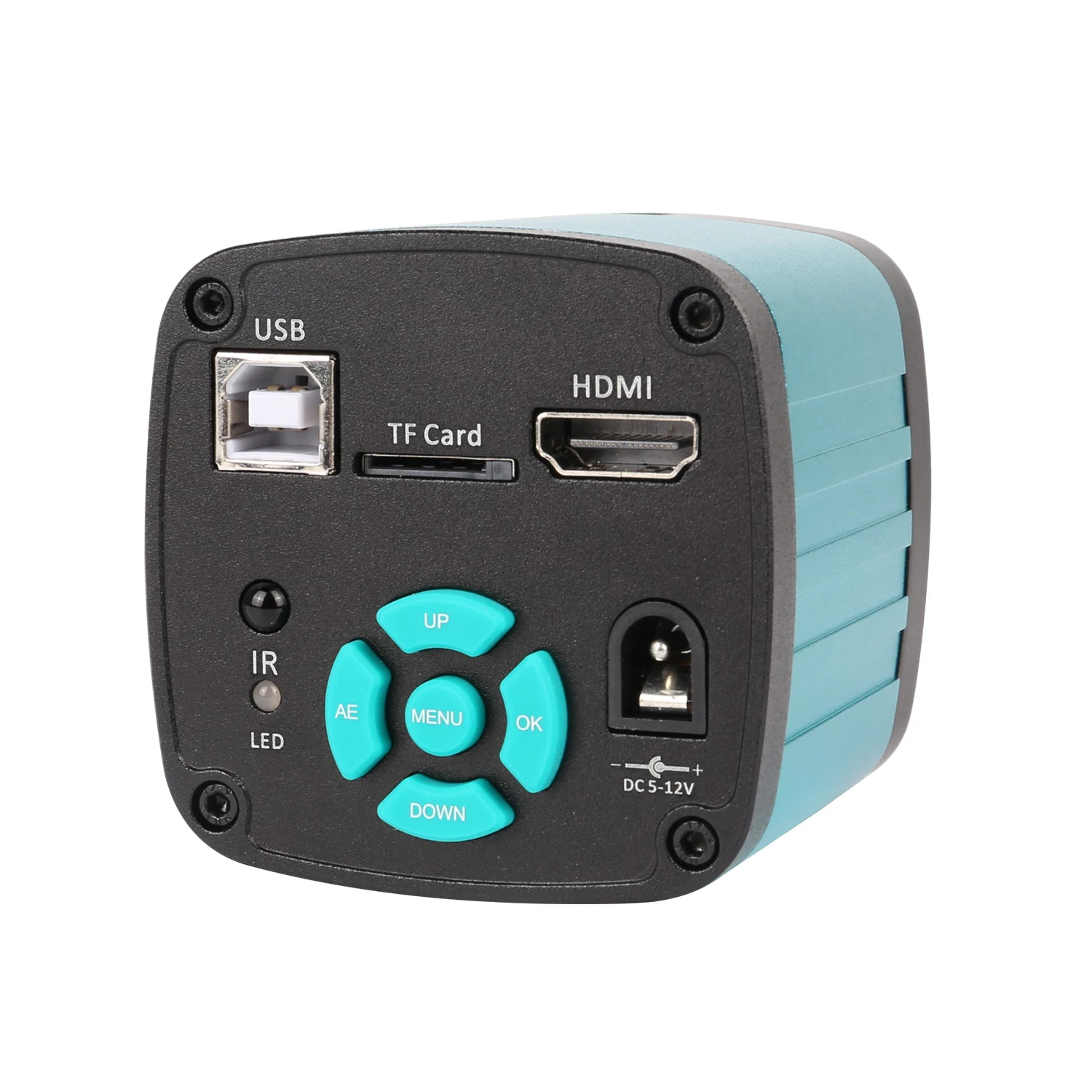

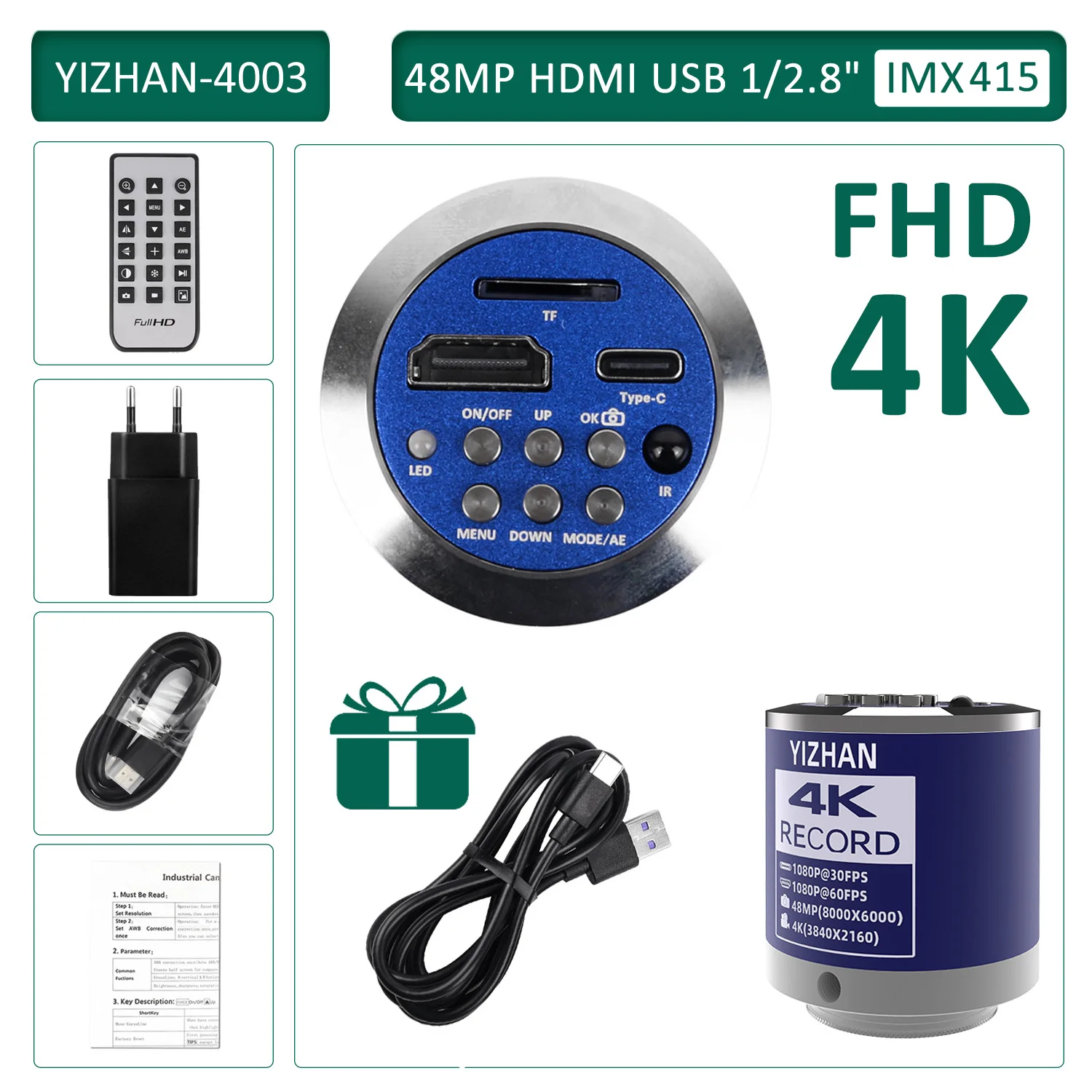

48MP ALL 4K HDMI USB Camera / YIZHAN-4003

◆Sensor: 1 / 2.8 inch ,Sony imx415 megapixel CMOS sensor the perspective is wider than 1 / 3 inch;

◆HDMI：1920*1080P 60FPS image output ；

◆TYPE-C：1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)

◆4K video recording;

◆48 Million photos, JPG format,

◆5x electronic magnification!

◆One-click freeze / thaw function;

◆A 48-megapixel photo recording and a 1080P video recording;

◆automatic exposure / one-click exposure, exposure compensation value adjustment;

◆automatic white balance / one-key white balance, red, green, blue adjustable;

◆Provide 16 line drawing line function, line color, thickness, adjustable position;

◆Provide the center cross-line display / close;

◆Support for TF card storage, up to 64GB support;

◆Support remote control operation, take photos without shaking the image clearer;

◆OSD language:English, Spanish, Portuguese, Japanese, Russian, Italian, French, Arabic, Chinese

◆Support the shutdown setting parameter saving;

◆Aluminum alloy shell processed by CNC fine milling technology;

Pixel size:2.9µm × 2.9µm

HDMI output: 60FPS

Lens interface:C/CS

exposure:Automatic / manual

exposure compensatio:support

white balance:Automatic / manual, support for RGB adjustable

memory Max. support is 64GB

input voltage :DC: 5V

lineation 16 lines, with adjustable color, thickness, and position

centre line:support

telecontroller:Support for the remote control operation

net weight:150g

rough weight:350g

product size:66*66*49mm

packing measurement:145*130*70mm

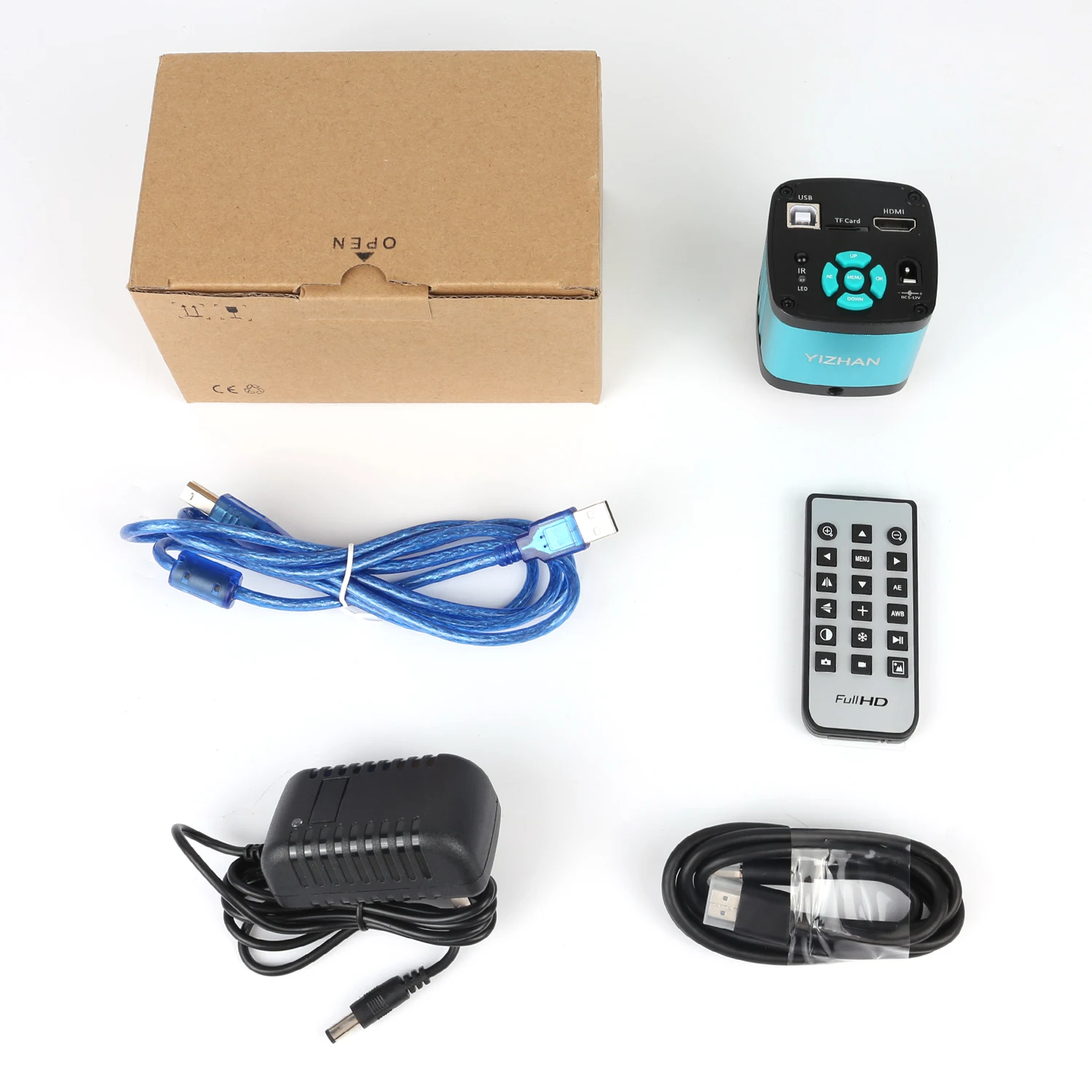

Packing List of camera set:

1* Camera body

1* Power adapter

1* HDMI cables

1* USB cable

1* Remote control (no battery due to logistics requirements)

48MP 4K HDMI USB Camera / YIZHAN-4002

◆Sensor: 1/2.33 inch ,Sony imx327 megapixel CMOS sensor

◆48 million pixel imported Sony CMOS image sensor;

◆Using 1/2.33 inch image sensor, Angle of view is wider than 1/3 inch;

HDMI 1080P 60 frame image output;

◆USB2.0 driver free output 1080P 30 frame image output;

4K video recording;

◆48 million photos, JPG format,One-click freezing/thawing function;

◆5x electronic magnification!

◆48 megapixel photography and 1080P video recording;

Support manual/automatic exposure, exposure compensation value adjustment;

Support manual/automatic white balance, red, green, blue adjustable;

◆ Provide 8 line drawing functions, line color, thickness, position adjustable;

Display/close center cross;

Support TF card storage, up to 64GB;

Support remote control operation, take photos without jitter image more clear;

◆ Support Chinese and English menu language (default English);

Support shutdown setting parameters save;

◆ Strong metal shell;

Pixel size : 1.335µm × 1.335µm

HDMI output : 1920*1080 60PFS

USB output : 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)

Camera interface : C/CS

Exposure : Automatic/manual

Exposure compensation : Support

White balance : Automatic/manual, RGB adjustable

Storage : Supports a maximum of 64GB

Input voltage : Dc 5v-12v

line : Supports 8 straight lines with adjustable color, thickness and position

Center line : Support

Menu language : English/Chinese

Remote control : Support remote control operation

Net weight : 250g

Rough weight : 450g

Product size : 66*66*49mm

Packing size : 145*130*70mm

Packing List of camera set:

1* Camera body

1* Power adapter

1* HDMI cables

1* USB cable

1* Remote control (no battery due to logistics requirements)

13MP HDMI VGA Camera / YIZHAN-2003

The sensor: Sony imx323

Pixel array:13MP

Overall dimension: 75*50*50mm

Video Interface:HDMI VGA

Lens:CS

Working voltage:12V

Working current:150mA

Optical format:1/3"

Pixel size:2.8um*2.8um

TV Lines:1200TVLine

FPS of max image:60FPS

Scanning mode:progressive

Shutter mode:electronic shutter

Dynamic range:65dB

S/N radio:45dB

OSD language:English, Spanish, Portuguese, Japanese, Russian, Italian, French, Arabic, Chinese

AWB mode:One time white balance / manual / auto

HDR:Adjustable

Cross line:Support 8 colors / line width adjustable

B/W:allow

Negative:allow

Mirror flip:Support left / right / up / down

Freeze:allow

Compare:allow

Manual set bright,contrast,sharp,saturation:allow

Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

Packing List of camera set:

1* Camera body

1* Power adapter

1* HDMI cables

1* Remote control (no battery due to logistics requirements)

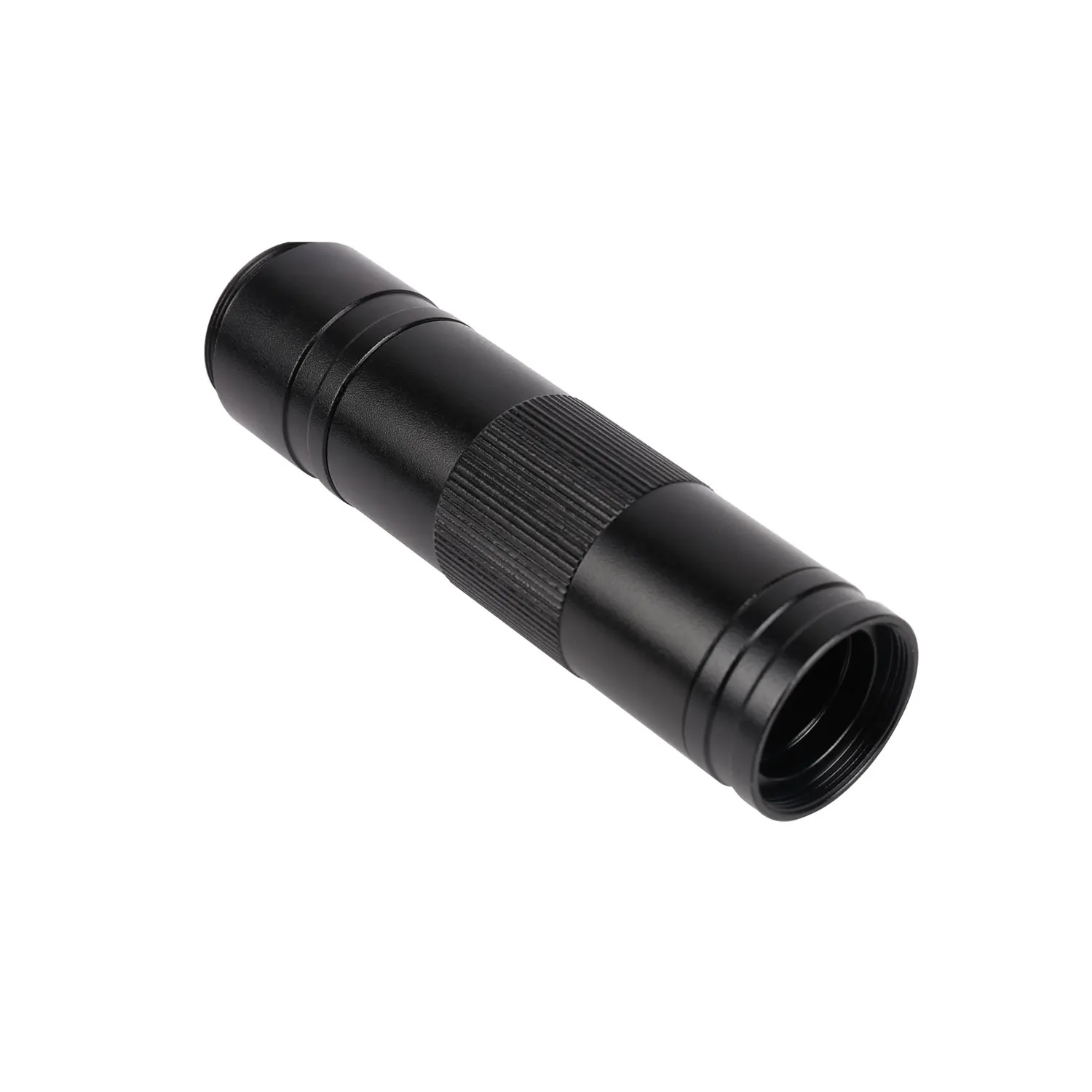

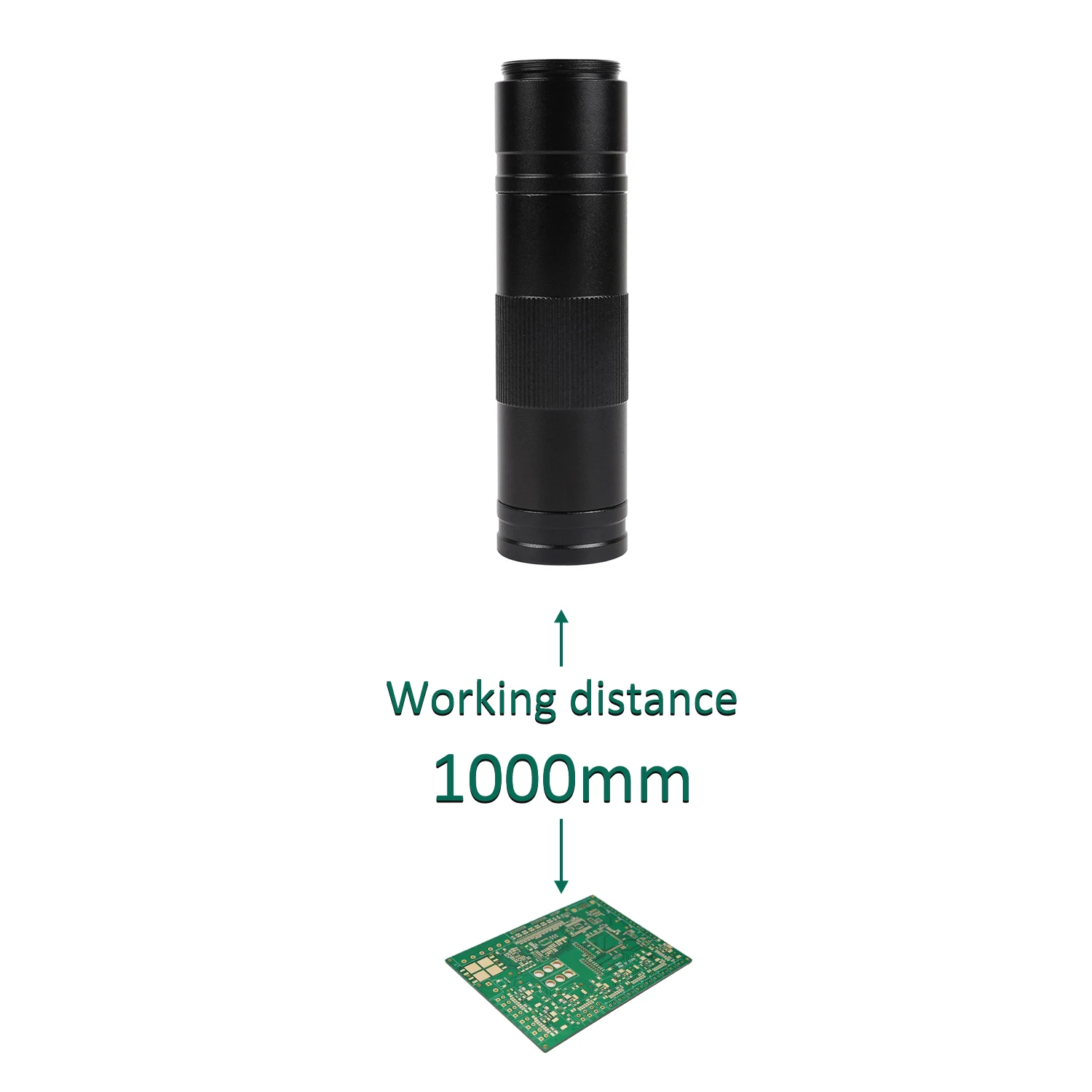

1X-150X Zoom C-mount Lens

Working distance: 50mm-1000mm

zoom ratios: 1 : 15

Magnification Power by 0.15- 2X (about 1 - 150X on the display)

view field of Max multiple : 4.2mm*2.4mm

view field of Min multiple : 130mm*70mm

Size: 30mm(diameter) * 99mm(length)

Weight: 195g

About Shipment

We will ship your package within 1-2 working days.
We may change the shipping method: Consider of the customs, remote address and shipping speed.

Warranty &Return

Our store provides free replacement for orders within 30 days from delivery date. For orders from 1 to 12 months, you have to pay some parts of order value to get replaced. For order older than 12 months, we will give small discounts.

Our Service time

Our Working time is Monday to Friday 9:00 AM to 6:30 PM BeiJing Time.
All orders will not be processed at the weekend and holidays.

Feedback

Please contact us first if you have any problem,i will reply you within 30 minutes during working time.We promise you to solve your problem within 24 hours.

Shop OurLum with confidence—secure payments, fast shipping, easy returns, order tracking, and reliable support.

At OurLum.com, we don’t just promise quality—we guarantee it. Every product is carefully selected and tested to meet real-life needs, and your satisfaction is 100% backed by our no-hassle return policy. If it doesn’t work for you, we’ll make it right—fast. Shop confidently knowing you're getting trusted products, secure checkout, and real support when you need it. Because at OurLum, your peace of mind comes first

Product Gallery

Smarter Living Picks

Ecofeen Cushion

Why Choose Us

A promotional graphic on a white background with the text '10K+' in large letters filled with a collage of customer faces, followed by 'happy customers and counting' and 'Our promise. Your Trust.

Promotional graphic for a mobile-friendly order tracking page template, with orange abstract shapes, the text 'MOBILE FRIENDLY' and descriptive copy, and a smartphone mockup displaying the interface.

A stylized digital illustration of a miniature shopping cart filled with orange blocks, floating above a smartphone screen with glowing app icons and shopping-related graphics in the background.

A row of customer service agents wearing black over-ear headsets with microphones, working in a brightly lit office environment.

A red rubber stamp style graphic with the words “FREE RETURNS” in bold uppercase letters inside a rounded rectangular border, shown on a plain white background.

Deals on related products

4K Dash Cam for Cars with Night Vision,⁴¹

AI & Tech Accessories for Smarter Living¹⁰⁷

AI Translation Earbuds⁶⁹

Ambient Light – Transform Your Space¹⁸⁹

Android Auto AI Box¹³

5 stars: 49 (91%)
4 stars: 5 (9%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

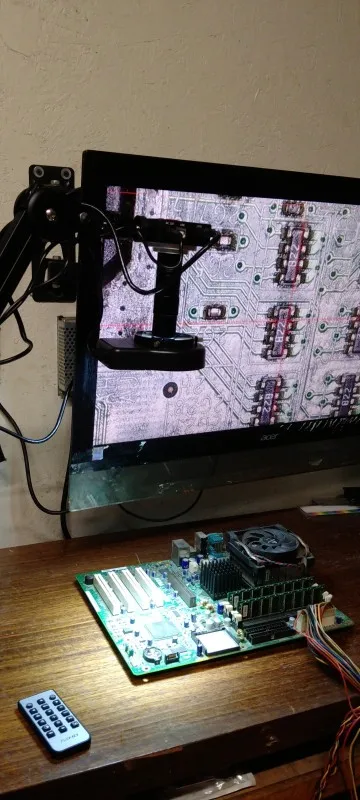

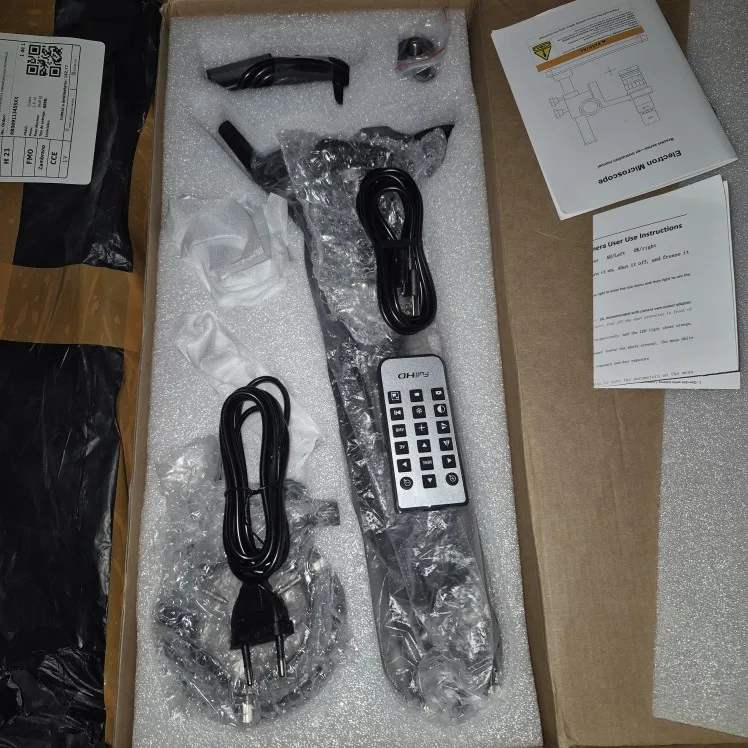

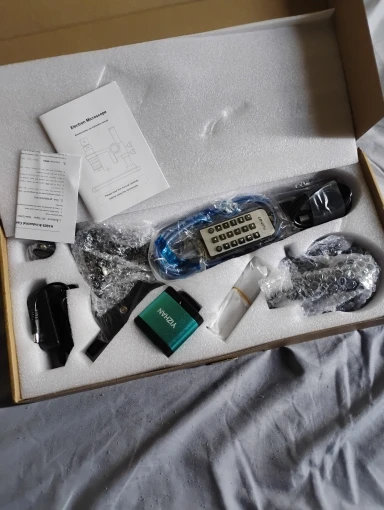

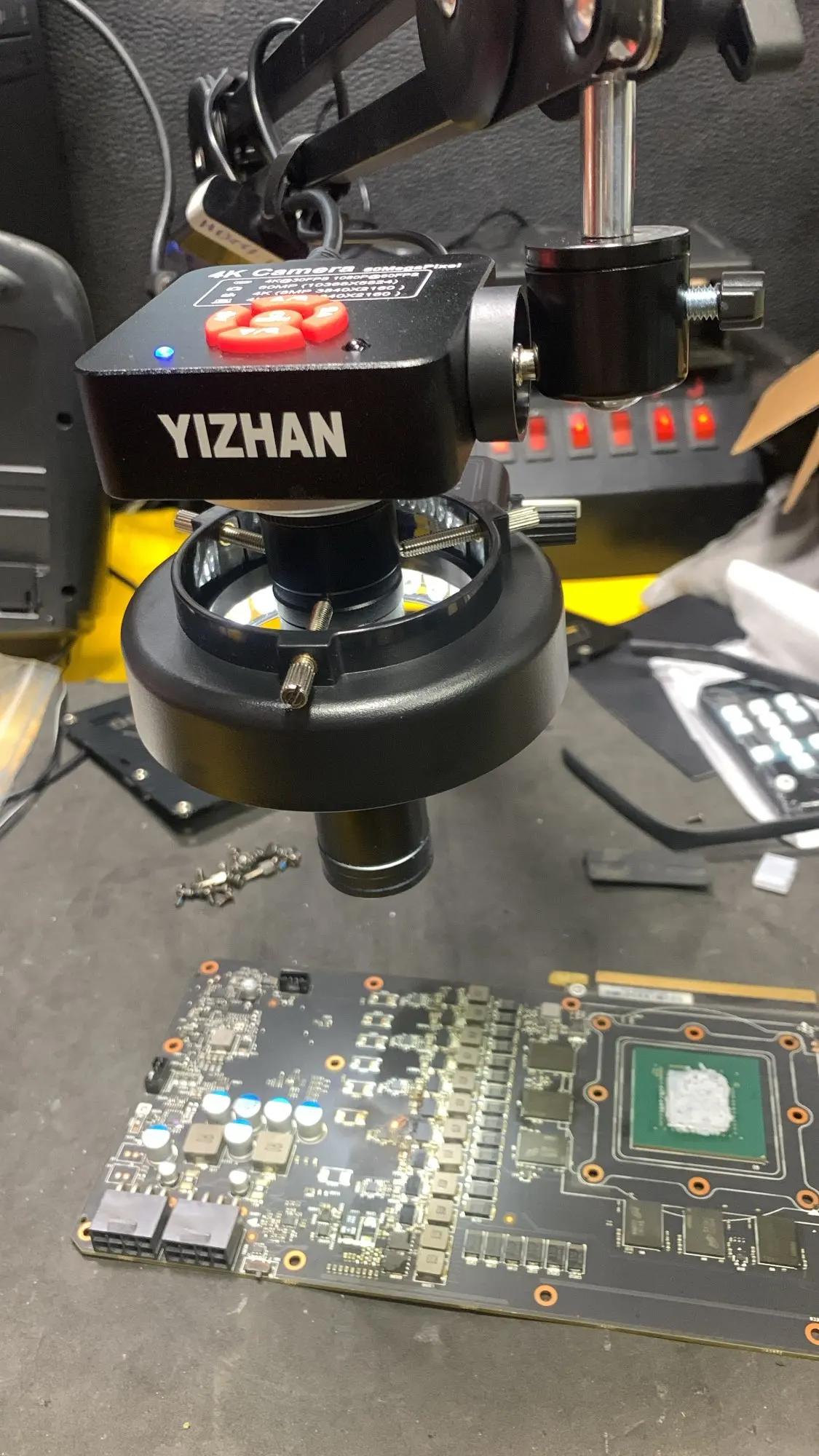

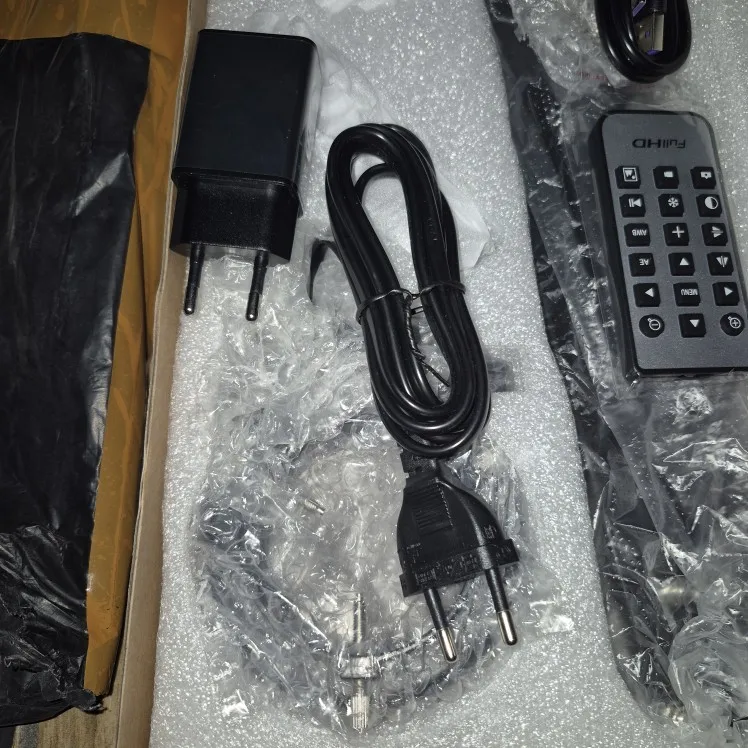

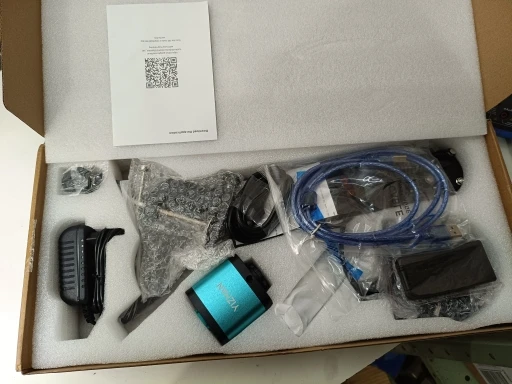

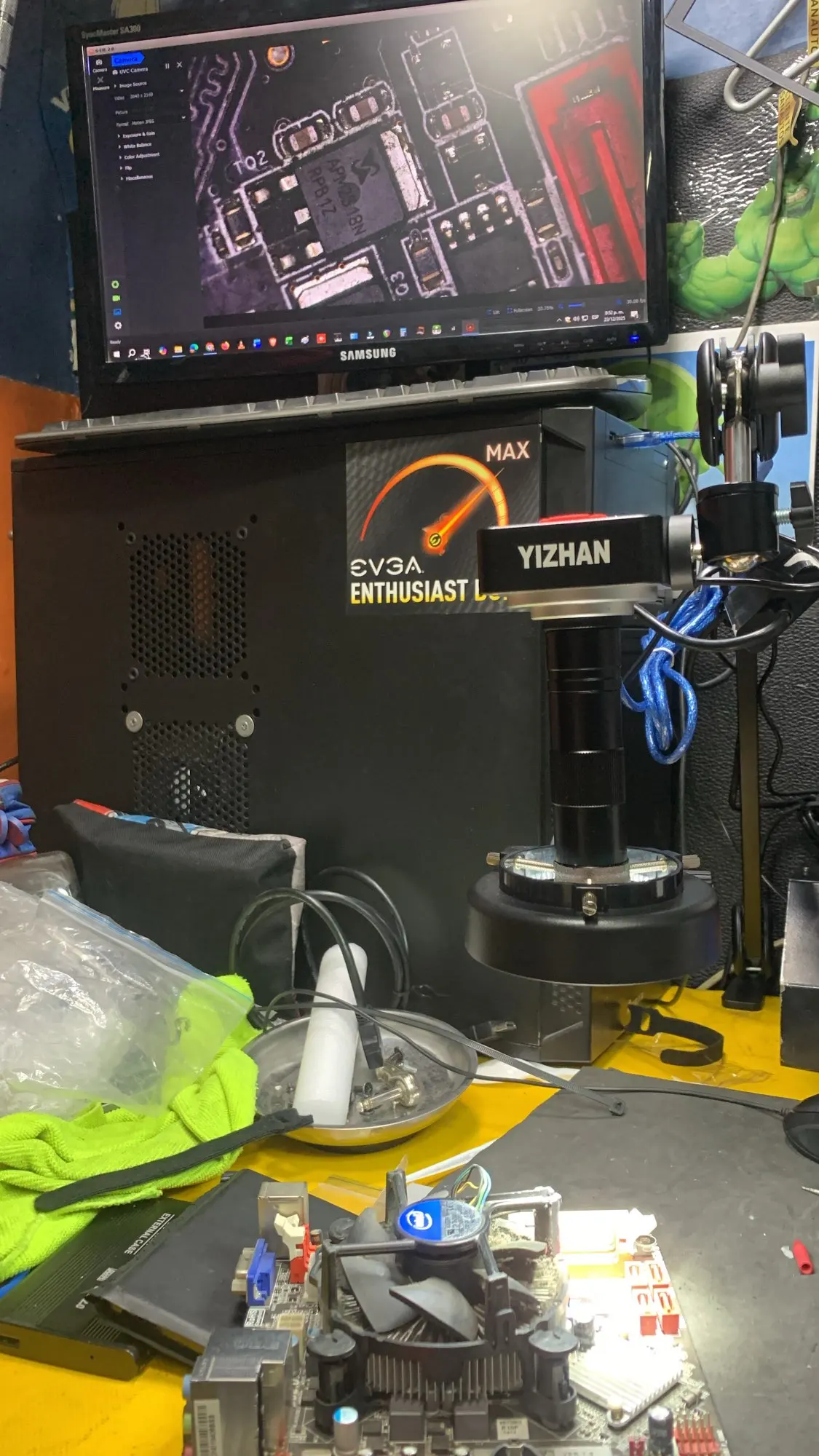

This digital microscope came in a well packaged box. it was pretty simple to put together and get set up. the camera came with some cable management velcro ties. i had a question for the seller and they answered in a timely manner. the swing arm moves where you need it and stays there. i am very happy with this purchase.

Very happy with this purchase! The device arrived much faster than i expected. There are just two things to be aware of: the plugs are not designed for australian sockets, but the seller kindly included two adapters in the package. Also, the remote control does not come with a battery, so you will need to buy a cr2025 battery separately.

Overall, i’m very satisfied with the purchase and highly recommend this seller.

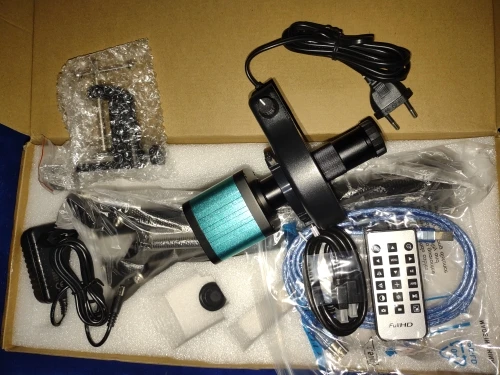

It arrived quickly, well packaged, the camera has great quality and is very easy to install and use, it was really worth it!

YIZHAN 60MP 48MP 4K Electronic Digital Microscope For Soldering 1080P HDMI VGA USB Industrial Camera 150xLens FoldBracket Remote

Very fast delivery, amazing! It arrived one day before the deadline, congratulations!

Fast shipping! well packaged! camara works great. excellent quality! recommend seller 100%

Excellent product. Recommended seller.

The product is good, I already installed it and actually bought it from the warehouse in my country, and it arrived in 2 days or a little less. It gave me a strange feeling because the box did have some signs of damage. But after checking everything, it was in order. I had some trouble focusing, but it's now ready ✅ The only thing that might be considered a negative is that the camera gets quite hot when turned on; I think that could affect it in the long term. As for the rest, everything is in order.

Everything is ok, sellers are good and want to help customer. magnification is great.

It took me super fast.

A good microscope

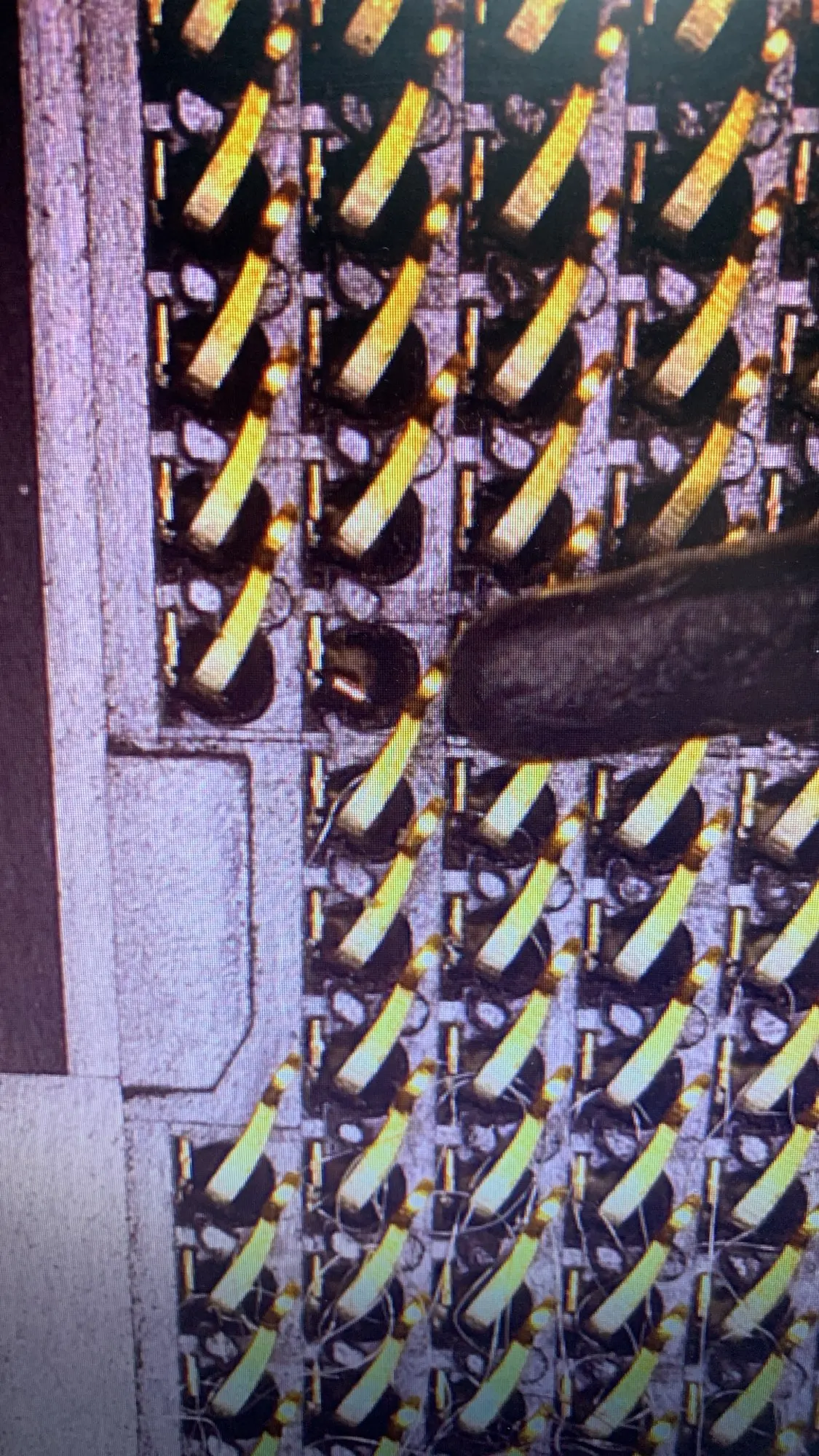

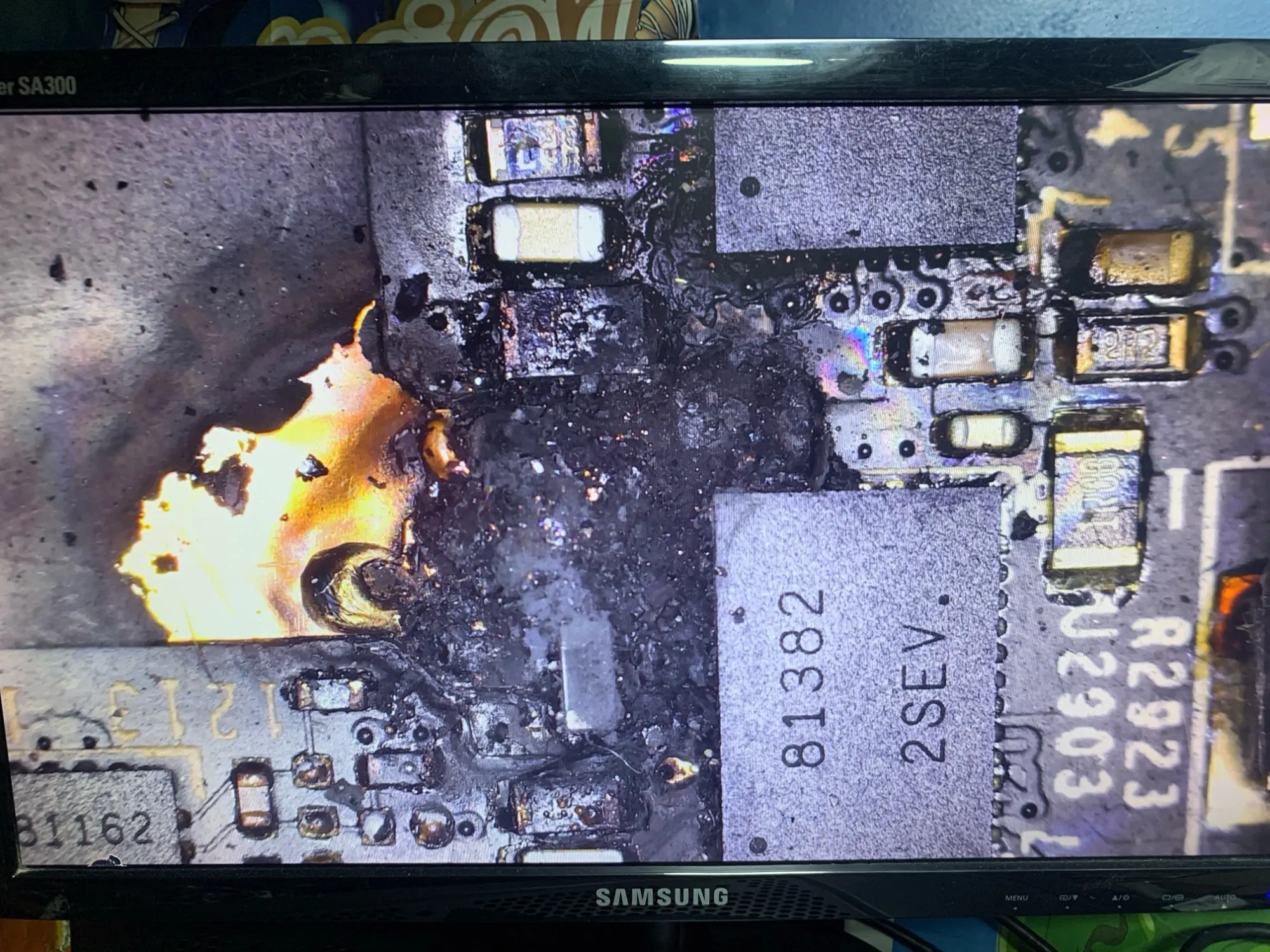

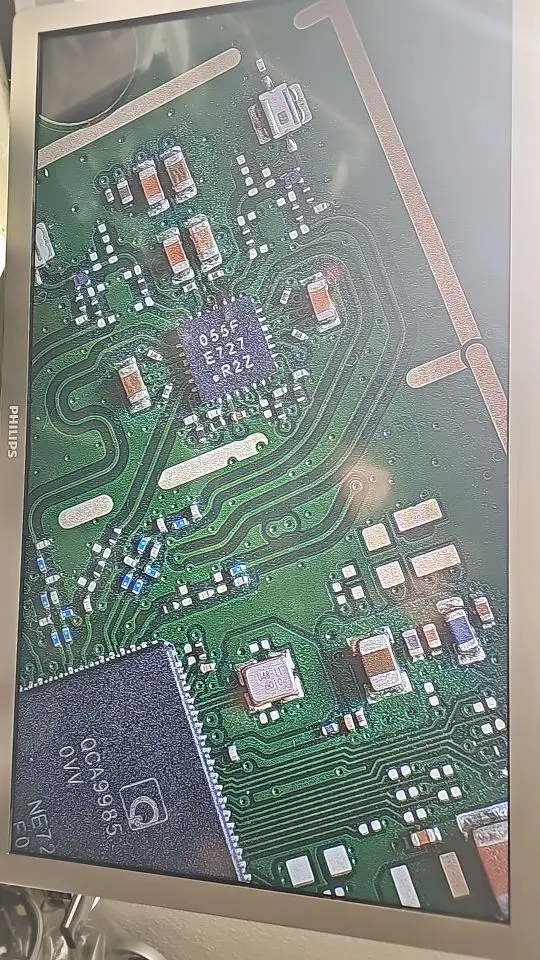

It works very well and provides very good resolution.

Perfect quality

Very good photos! I'm thrilled! It's best to ask the seller for the download link for the software. Everything is great. Fast communication and fast delivery! Thank you!

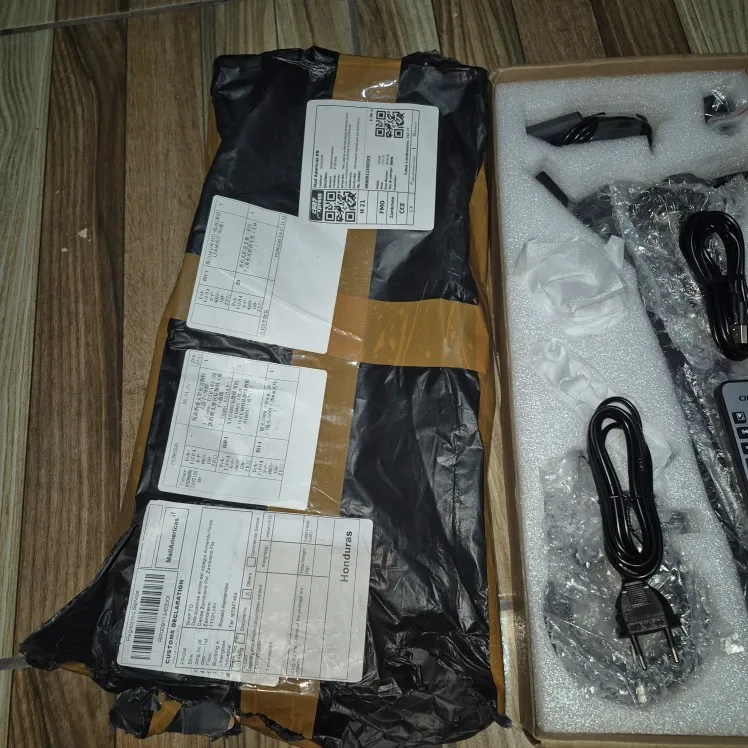

It looks good, it arrived in Honduras in 26 days, I haven't tried it yet. The only thing they sent me was the connector that goes into the wrong outlet. I don't know if they will give me something in exchange for that because I have to buy an adapter.

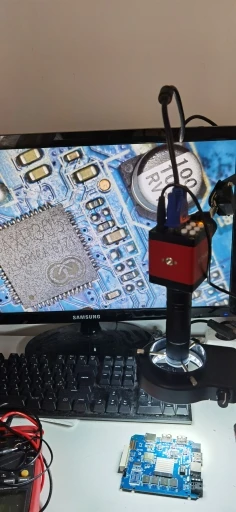

I have received my digital microscope and it is now working very well. I am very satisfied with the product and the support. The seller was helpful and resolved the issue quickly. I can fully recommend this seller. Thank you very much!
