SPECIFICATIONS
Brand Name: YIZHAN
Center line: support
Certification: CE,FCC
Choice: yes
Drawtube: Monocular
Exposure: automatic/manual/one-key exposure
Exposure compensation: support
Features: High Definition,Handheld,Portable,Digital
Funtion 1: microscope
Funtion 10: ring light
Funtion 11: Magnifier
Funtion 12: usb microscope
Funtion 13: Monocular
Funtion 14: Loupe magnifier
Funtion 15: children's microscope
Funtion 16: Electronic microscope
Funtion 17: Electron microscope
Funtion 18: child microscope
Funtion 19: trinocular microscope camera
Funtion 2: Digital microscope for electronics
Funtion 20: microscope digital
Funtion 21: zoom lens for mobile
Funtion 22: microscope for cell phones
Funtion 23: Phone repair
Funtion 24: Electronic digital microscope
Funtion 25: microscope children
Funtion 26: microscope for kids
Funtion 27: microscope backlight
Funtion 28: Camera
Funtion 29: tools to repair cell phones
Funtion 3: digital microscope
Funtion 30: Digital microscope for soldering
Funtion 4: Microscope for soldering
Funtion 5: microscopio
Funtion 6: Cell screen magnifier
Funtion 7: pocket microscope
Funtion 8: microscopes
Funtion 9: microscope for mobile phone
Gross weight: 350g
HDMI output: 1920*1080 60 frames
High-concerned chemical: none
Input voltage: DC 5V
Is Smart Device: Yes
Lens interface: C/CS
Line: support 16 straight/vertical lines, color, thickness and position adjustable
Magnification Ratio: 500X & Under
Material: Metal
Menu language: English/Chinese/Traditional Chinese
Model Number: XHU4003
Net weight: 150g
Origin: Mainland China
Packaging size: 145*130*70mm
Pixel size: 2.9umx2.9um
Product size: 68*68*47mm
Remote control: support remote control operation
Sensor: 1/2.8 Sony 2 million pixel imported sensor
Storage: maximum support 64GB
Theory: Video Microscope
Type-C output: 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
White balance: automatic/manual/one-key white balance, support RGB adjustable
YIZHAN Model: YZ 1605-C
Photo |
|
|
|
Model |
XVH2003 |
XHU4002 |
XHU4003 |
Sensor |
GC2053 |
2 million pixel imported Sony sensor |
2 million pixel imported Sony sensor |
IMX323 |
IMX327 |
IMX415 |
1/2.9" |
1/2.8" |
1/2.8" |
Pixel Size |
2.8µm * 2.8µm |
2.9µm * 2.9µm |
2.9µm * 2.9µm |
Imaging Effect |
HD |
HD |
HD |
Photo Pixels |
13MP |
48MP |
48MP |
Video Pixels |
× |
4K |
4K |
Measurement Function |
× |
computer measurement |
computer measurement |
Remote Control Function |
√ |
√ |
√ |
Other
Function |
Crosshair/line drawing/brightness contrast/white balance exposure/black and white mirroring and other parameter adjustments |
Interface |
HDMI/VGA:1080P 30FPS |
HDMI:1080P 60FPS
USB:1080P 30FPS |
HDMI:1080P 60FPS
Type-C:1080P 30FPS |
Package |
|
|
|
Note:
C Set（XVH2003） cameras cannot use computer software, A Set（XHU4003） and B Set（XHU4002） can use computer software.
Software URL:
https://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?pli=1
3 softwares, choose any one of them to use!

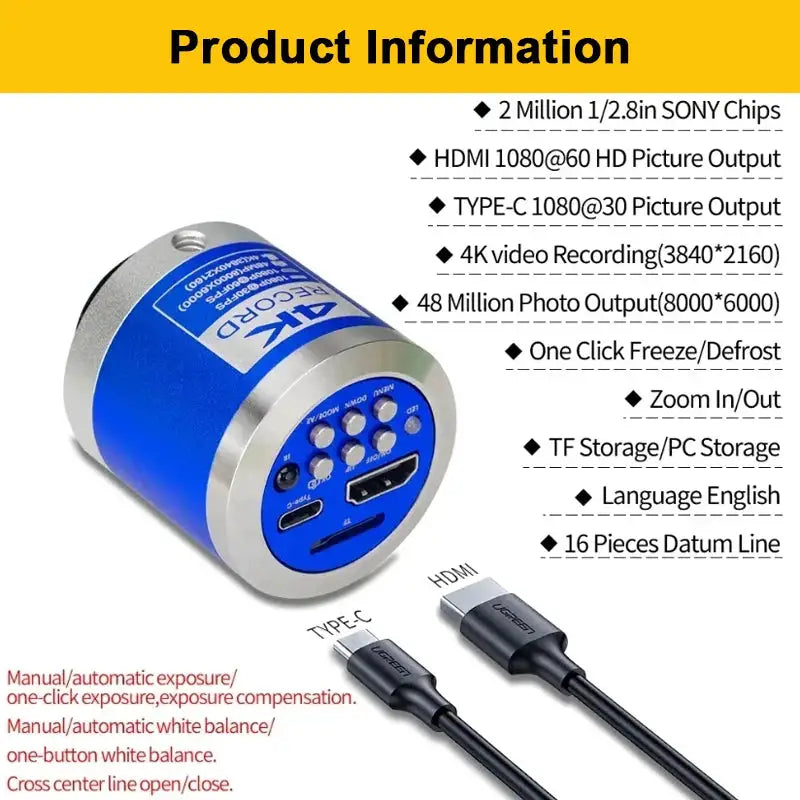

A Set Camera Specification:
◆Adopt 2 million pixel imported Sony sensor;
◆Adopt 1/2.8 inch image sensor, the viewing angle is wider than 1/3 inch;
◆HDMI 1080P 60 frame image output;
◆TYPE-C driver-free output 1080P 30 frames of image output;
◆4K video recording;
◆48 million photos, JPG format, photo size 8000x6000;
◆One-click freeze/thaw function;
◆48 million pixel photos and 1080P video recording;
◆Electronic zoom function;
◆Support manual/automatic exposure/one-click exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance/one-click white balance, red, green, blue adjustable;
◆Provide 16-line function, line color, thickness, position adjustable;
◆Provide center crosshair display/off;
◆Support TF card storage, maximum support 64GB;
◆Support remote control operation, no shaking photos and clearer images;
◆Support Chinese, Traditional Chinese, English menu languages;
◆Support shutdown setting parameter saving;
◆Aluminum alloy shell processed by CNC precision milling technology;
Specifications:
Sensor: 1/2.8 Sony 2 million pixel imported sensor
Pixel size: 2.9µm × 2.9µm
HDMI output: 1920*1080 60 frames
TYPE-C output: 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Lens interface: C/CS
Exposure: automatic/manual/one-key exposure
Exposure compensation: support
White balance: automatic/manual/one-key white balance, support RGB adjustable
Storage: maximum support 64GB
Input voltage: DC 5V
Line: support 16 straight/vertical lines, color, thickness and position adjustable
Center line: support
Menu language: English/Chinese/Traditional Chinese
Remote control: support remote control operation
Net weight: 150g
Gross weight: 350g
Product size: 68*68*47mm
Packaging size: 145*130*70mm

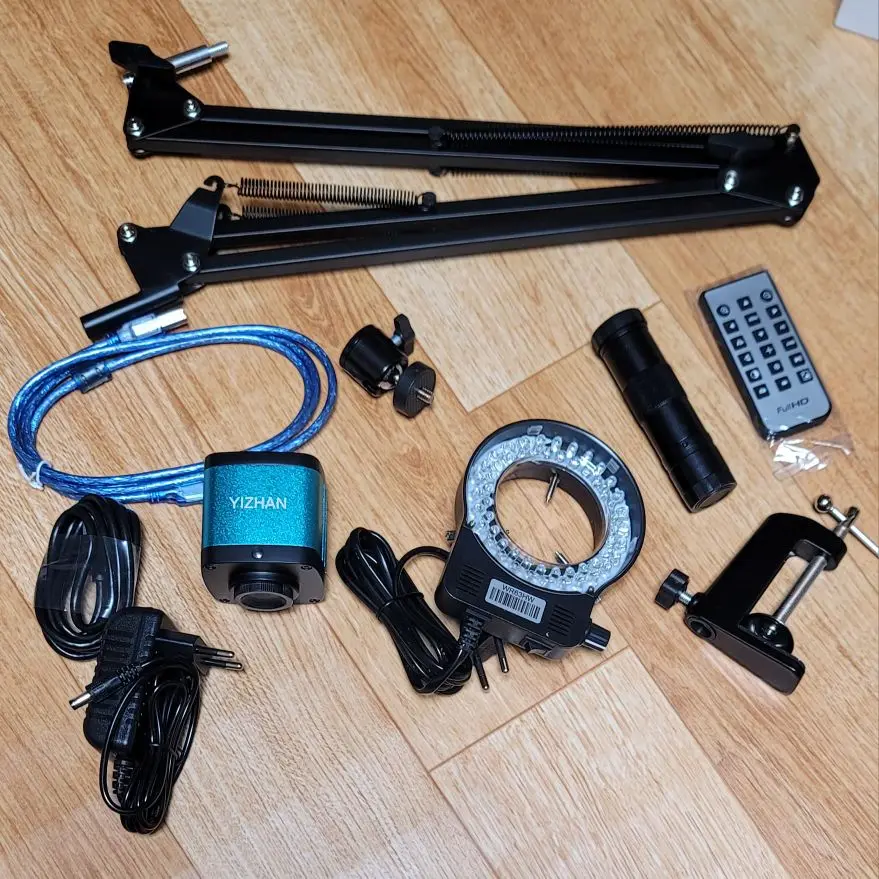

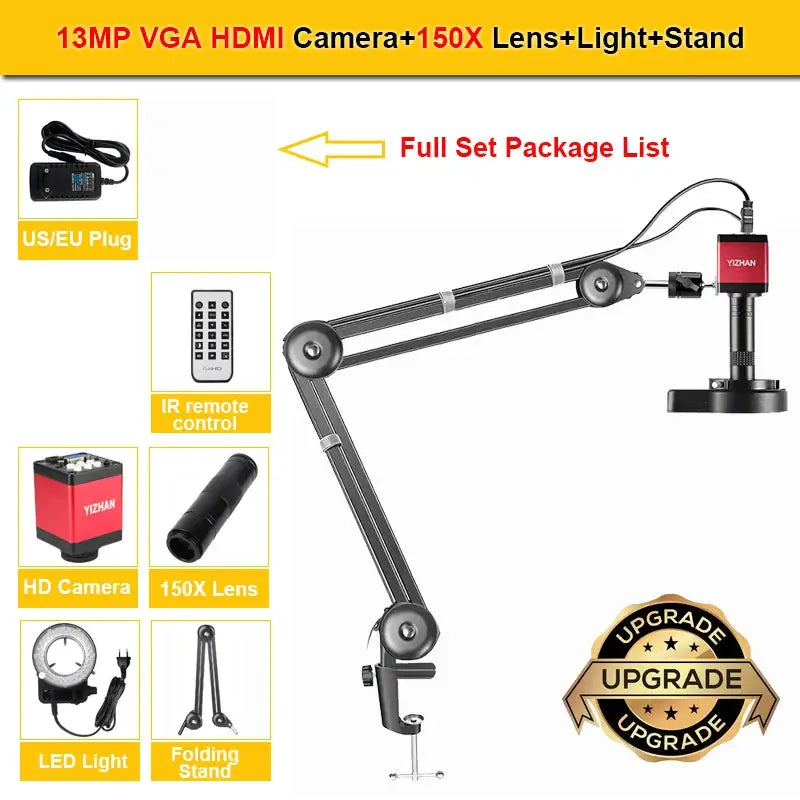

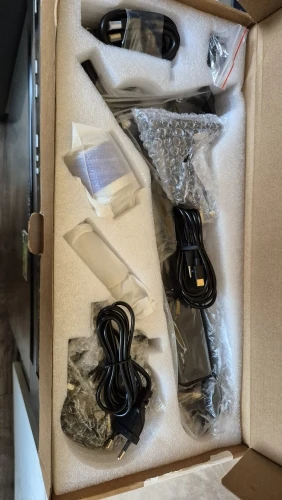

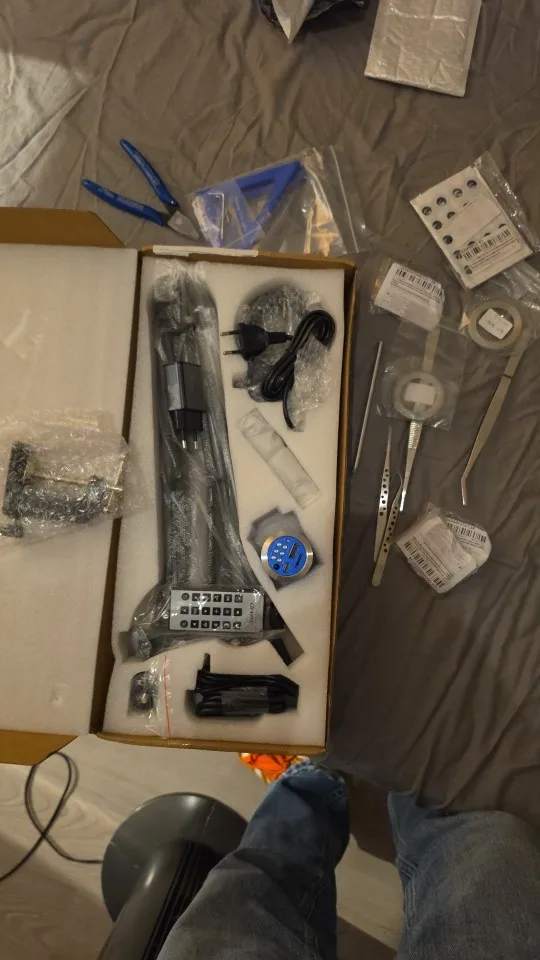

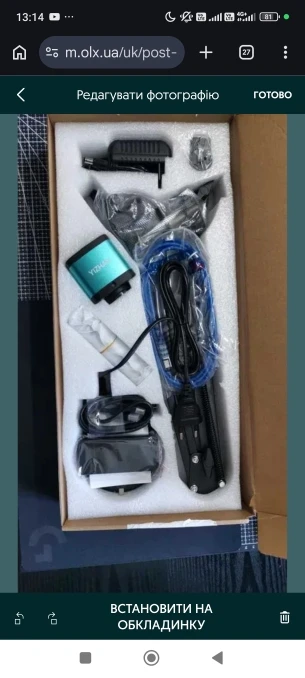

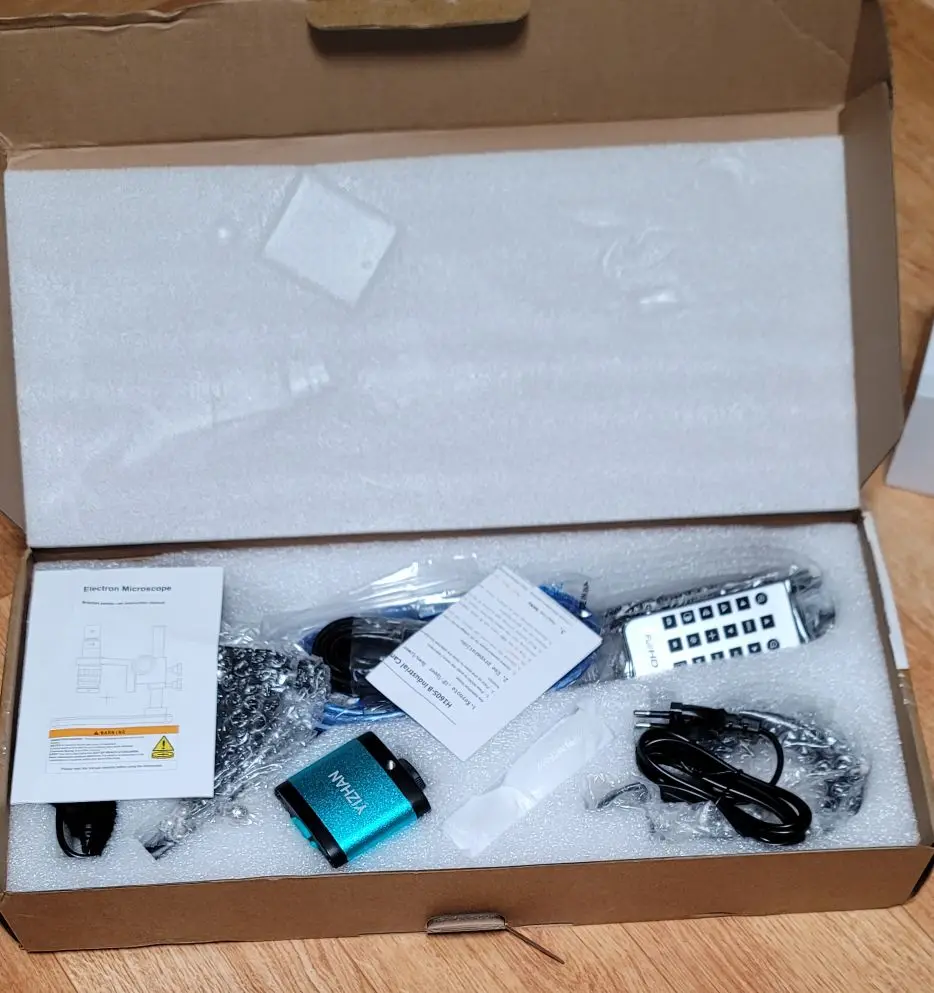

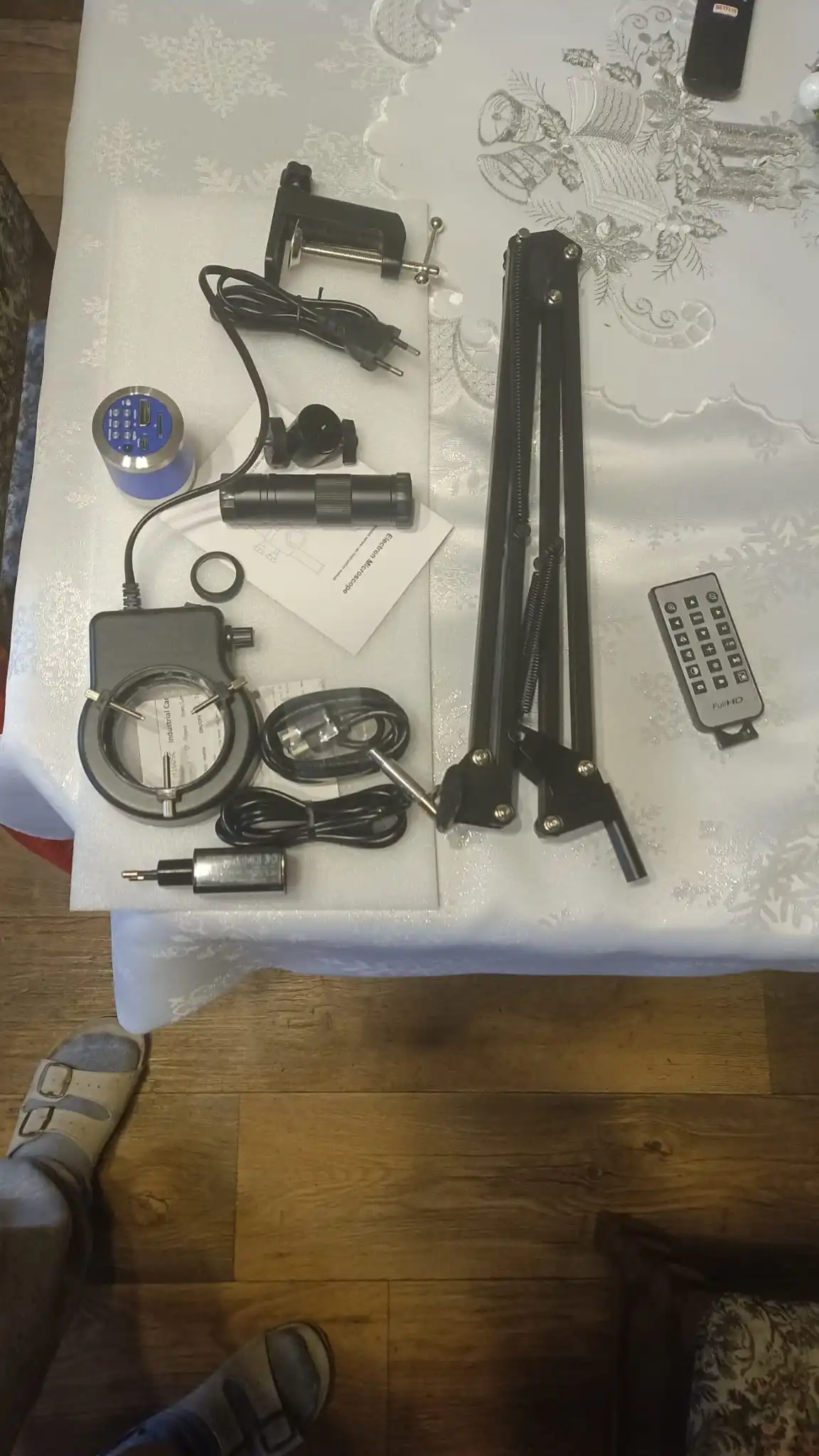

Package includes:
1*XHU4003 microscope camera
1*Adapter
1*Type C data cable
1*HDMI cable

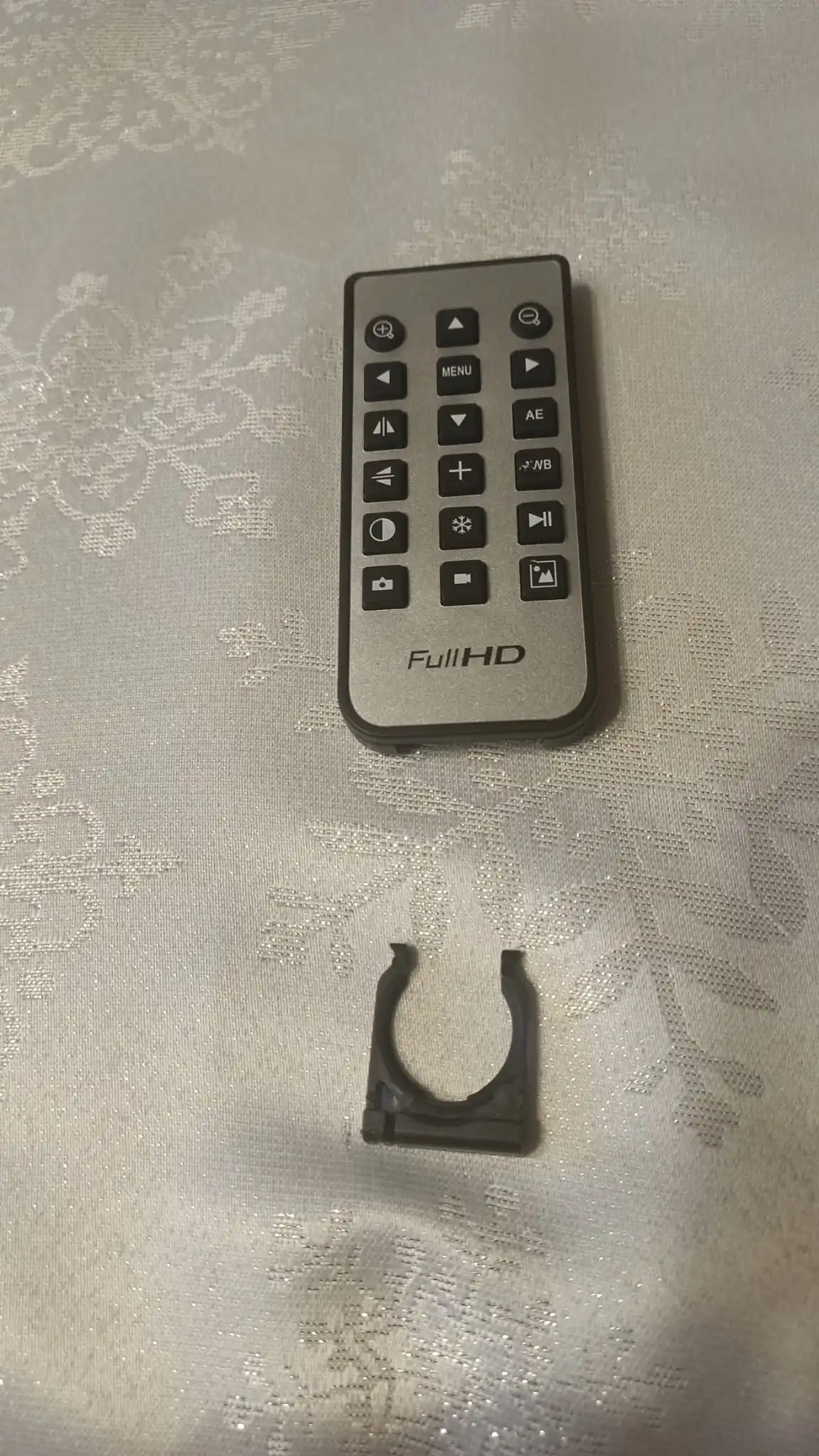

1*remote control
1*plastic ring
1*instruction manual
HDMI connects to the Display:
1. It Can capture pictures and videos and save them on TF cards
2. It can capture up to 8M 8000X6000 HD images
3. 4K (30fps) /1080P(60pfs) MOV video is available
Type-C Connection to computer:
1. Install the ImageView on your computer
2. Through the ImageView program, you can get point spacing, parallel lines, vertical lines, line spacing, Angle, circle, radius, radian, rectangle, ellipse, concentric circles, center distance, and other measurement tools.
Software URL: https://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?pli=1
B Set Camera Specification:
◆Adopts 2-megapixel imported Sony CMOS image sensor;
◆Adopts 1/2.8-inch image sensor, with a wider viewing angle than 1/3-inch;
◆HDMI 1080P 60-frame image output;
◆USB2.0 driver-free output 1080P 30 frames of image output;
◆4K video recording;
◆Maximum 4800MP photo taking, JPG format, photo size 4608x3456;
◆One-button freeze/thaw function;
◆Electronic zoom function;
◆Support manual/automatic exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance, red, green, blue adjustable;
◆Provide 8-line drawing function, line color, thickness, position adjustable;
◆Provide center crosshair display/off;
◆Support TF card storage, maximum support 64GB;
◆Support remote control operation, no shaking when taking photos, clearer images;
◆Support Chinese and English menu languages (default English);
◆Support shutdown setting parameter saving;
◆Sturdy metal shell;
Specifications:
Sensor: 1/2.8-inch imported Sony CMOS image sensor
Size: 2.9µm × 2.9µm
HDMI output: 1920*1080 60FPS
USB Output: 1920*1080/30, 1280*720/30, 640*480/30, 320*240/30 (MJPG)
Camera interface: C/CS
Exposure: Auto/Manual
Exposure compensation: Support
White balance: Auto/Manual, RGB adjustable
Storage: Maximum support 64GB
Input voltage: DC 5V-12V
Line: Support 8 straight lines with adjustable color, thickness and position
Center line: Support
Menu language: English/Chinese
Remote control: Support remote control operation
Model: XHU4002
Color: Blue
Net weight: 250g
Gross weight: 450g
Product size: 60*60*70mm
Packaging size: 145*130*70mm
Output interface: HDMI USB
Resolution: 1920*1080P
Remote control: Yes

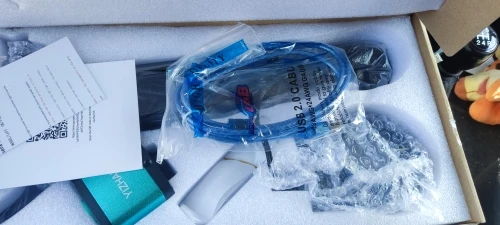

Package includes:
1*XHU4002 microscope camera
1*Adapter
1*HDMI cable
1*USB communication interface cable
1*Remote control
1*Instruction manual
HDMI connects to the Display:
1. It Can capture pictures and videos and save them on TF cards
2. It can capture up to 8M 8000X6000 HD images
3. 4K (30fps) /1080P(60pfs) MOV video is available
USB Connection to computer:
1. Install the ImageView on your computer
2. Through the ImageView program, you can get point spacing, parallel lines, vertical lines, line spacing, Angle, circle, radius, radian, rectangle, ellipse, concentric circles, center distance, and other measurement tools.
Software URL: https://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?pli=1
C Set Camera Specification:
◆Adopt 2 million pixel back-illuminated CMOS image sensor:
◆Adopt 1/2.9 inch image sensor;
◆HDMI/VGA 1080P 30 frames image output;
◆Support manual/automatic exposure/one-key exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance/one-key white balance, red, green, blue adjustable;
◆Provide 8 line drawing functions, line color, thickness, position adjustable;
◆Provide center cross line display/off;
◆Support Chinese and English menu language (default English); 10 languages
◆Support shutdown setting parameter saving;
Specifications:
Sensor: GC2053
Dimensions: 75*50*50mm
Video interface: HDMI VGA
Lens: CS
Operating voltage: 12V
Operating current: 150mA
Optical format: 1/2.9''
Pixel size: 2.8µm*2.8µm
TV lines: 1200TV lines
Maximum image frame rate: 60FPS
Scanning mode: progressive scan
Shutter mode: electronic shutter
Dynamic range: 65dB
Radio signal-to-noise ratio: 45dB
OSD language: English/Chinese
AWB mode: one-time white balance/manual/auto
HDR: adjustable
Crosshair: supports 8 colors/line width adjustable
Black and white: allowed
Negation: allowed
Mirror flip: supports left/right/up/down
Freeze: allowed
Compare: allowed
Manually set brightness, contrast, sharpness, saturation: allowed
Output display resolution: HDMI: 16:9, 4:3 VGA: 1920*1080P or above
Remote control: Yes
Features: Remote control function

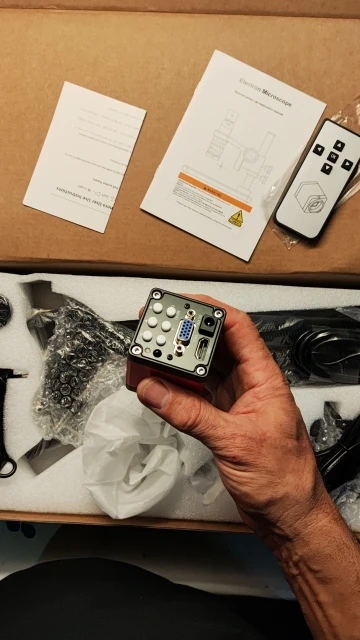

Package includes:
1*XVH2003 microscope camera
1*power cord
1*remote control
1*instruction manual
Note: This product cannot be connected to a computer and uses computer software!

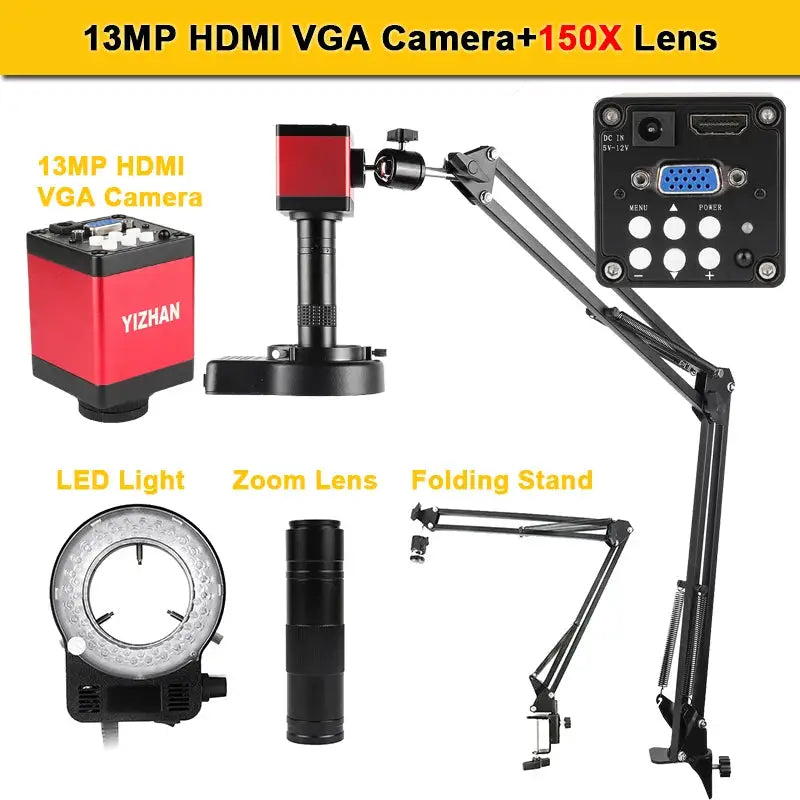

1X-150X zoom C-mount lens:
Mounting diameter: 28mm
Working distance: 50mm-1000mm
Zoom ratio: 1:15
Magnification 0.15-2X (approximately 1-150X on the display)
Maximum magnification field of view: 4.2mm*2.4mm
Minimum magnification field of view: 130mm*70mm
Size: 99mm (length)
Weight: 100g
Applicable camera size: 25mm
Ring Light Specifications:
Material: plastic
Color: black/white
Size: 100mm
Weight: 240g
Model: WR63HW
Power: 4.5W
Power input: 110V-220V
Output voltage: DC12V/1A
Number of LEDs: 56
Working life: 100,000 hours
Color temperature: 6500K
Effective distance: 50-300mm
Inner diameter: 63mm
Outer diameter: 97mm
Light color: white light

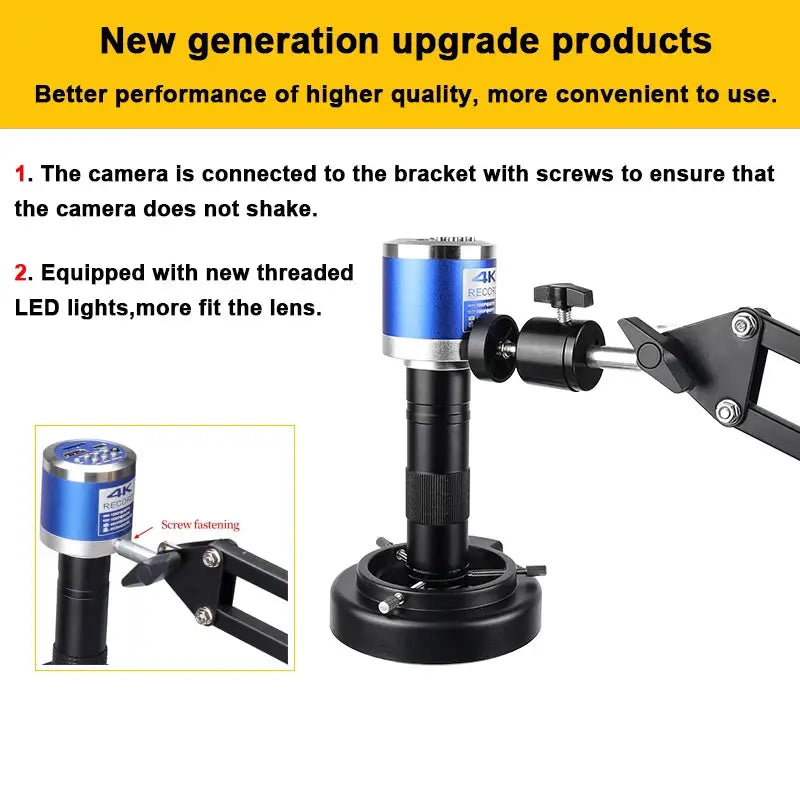

Metal Folding Bracket Specifications:
Material: Aluminum alloy
Size: 34*32cm
Weight: 540g
Maximum bottom installation size: 50mm
Function: Microscope stand, microphone live broadcast stand, mobile phone stand
Upgraded Folding Stand Description:
[Enhanced Flexibility] Experience a whole new level of flexibility in digital microscopy with our upgraded flexible arm stand. With its comprehensive adjustability, including 360° rotation, 135° extension, 180° movement, and 270° metal adapter, you can easily position the microscope for optimal viewing angles and precise imaging. This makes it the perfect companion for soldering PCB boards, providing the flexibility and precision required for complex work.
[Sturdy and Reliable] Rest assured that our stand can withstand the weight of your microscope, providing a stable and secure platform for your valuable equipment. Its rugged construction ensures durability and long-lasting performance, even under prolonged use. Trust the reliability of our stand and feel free to support your microscope with the stability and security you need for precise observation and experimentation.
[Easy Storage and Setup] Designed with convenience in mind, our stand offers easy storage and setup options. When not in use, simply fold the stand and store compactly to save valuable space in your lab or workspace. When you are ready to start your microscopy mission, the setup process is quick and easy, ensuring that preparation time is kept to a minimum. This streamlined approach allows you to focus more on your microscopy tasks, maximizing efficiency and productivity.
【Precise Positioning】Experience unparalleled microscope positioning accuracy with the advanced adjustable features of our stands. Whether you need to fine-tune the height, angle, or direction of your microscope, our stands offer maximum flexibility to meet your specific needs. This level of precision ensures optimal conditions for detailed inspection and imaging, allowing you to confidently and accurately capture every intricate detail.
