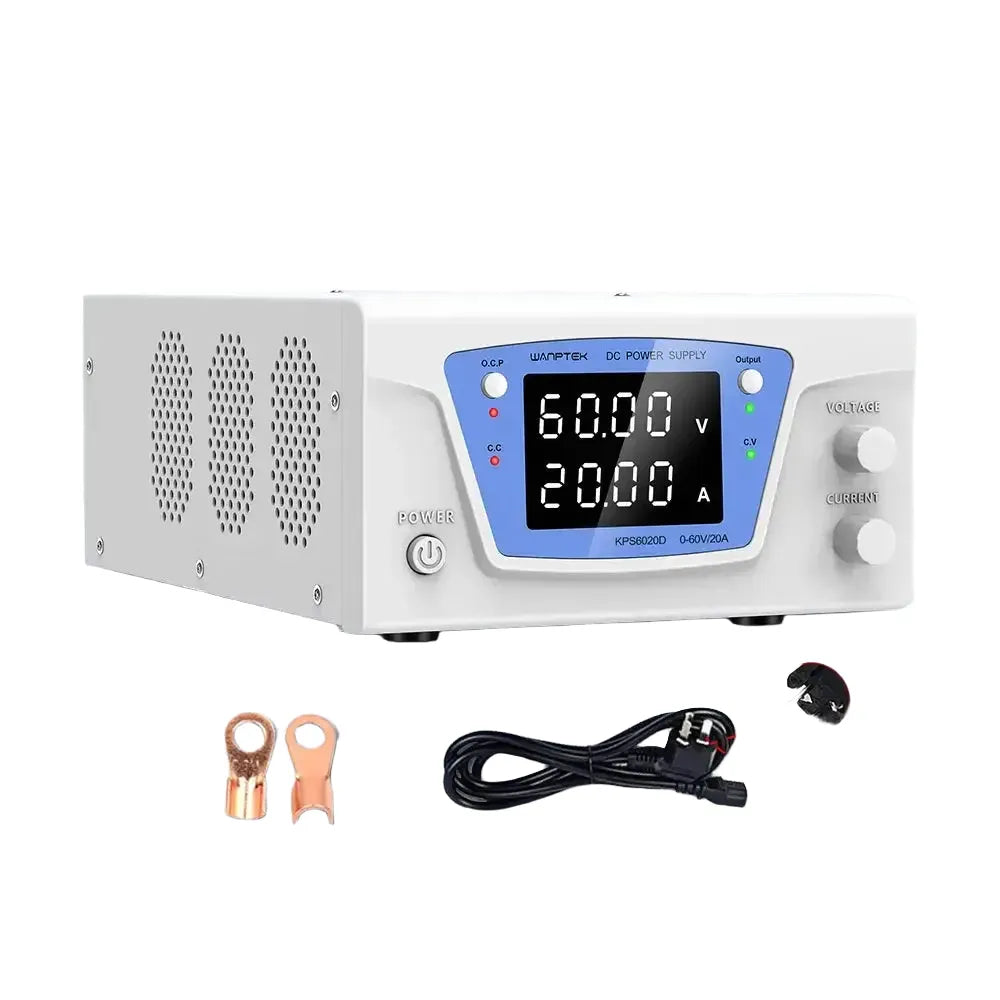

Adjustable Digital DC Power Supply. Get precise adjustable digital dc power supply control. This single-output switching unit delivers steady voltage and current. You tweak settings with encoder knobs. Clear displays show real-time readings. Built-in protections safeguard delicate components during heavy stress testing.

Key Features

• Single Output Channel Delivers continuous regulated dc power to one load at a time.

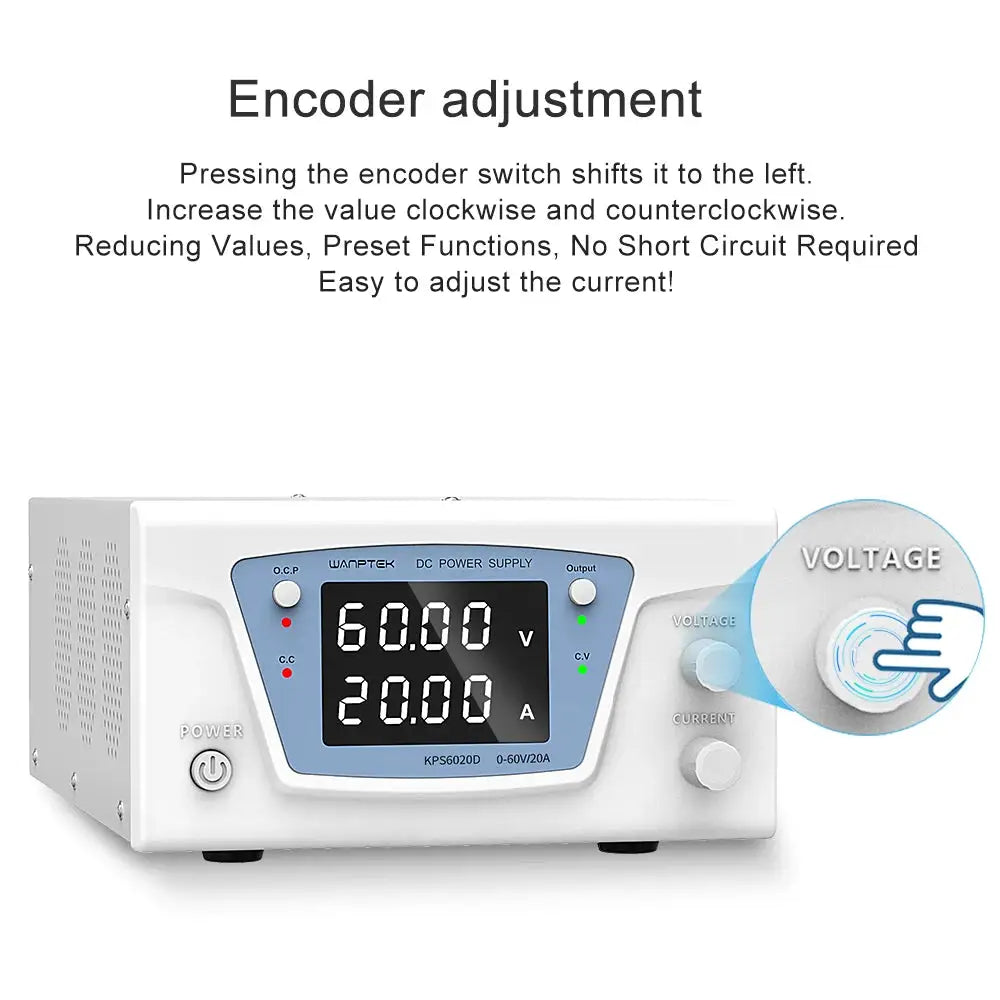

• Encoder Knob Control Smooth dial rotation adjusts voltage and current precisely.
• White Four-Digit Tube Shows both electrical parameters clearly on the front panel.

Product Description

For Adjustable Digital DC Power Supply, check the selected variant and product specifications. You need reliable power that reacts immediately to shifting circuit demands. This wanptek kps series programmable switching dc regulated power supply combines compact desktop dimensions with industrial grade stability. You access rapid load transient response without disturbing your test routine. The design runs efficiently thanks to internal pwm modulation and keeps ambient heat minimal.

Product Overview

This wanptek kps series unit is a desktop or rack-mounted dc power supply for technical work. You use it when accuracy and stability matter most.

Key Benefits

• Shielded Components Dedicated protection circuits interrupt runaway conditions before damage spreads.
• Faster Iterations Sub-two millisecond dynamic response keeps calibration loops moving quickly.
• Reduced Downtime High efficiency power routing wastes less energy during extended bench sessions.

Features

• PWM Architecture Converts incoming ac cleanly with minimal loss and heat buildup.

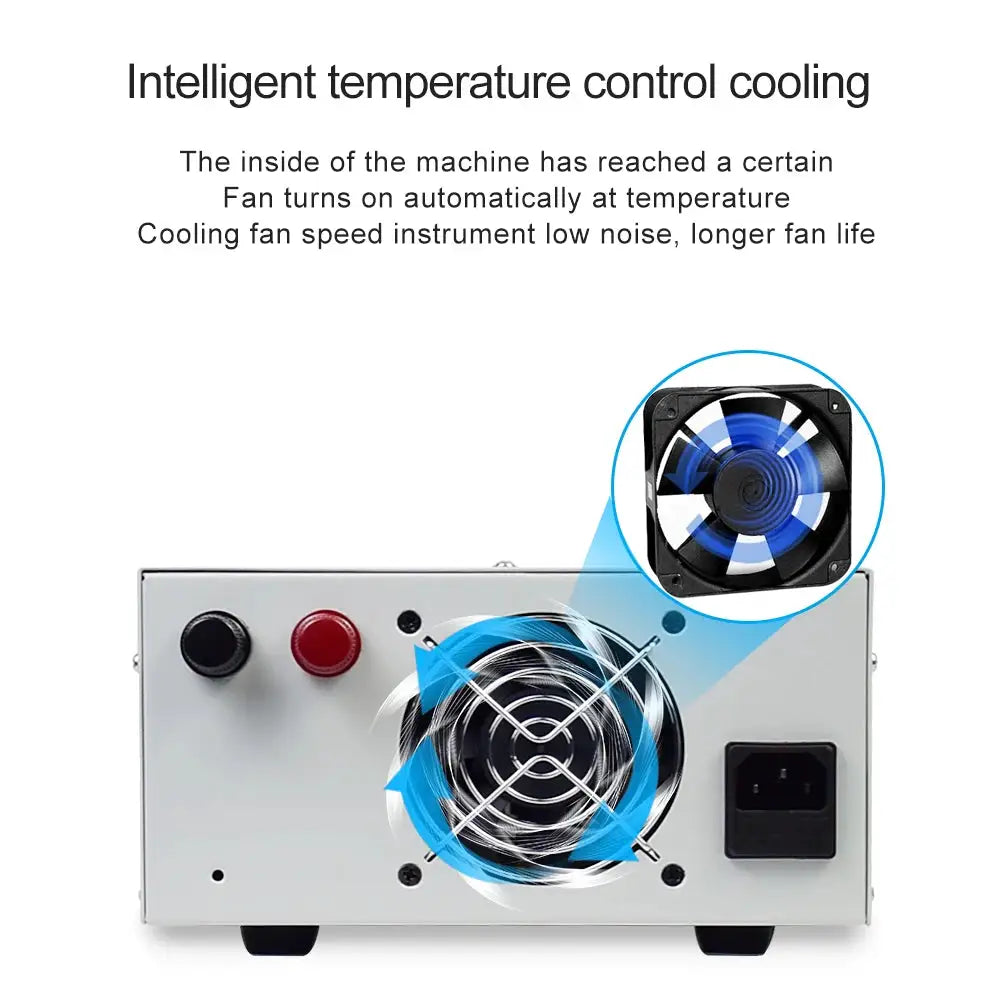

• Temperature Controlled Fan Cools internal chips only when operational thresholds require airflow.
• Rack Compatible Frame Lightweight chassis mounts securely to standard test benches.

Specifications

• Input Power AC 220V±10% at 50Hz frequency.
• Output Range Adjustable 0 to rated value.
• Max Continuous Current Selection up to 60A depending on model configuration.
• Display Resolution Voltage steps update every 0.01V and current every 0.01A.
• Storage Environment Safe storage between -10℃ and 70℃ below 70% relative humidity.

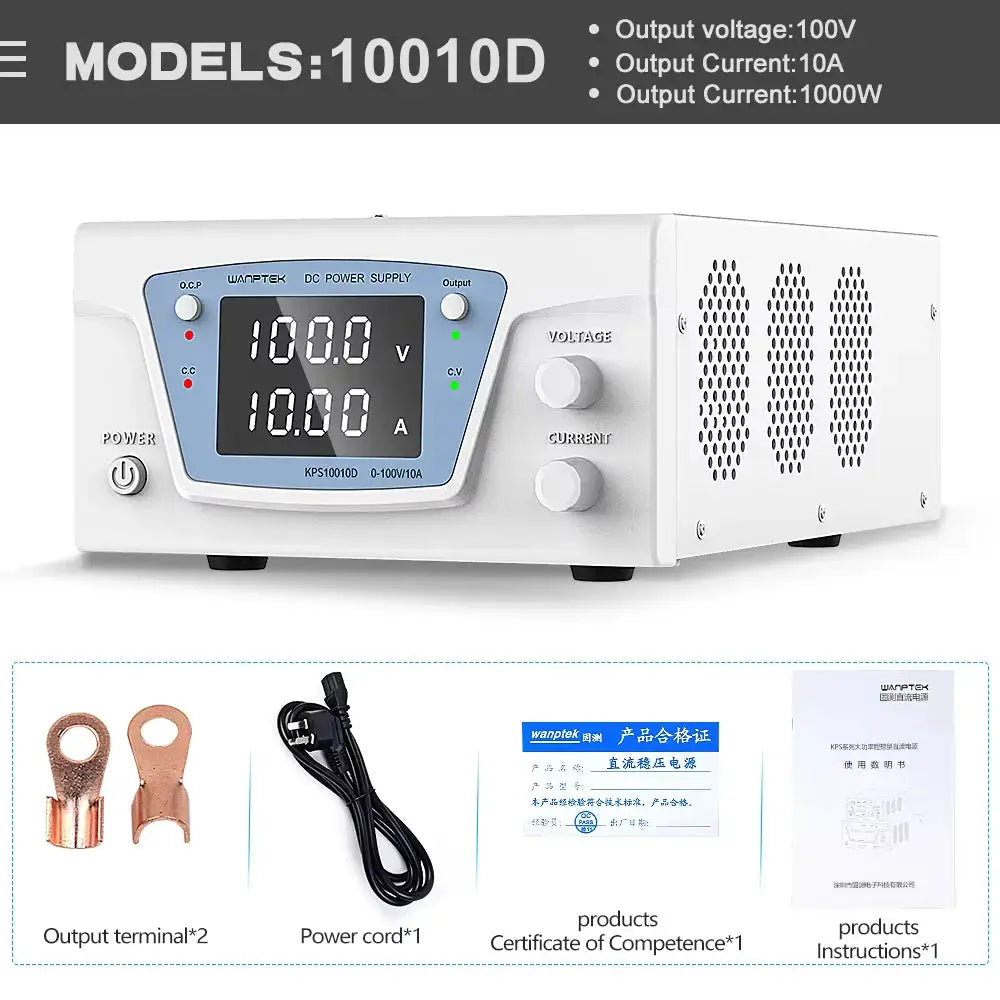

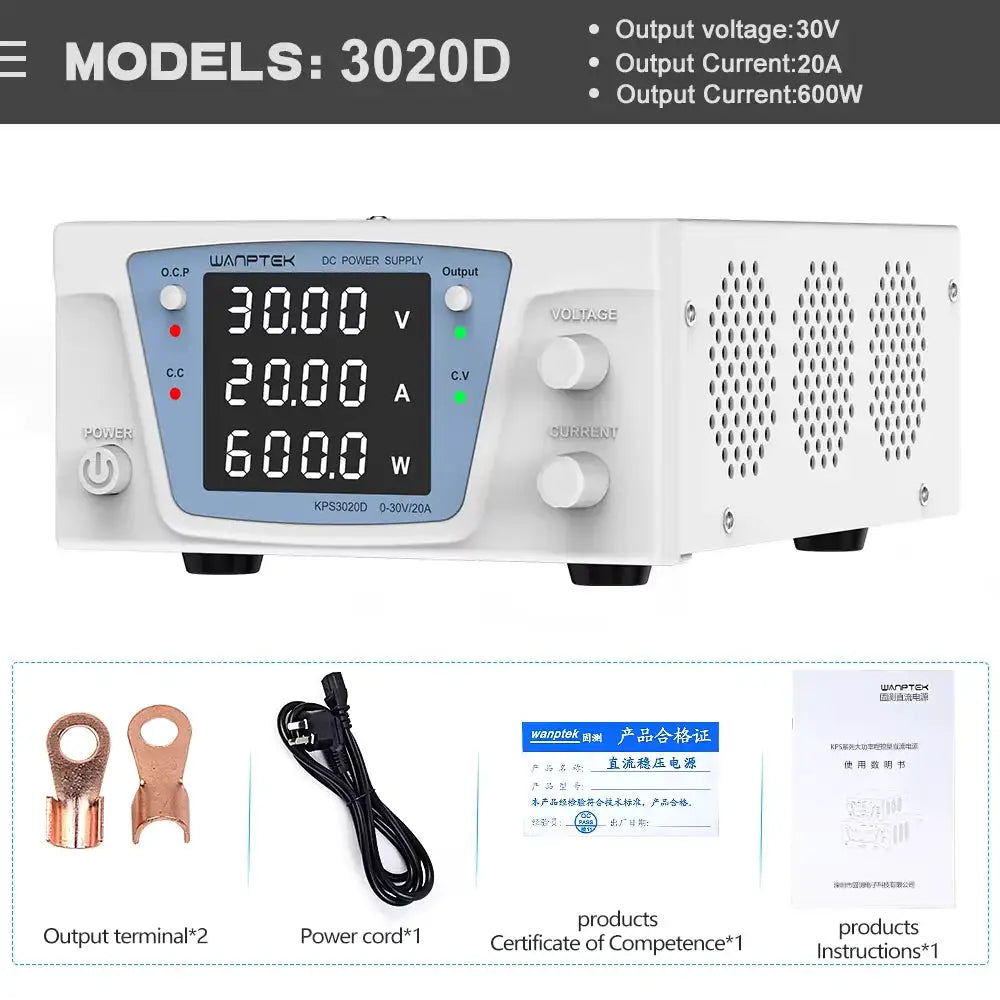

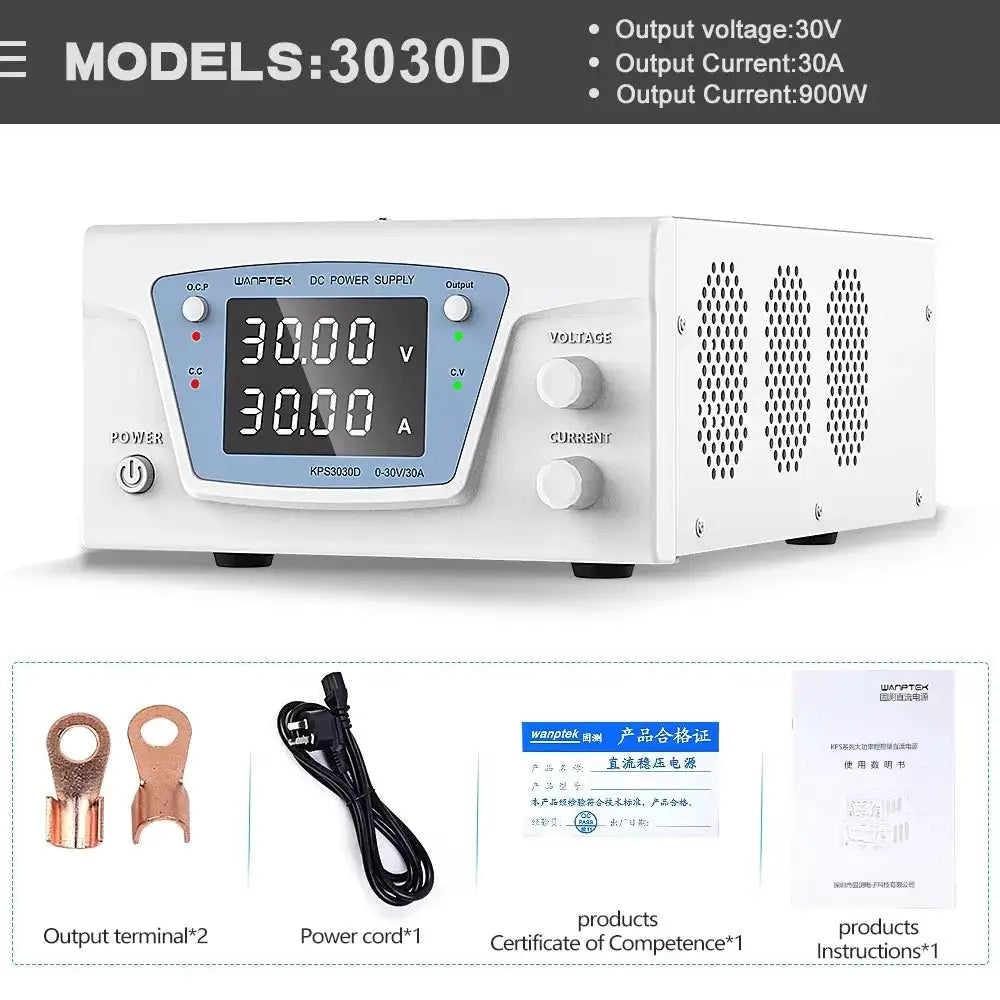

What’s Included

• AC Power Cord Standard cable for wall mounting.
• Operation Manual Detailed setup and safety guide.
• Warranty Certificate Official service coverage document.
• Copper Wiring Terminals Two connectors for secure lead attachment.

How to Use

Connect the power cord to a grounded 220V outlet. Screw your test leads into the terminal block. Rotate the voltage knob until the display indicates your target level. Rotate the current knob to establish your maximum limit. Flip the output switch upward to activate the circuit. Monitor the readouts continuously during evaluation.

Customer Benefits

• Pinpoint Calibration Preset capabilities eliminate manual guessing during repetitive trials.
• Extended Hardware Lifespan Ripple voltages stay under half percent to protect sensitive semiconductors.
• Lower Electrical Costs Optimized switching converters draw less idle power from your grid.

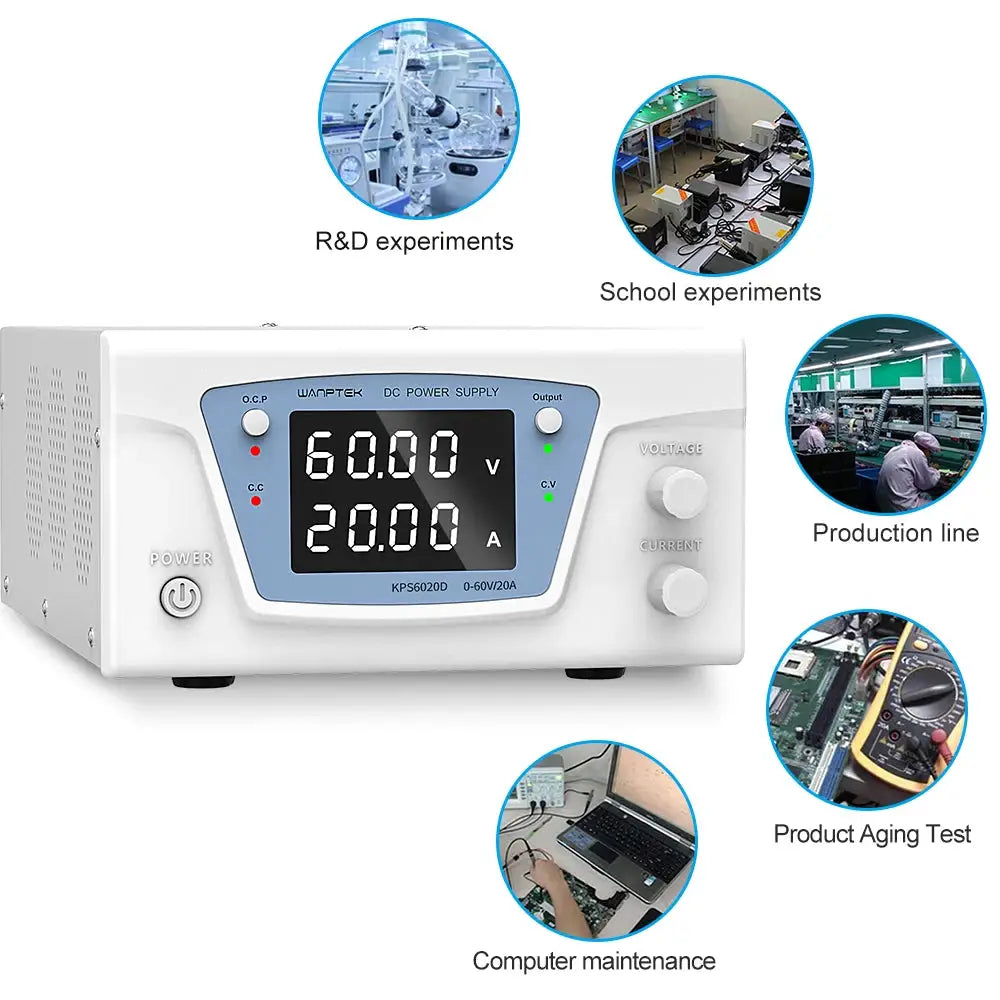

Ideal Uses

Run automated production line diagnostics or age-test telecom transceivers. Charge sealed batteries or conduct electrolytic plating operations. Demonstrate regulated dc foundations in university physics classrooms. Prototype automotive control modules or solar inverter prototypes.

Who It’s For

Hobbyists building isolated power rails for custom robotics. Engineers verifying sensor array tolerances. Quality inspectors executing cycle-heavy reliability studies. Instructors guiding students through basic electronic measurement techniques.

5 Frequently Asked Questions

• Does it support dual simultaneous outputs? No. This design provides a single regulated output channel only.
• Can I run it on 110V mains? The unit requires a fixed 220V AC input source.
• How quickly does it react to sudden load drops? Dynamic response time measures under 2 milliseconds.
• Will the display flicker under heavy current? The digital tube maintains a steady reading despite rapid fluctuations.
• Does it auto-shut down when overheating? Integrated OTP triggers safeguards before internal temperature reaches unsafe levels.

• Precision DC Lab Power Supply
• High-Capacity Adjustable Charger Unit
• Professional Battery Test Equipment
• Industrial Grade Variable Voltage Module
• Fast Response Circuit Testing System

• Biblical Mysteries video channelEducational Video Guides
• Smart Electronics and Practical Technology
• Explore Smart Electronic Collections
• Popular Smart Electronics

• Operation requirements
• — Input voltage：AC 220V±10%；50Hz，
• Operating temperature：0℃～40℃;Relative humidity:<80%RH
• storage temperature：-10℃～70℃;Relative humidity:<70%RH
• output voltage — 0-rated value (see specification table)
• Output current — 0-rated value (see specification table)
• output power — see specification table
• Set value resolution — Voltage0.01V
• Current0.01A
• Resolution of readback value — Voltage0.01V
• Current0.01A
• Header display
• — 0.56 inch white four-digit digital tube display
• Display accuracy: 0.5%±3 words
• Display resolution: voltage 0.01V, current 0.001A
• Regulated state CV
• — Voltage stability：0.5%±20mV
• Load stability：0.5%±20mV
• Ripple voltage：≤0.5% Vp-p
• Steady flow state CC
• — Current stability：0.5%±20mA
• Load stability：0.5%±20mA
• Ripple current：≤0.5% Vp-p
• Temperature Coefficient：≤100ppm/℃
• Rise Time — No load≤15ms
• Fully loaded≤30ms
• Dynamic response time — ≤2ms

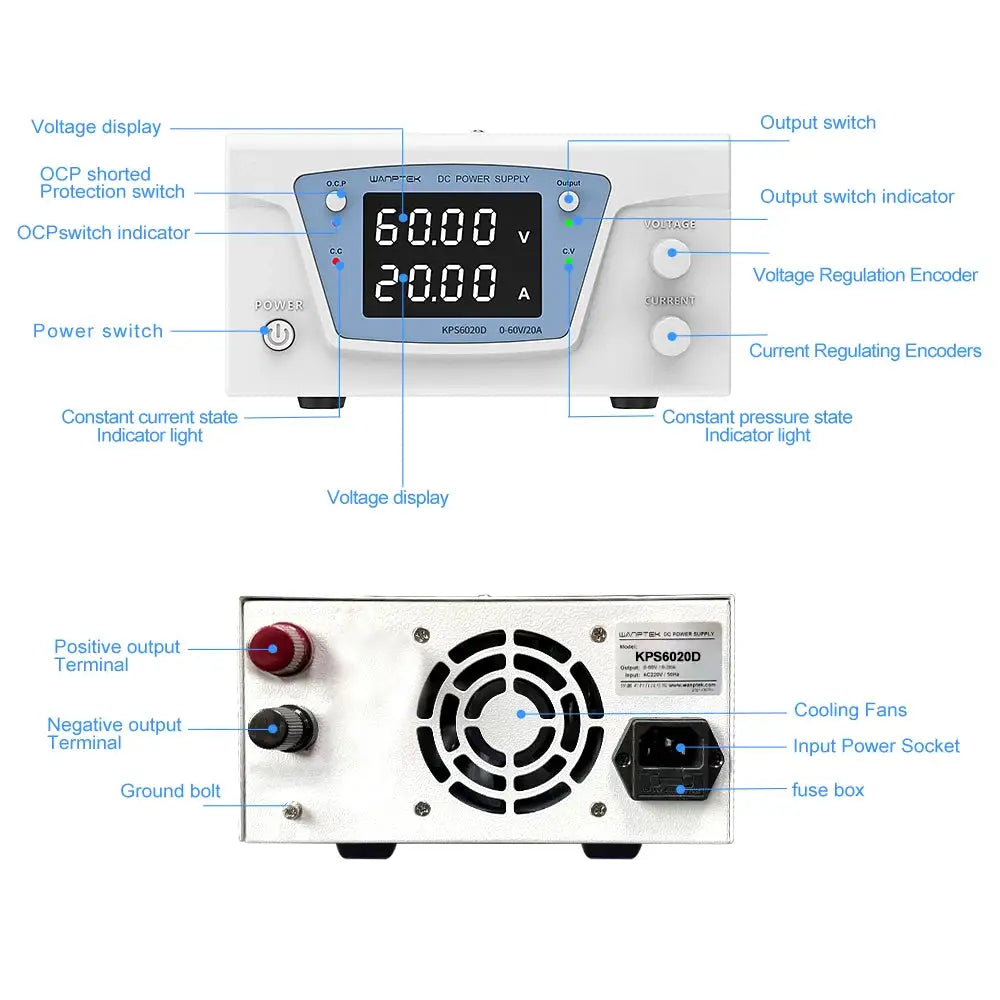

• Accessibility — OUTPUT output switch, OCP short circuit protection switch
• Protective function — OVP,OCP,OPP,OTP
• Random accessories
• — AC power cord X1
• Operation Manual X1
• Certificate of Warranty Card X1
• Wiring copper terminal X2
