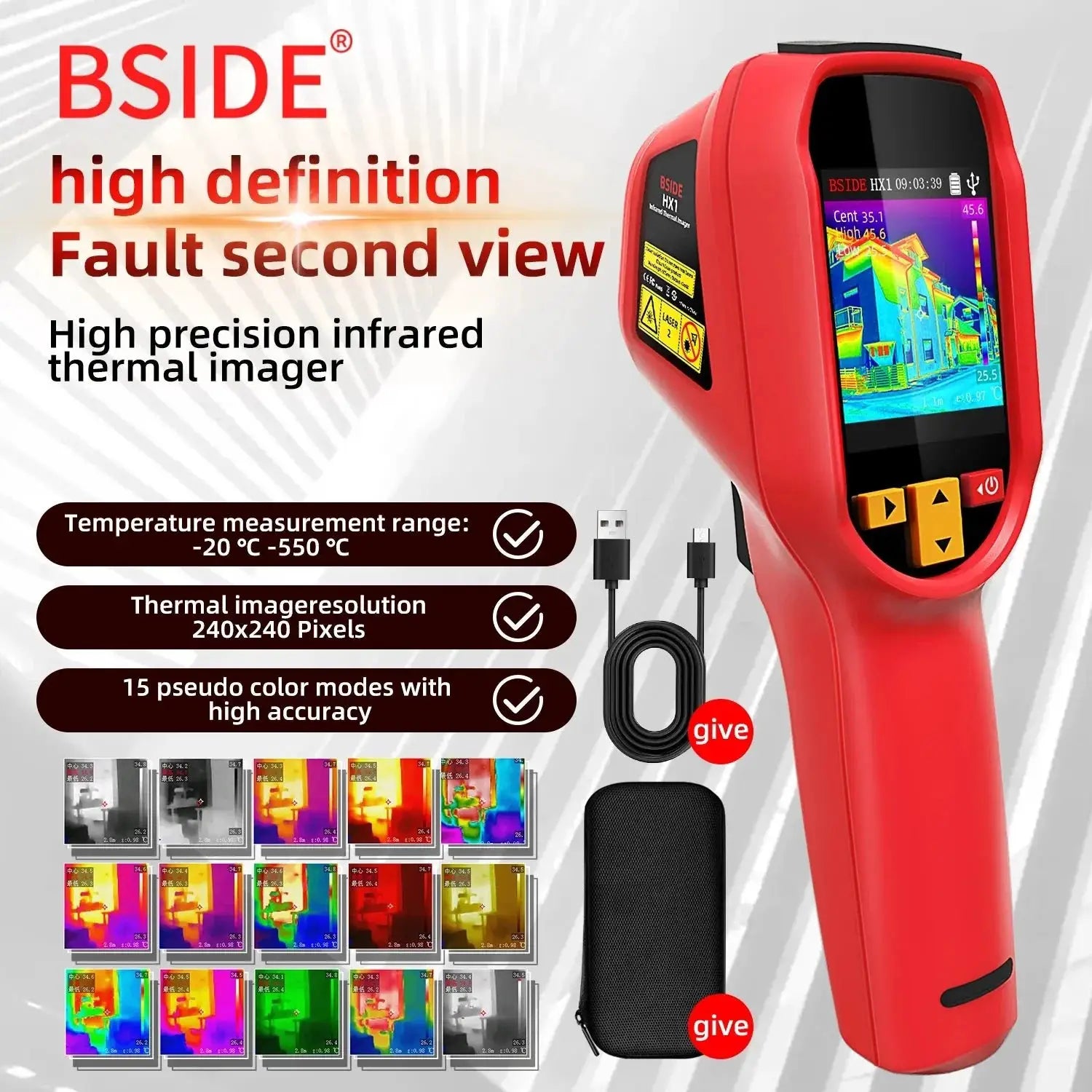

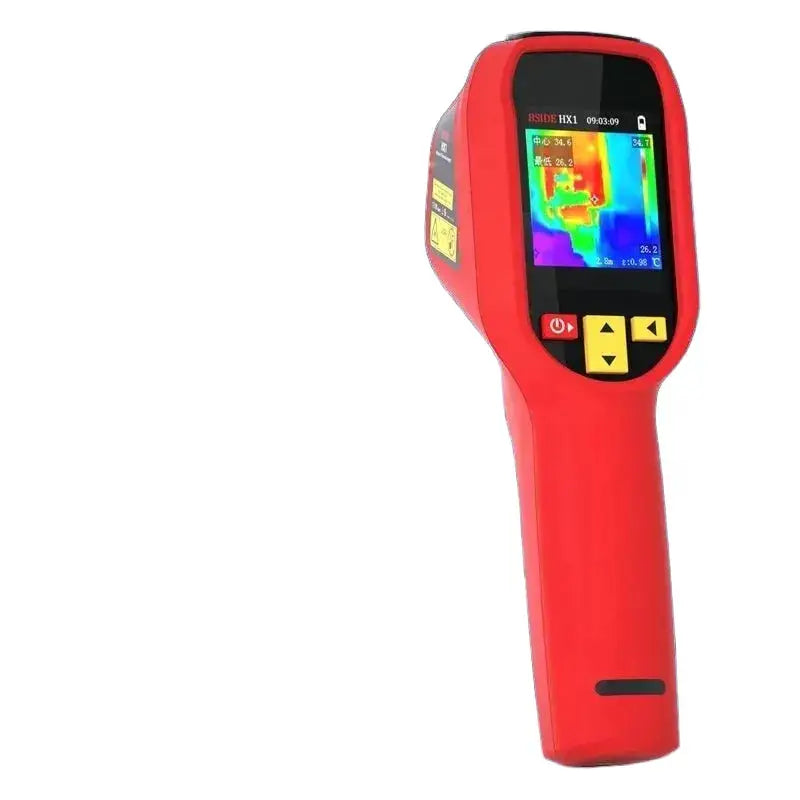

BSIDE HX1 Portable Thermal Imaging Camera
BSIDE HX1 portable thermal camera. Compact handheld unit detects heat variations instantly. Rugged IP54 build guarantees precise field measurements.
1. SEO-friendly product title
BSIDE HX1 Handheld Thermal Imager with 240x240 IR Resolution
2. Key Features
-

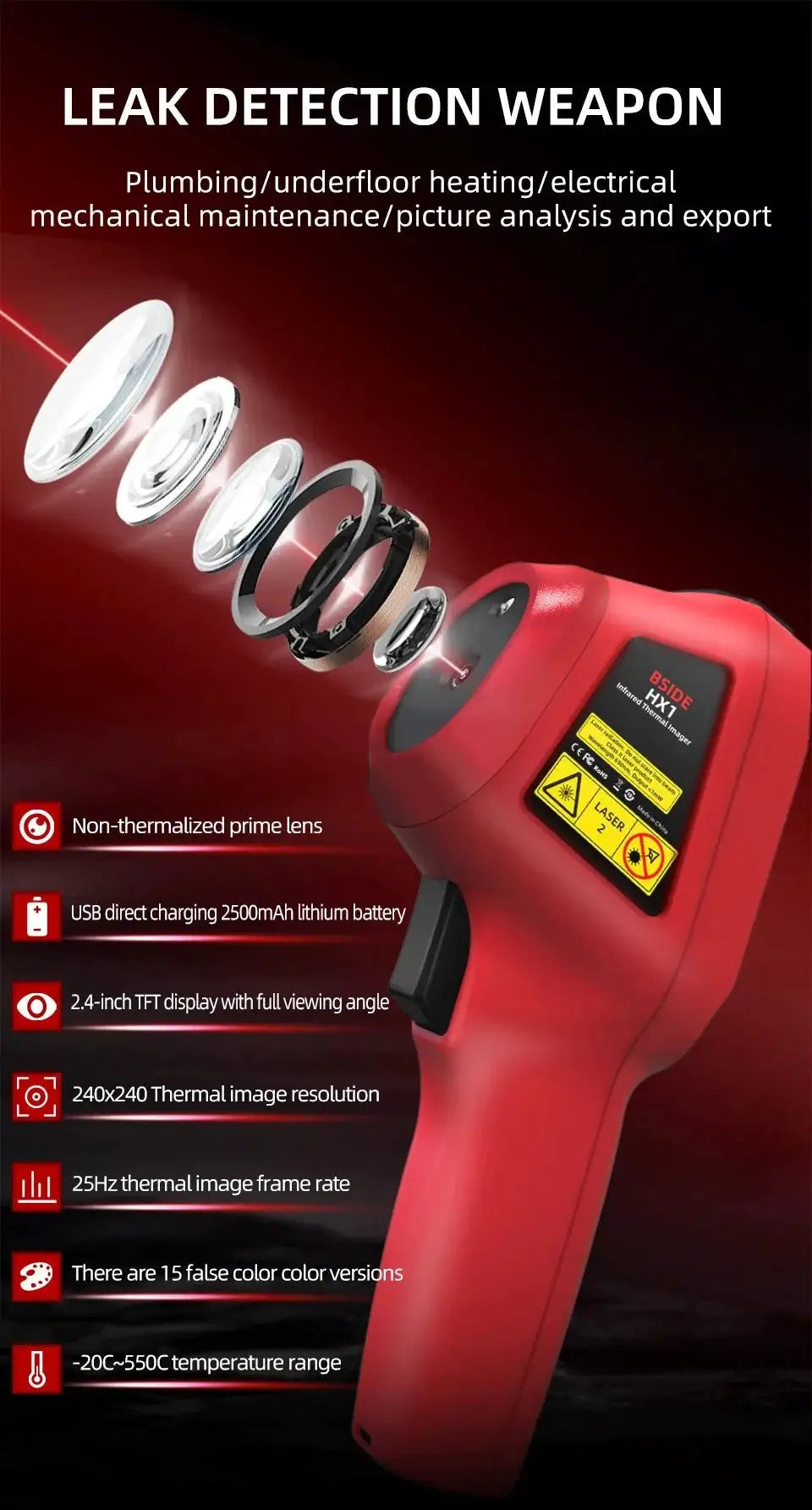

High-Res Sensor: Captures crisp 240×240 pixel thermal data on every pass.
-
Broad Range: Measures target temperatures securely from -20°C to 550°C.
-
Durable Build: Survives accidental falls from 1.5 meters and resists light splashes.
3. Product Description

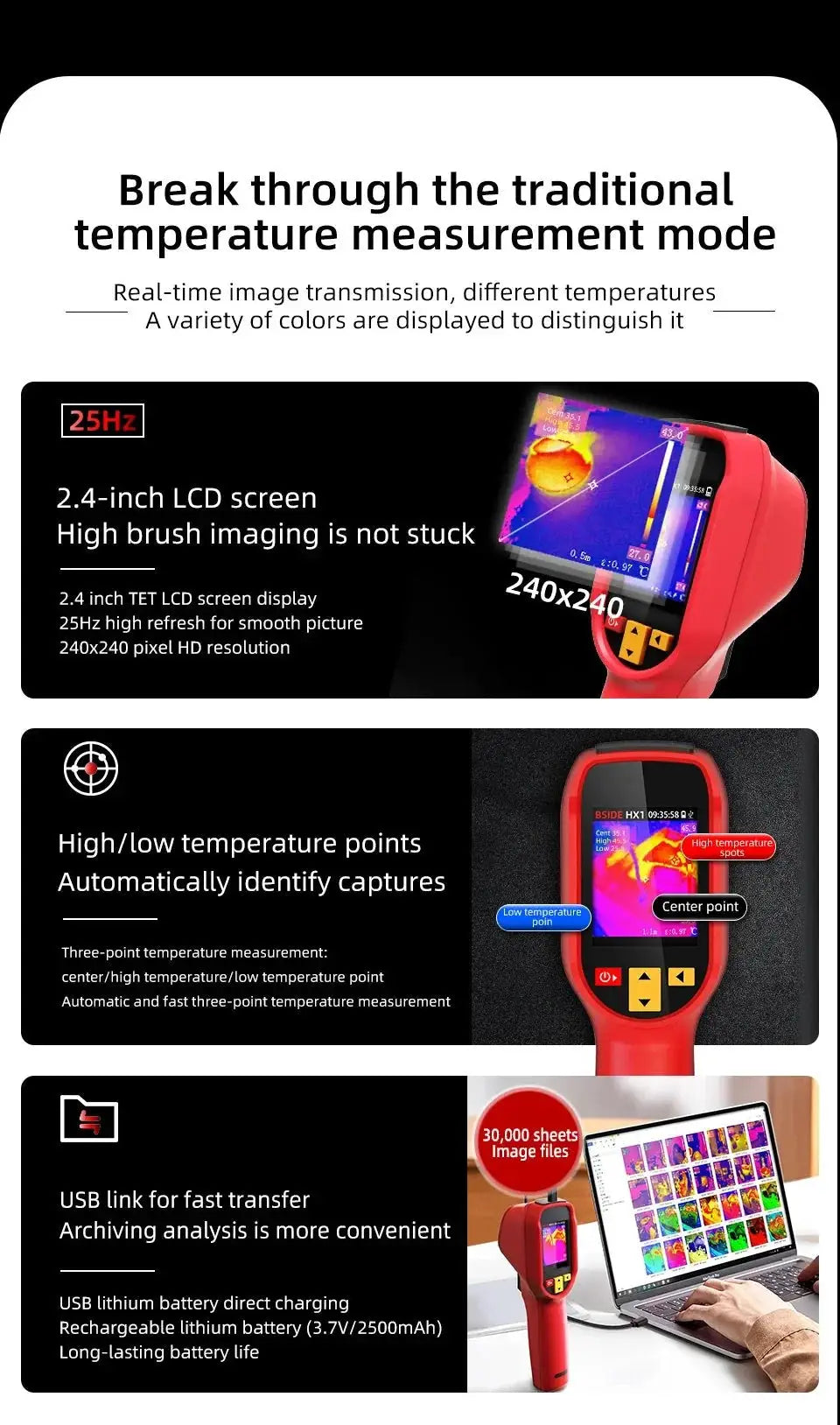

You get fast surface scans with zero guesswork. The 2.4-inch screen updates 25 times per second for fluid tracking. Fifteen color modes highlight hotspots clearly across dark environments. Integrated laser pointers mark exact measurement zones for your convenience.
4. Product Overview

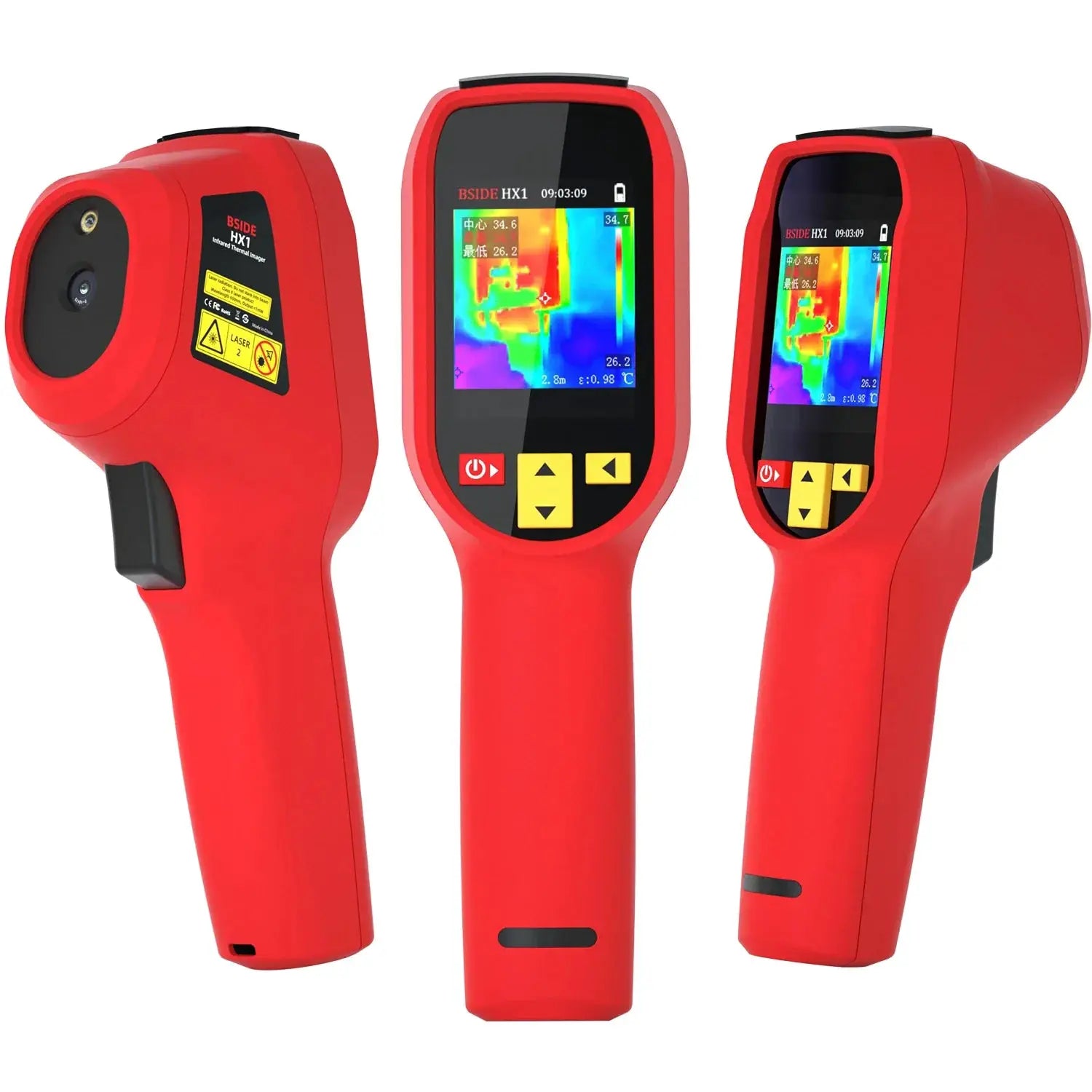

A battery-powered handheld diagnostic tool designed for rapid surface scanning. It fits securely in your hand or mounts directly to standard tripods for stable recordings.
5. Key Benefits
-
Instant Detection: Locate electrical faults or insulation leaks without removing panels.
-
Data Reliability: Archive up to 30,000 BMP files for detailed offline review.
-
Field Ready: Operate continuously for over seven hours on a single recharge.
6. Features
-

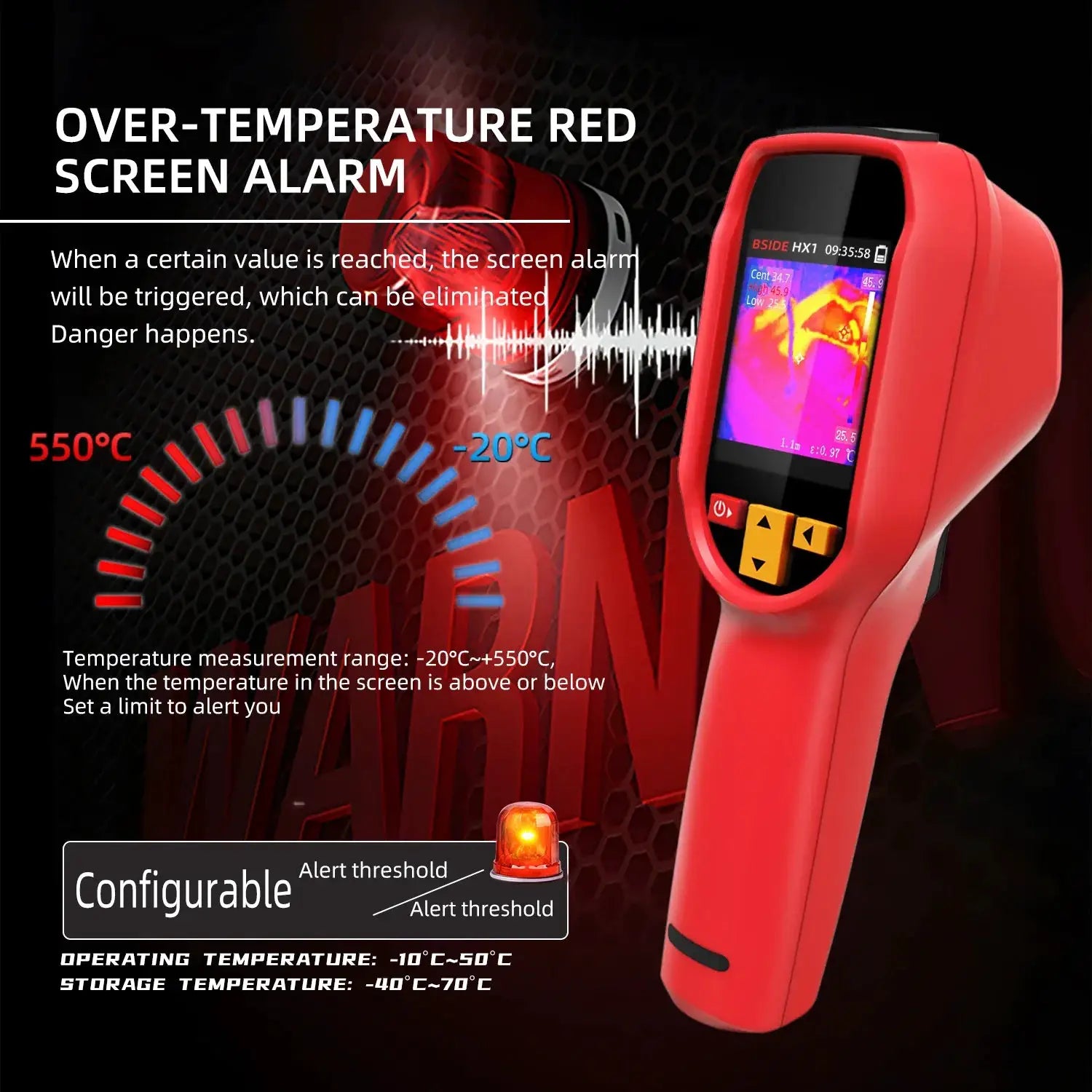

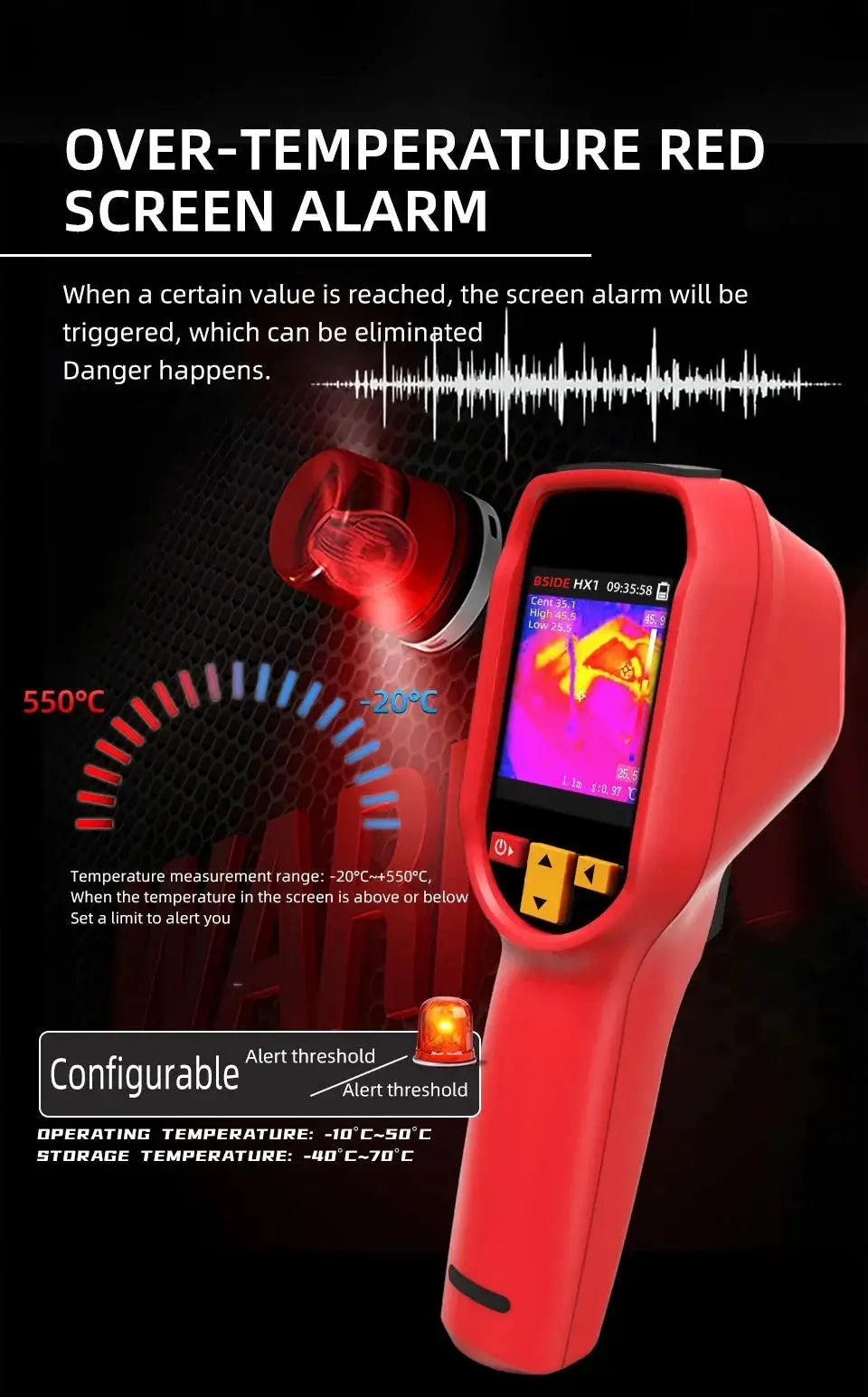

Smart Alerts: Trigger visual warnings, audible buzzes, or LED flashes for critical alarms.
-

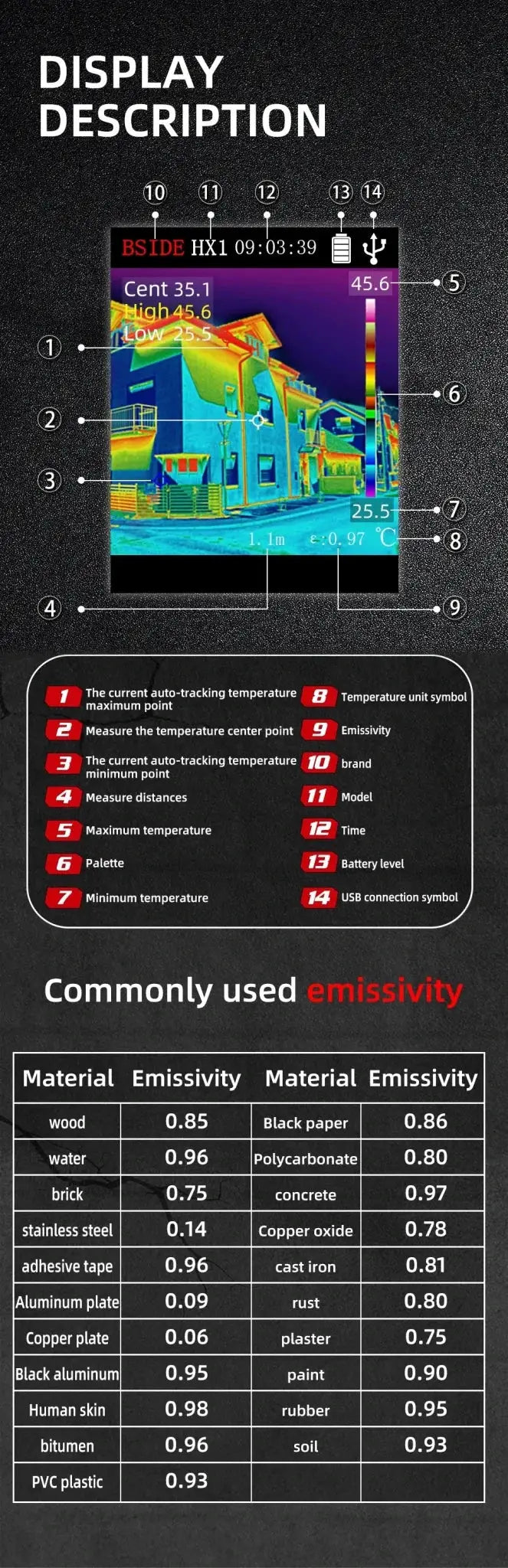

Precision Tuning: Adjust emissivity settings dynamically from 0.01 to 1.00 for different materials.
-
Versatile Ports: Charge rapidly via USB Type-C and expand internal storage with TF cards.
7. Specifications
-
Resolution: 240×240 pixels operating at a smooth 25Hz frame rate.
-
Screen Size: 2.4-inch TFT LCD panel featuring 320×240 pixel clarity.
-
Battery: 3.7V 2500mAh lithium cell delivering an eight-second boot sequence.
-

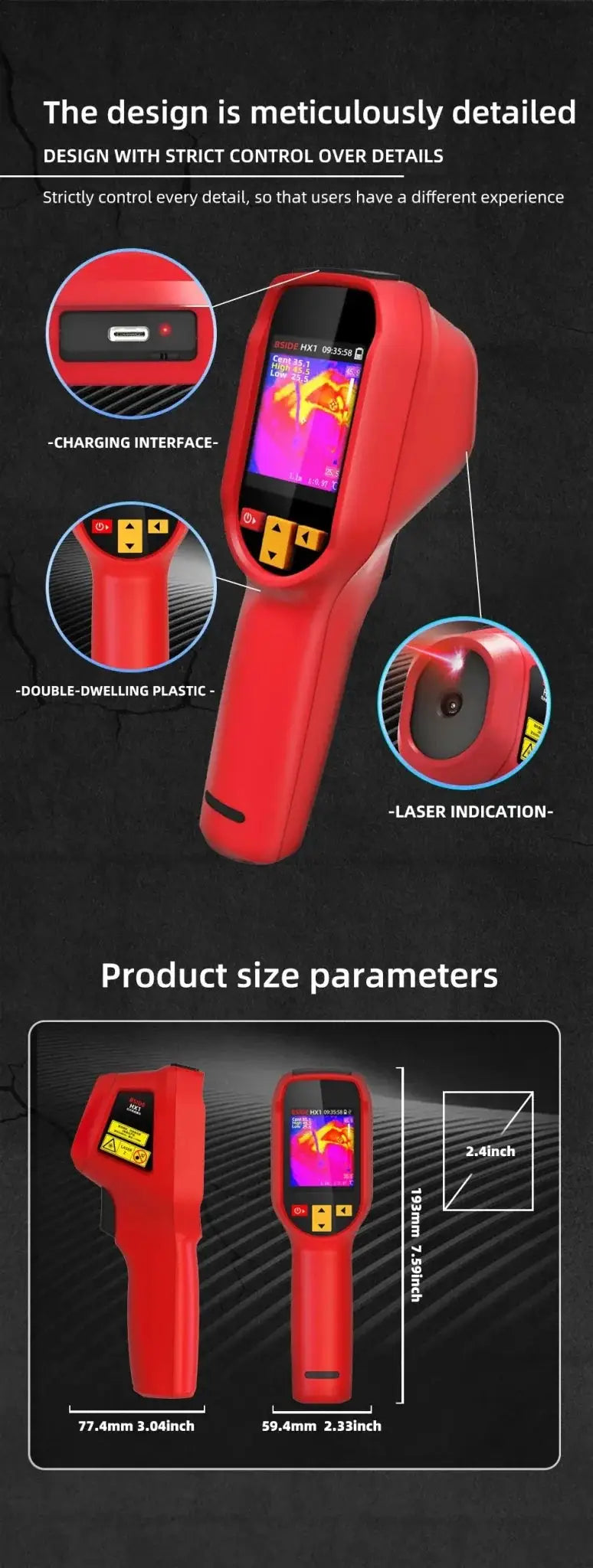

Dimensions: 193.4 × 59.4 × 77.4 mm weight resting at 277 grams.
8. What’s Included

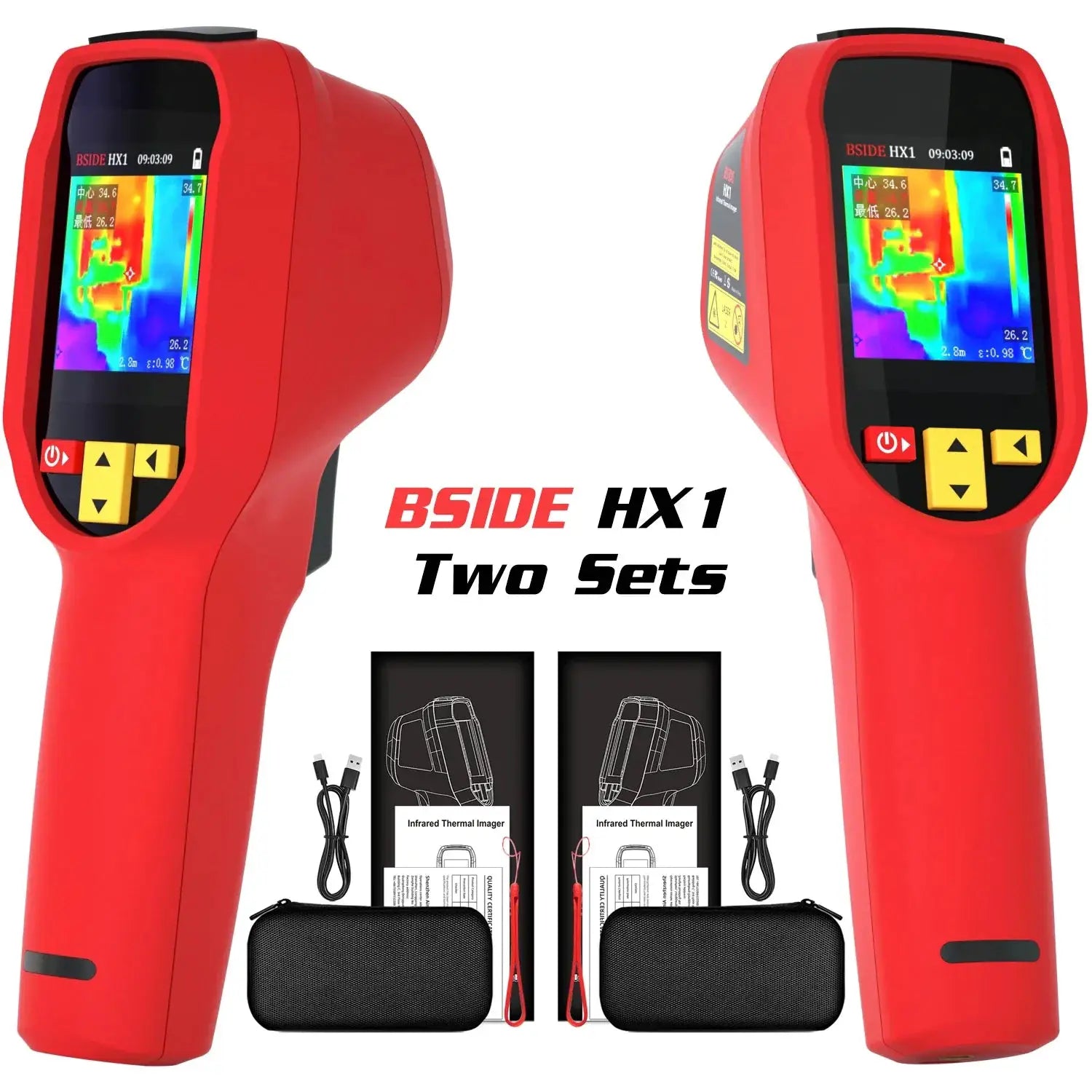

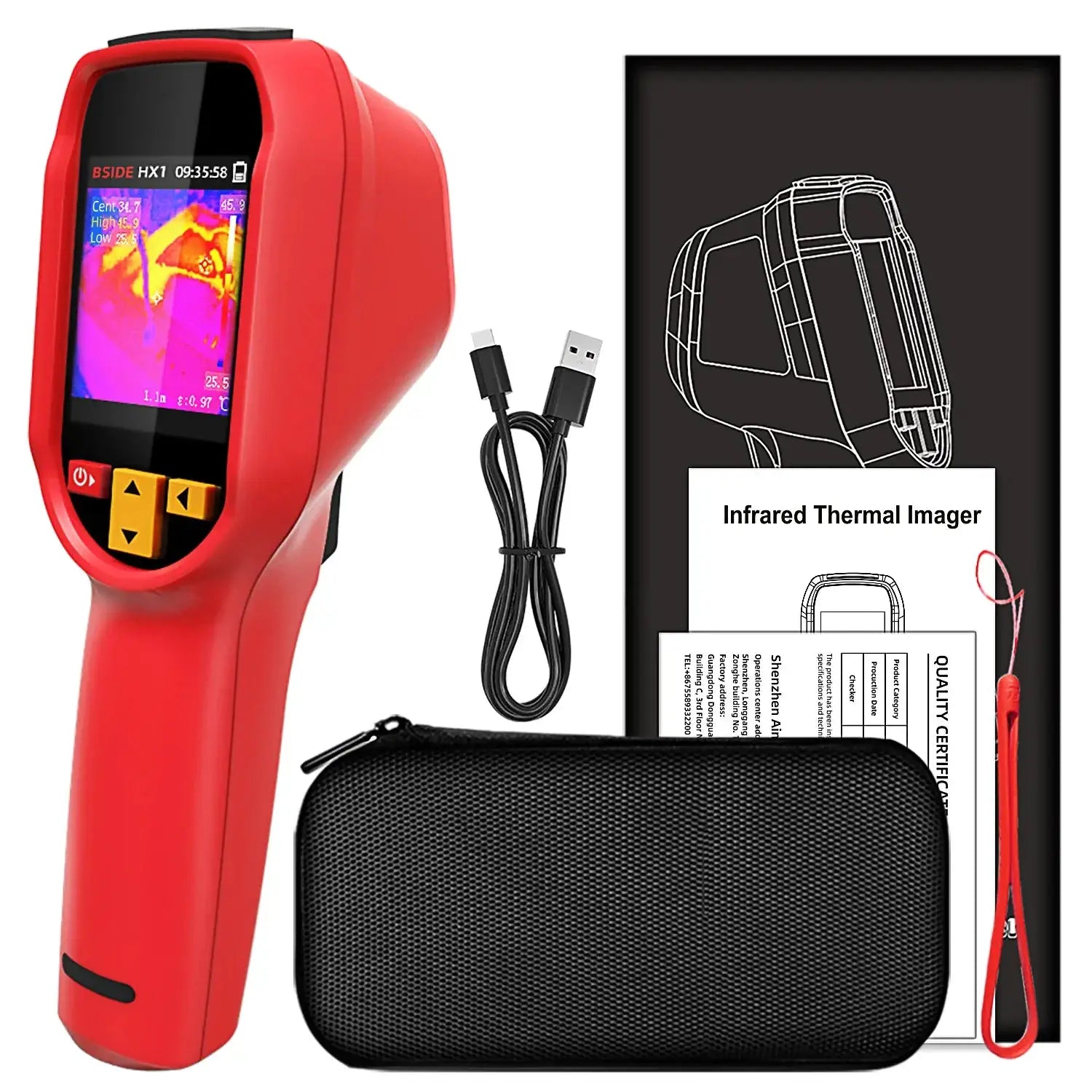

The sealed box contains the HX1 unit, protective EVA carrying case, USB Type-C cable, quick start guide, and calibration reference sheet.
9. What’s Included
You receive the same complete starter kit ready for immediate unpacking and outdoor deployment.
10. How to Use

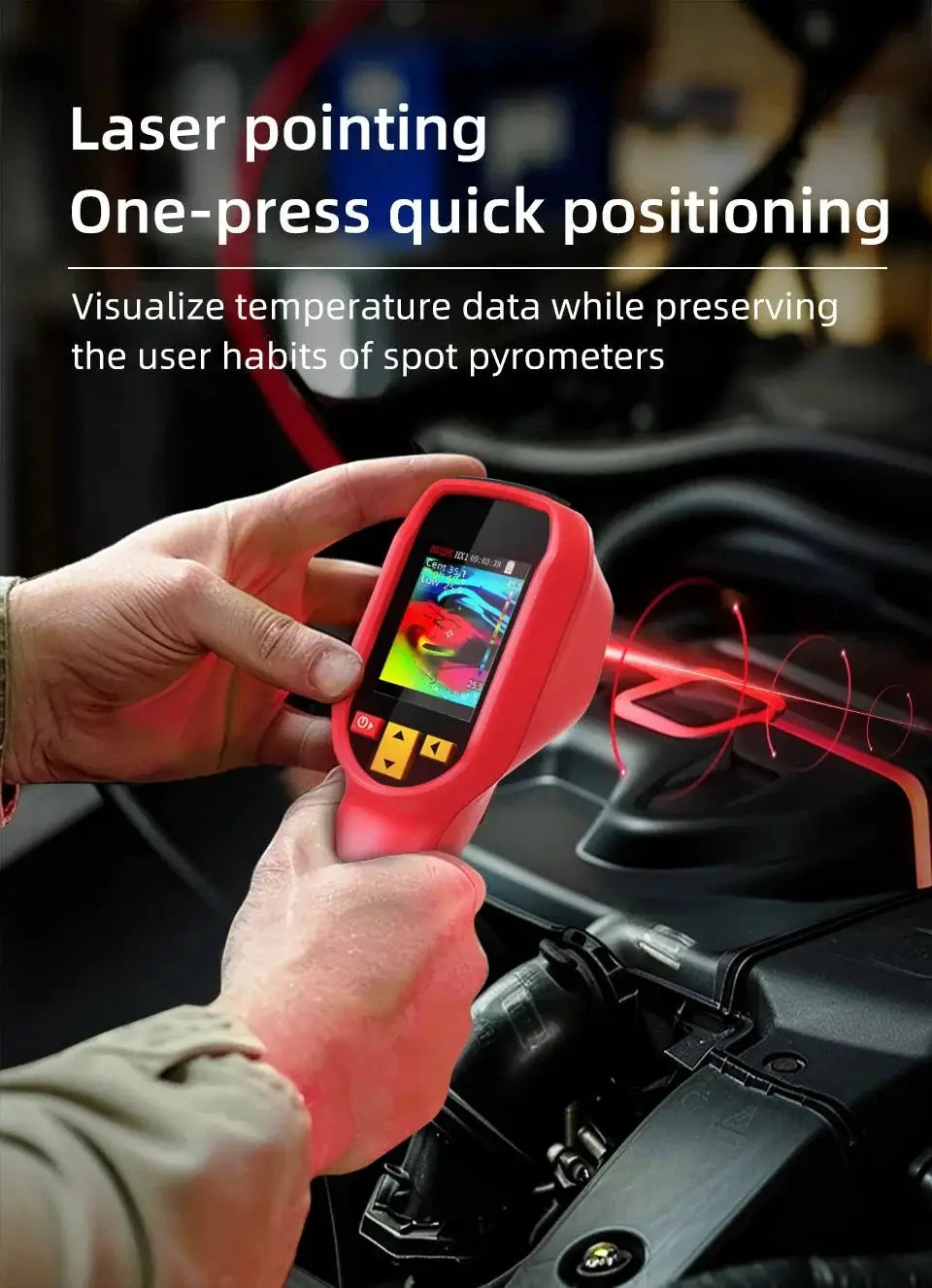

Press the power trigger to activate auto-focus mode. Align the dual laser pointers directly onto your target surface. Tap the capture key to lock and store the current reading. Switch between color palettes using the dedicated menu buttons.
11. Customer Benefits
You gain faster troubleshooting cycles and clear visual evidence for professional reports. The adjustable font scaling and multi-language interface simplify operation on busy job sites.
12. Ideal Uses

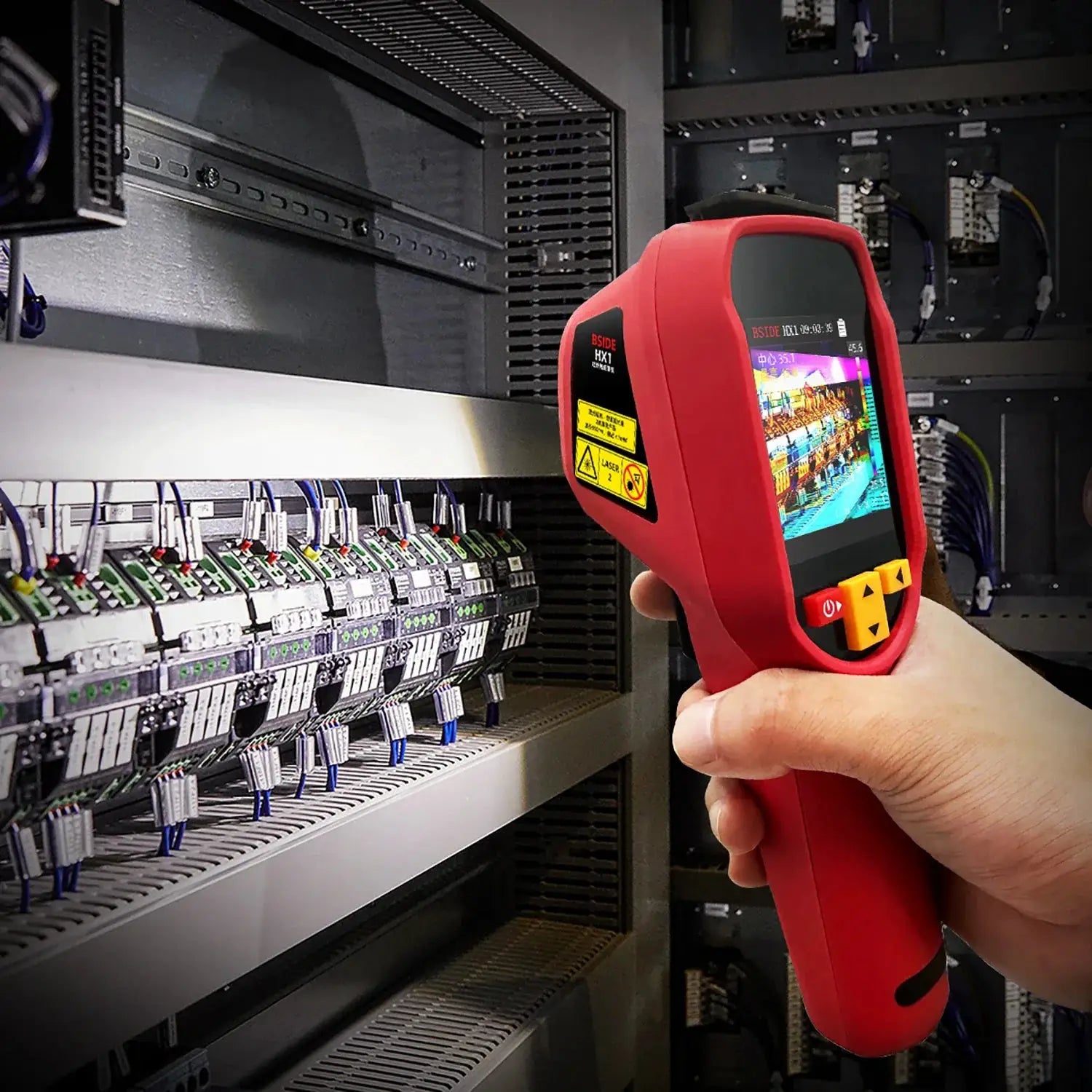

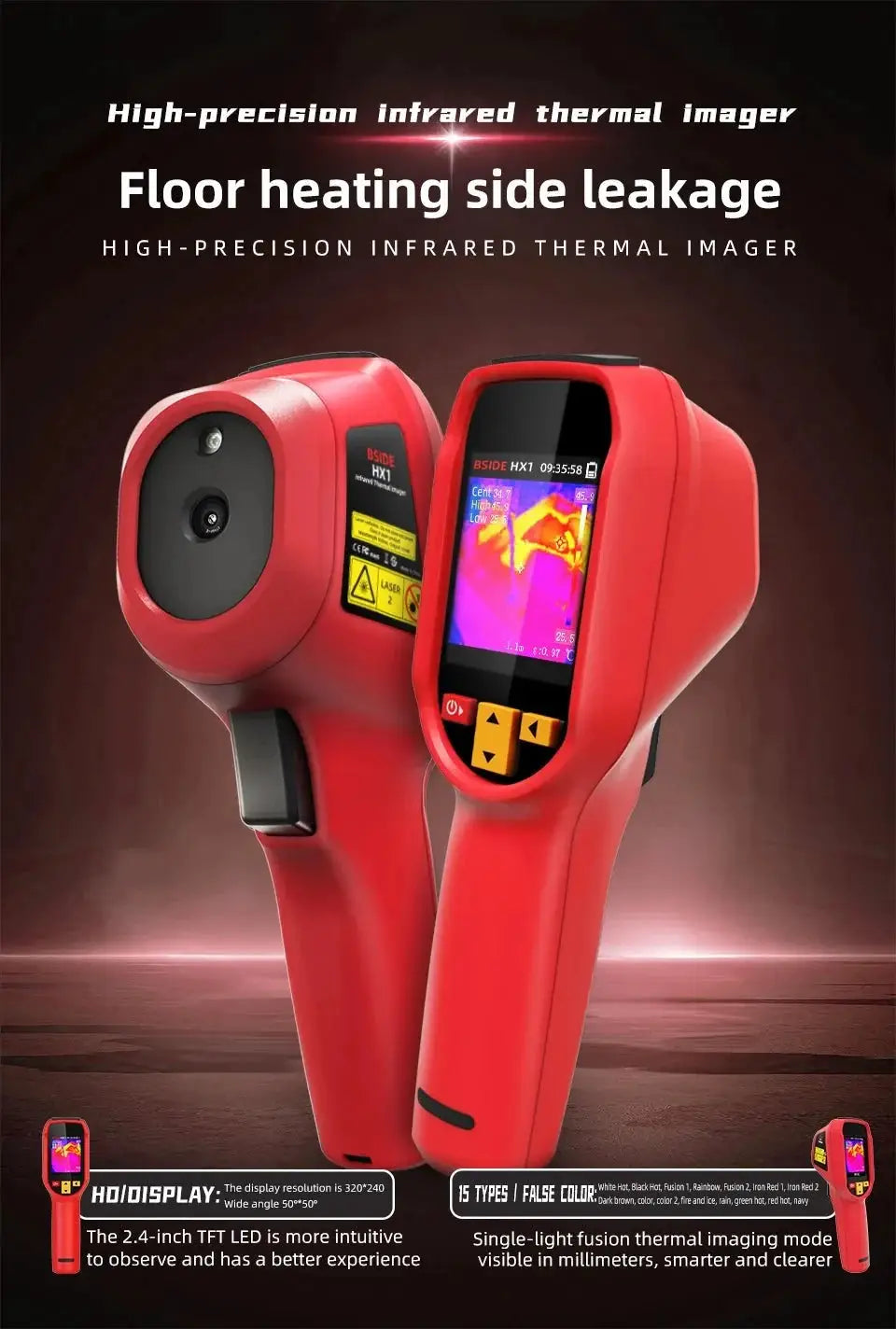

Run safety checks on active electrical panels, locate hidden moisture behind drywalls, monitor HVAC airflow distribution, or inspect rotating machinery components.
13. Who It’s For
This rugged instrument serves licensed electricians, building inspectors, maintenance technicians, and serious homeowners who require calibrated thermal data.
5 Frequently Asked Questions

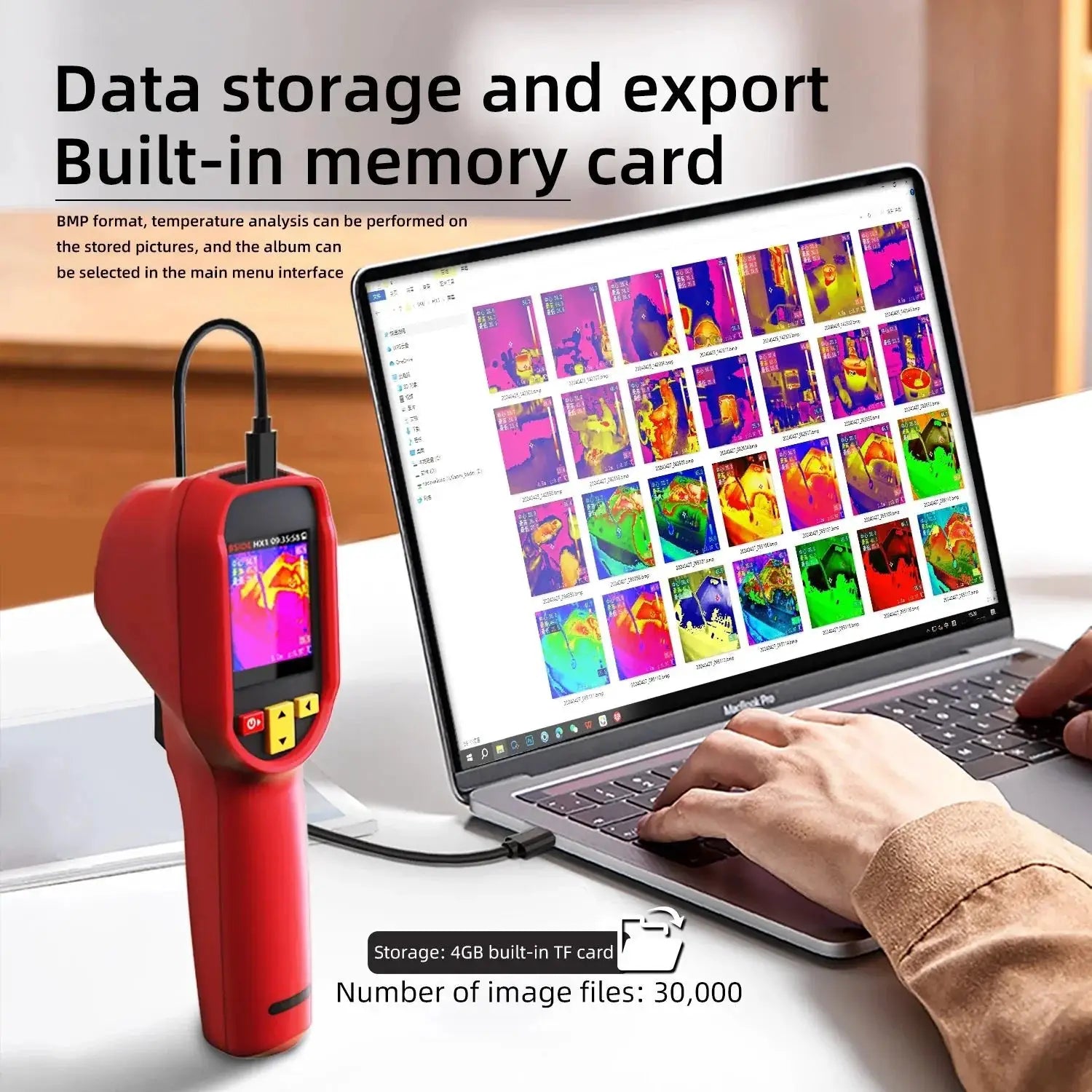

- Can I export captured images directly to my computer? Yes, transfer saved BMP files securely through the USB cable for desktop analysis.
- Does this device measure temperature through windows? No, infrared sensors record radiation bouncing off external surfaces only.
- Can I replace the internal memory card? Yes, insert a compatible TF card to expand your archival capacity easily.
- Is manual focusing required for small targets? No, the system engages automatic lens adjustment immediately upon activation.
- Does the alarm volume work well in loud environments? Yes, the combined flash and speaker alerts remain visible even near heavy equipment.
Our Videos
Ourlum.com
Ourlum.com Collections
Ourlum.com Best Sellers

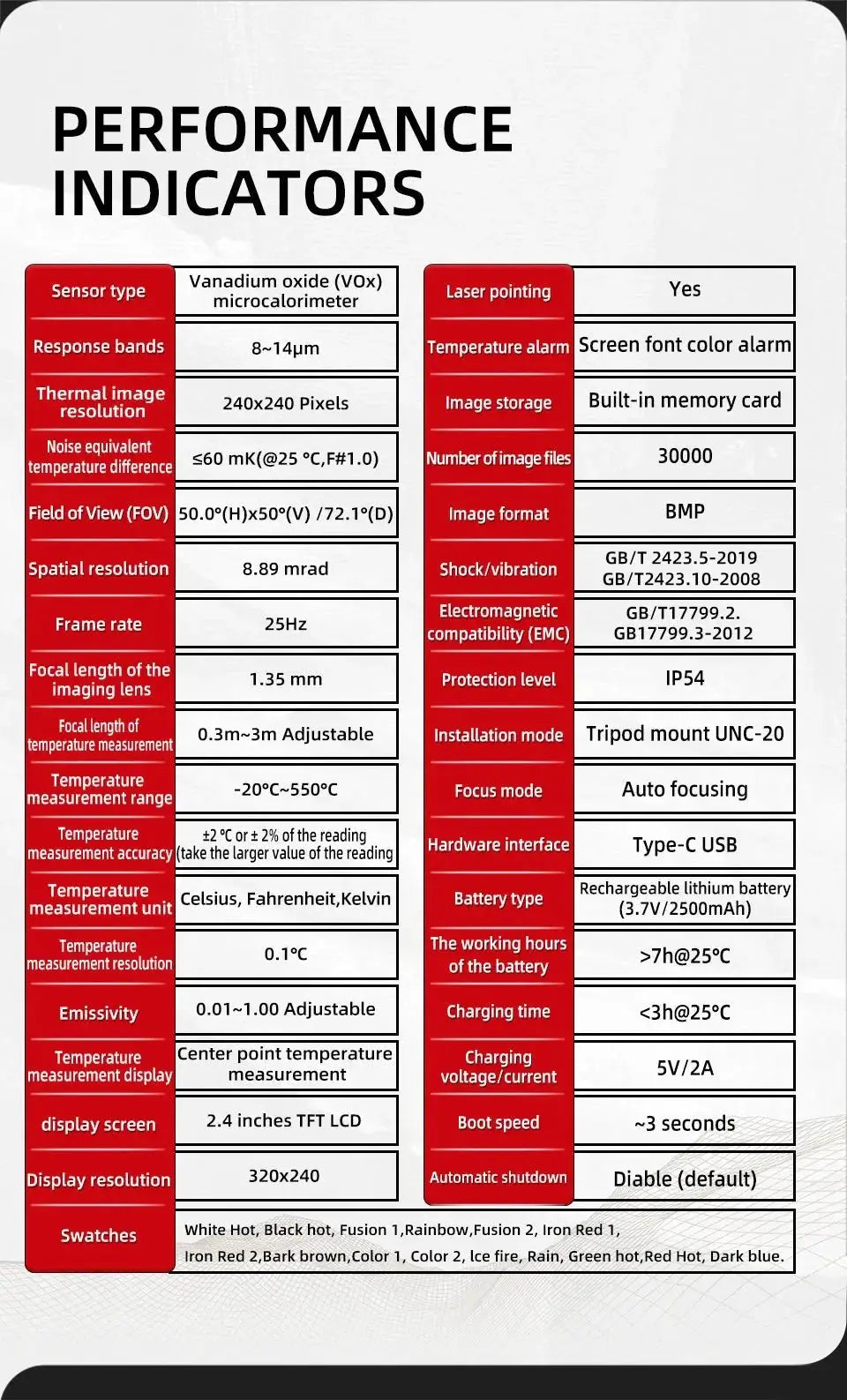

Performance Indicators |
Sensor type |
Vanadium oxide (VOx) microcalorimeter |
Response Band |
8~14pm |
Thermal image resolution |
240x240 Pixels |
Noise equivalent temperature difference(NETD) |
≤60 mK(@25°C,F#1.0) |

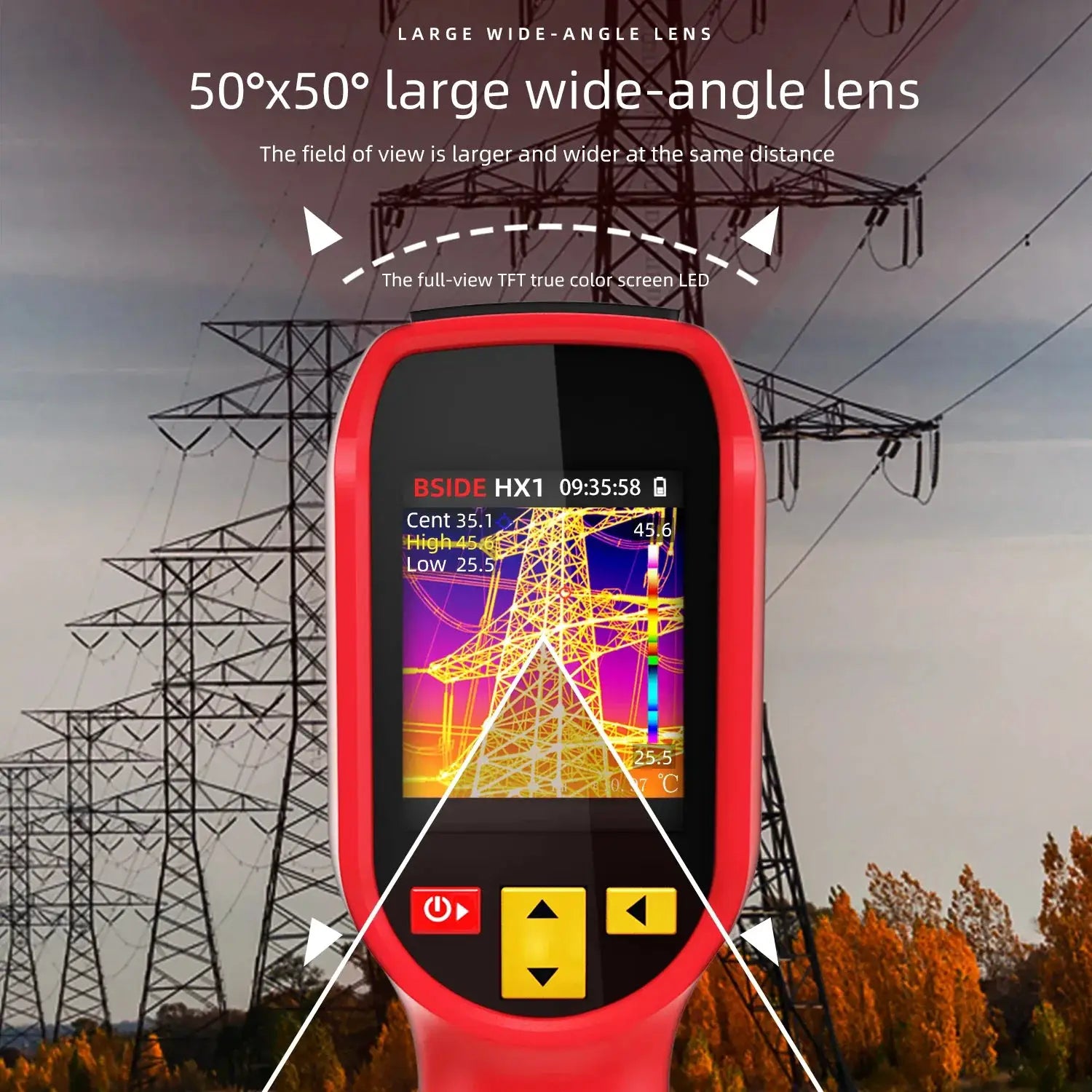

Angle of view(FOV) |
50.0°(H)×50°(V)/72.1°(D) |
Spatial resolution (IFOV) |
8.89 mrad |
Frame rate |
25Hz |
The focal length of the
imaging lens |
1.35 mm |
Temperature measuring focal length |
0.3m~3m Adjustable |
Temperature range |
-20℃~550℃ |
Accuracy of temperature measurement |
±2℃ or±2%of the reading
(take the larger value of the reading) |
Unit of temperature measurement |
Celsius,Fahrenheit,Kelvin |
Temperature resolution |
0.1℃ |
Emissivity |
0.01~1.00 Adjustable |
Temperature measurement shows |
Center point temperature measurement,
high and low temperature tracking |

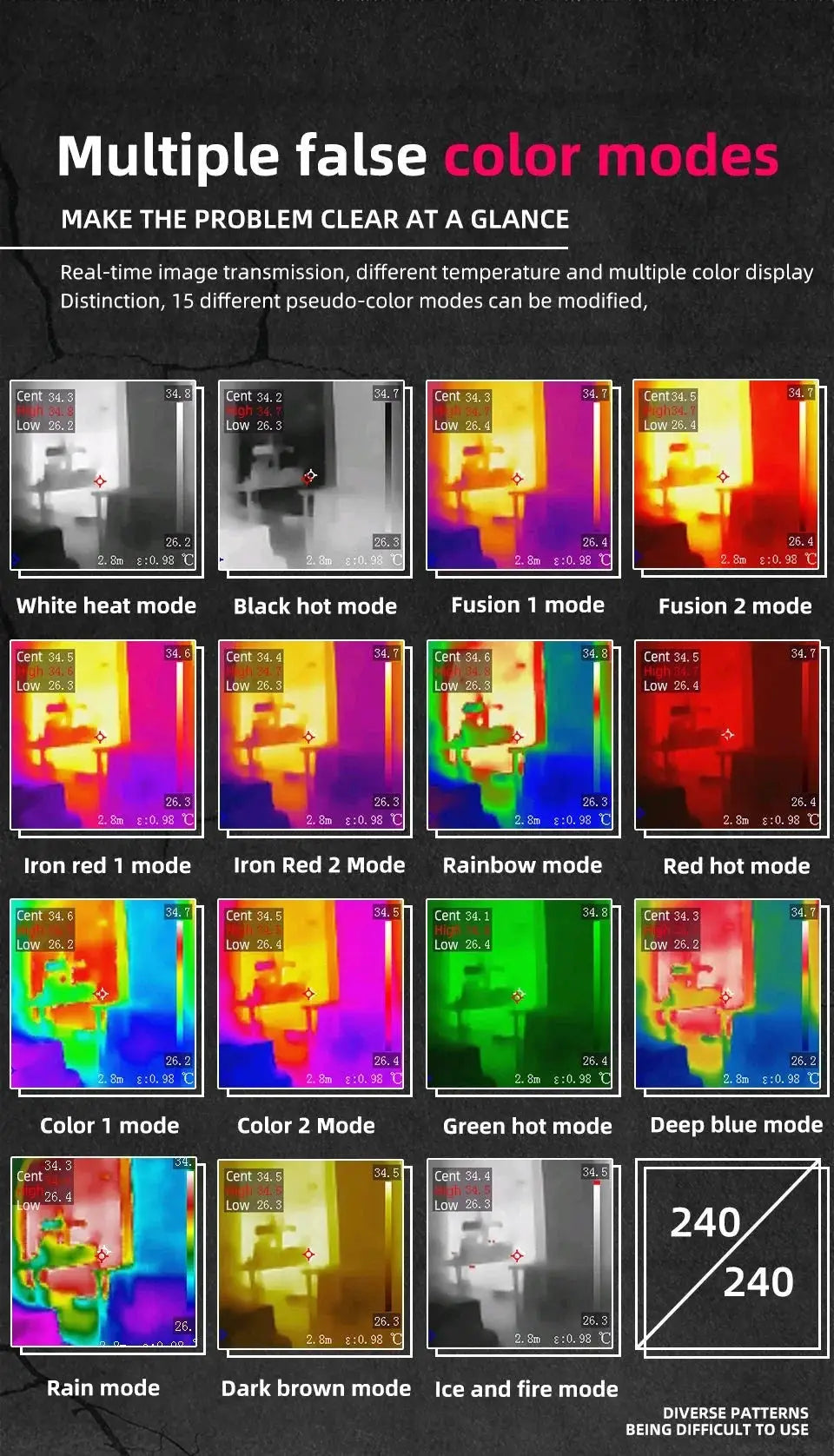

Swatches |
White Hot,Black hot,Fusion 1,Rainbow,
Fusion 2,Iron Red 1,Iron Red 2,
Bark brownColor 1,Color 2,
lce fire,Rain,Green hot,
Red Hot,Dark blue
|
Display screen |
2.4 inches TFT LCD |
Display resolution |
320×240 |

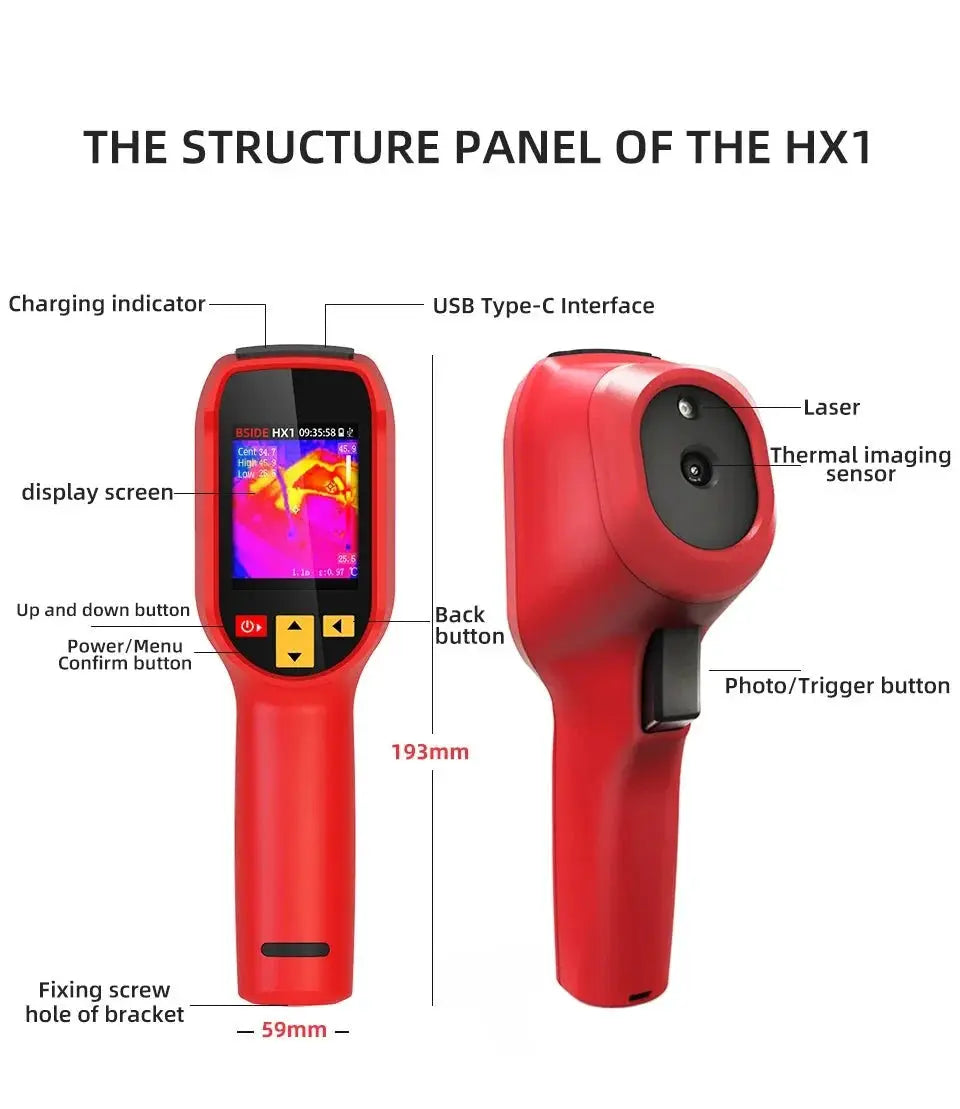

Key |
Power Key,up key,Down Key,
Return key,Trigger key |
LaserPointer |
Yes |
Temperature Alarm |
Screen font color alarm |
Image storage |
Built-in memory card |
Number of image files |
30000 |
Image format |
BMP |
Shock/vibration |
GB/T 2423.5-2019;GB/T2423.10-2008 |
Electromagnetic compatibility(EMC) |
GB/T17799.2,GB17799.3-2012 |
Protection level |
IP54 |
Installation mode |
Tripod mount UNC-20 |
Focus mode |
Auto focusing |
Hardware interface |
Type-C USB |

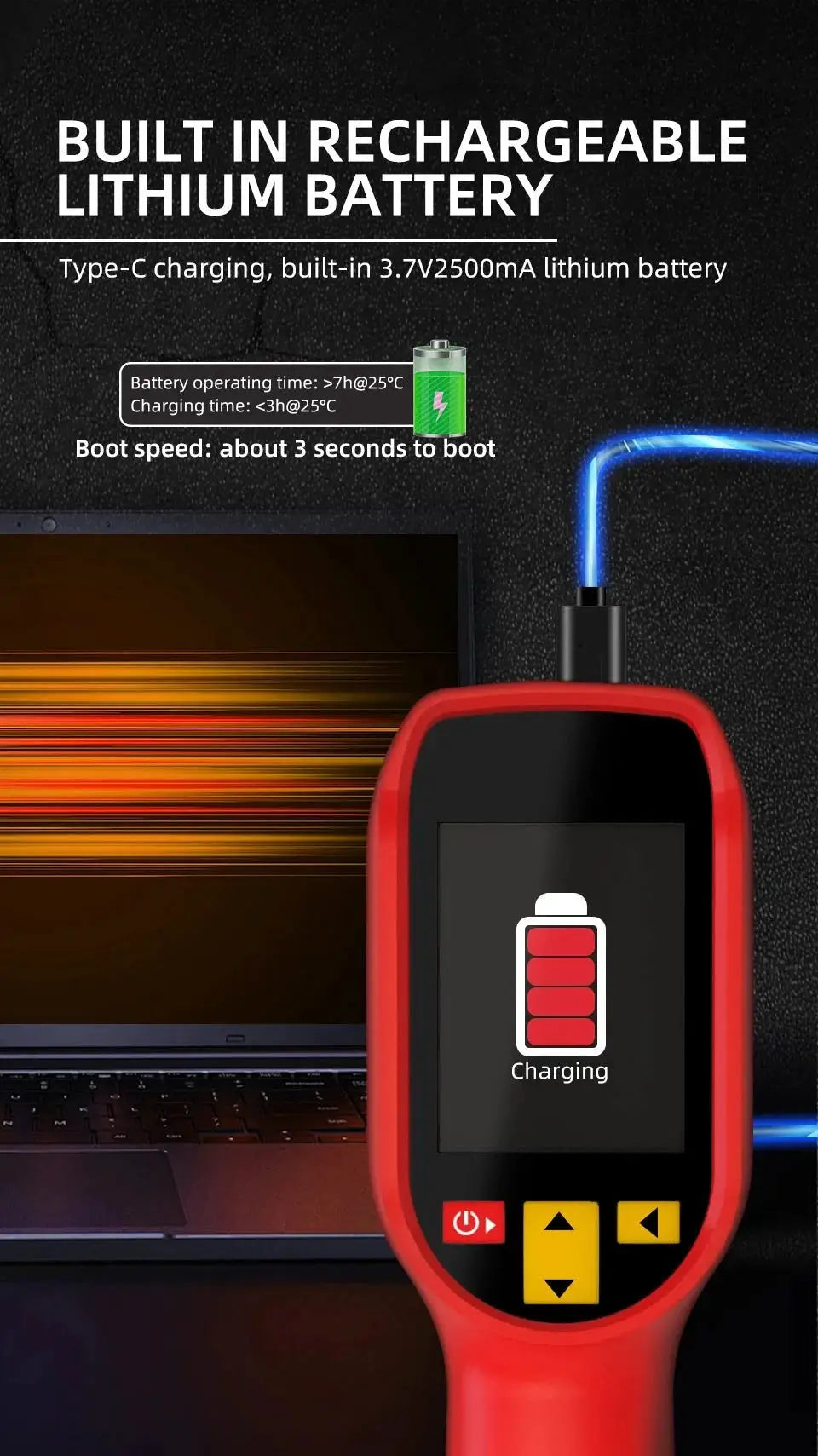

Battery type |
Rechargeable lithium battery
(3.7V/2500mAh) |
The working hours of the battery |
>7h@25℃ |
Charging time |
<3h@25°℃ |
Charging
voltage/current |
5V/2A |
Boot speed |
~8 seconds |
Automatic shutdown |
Diable(default)
(optional 10 Min,20 Min,30 Min,
40 Min,50 Min,60 Min,Disable) |
Operating temperature |
-10°C~50°C |
Storage temperature |
-40°C~70°℃ |
Working humidity |
≤85%RH(Non-condensing) |
Drop |
1.5m |
Product dimensions |
193.4*59.4*77.4mm |
Product weight |
277g |
