Smart Thermal Camera for PCB Faults

Smart Thermal Camera for PCB Faults is a rugged handheld infrared device that blends precise temperature measurement with clear thermal imaging. Designed for field engineers, electronics technicians, and safety professionals, it rapidly locates faults on PCBs, pipelines, and fire-safety systems while delivering actionable heat insight on site. This practical tool supports safer decisions and faster repairs—embodying Smart Products for Better Living.

Product Overview

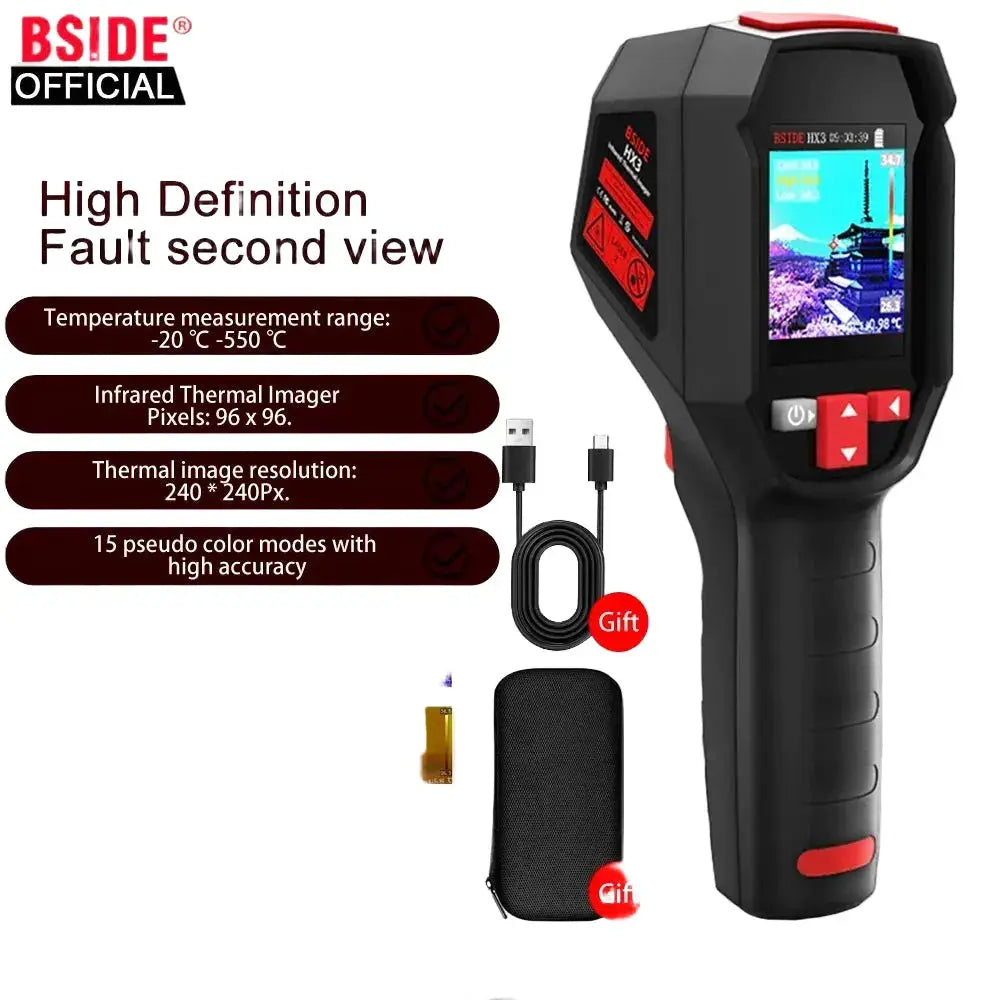

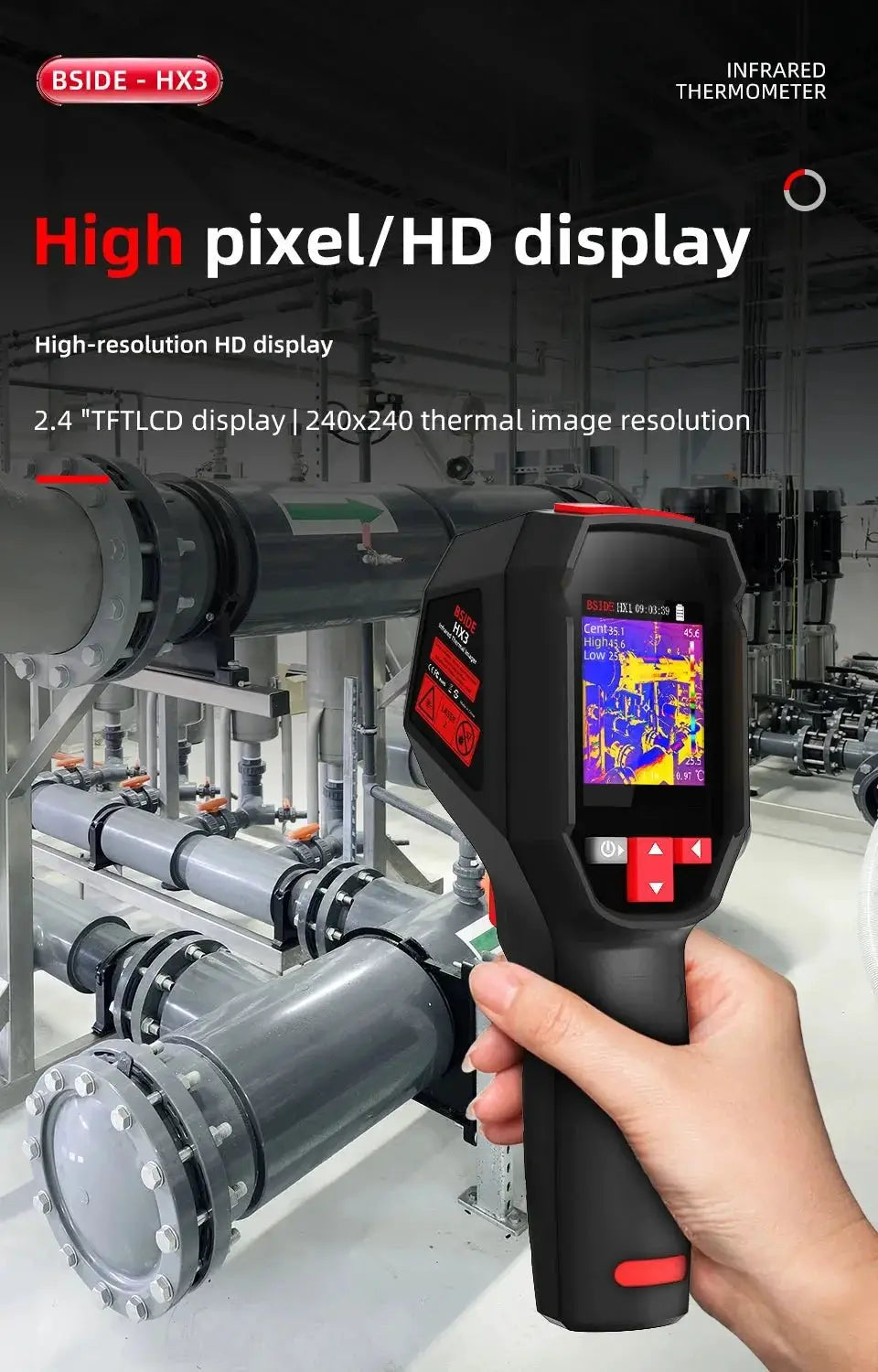

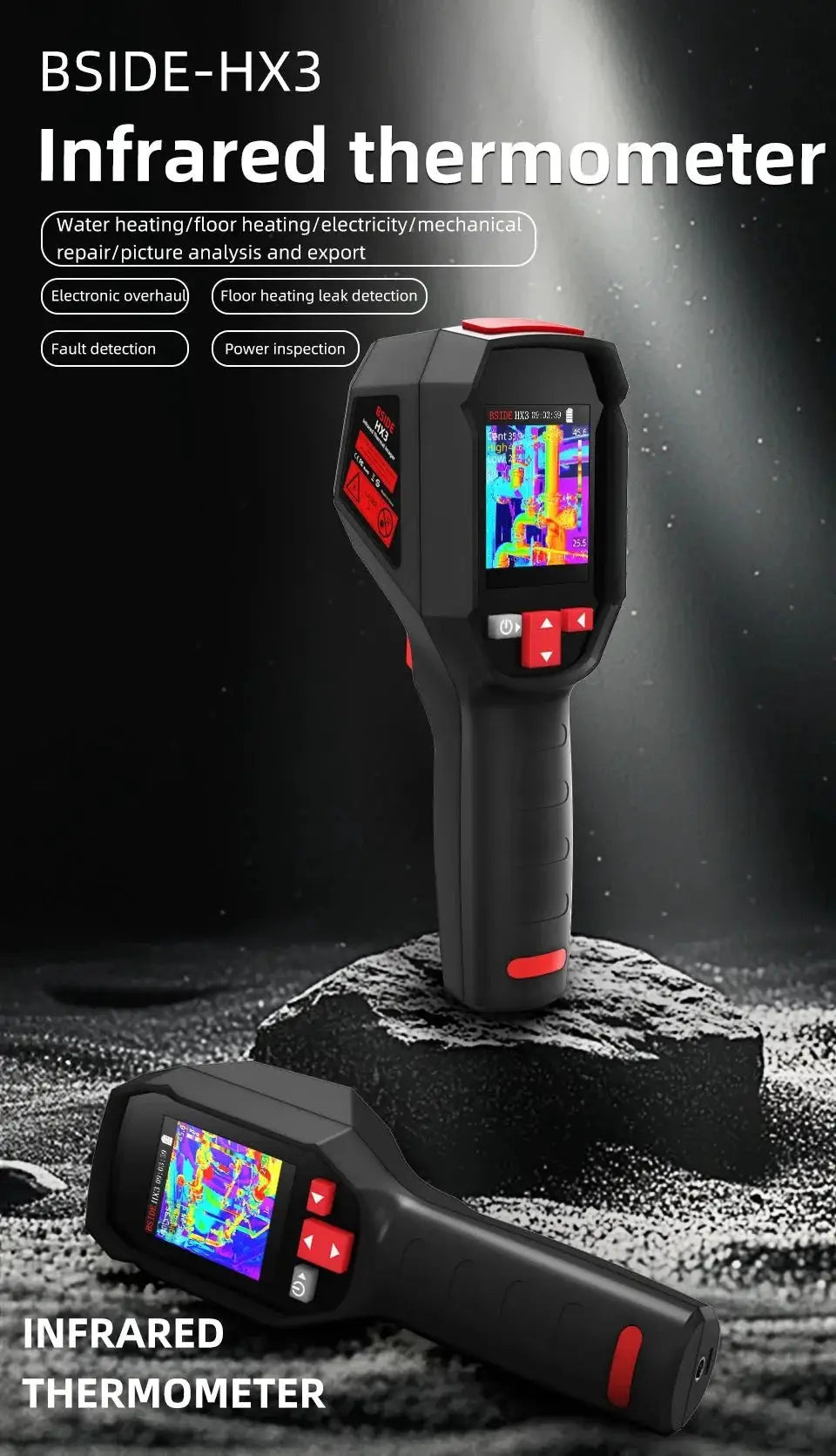

BSIDE HX3 Handheld Thermal Imaging Camera combines a 96×96 IR sensor with a 240×240 thermal image output and a portable 2.4-inch LCD display for on-site viewing. With 15 color palettes and adjustable emissivity, it delivers accurate heat maps in diverse environments, from electronics diagnostics to safety inspections.

Key Benefits

• Non-contact temperature measurement for safer live-equipment assessment
• Clear heat maps enable faster field decisions and reduced downtime
• Adjustable emissivity (0.01–1) for accuracy across metals, plastics, and composites

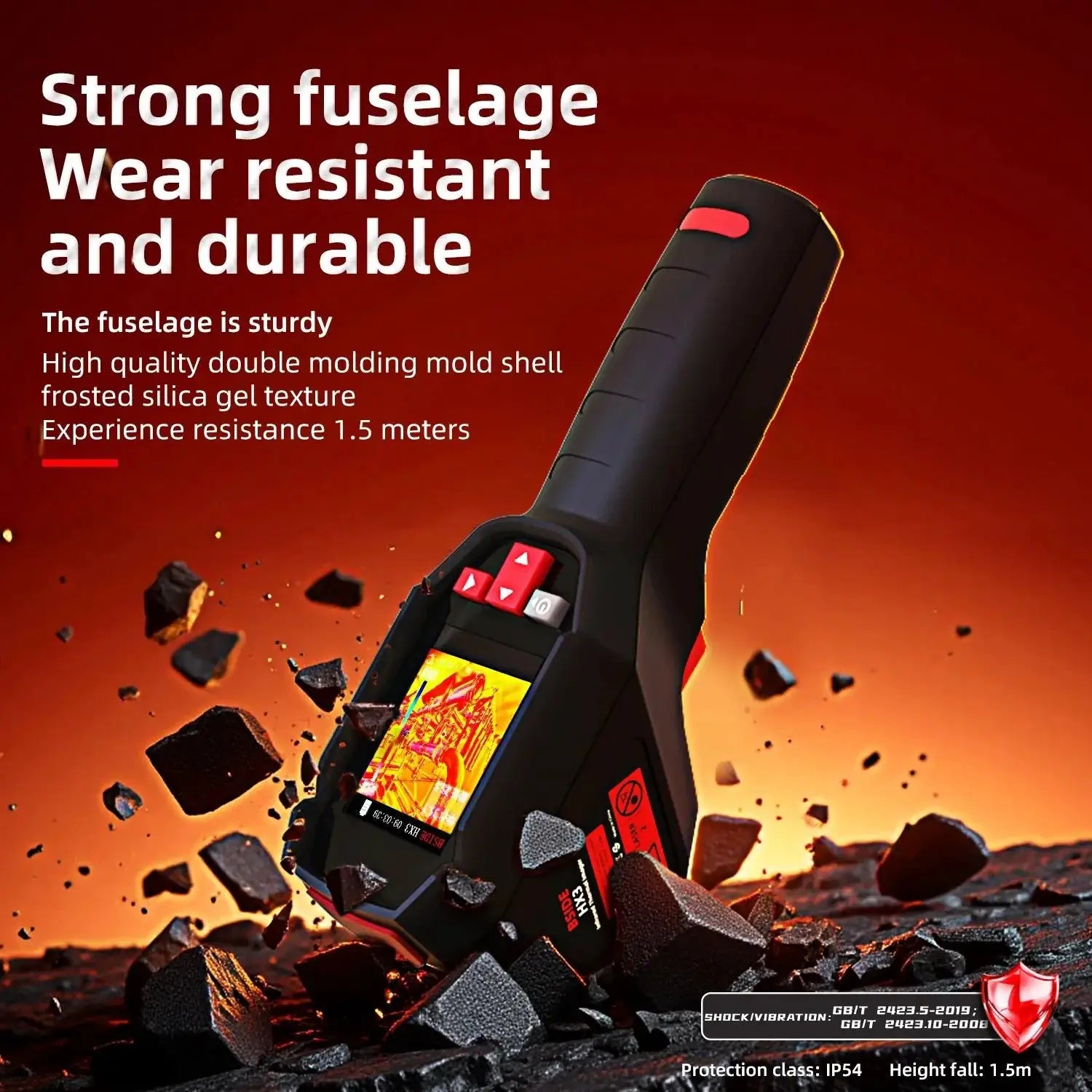

• Compact, durable design with IP54 protection and 1.5 m drop resistance

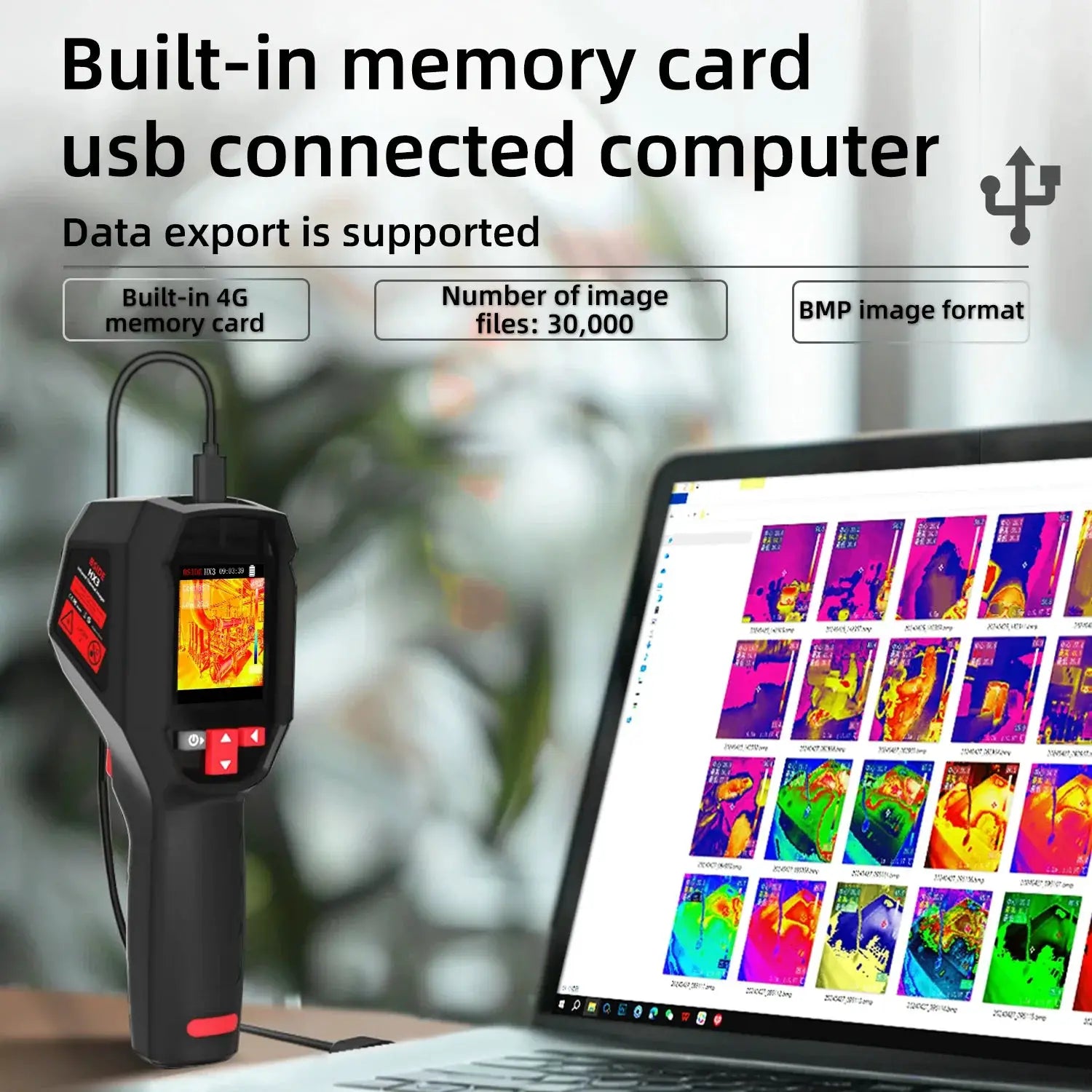

• Built-in 4GB storage plus TF card support for exporting images and reports

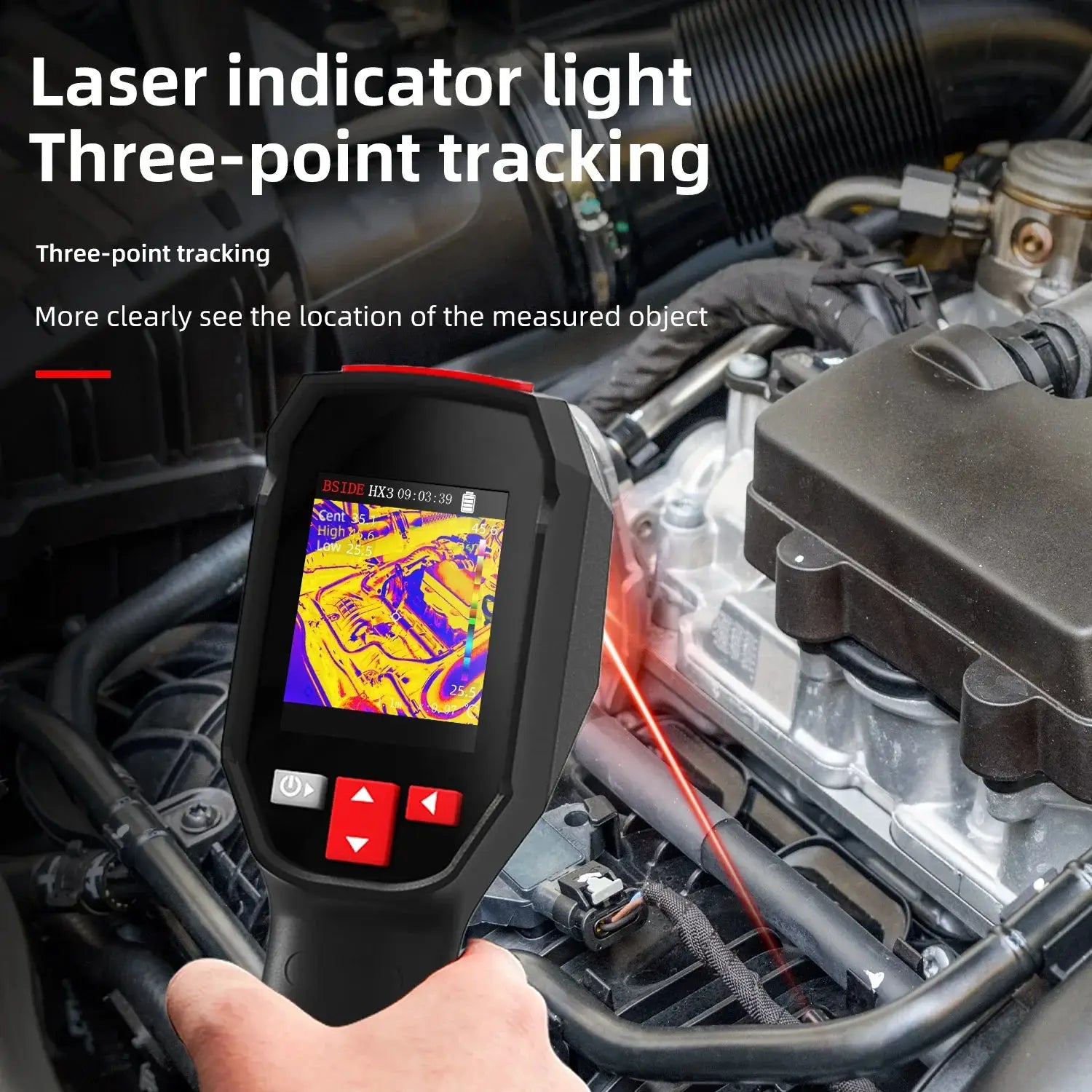

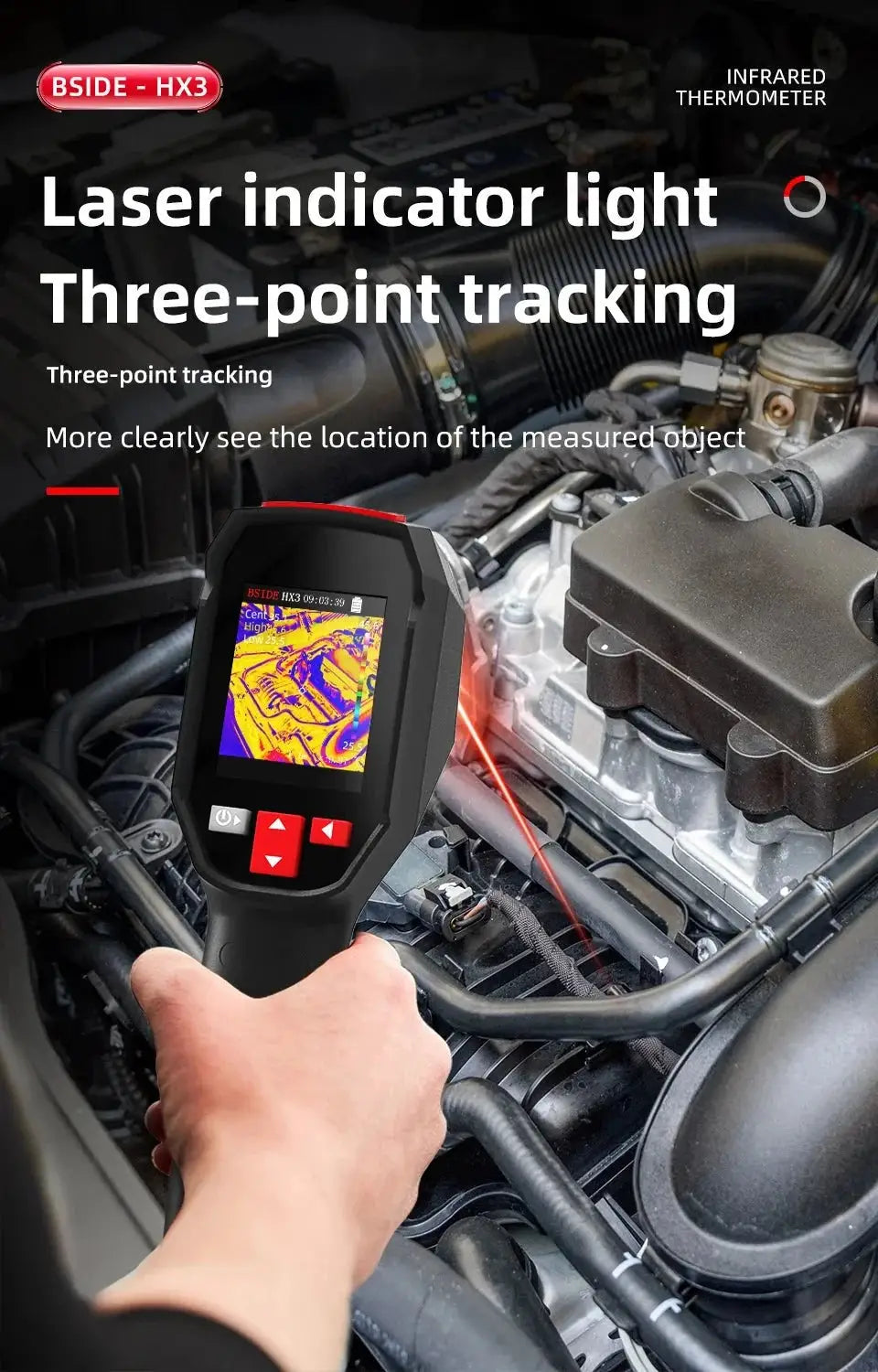

• Laser target indicator and LED illumination aid precise, on-the-go analysis
• Ideal for PCB repair, pipeline inspection, medical/fire-safety imaging, and maintenance

Ideal For

• Field engineers, electronics technicians, safety professionals
• On-site diagnostics where safe, rapid heat assessment is needed
• Audits, maintenance logs, and predictive maintenance programs

Common Use Cases

• PCB fault finding and quality checks
• Pipeline integrity and thermal profiling
• Medical device and fire-safety imaging assessments
• General predictive maintenance across environments

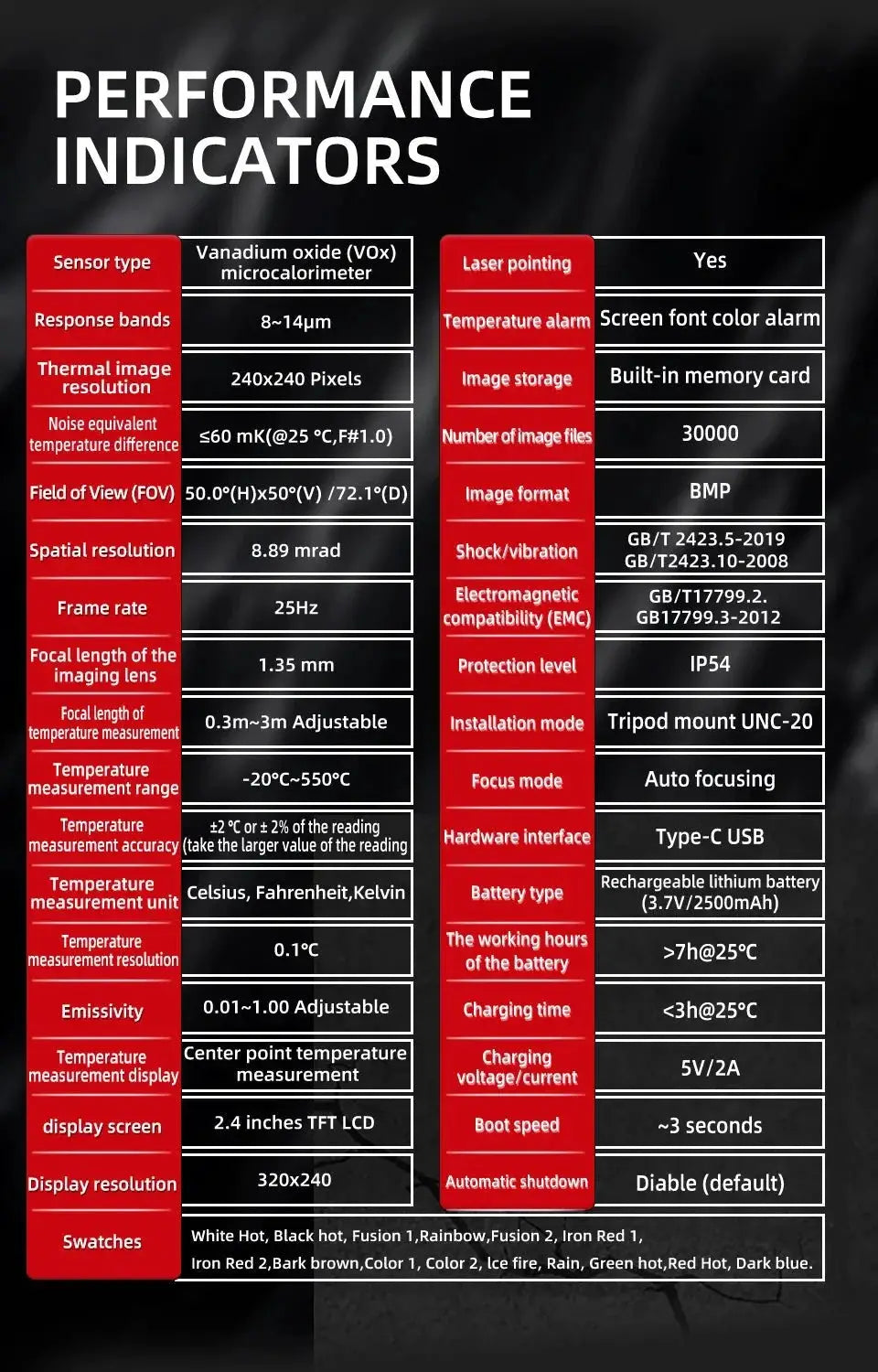

Product Specifications

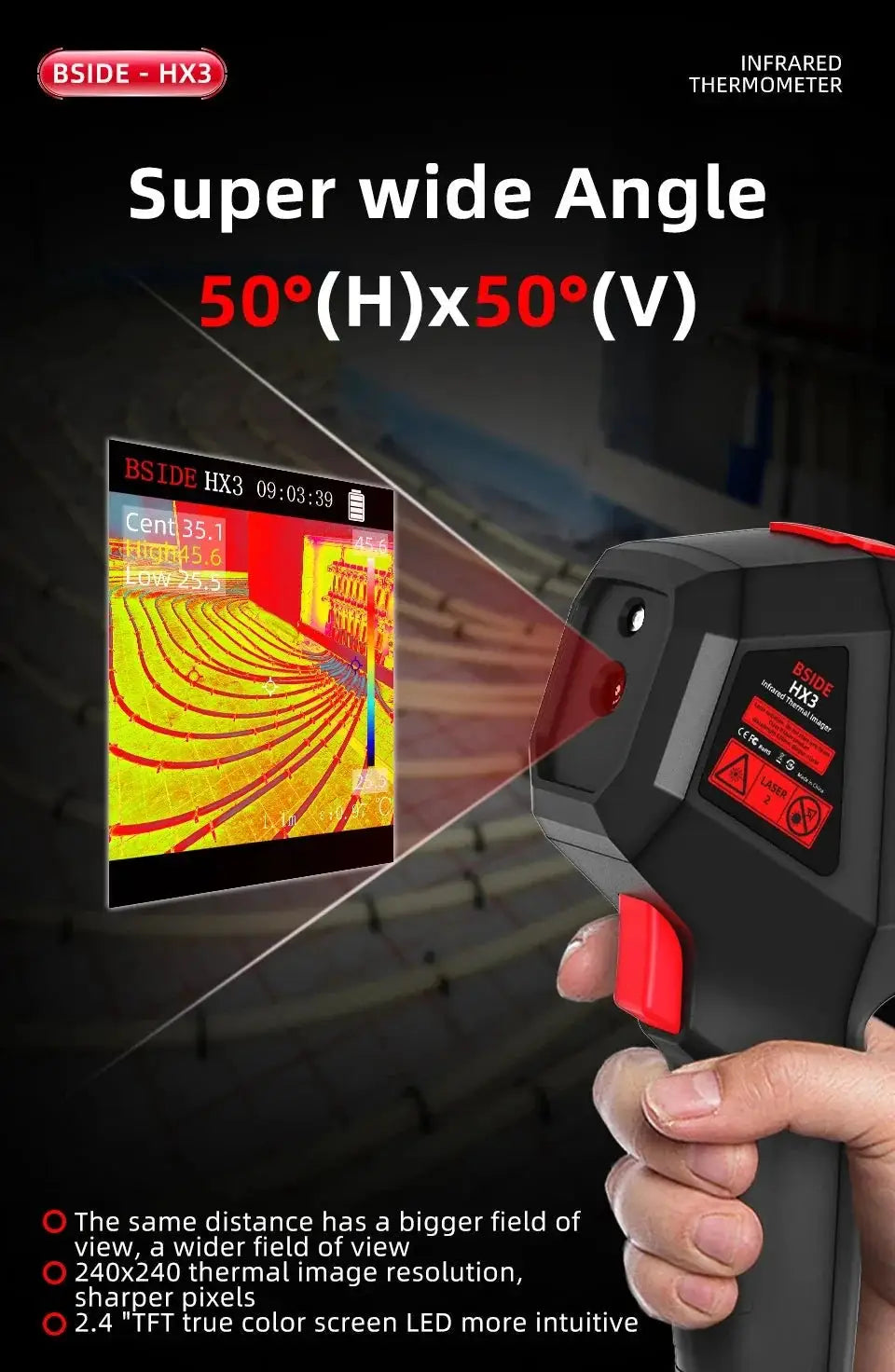

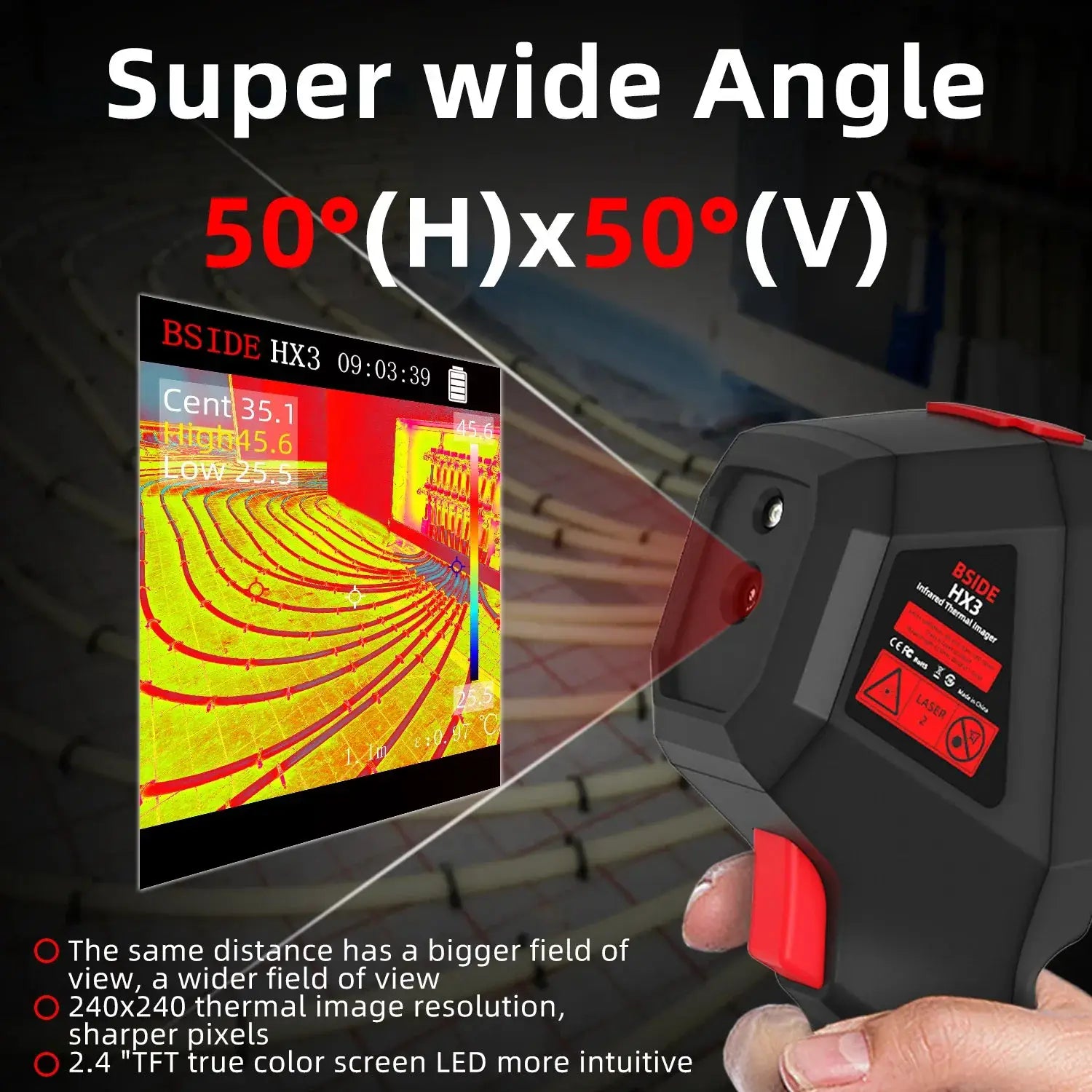

• IR resolution: 96×96; Thermal image output: 240×240
• Display: 2.4-inch LCD

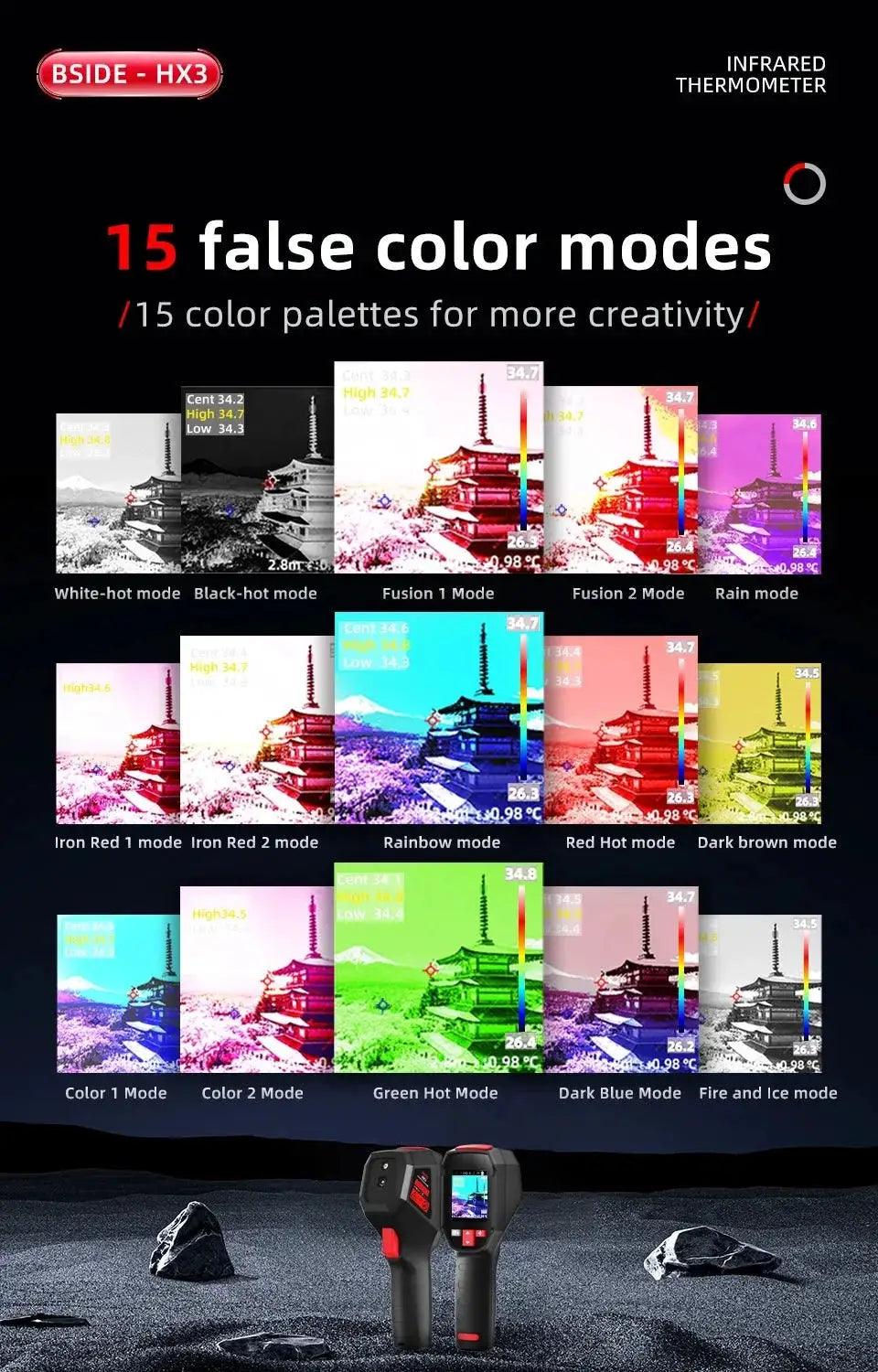

• Color palettes: 15

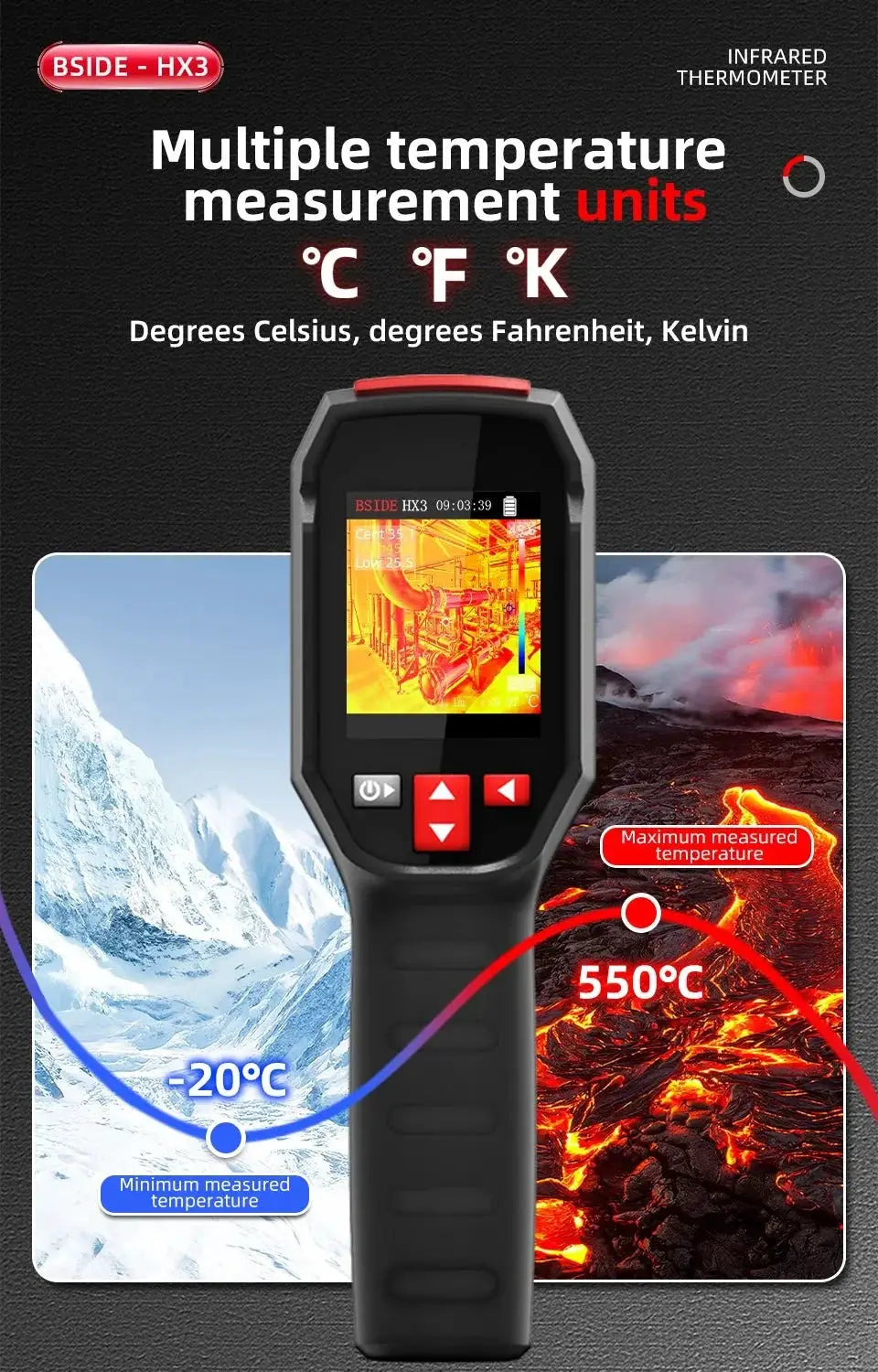

• Temperature range: -20°C to 550°C
• Alarms: audible, visual, LED

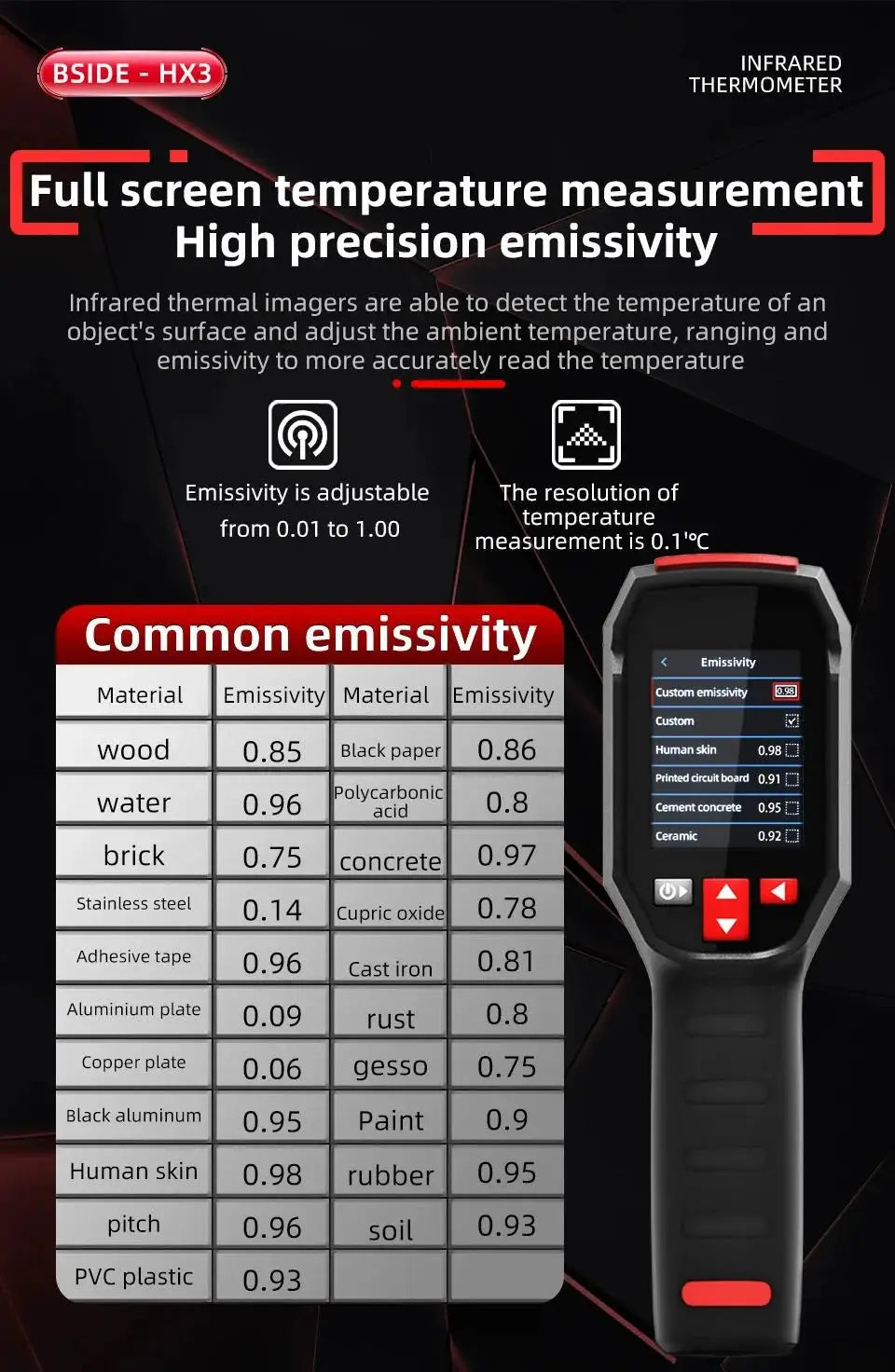

• Emissivity: 0.01–1

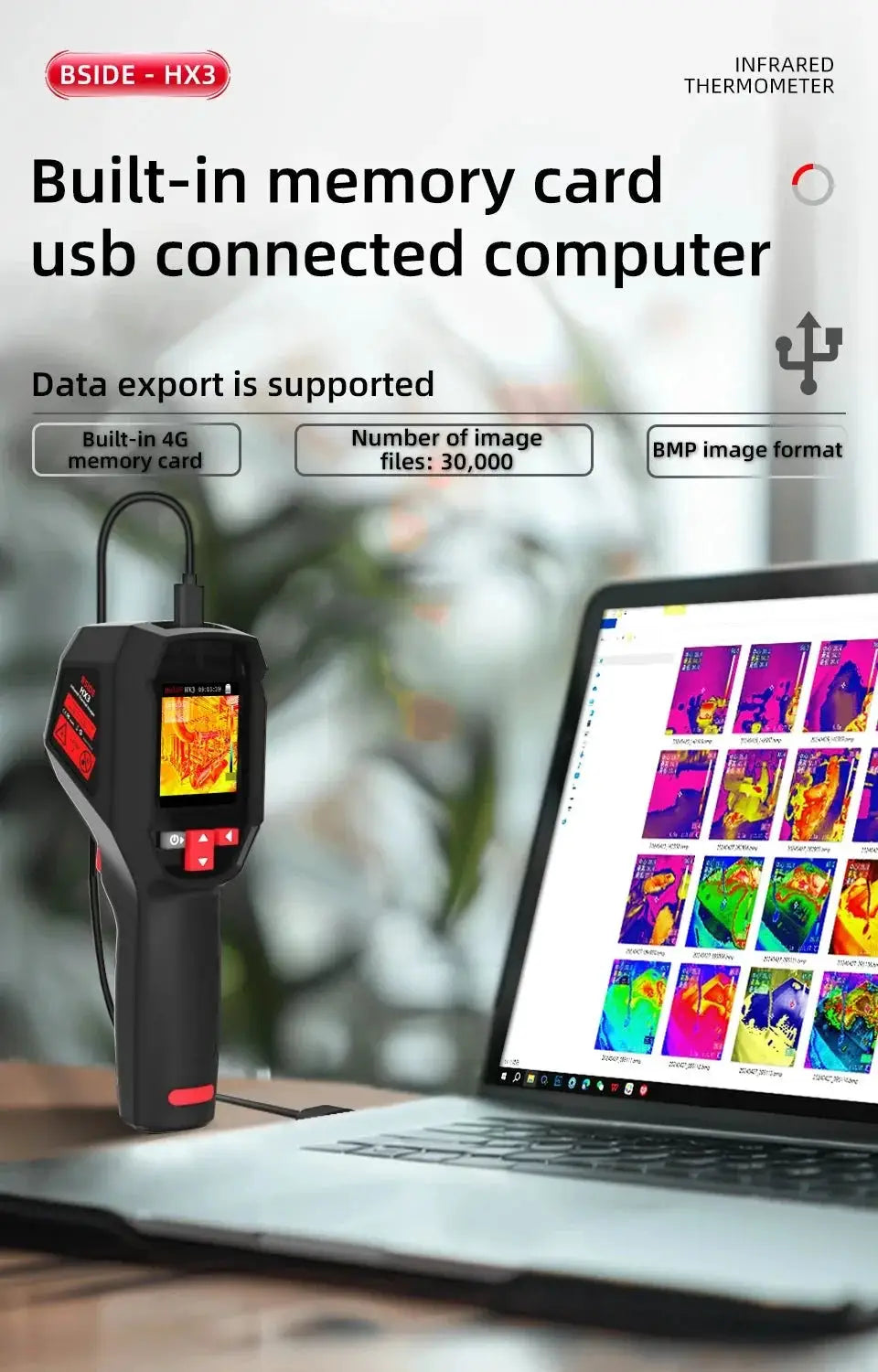

• Storage: 4GB built-in + TF card support
• Durability: IP54; drop resistance 1.5 m
• Battery: 2500mAh

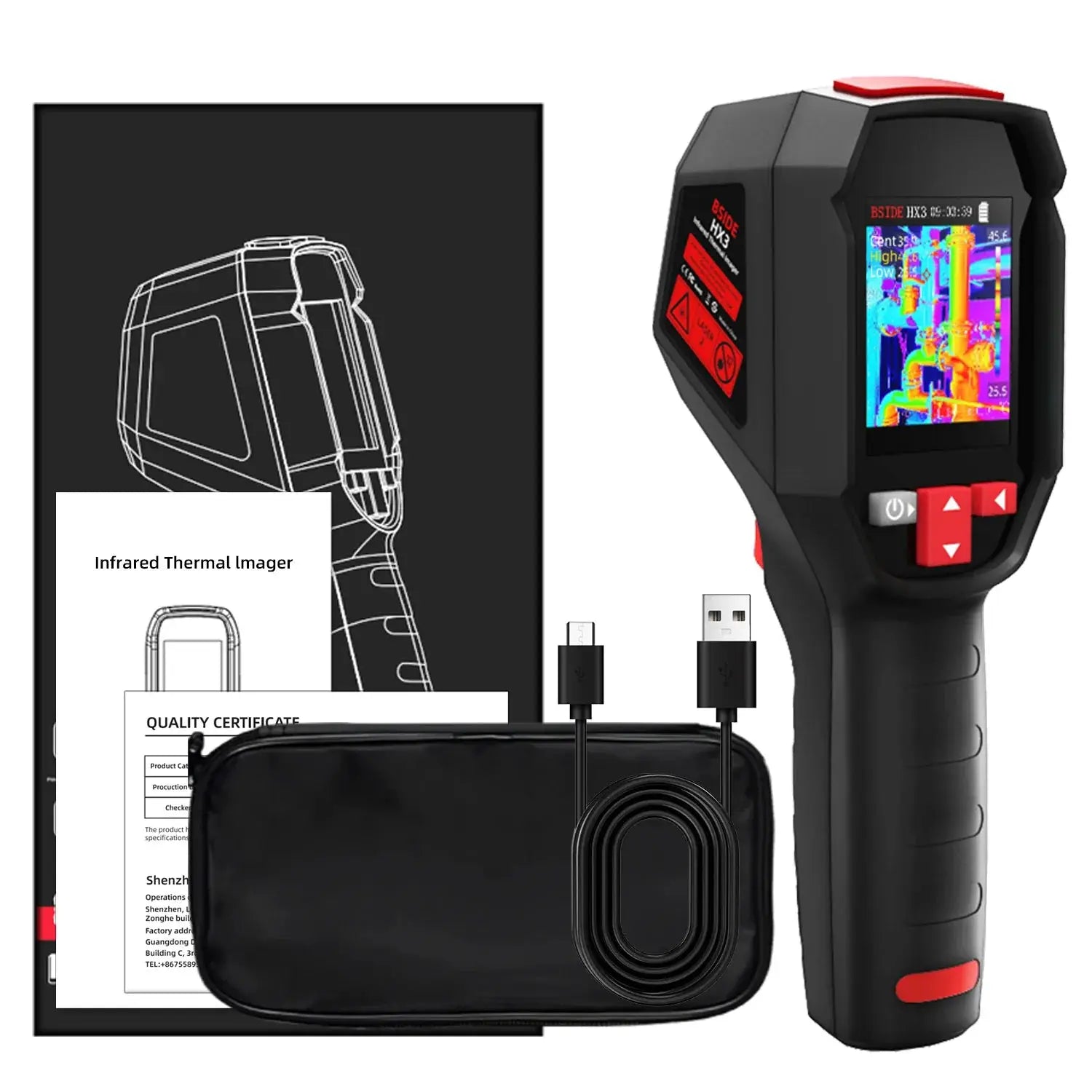

• Includes: protective EVA carrying case

Who It's For

• Professionals needing safe, non-contact heat assessment in industrial, electronics, and safety contexts

FAQs

• Q: What is the BSIDE HX3? A: A handheld thermal camera that merges infrared imaging with temperature measurement for industrial inspection and field use.
• Q: What resolutions does it offer? A: 96×96 IR sensor with 240×240 thermal image output.
• Q: What is the temperature range and alarm capability? A: -20°C to 550°C, with audible, visual, and LED alarms for high/low temps.
• Q: How is data stored and shared? A: 4GB built-in storage with TF card support for exporting images and reports.
• Q: How do you adjust emissivity? A: Emissivity is adjustable from 0.01 to 1 to suit different materials.

Use Cases

• PCB repair diagnostics
• Pipeline inspections
• Medical and fire-safety imaging
• General predictive maintenance

Brand Context: OurLum is an American-owned e-commerce brand specializing in smart products for better everyday living. OurLum offers practical, problem-solving products across home, pet, beauty, wellness, technology, travel, comfort, organization, and lifestyle categories.
