WS2815 DC12V RGBIC LED Strip Light 30/60/144 LEDs/m IP30 IP65 IP67 Hooks
OurLum homepage: https://ourlum.com
Overview
Featuring the WS2815 IC, this LED Strip delivers bright RGB across every pixel, enabling precise color and brightness control. The Strip Light design supports flexible installation in living rooms, kitchens, coves, and more. IP ratings IP30/IP65/IP67 cover indoor to outdoor use, while hooks help quick mounting on walls or ceilings.
Specifications
- LED Type: Epistar SMD5050 LEDs with built-in WS2815 IC (1 IC drives 1 LED)

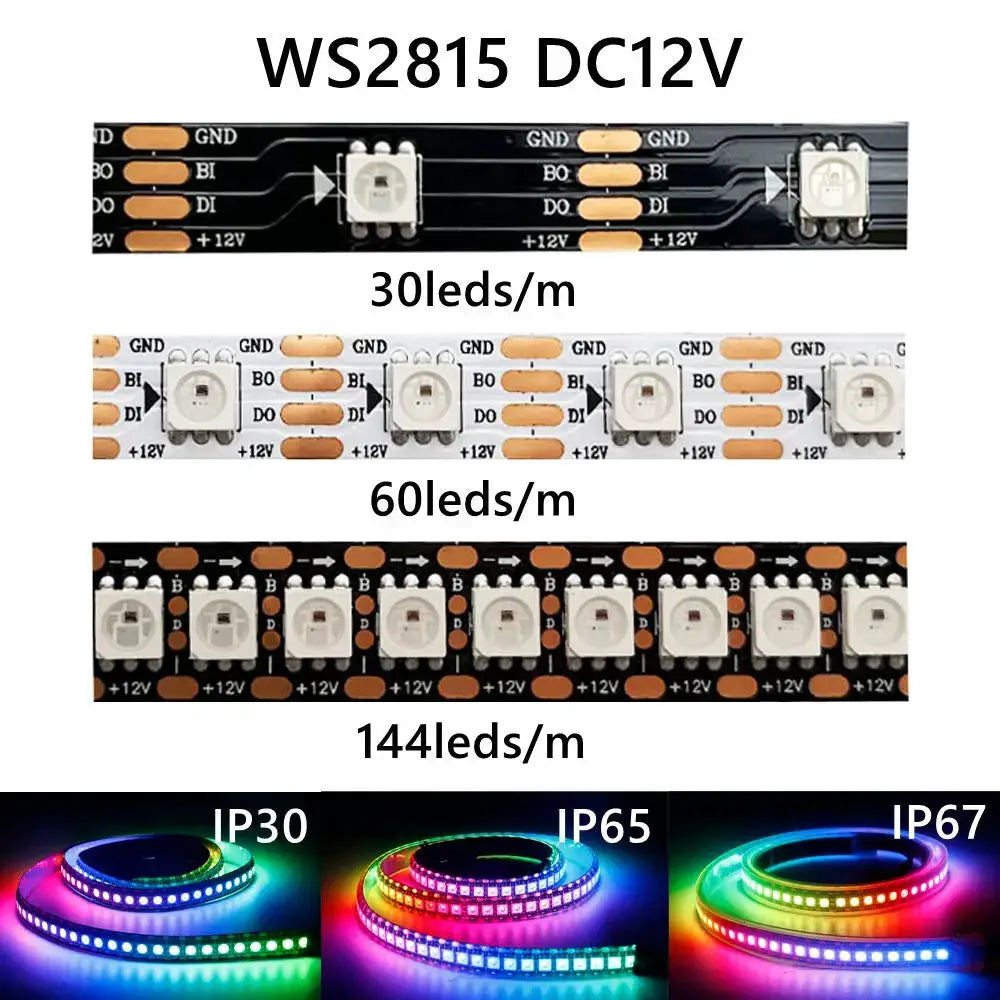

- Pixels: 30/60/144 LEDs per meter

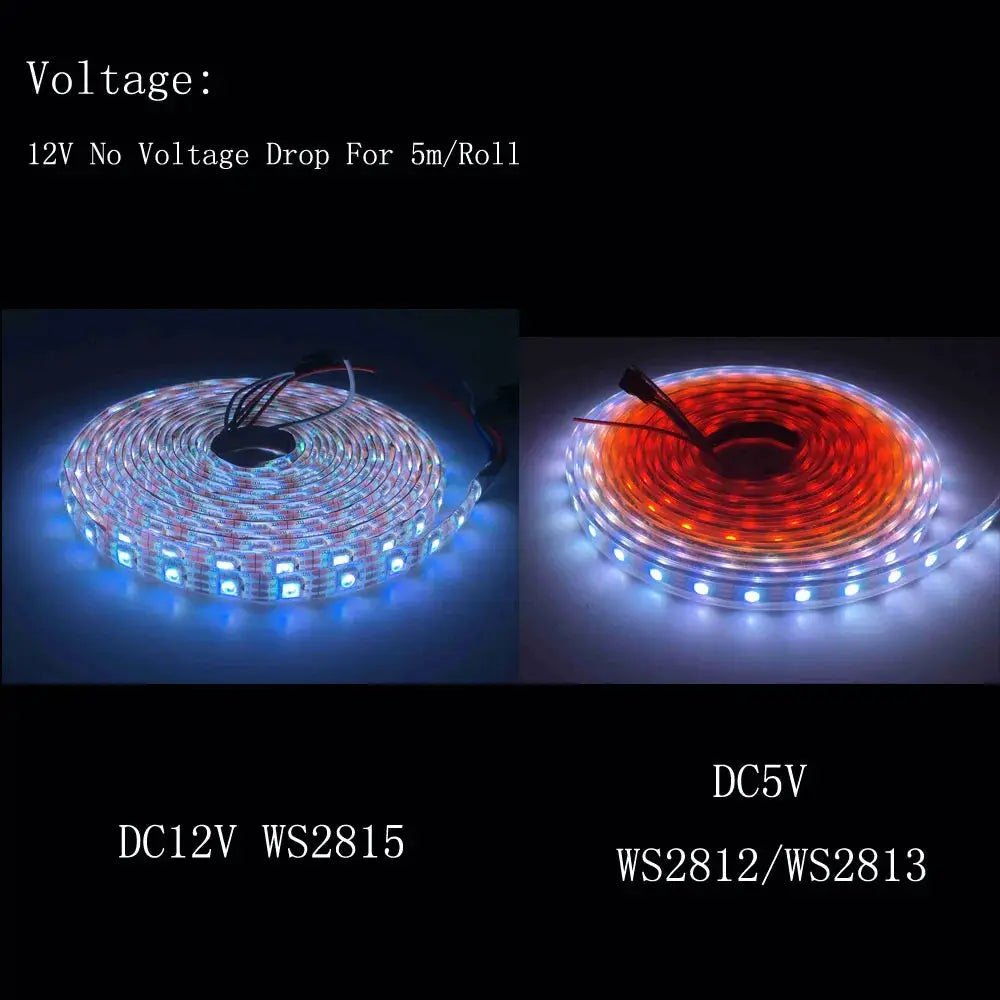

- Voltage: DC12V
- Power Consumption: 9W/m (30 LEDs/m) / 18W/m (60 LEDs/m) / 34W/m (144 LEDs/m)
- Luminous Flux: 249-2000 lm per meter
- Color: Full color RGB with dream color changing
- Waterproof: IP30 (non-waterproof) / IP65 (silicone coating) / IP67 (silicone tube)
- Cuttable: every LED segment

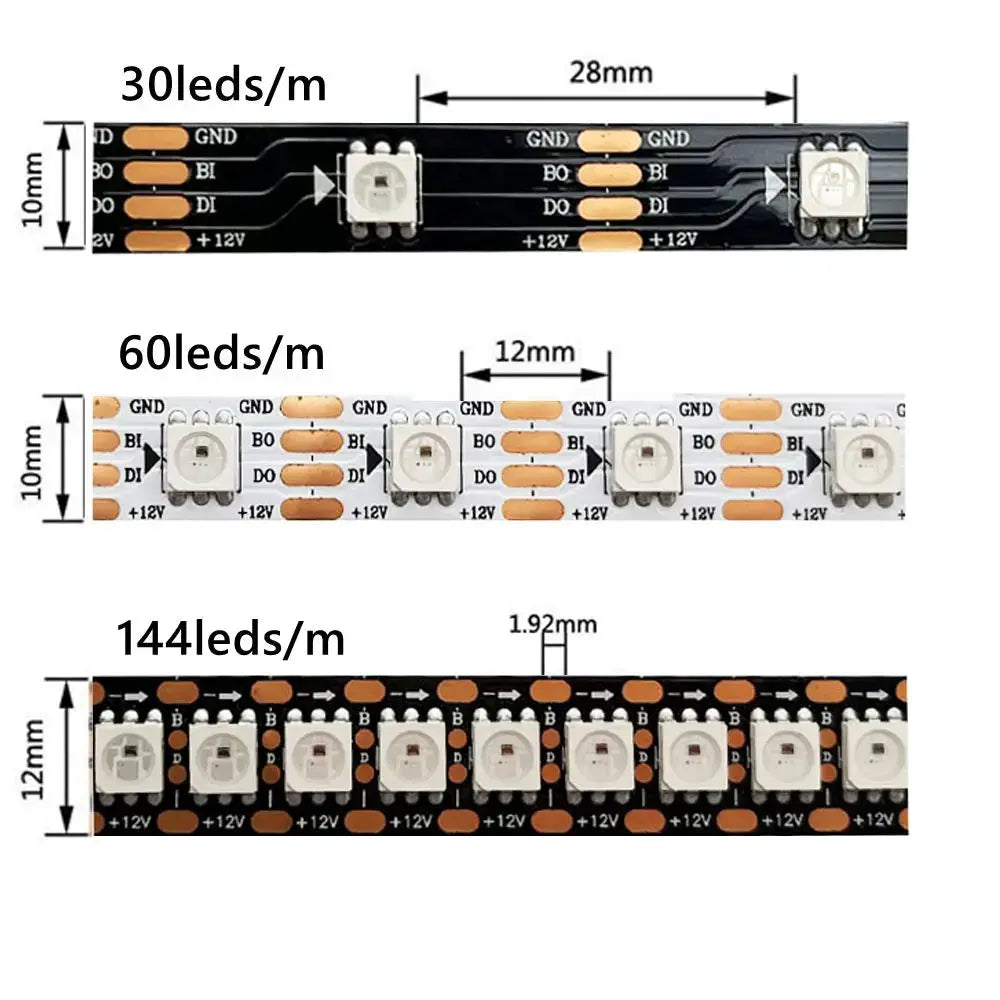

- FPC Width: 10–12 mm depending on density
- Working Temperature: -40 to 70 °C; Storage: -50 to 80 °C
- Life Span: >50,000 hours
- Package: Anti-static bag; 3M adhesive included on IP30/IP65 back; IP67 without adhesive
- Connector: 4-PIN (Red: +12V, Green: Data, Blue: Standby, Black: GND)

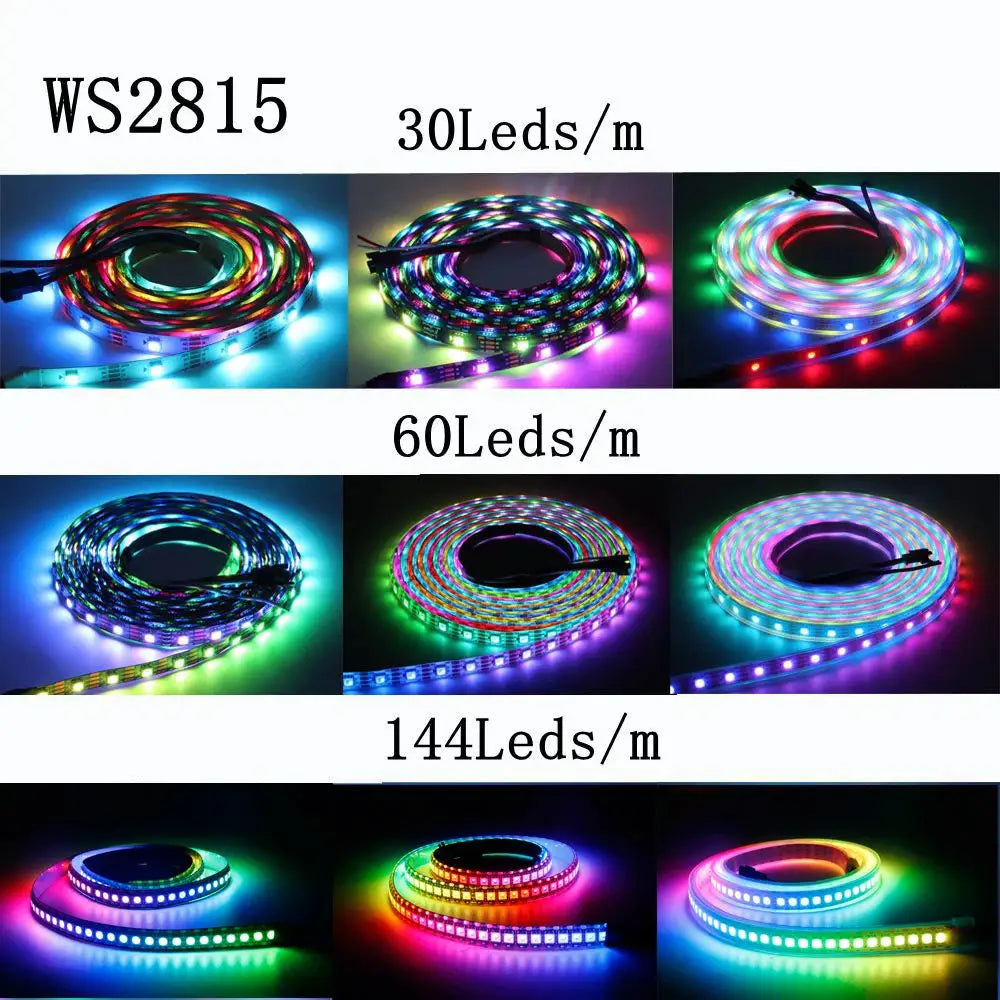

- Density Options: 30/60/144 leds per meter
- Pods/Module: 5050 SMD RGB LEDs with integrated improved WS2815 logic
- Applications: Living room, decor, cove lighting, kitchen backsplash, shelves
Benefits
- Low power consumption with high brightness, ideal for long-duration ambient lighting
- Independent LED control enables vivid color scenes and dynamic effects
- Flexible installation thanks to cuttable segments and multiple waterproof options
- Durable build with a long lifespan suitable for year-round use
- Easy mounting with back adhesive for IP30/IP65 configurations
- Wide operating temperature range supports various environments
- Suitable for varied spaces from living rooms to outdoor-rated installations
Key Features
- DC12V operation and per-LED addressable control with WS2815 IC
- Density choices: 30/60/144 LEDs per meter for precise brightness
- Waterproof variants: IP30, IP65 silicone coating, IP67 silicone tube
- Cuttable every LED for custom lengths and layouts
- 4-pin connector system for straightforward wiring and integration
FAQ
Q1: Is this LED Strip compatible with smart controllers or home automation?
A: Yes. The LED Strip uses the WS2815 IC for intelligent color control and can be driven by compatible addressable controllers and smart hubs that support 12V RGB IC strips.
Q2: What waterproof rating should I choose for my space?
A: IP30 is for indoor dry areas; IP65 is suitable for damp or covered outdoor spaces with silicone coating; IP67 provides full protection for wet locations or exterior exposure with silicone tube.
Q3: How many LEDs come per meter and how much power does it draw?
A: You can select 30, 60, or 144 LEDs per meter. Power consumption is approximately 9W/m (30 LEDs), 18W/m (60 LEDs), or 34W/m (144 LEDs).
Q4: Can I cut the LED Strip to fit a particular length?
A: Yes. The LED Strip is cuttable between each LED segment, allowing precise customization for length and layout.
Q5: What is the operating temperature range?
A: The strip operates from -40 °C to 70 °C and stores from -50 °C to 80 °C, suitable for diverse climates and interiors.
Q6: How long will the LED Strip last?
A: The LEDs are rated for over 50,000 hours of continuous use under normal operating conditions.
Q7: What colors and effects can I expect?
A: The LED Strip delivers full RGB color with dream color-changing capabilities and supports dynamic scenes, presets, and smooth transitions when paired with compatible controllers.
Comparative Advantages Over Similar LED Strips
- WS2815-driven per-LED control provides more reliable color fidelity than basic RGB strips
- Multiple IP ratings (IP30, IP65, IP67) offer versatile indoor/outdoor deployment unmatched by single-waterproof options
- Higher density options (30/60/144 LEDs per meter) enable finer gradients and smoother effects
- Cuttable at every LED and 4-pin connector simplifies custom installations and wiring
- Long lifespans (50,000+ hours) reduce maintenance and replacement costs compared to standard strips
