WS2812B 5V LED Strip – 74/96/144 LEDs per Meter, Addressable RGB
Meet the WS2812B 5V LED Strip—a flexible, power-efficient lighting solution where every LED is Addressable RGB. Available in three density options per meter: 74, 96, or 144 LEDs, you can craft breathtaking scenes with just one data line from your controller. This LED Strip is ideal for TV backlighting, gaming rooms, bars, hotels, and home decor where color precision and dynamic effects matter.
Product Material

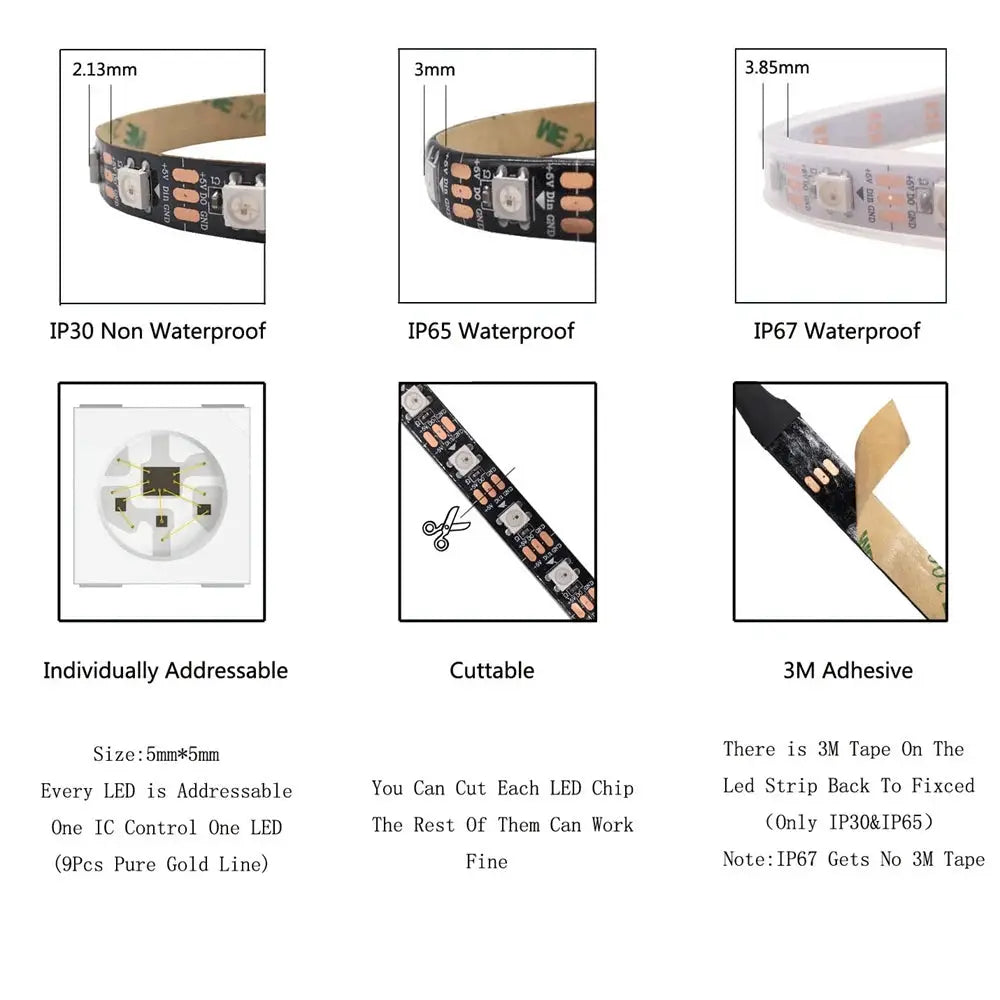

Core components include 5050 SMD RGB LED chips on a flexible PCB, with silicone encapsulation used for IP65/IP67 variants and standard silicone backing for IP30 use. A 3M adhesive backing (IP65) or silicone tube (IP67) enables secure mounting. The back also incorporates a 20AWG JST connector for VCC, GND, and DATA connections, ensuring reliable, durable connections for long-lasting installations.
Key Features
- Nominal Voltage: 5V DC, with built-in WS2812B pixel IC in each LED for true Addressable RGB control.

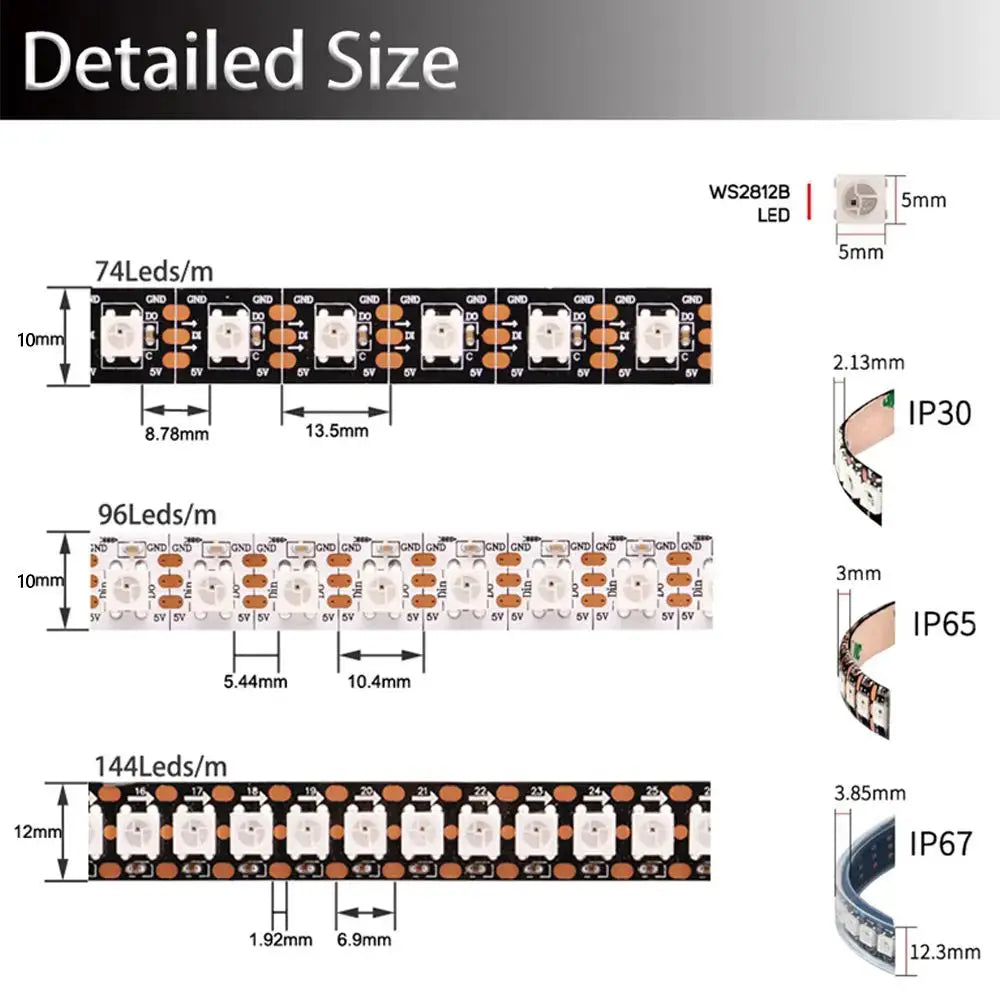

- Three density options per meter: 74 LEDs/m, 96 LEDs/m, or 144 LEDs/m to match your project needs.
- 3-pin JST connector: VCC (Red), GND (White), DATA (Green) for easy wiring and integration.
- Cuttable between every LED to create custom lengths without waste.

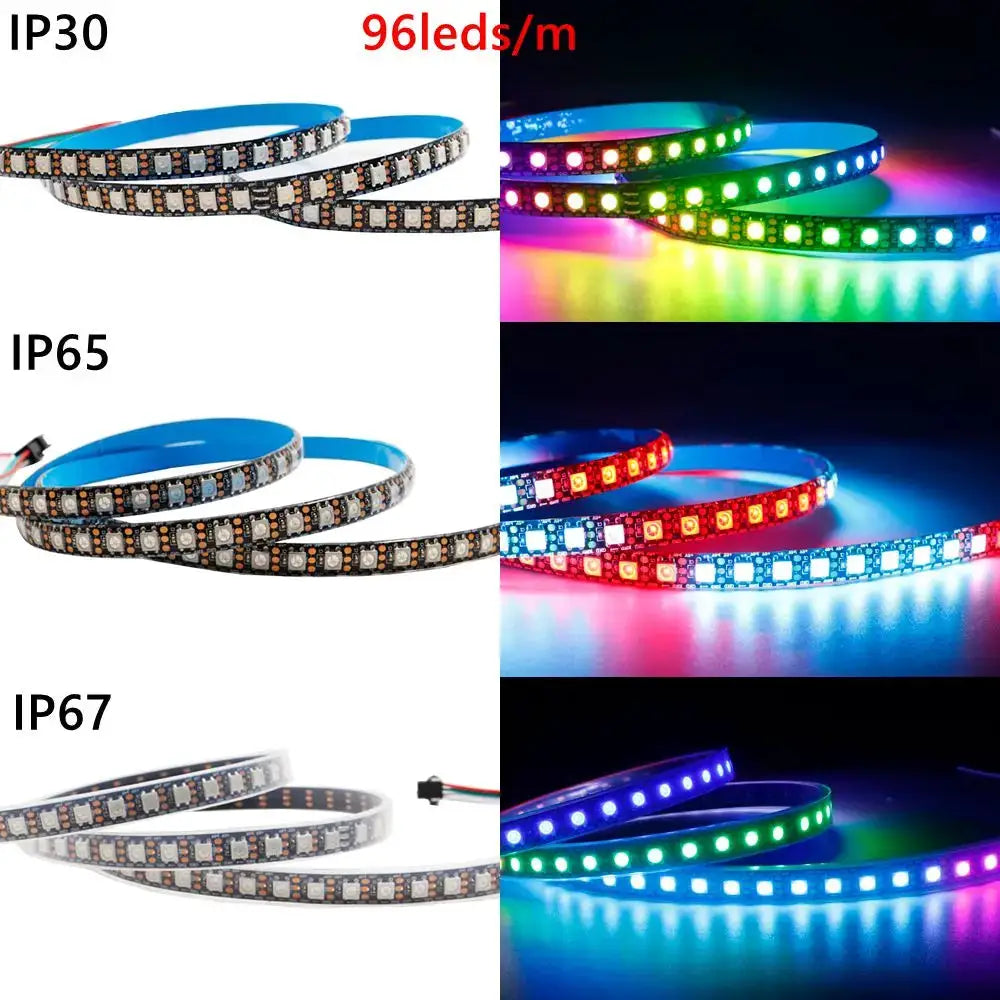

- Waterproof variants: IP30 for basic indoor use, IP65 with silicone coating for damp environments, IP67 with silicone tube for immersion or outdoor installations.
7 Benefits
- Vibrant, precise color rendering with Addressable RGB per pixel, delivering smooth gradients and stunning effects on this LED Strip.
- Single data-line control simplifies wiring and minimizes controller complexity, making setup faster and cleaner for any room.
- Flexible mounting with strong 3M adhesive on IP65 variants, plus silicone protection for IP65/IP67 versions, enabling seamless integration into furniture, displays, and architectural lighting.
- Cuttable at every LED, giving you exact lengths for alcoves, shelves, or backlighting with zero guesswork.
- Long lifespan and reliable performance with an expected life of over 50,000 hours, keeping installations low-maintenance.
- Multiple density options per meter allow you to choose between delicate ambient lighting or high-density pixel effects without swapping products.
- Low heat output and efficient operation at 5V DC support safe indoor use and compatibility with standard 5V power supplies.
5 Features
- 5V DC input power with a built-in WS2812B IC driving each LED chip for independent color control.
- Flexible, waterproof designs (IP30/IP65/IP67 variants) for a wide range of applications from living rooms to outdoor signage.
- 3-pin JST connector for straightforward VCC, GND, and DATA wiring in compact projects.
- All LEDs are cuttable between chips to tailor length precisely for any setup.
- High-density options (74/96/144 LEDs/m) for detailed lighting effects and dynamic animations.
Frequently Asked Questions
Q: What makes this LED Strip “Addressable RGB”?
A: Each LED chip contains a built-in WS2812B IC, allowing per-pixel color control and individual brightness on this LED Strip, enabling complex animations and precise color sequencing across the entire length.
Q: What power supply do I need for the LED Strip?
A: This LED Strip runs on 5V DC. For a typical run, plan for around 0.2W per LED; for example, 150 LEDs (approx. 5 meters at 30 LEDs/m) would draw about 30W, which translates to around 6A at 5V. Always use a quality 5V power supply capable of meeting the calculated current for your chosen density.
Q: Can I shorten or customize the length of the LED Strip?
A: Yes. The LED Strip is designed to be cut between every LED, allowing you to create the exact length you need for any project while preserving full color control and sequencing on the remaining segments.
Q: Is this LED Strip waterproof?
A: The product line includes IP30 (non-watertight), IP65 (silicone-coated for moisture resistance), and IP67 (silicone-tube protected for immersion or harsher environments) variants to suit indoor and outdoor installations.
Q: How do I control the LED Strip?

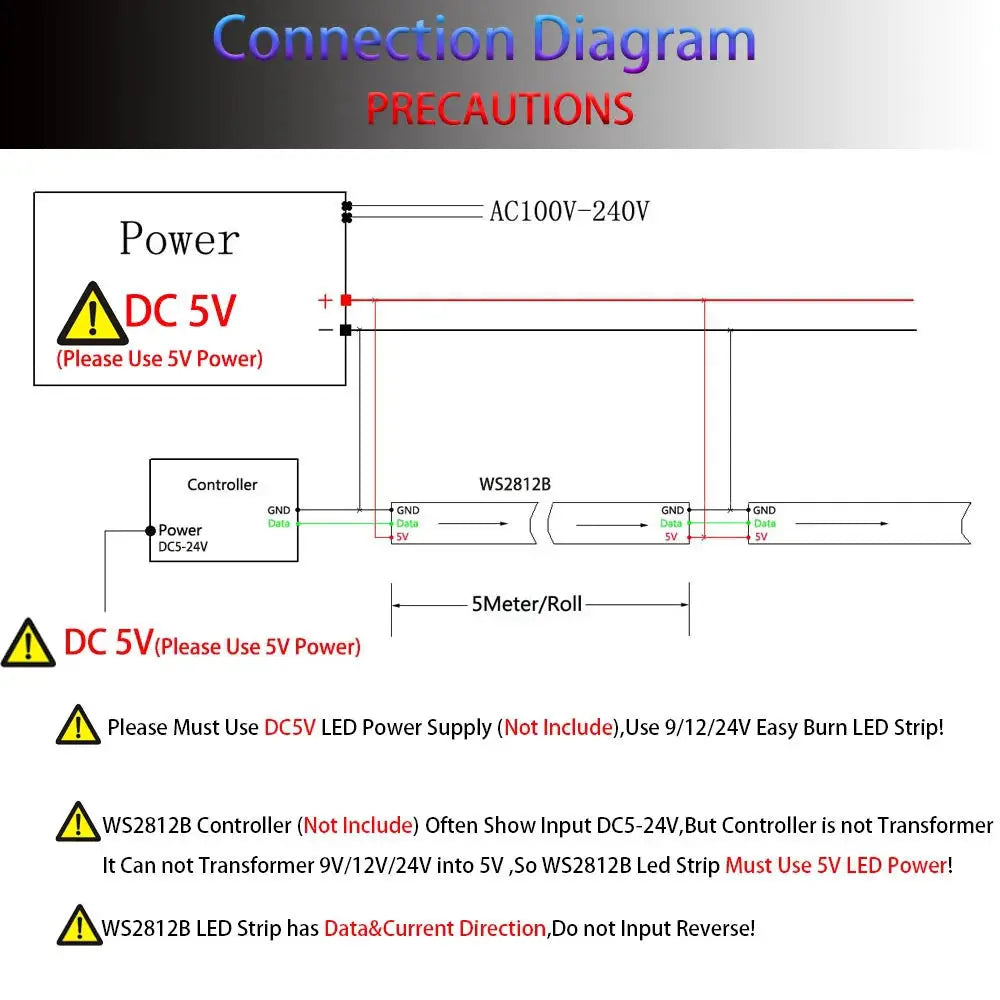

A: The LED Strip is controlled by a suitable controller via a single DATA line. It requires a compatible 5V controller with support for WS2812B style addressing and color control to produce the full range of effects and animations.
Q: What are common use cases for this LED Strip?
A: This Addressable RGB LED Strip is popular for TV backlighting, gaming desks, bars and hotels, shop displays, event lighting, car interiors, and decorative home installations, delivering immersive color experiences and dynamic lighting scenes.
Q: How long will the LED Strip last?
A: The LEDs are rated for more than 50,000 hours of operation under normal conditions, making this LED Strip a durable choice for long-term installations with minimal maintenance.
5 Comparative Advantages
- Compared to fixed-color LED strips, this LED Strip delivers true Addressable RGB per pixel, enabling dynamic animations and precise color control across the entire length.
- Higher density options (74/96/144 LEDs per meter) provide greater pixel detail and richer visual effects than lower-density alternatives in the same class.
- Built-in WS2812B IC in each LED reduces external controller complexity, streamlining setup and easing integration with standard 5V controllers.
- Multiple waterproof variants (IP30/IP65/IP67) give you indoor and outdoor flexibility without changing product families, unlike many single-rating strips.
- Cut-and-reuse design minimizes waste and lets you tailor lengths precisely for projects like TV ambi lighting, signage, and architectural accents, outperforming non-cuttable options.
