Dream Color Pixel LED Stair Light Controller For RGB SPI Strips Running Light
Bring your staircase to life with the Dream Color Pixel LED Stair Light Controller—a compact, plug‑and‑play device designed for RGB SPI strips and running light patterns. This controller combines motion sensing with intelligent lighting control to create seamless, engaging Pixel LED scenery on every step. Explore more about the Pixel LED and Stair Light ecosystems on OurLum to see how similar Pixel LED configurations illuminate stairs and hallways.
What it does

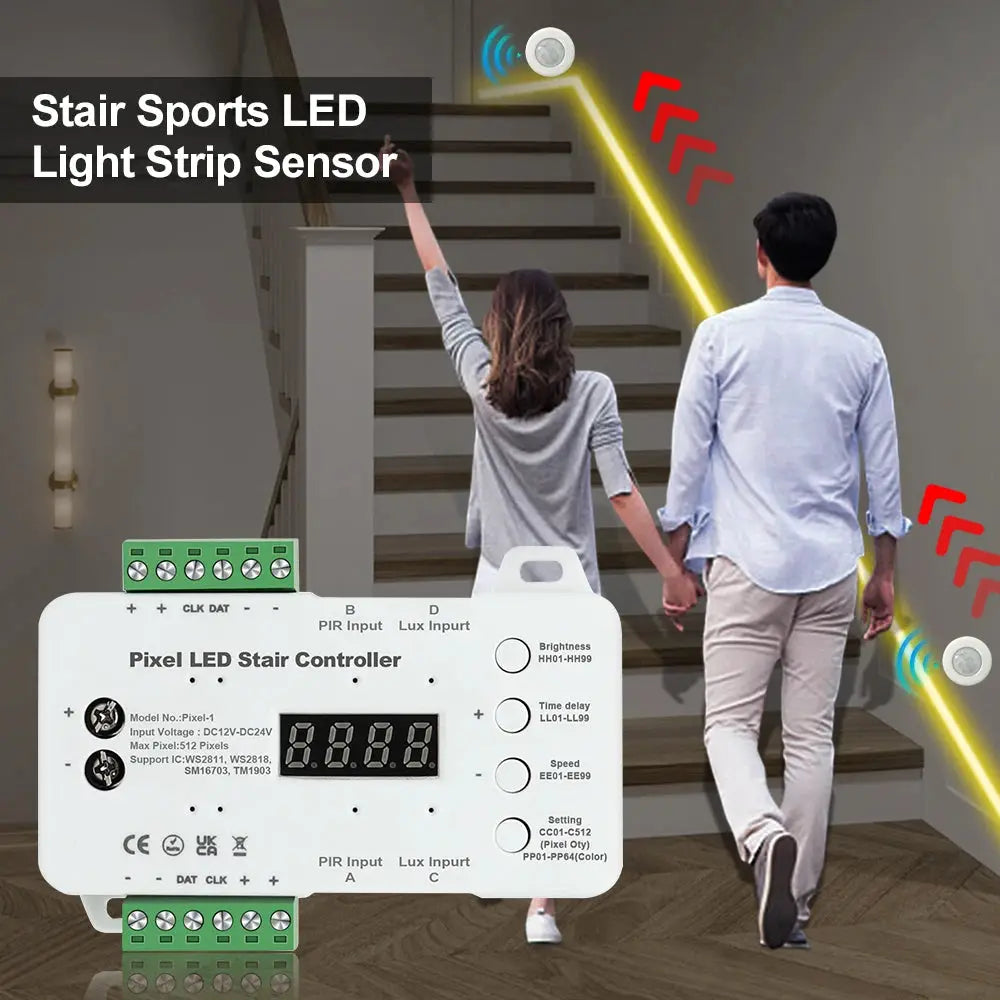

The Pixel LED Stair Light Controller handles up to 512 IC chips on compatible strips and runs at 24V DC with a max current of 10A, making it ideal for long Stair Light runs. It supports major IC families (WS2811, WS2818, SM16703, TM1903) and delivers up to 360 LEDs per meter for rich, flowing effects. With two PIR sensors and a daylight sensor, it automatically turns lights on or off based on movement and ambient brightness, helping you save energy while maintaining inviting Pixel LED illumination along stairs. For more ideas on Pixel LED and Stair Light installations, visit OurLum. Note: Power supply and LED strip must be chosen separately.
Key specifications
- Model Number: Step-PIXEL-01
- Voltage: DC 24V (Nominal)
- Max current: 10A
- LED density: 360 LEDs per meter (light beads / m)
- Max pixel quantity: 512 IC chips
- Strip compatibility: RGB SPI; supports RGBIC and running LED patterns

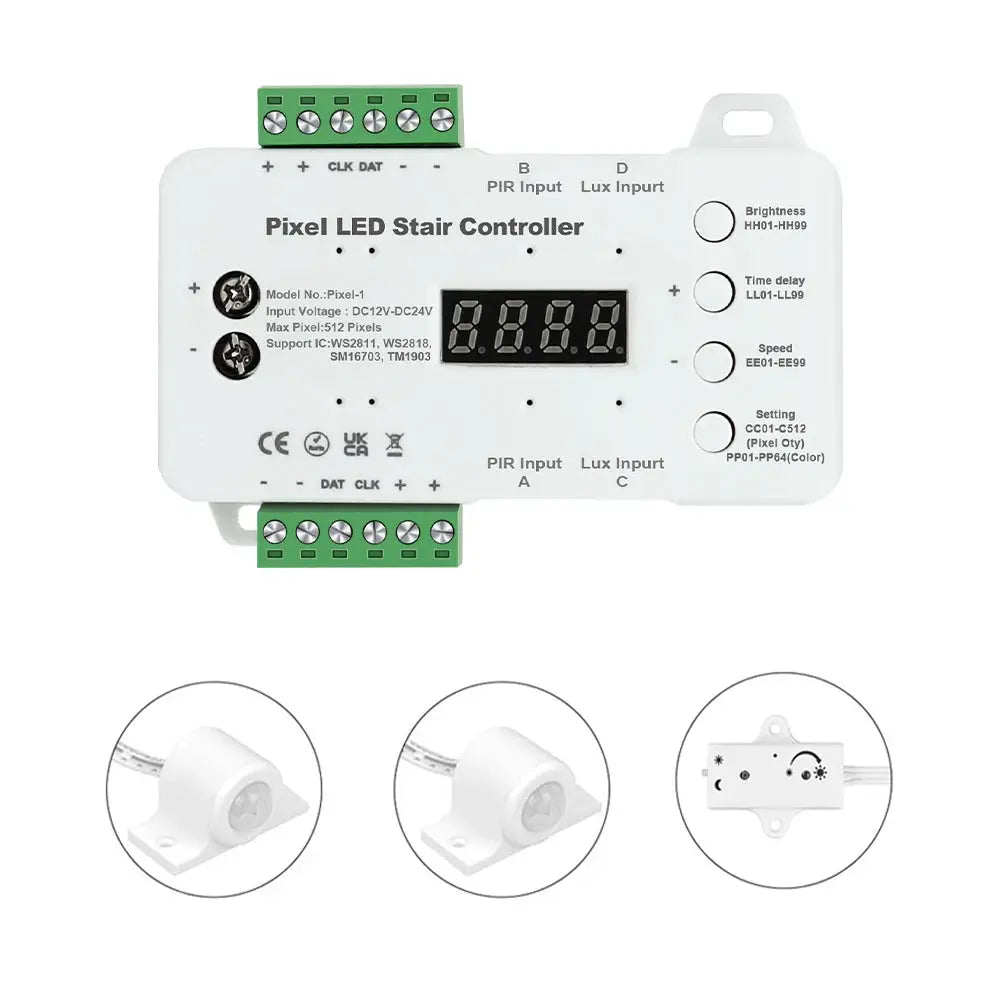

- Sensors: 2x PIR sensors + 1 daylight sensor

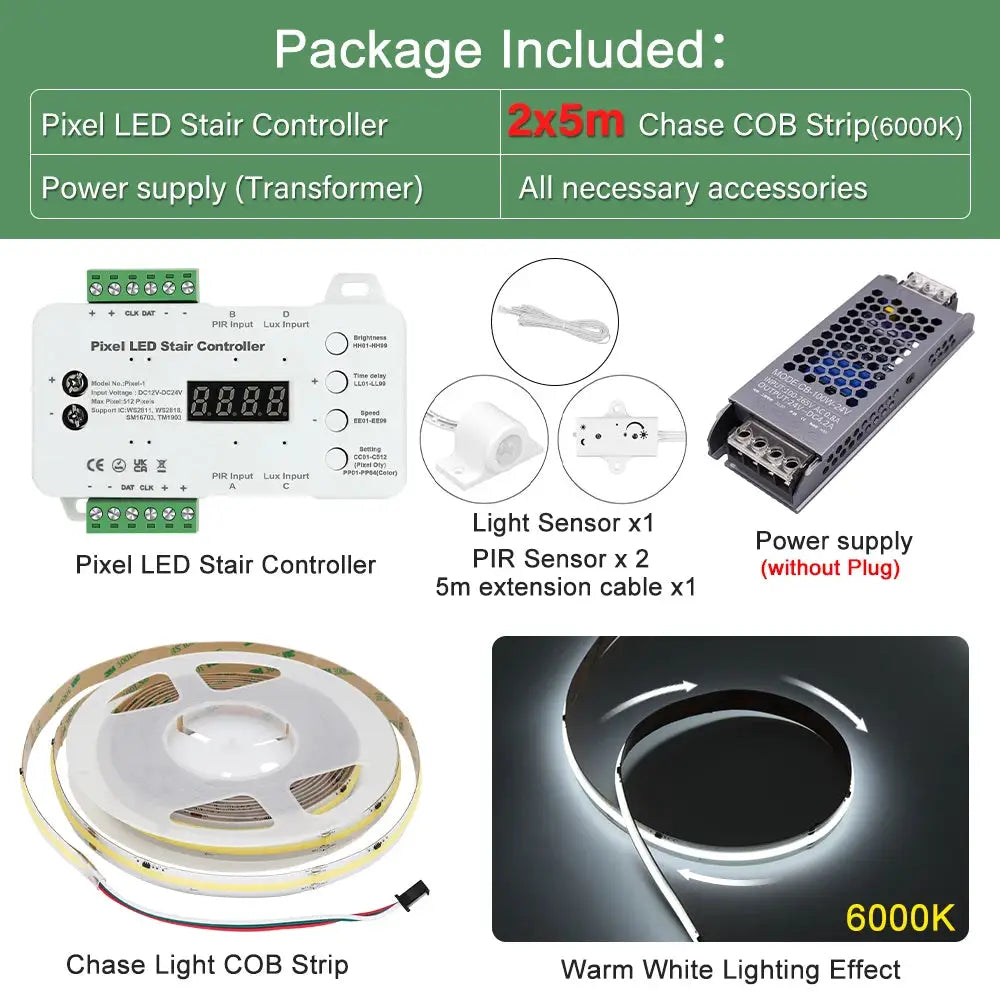

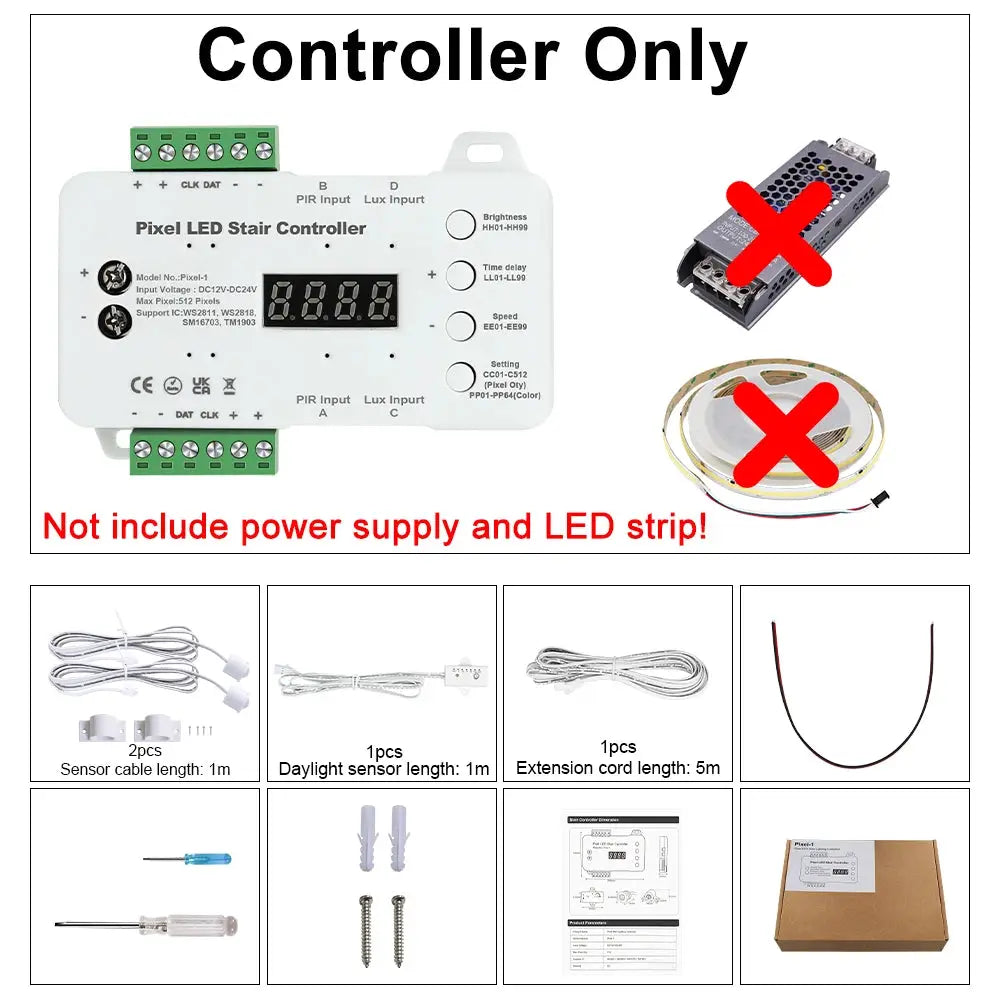

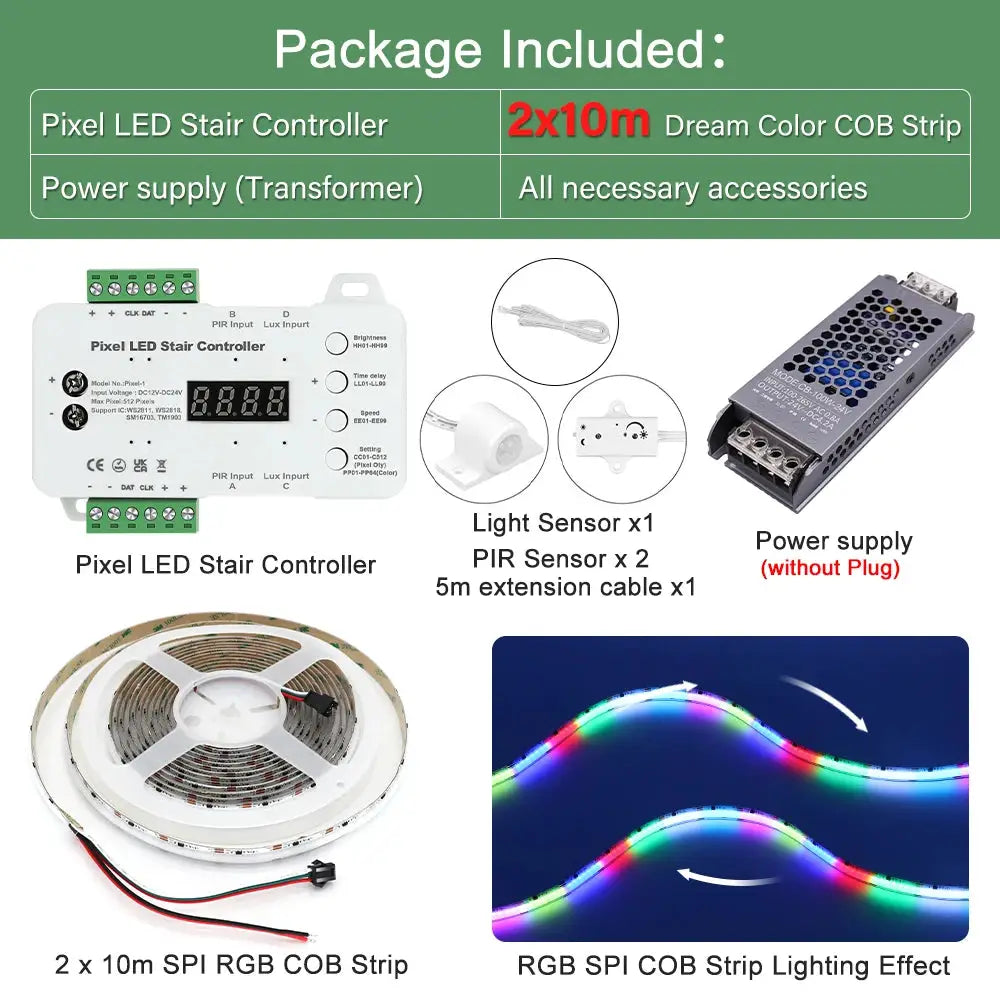

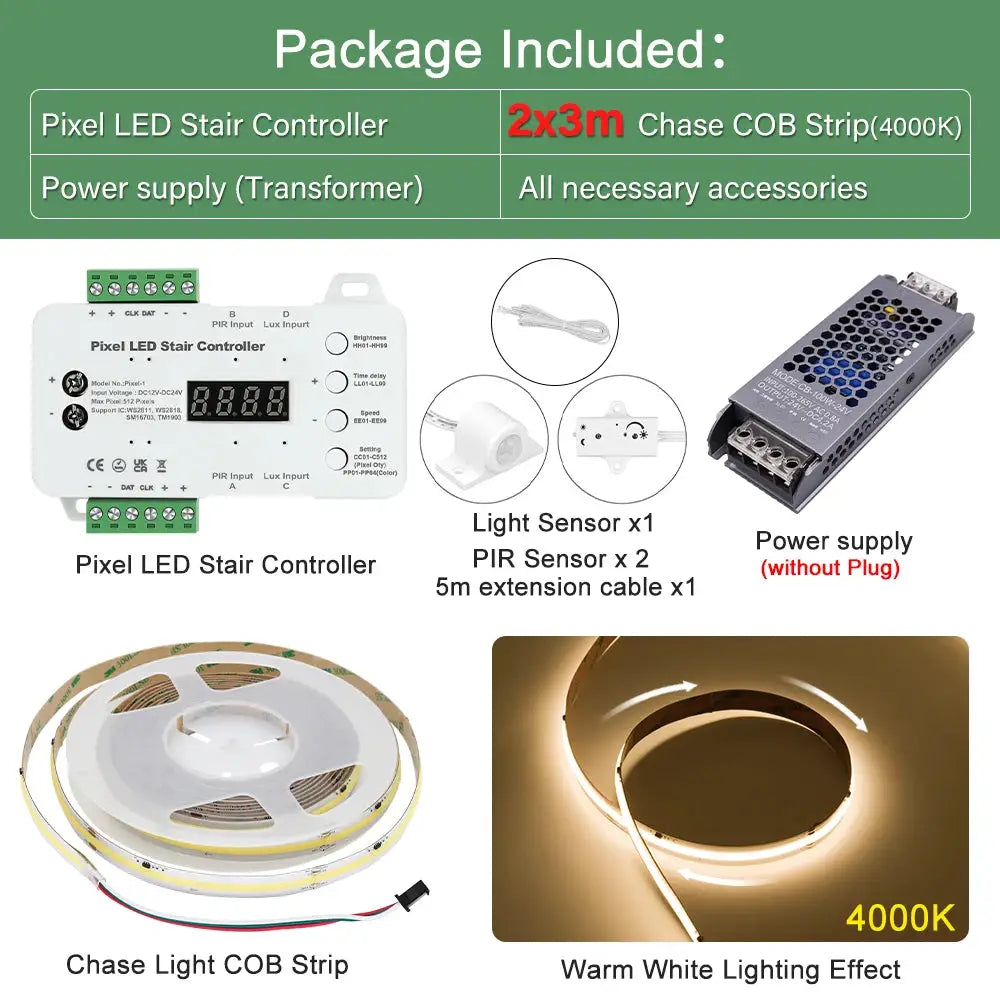

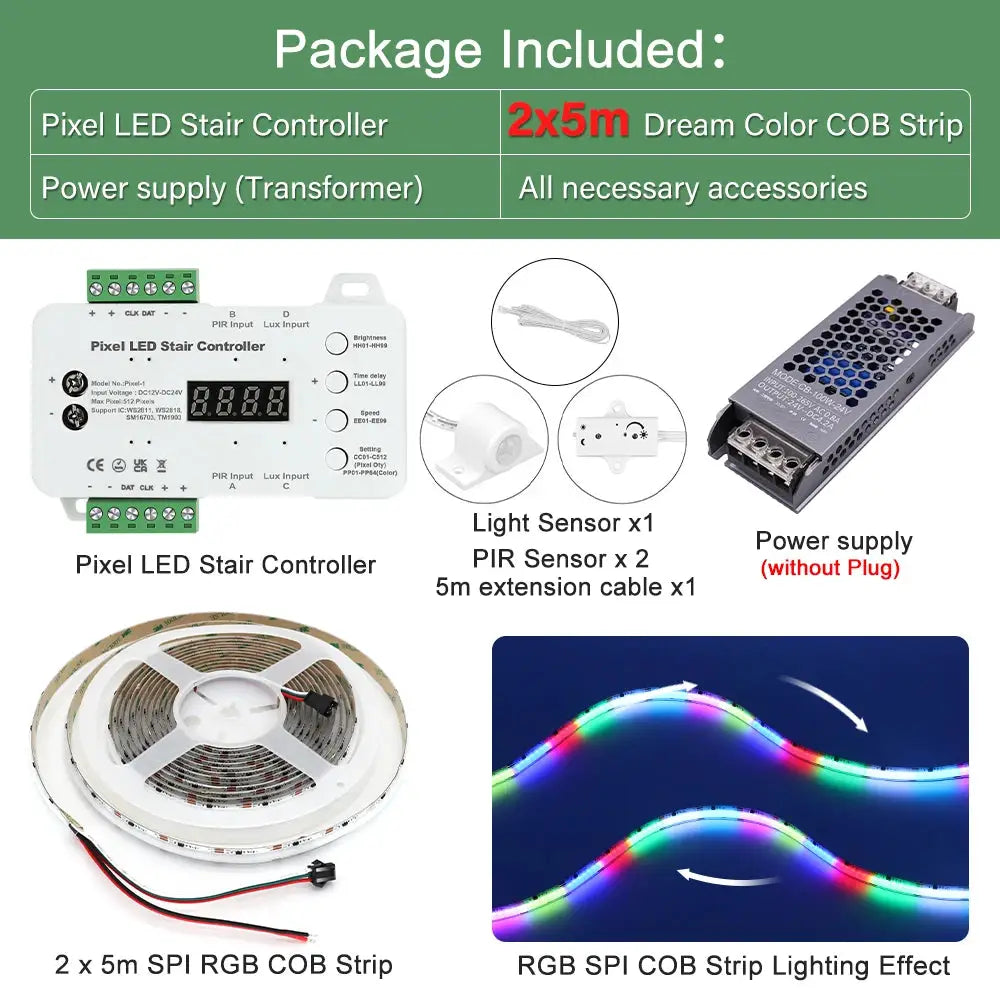

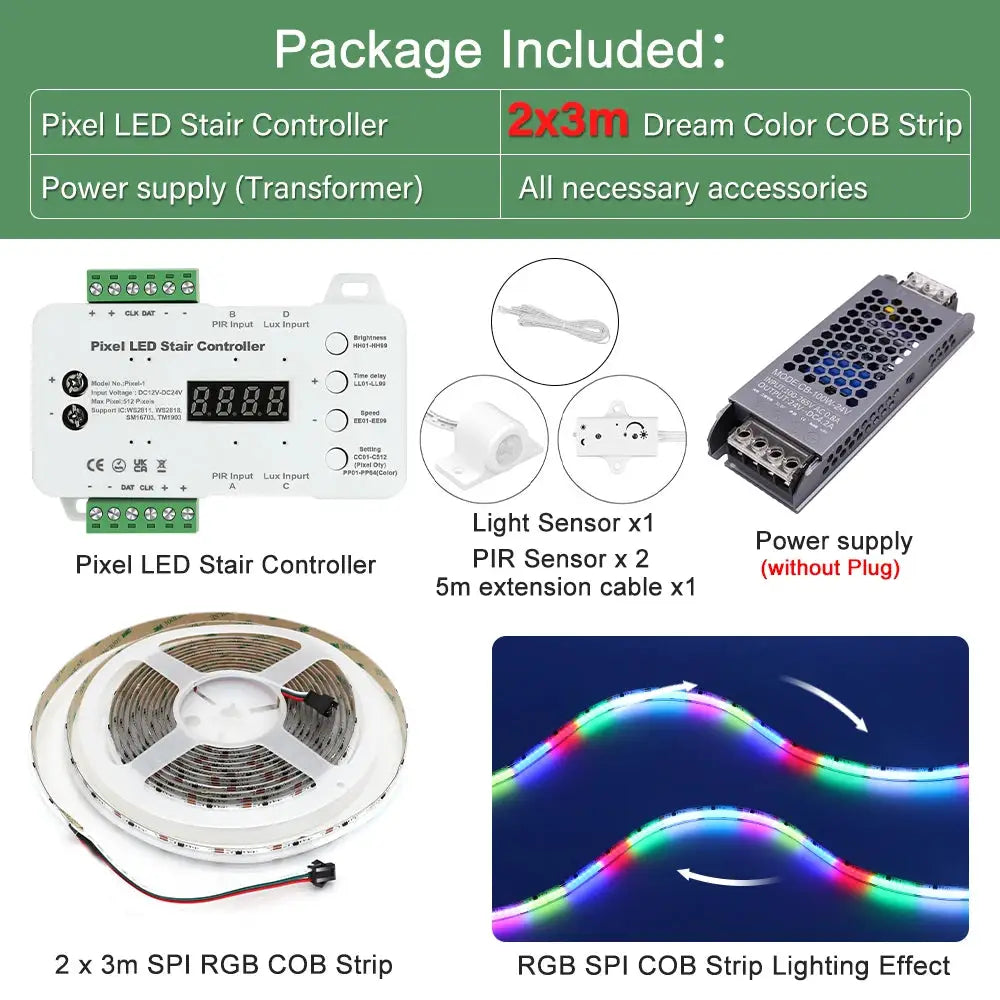

- Included: 1x Pixel Controller, 2x PIR sensors (1 m each), 1x PIR sensor extension (5 m), 1x Daylight Sensor (1 m), installation tools
- Power supply and LED strip: must be chosen separately
- Origin/Brand: Mainland China; Brand name: cooleeon
- Special note: Not waterproof
How to use (quick setup)

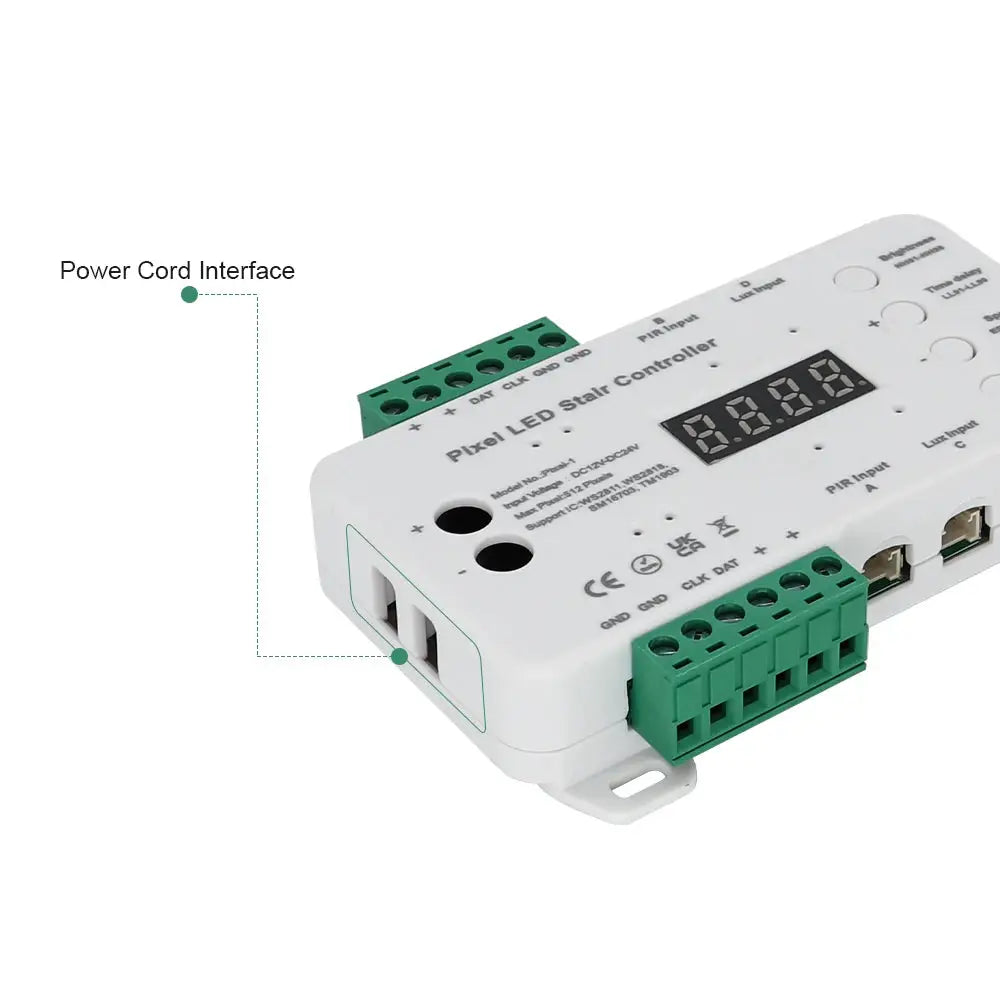

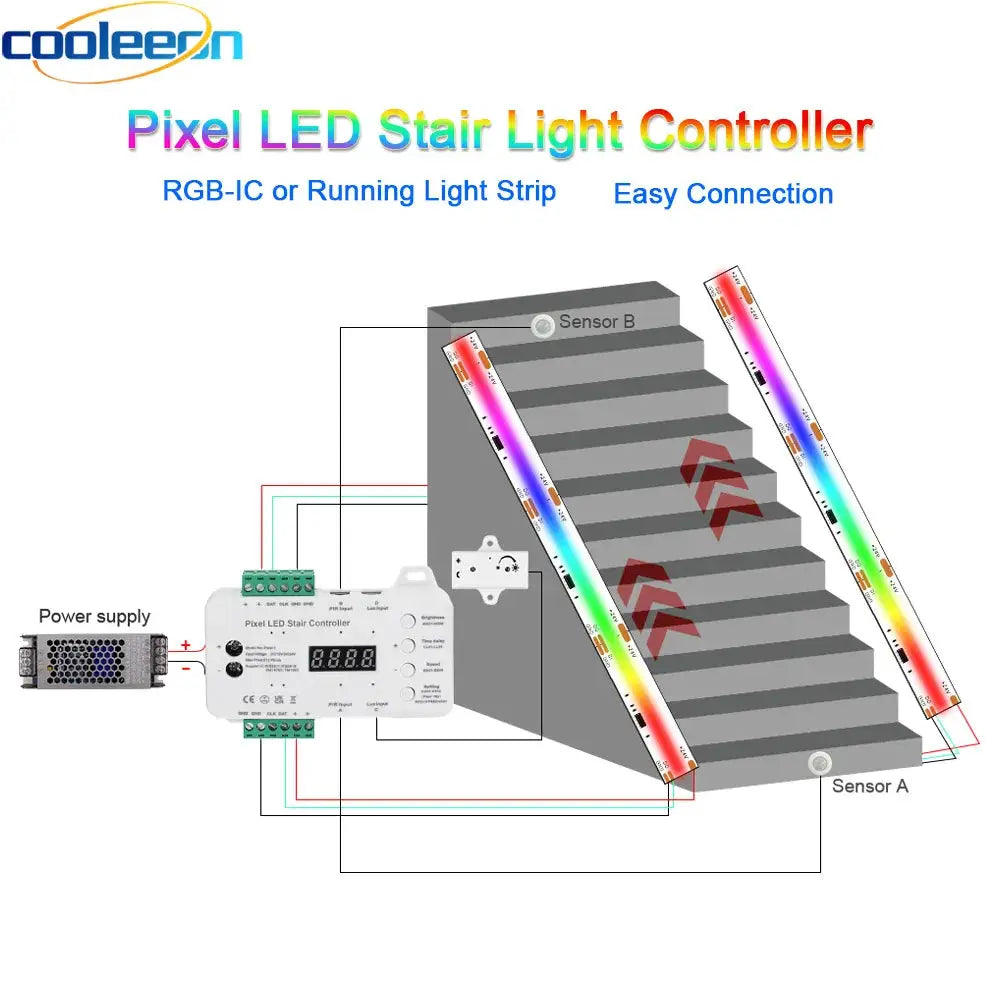

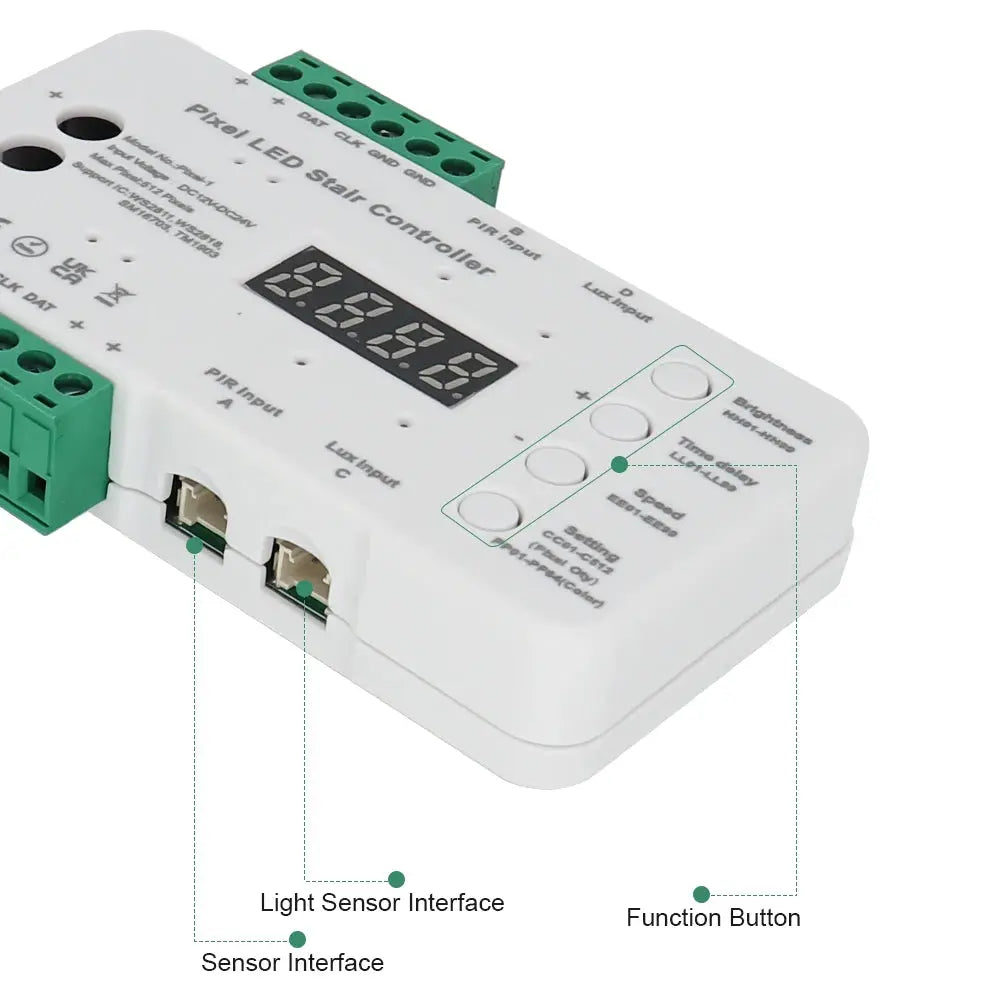

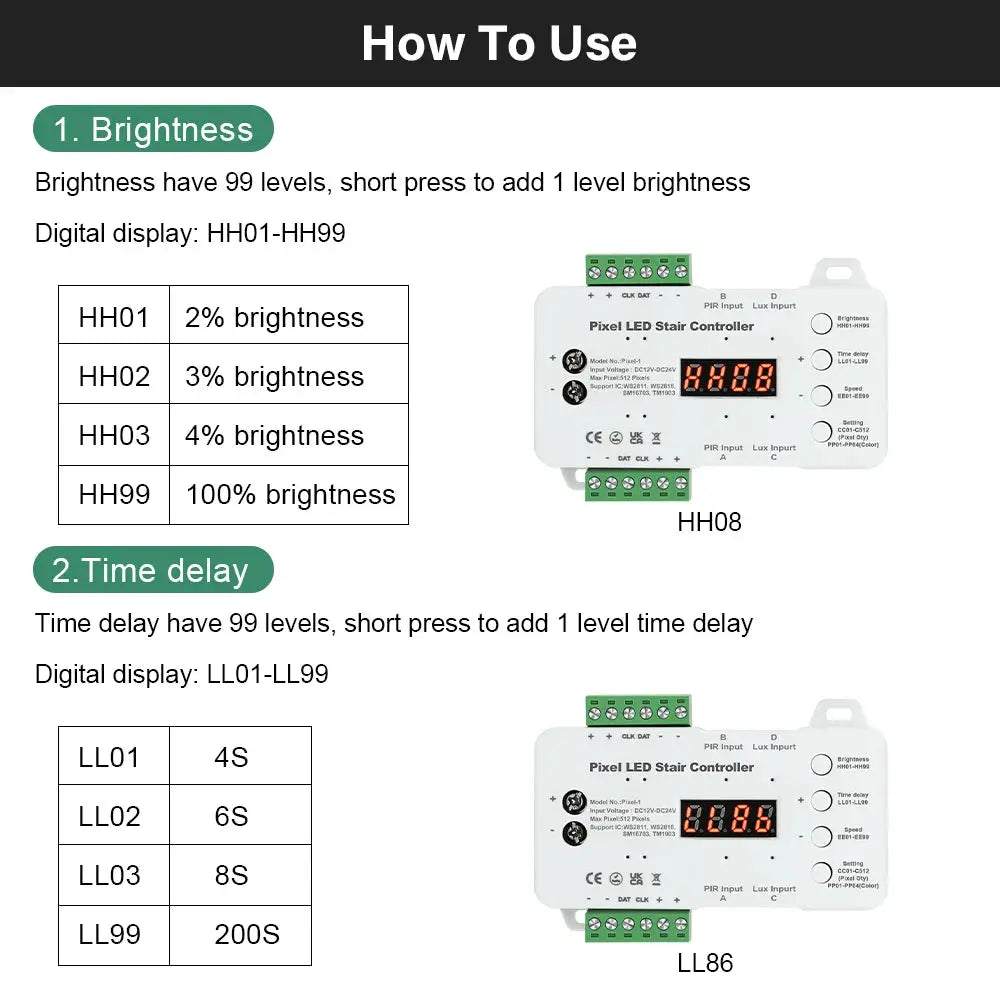

1) Connect a suitable 24V DC power supply and your LED strip to the Pixel LED Stair Light Controller. 2) Press and hold the Setting button to configure Brightness, Time Delay, Speed, RGB or Single Color, Pixel Qty, and Color. 3) Use the Mode settings to select CH-1 for single-color strips or CH-3 for RGBIC strips. 4) Adjust brightness (HH01-HH99), time delay (LL01-LL99), and speed (EE01-EE99) via the digital display. 5) Mount the PIR sensors (fixed or recessed, dia. 15 mm) and position the daylight sensor as desired. 6) Save all settings by a long press on Setting. Enjoy animated Stair Light transitions with motion and ambient-light awareness.
Benefits
- Easy installation with straightforward wiring for Pixel LED stair lighting
- Energy efficiency through motion sensing and daylight-aware operation
- Rich, dynamic visuals for Pixel LED Stair Light setups with RGBIC support
- Extensive customization: 99 brightness levels, 99 speed levels, and 99 time-delay steps
- Flexible sensor mounting options (fixed or recessed) for versatile stair applications
- High pixel capacity (up to 512 IC chips) enables long, uniform Stair Light runs
- Broad IC compatibility across WS2811, WS2818, SM16703, and TM1903 for wide LED-chain options
Key features
- 24V DC operation with up to 10A max current
- 512-pixel capacity for extended stair installations
- Supports multiple IC types: WS2811, WS2818, SM16703, TM1903
- Dual PIR sensors plus daylight sensor for intelligent on/off and ambient-light adaptation
- Comprehensive programmable controls: brightness, time delay, speed, and pixel quantity
Q&A
Q1: What does the Dream Color Pixel LED Stair Light Controller do?
A: It drives Pixel LED Stair Light configurations and RGB SPI strips, enabling dynamic running lights with motion-triggered behavior for safe, stylish stairs.
Q2: How many pixels can this controller handle?
A: It supports up to 512 IC chips, allowing long Stair Light runs with smooth, consistent color effects.
Q3: What sensors are included and what do they do?
A: It includes 2 PIR sensors and 1 daylight sensor to detect motion and ambient light, ensuring Pixel LED lighting activates when needed and conserves energy when not required.
Q4: What voltage and current does it use?
A: It operates at 24V DC with a maximum current of 10A, suitable for most Stair Light installations on RGB SPI strips.
Q5: How do I configure brightness, speed, and delay?
A: Use the Setting control to adjust 99 brightness levels (HH01-HH99), 99 speed levels (EE01-EE99), and 99 time-delay steps (LL01-LL99), with a digital display for accurate values. This enhances the Pixel LED and Stair Light clarity on every step.
Q6: Are power supply and LED strips included?
A: No. The product requires you to select a compatible 24V power supply and LED strips separately to match your install needs, which is common for Pixel LED Stair Light projects.
Q7: Is this controller compatible with RGBIC and other ICs?
A: Yes, it supports RGBIC and multiple IC families (WS2811, WS2818, SM16703, TM1903), making it a versatile choice for various Stair Light setups.
Comparative advantages
- Higher pixel capacity (512) than many basic controllers, enabling expansive Pixel LED stair installations.
- Two PIR sensors plus daylight sensor provide proactive, daylight-aware Stair Light activation for energy efficiency.
- Broad IC compatibility (WS2811/WS2818/SM16703/TM1903) supports a wide range of LED strips and configurations.
- Extensive programmability (brightness, speed, delay) with precise digital display for tailored Pixel LED effects.
- Fixed or recessed sensor mounting options offer flexible installation in varied stair designs.
