MPPT Solar Charge Controller 100A | PowMr HHJ Series
MPPT Solar Charge Controller 100A powers your off-grid setup with up to 98.1% tracking efficiency. This PowMr solar charge controller auto-selects 12V to 48V.
Key Features
-
Auto-Voltage Detection: Instantly recognizes your bank voltage type.
-

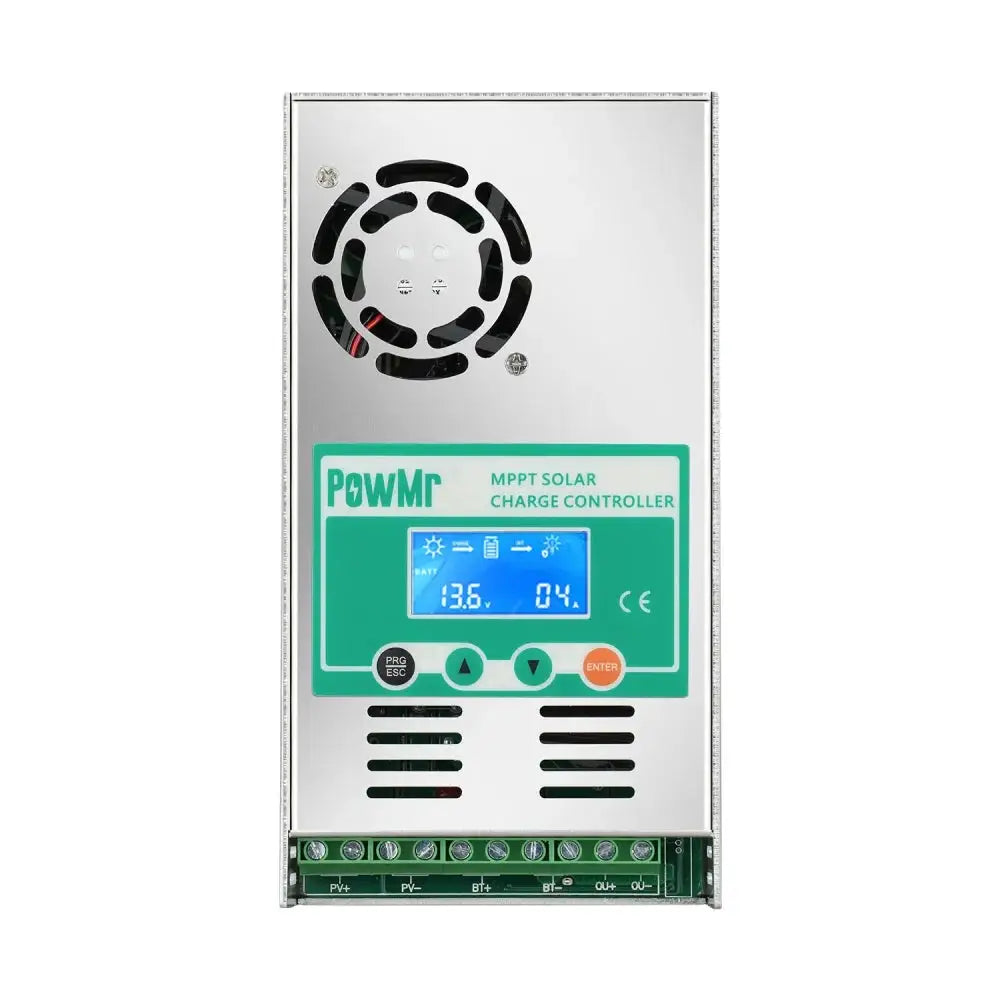

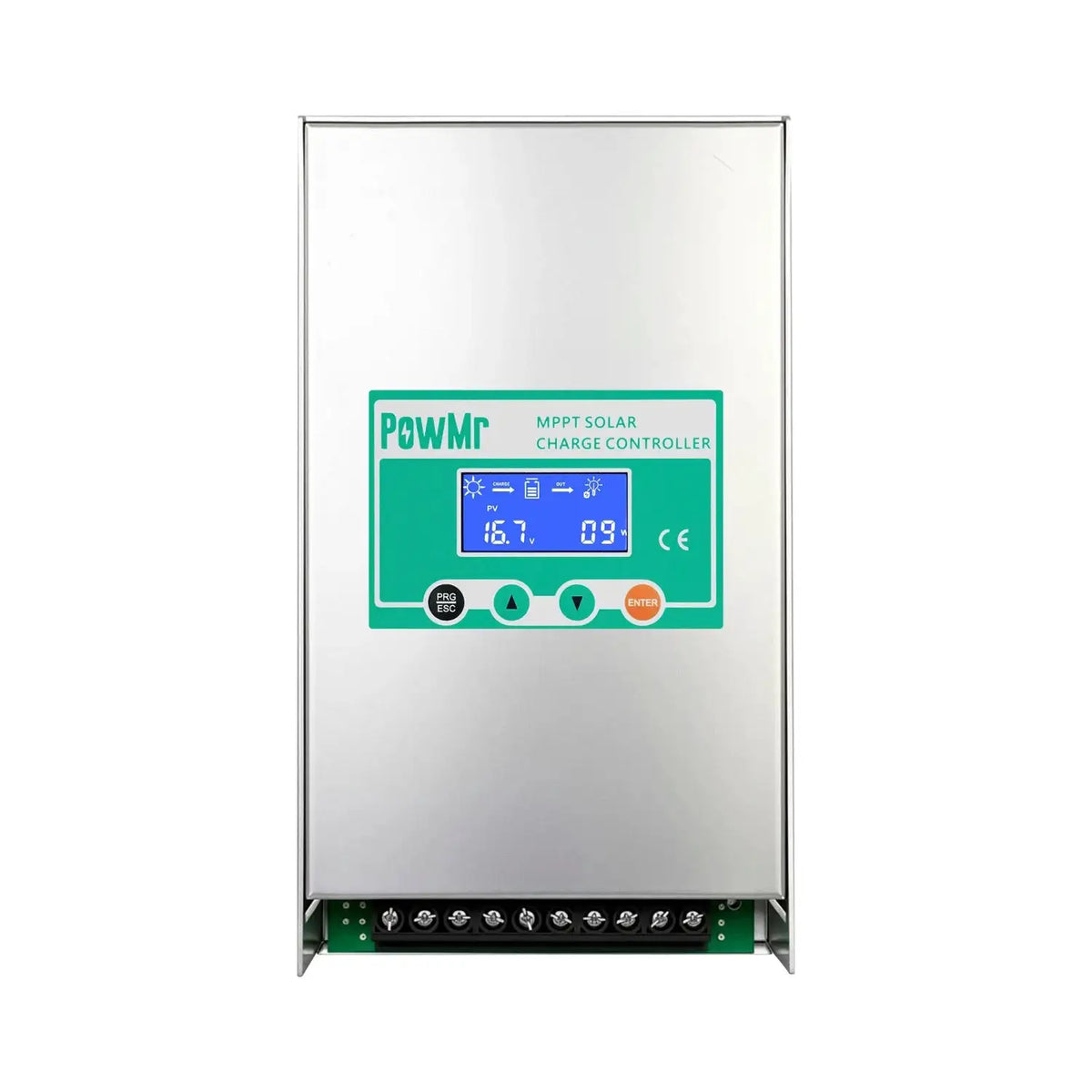

LCD Display: Shows real-time amps and volts clearly.
-
Three-Stage Charging: Protects lead-acid and lithium batteries.
Product Description
You need reliable power when the grid disappears. This unit delivers precise MPPT technology straight from your array. It handles heavy loads without overheating. The sealed casing shields internal circuits.
Product Overview
The HHJ series manages DC flow between panels and storage. You get steady charging across changing weather. Built for continuous outdoor run.
Key Benefits
-
Maximized Energy Harvest: Captures more sun daily with smart tracking.
-
System Protection: Monitors input to stop dangerous surges.
-
Battery Longevity: Cycles preserve plate health over years.
Features
-
Wide PV Range: Accepts panel inputs up to 150V max.
-
CE Certified: Tested against electrical safety benchmarks.
-
Modular Fit: Slim rack profile installs anywhere.
Specifications
-
Charging Current: 100A rated capacity for this mode.
-
Tracking Efficiency: Peaks at 98.1% conversion rate.
-
Dimensions: 168×72×274 mm housing size.
-
Net Weight: 2.24 kg total mass.
What’s Included
The box contains the main controller unit and DIN rail clips. Basic terminal screws arrive pre-packaged for quick mounting.
How to Use
Hook battery terminals before connecting panel leads. Flip DIP switches to match your chemistry choice. The screen activates to confirm stable operation.
Customer Benefits

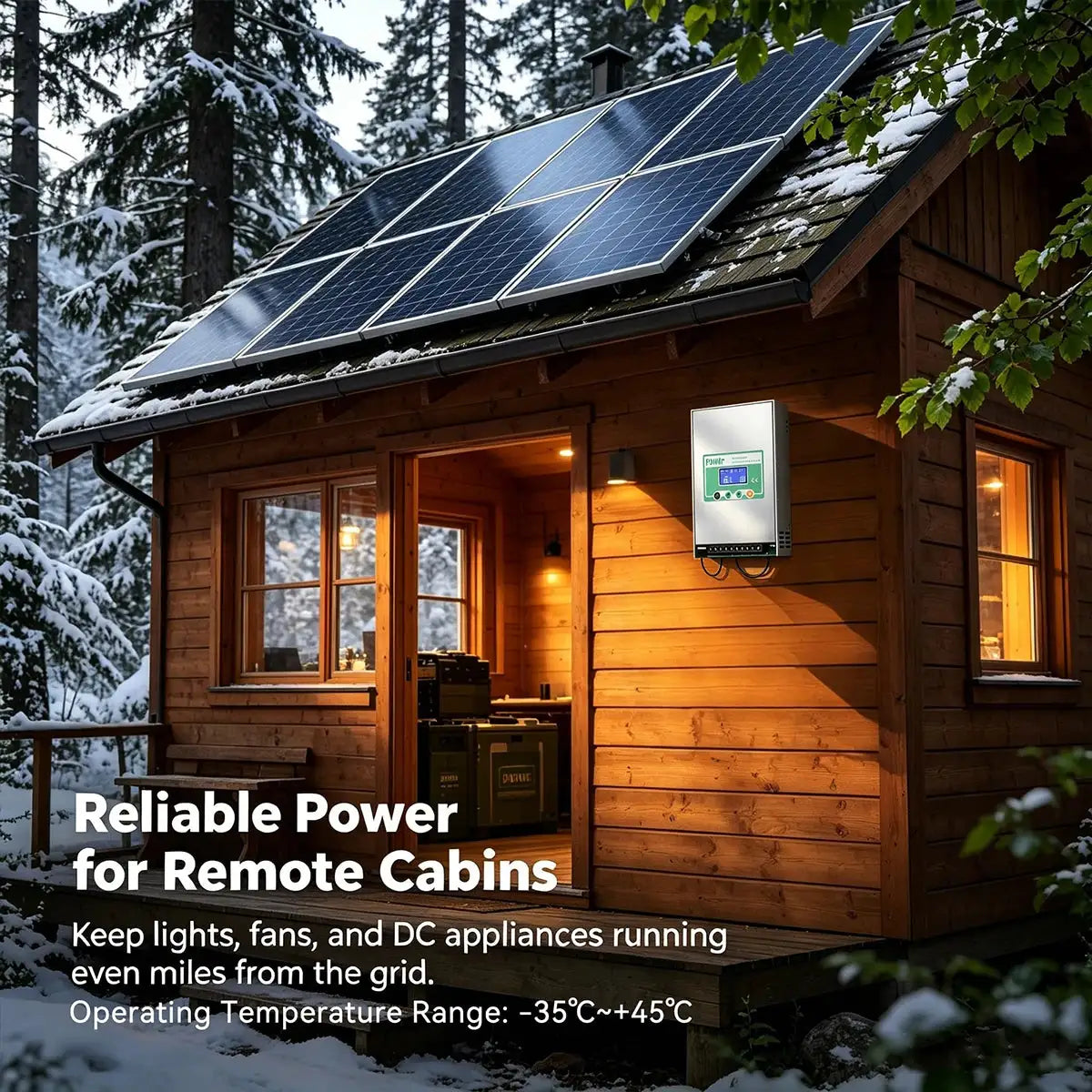

You stay independent during outages. Monthly utility bills drop to zero. Remote cabins stay lit and comfortable year-round.
Ideal Uses
-

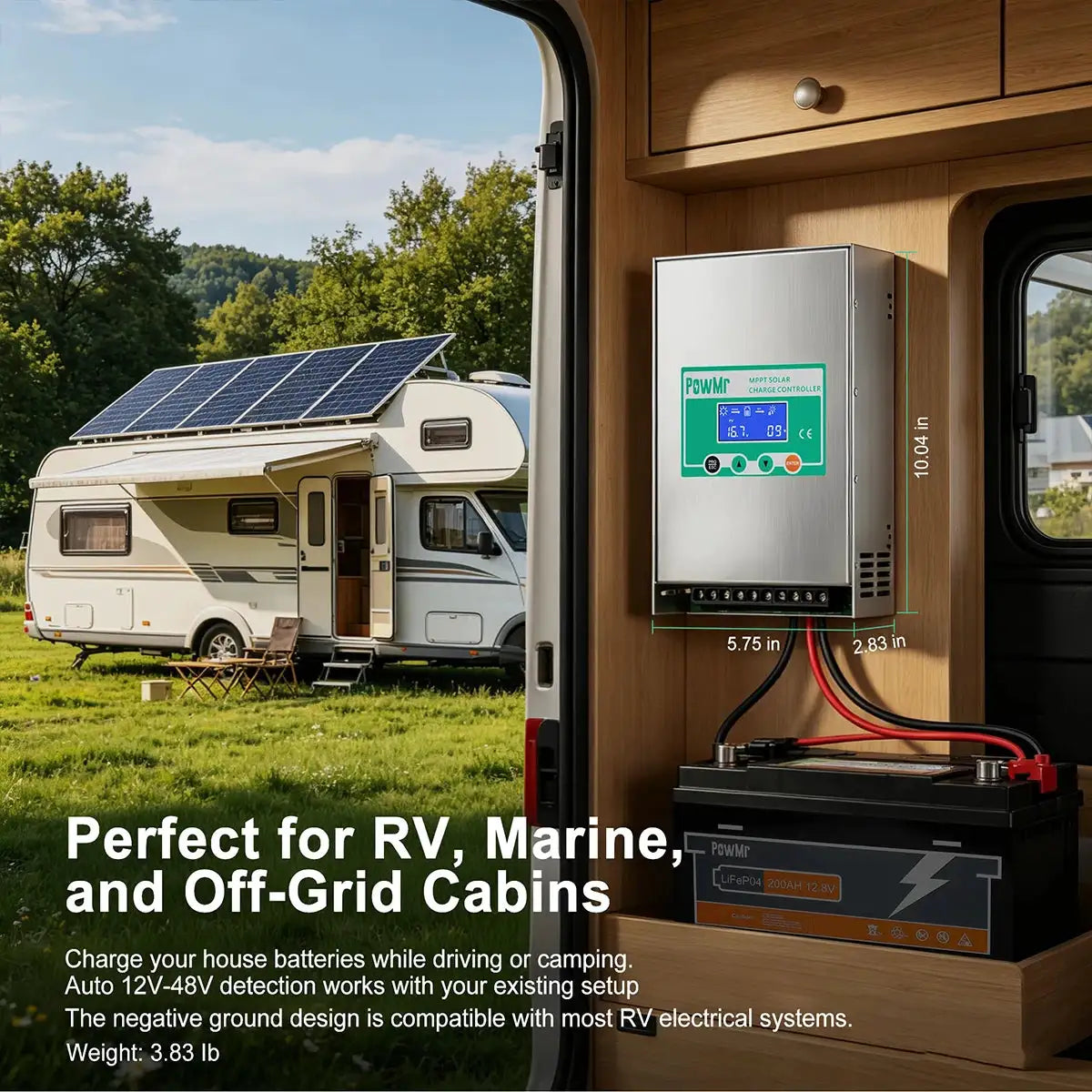

Cabin Wiring: Runs LEDs and fridge quietly.
-
Boat Banks: Feeds marine radios and pumps.
-
Hobby Projects: Powers welding stations and tools.
Who It’s For
Tailored for van builders, homesteaders, and marine captains. You get straightforward cabling and honest power management without complicated software.
Frequently Asked Questions
-
Does it work with hybrid inverters? Yes, the controller outputs clean DC ready for direct inverter pairing.
-
Can it manage multiple battery types simultaneously? No, set a single chemistry selection per bank for safe operation.
- Will this throttle my panel output? It optimizes wattage instead of wasting excess voltage like older units.
- Is the display readable in direct sunlight? The tinted glass reduces glare for clear daytime viewing.
- Do I need thermal fuses installed externally? Built-in cutoffs handle standard circuit protection safely.
PV System Regulation, Lead Acid Lithium Compatible, 150V Max Input Controller, Portable Renewable Energy Hub, Smart Watt Tracking.
PV System Regulation, Lead Acid Lithium Compatible, 150V Max Input Controller, Portable Renewable Energy Hub, Smart Watt Tracking.
DC Voltage Step Down Converter, Solar Panel Interface Box, Autonomous Energy Manager, Marine Grade Power Unit, Quick Connect Power Flow.
Green Power Distribution, Self Sufficient Living Kit, Industrial Solar Regulator, Battery Maintenance Tool, Wireless Monitoring Substitute.
Persistent Clean Energy Storage, Garden Pump Supervisor, Backup Generator Alternative, Weather Resistant Circuit Board, Plug And Play Solar Addon.

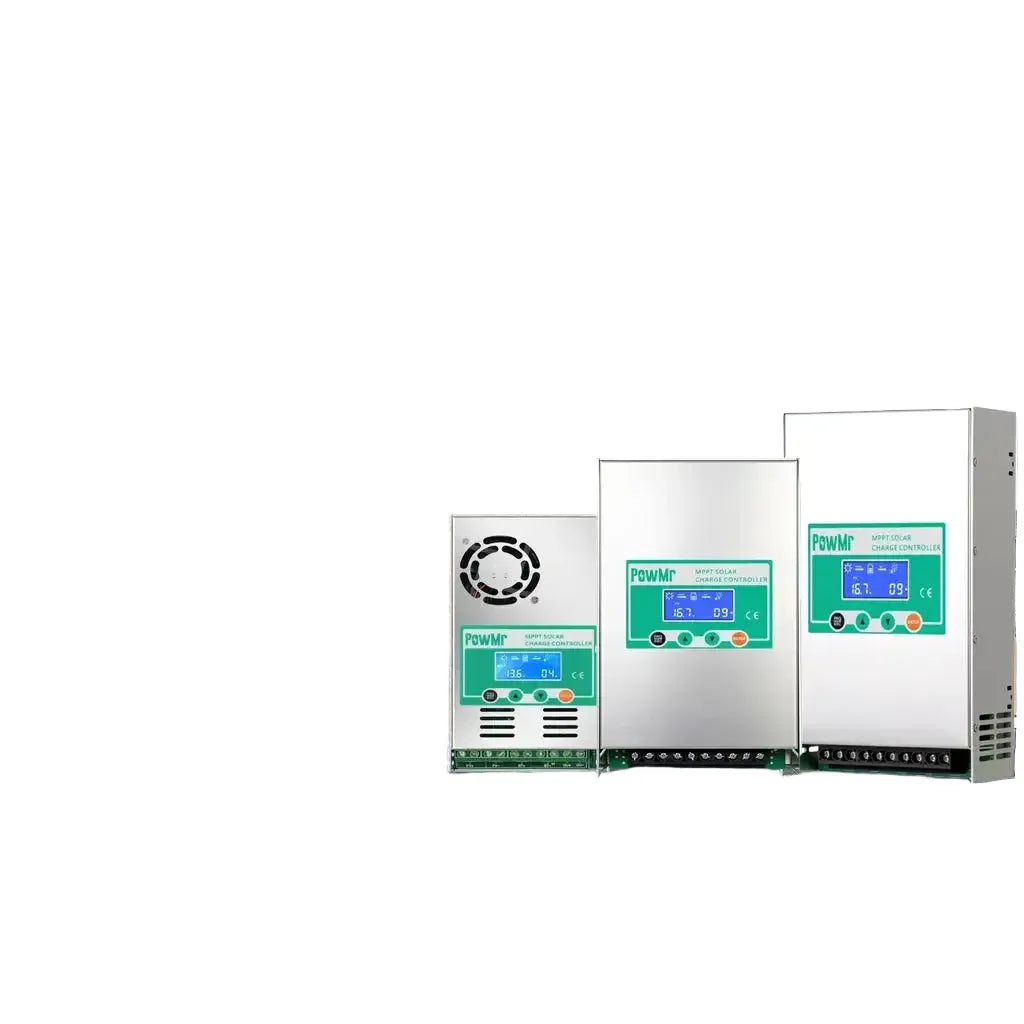

PRODUCT |
HHJ-60A |
HHJ-80A |
HHJ-100A |
PV Power(12V) |
720W |
960W |
1200W |
PV Power(24V) |
1440W |
1920W |
2400W |
PV Power(36V) |
2100W |
2880W |
3600W |
PV Power(48V) |
2800W |
3840W |
4800W |
PV Range (12V) |
20~80V |
20~80V |
20~80V |
PV Range (24V) |
37~105V |
37~105V |
37~105V |
PV Range (36V) |
50~150V |
50~150V |
50~150V |
PV Range (48V) |
72~150V |
72~150V |
72~150V |
Charging Current |
60A |
80A |
100A |
Charging Technology |
MPPT |
MPPT |
MPPT |
Max effiency |
≥98.1% |
≤98% |
≤98% |
Size（mm） |
214×115×50 |
146×72×255 |
168×72×274 |
Net weight（kg） |
1.1kg |
1.74kg |
2.24kg |
