SPECIFICATIONS

Battery Included: no

Brand Name: NJTY

Certification: CE,RoHS

Choice: yes

DIY Supplies: Electrical

Data Record: No

Display Type: Analog Only

High-concerned chemical: none

Model Number: T-02A/T-02B

Operating Temperature: 0-40℃

Origin: Mainland China

Power Source: Battery

Power Supply: Battery

Semi-finishedproduct: No

Sensitivity Modes: High/Low switchable

Voltage range: 12/48-1000V AC

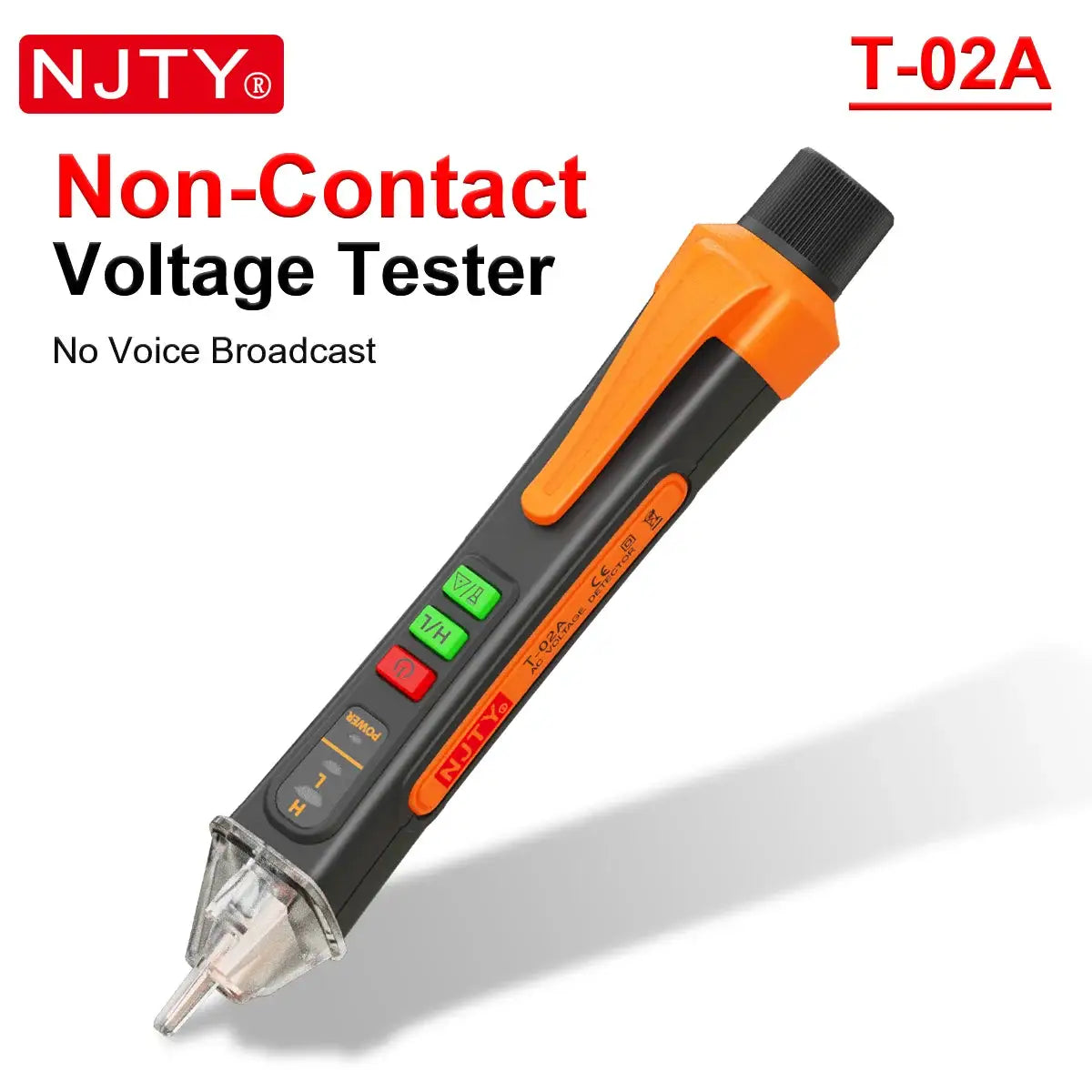

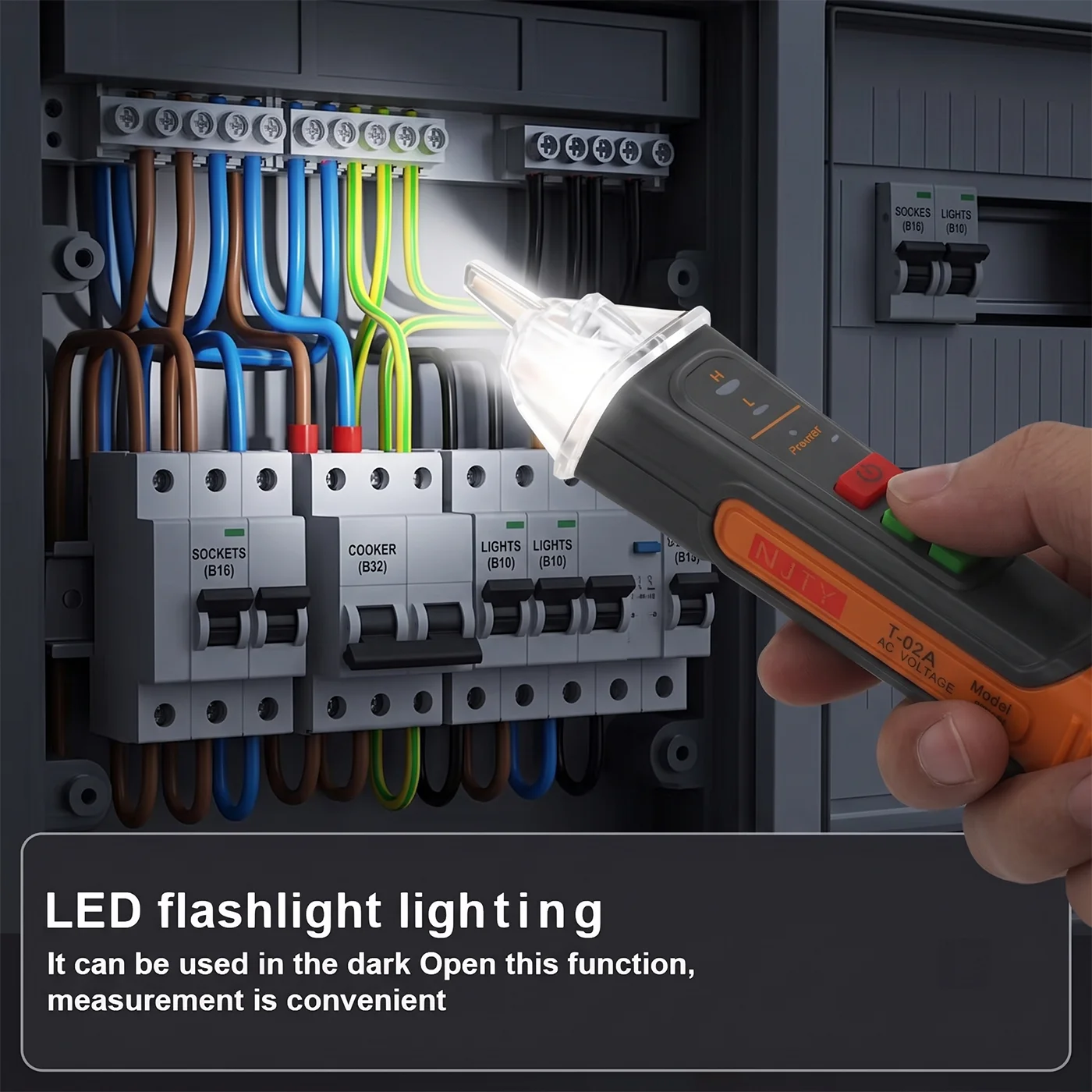

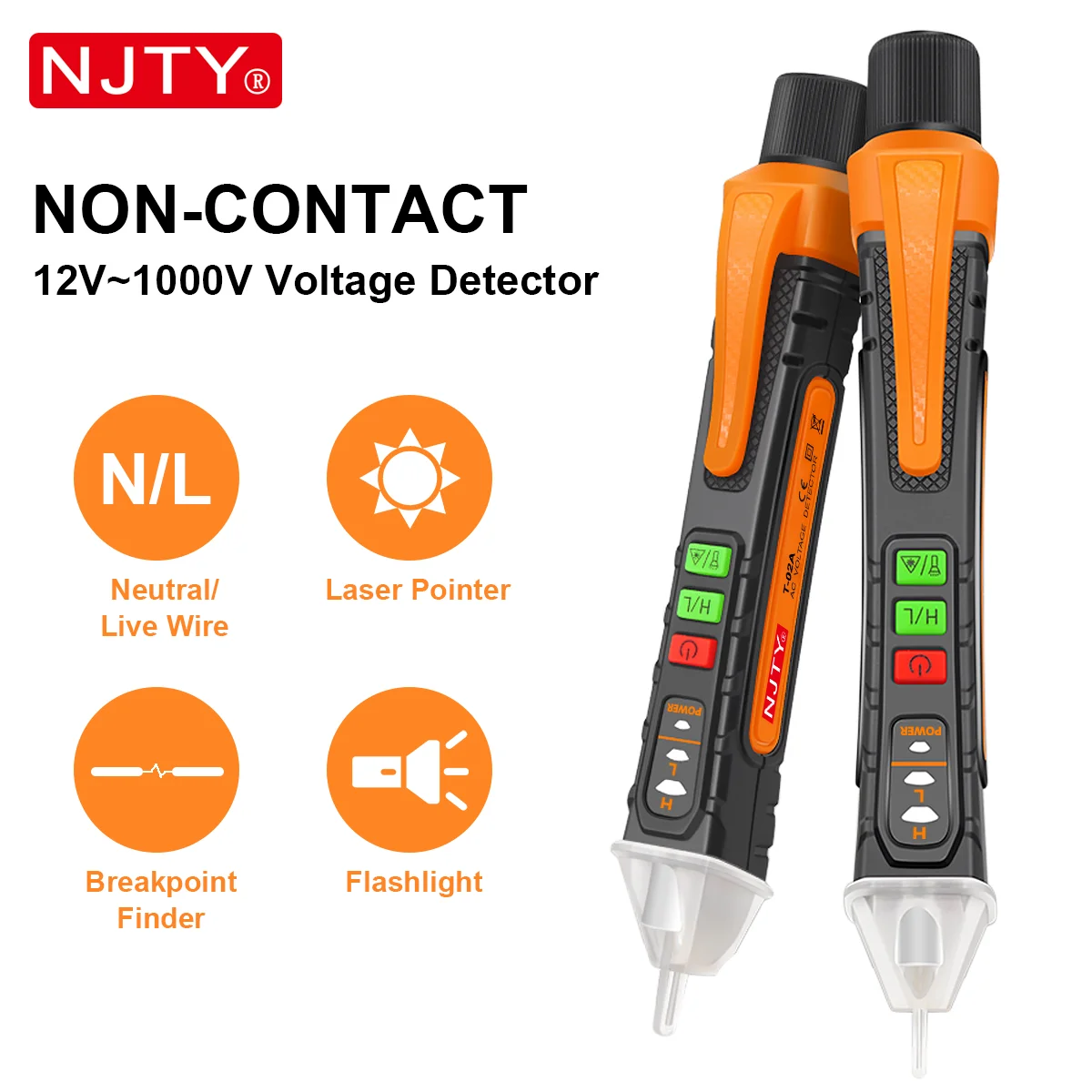

T02A / T02B Non‑Contact Voltage Tester – AC 12–1000V, Live/Neutral Wire Identification, Breakpoint Finder, LED Flashlight & Laser Pointer

Critical Usage Limitations

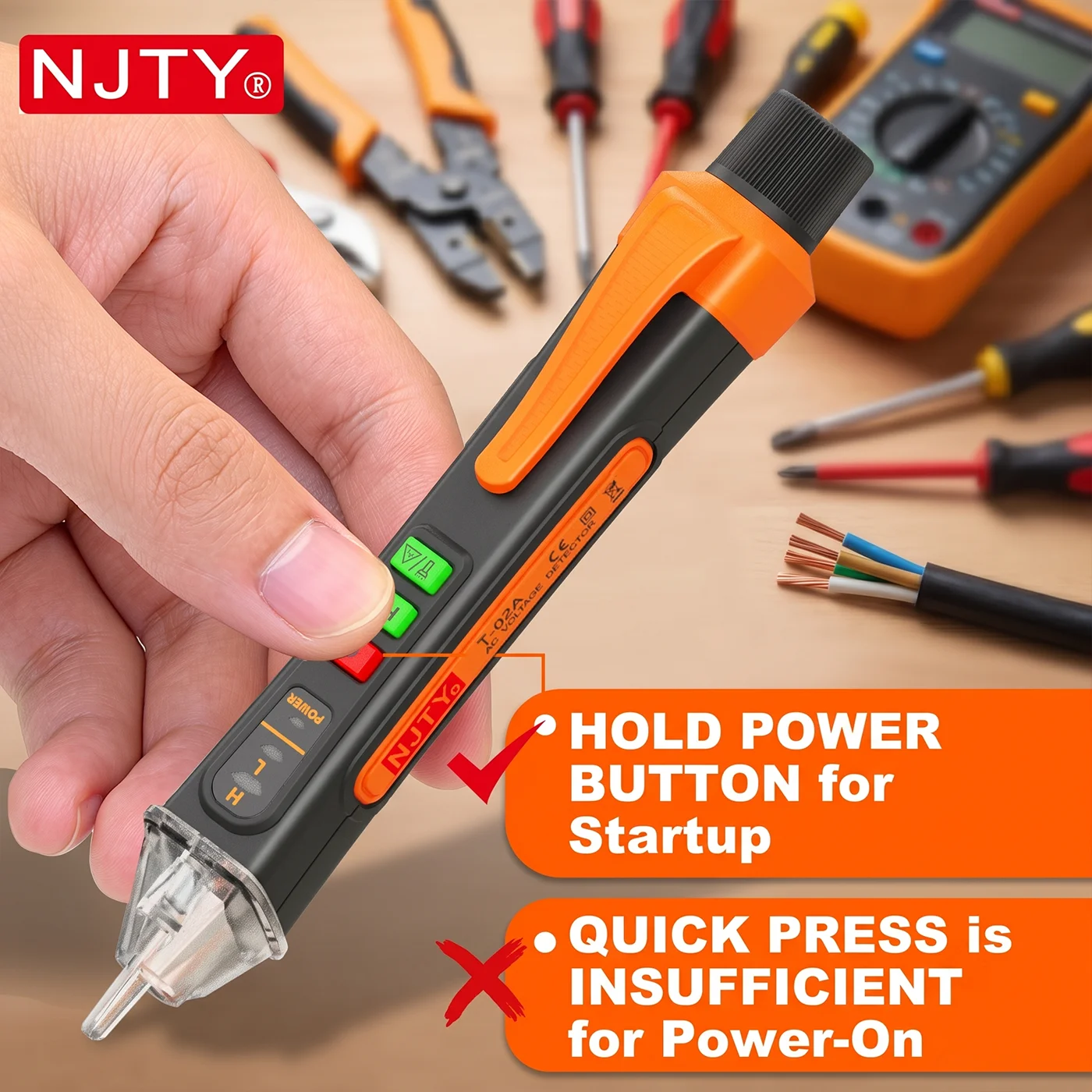

Power‑On Requirement

This tester requires a long press (hold for >3 seconds) of the power button to turn on. A short tap will not activate the device. Please note this before first use.

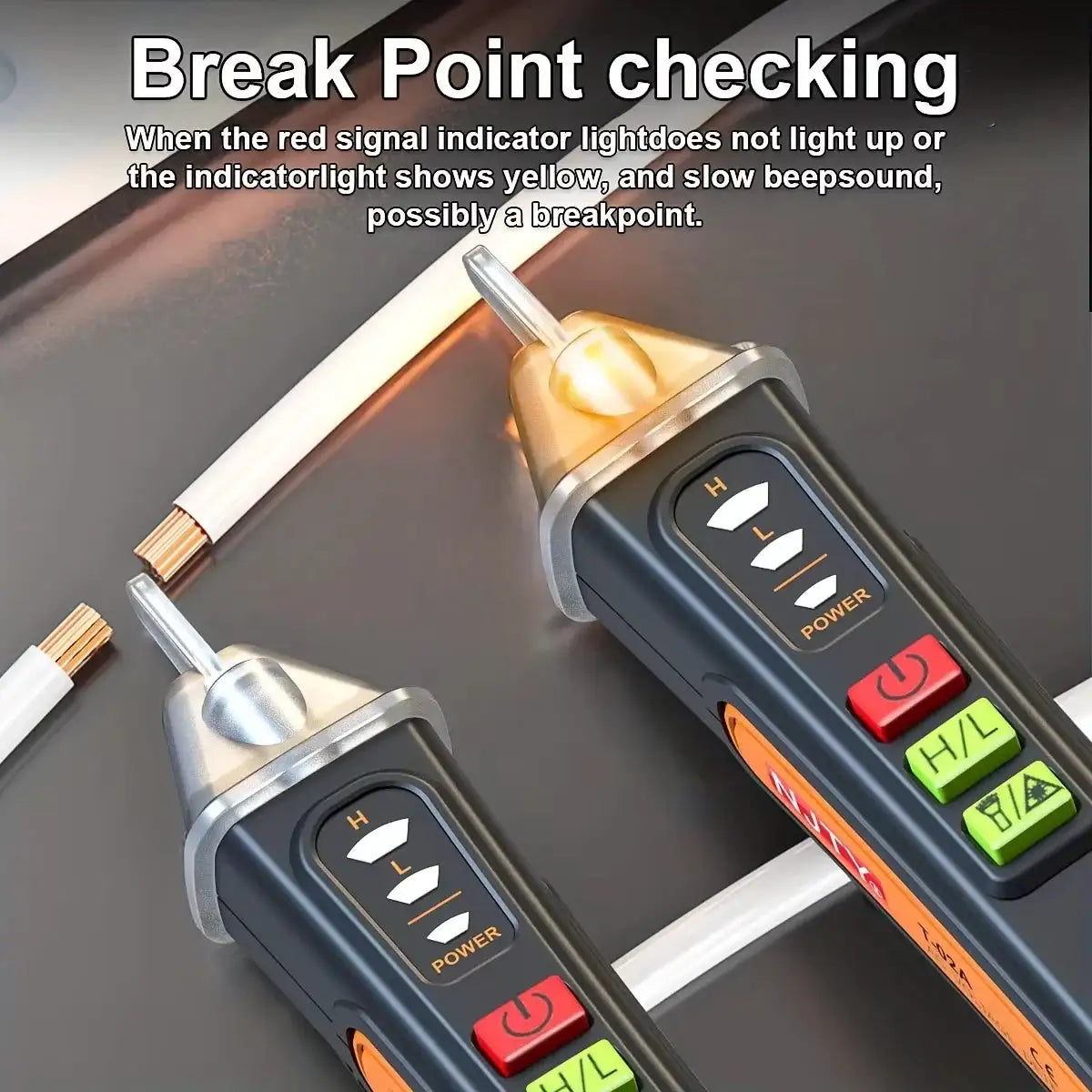

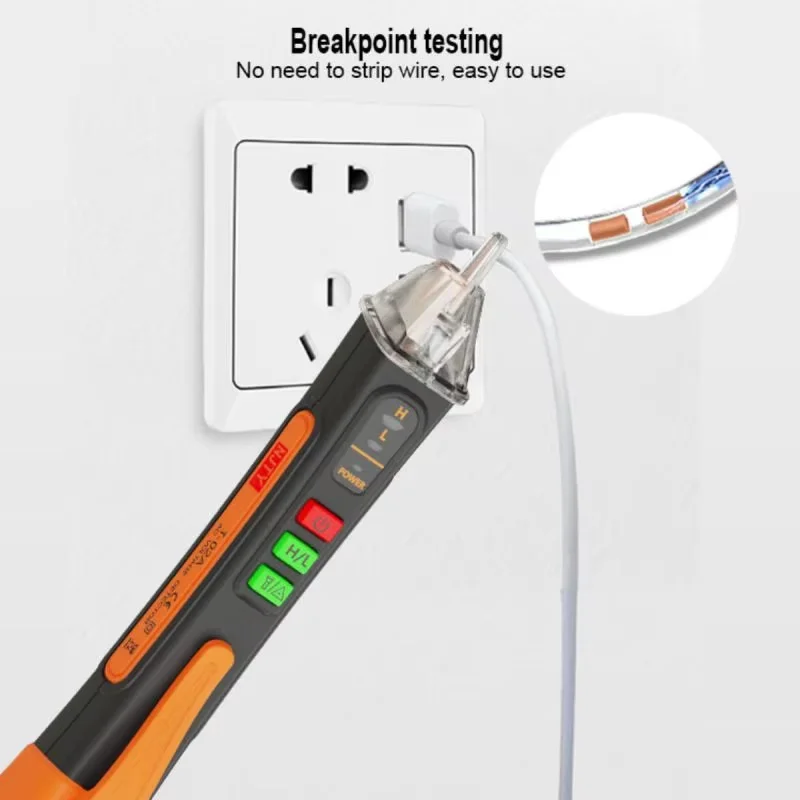

Breakpoint Finding – Scope of Use

The breakpoint detection feature helps you locate wire breaks only on energised AC lines (50/60 Hz, 12‑1000 V). It works by sensing where the AC signal drops off along a live conductor.

This function does not apply to:

- DC circuits (including automotive 12 V systems, RV electrics, or battery

‑powered equipment)

- De‑energised (non‑powered) AC cables

- Shielded wires, cables inside metal conduit, or wires embedded in thick walls

Product Scope & What It Cannot Do

This is a non‑contact AC voltage detector, not a multimeter or continuity tester.

It cannot:

- Measure or trace DC voltage, nor locate breaks in DC wiring

- Perform continuity checks or verify closed circuits

- Detect voltage on unpowered lines (even if they are AC)

For automotive troubleshooting or DC circuit diagnosis, please use a dedicated multimeter or a 12 V test light.

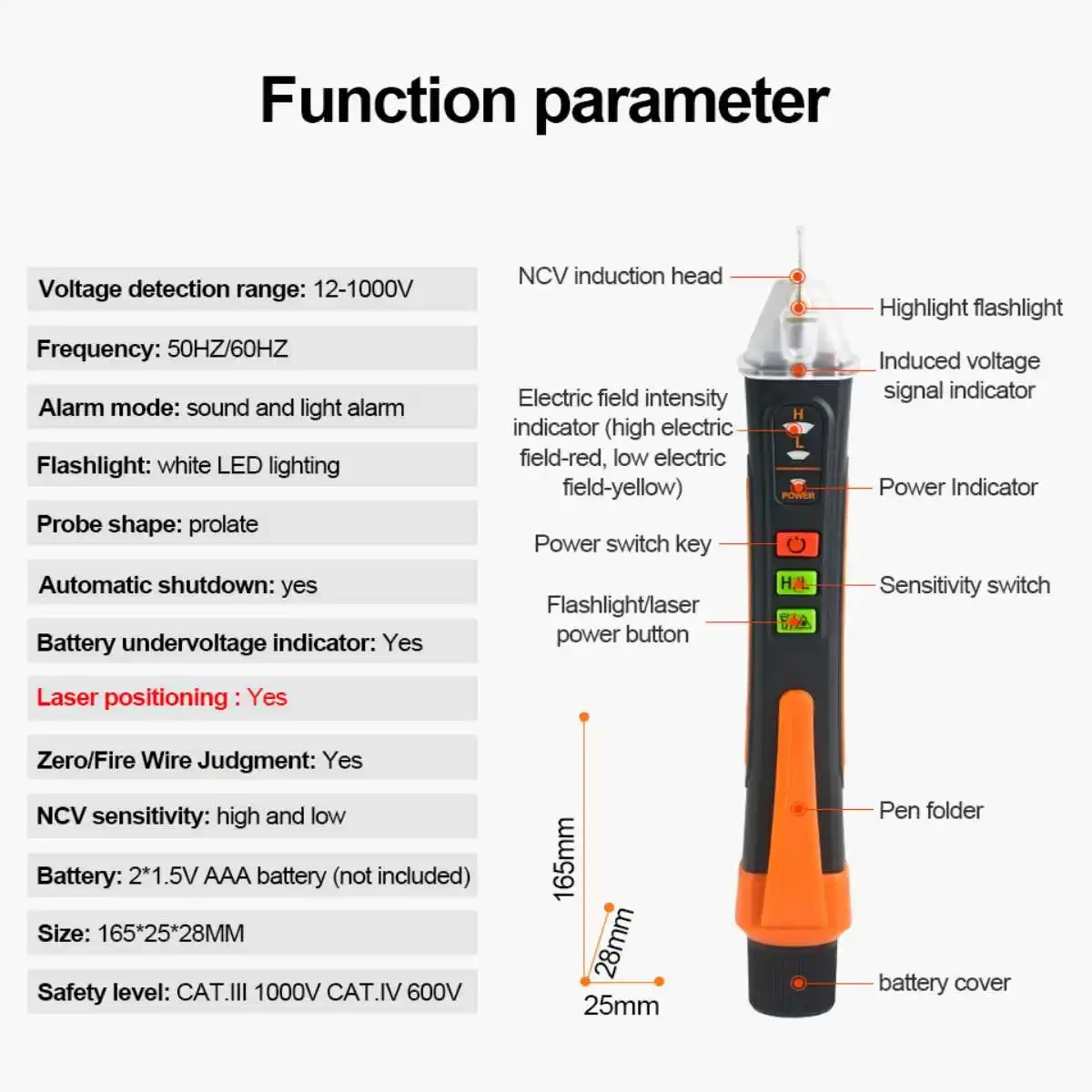

Product Parameters

Product Features

1. Non‑Contact Safe Detection

Simply bring the probe tip near the conductor – no direct contact with bare wires is required. This ensures maximum safety for the user while testing AC voltage.

2. Dual Sensitivity Modes for Versatile Use

Low Sensitivity (48–1000 V): Reduces false alarms in normal testing environments.

High Sensitivity (12–1000 V): Detects lower voltages, perfect for tracing hidden cables or low‑voltage circuits.

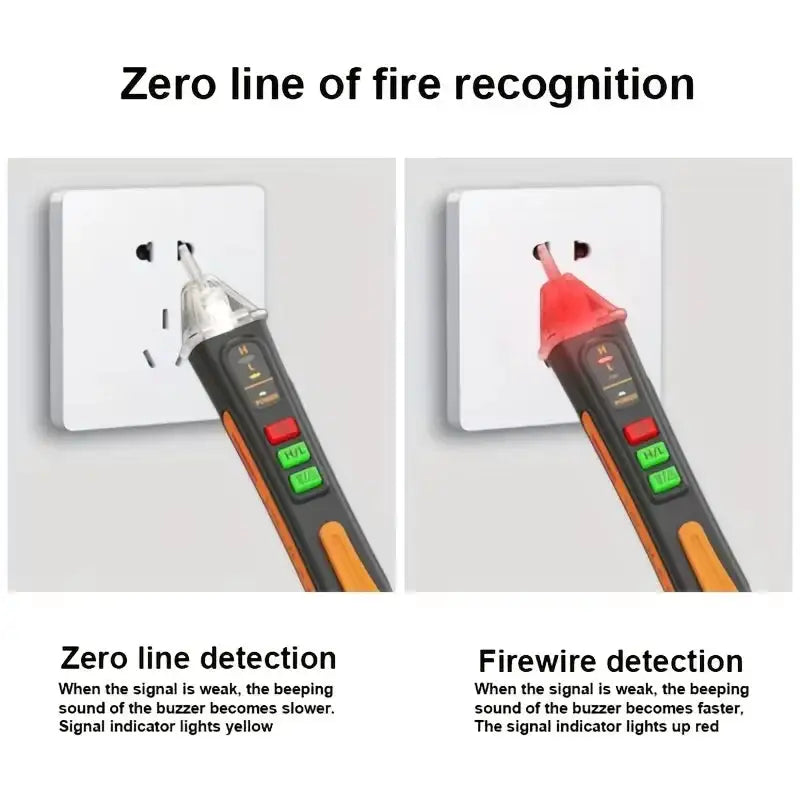

3. Instant Live / Neutral Wire Identification

Separate the wires and read the signal intensity. The colour‑coded indicator tells you immediately:

Yellow light → Neutral wire (weak signal)

Red light → Live wire (strong signal)

For best results, activate the high‑sensitivity mode during identification.

4. Smart Power Management

Auto power‑off after 5 minutes of no operation to save battery life.

Low‑voltage warning: when battery drops below 2.4 V, the tester beeps three times and flashes red three times before shutting down – so you always know when to replace the batteries.

5. Rugged and Safety‑Certified

Rated CAT III 1000 V / CAT IV 600 V, suitable for residential, industrial, and maintenance applications. The sturdy housing and probe tip ensure long‑term reliability.

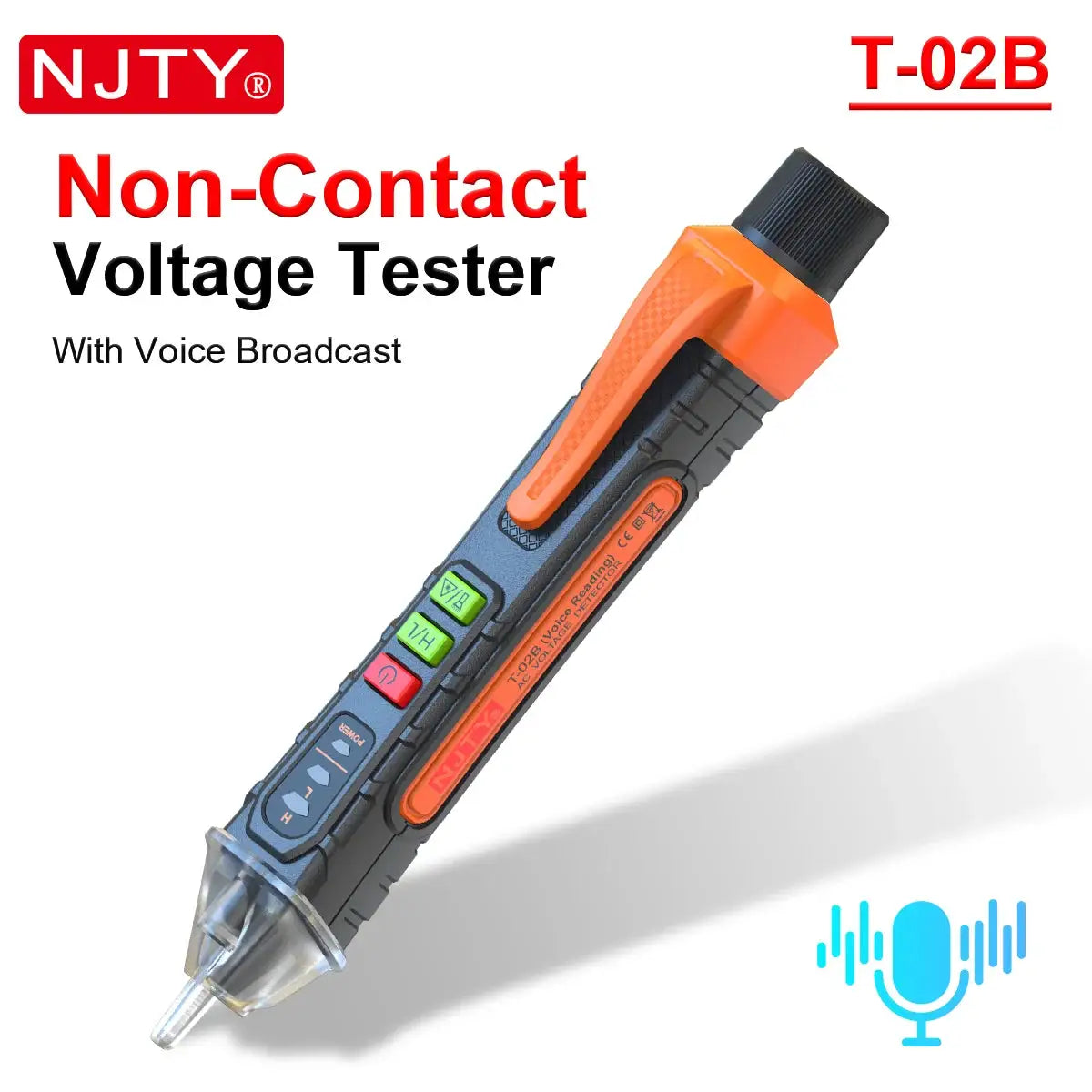

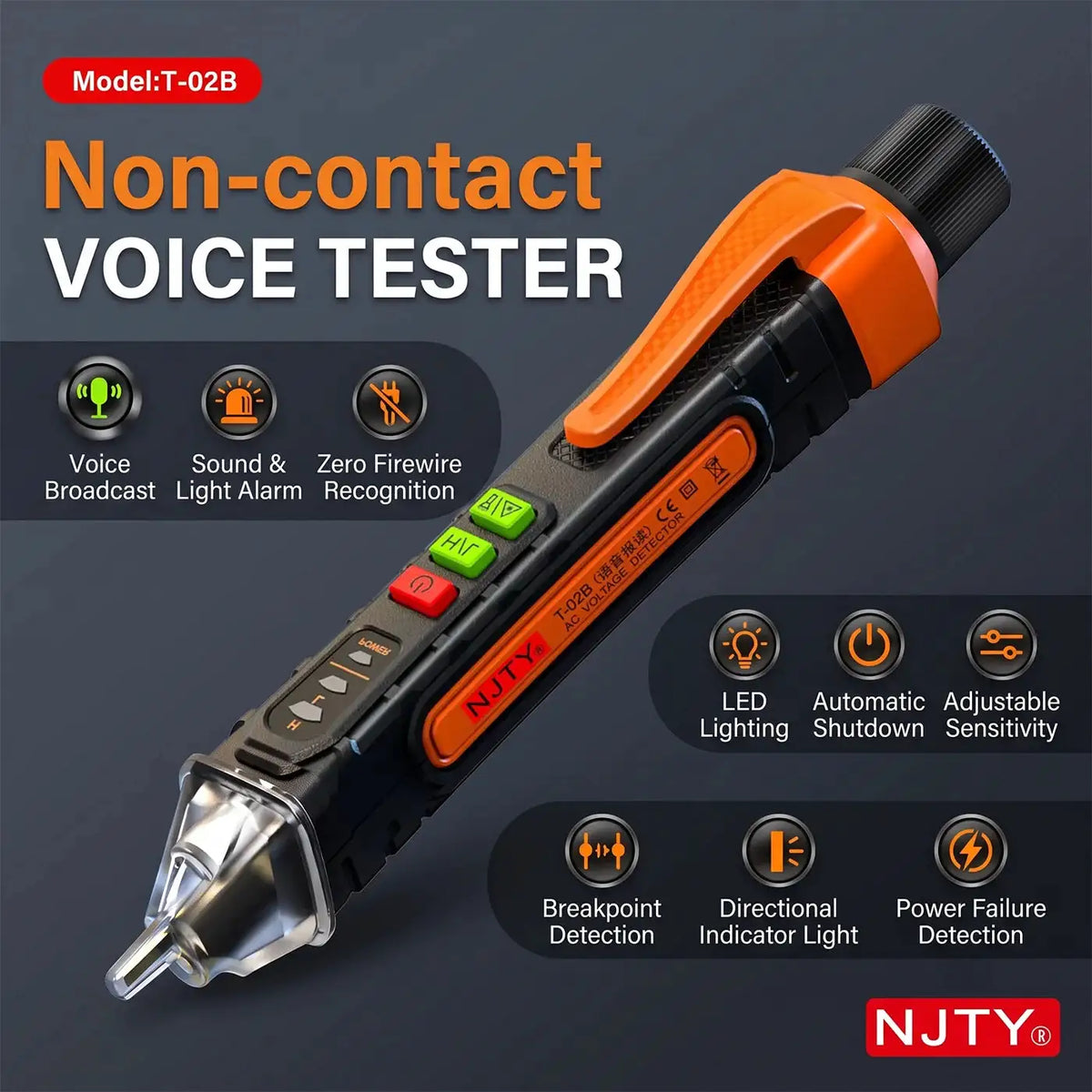

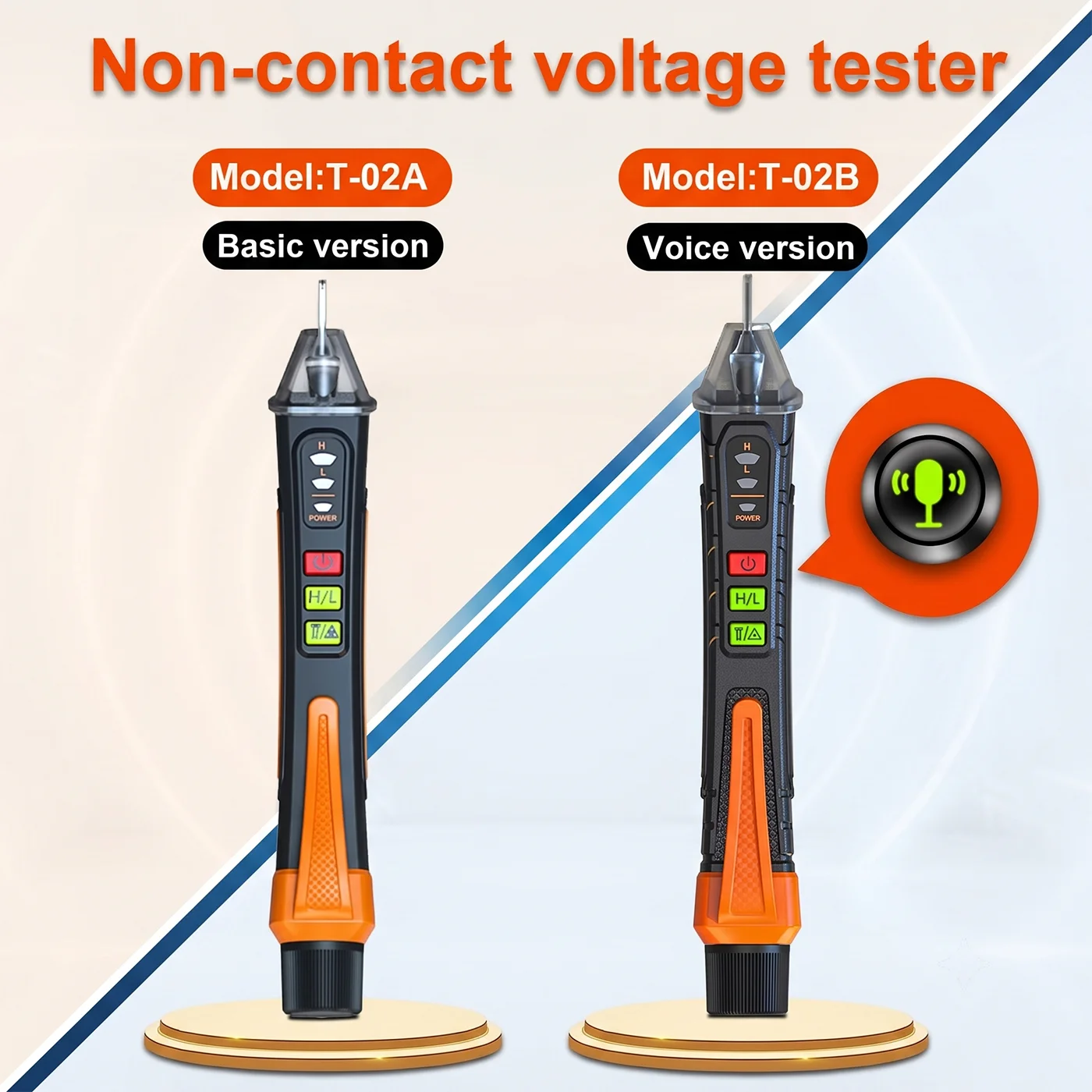

6. Optional Voice Broadcast (T02B only)

Model T02B adds spoken voice announcements to the audible and visual alarms, making detection even more intuitive – especially useful when your hands are busy or in noisy work environments.
