SPECIFICATIONS
AC Current: 10A
AC Current Measurement: Up to 10 A
AC Voltage: 1000V
AC Voltage Measurement: Up to 750 V
Battery Included: no
Battery Test Ranges: 1.5 V, 9 V and 12 V
Brand Name: NJTY
Capacitance Measurement: Up to 20 mF
Certification: CE,RoHS
Choice: yes
DC Current: 10A
DC Current Measurement: Up to 10 A
DC Voltage: 1000V
DC Voltage Measurement: Up to 1000 V
DIY Supplies: Electrical
Data Record: No
Display: 2000-Count LCD
Display Type: Digital Display
Frequency Measurement: Up to 20 MHz
High-concerned chemical: none
Low Impedance Mode: Yes, LoZ AC/DC Voltage Measurement
Measuring Resistance Range: 200Ω-200MΩ
Model Number: T9205N
Operating Mode: Manual Range
Operating Temperature: 0-40℃
Origin: Mainland China
Phase Sequence Detection: Yes, for suitable three-phase AC systems
Power Supply: 2 x 1.5 V AAA Batteries(Not Included)
Resistance Measurement: Up to 200 MΩ
Semi-finishedproduct: No
True RMS: Yes
T9205N 2000-Count True RMS Digital Multimeter with Three-Phase Sequence Detection, NCV, Live Wire Identification, LoZ Voltage Mode, Battery Test and AC/DC Measurements
PRODUCT SPECIFICATIONS
Model: T9205N
Display: 2000-count LCD with backlight
DC Voltage Range: 200mV to 1000V
AC Voltage Range: 2V to 750V
DC Current Range: 200µA to 10A
AC Current Range: 200µA to 10A
Resistance Range: 200Ω to 200MΩ
Capacitance Range: 6nF to 20mF
Frequency Range: 600Hz to 20MHz
Battery Test Ranges: 1.5V and 9V/12V

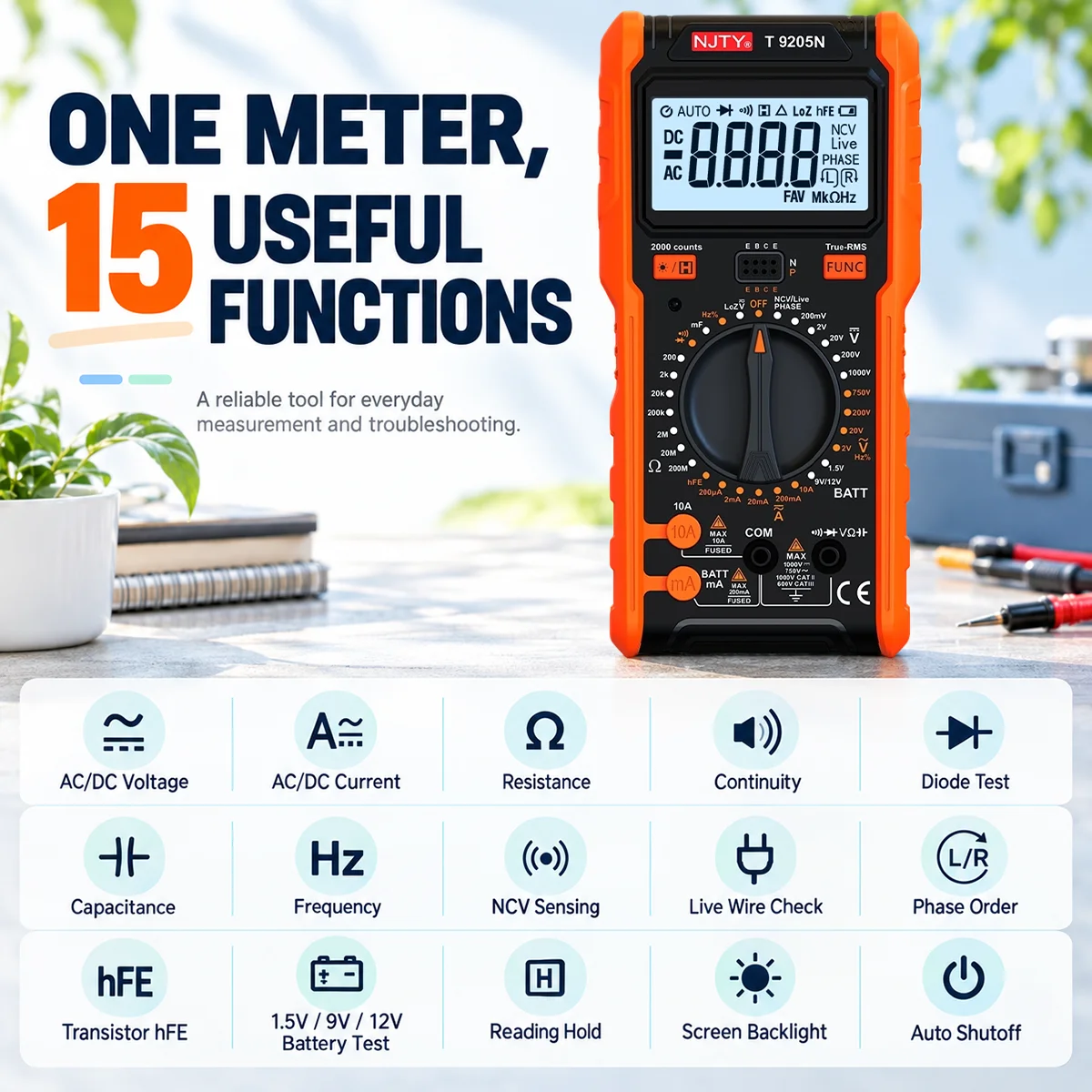

Additional Functions: Phase Sequence, NCV, Live Wire, LoZ, Continuity, Diode, Duty Cycle and Transistor hFE
Convenience Features: Data hold, backlight, low battery indicator and automatic power off
Power Supply: 2 × 1.5V AAA batteries(Not Included)
Three-Phase Sequence Detection
Check the phase order of a suitable three-phase AC supply. After testing phases A, B and C in sequence, the display shows a direction indication to help check phase connections for three-phase equipment.
NCV and Live Wire Detection
Bring the sensing area near a suspected AC source in NCV mode. The indicator light and buzzer respond when an electric field is detected. Live mode provides a separate test-lead function for identifying a live wire.
Low-Impedance Voltage Measurement
Switch to LoZ mode for low-impedance AC or DC voltage measurement. This gives you an additional voltage test mode alongside the meter’s standard AC and DC voltage functions.
Dedicated Battery Test
Select the 1.5 V or 9 V/12 V setting to check a compatible battery. The LCD displays its voltage under load, providing a direct reading without a separate battery tester.
AC/DC Measurements and Component Tests
Measure voltage, current, resistance, capacitance and frequency with one meter. Duty cycle, diode and transistor hFE functions add more options for testing suitable circuits and components.
Audible Continuity Check
Use the continuity function to check disconnected wires, switches and fuses. The buzzer sounds when the measured resistance is below 50 Ω.

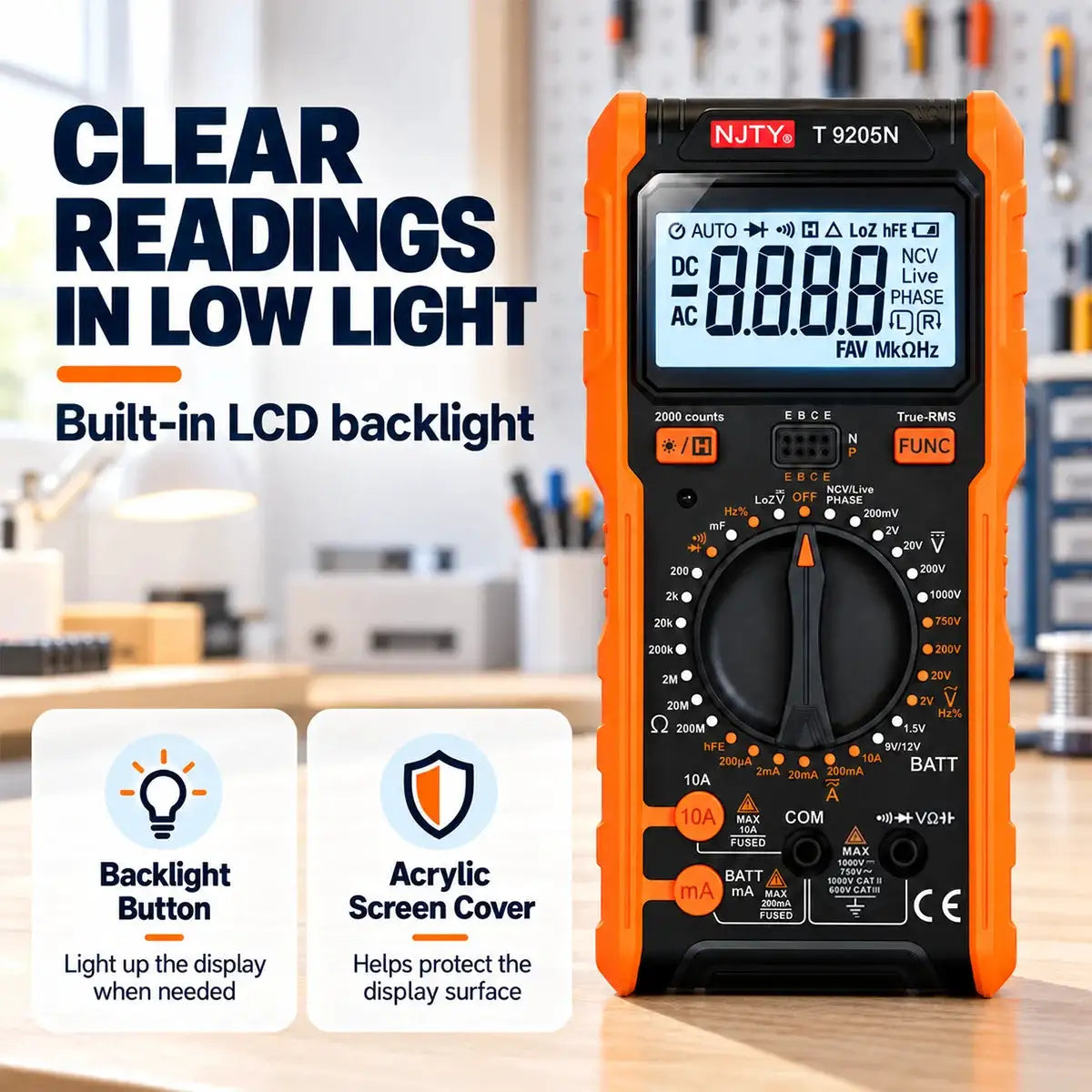

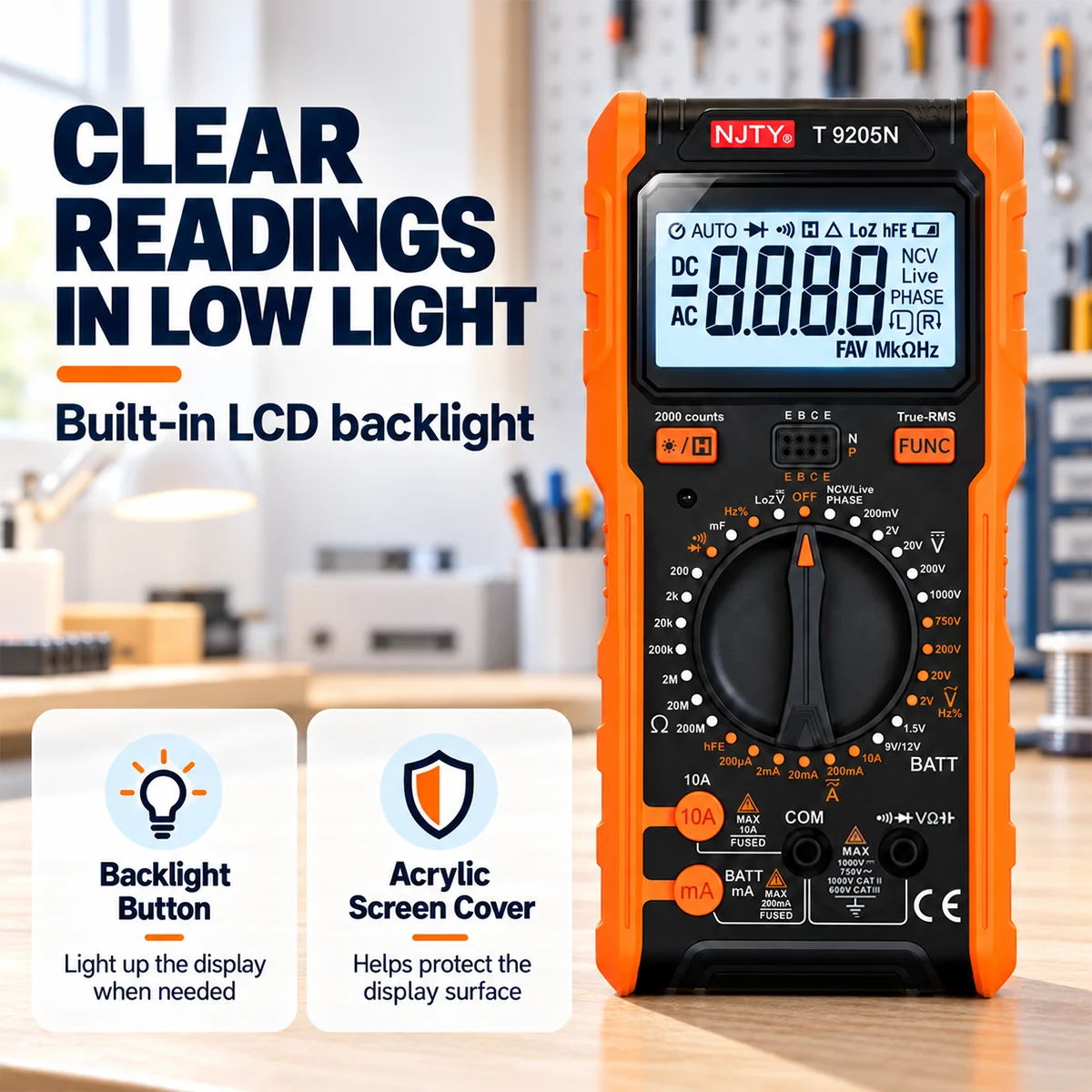

Backlit Screen and Convenient Reading
The LCD backlight helps you read results in dim areas, while Data Hold keeps a measurement on screen. The screen has the acrylic protection and magnetic back you confirmed for this product.
APPLICATION SCENARIOS
Car Care: Check battery voltage and inspect accessible electrical circuits with the appropriate measurement mode.
Home Wiring: Check AC voltage at outlets and switches, or use NCV and Live modes to help locate live wiring.
Electronics Bench: Test resistors, diodes, capacitors and other suitable components during circuit board repair.
Workshop Maintenance: Check equipment circuits and use PHASE mode to inspect phase order in suitable three-phase AC systems.

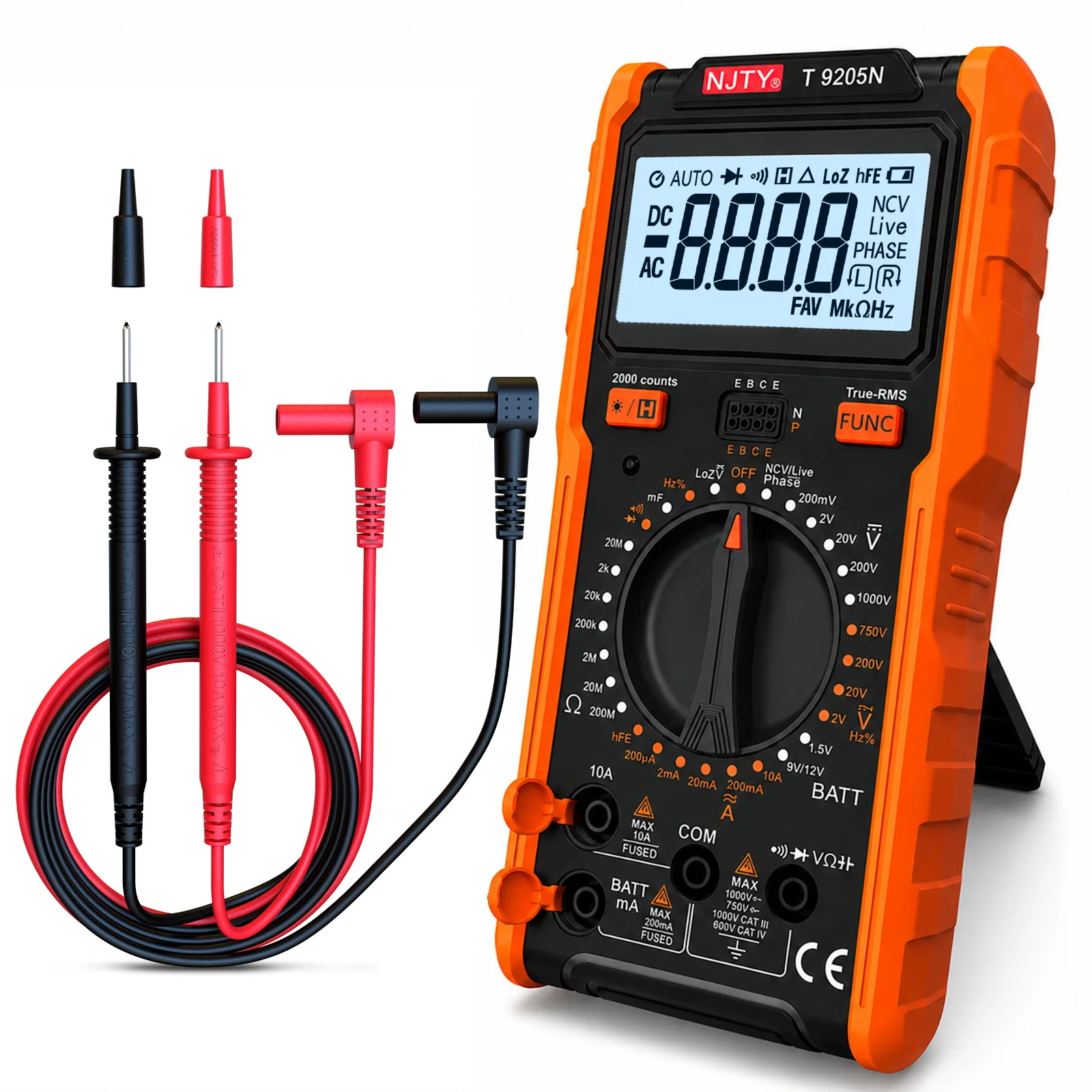

PACKAGE CONTENTS
-T9205N Digital Multimeter × 1
-Test Leads × 1 Pair
User Manual × 1
Note
-Phase sequence detection is for suitable three-phase AC systems.
-NCV responds to AC electric fields and does not display an exact voltage value.
-Select the correct function and input terminals before connecting the test leads.
-Disconnect power before testing resistance, continuity or diodes. Fully discharge capacitors before measuring capacitance.
-Batteries are not included. Please purchase 2 × 1.5 V AAA batteries separately.
