Tooltop 256x192 Thermal Camera with SUPER IR Clarity

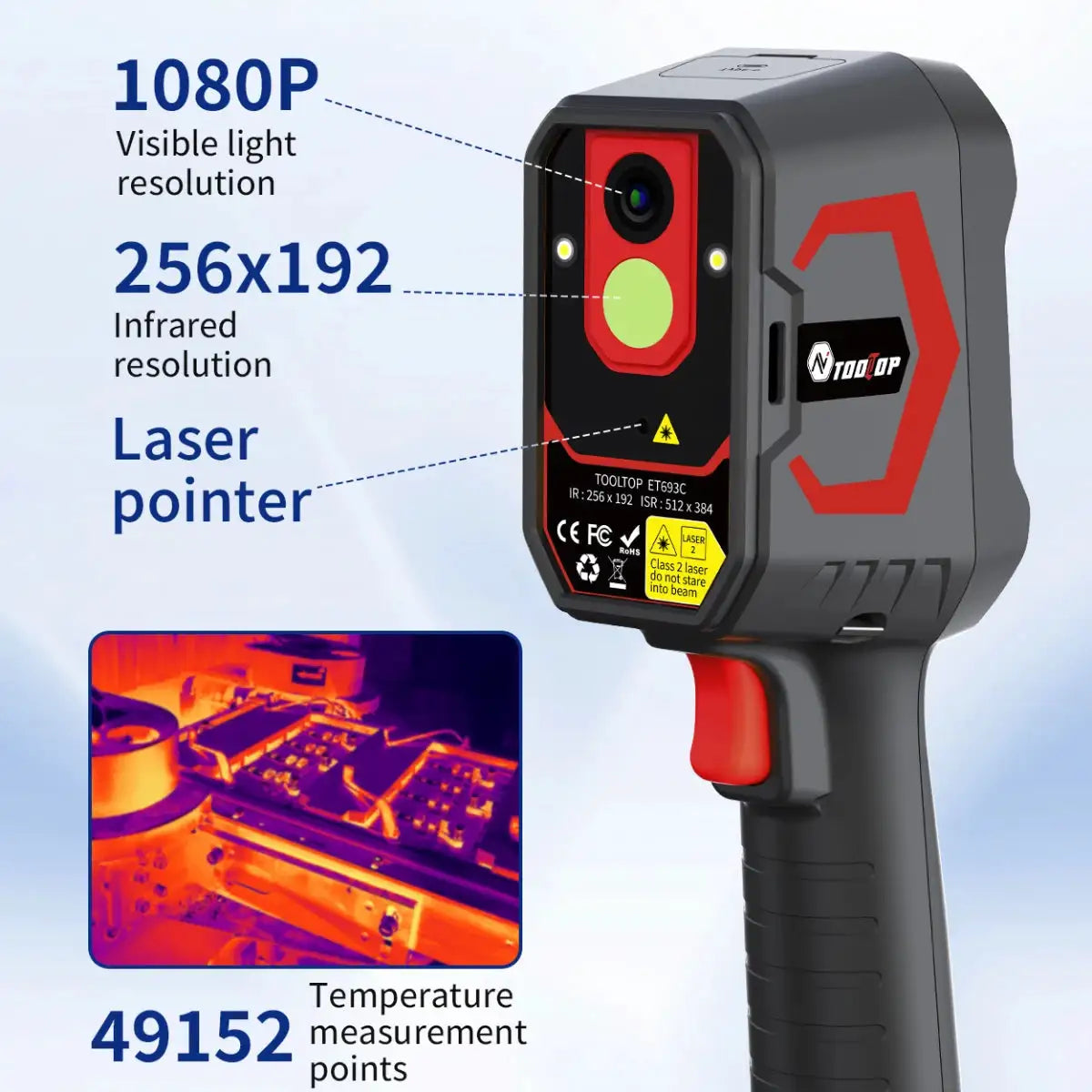

Pinpoint heat leaks fast with the 256x192 TOOLTOP Thermal Camera. SUPER IR clarity hits 512x384 pixels. Dual 1080P lens tracks electrical faults instantly.
Key Features

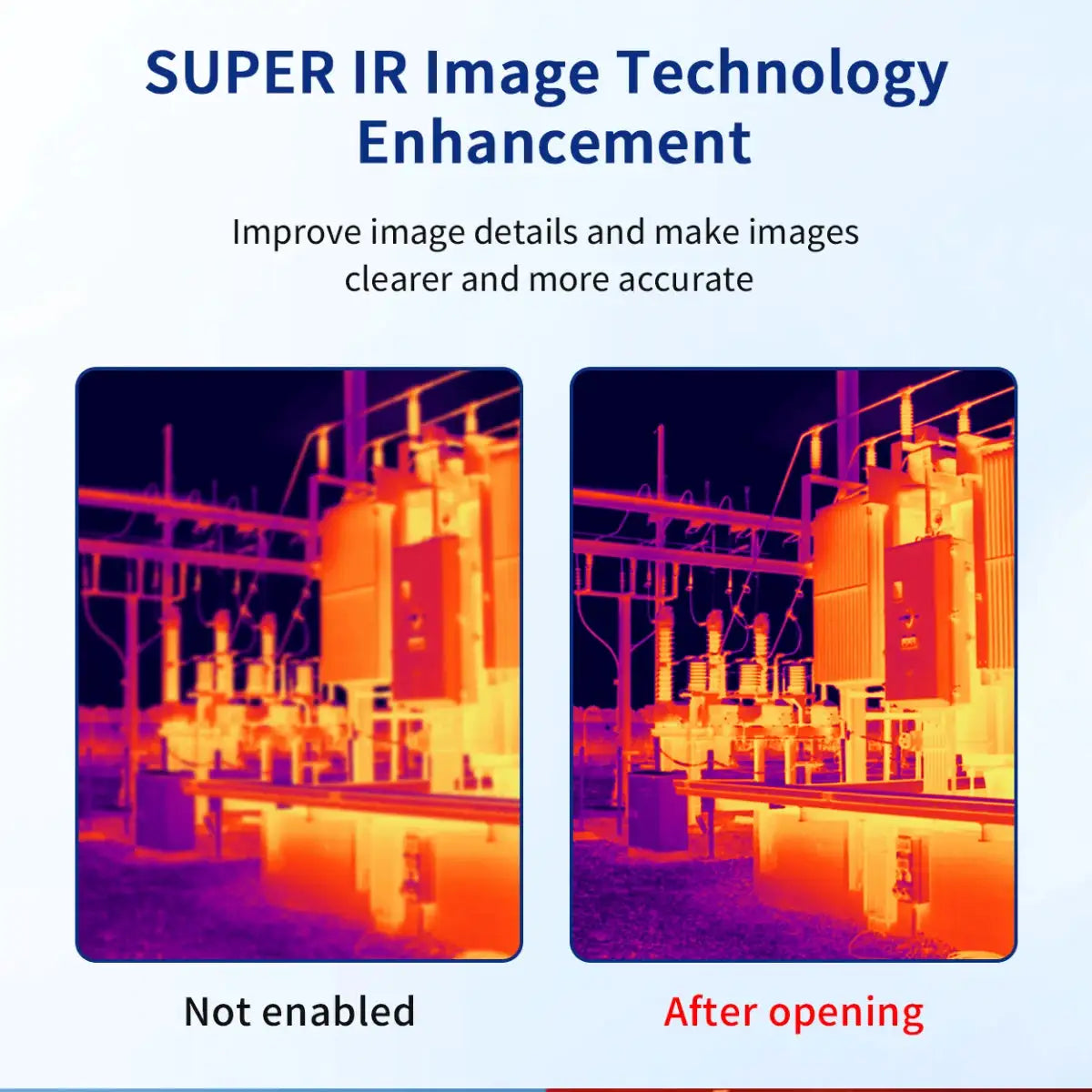

See hidden problems without guessing. SUPER IR processing sharpens fuzzy heat blobs into crisp outlines. Resolve details at 512-by-384 pixels for confident diagnosis. Pair infrared heat maps with the 1080P visible-light lens for complete documentation.

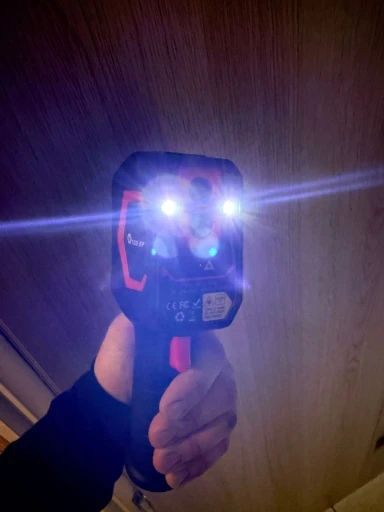

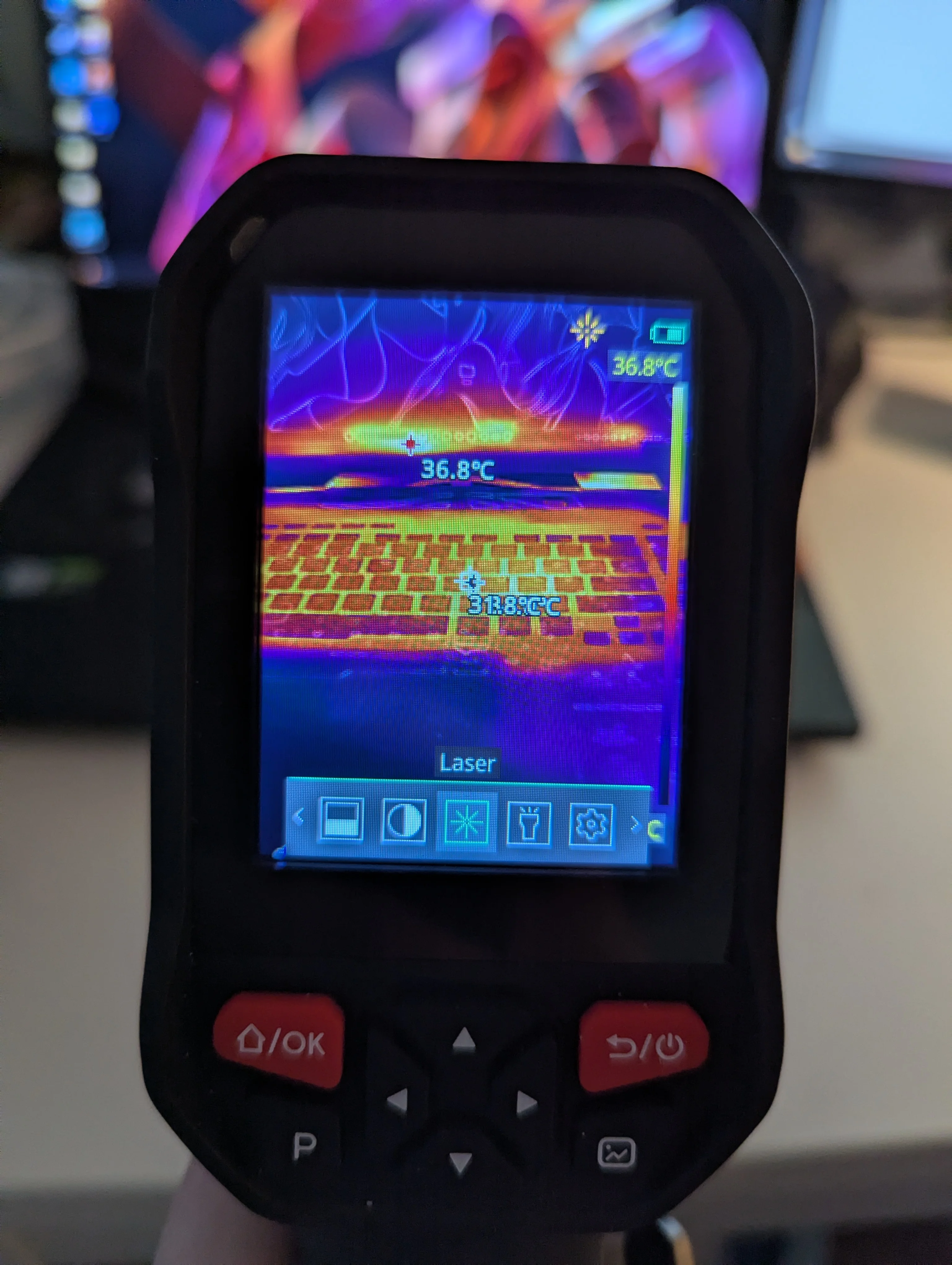

Lock onto distant targets instantly. Integrated laser pointers mark exact sensor locations on pipes or outlets. Read temperature data accurately across a wide span. Ranges extend from minus 20°C to 550°C with ±2°C precision.
Product Overview

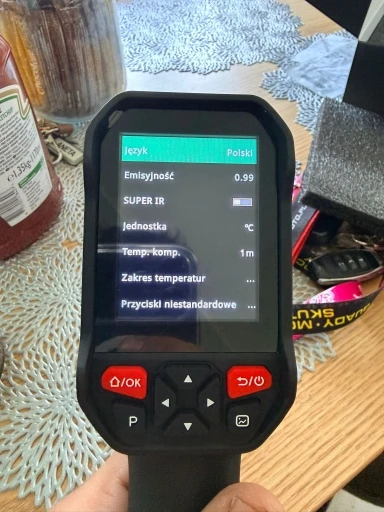

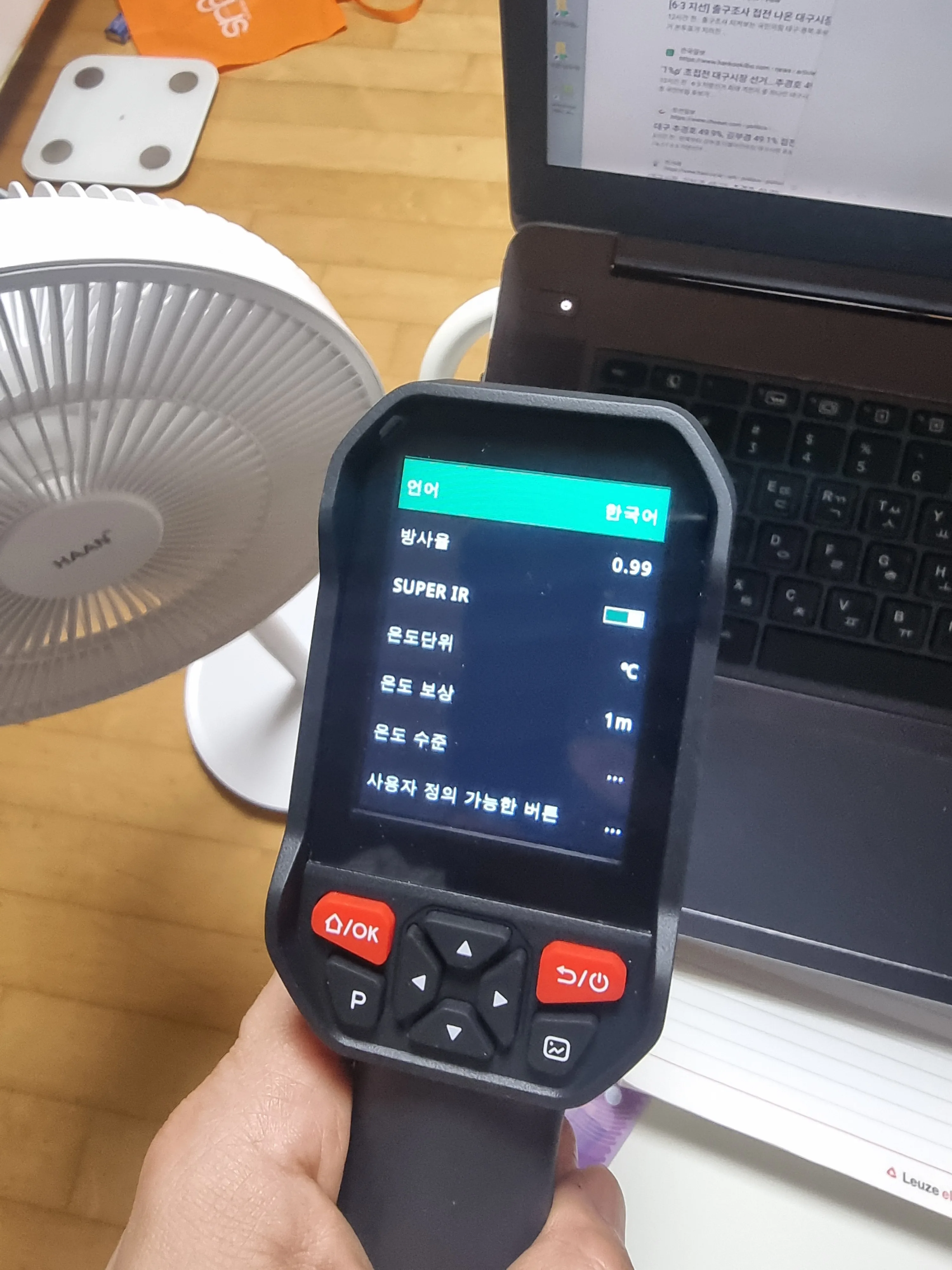

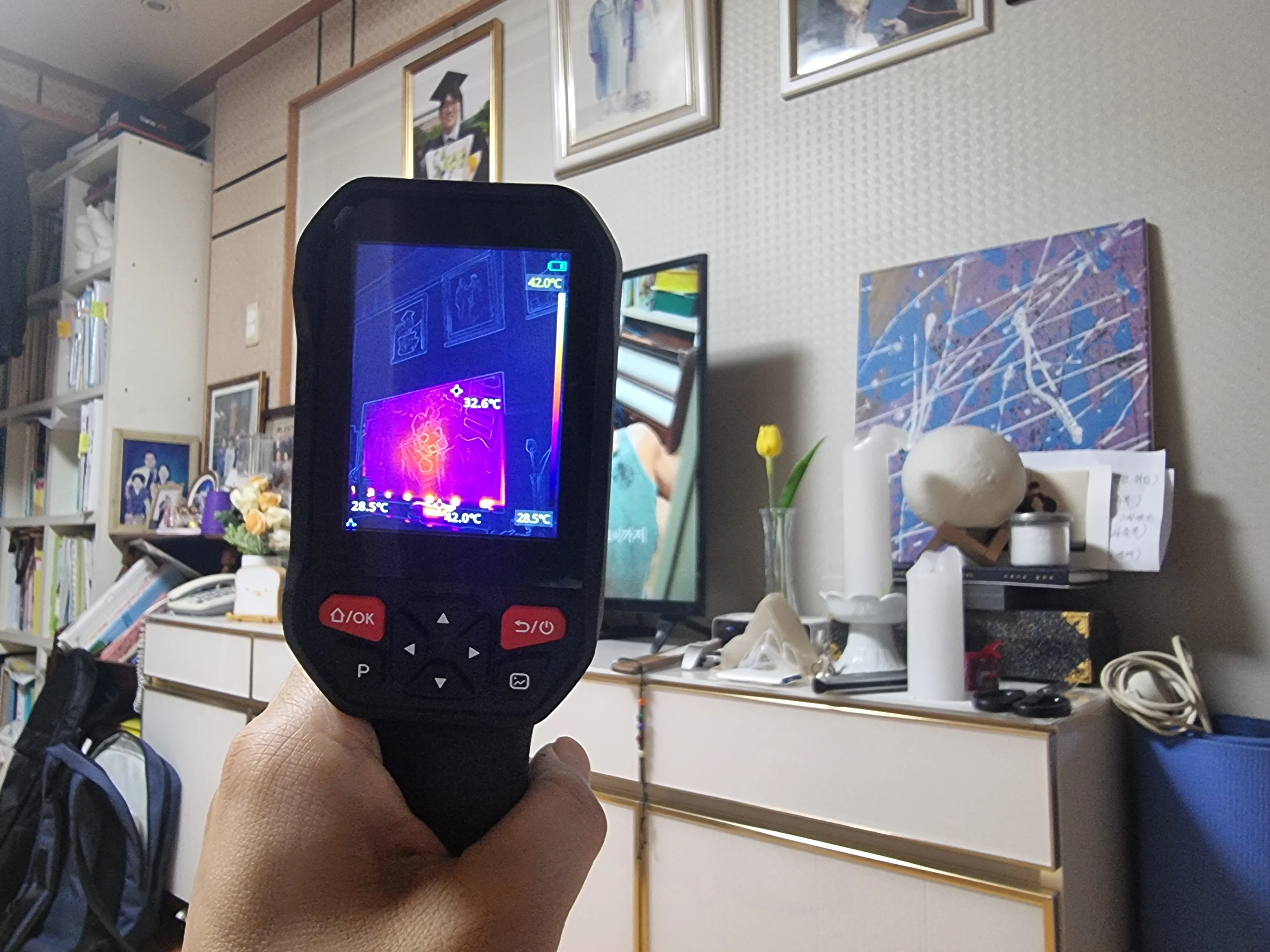

This dual-lens camera solves visual inspection challenges in harsh environments. You scan HVAC ducts, electrical panels, and machinery with equal ease. The 2.8-inch screen displays vivid thermal palettes in bright sunlight or dim rooms. Choose from nine color schemes like rainbow, iron, or white-hot to match your reporting standards. Eleven languages support global teams working together.
Key Benefits

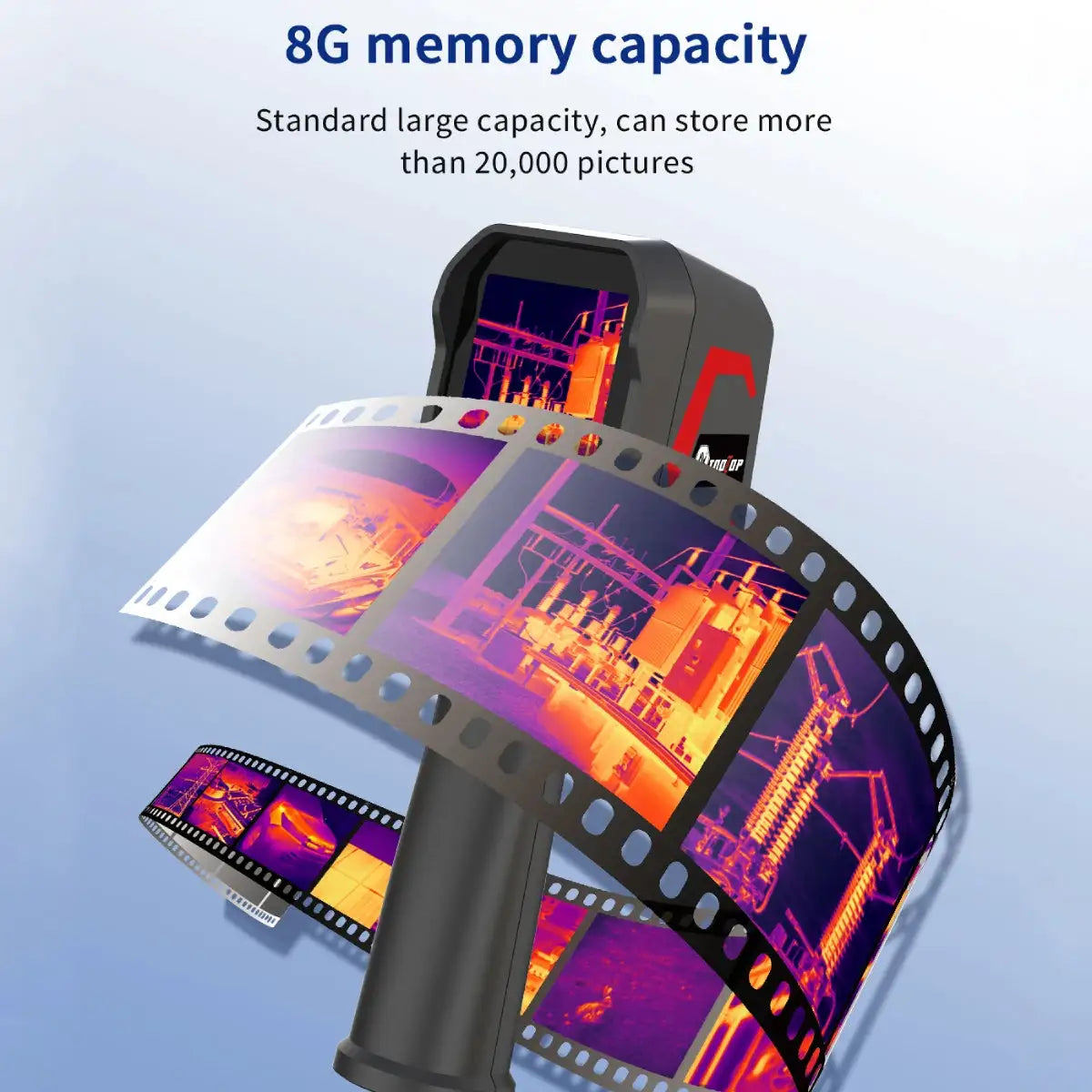

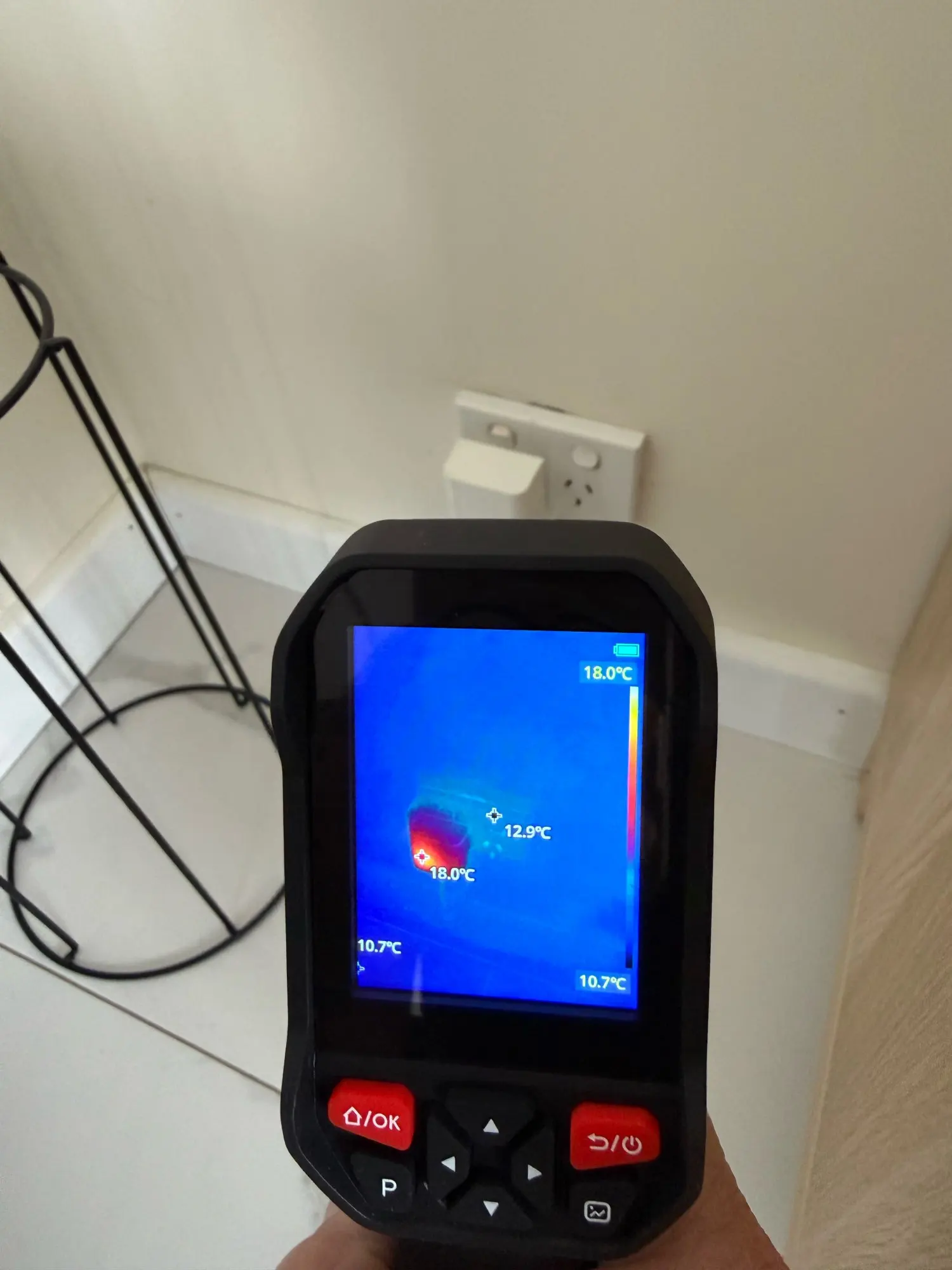

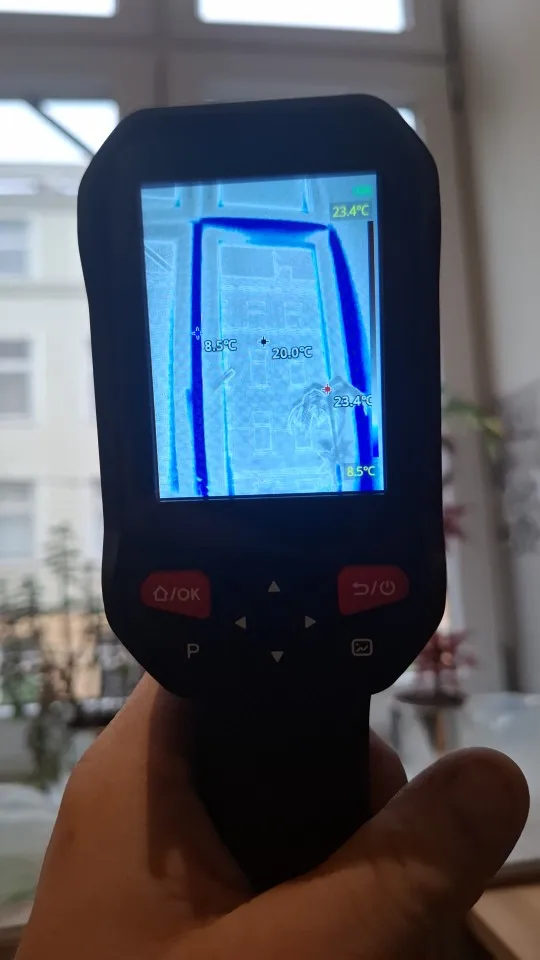

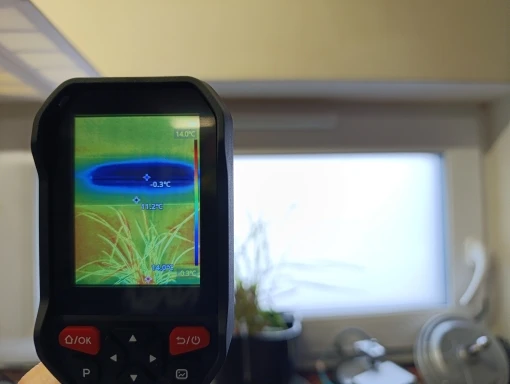

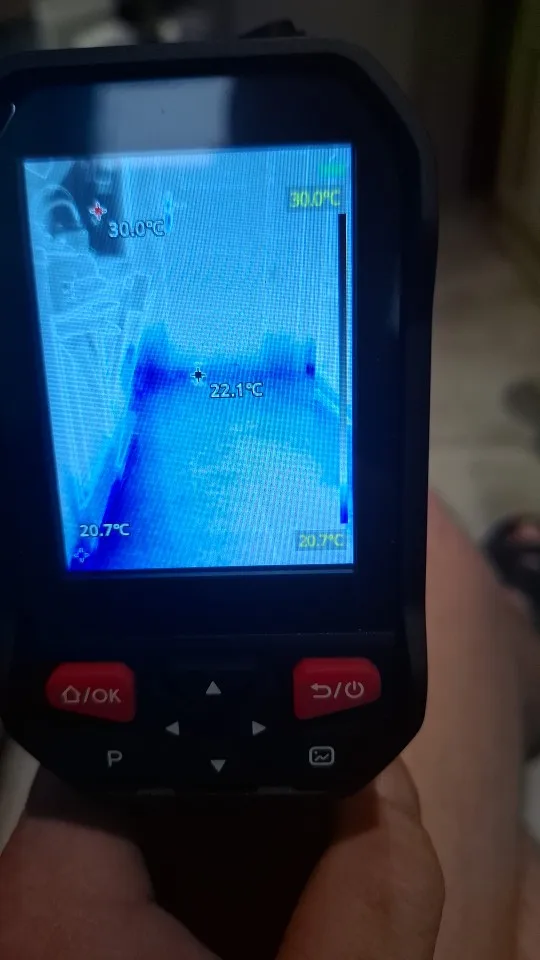

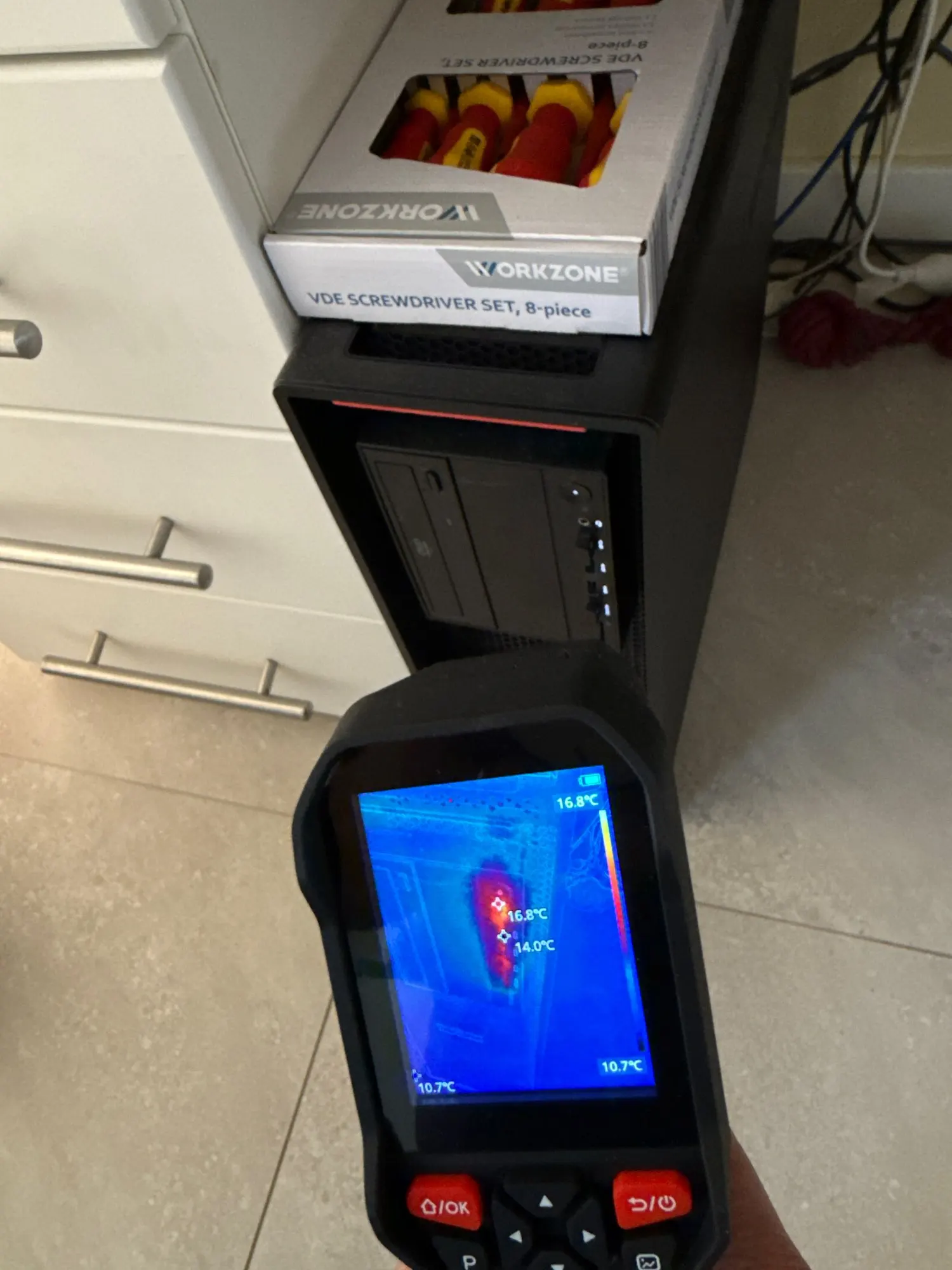

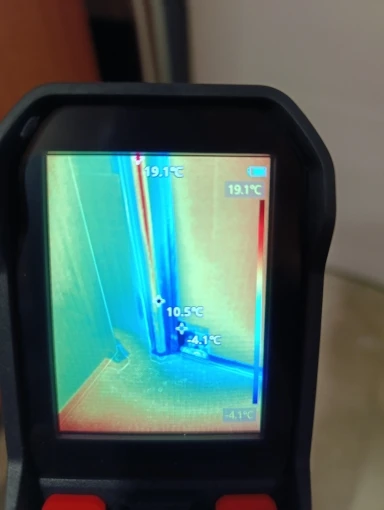

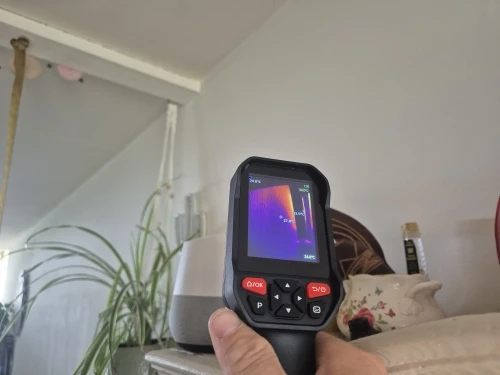

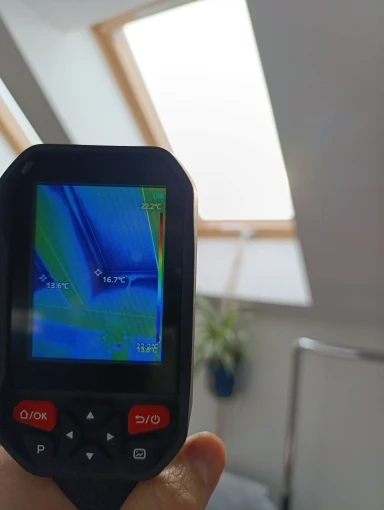

Avoid wall demolition by finding insulation gaps and water intrusion behind surfaces. Locate overheating components in server racks and fuse boxes before failures occur. Verify furnace airflow and sealing integrity during energy audits. Capture JPG photos and MP4 videos directly to the 8GB internal memory. Save over 20,000 high-resolution images without running out of space.
Work continuously through long shifts. The built-in 2600mAh lithium cell delivers approximately four active hours. Recharge quickly via the convenient USB Type-C port. Connect to a PC to transfer files and run advanced real-time analysis on your Desktop software.
Specifications
-
Sensor Resolution: 256×192 thermal pixels with SUPER IR enhancement to 512×384.
-
Visible Light: 1080P video recording and photo capture.
-
Temperature Range: Measures from −20°C to 550°C.
-
Accuracy: Error margin of ±2°C or ±2% of reading.
-
Frame Rate: Smooth 25 Hz updates for fluid motion tracking.
-
Field of View: 42°×56° thermal angle and 55°×83° visible lens.
-
NETD: 50mK sensitivity detects subtle heat differences.
-
Display: Sharp 2.8-inch screen with adjustable contrast.
-
Battery Life: Roughly 4 hours on a full 2600mAh charge.
-
Storage: 8GB capacity, usable 6.19GB available.
-

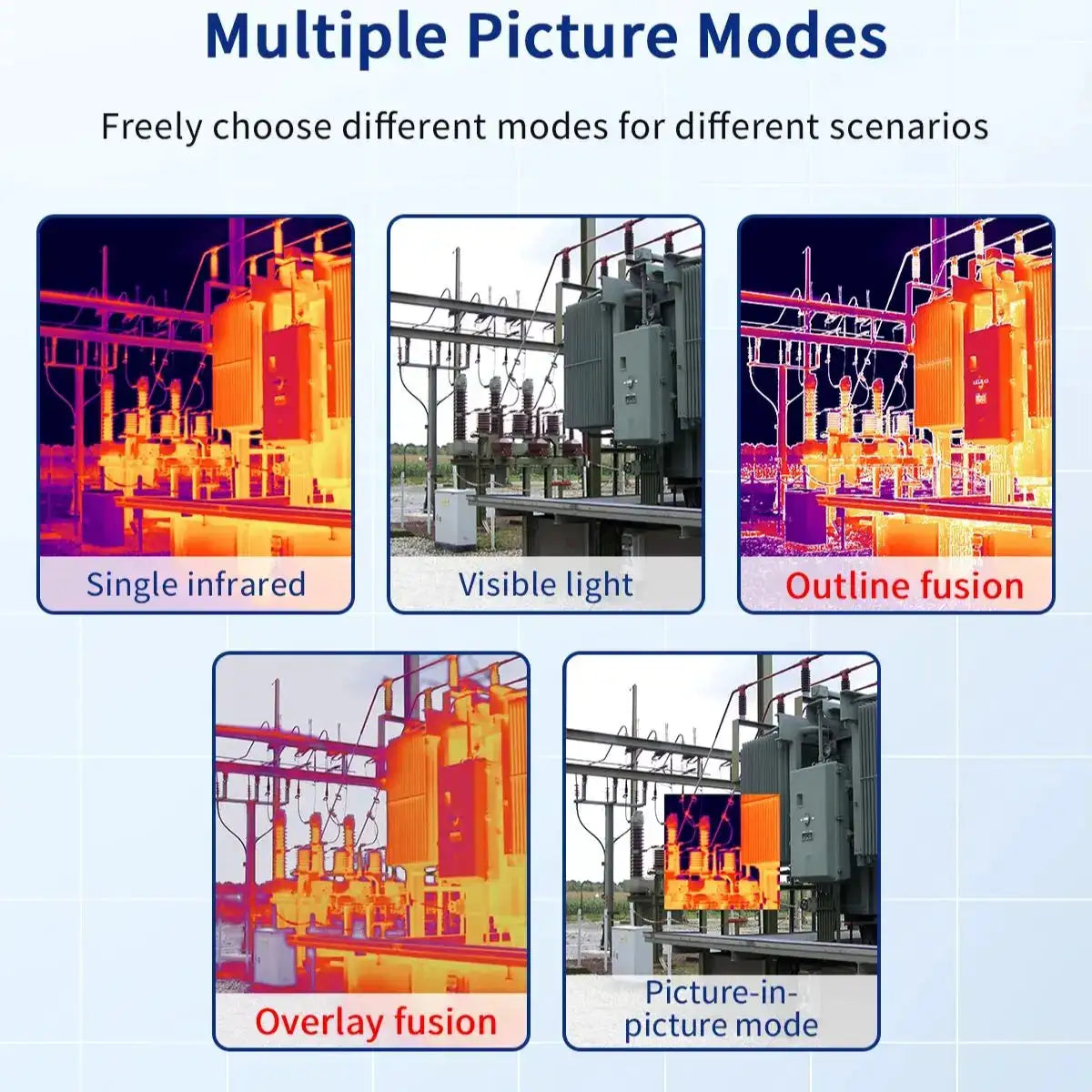

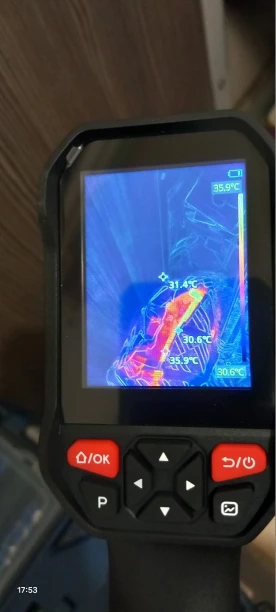

Fusion Modes: Outline, overlay, and picture-in-picture blending.
-
Cooling： Mechanical calibration plate adjusts every 10 seconds.
How to Use
Power the device with the dedicated button. Aim at the target area and adjust focus for clarity. Select your preferred imaging mode on the touch interface. Blend thermal and visible images effectively at one-to-five-meter distances. Press record to save JPGs and MP4 clips to the onboard drive. Transfer data to your computer for detailed reporting.
Note: Expect a brief one-to-two-second visual pause during operation. The camera automatically calibrates its detector to correct non-uniformity every ten seconds. This standard routine ensures consistent measurement accuracy.
Ideal Uses
Diagnose blocked HVAC vents and air leakage points. Test transformer loads and loose connections in electrical panels. Inspect automotive engines and cooling systems for hot spots. Monitor industrial motors and bearings for premature wear. Guide building retrofits by verifying envelope performance and dampness detection.

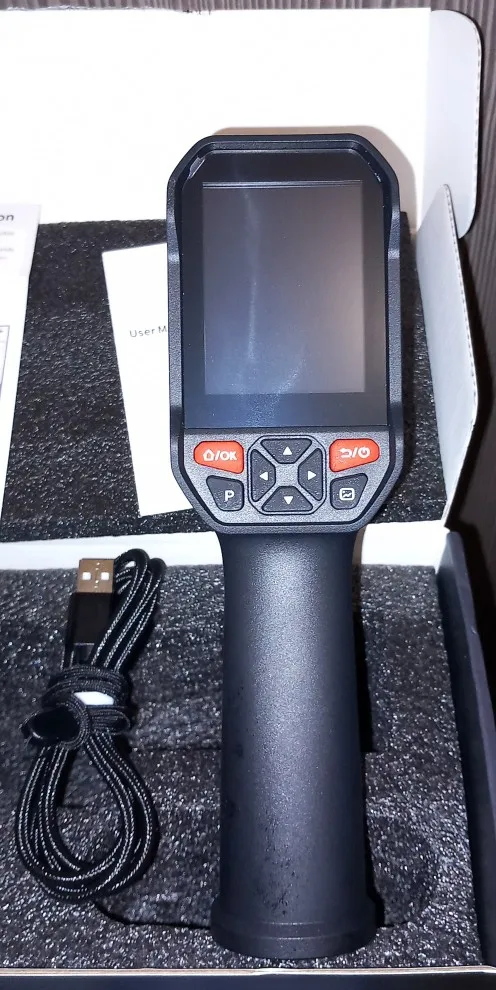

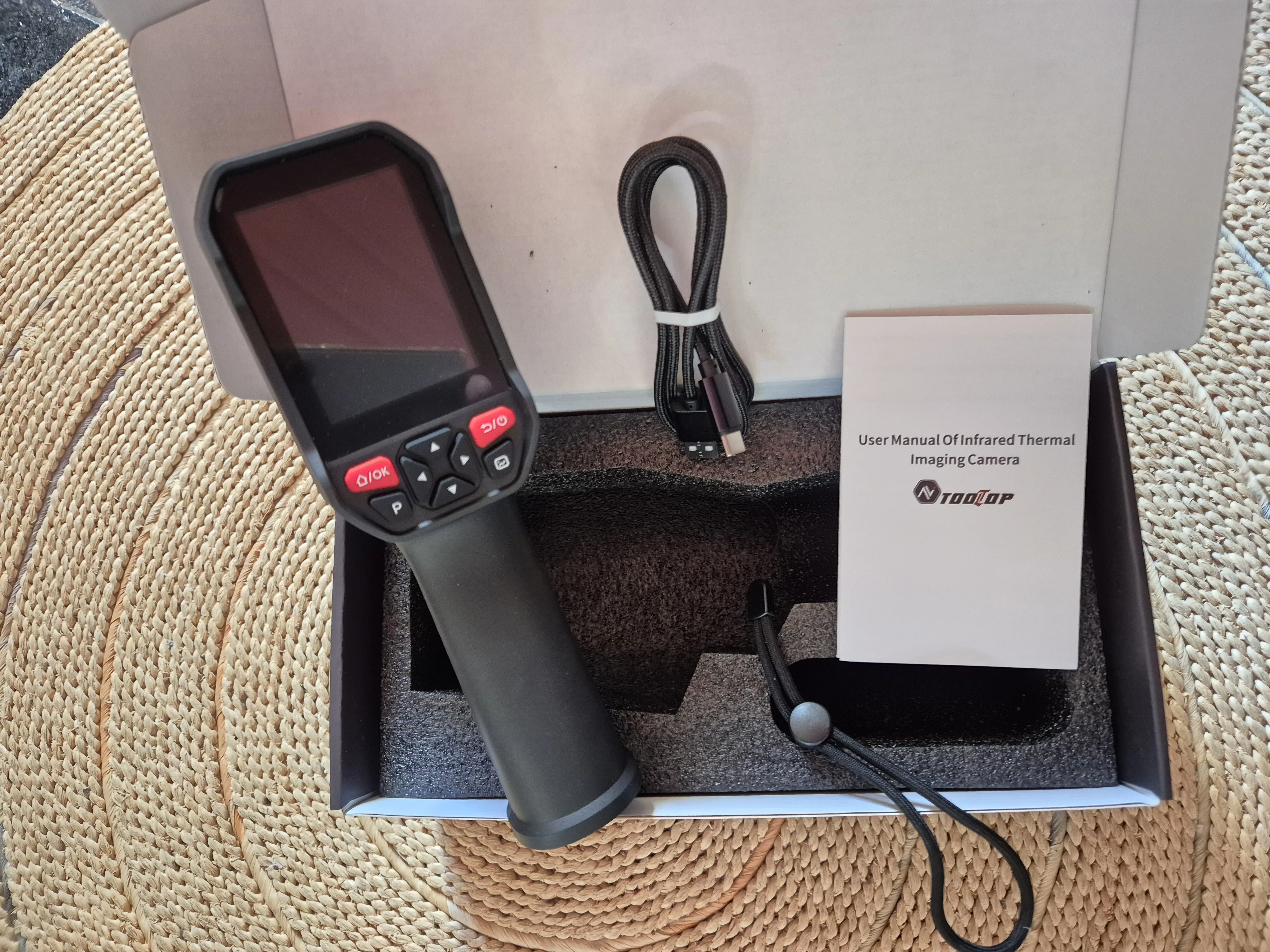

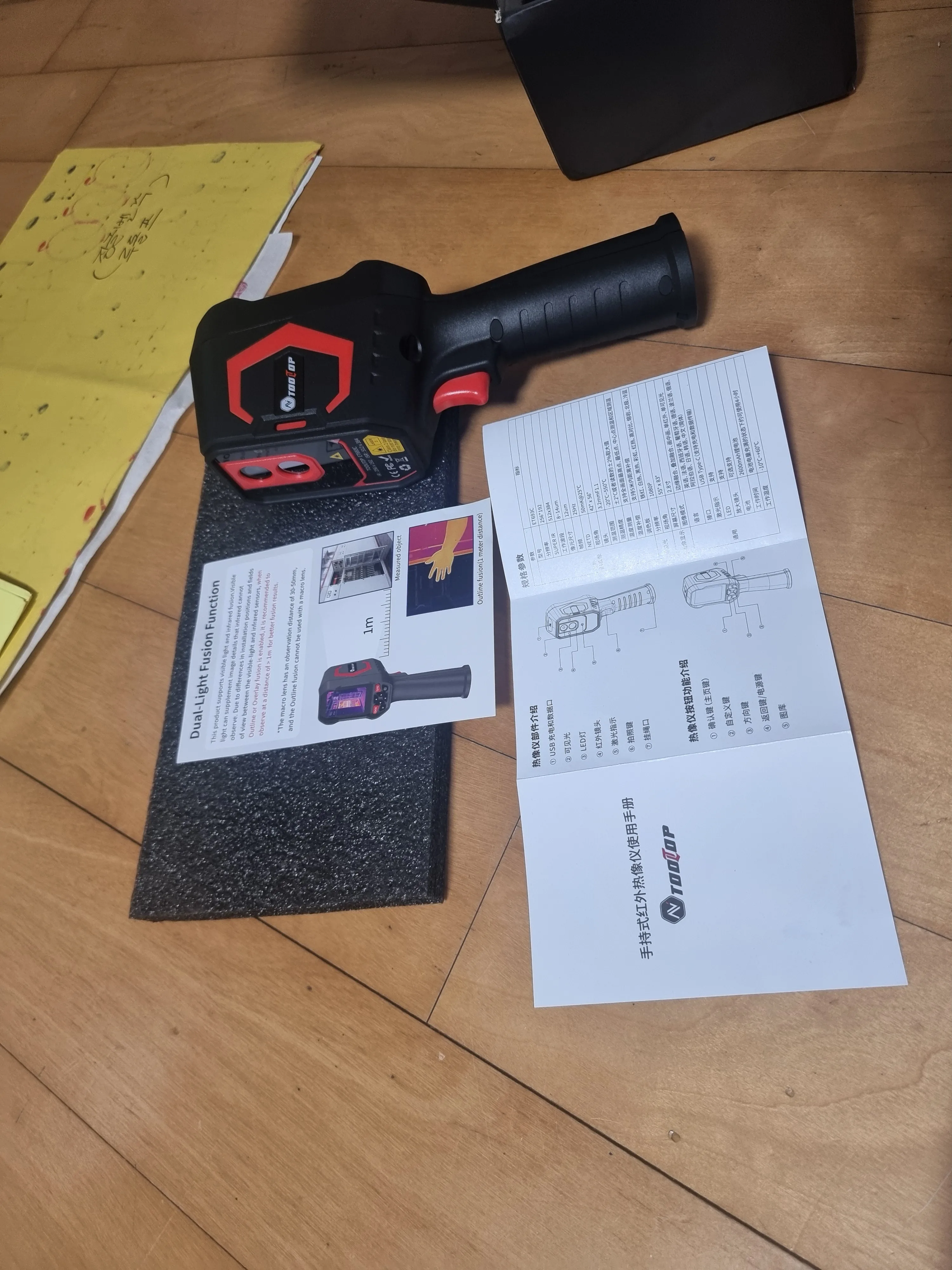

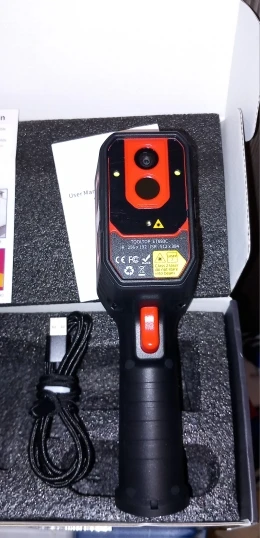

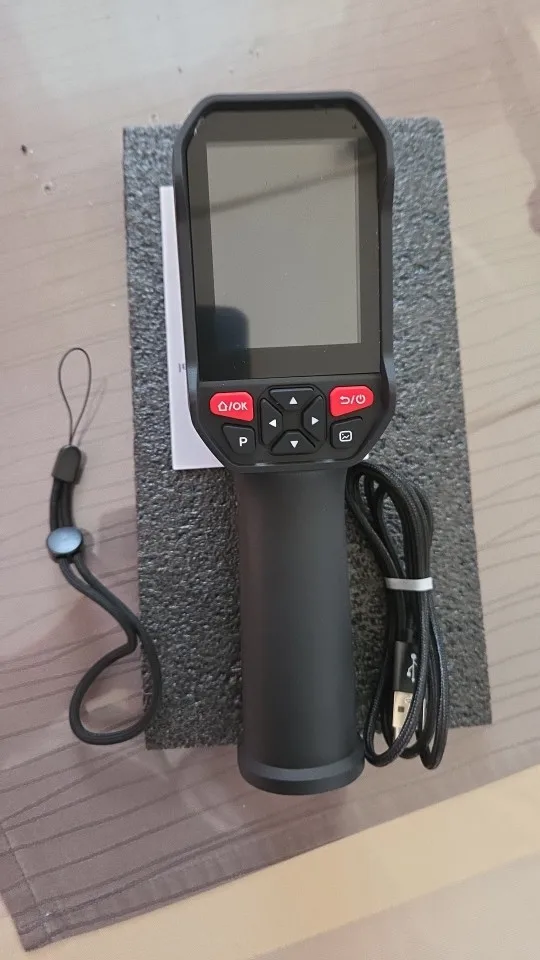

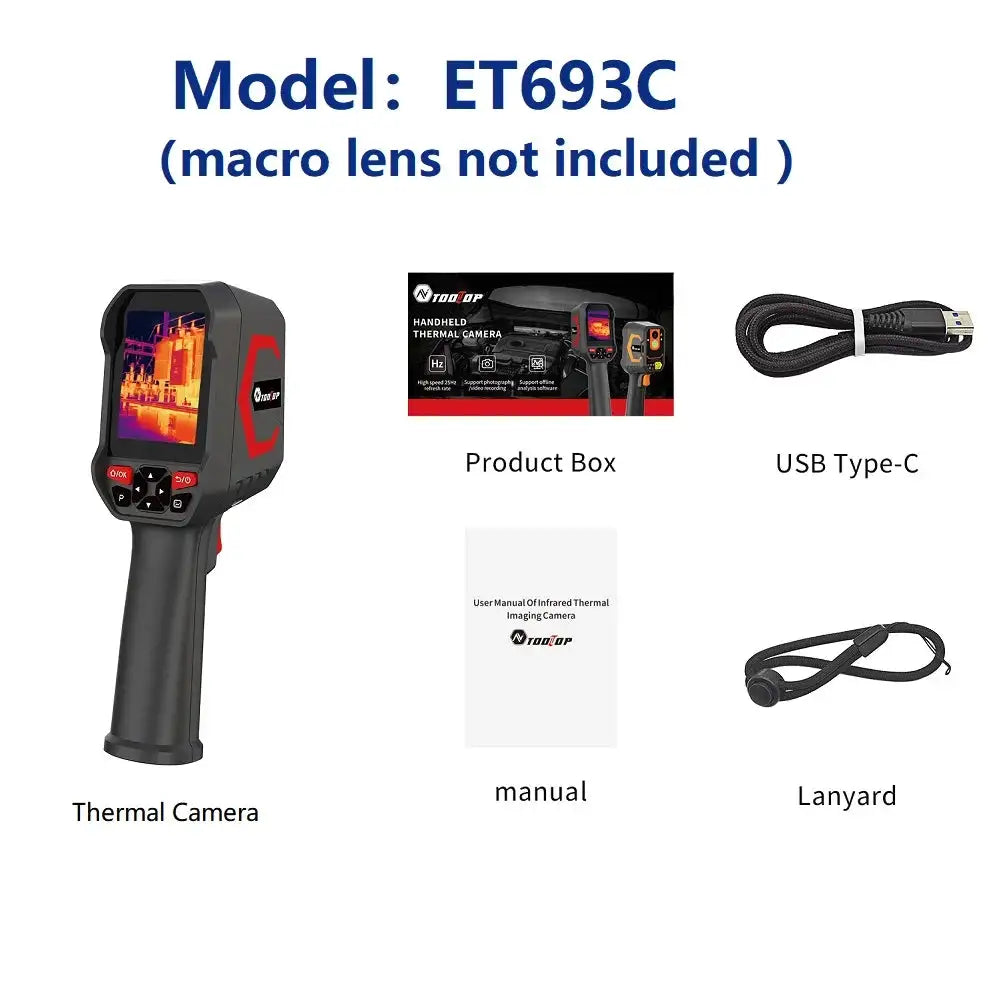

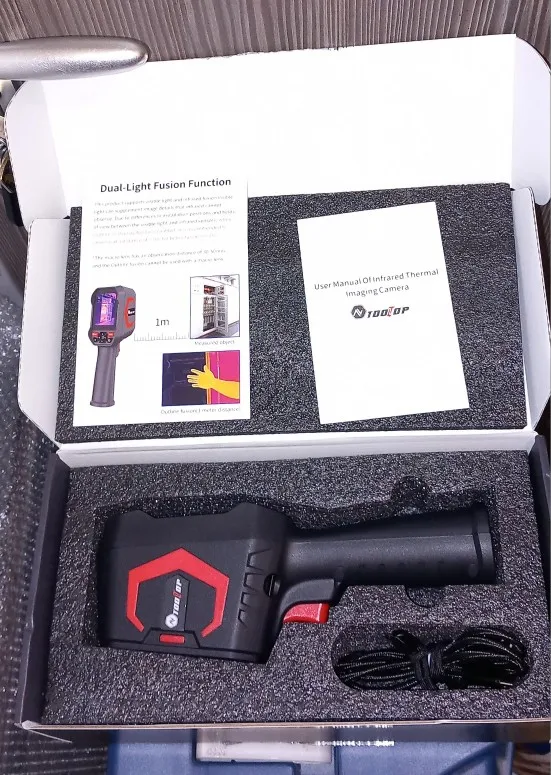

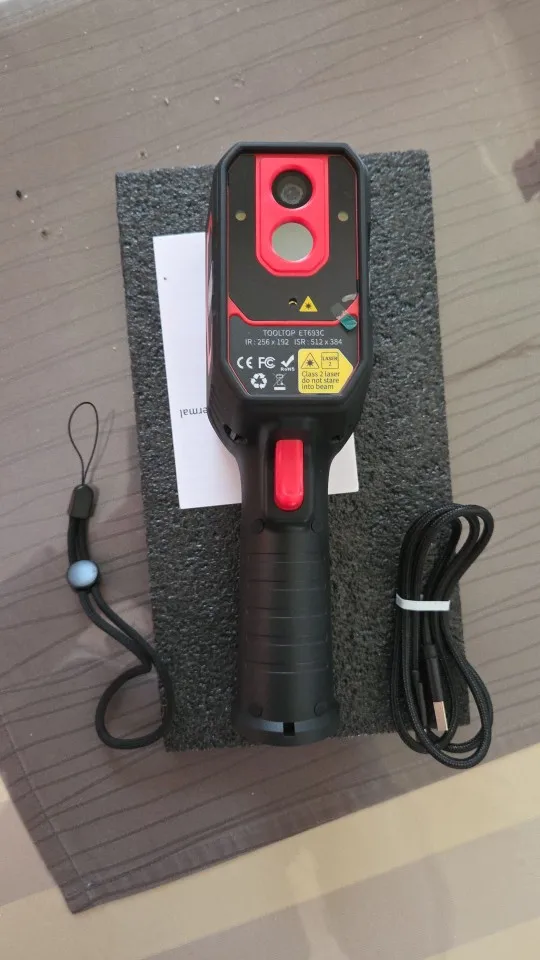

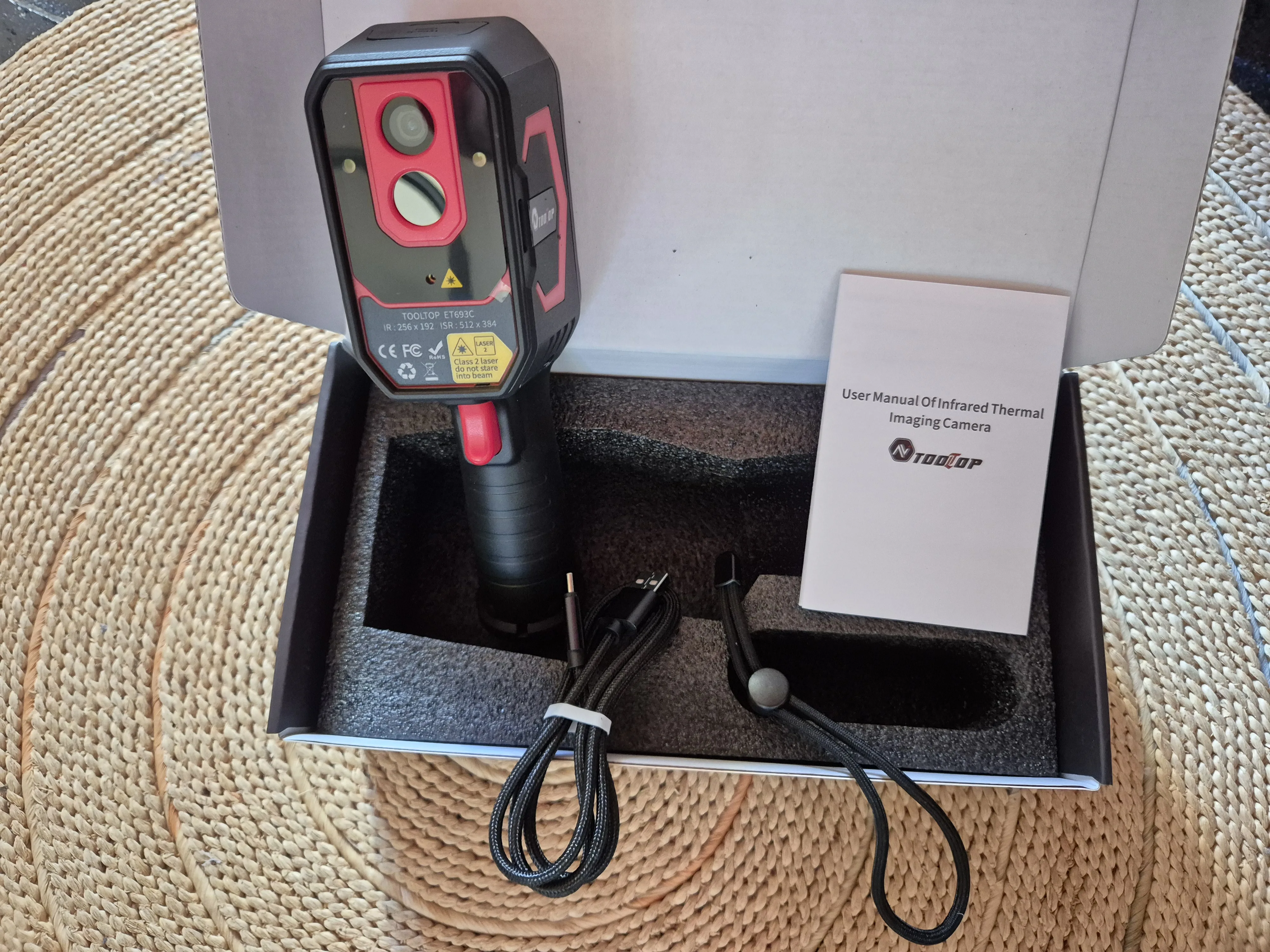

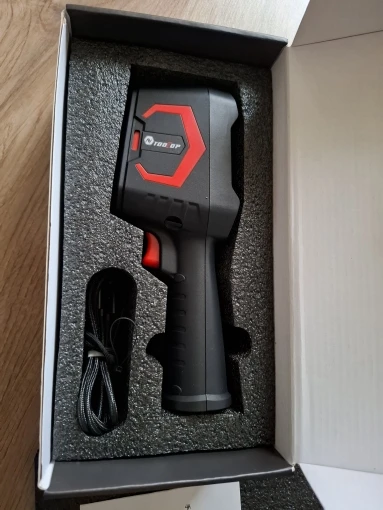

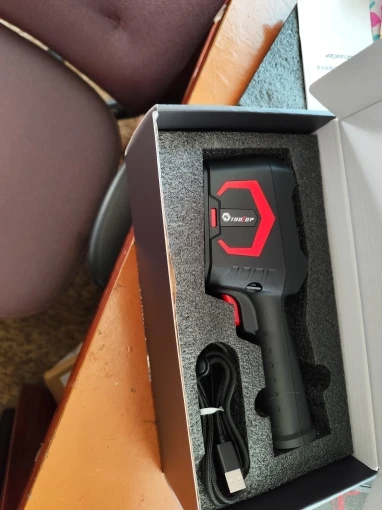

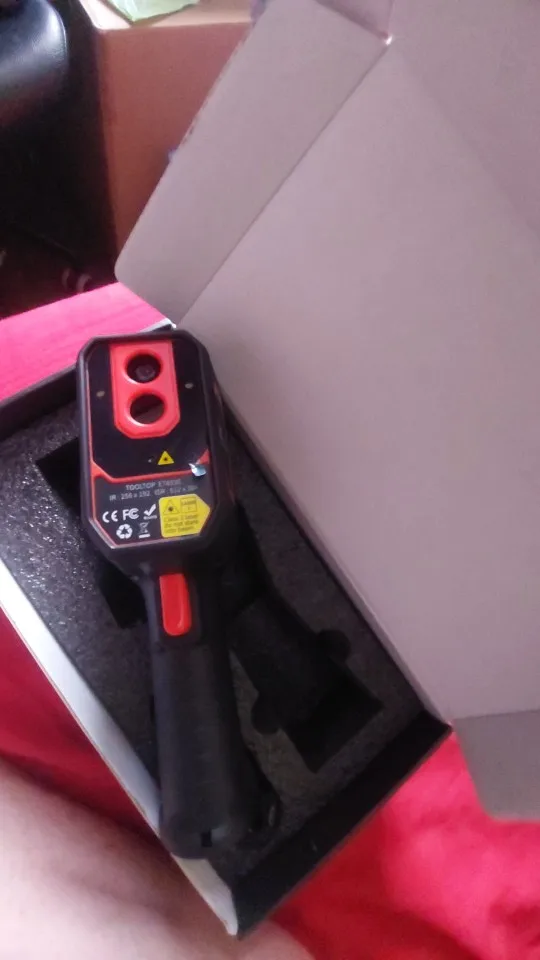

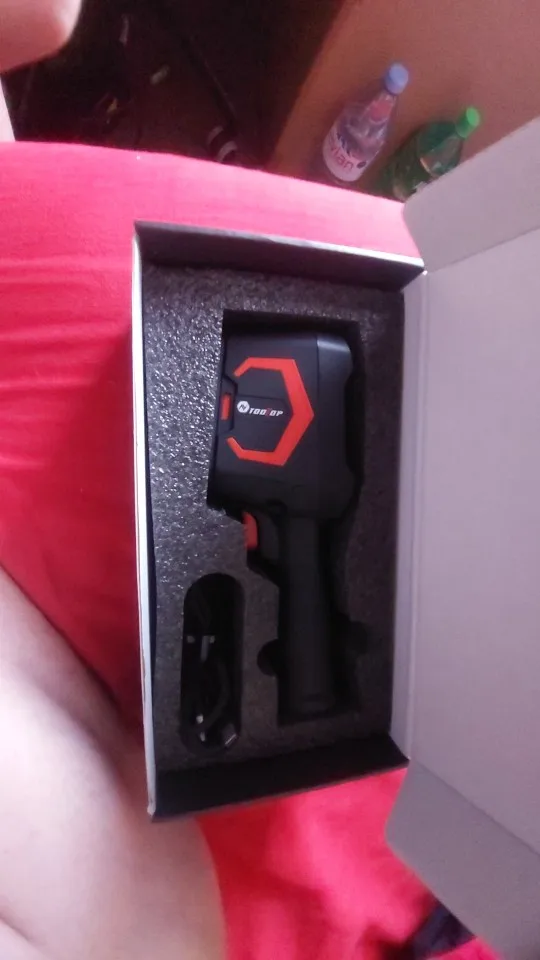

What's Included
-

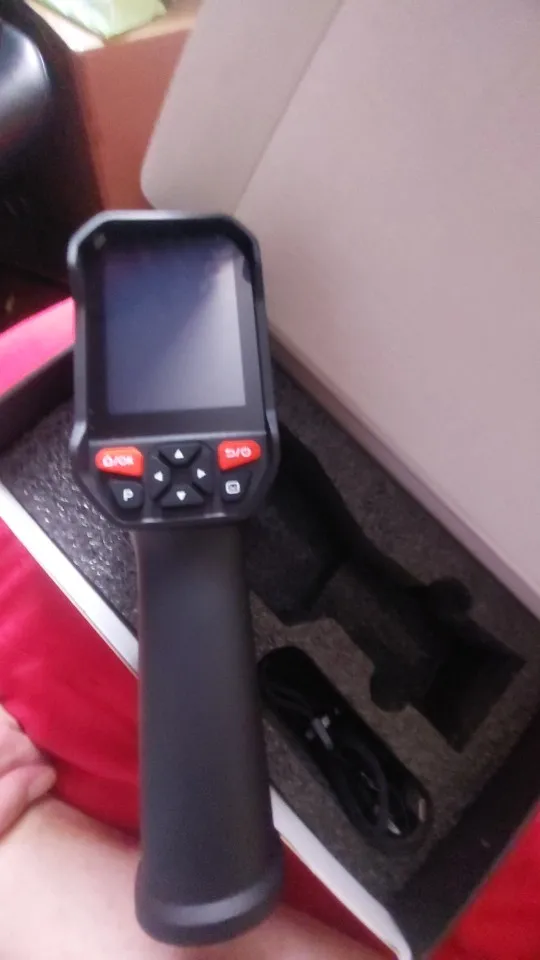

ET693C Thermal Camera: Ready to work with English menu loaded.
-
Type-C Data Cable: Enables fast charging and PC connectivity.
-
Nylon Lanyard: Secure grip for handheld scanning sessions.
-
English User Manual: Quick setup guide and reference tables.
-

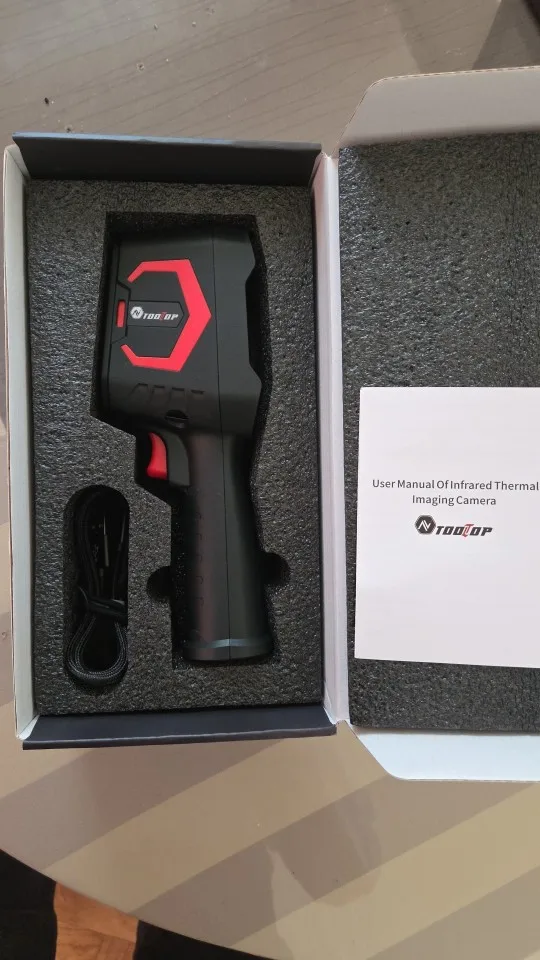

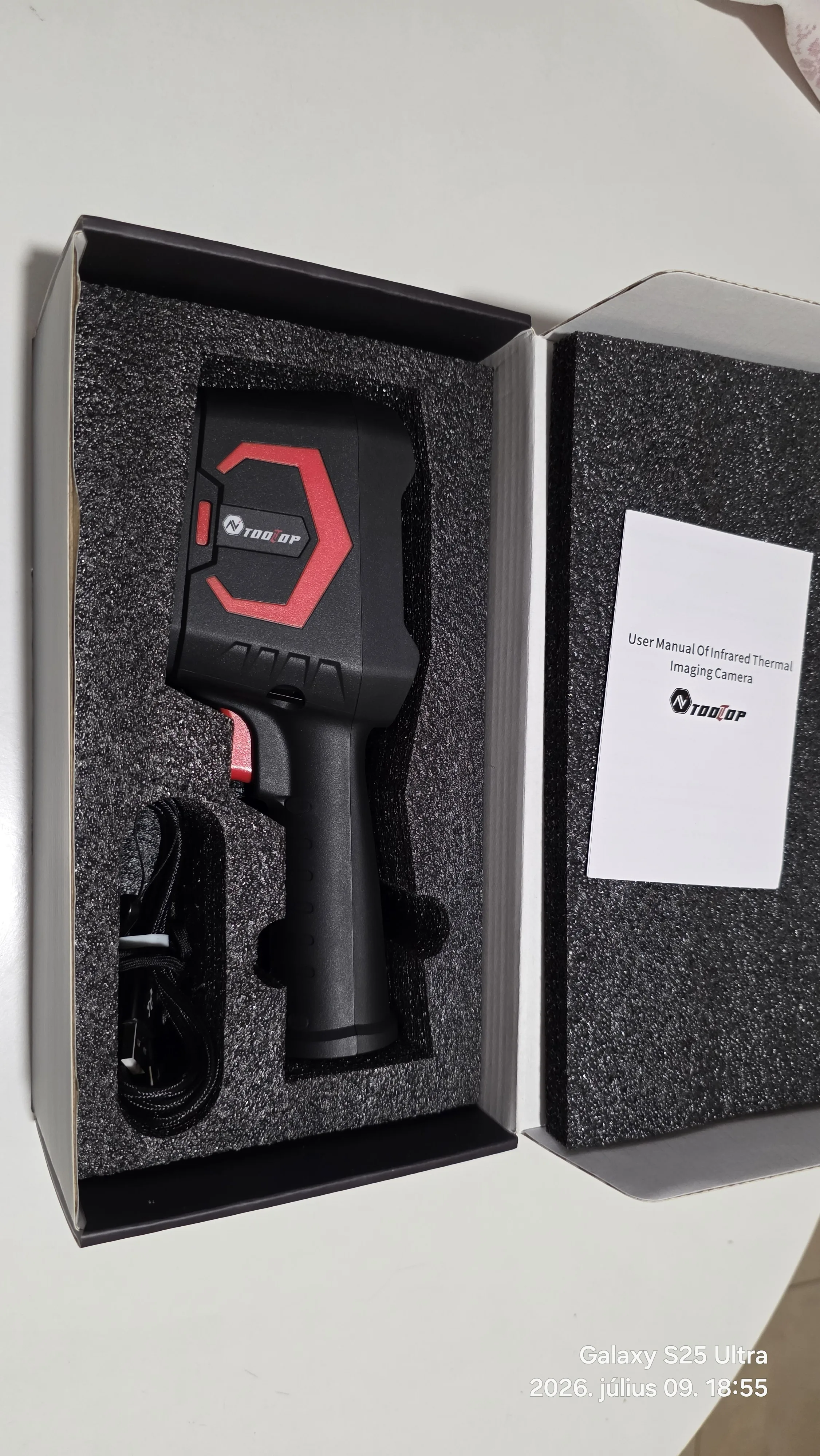

Packing Box: Protects equipment during transport.
Customer Benefits
Trust every reading for safety compliance and maintenance planning. Fast calibration means less waiting and more diagnosing. Flexible fusion options let you show clients exactly where heat escapes. Durable construction withstands job site conditions. Optional enlarger lenses expand your focal flexibility for close-up work.
Frequently Asked Questions
1. How much data can the camera store?
The 6.19 gigabytes of usable memory holds over 20,000 individual pictures. You can mix photo and video captures seamlessly without managing external cards.

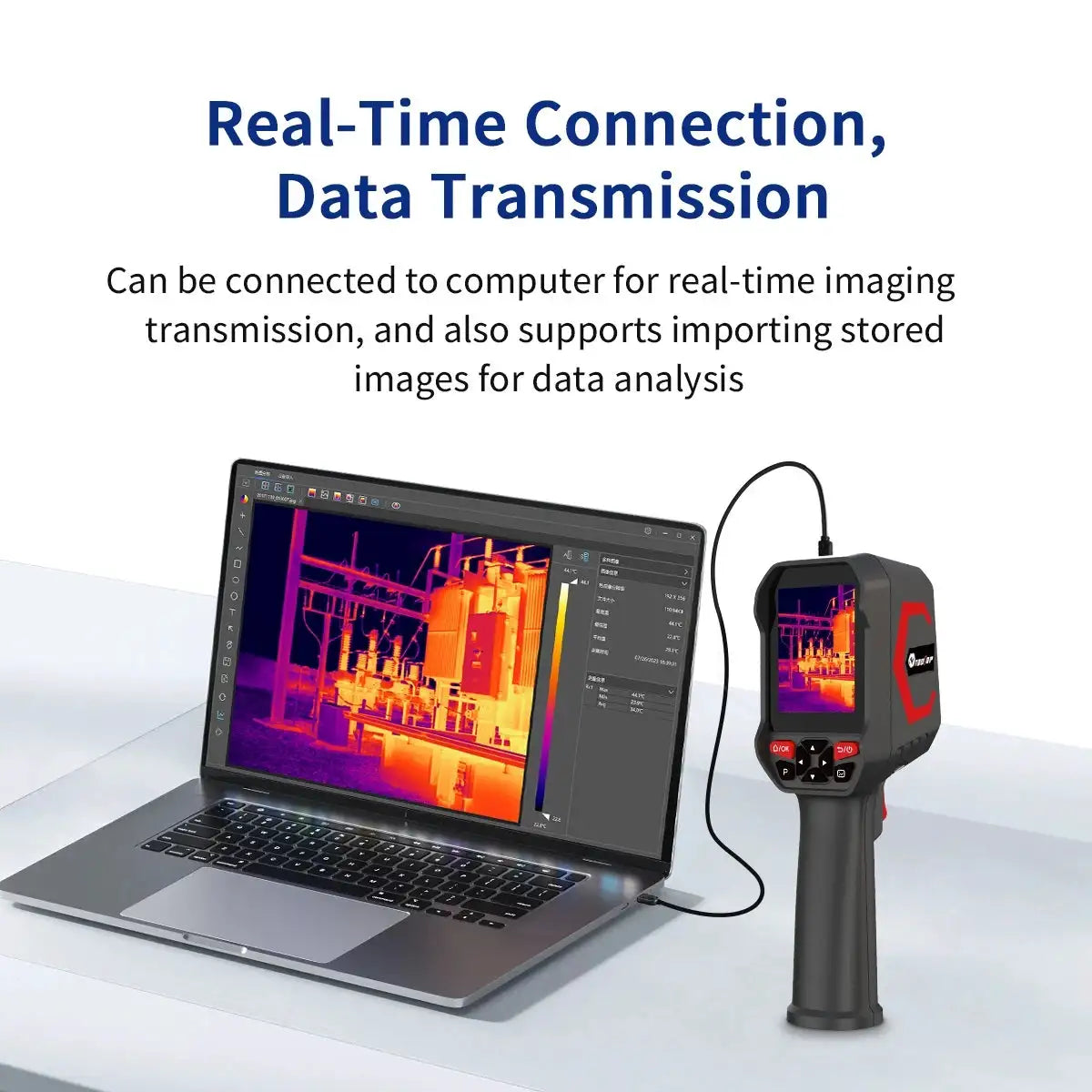

2. Can I view live footage on my computer?
Yes. The USB Type-C connection supports real-time imaging transmission. PC software allows live streaming, immediate storage, and deeper data analysis of your thermal scans.
