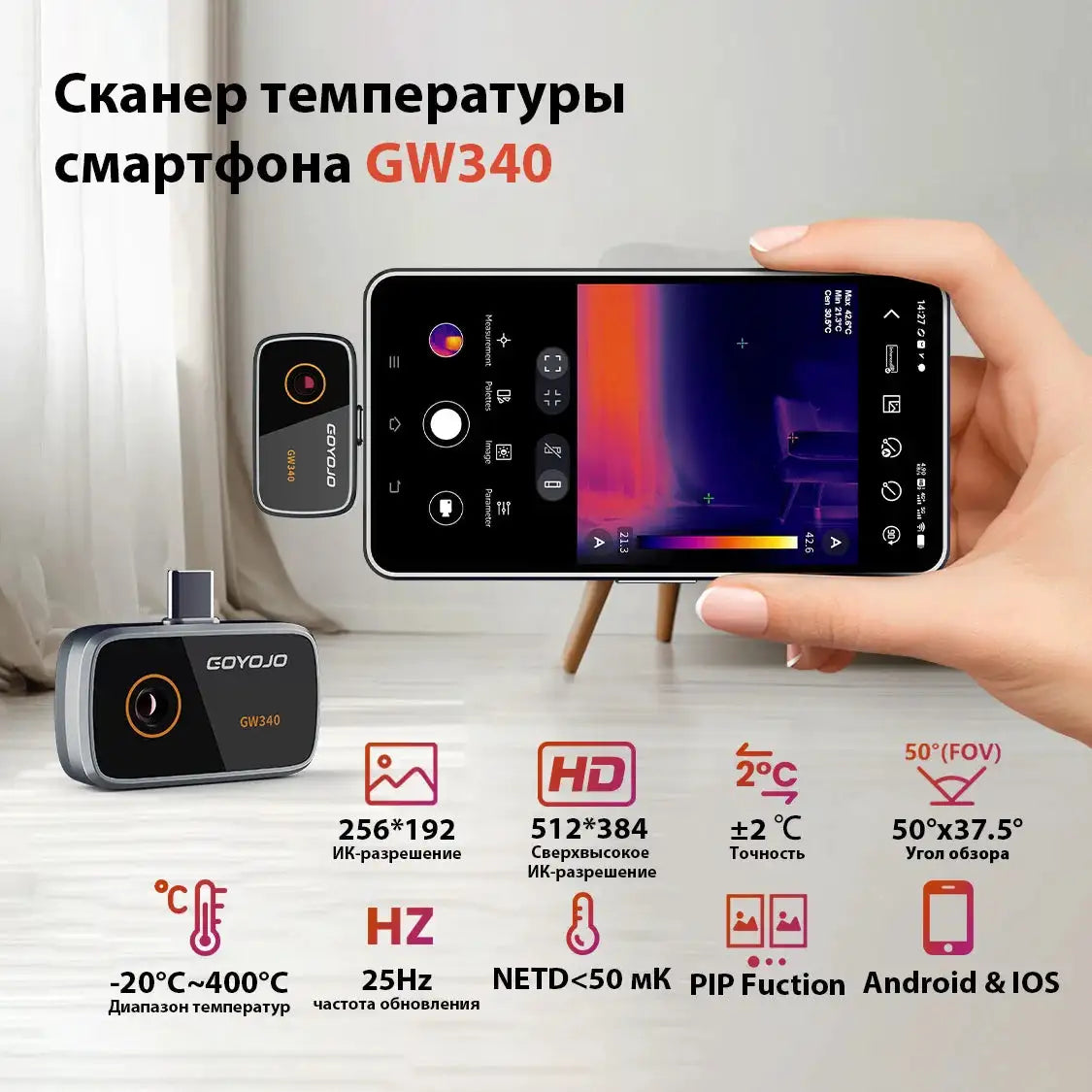

Turn your smartphone into a professional heat scanner. Plug directly via USB-C for instant fault detection. Spot electrical faults, leaky pipes, and insulation gaps fast.
This pocket-sized thermal camera transforms your everyday phone into a diagnostic powerhouse. Connect through the USB-C interface and begin scanning heat patterns immediately. No separate batteries or bulky hubs slow down your workflow. The 12μm pixel sensor delivers crisp thermal contrast across multiple color palettes.
The GOYOJO GW340 is engineered for rapid field inspections. It pairs wire-free with compatible modern smartphones. Nine adjustable palettes let you tweak contrast for bright daylight or dark basements. Rugged construction handles routine job site transport.
You catch wiring overload signs before they spark. The wide 50° field of view covers large panels in a single sweep. Trusted ±2% precision ensures repair decisions rest on hard data. Lightweight design stays secure in your pocket or tool belt.
Sensor Array: 256×192 Infrared
Super IR Scaling: 512×384 Pixels
Optical Field: 50° × 37.5°

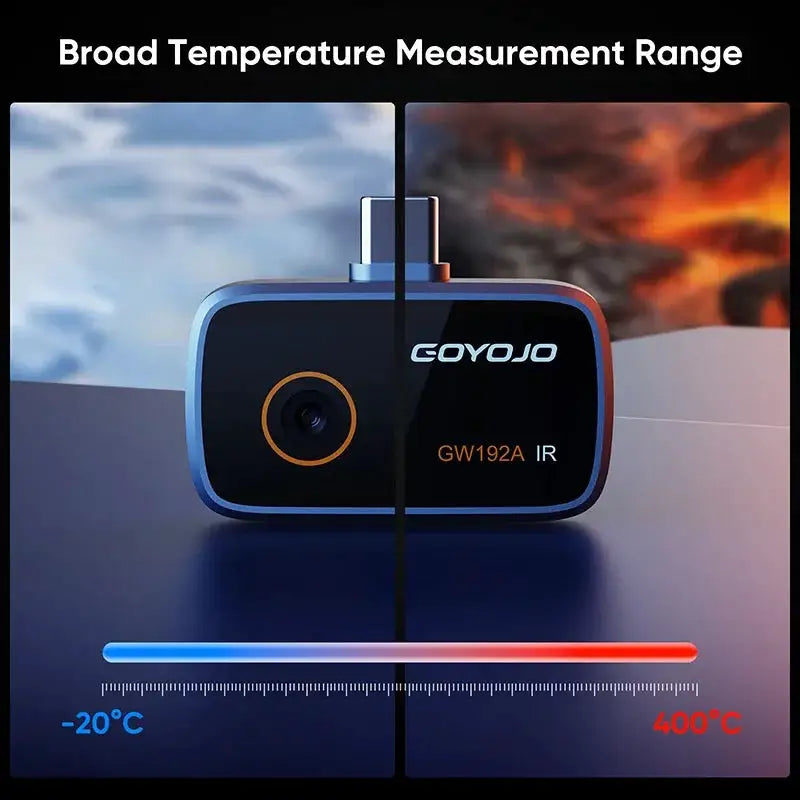

Temp Span: −20°C to 400°C (−4°F to 752°F)
Accuracy: ±2°C or ±2%
Power Draw: 360mW
Size: 45 × 11 × 34 mm
Certification: CE
Compatibility: iOS 15/16/17 & Android 12+
Note: No battery included.
GW340 portable thermal imaging module. High-tensile USB-C sync cable.

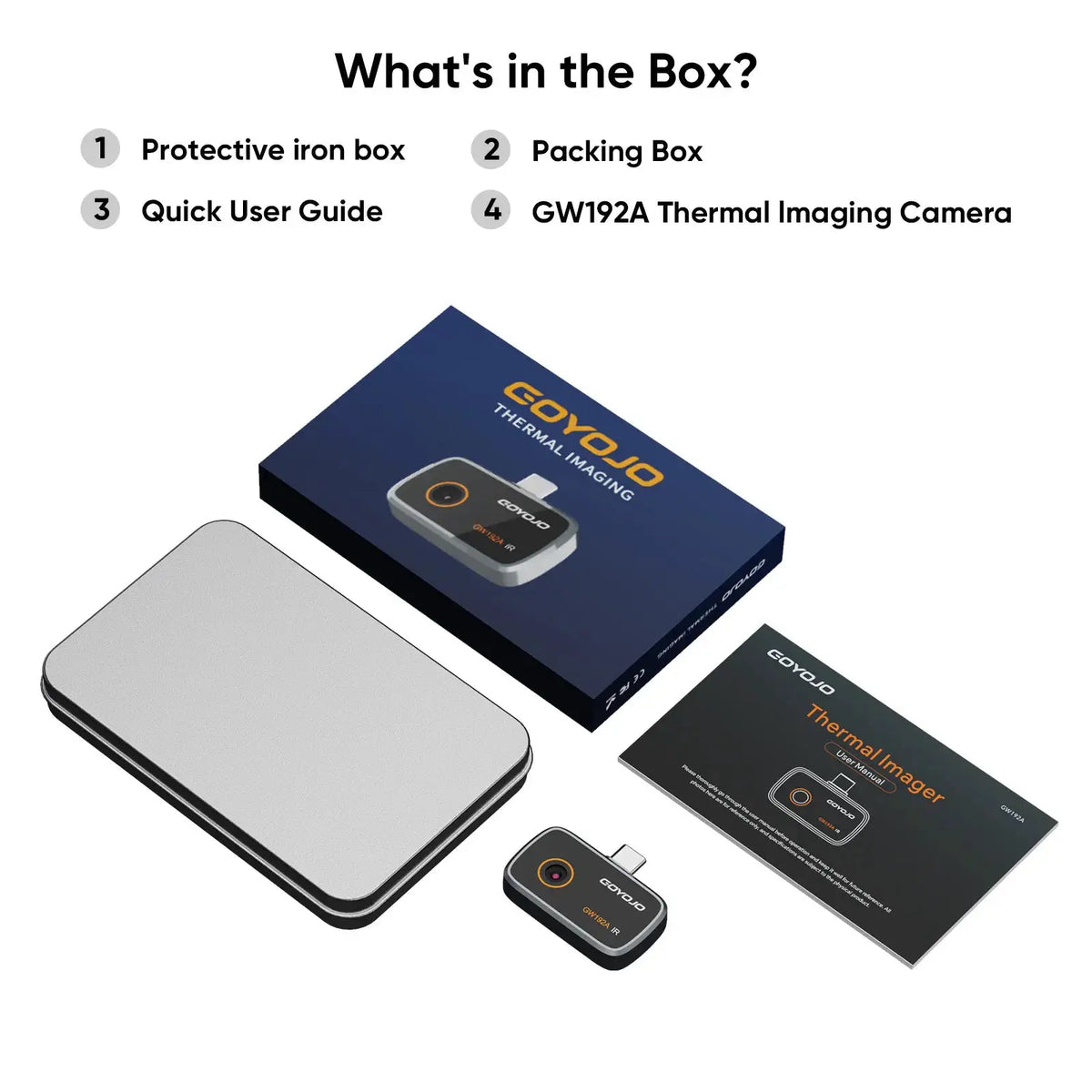

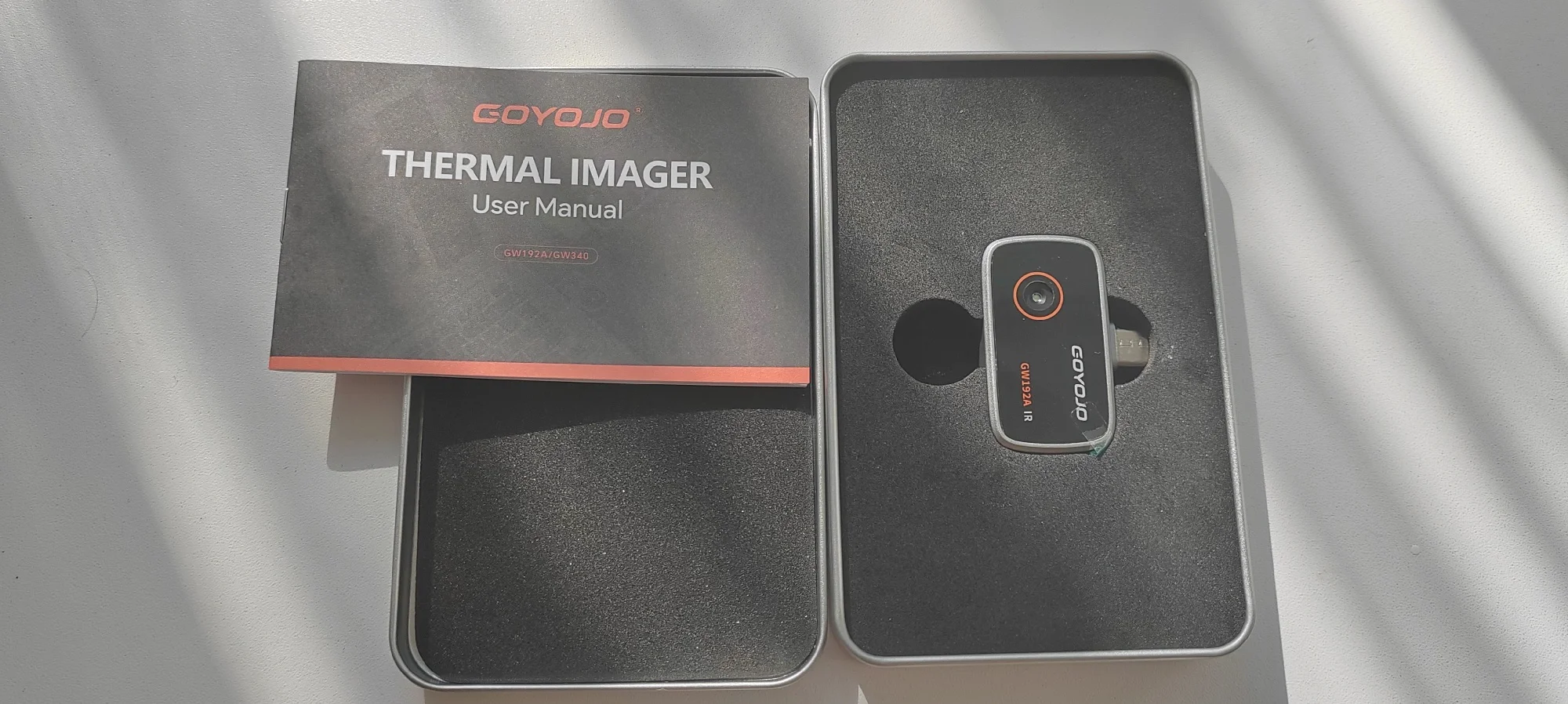

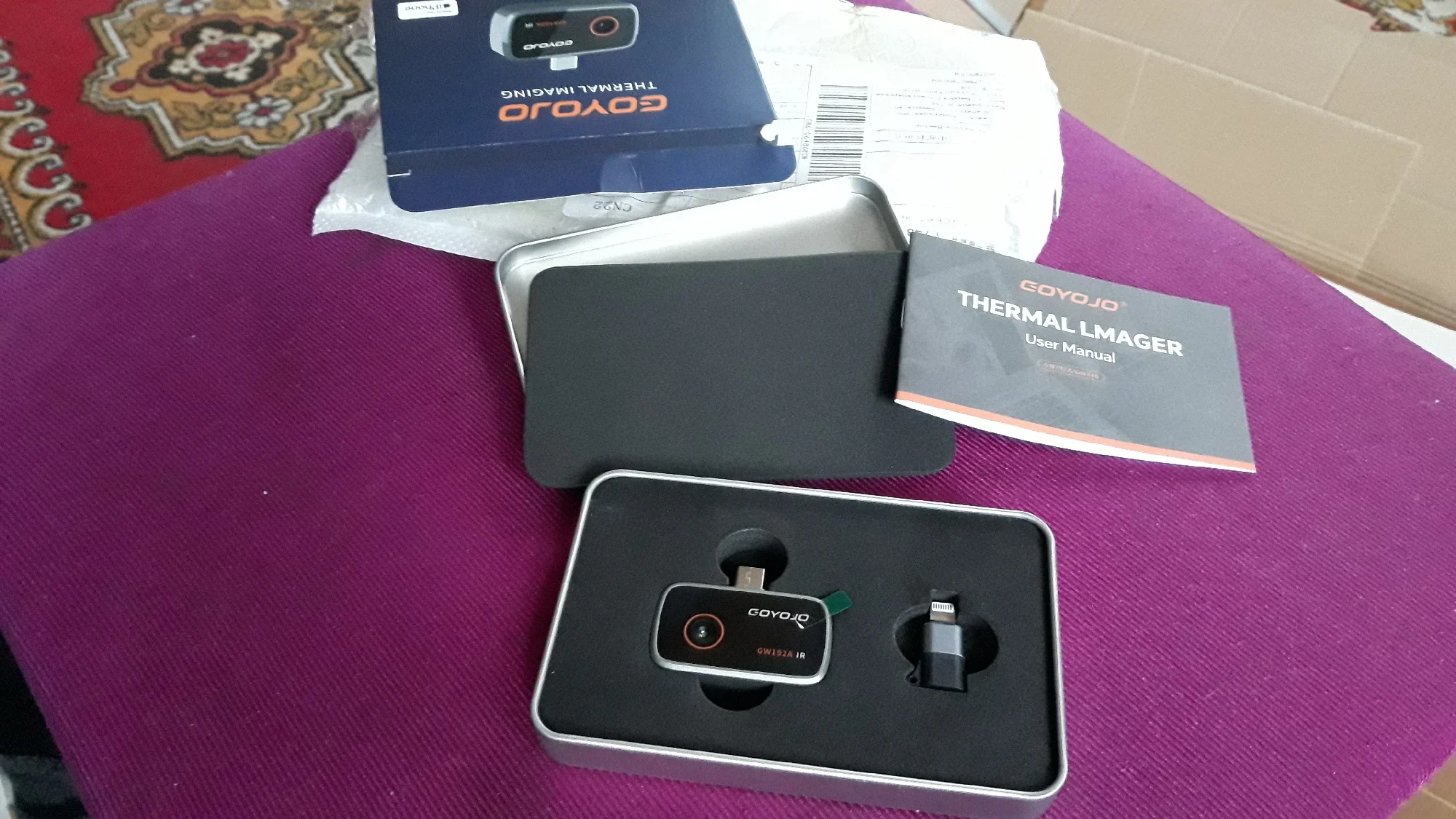

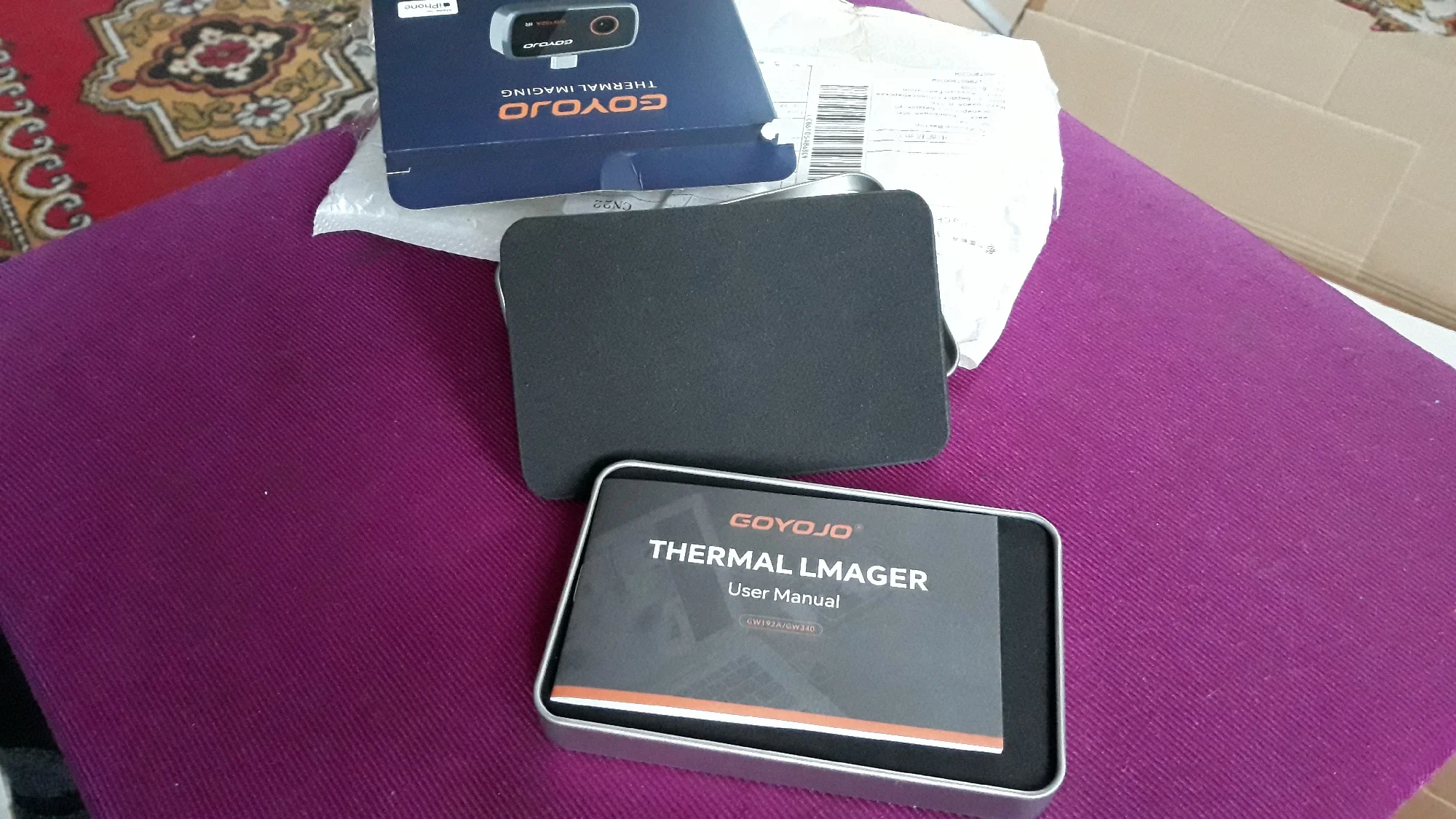

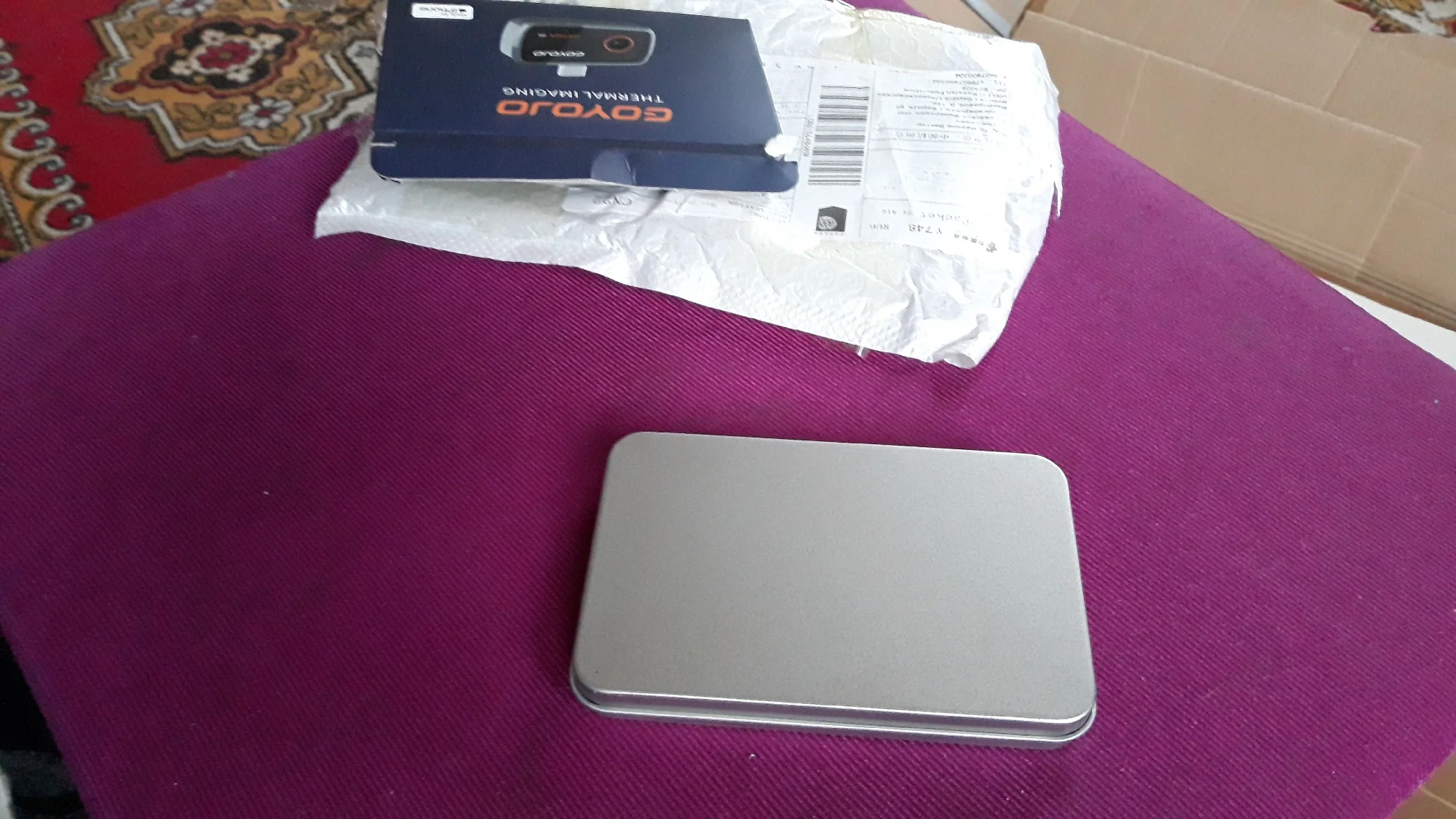

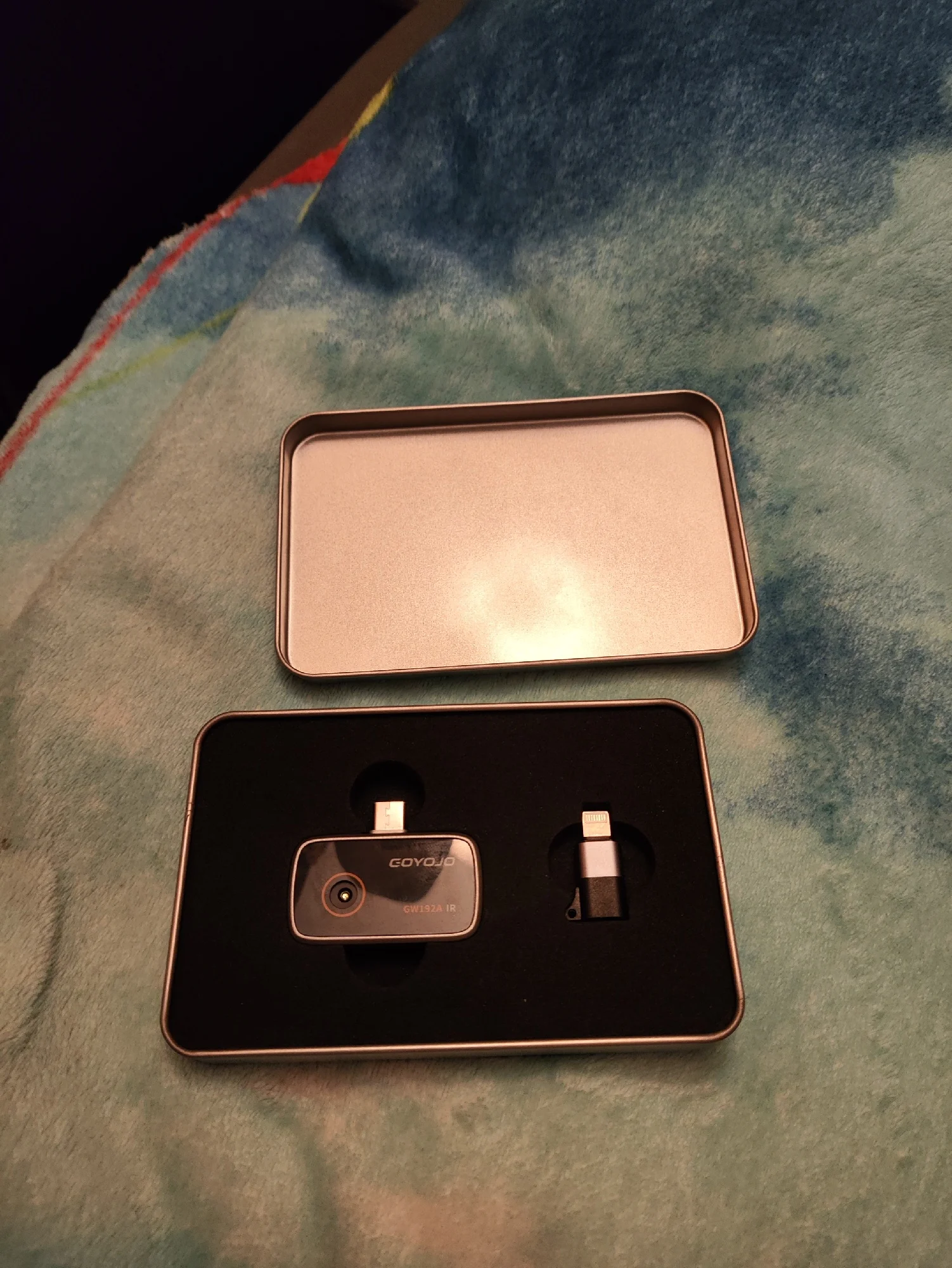

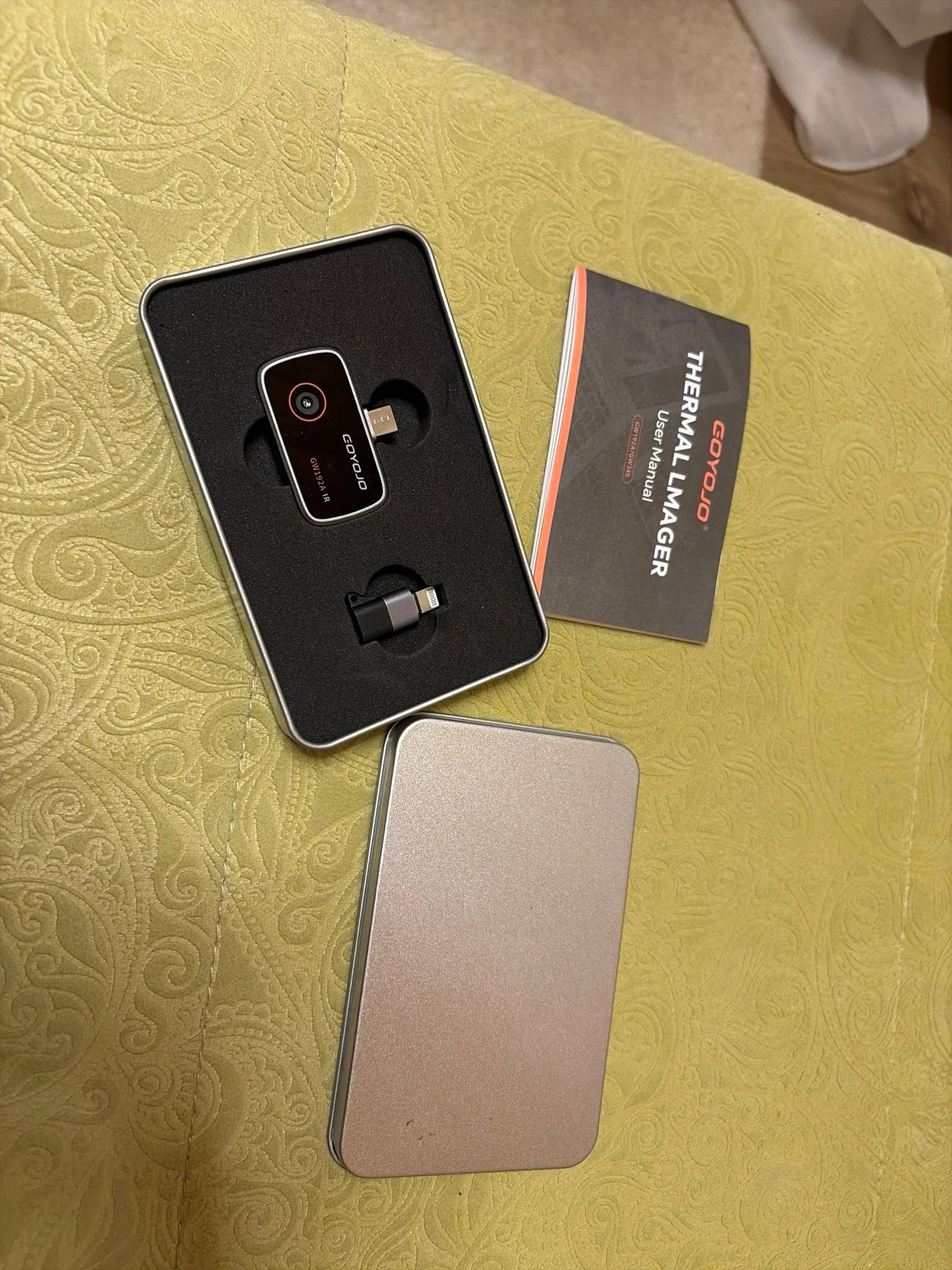

The sealed box contains the imaging head, connector cable, and setup guide. Ready to mount on day one.

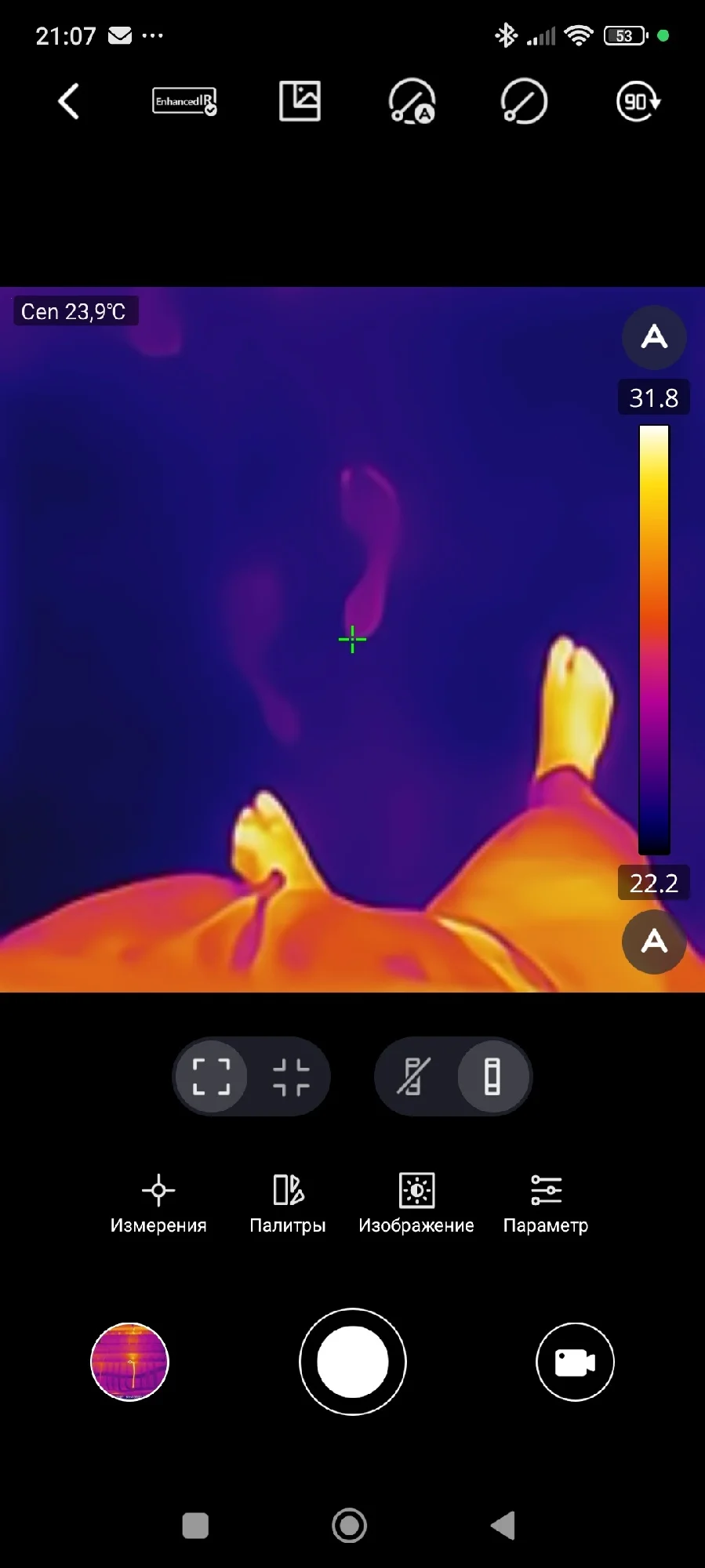

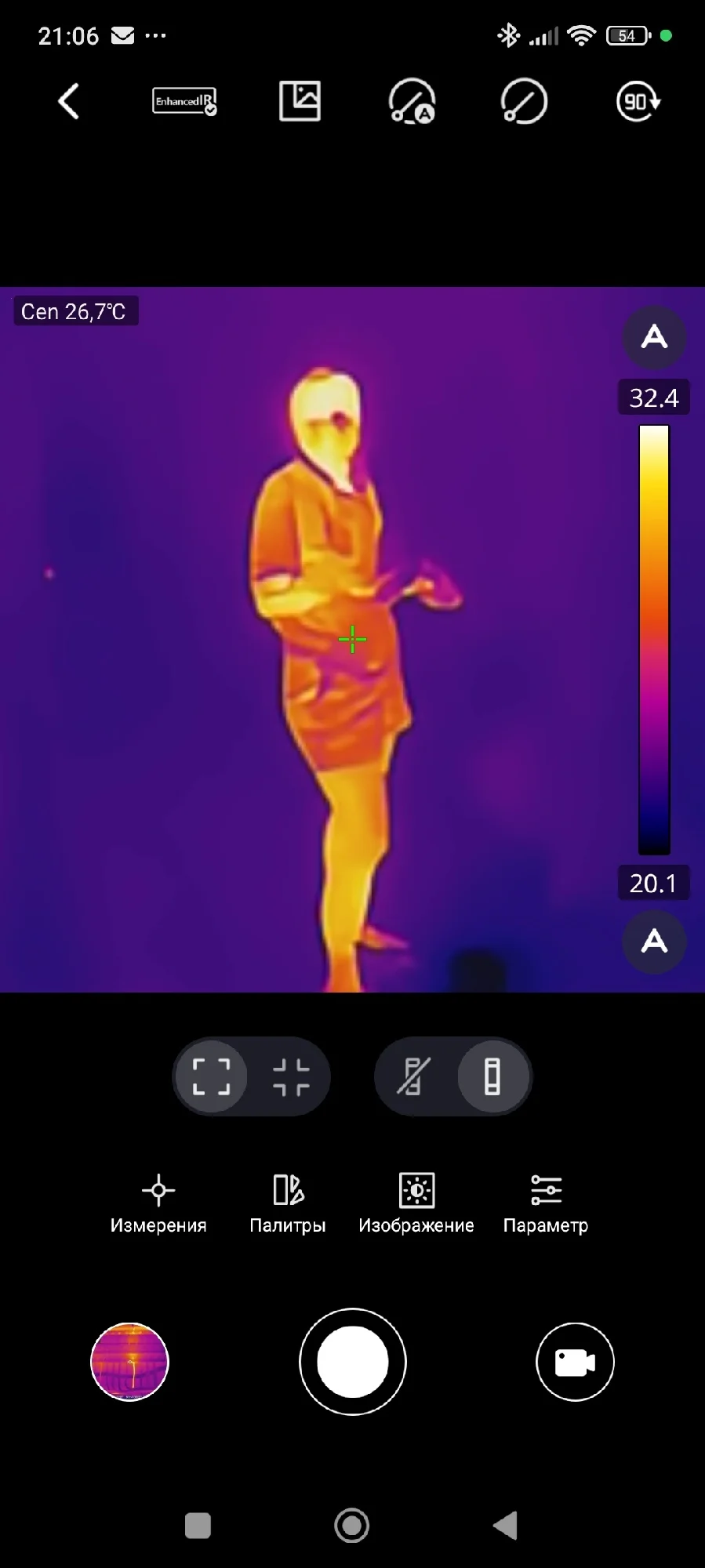

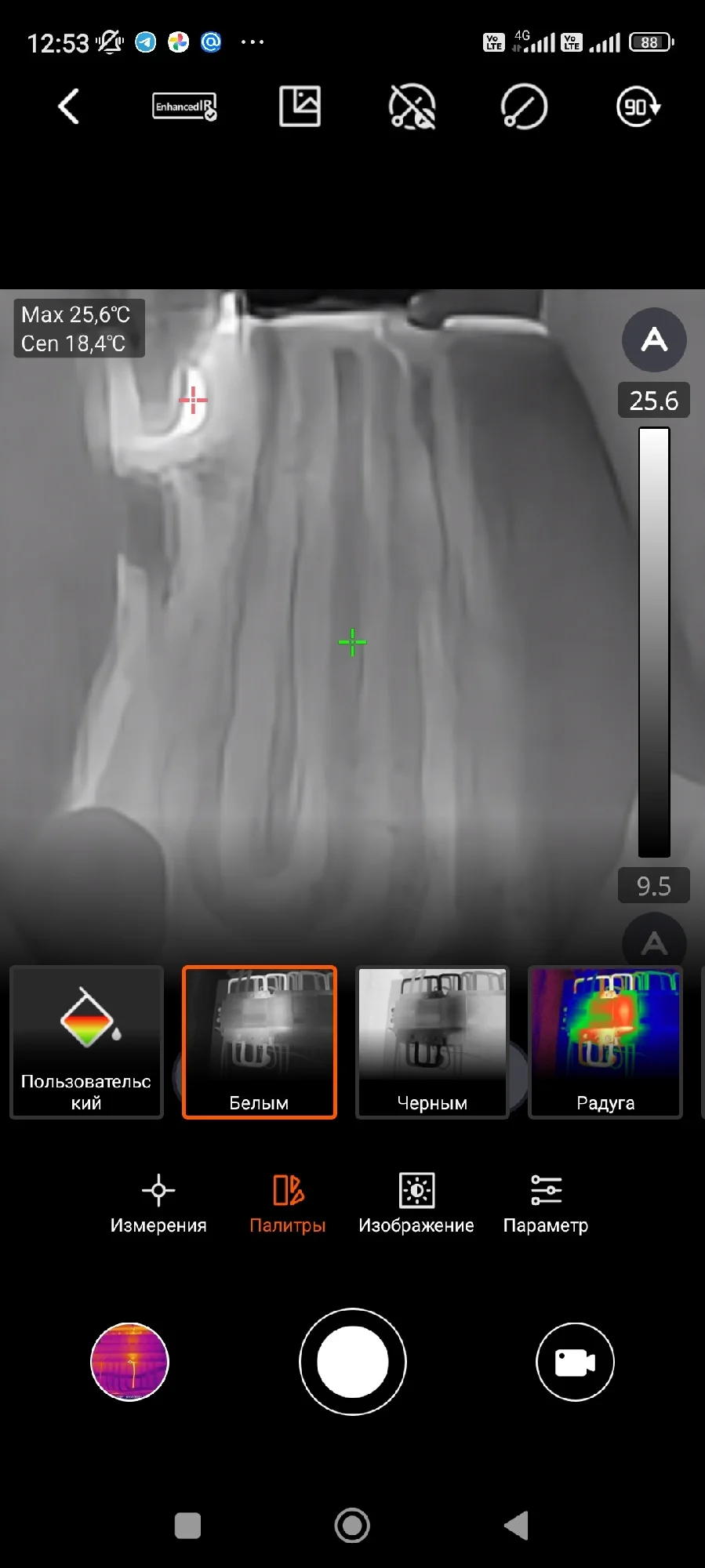

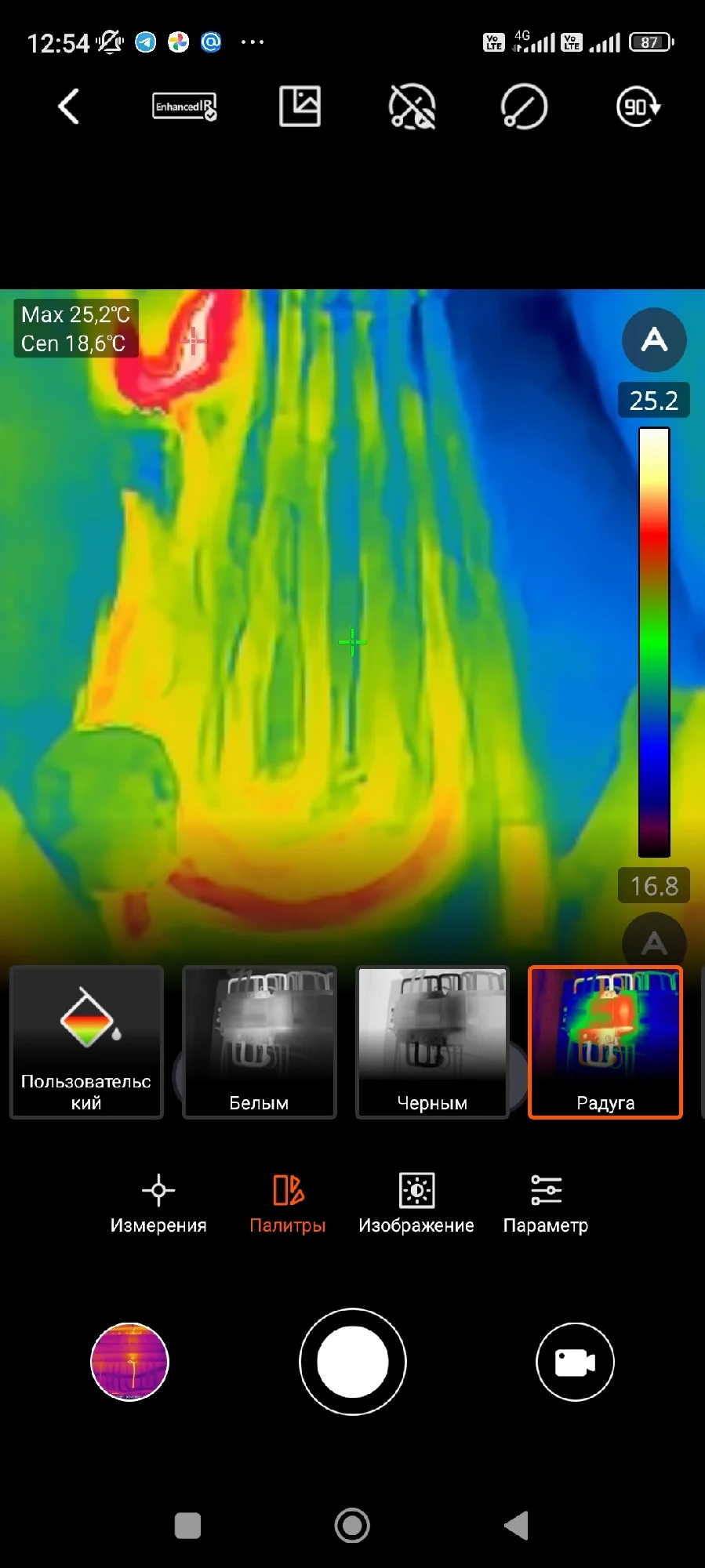

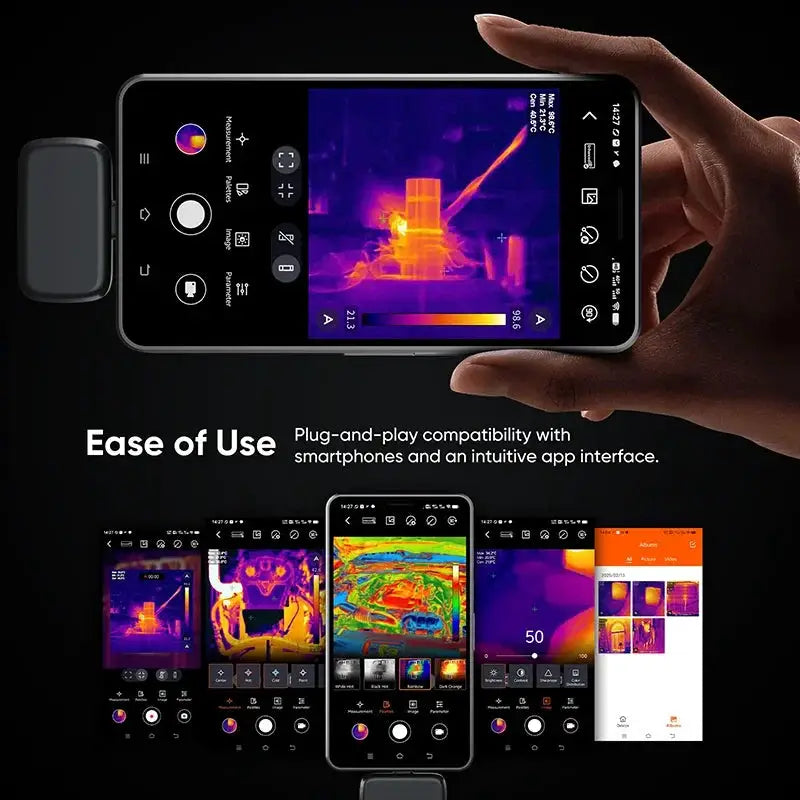

Slide the USB-C plug into your phone outlet. Launch your thermography app. Aim at the target surface. Switch palettes until temperature shifts pop visually. Capture screenshots or export logs directly to your gallery.

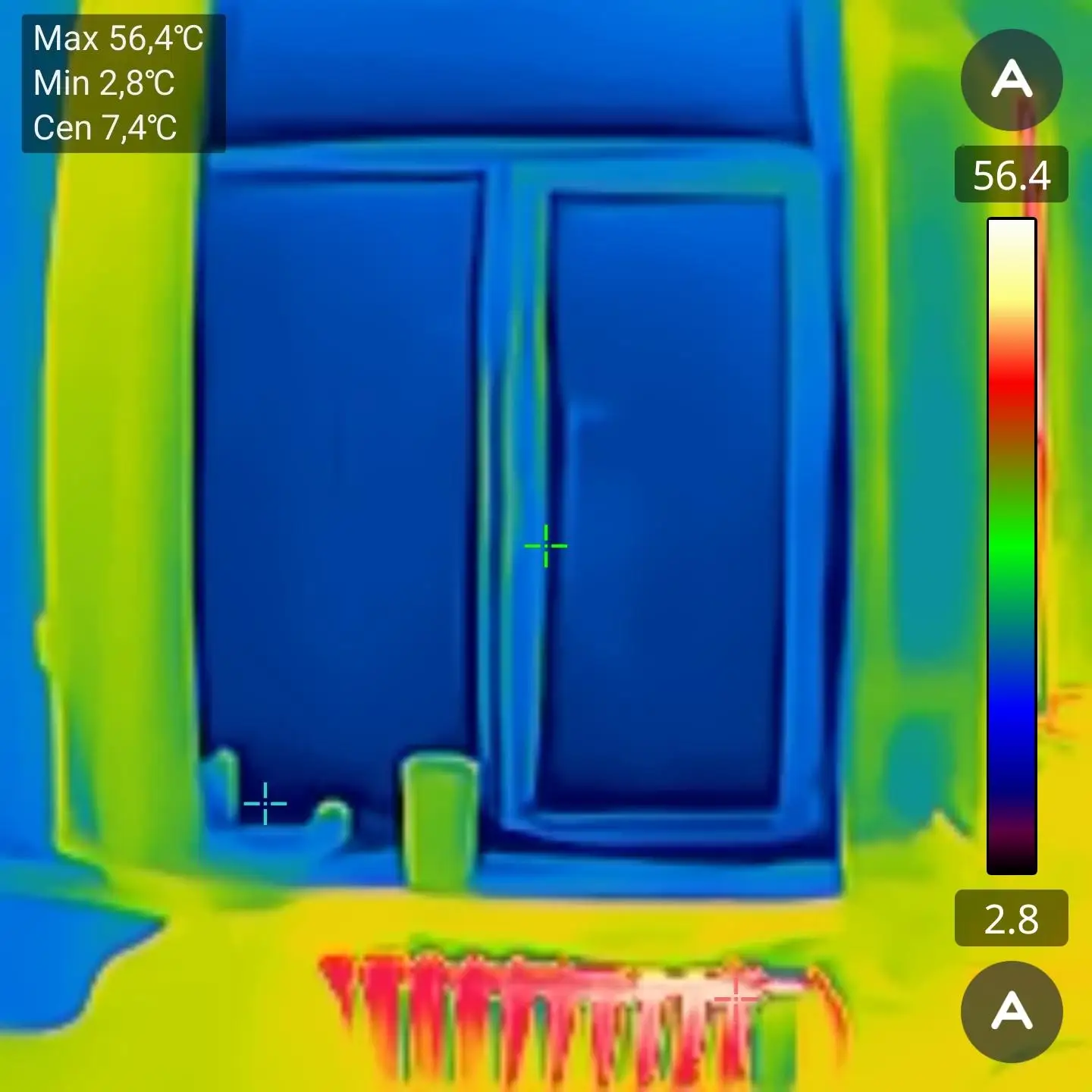

Contractors verify circuit loads without shutting down panels. Property managers locate moisture intrusion behind drywall. Auto shops trace cooling system blockages safely. You replace expensive standalone gear with a device you carry everywhere.

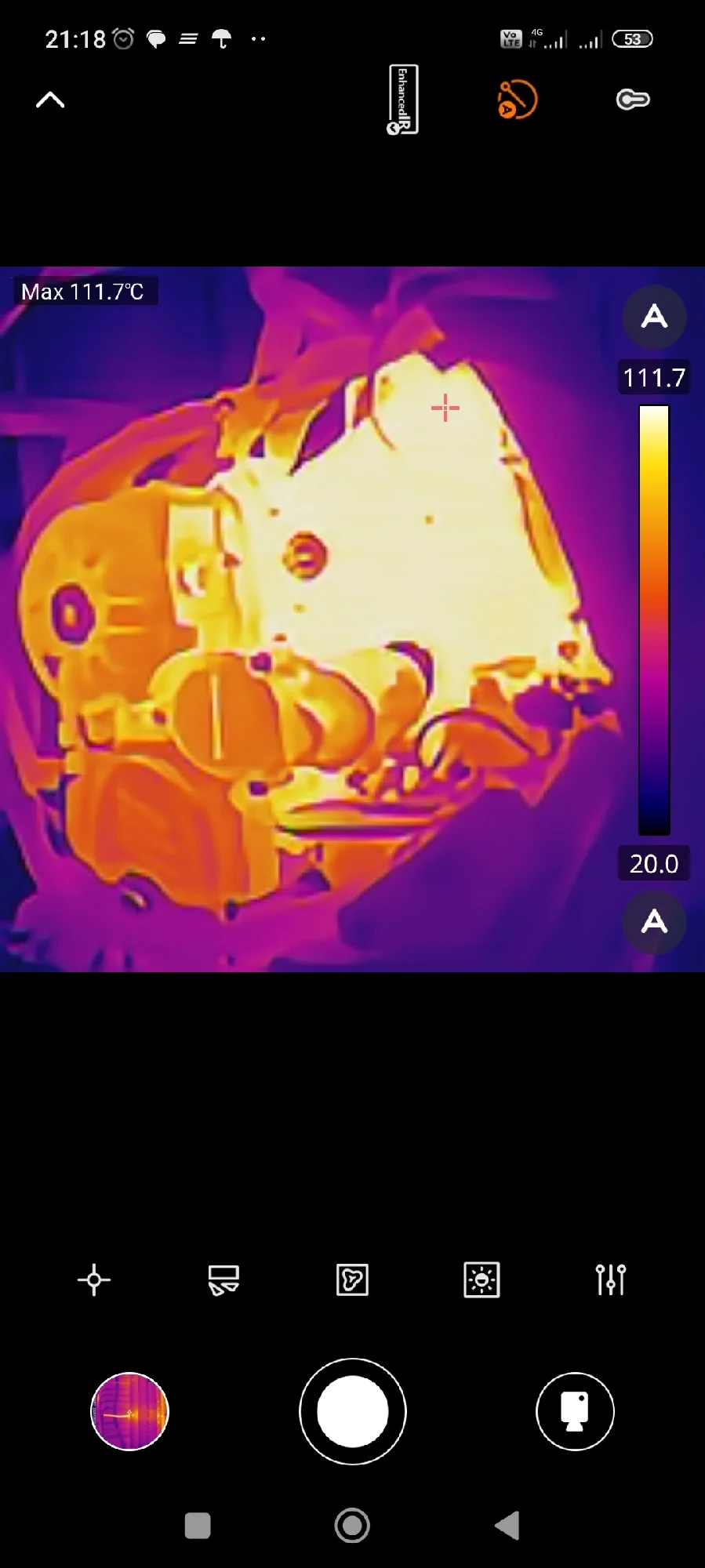

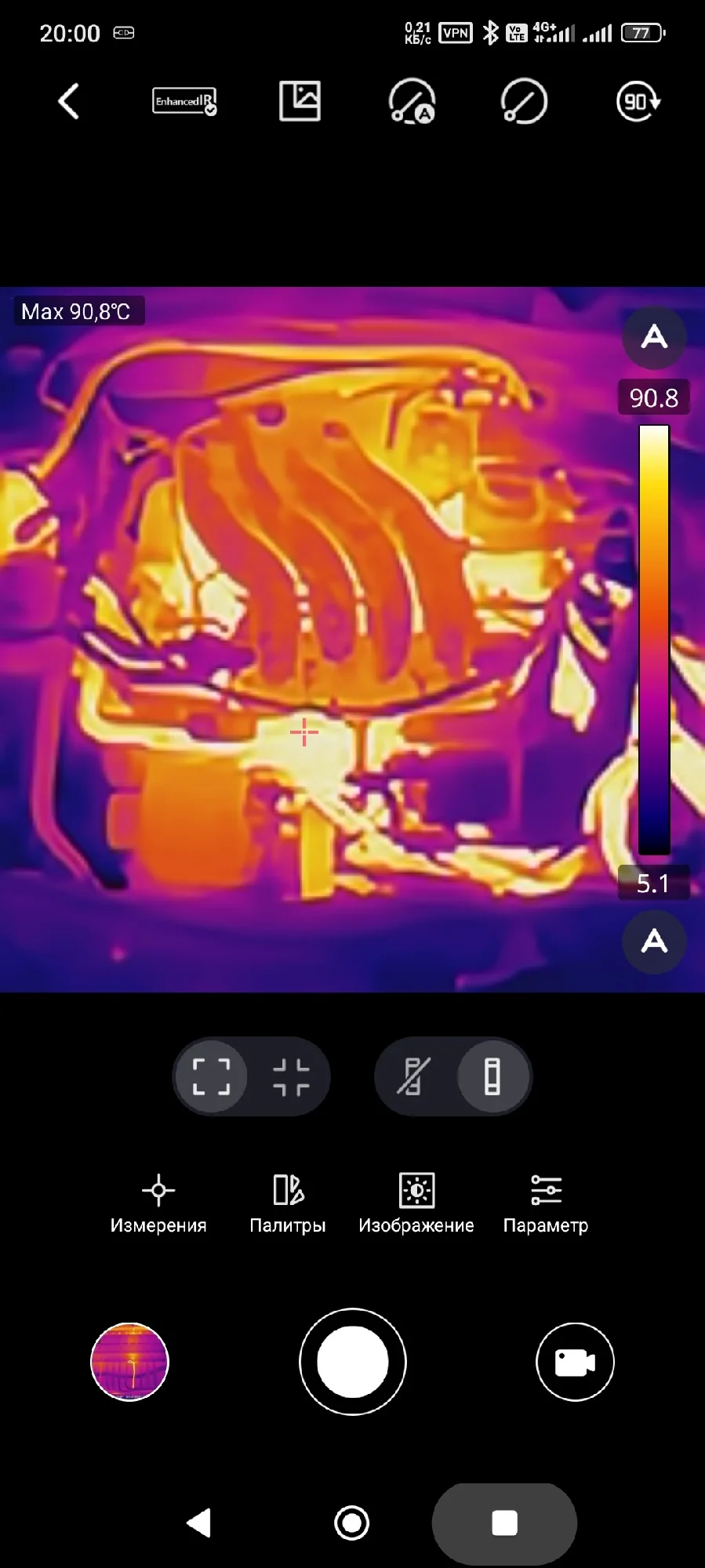

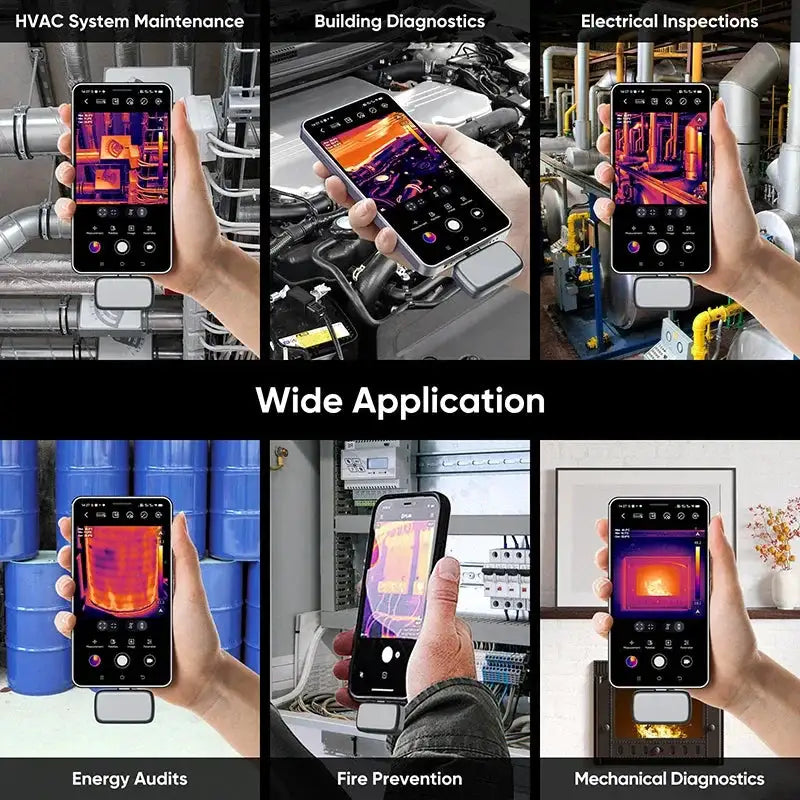

Solar farm cell testing. HVAC duct leak hunts. Breaker box load balancing. Engine bay overheating checks. Roof shingle insulation tracing. Commercial kitchen equipment audits.
Electricians. HVAC technicians. Facility supervisors. Insurance adjusters. Car hobbyists. Residential energy raters.
Does it connect to older phones?
No. It requires USB-C ports found on iOS 15 through 17 models and Android 12+ devices.
Is the sensor waterproof?
No. The housing carries a CE mark but lacks an IP waterproof rating. Keep the unit dry.
Can I swap out components?
The sensor board is sealed for calibration. Users attach only via the supplied cable.
How fast is the refresh rate?
The module streams infrared frames at 25Hz for smooth motion tracking.
What happens if it fails?
Buyers qualify for one-year free replacement through the manufacturer support line.
Product name |
GW340 Thermal Camera for Smartphone |
Resolution |
256X192 Infrared Sensor, 512*384 Super IR |
Pixel Size |
12 um |
Field of View (FOV) |
50°x37.5° |
Temperature Measurement |
-20°C~400°C (-4°F to 752°F) |
Accuracy |
± 2°C or ± 2% |
Palettes |
White Hot/ Black Hot/ Rainbow/ Dark Orange/ High lron/ lronbow/ Sepia/ Purple Red/ Low lron/lce Fire/ Rain/ Red Hot/ Green Hot/ Dark Blue |
Operating Temperature |
-10°C~50°C |
Storage Temperature |
-20℃-60℃ |
Power Consumption |
360mW |
Dimensions |
45 x 11x 34mm |
