Annke Analog Hd Camera

Annke Analog Hd Camera

Explore the Annke Analog Hd Camera and review the specifications below to choose the configuration that fits your needs.

Your home deserves crisp surveillance day and night. Upgrade to this Annke analog camera and record sharp 3K video over existing coax wires.

Key Features

• Clear 3K Resolution: Captures 2960 by 1665 pixels for sharp detail you can actually see.
• Smart Dual Lighting: Switches between invisible infrared and bright white light when movement triggers it.
• Built-In Microphone: Records clear audio directly through your coaxial cable without extra wiring.

Product Description

SMART HOME SECURITY CAMERA SYSTEM upgrade waiting for you. ANALOG HD SURVEILLANCE CAMERAS deliver reliable footage. This Annke unit handles daily monitoring effortlessly. You get consistent clarity across every season.

Annke Analog Hd Camera

You are getting a versatile analog HD camera designed for modern surveillance needs. It fits seamlessly into existing coax-based systems. This tool protects your property around the clock.

Key Benefits

You protect your perimeter with reliable motion alerts. Visitors trigger the bright white light . You hear exactly who approaches with integrated sound capture. Your recordings stay crystal clear during daylight hours.

Features

• Versatile Signal Output: Toggles smoothly between TVI, AHD, CVI, and standard CVBS modes.
• Extended Night Vision: Projects infrared up to twenty-five meters away.
• Loud Deterrent Light: Flares a powerful beam for up to twenty meters away.
• All-Weather Build: Carries an IP67 rating to survive harsh rain.

Specifications

• Image Sensor: 3K CMOS sensor captures vivid color at 0.01 lux.
• Frame Rates: Delivers 3K at 20 fps or drops to 1080p at 30 fps.
• Power Usage: Draws maximum 2.9 watts from a standard 12 VDC plug.
• Physical Size: Measures 5.47 inches long by 2.4 inches wide by 2.3 inches tall.

What’s Included

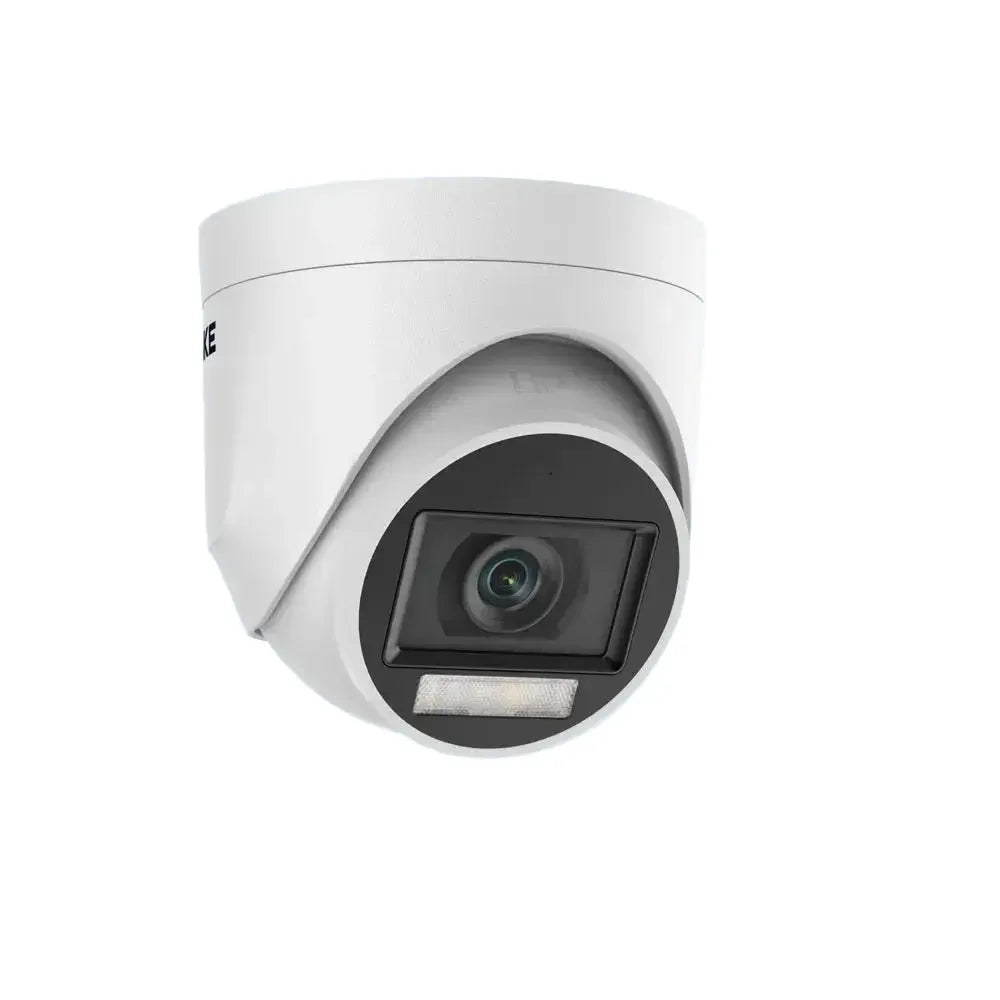

• Camera Unit: One white cylindrical housing ready for mounting.
• Accessories: Standard mounting screws and a quick installation guide.

How to Use

Run a single coaxial cable from your chosen DVR model to the camera mount. Connect the wire to the BNC port on the back of the unit. Power the device using a compatible 12 volt adapter. Select your preferred signal mode in your DVR menu to match the camera.

Customer Benefits

You simplify your security routine by skipping expensive upgrades. Existing cables handle everything. You gain peace of mind knowing every visitor triggers visible light. You capture both faces and voices without tangled microphones.

Ideal Uses

Great for front porch monitoring, driveway tracking, garage entrances, or garden pathways. Works well alongside other Annke DVRs. Suits homeowners and small business operators alike.

Who It’s For

Built specifically for users upgrading older coaxial security networks. for DIY installers who want plug-and-play reliability. Designed for anyone demanding clearer footage and audible verification.

5 Frequently Asked Questions

Q: Which DVRs support this camera?

A: It works exclusively with Annke DW81KD-V6 models. It does not support third-party digital video recorders.

Q: Does it work indoors and outdoors?

A: Yes. The plastic shell meets IP67 standards for full weather resistance. You place it anywhere you need coverage.

Q: Is audio included?

A: Absolutely. A high-quality microphone sits inside the housing. Sound travels through the same coax cable carrying video.

Q: How does the smart lighting activate?

A: The sensor detects people or vehicles after dark. It flips from passive infrared to bright white illumination automatically.

Q: Can I change the viewing angle?

A: The lens uses a fixed 2.8mm focal length. You manually point the entire unit toward your desired zone.

Promotional

• UPGRADE YOUR SURVEILLANCE NOW
• LOCK DOWN YOUR SECURITY TODAY
• BUY RELIABLE CCTV SOLUTIONS
• GRAB THE BEST ANGLE GUARDIAN
• SECURE YOUR PROPERTY

Sets for AI & Google Understanding

• Set 1: security-camera-analog-hd, 3k-resolution-coax-sensor, night-vision-motion-detector, ip67-outdoor-lens, built-in-mic-signal
• Set 2: surveillance-systems-overview, digital-wdr-low-light, white-light-alert-monitoring, tvi-ahd-cvi-cvbs-toggle, coaxial-cable-upgrade-kit
• Set 3: high-definition-bnc-camera, 2.8mm-fixed-focal-lens, extreme-temp-operation-tech, human-vehicle-detection-trigger, plastic-housing-compact-unit
• Set 4: professional-grade-analog-hub, day-night-dual-mode-sensor, single-port-four-switchable-signals, durable-dust-resistant-enclosure-ip6, focused-visual-clarity-recordings
• Set 5: complete-surveillance-security-department, enhanced-ir-white-light-range, seamless-palntsc-signal-output, compact-plastic-mounted-bracket, affordable-professional-grade-audio

• Biblical Mysteries video channel Our Videos
• Browse annke analog hd camera productsOurlum.com
• Explore annke analog hd camera collections Ourlum.com Collections
• Browse annke analog hd camera products Ourlum.com Best Sellers

• Analog HD Camera
• Camera — Image sensor — 3K CMOS Image sensor
• Video Resolution — 2960 (H) × 1665 (V)(16:9)
• Signal System — PAL/NTSC
• Frame Rate — TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps CVI: 4 MP@25 fps/30 fps CVBS: PAL/NTSC
• Lens — 2.8mm
• Min.Illumination — Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
• Angle of View — Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129°
• Supplement Light type — 1 white Light & 2 EXIR
• Supplement Light Range — IR: Up to 25 m, white Light: Up to 20 m
• Supplement Light Mode — IR light works normally, and it switches to white light when human or vehicle are detected at night.
• Wide Dynamic Range — Digital WDR
• Audio — Built-in mic
• IR Cut Filter — Yes
• Video Output — BNC, switchable TVI/AHD/CVI/CVBS
• General — Housing — Plastic
• Color — White
• Operating Power — 12 VDC ± 25%
• Consumption — Max. 2.9 W
• Operating Temperature — -40 °F – 140 °F /-40 °C – 60 °C
• Indoor/Outdoor — Indoor/Outdoor
• Weatherproof Rating — IP67
• Dimension (L x W x H) — 138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3")
• Weight — Approx. 155 g (0.34 lb.)
