SPECIFICATIONS

Brand Name: Firebat

Choice: yes

Graphics Card Type: Integrated Card

Hard Drive Capacity: 256GB

High-concerned chemical: none

Memory Capacity: 8 GB

Model Number: T6

Origin: Mainland China

Processor Brand: Intel

Processor Main Frequency: 3.6 GHz

Processor Model: Intel i3 8109U

Type: Mini Desktop,Mini PC

Use: Household

Dear buyer

Please note: The RAM is permanently soldered to the motherboard and cannot

be upgraded or replaced.

About Our Brand

--Packing explosive performance into a compact space; Taming unruly flames into a tool at your command. Empower youcreating more possibilities.

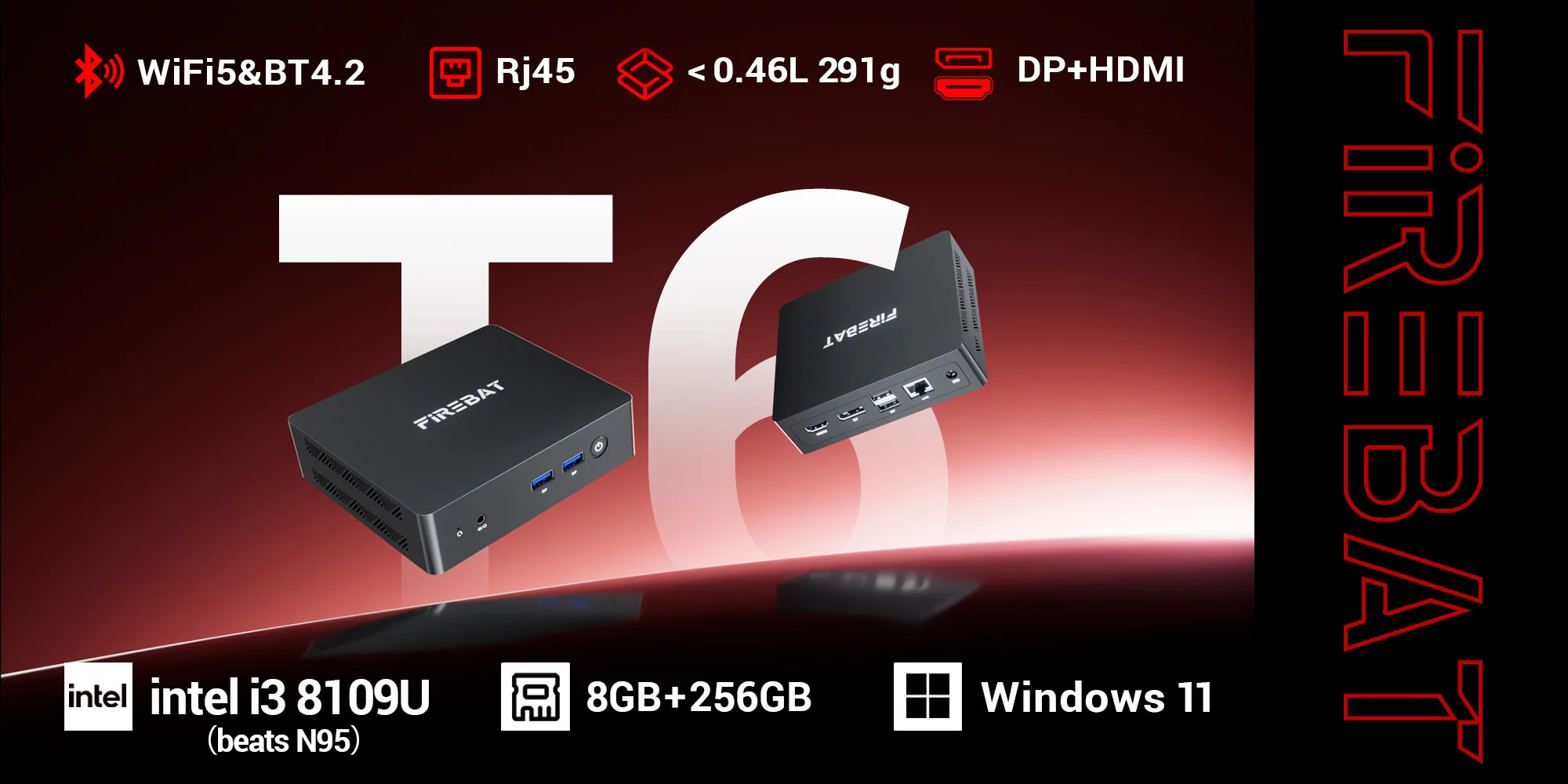

FIREBAT T6 Intel i3 - 8109U Mini PC

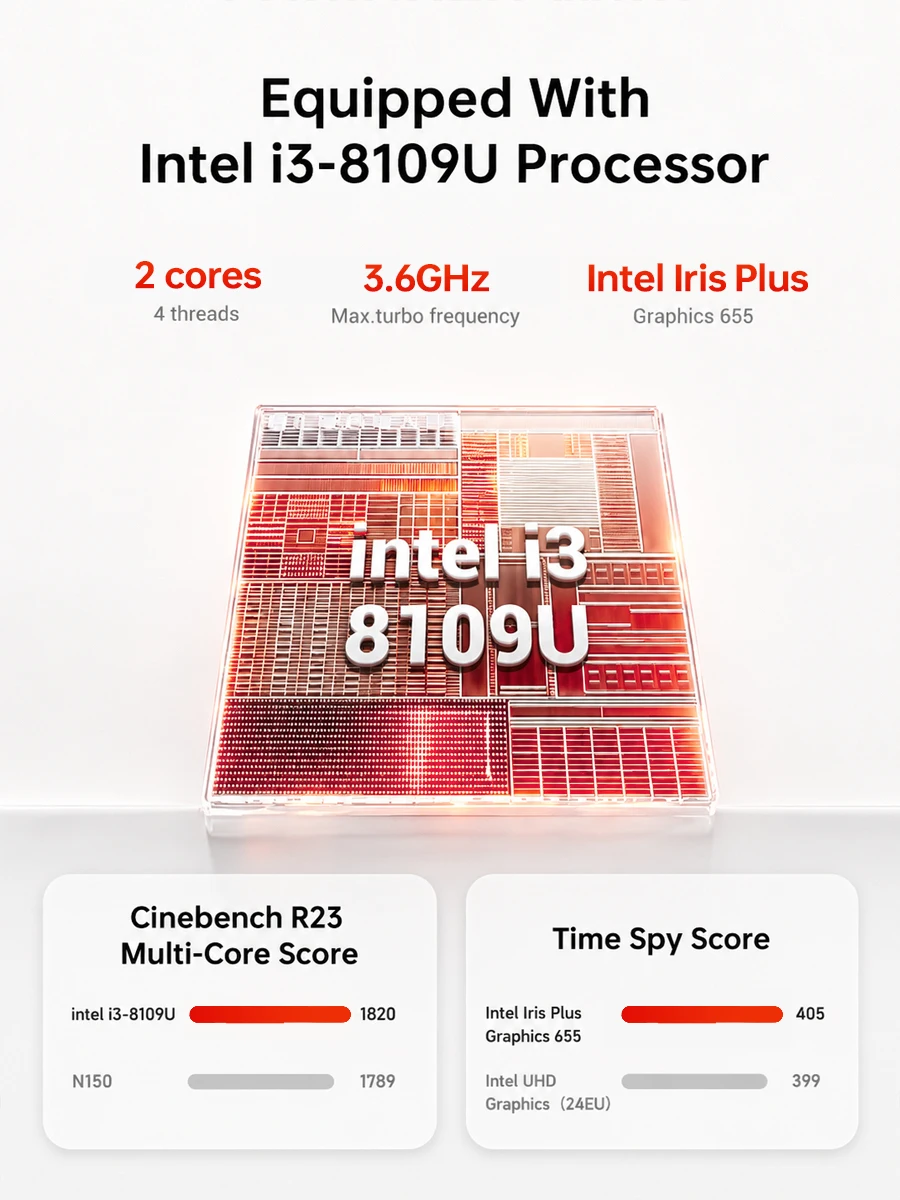

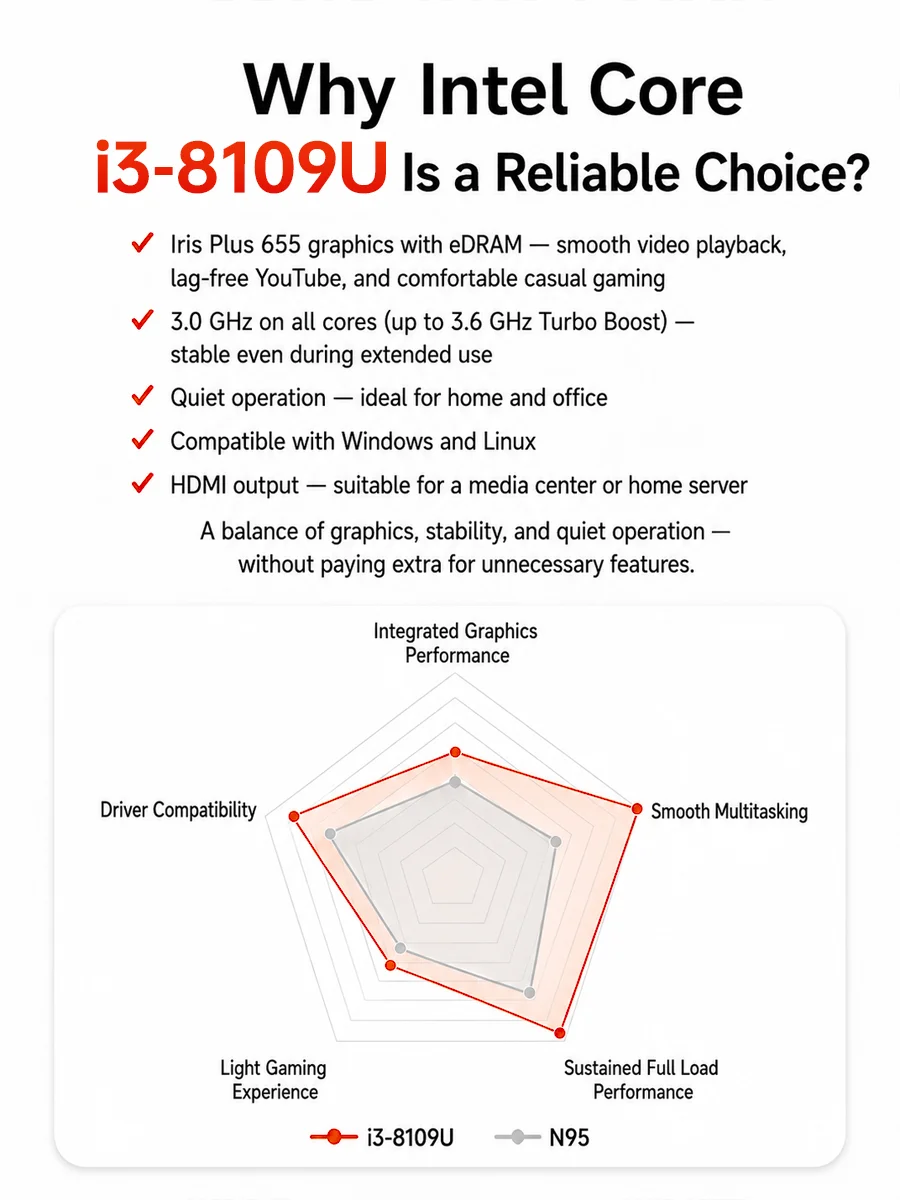

CPU: Intel i3-8109U, 2 cores, 4 threads, 3.0 GHz–3.6 GHz, 4 MB cache

Integrated Graphics Card：Intel Iris Plus Graphics 655

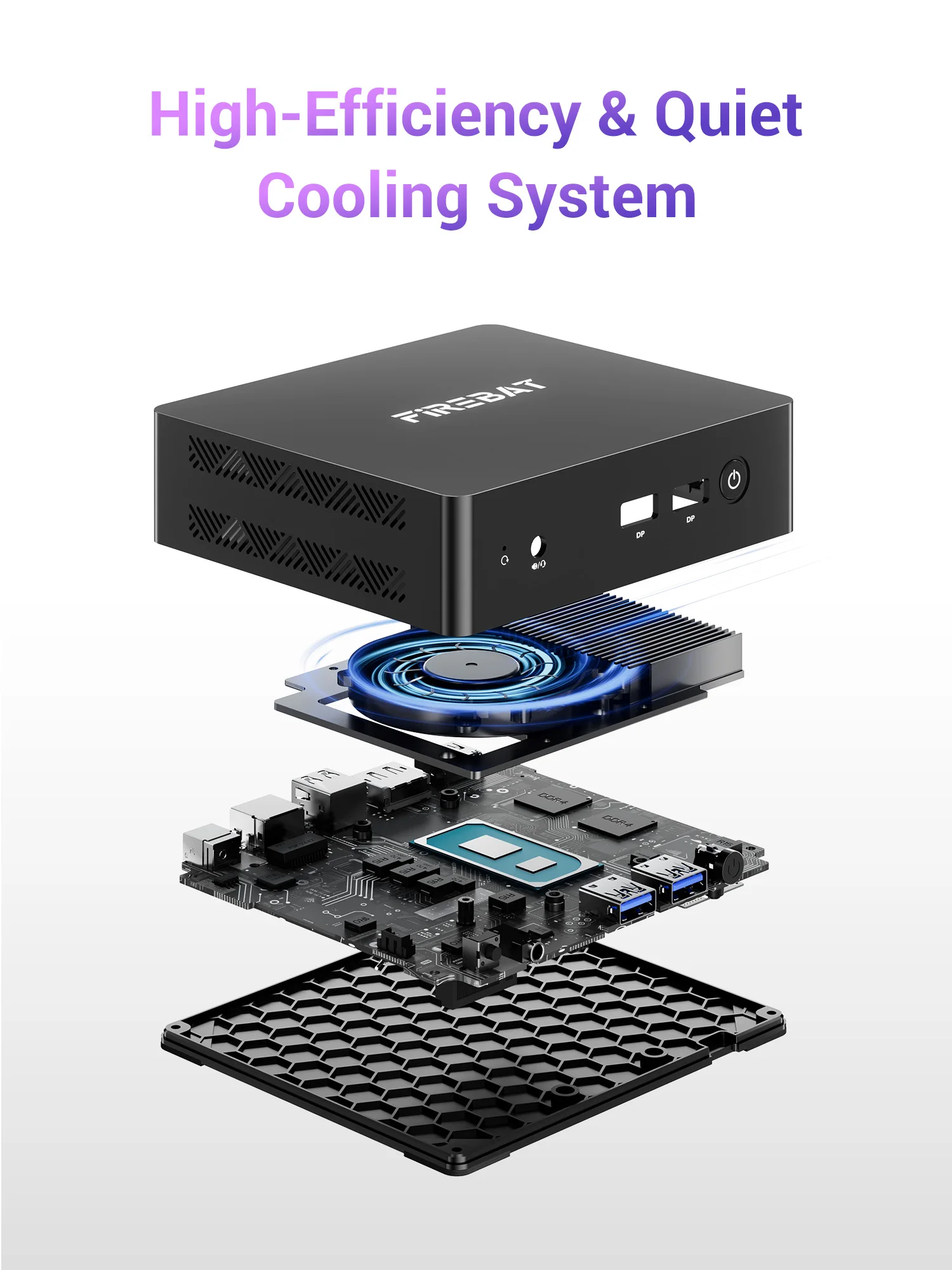

Cooling Module: Single-fan, dual-heat-pipe cooling with high-efficiency thermal grease

Memory: 8GB LPDDR3-1600 (on-board memory, non-removable)

Solid-State Drive：M.2 SATA SSD

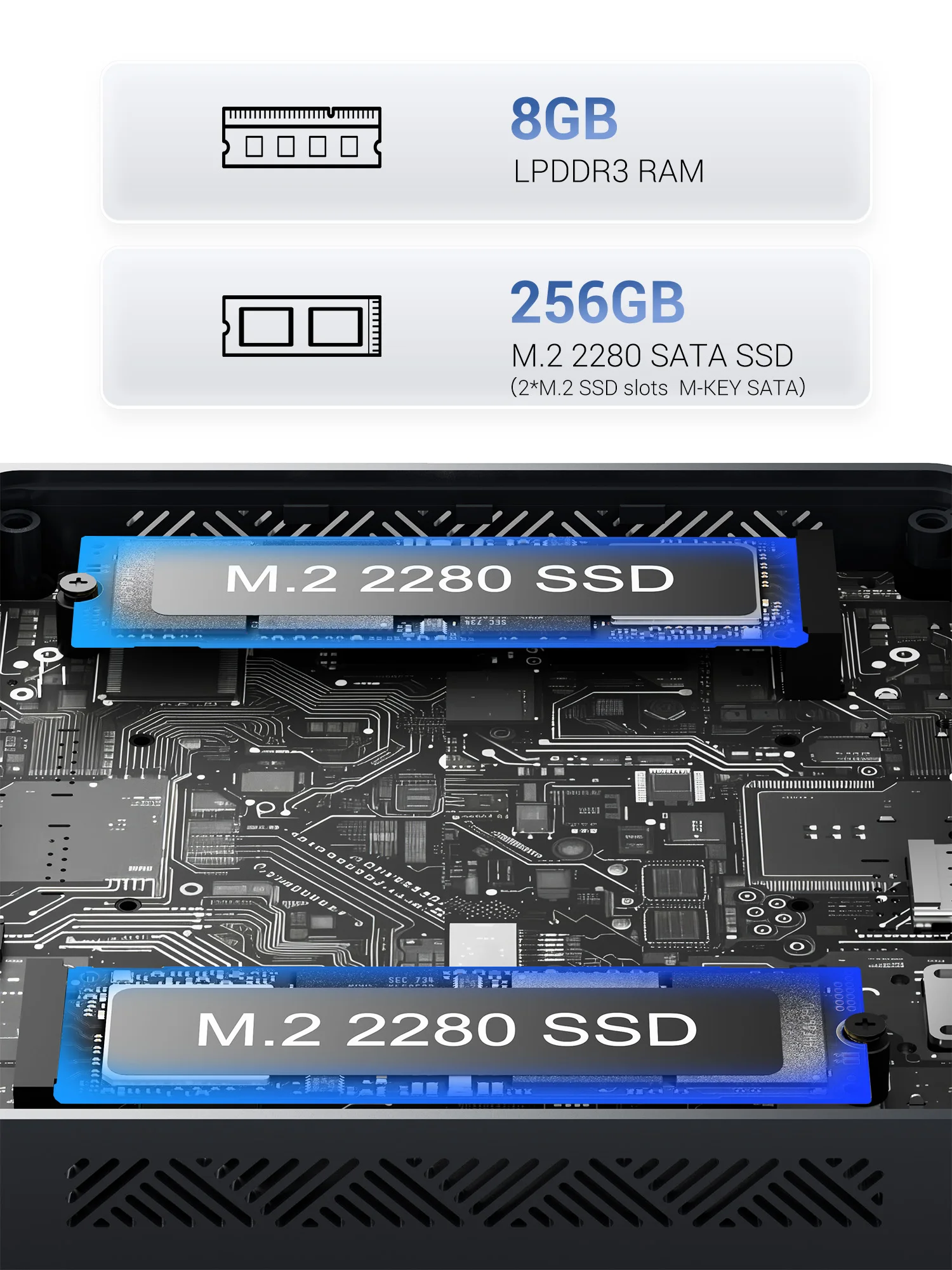

SSD Interfaces: 2x M.2 SSD slots, M-KEY SATA (2280 form factor; an adapter bracket is required to install 2230 or 2242 SSDs; does not support the 22110 form factor)

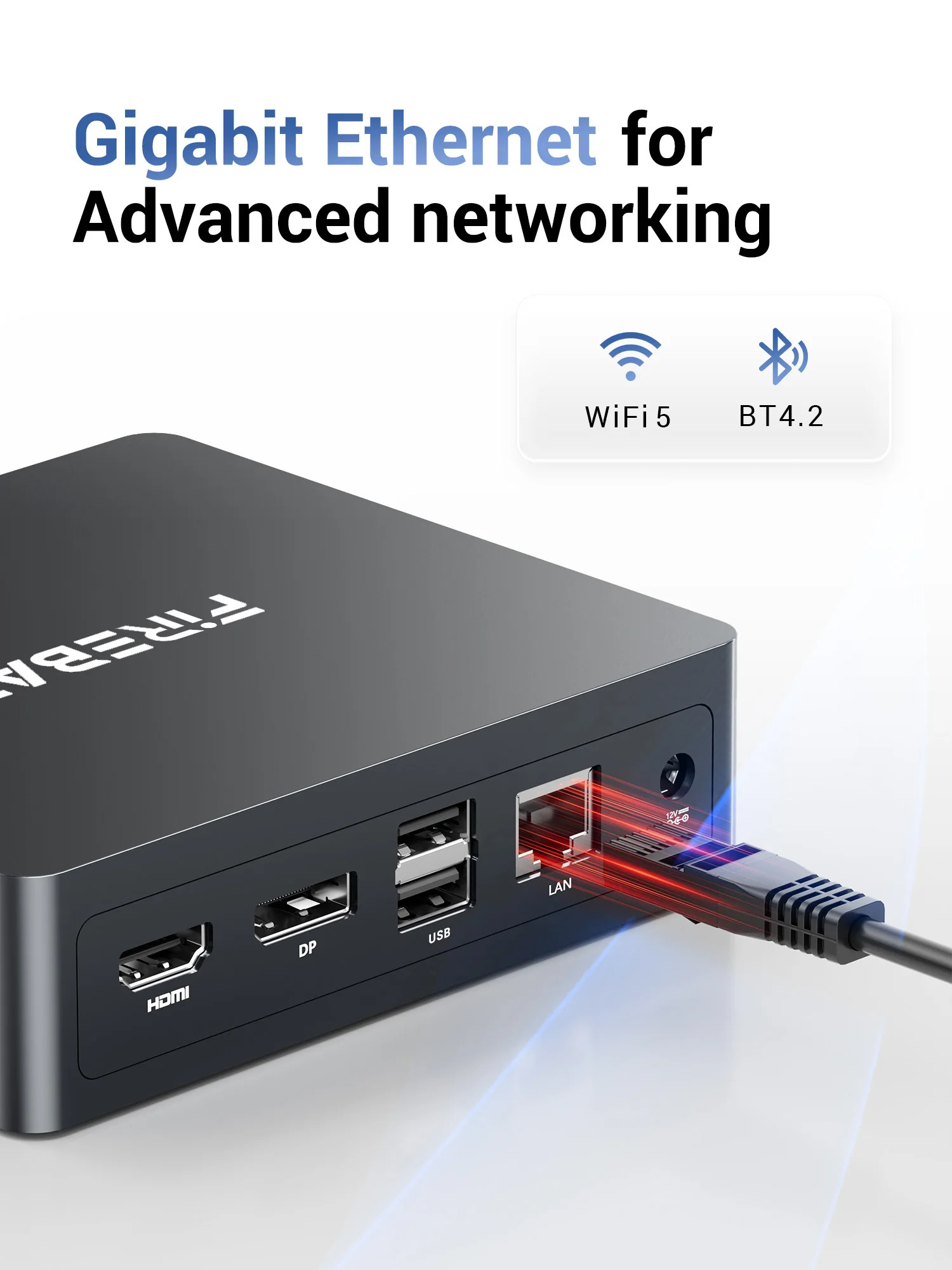

Connectivity: 1 Gigabit Ethernet port*1

                        Realtek RTL8821CE dual-band wireless network card; supports Wi-Fi 5 and Bluetooth 4.2 | Wireless standards:                               802.11ac, 802.11b/g/n; supports 2.4 GHz and 5 GHz bands | Theoretical maximum speed: 433 Mbps         Not                               replaceable

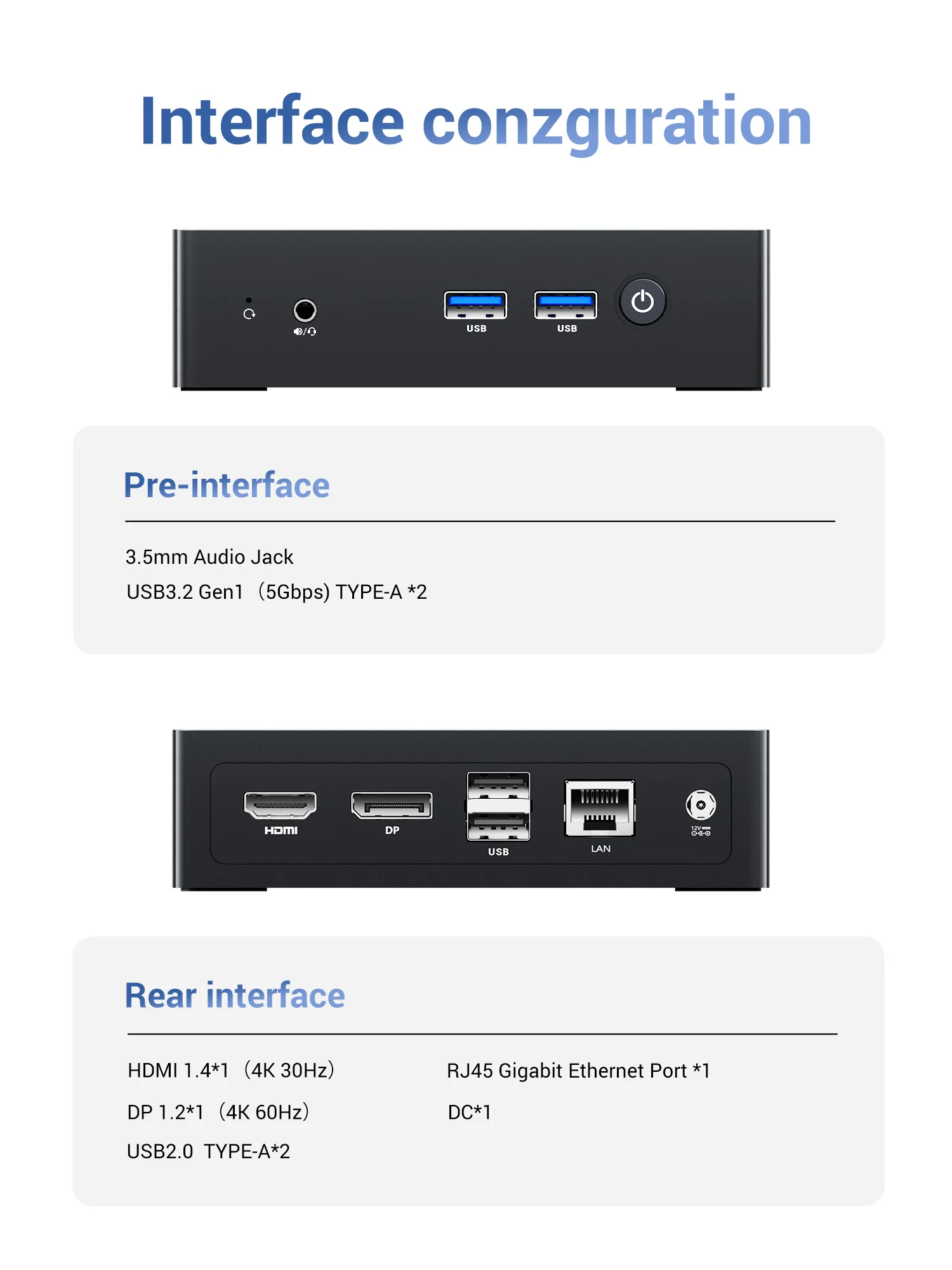

I/O Ports: USB 3.2 Gen 1 (5 Gbps) Type-A *2

                  USB 2.0 Type-A *2

HDMI 1.4 *1 (4K@30Hz)

DisplayPort 1.2 *1 (4K@60Hz)

RJ45 Gigabit Ethernet Port *1

DC Port *1

3.5mm Combo Audio Jack *1

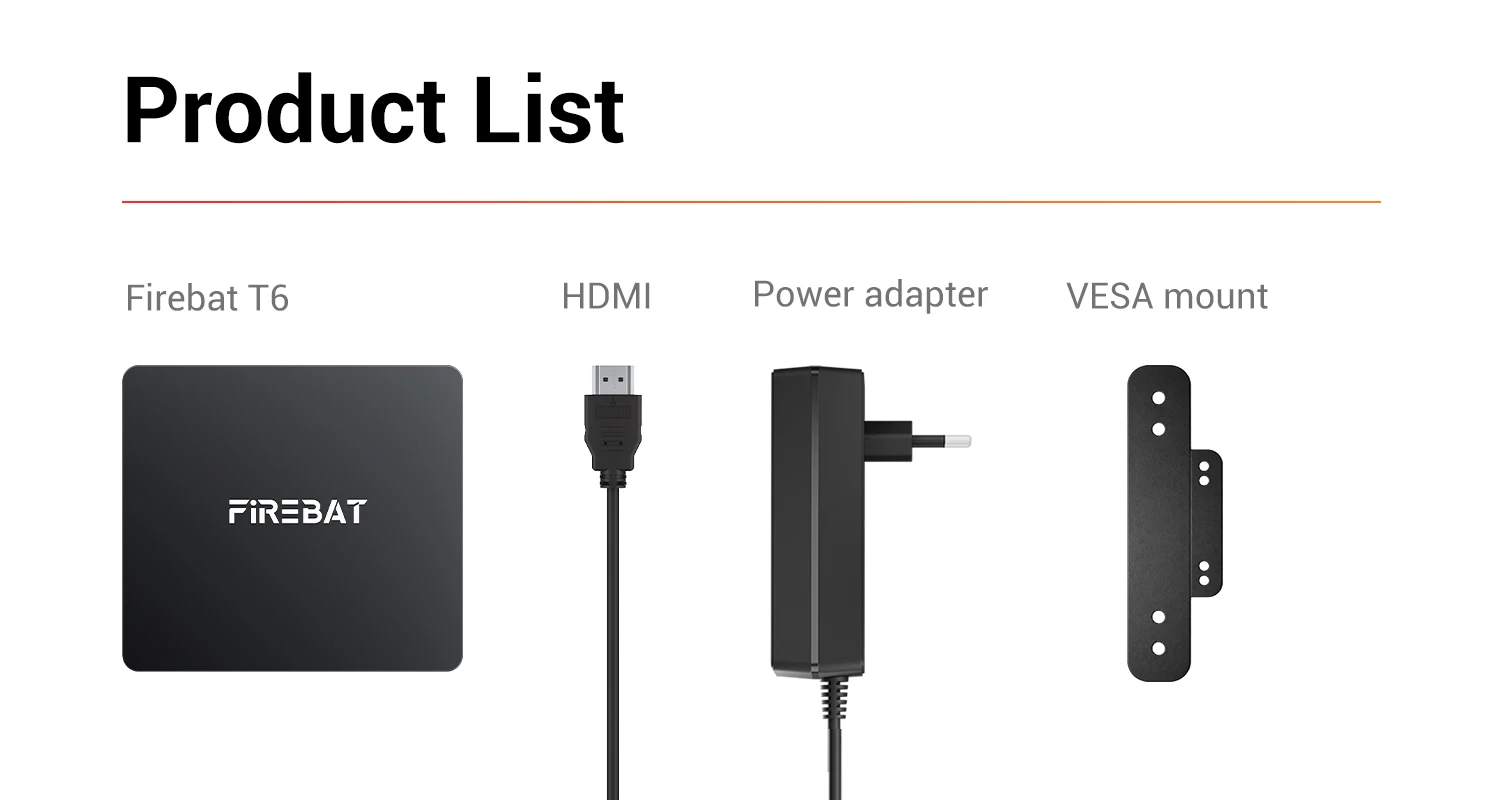

Adapter: DC 12V, 3A, 36W; DC connector: 5.5 × 2.5 mm; Standard DC adapter included（EU）

Weight: 291 g (excluding adapter)

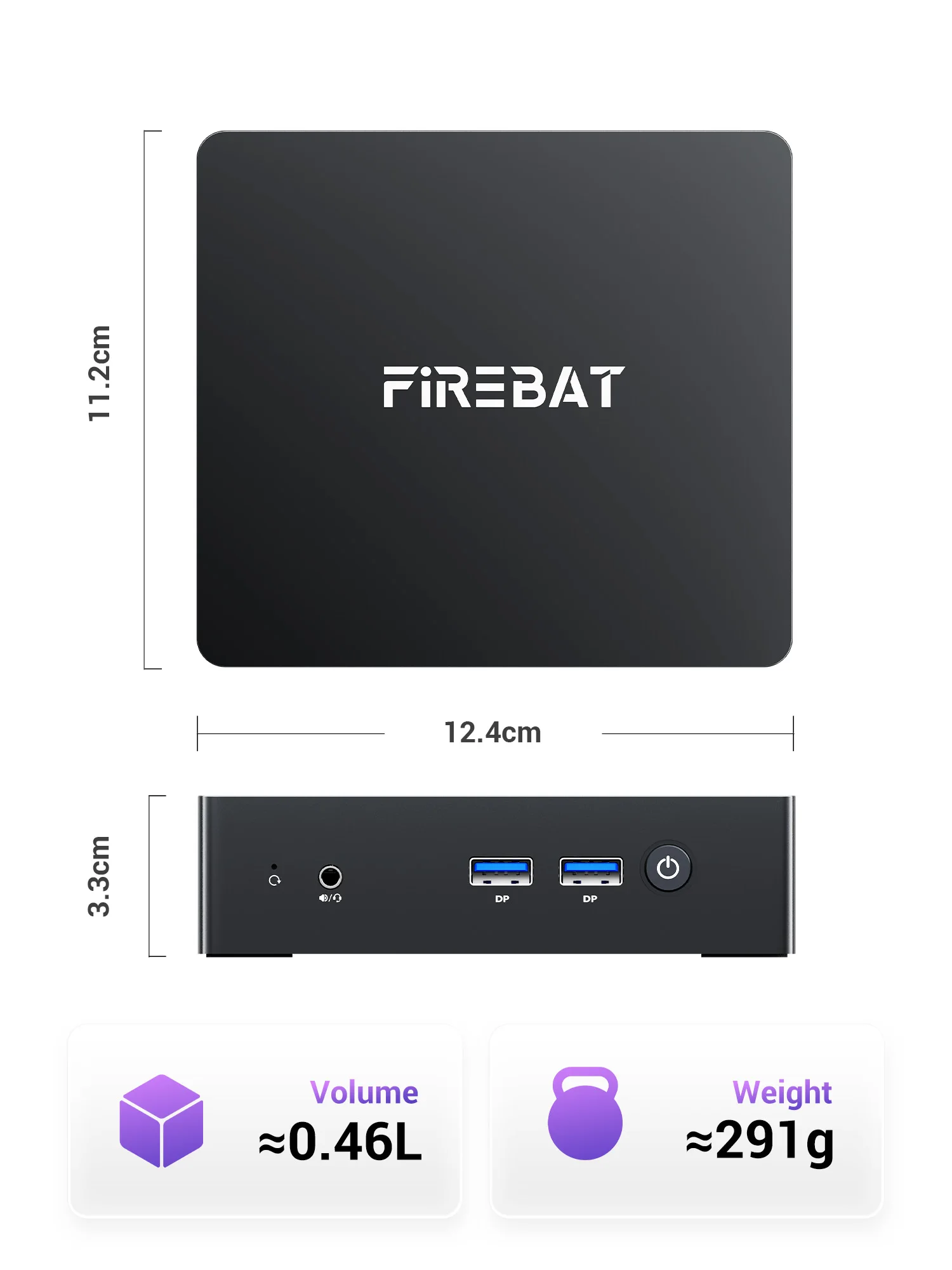

Dimensions: 124 × 112 × 33 mm

Material: Plastic

Operating System: Windows 11 Home

Other: Supports real-time clock and scheduled power-on

            Supports automatic power-on upon power connection

            Default power consumption: 15W

            Supports dual-display with independent graphics

            BIOS shortcut key: F2; Boot menu shortcut key: F7

            Supports one-click system recovery; press F9 at startup to enter the Windows Recovery Environment (Windows RE), then             select “Troubleshoot” to view the “One-Click System Recovery” option
