SPECIFICATIONS

AC Voltage: 1v-600v

Battery Included: no

Brand Name: NJTY

Certification: CE

Choice: yes

DC Voltage: 0.8V-600V

DIY Supplies: Electrical

Data Record: No

Display Type: Digital Display

High-concerned chemical: none

Is Smart Device: no

Measuring Capacitance Range: /

Measuring Inductance Range: /

Measuring Resistance Range: 0Ω-40MΩ

Model Number: C1

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Semi-finishedproduct: No

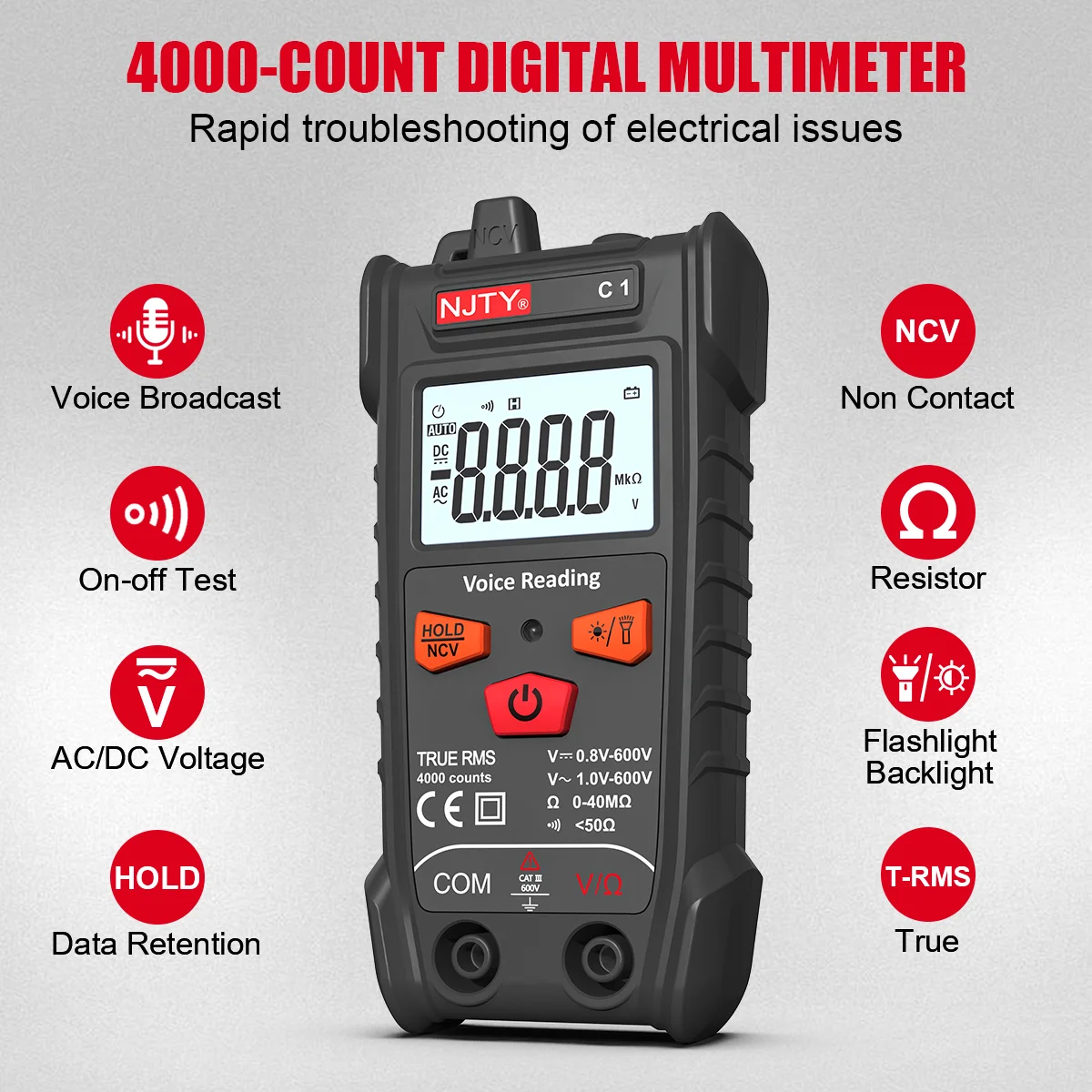

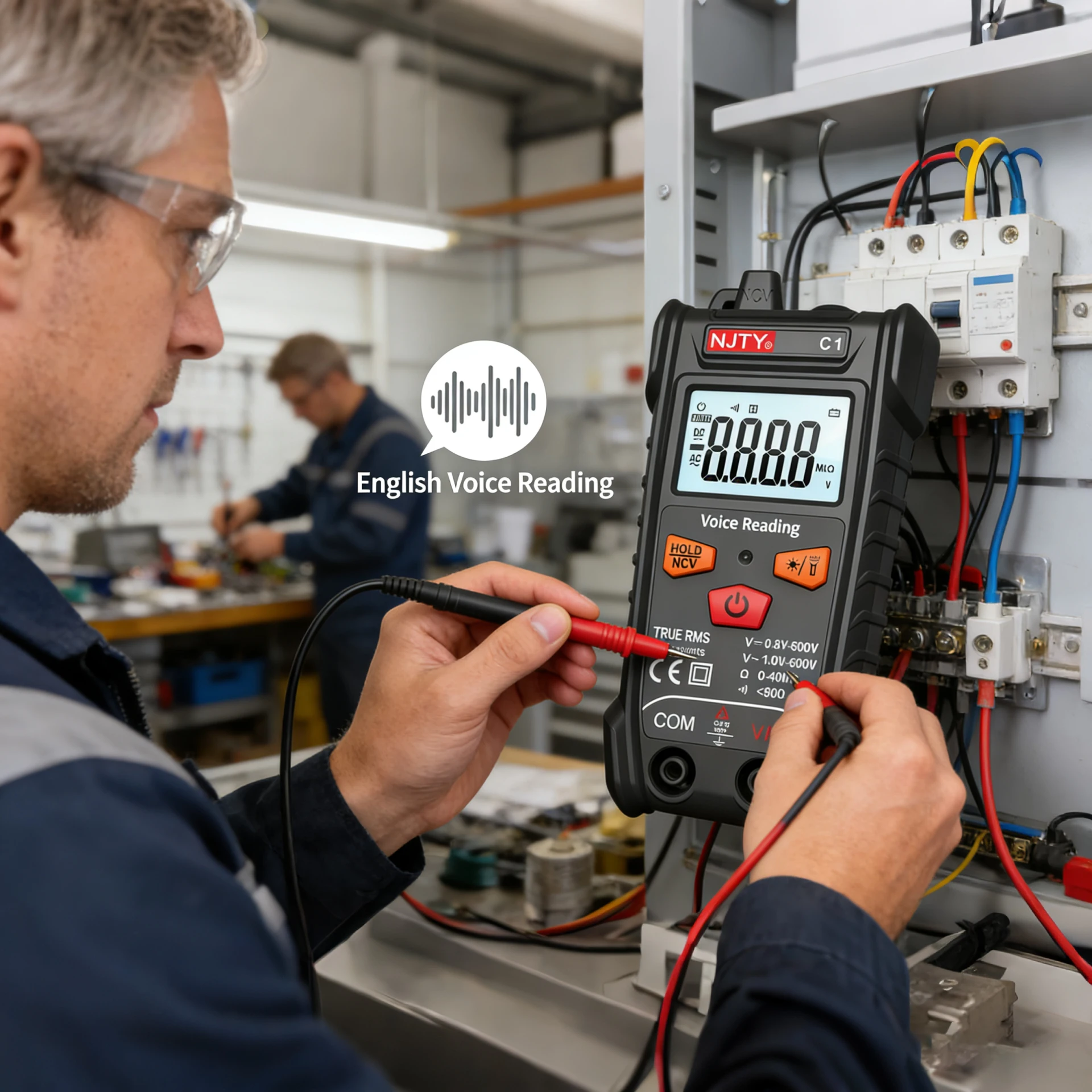

NJTY C1 Digital Multimeter with English Voice Broadcast 4000 Counts AUTO Range TRMS AC/DC Voltage Resistance Tester Backlit LCD Electrical Tools

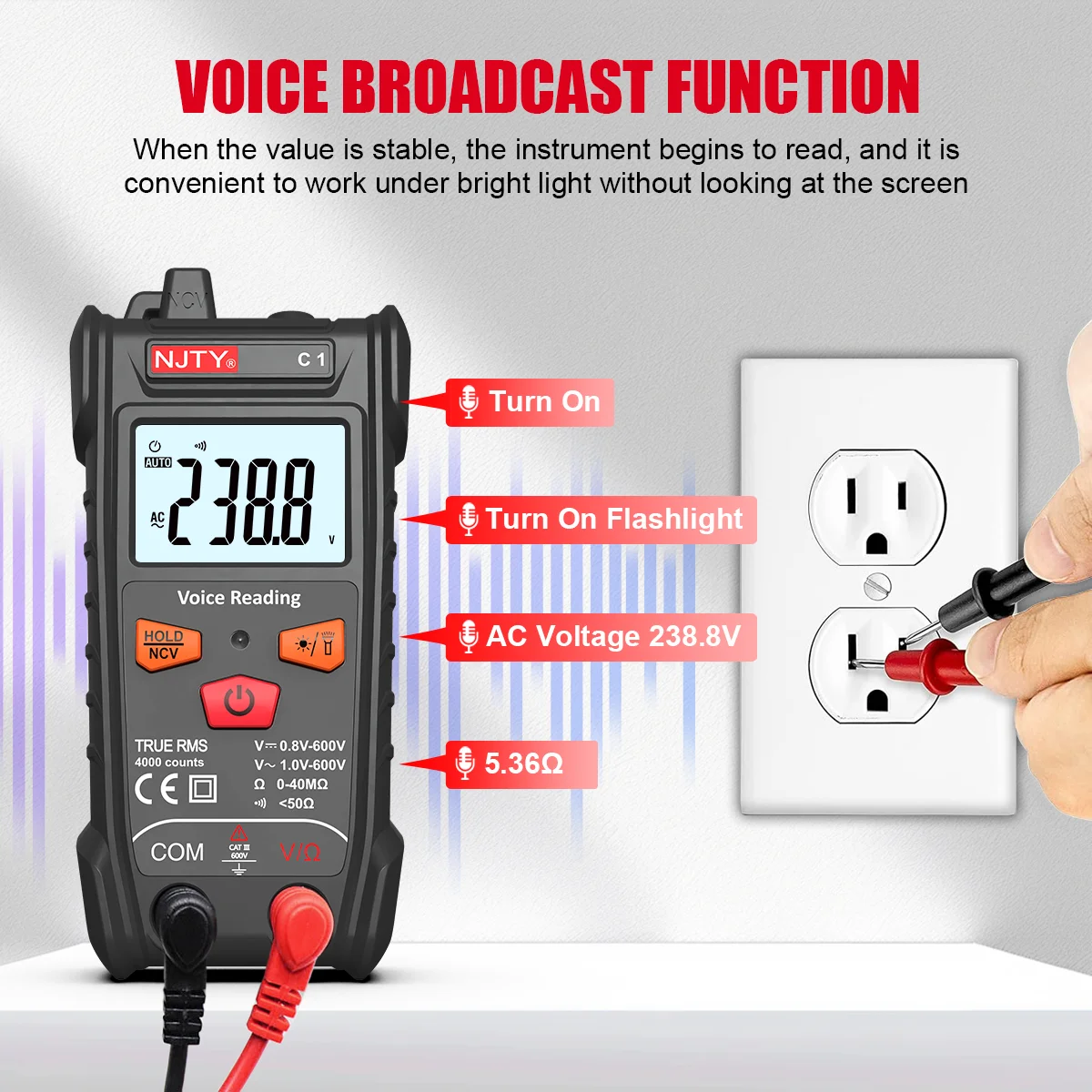

Hands-Free ENGLISH Voice Guidance – Never Take Your Eyes Off the Work!
Hear instant, clear English voice readings so you can stay focused on the task, not the screen. Perfect for busy technicians and DIYers.

True RMS Accuracy for Professional-Grade Measurements
Get reliable readings on both AC and DC circuits with high precision and 4000 counts resolution – trusted by electricians and engineers.

• DC Voltage (DCV): Range 0.8V to 600V. High resolution of 0.001V (1mV). Accuracy: ±(0.8% of reading + 5 digits). Input impedance: 10MΩ.

• AC Voltage (ACV) - TRUE RMS: Range 1.0V to 600V. Resolution 0.001V. TRUE RMS accuracy ensures correct readings for non-sinusoidal waveforms (45Hz-2kHz). Accuracy: ±(1.0%+5).

• Resistance (Ω): Wide range from 0Ω to 40MΩ. Resolution of 1Ω. Accuracy: ±(1.0%+10).

• Continuity Test: Fast audible buzzer sounds and indicator light activates when resistance is ≤ approximately 50Ω.

Smart Auto-Ranging & Backlit LCD – Work Faster in Any Light
The multimeter automatically selects the best range, while the bright backlit screen ensures readability in dark spaces like panels or garages.

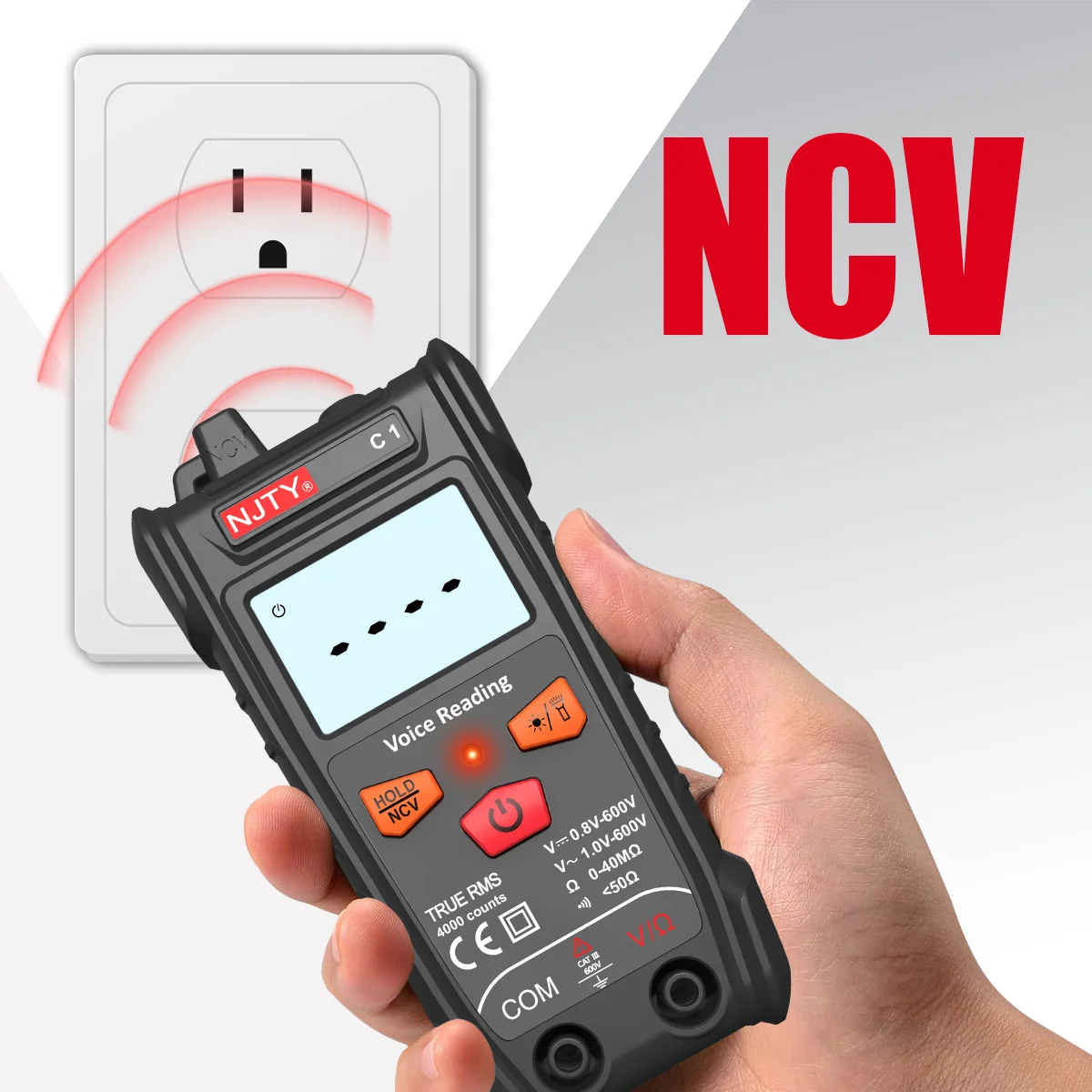

Stay Safe with Non-Contact Voltage Detection (NCV)
Quickly identify live wires without touching them – an essential safety feature for home inspections and electrical troubleshooting.

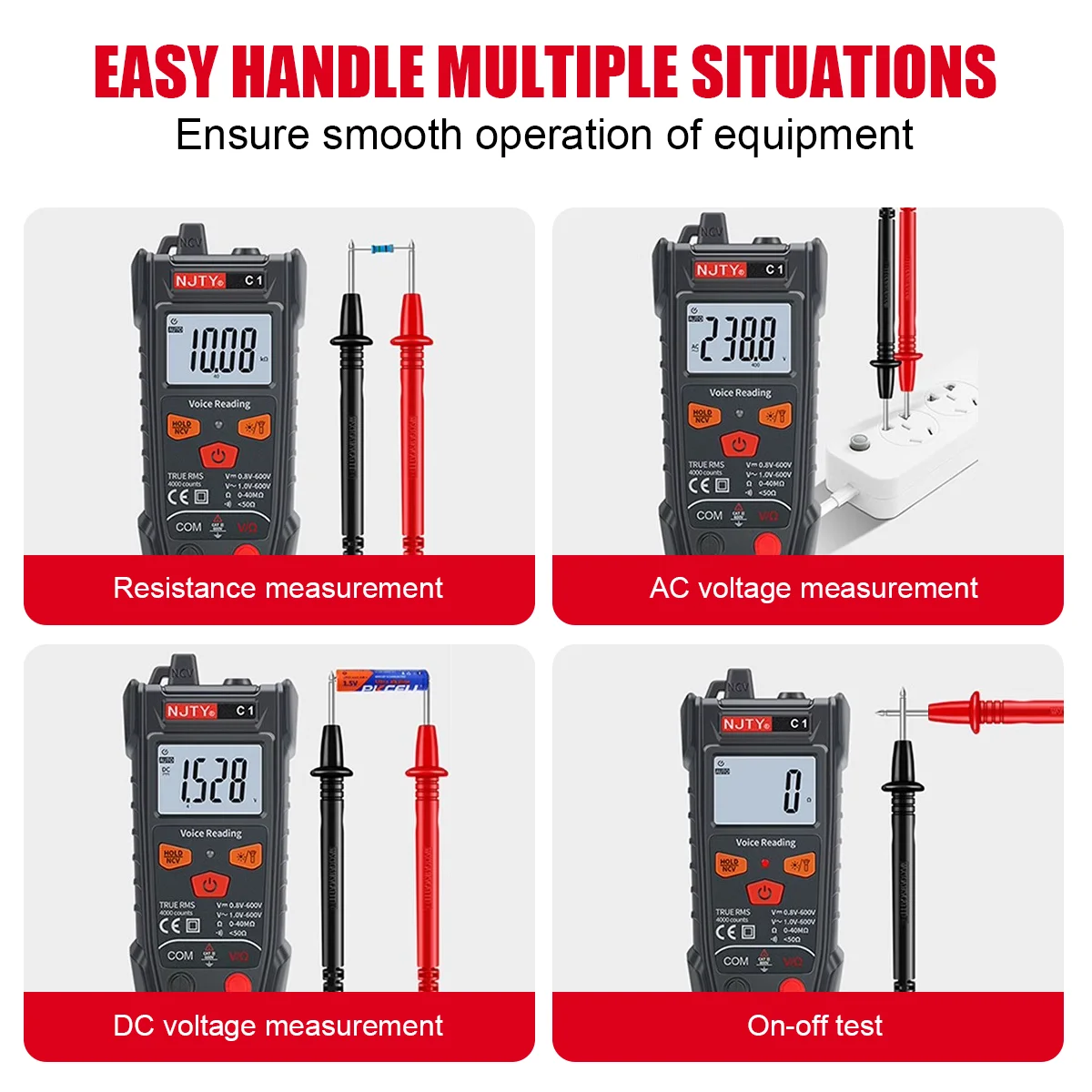

All-in-One Versatility for Every Electrical Task
From voltage and resistance to continuity and more, this robust tool is your go‑only device for automotive, household, and workshop projects.

• Safety Rating: Certified for CAT II 600V, Pollution Degree 2, complying with IEC 61010 safety standards. Suitable for measurements on household appliances, outlet circuits, and portable tools.

• Overload Protection: Displays "OL" for out-of-range inputs. Protected against overvoltage up to 600V on all ranges.

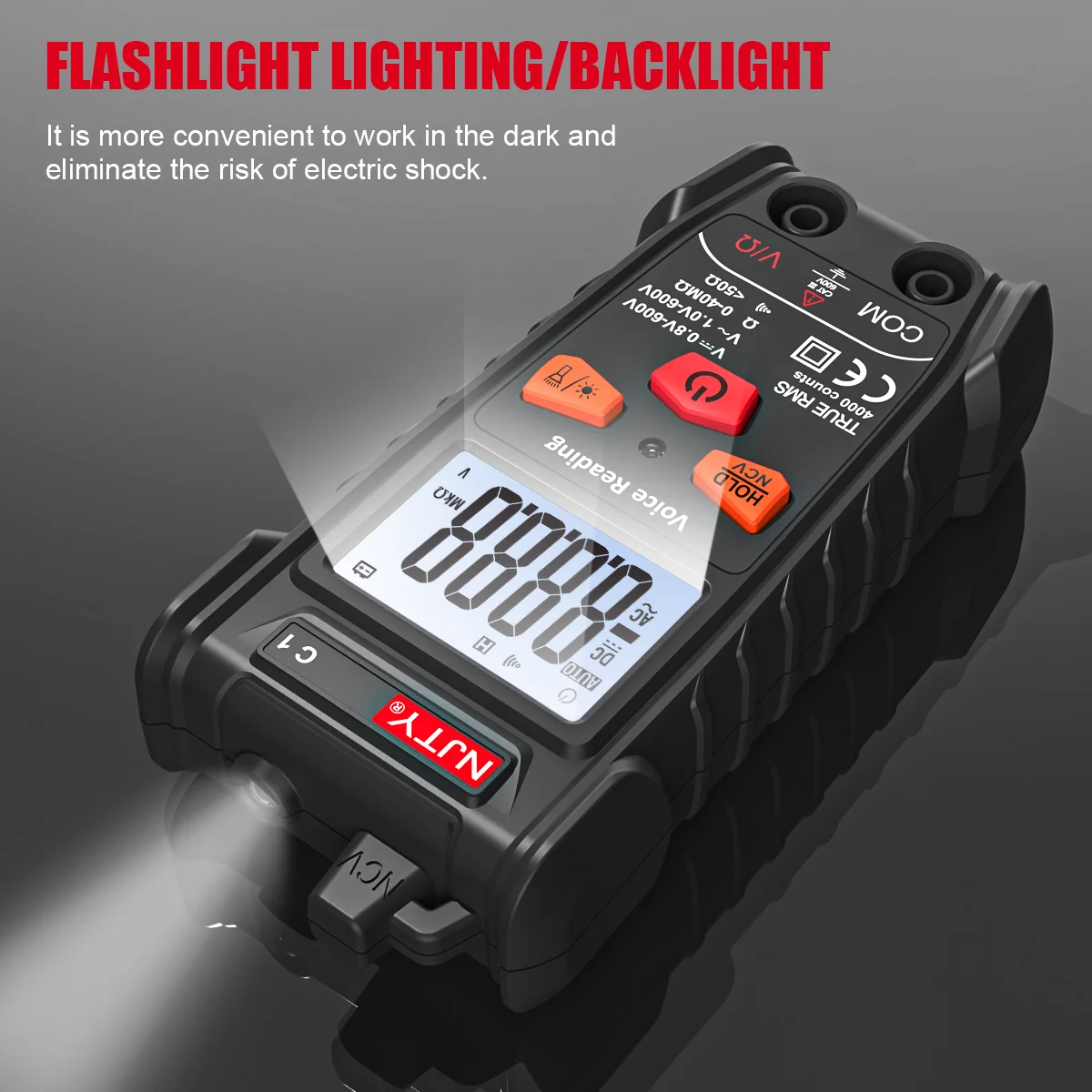

• Integrated Flashlight (Illumination): A built-in LED work light illuminates dark work areas. Both backlight and flashlight auto-off after 30 seconds.

• Non-Contact Voltage Detection (NCV): Safely detects live wires without physical contact. Features both a visual indicator (flashing light) and an audible buzzer, with signal strength indicated on screen (-- to ----).

Hands-Free ENGLISH Voice Guidance – Never Take Your Eyes Off the Work!
Hear instant, clear English voice readings so you can stay focused on the task, not the screen. Perfect for busy technicians and DIYers.

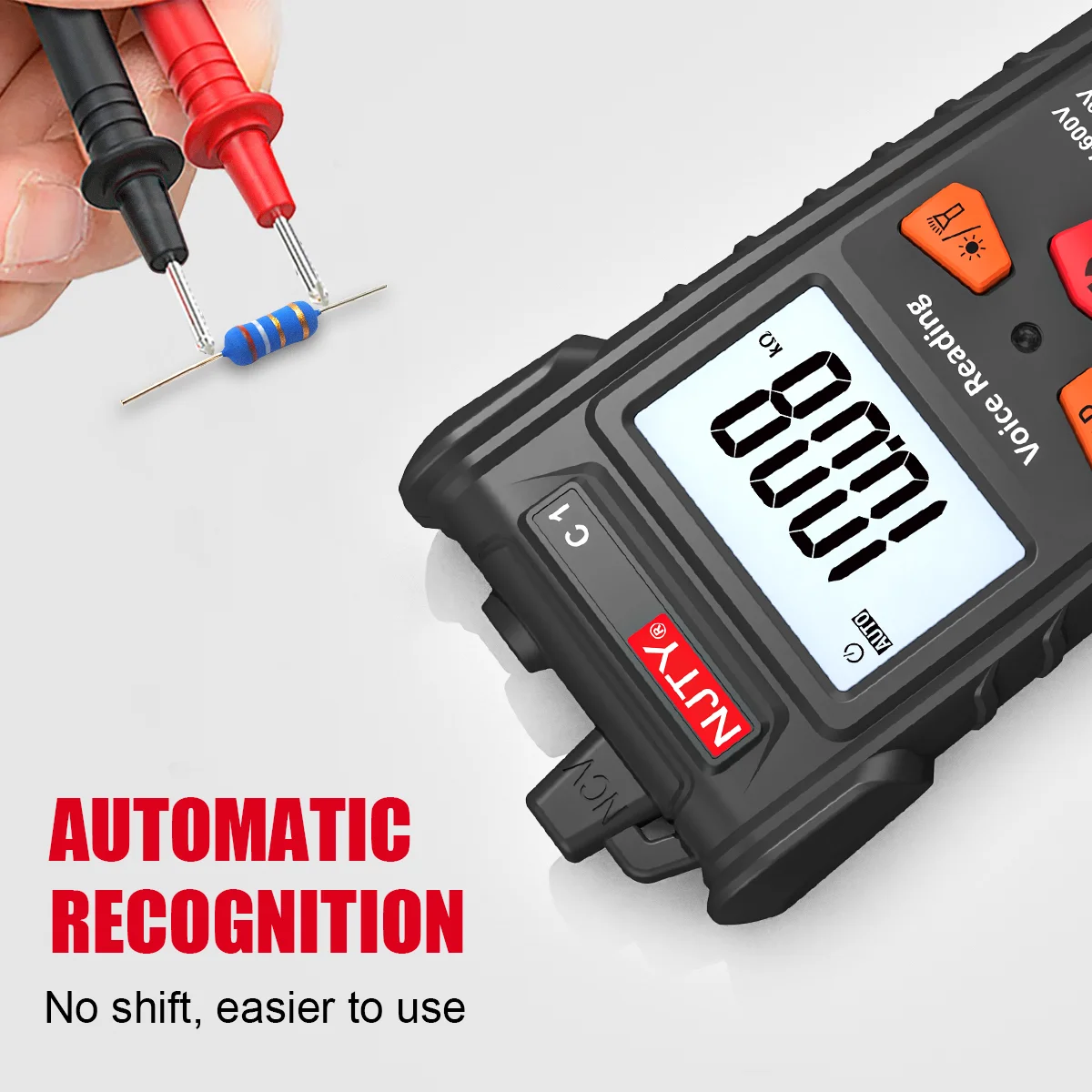

• Auto-Ranging (AUTO): Intelligently detects parameter (DCV/ACV/Resistance/Continuity) and selects the optimal measurement range, ideal for beginners and professionals.

• Auto Power Off (APO): Conserves battery life by automatically shutting down after approximately 5 minutes of inactivity, with an audible prompt.

• DC Voltage (DCV): Range 0.8V to 600V. High resolution of 0.001V (1mV). Accuracy: ±(0.8% of reading + 5 digits). Input impedance: 10MΩ.

• AC Voltage (ACV) - TRUE RMS: Range 1.0V to 600V. Resolution 0.001V. TRUE RMS accuracy ensures correct readings for non-sinusoidal waveforms (45Hz-2kHz). Accuracy: ±(1.0%+5).

• Resistance (Ω): Wide range from 0Ω to 40MΩ. Resolution of 1Ω. Accuracy: ±(1.0%+10).

• Continuity Test: Fast audible buzzer sounds and indicator light activates when resistance is ≤ approximately 50Ω.
