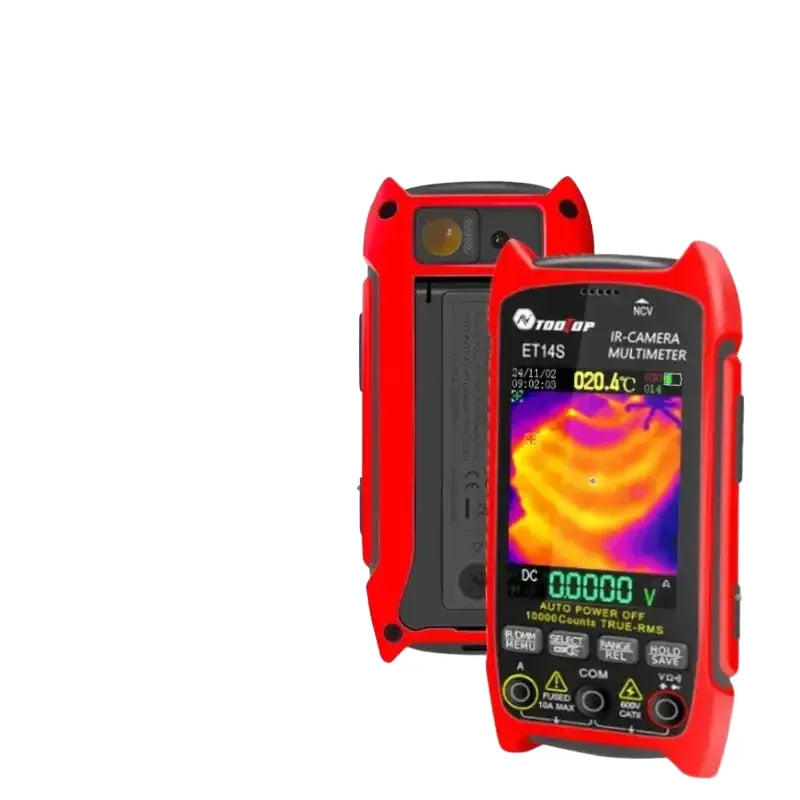

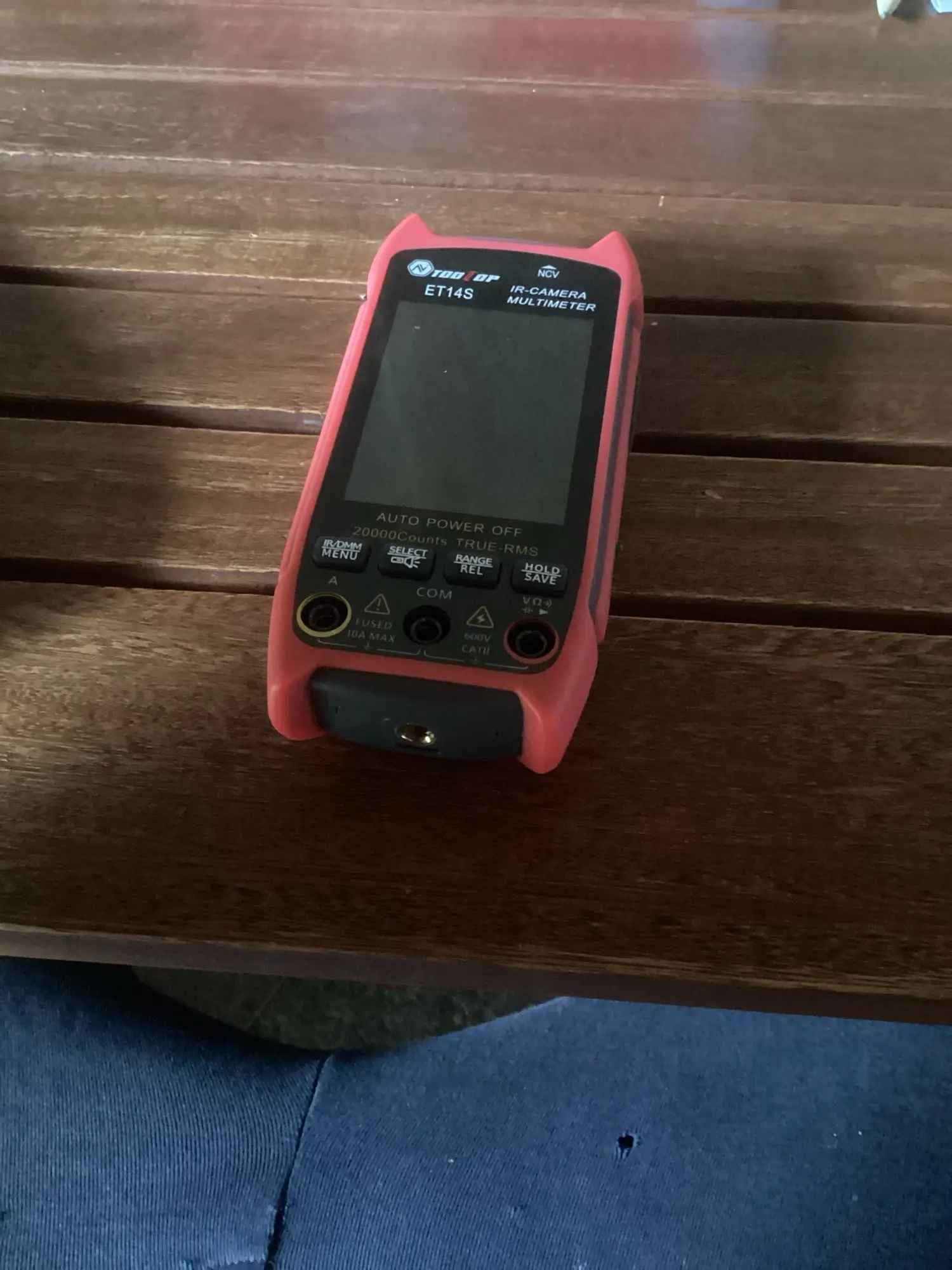

TOOLTOP ET14S ISR Thermal Imager and Multimeter Combo

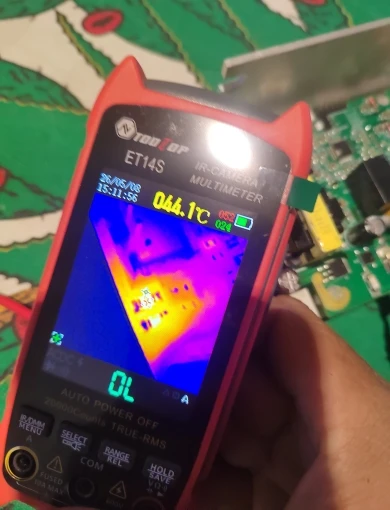

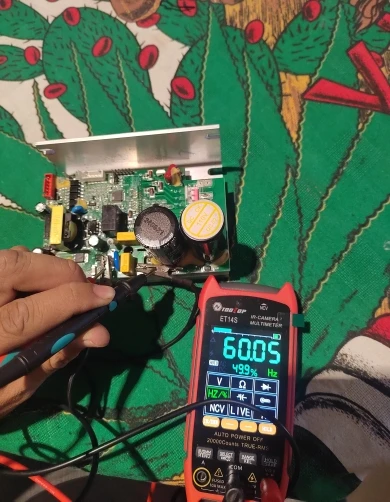

Diagnose broken circuits instantly with the TOOLTOP ET14S thermal imager and multimeter. This compact handheld device delivers ISR 240x240 thermal resolution and 19999-count accuracy. Scan for hot spots on PCB boards or test voltages up to 750V safely. Spot overheating wires fast.

Key Features

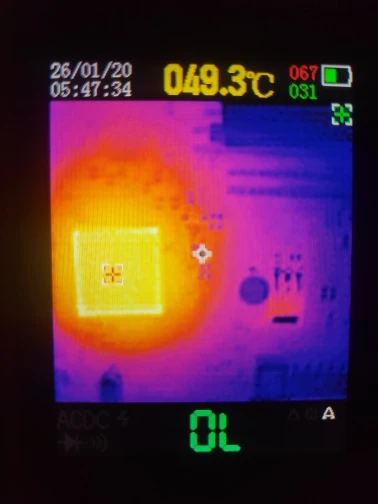

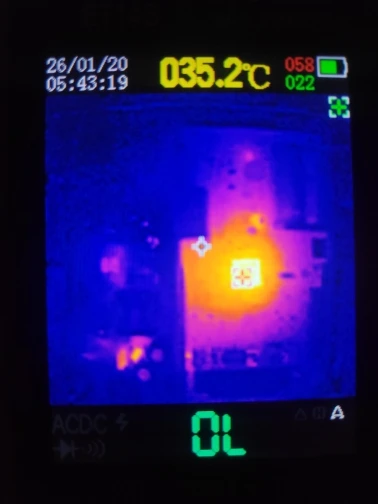

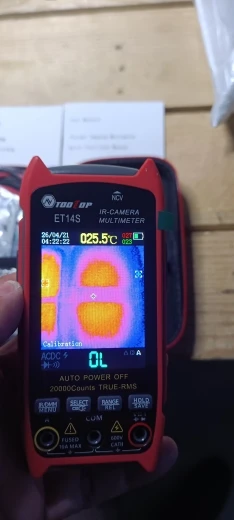

• ISR 240x240 Thermal Camera Captures heat maps at 25Hz so you locate failures quickly.
• 19999-Count True RMS Display Updates measurements three times per second for stable reads.

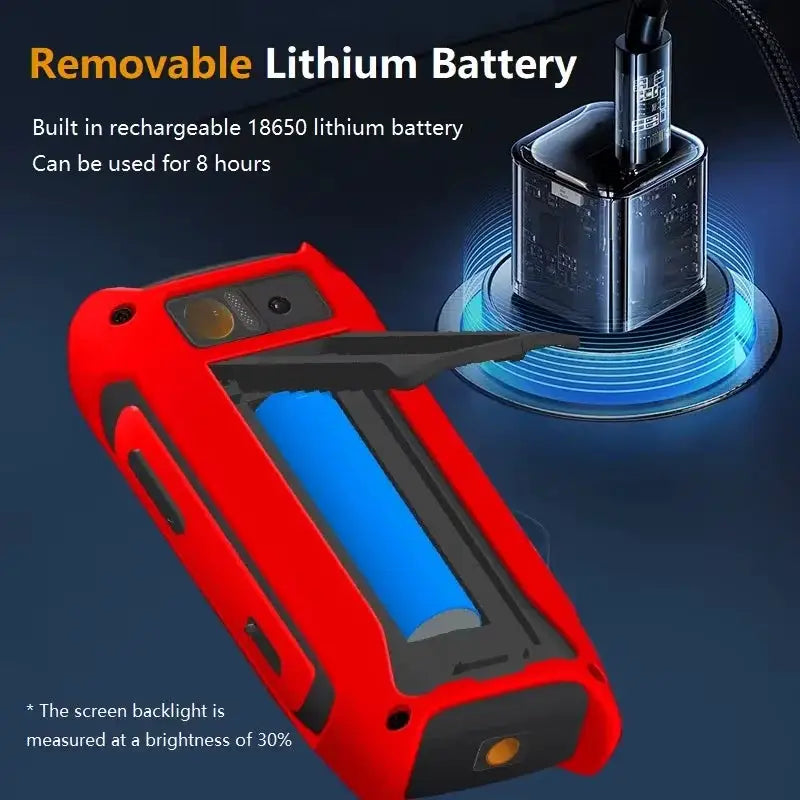

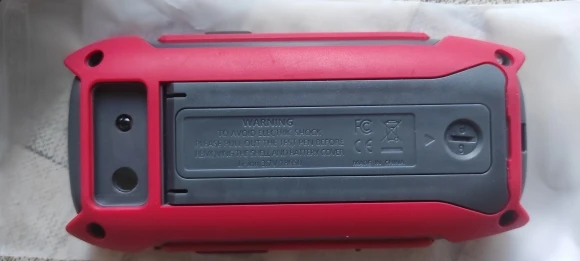

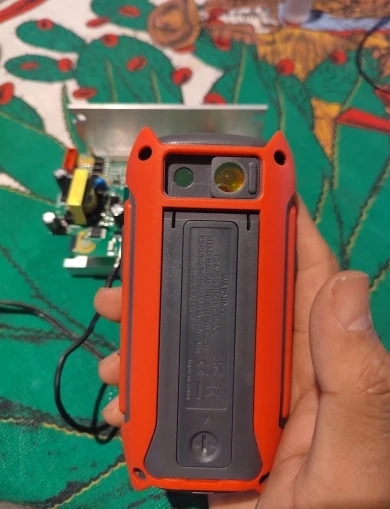

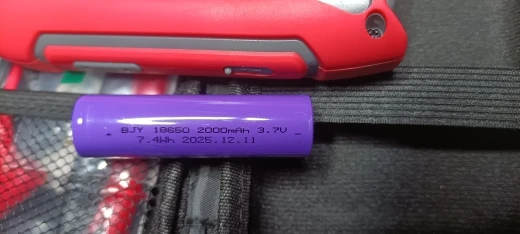

• Detachable 18650 Battery Powers your shift for eight hours and replaces easily when empty.

Product Description

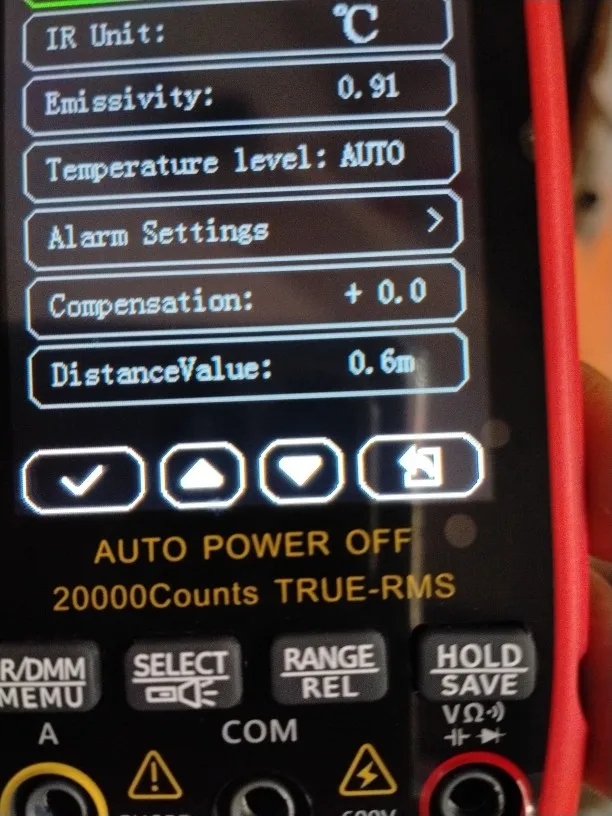

You receive a dual-action tester that merges professional electrical measurement with infrared scanning. The unit handles direct currents up to 1000 volts and alternating currents up to 750 volts safely. Adjustable emissivity settings calibrate temperature readings across metals, plastics, and glass surfaces.

Product Overview

This hybrid diagnostic gadget brings lab-grade temperature mapping into a pocket-sized frame. You hold a lightweight handset that rests comfortably during long bench sessions or cramped crawlspace inspections.

Key Benefits

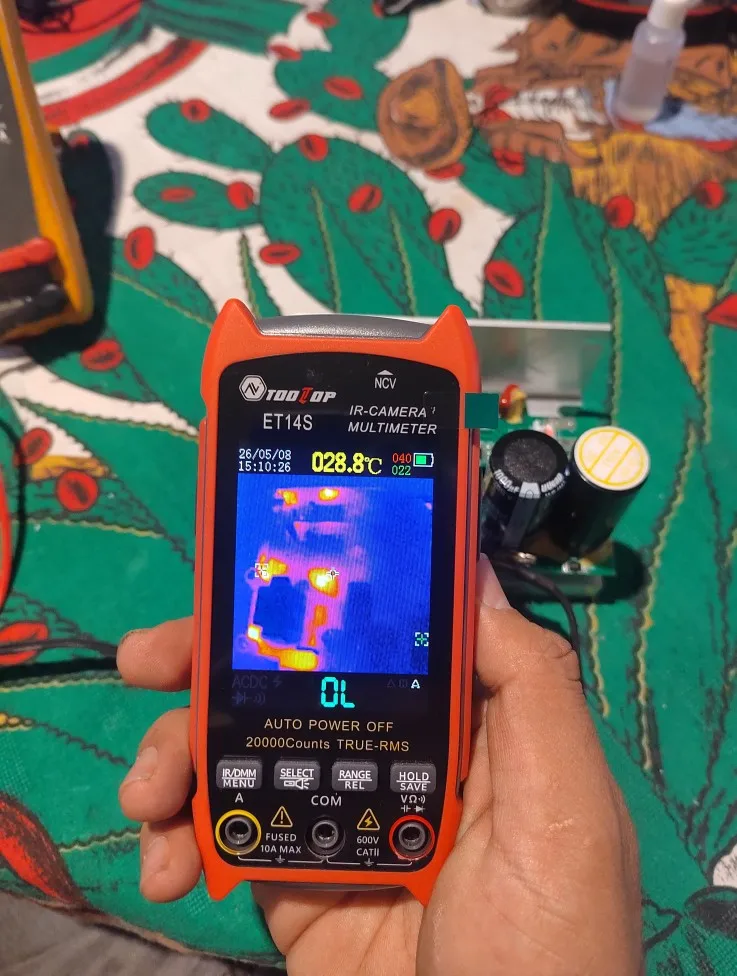

• Faster Circuit Isolation Highlights burned capacitors and lifted tracks without guessing.
• Uninterrupted Workflow Swap worn batteries instantly so you never miss a clue mid-test.

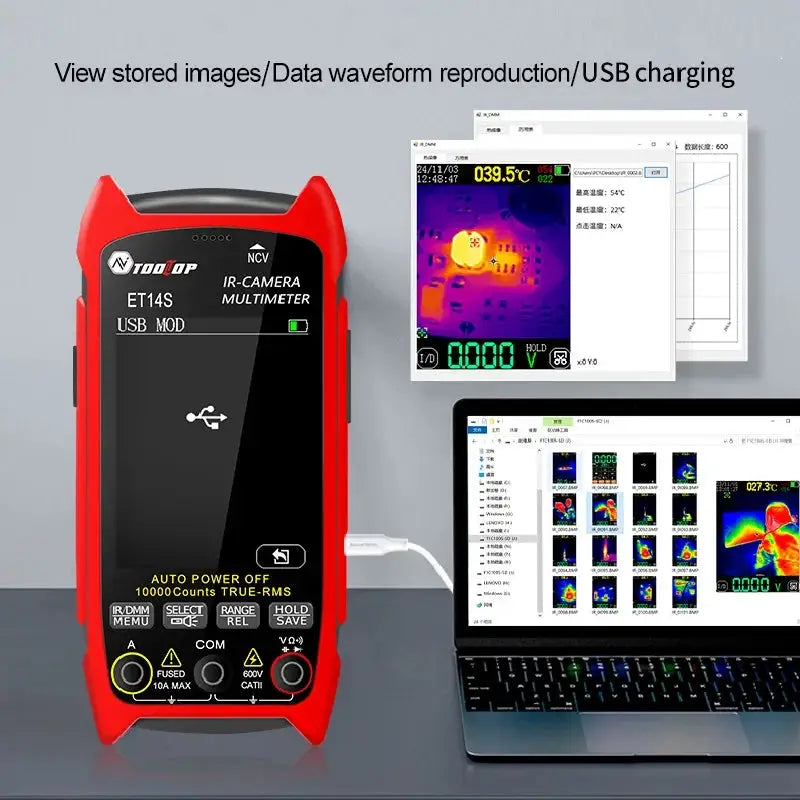

• Simple Data Export Save BMP snapshots internally or route voltage charts to your desktop via cable.

Features

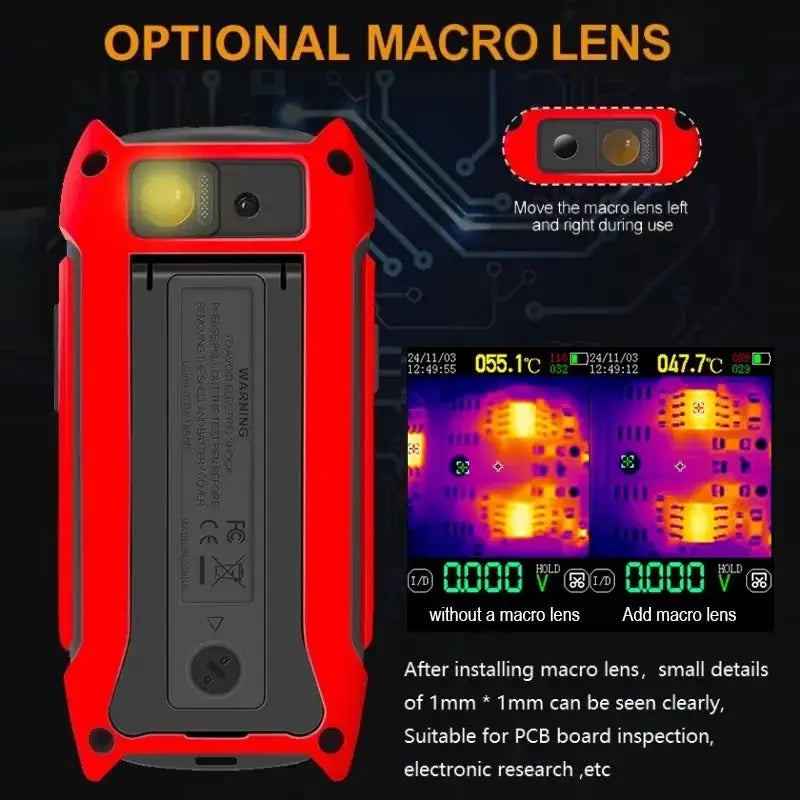

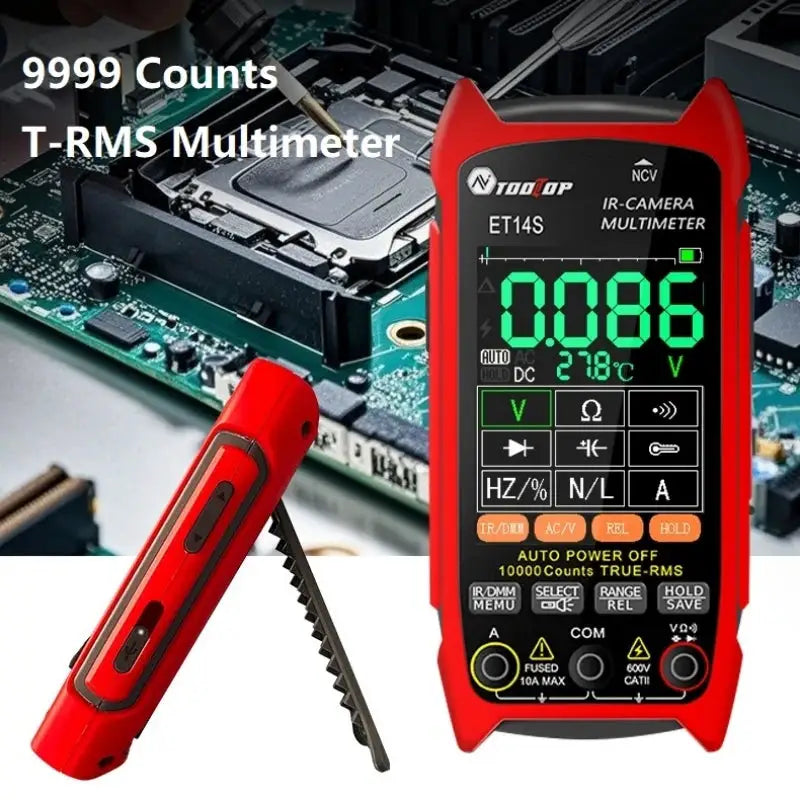

A clever sliding stand folds out from the base to support hands-free monitoring. Optional macro lenses attach for close-range board scanning down to two-and-a-half centimeters. Automatic gain routing balances bright LEDs and dim chassis shadows naturally.

Specifications

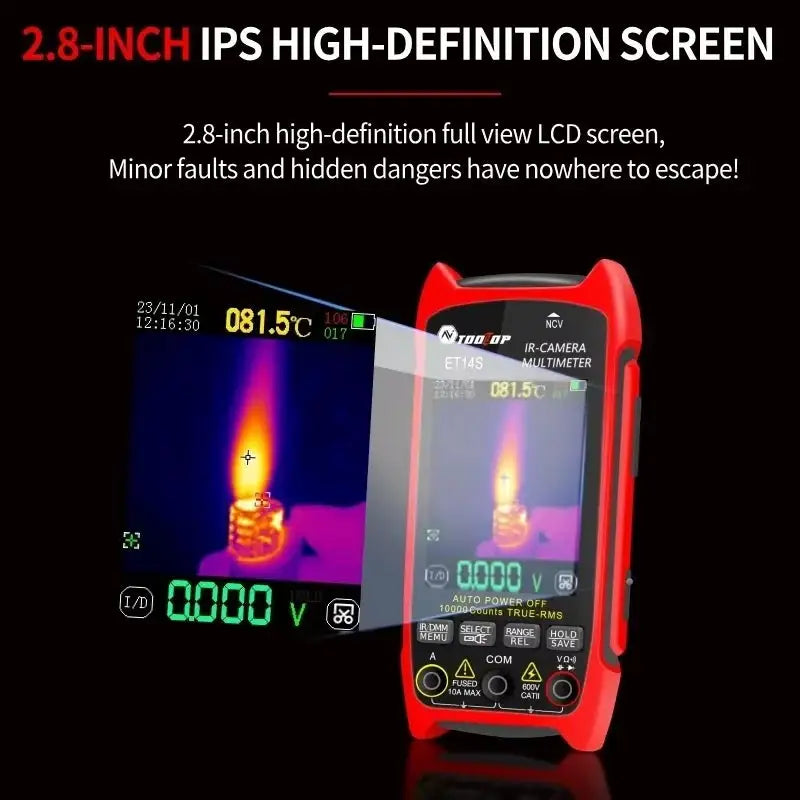

Temperature spans run from minus twenty Celsius to plus five hundred fifty Celsius. The twenty-eight inch display resolves three hundred pixels wide by four hundred pixels tall. Total host mass remains light at one hundred eighty grams with power cells seated.

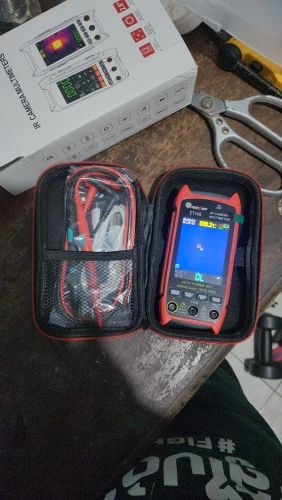

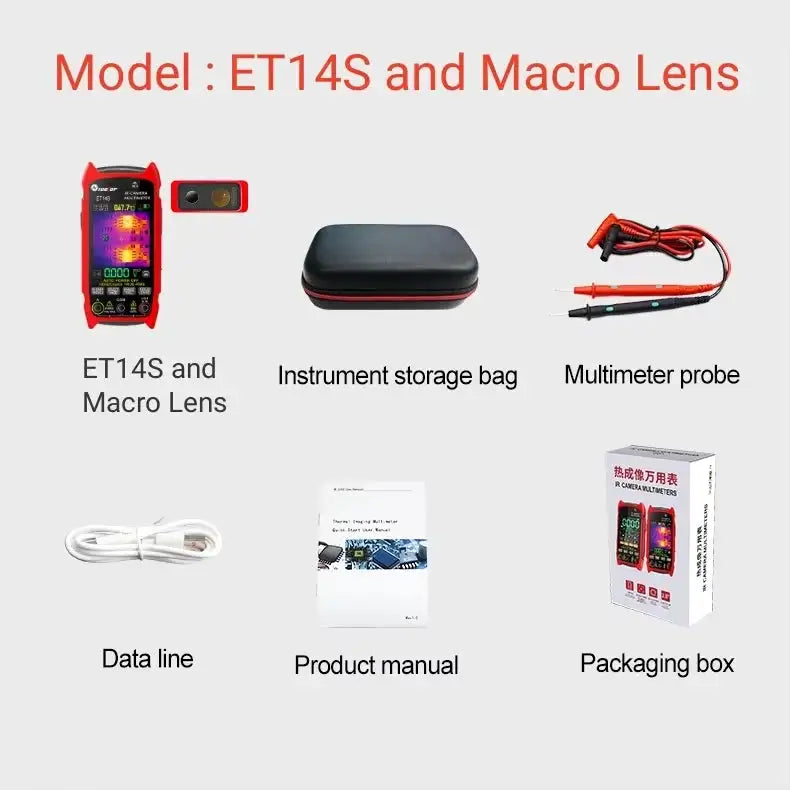

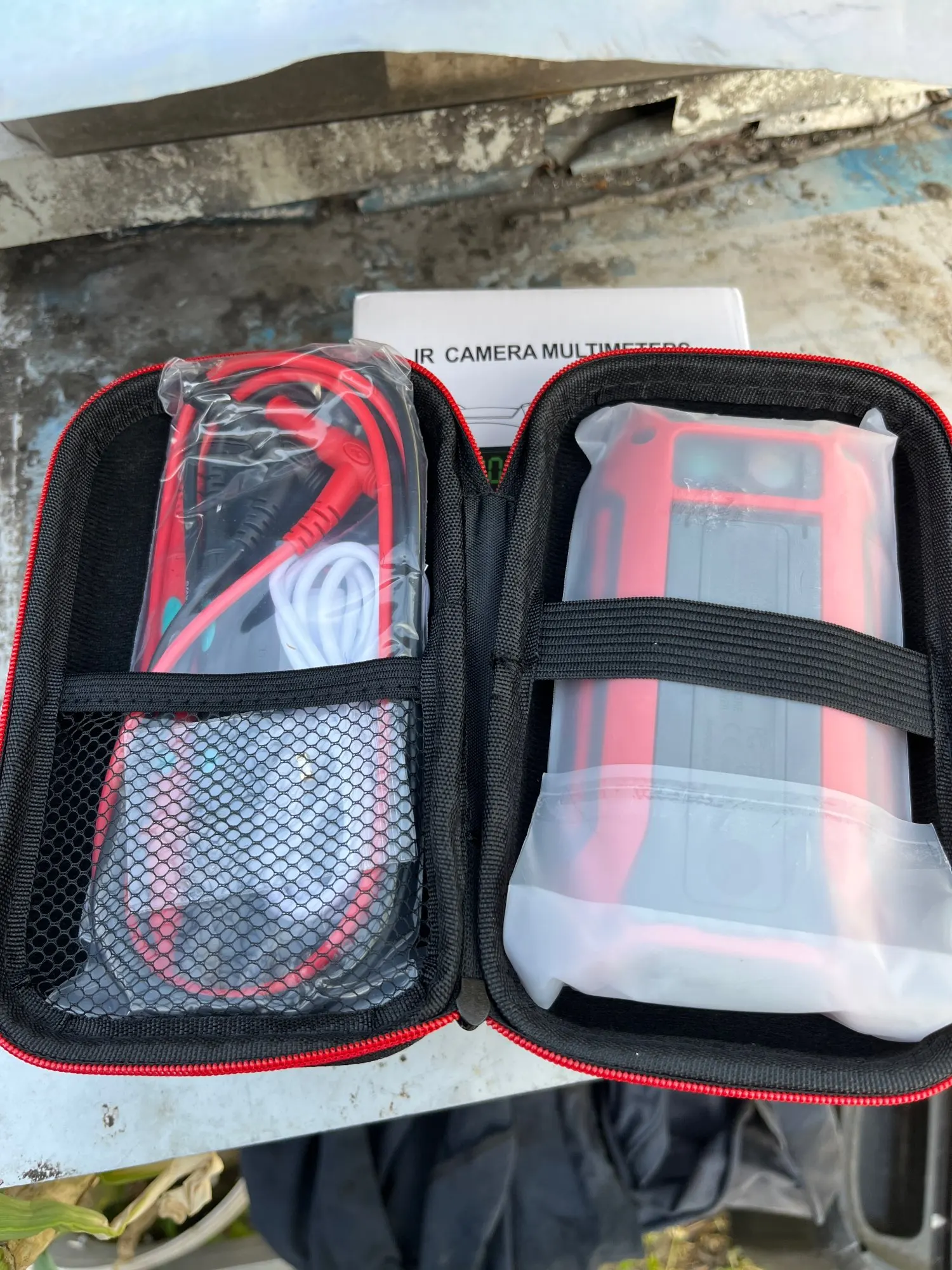

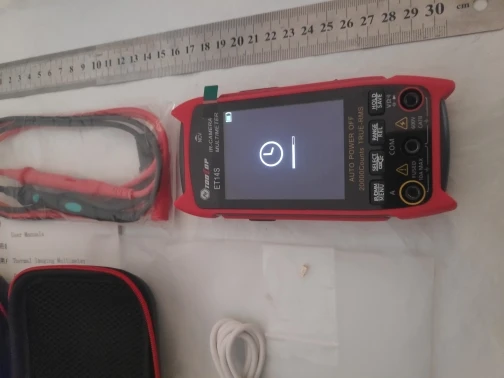

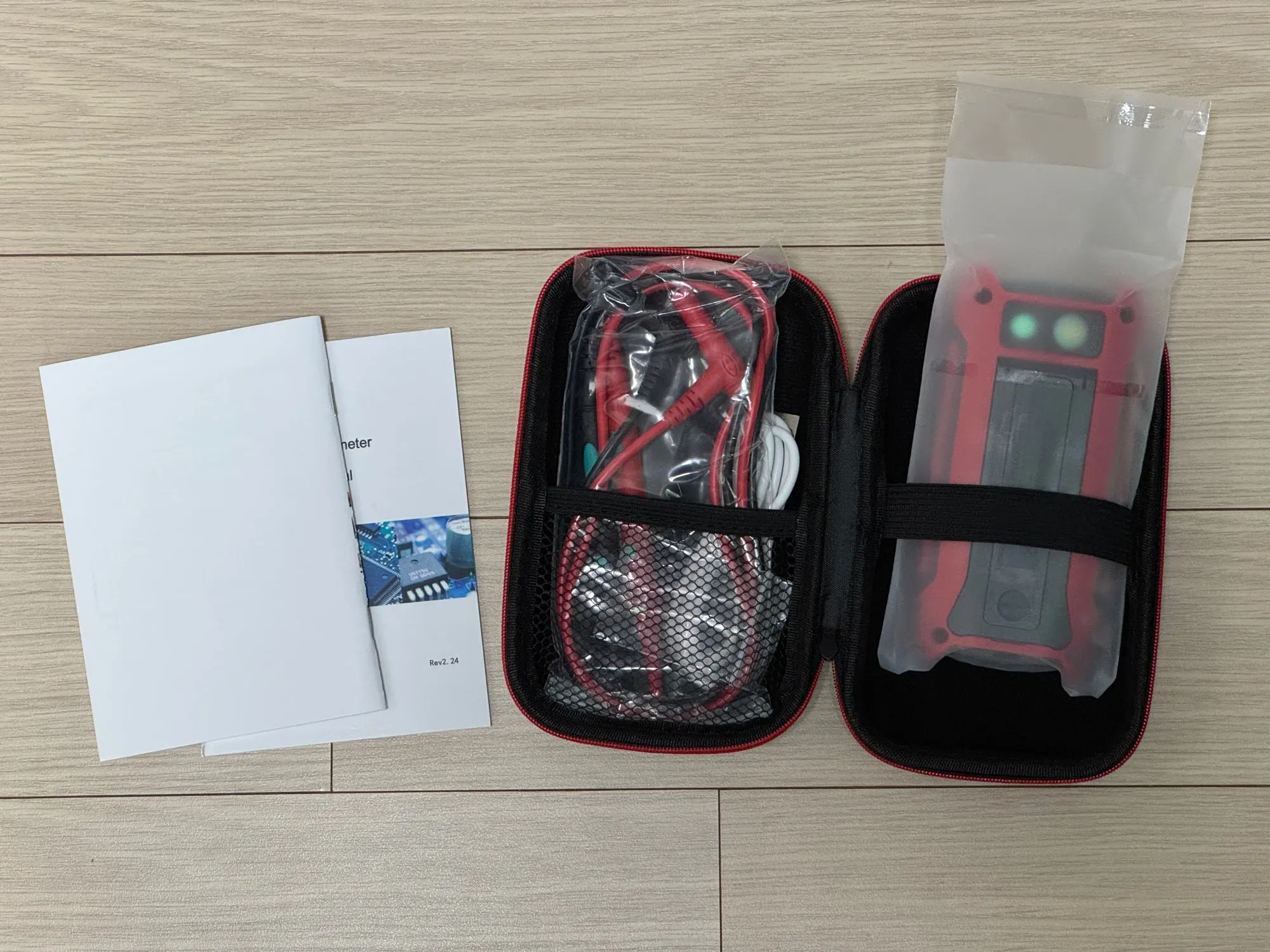

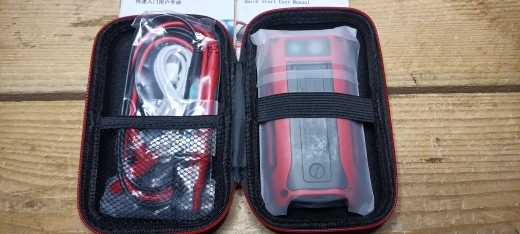

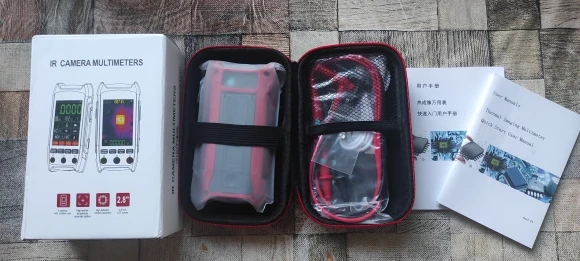

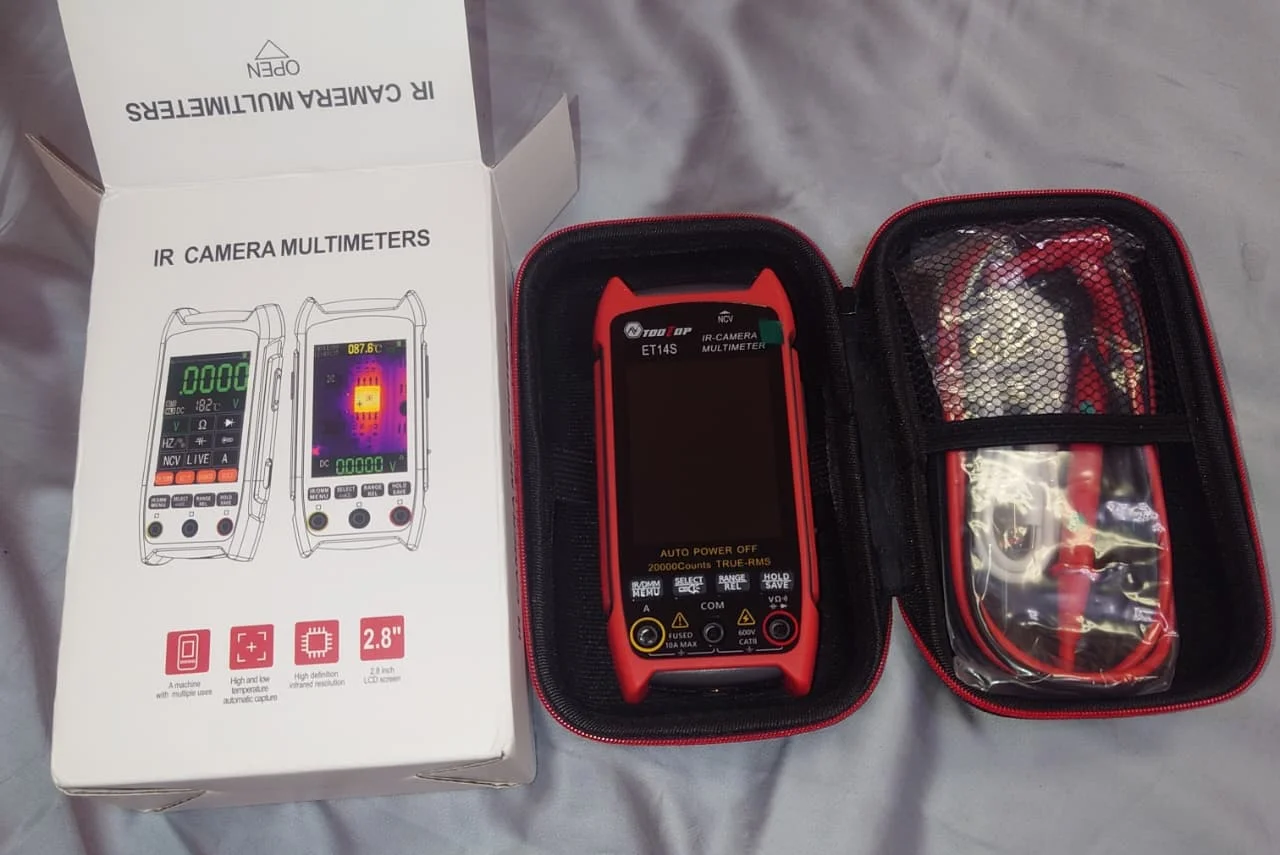

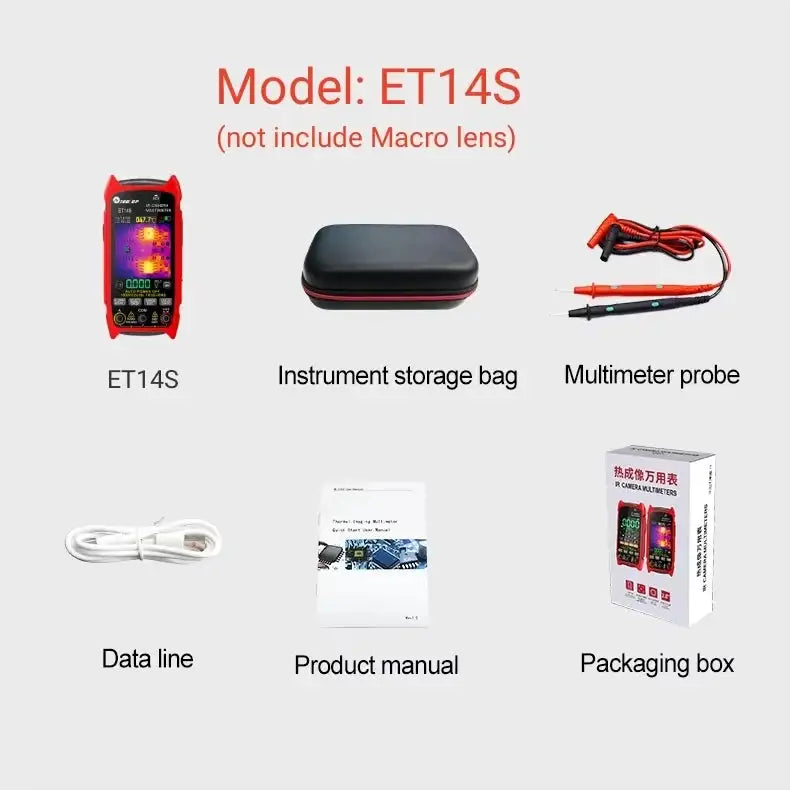

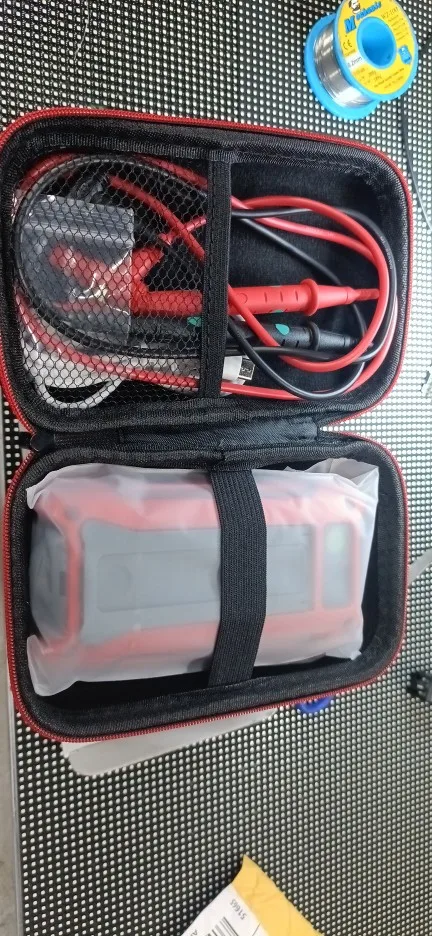

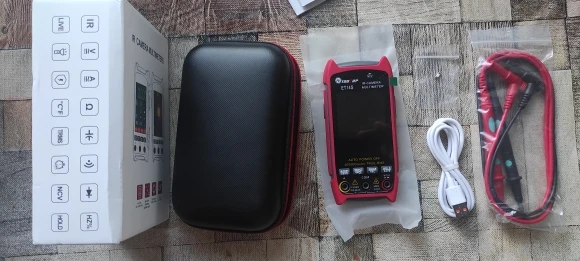

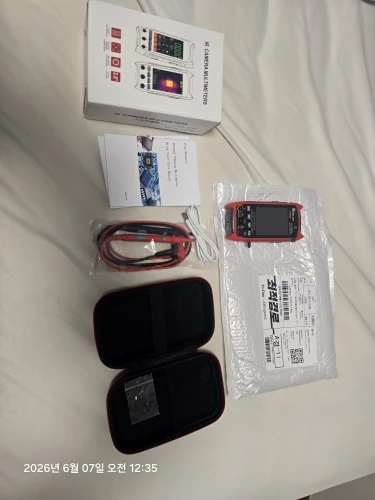

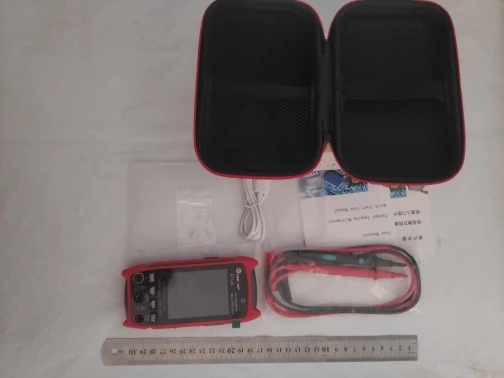

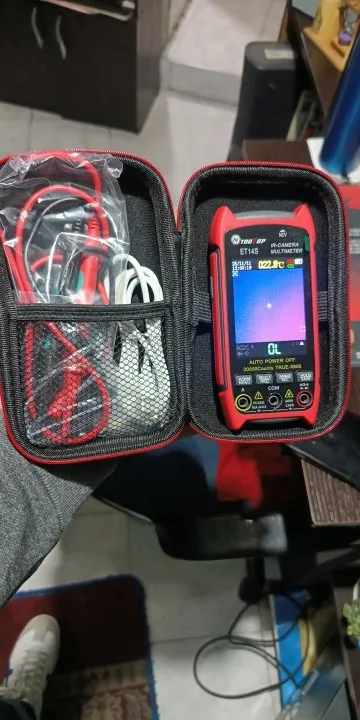

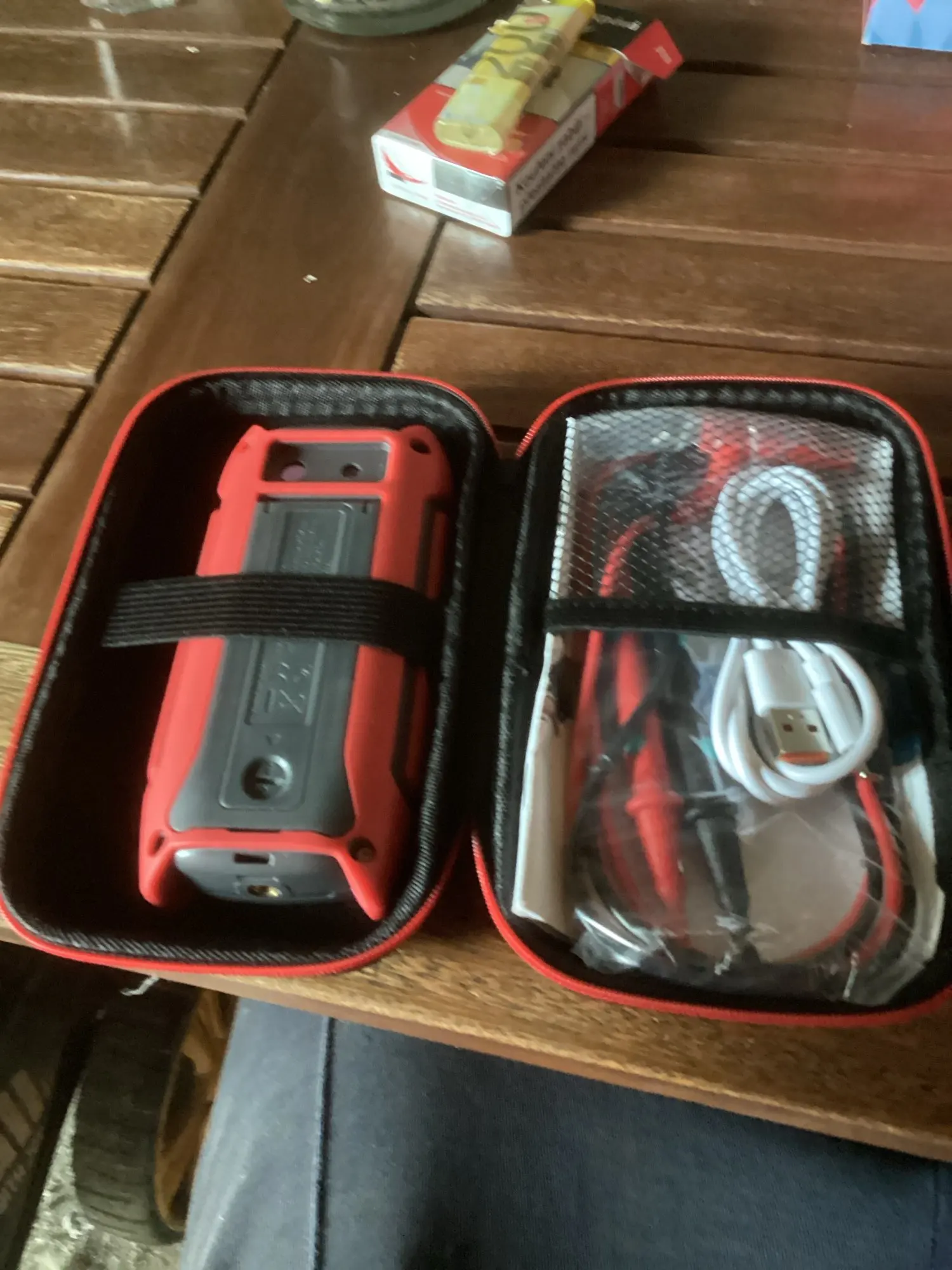

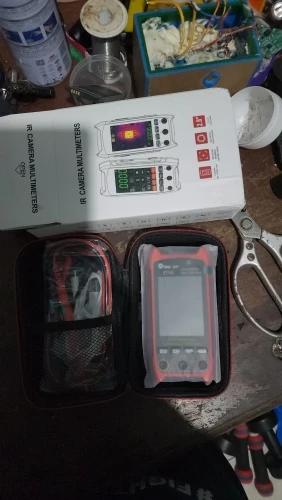

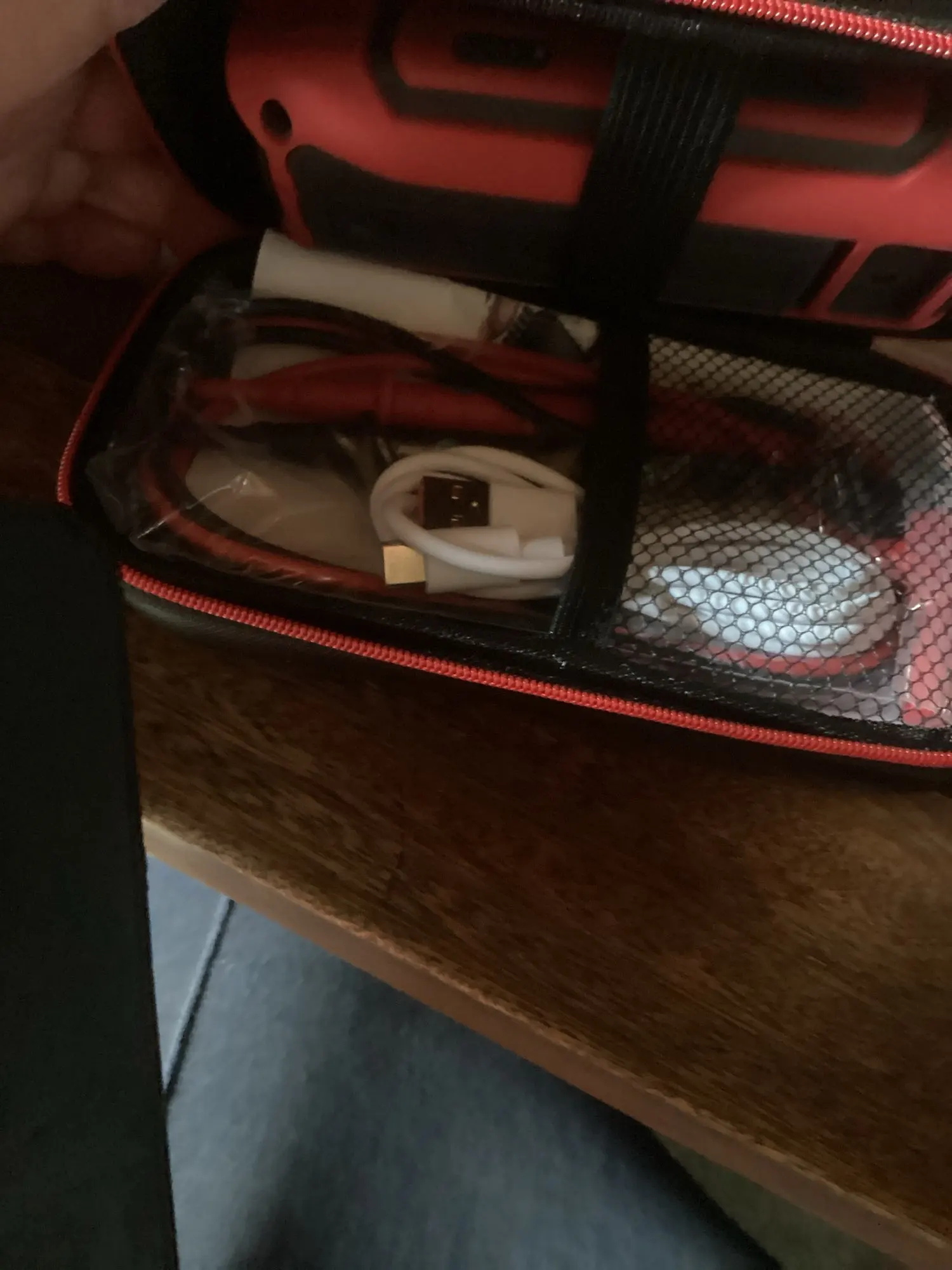

What’s Included

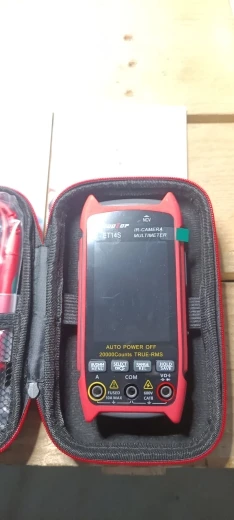

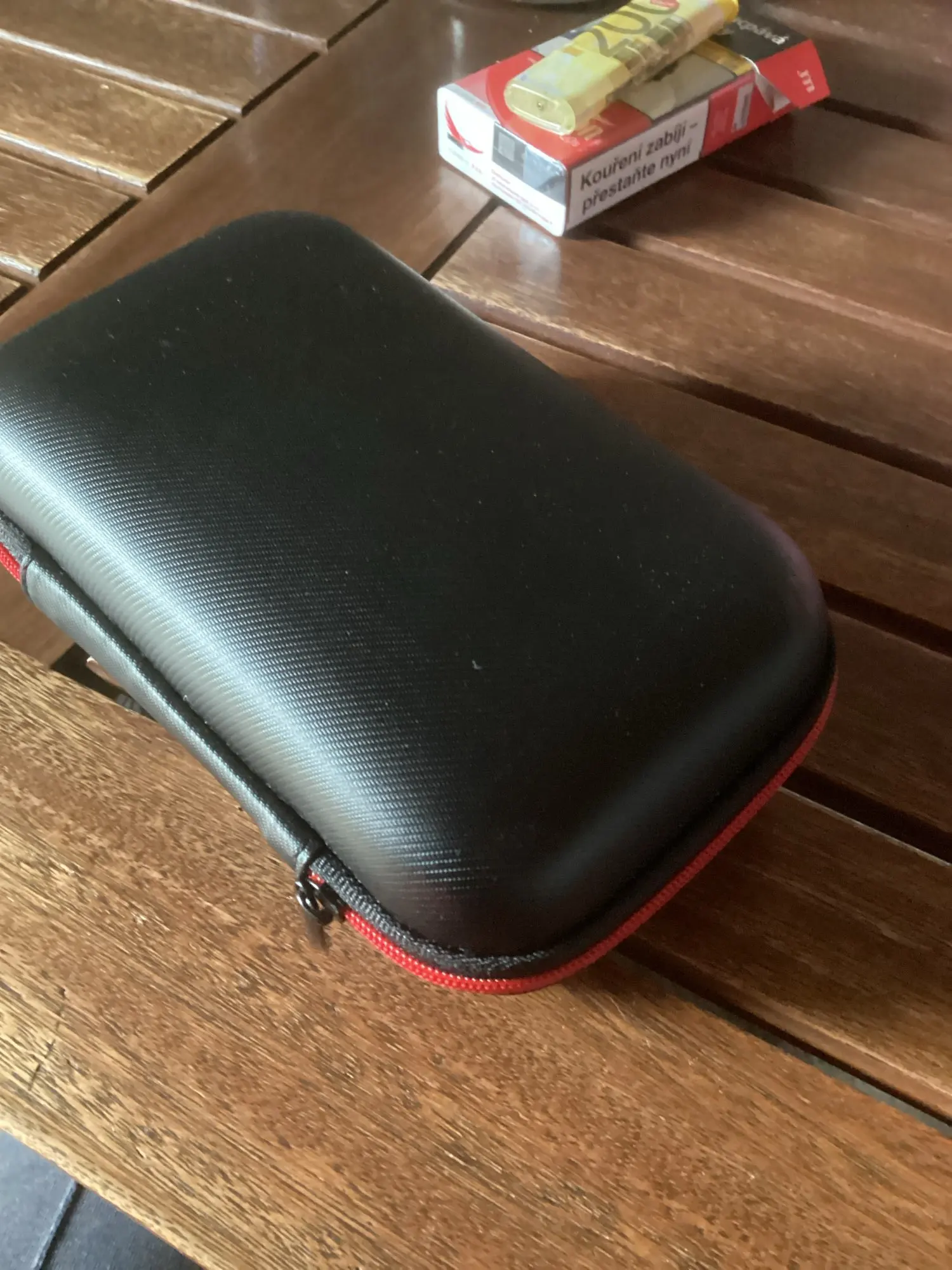

• Handheld Main Unit Comes housed in durable casing with preloaded firmware.
• Removable Power Cells Ships with lithium packs ready for daily cycling.
• Type-C Transfer Cable Links directly to laptops for instant file pulls.

How to Use

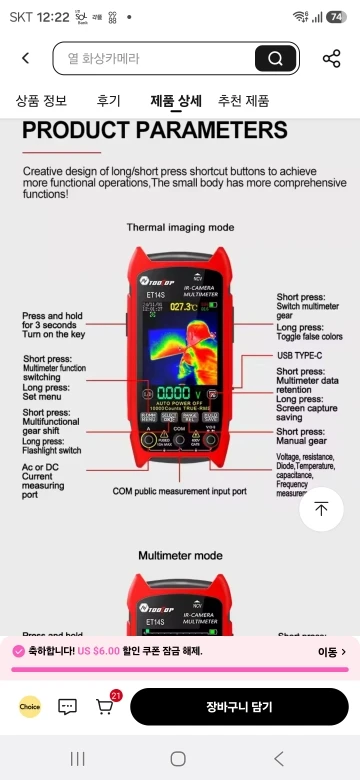

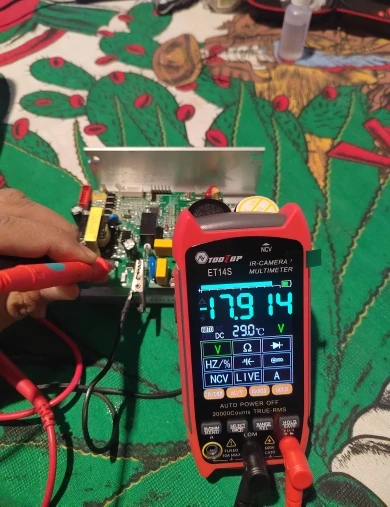

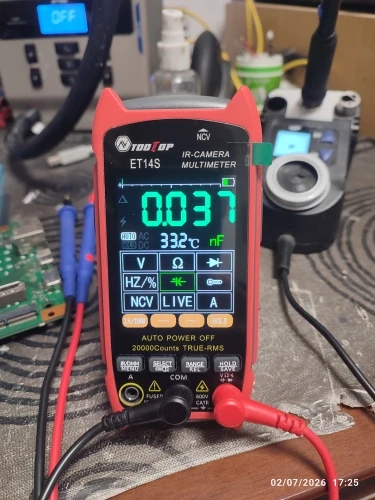

Tap the function button to toggle between thermal overlay and electrical probe mode. Connect banana plugs for panel mounting or snap test leads onto exposed copper rails. Pick any of the five built-in palettes to suit your eyesight before starting work.

Customer Benefits

Professionals cut downtime by watching heat spread while tracking live amperage simultaneously. DIY owners avoid costly mechanic invoices by fixing dead controllers themselves. Slim dimensions hide in jacket pockets or glove boxes instead of weighing down trucks.

Ideal Uses

• Appliance Repair Finds frayed insulation inside oven and washer timer boards.
• Electronics Teardown Maps uneven solder distribution on processor heatsinks.
• Maintenance Checks Monitors motor winders during seasonal startup routines.

Who It’s For

You will love this tool whether you run a service center or rebuild vintage radios at home. Straightforward menus welcome first-time buyers while giving experts precise numerical trails for audit logs.

5 Frequently Asked Questions

• Does the screen freeze periodically? A hidden calibration plate refreshes detector balance every ten seconds to keep graphs accurate. Expect a one-second lag during this routine maintenance cycle.
• Can I measure household circuits blindly? Insulation guards protect internal chips up to one thousand volts direct and seven hundred fifty volts alternating for standard line testing.
• Where do saved heat shots go? The machine writes captured frames directly into onboard memory as standard BMP files.
• Is the zoom glass in the box? The macro glass attaches separately and sits about two centimeters from flat boards only.
• How do I view charts on a PC? Install the official companion application through the supplier repository link.
