SPECIFICATIONS

Accessory Type: Display Development Board

Battery Included: no

Brand Name: cbhioarpd

Compatible With: none

Feature 1: Equipped with Xtensa 32-bit LX7 dual-core processor

Feature 2: Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)

Feature 3: Built in 512KB of SRAM and 384KB ROM

Feature 4: Onboard 7inch capacitive touch display

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

ESP32-S3 7inch Display Development Board, ESP32 With Display, 800×480, Options For Touch Function, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna

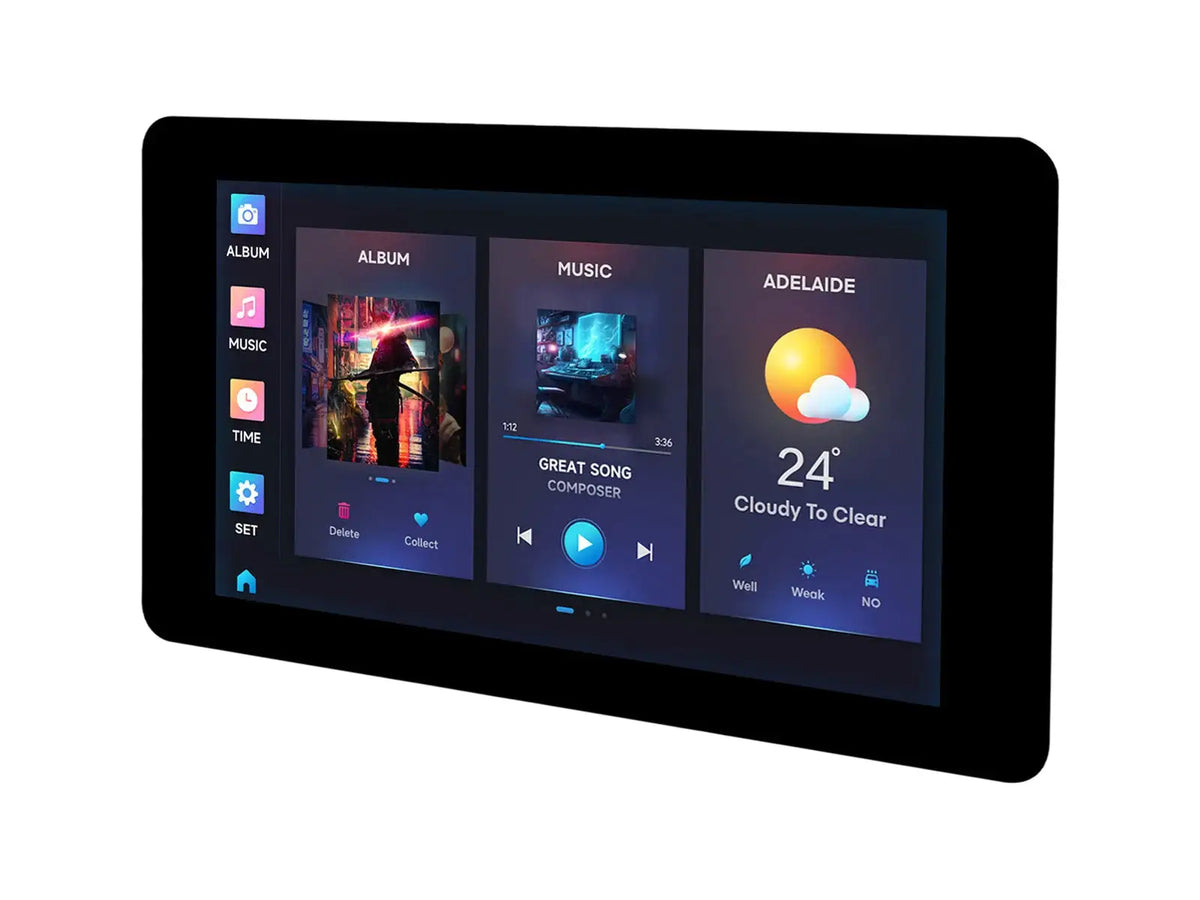

ESP32-S3 7″ LCD Development Board

Integrates RGB interface LCD and 5-point capacitive touch (optional)


Version Options

ESP32-S3-LCD-7
without touch control



ESP32-S3-Touch-LCD-7
with touch control

Features

This product is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 7inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications

  • Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

  • Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash

  • Onboard 7inch LCD display, 800×480 resolution, 65K color

  • Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)

  • Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port

  • Supports flexible clock, module power supply independent setting, and other control to realize low power consumption in different scenarios



Application Scenarios

IPS Display Panel

Excellent display performance, 170° viewing angle

Supports multiple peripherals

Supports the expansion of multiple peripherals via Sensor, CAN, RS485, and I2C interfaces


Application Example

for reference only, please refer to the Package Content for the detailed part list

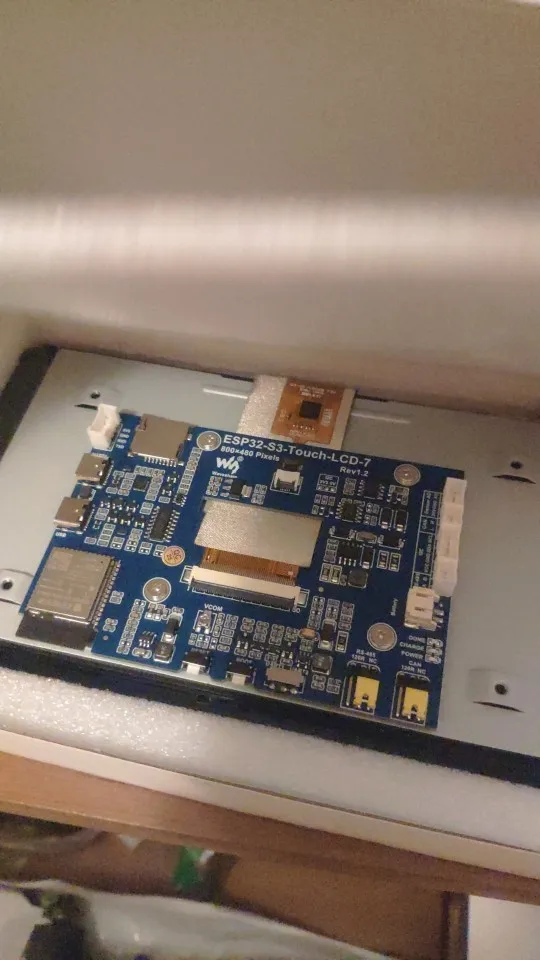

What's On Board

  1. ESP32-S3N8R8
    The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and Flash

  2. 7inch display panel connector

  3. Touch panel connector

  4. TF card slot

  5. USB Type-C port

  6. UART1 Port
    USB TO UART Type-C port

  7. UART2 connector
    UART1 and UART2 are the same UART, selected by switch

  8. Sensor header

  9. CAN header

  10. I2C header

  11. RS485 header



  1. 3.7V single lithium battery PH2.0 header

  2. CAN terminal resistor selection

  3. RS485 terminal resistor selection

  4. UART selection
    select UART1 or UART2

  5. BOOT button
    Press and hold while powering on for program burning

  6. RESET button

  7. I2C level selection
    3.3V / 5V

  8. DONE
    Lithium battery charging completed indicator

  9. CHG
    Lithium battery charging indicator

  10. PWR
    Power supply indicator


outline dimensions

ESP32-S3-LCD-7



ESP32-S3-Touch-LCD-7



Development Board Size



Resources & Services
Wiki:  www.waveshare.com/wiki/ESP32-S3-Touch-LCD-7

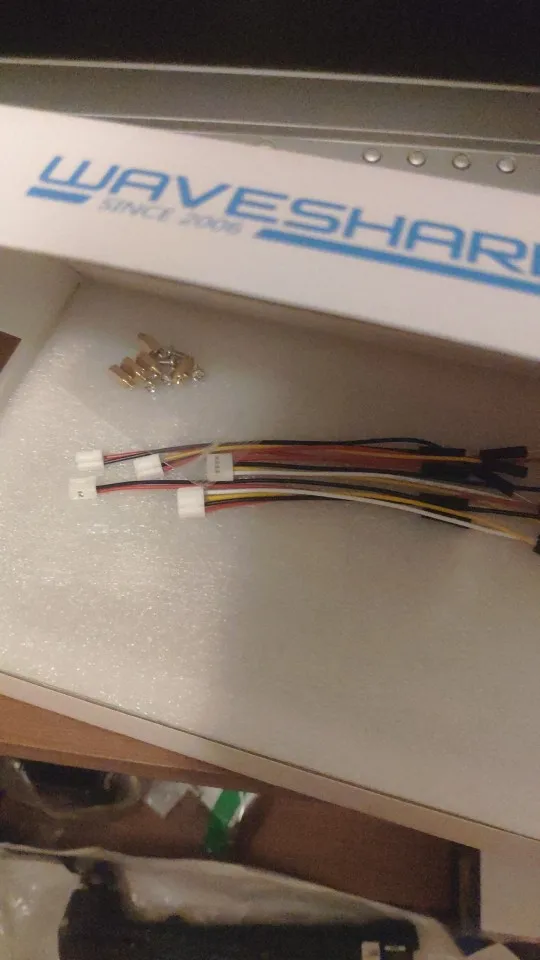

Package Content


ESP32-S3-LCD-7

  1. ESP32-S3-LCD-7 x1

  2. HY2.0 2P to 2PIN male cable 10cm ×2

  3. HY2.0 3P to 3PIN male cable 10cm ×1

  4. HY2.0 4P to 4PIN male cable 10cm ×2

  5. Screws pack x1

1
2
3
4
5

ESP32-S3-Touch-LCD-7

  1. ESP32-S3-Touch-LCD-7 x1

  2. HY2.0 2P to 2PIN male cable 10cm ×2

  3. HY2.0 3P to 3PIN male cable 10cm ×1

  4. HY2.0 4P to 4PIN male cable 10cm ×2

  5. Screws pack x1

1
2
3
4
5

Weight: 0.291 kg
