Portable Flexible Solar Panel 100 Watt – dgsunlight Monocrystalline PV

Dgsunlight 100W Flexible Solar Panel. Monocrystalline yield 5.5A current. Slim 970X530X2.5mm profile mounts secure. CE, RoHS, Weee approved. Endures -20°C to +65°C weather. Bundle has 0.9m cable. Fast drop from EU hubs in Spain, Czech Republic, and Belgium. Fits 12V/24V lead-acid needs. Top pick for RV roofs, boat tenders, cabin grids. Durable outdoor power.

Key Features

• High-Yield Mono Cells: 157x157 mm monocrystalline silicon cells deliver up to 5.5A max current at 18.18V. Sunlight converts efficiently to usable energy.
• Slim Form Factor: Measures 970 x 530 x 2.5 mm with a net weight of 1.6 kg. The low profile adheres flush to curved camper shells and boat decks.
• Flexible Design: Panels bend to fit non-flat surfaces without breaking cell structure. They stay in place during motion and vibration.
• Certified Safety: Passes CE, RoHS, and Weee standards. Materials contain no high-concern chemicals for safer handling and disposal.
• Wide Operating Range: Functions reliably in temperatures from -20°C to +65°C. Performance drops only slightly with heat due to a low temperature coefficient.

Product Description

You get a reliable solar generator component that expands your off-grid capability. This dgsunlight model uses pet or etfe cover options depending on your selection. The 0.9 meter cable with 2x2.5mm² wiring lets you route power easily. Every module is individually tested to hit the 100W peak rating. Mount it flat or curve along cabin edges for maximum exposure.

Product Overview

This flexible solar module targets mobile power and permanent installs alike. Engineers designed it for RVs, motorhomes, marine vessels, and tiny cabins. You pair it with a compatible regulator to maintain 12V or 24V lead-acid banks. The system scales by adding more panels and using splitters. EU-based warehouses keep stock ready for rapid transit once shipping clears.

Key Benefits

The flexible silhouette protects against impact and wind lift on uneven roofs. You avoid heavy glass frames that shift cargo balance. Mono crystalline technology ensures consistent charging cycles over years of use. Fast EU dispatch cuts downtime for emergency repairs or pre-trip prep. Selecting higher wattage configs gives you spare capacity for sunny days.

Specifications

• Max Power: 100W per panel.
• Max Power Voltage: 18.18V.
• Max Power Current: 5.5A.
• Open Circuit Voltage: 21.8V.
• Short Circuit Current: 5.83A.
• Cell Configuration: 33 cells in series.
• Model Number: RGN33-100.
• Temperature Coefficient Pmax: -0.38%/℃.
• Temperature Coefficient Voc: -60.5mV/℃.
• NOTC: 47℃ ± 2℃.

What's Included

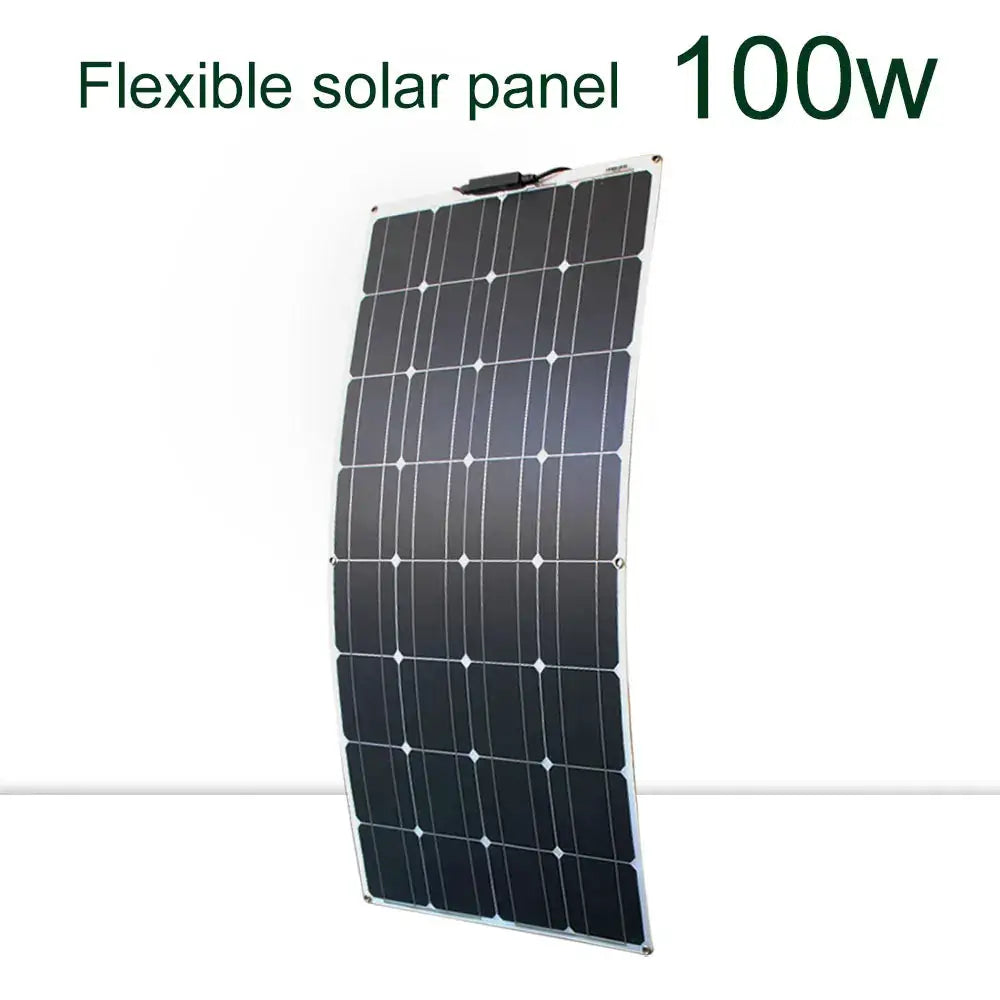

• Panel Only Purchase: You receive one 100W flexible solar panel with attached 0.9 m cable.

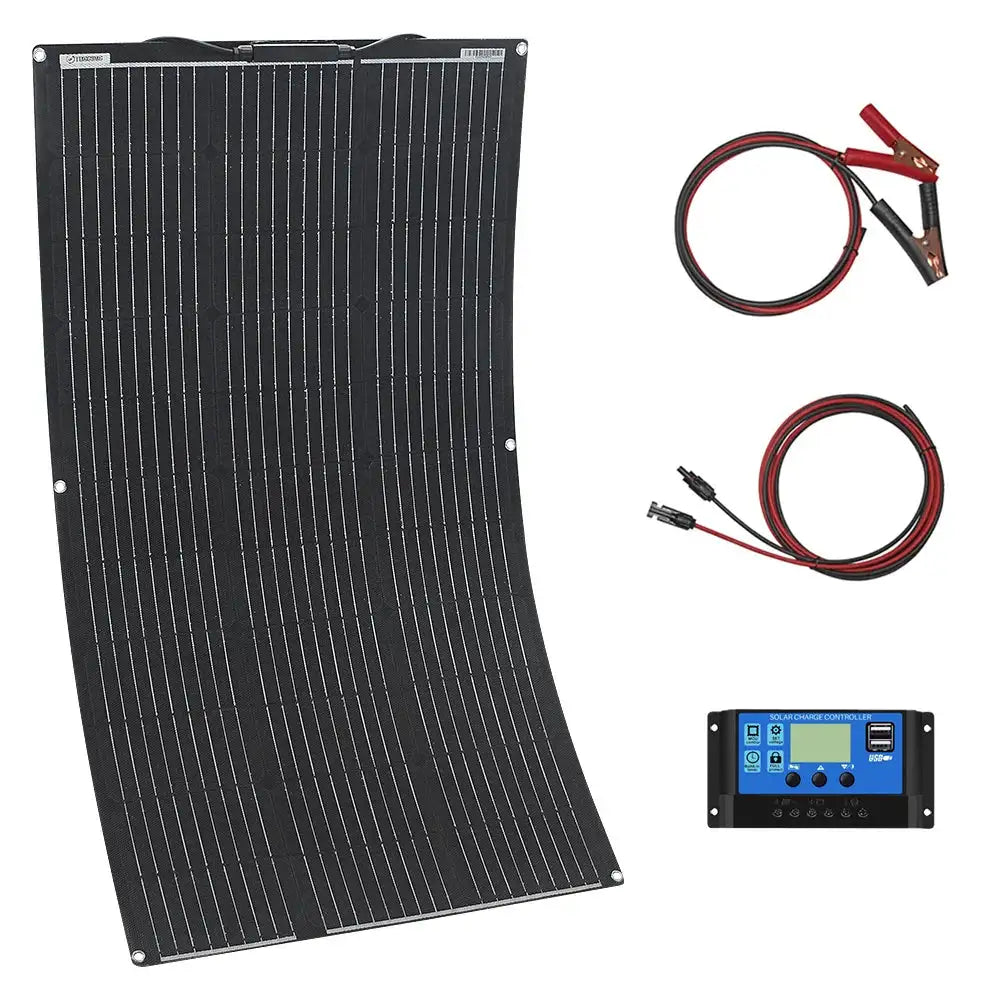

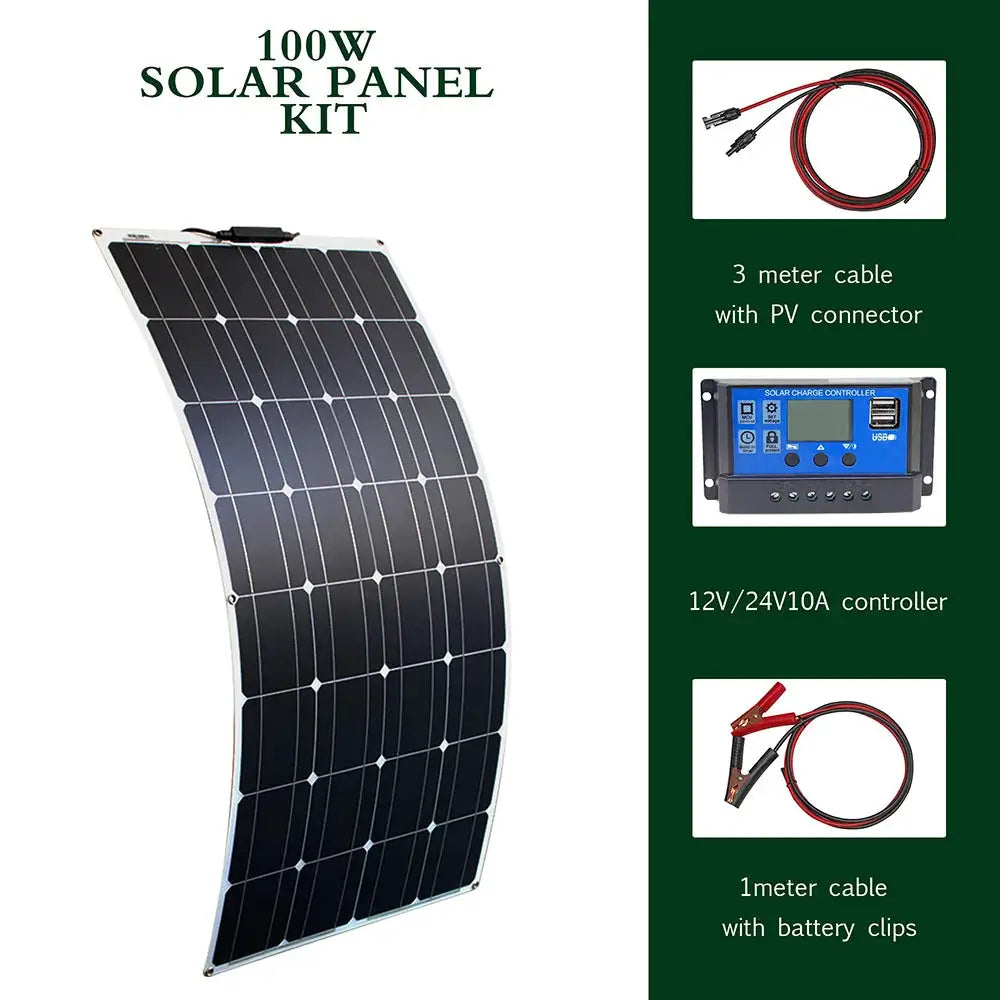

• 100W System: One panel, 12V/24V 10A solar charger controller, 3-meter PV cable, and 1-meter connector cable.

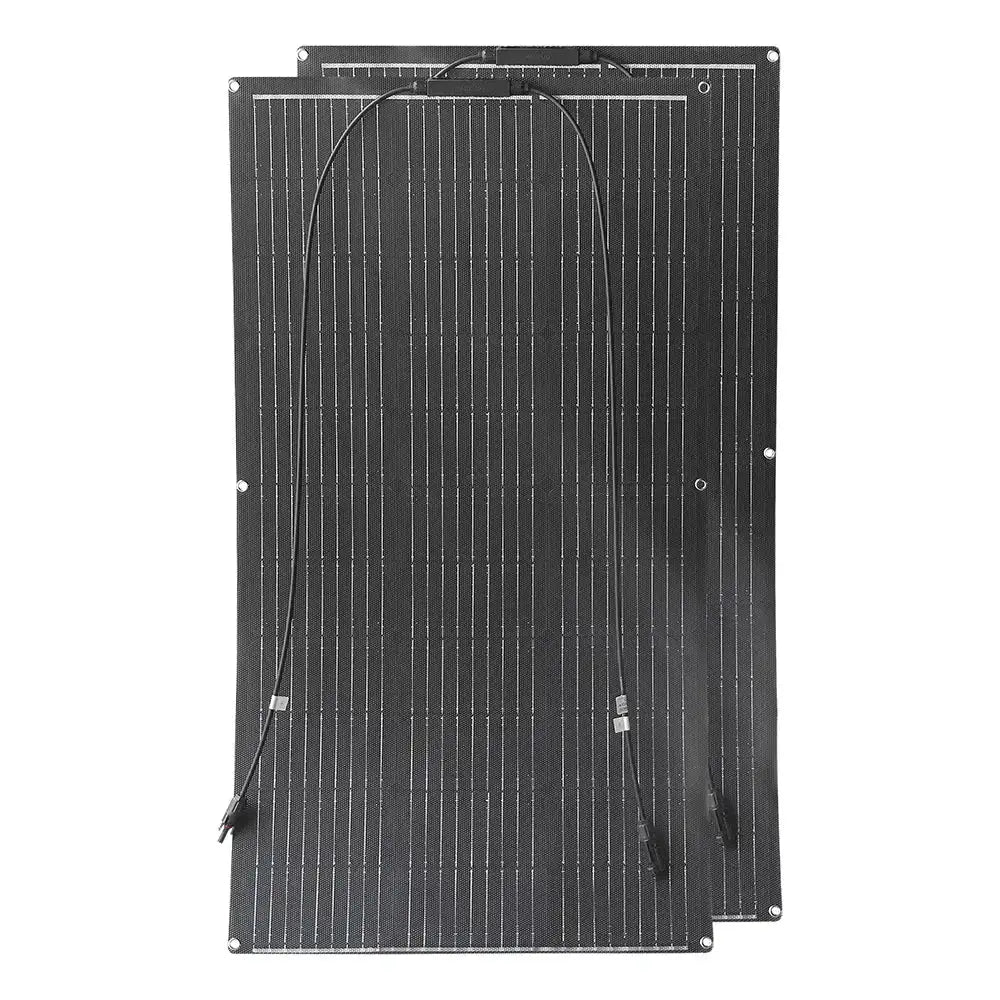

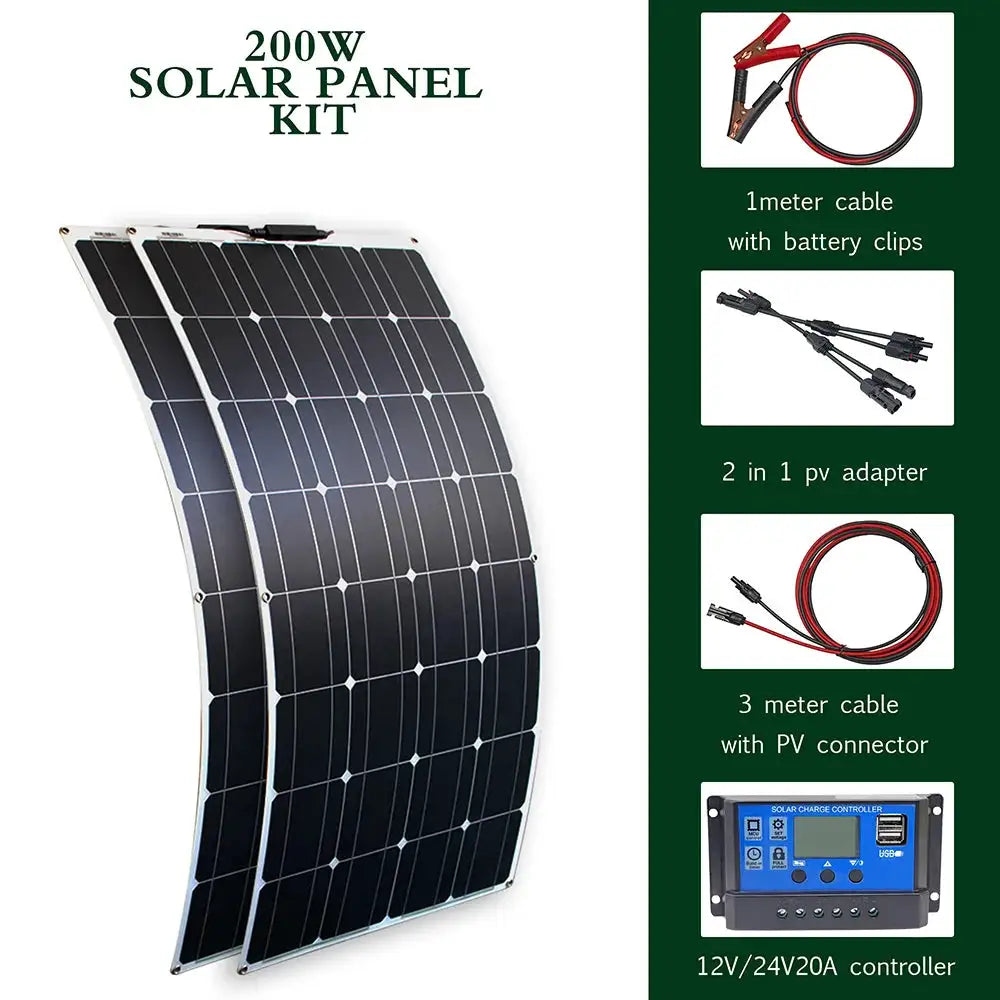

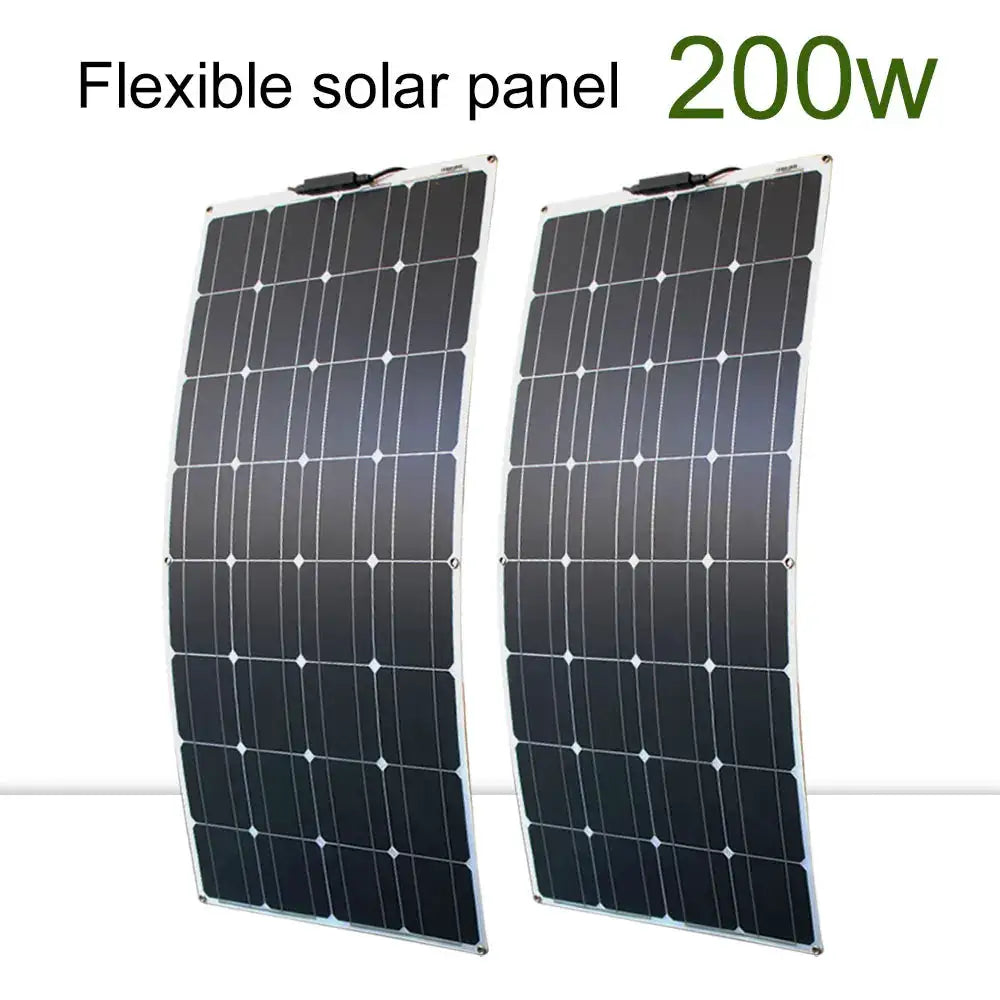

• 200W System: Two panels, dual-input splitter, 20A regulator, and required cabling harness.

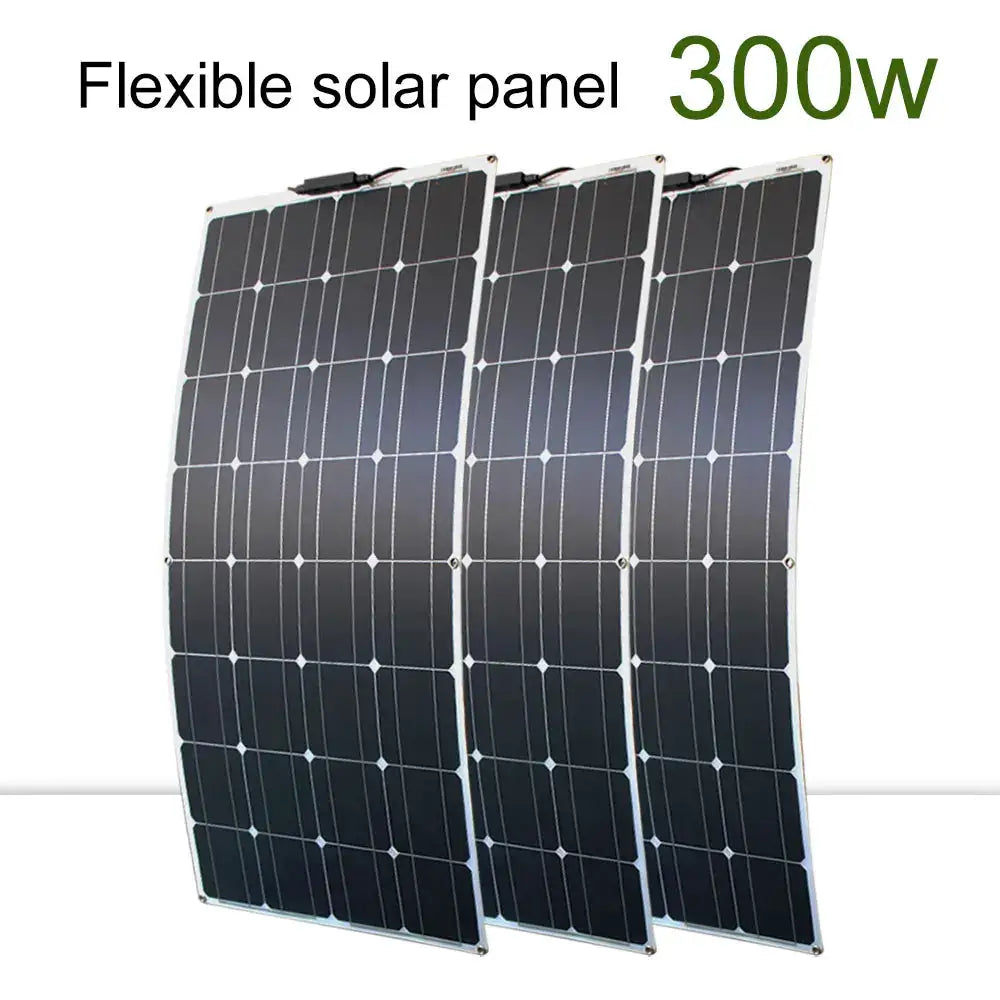

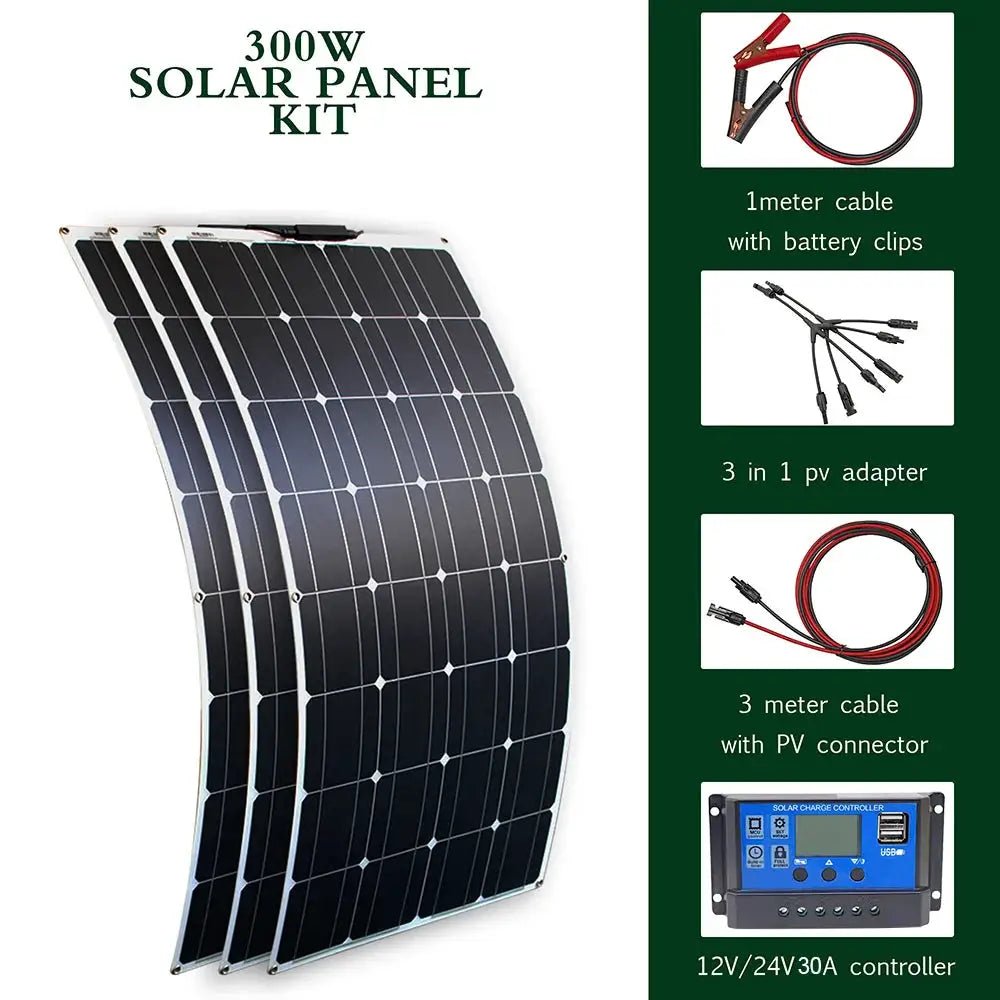

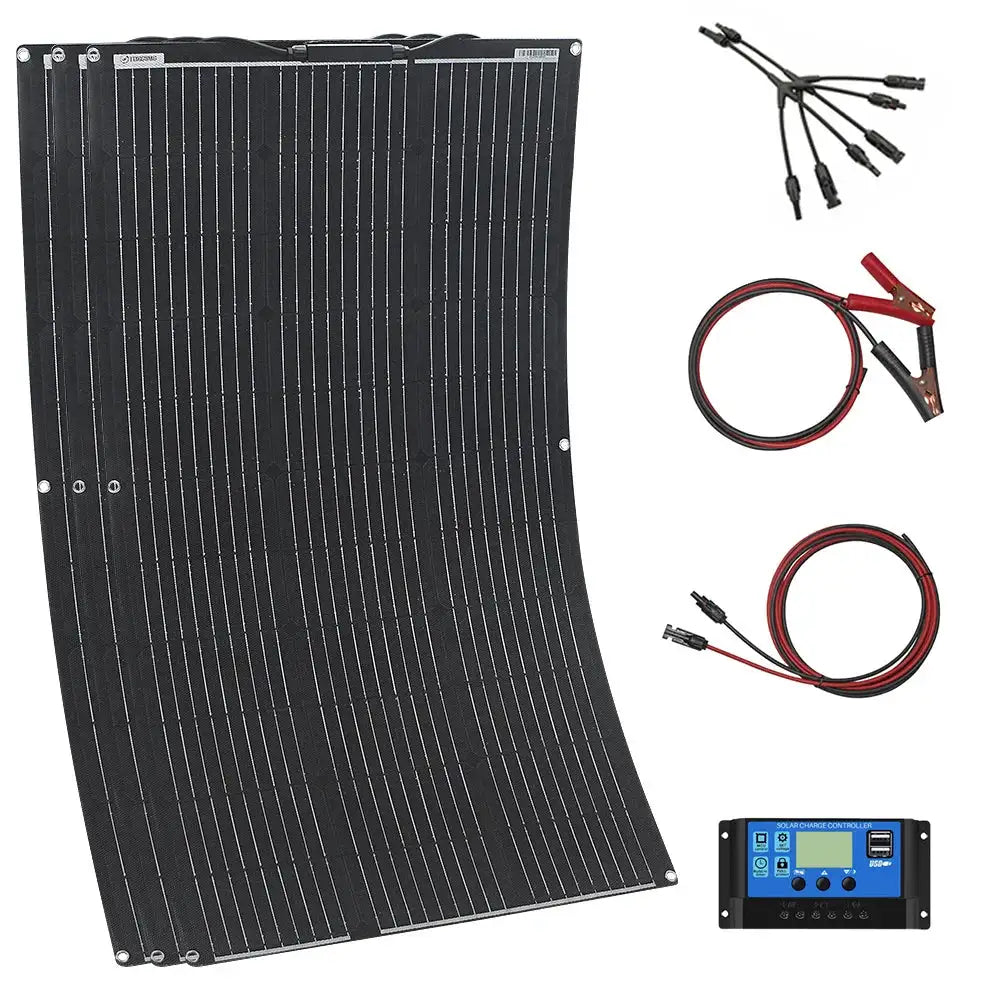

• 300W System: Three panels, triple-input adapter, 30A controller, and comprehensive wiring kit.

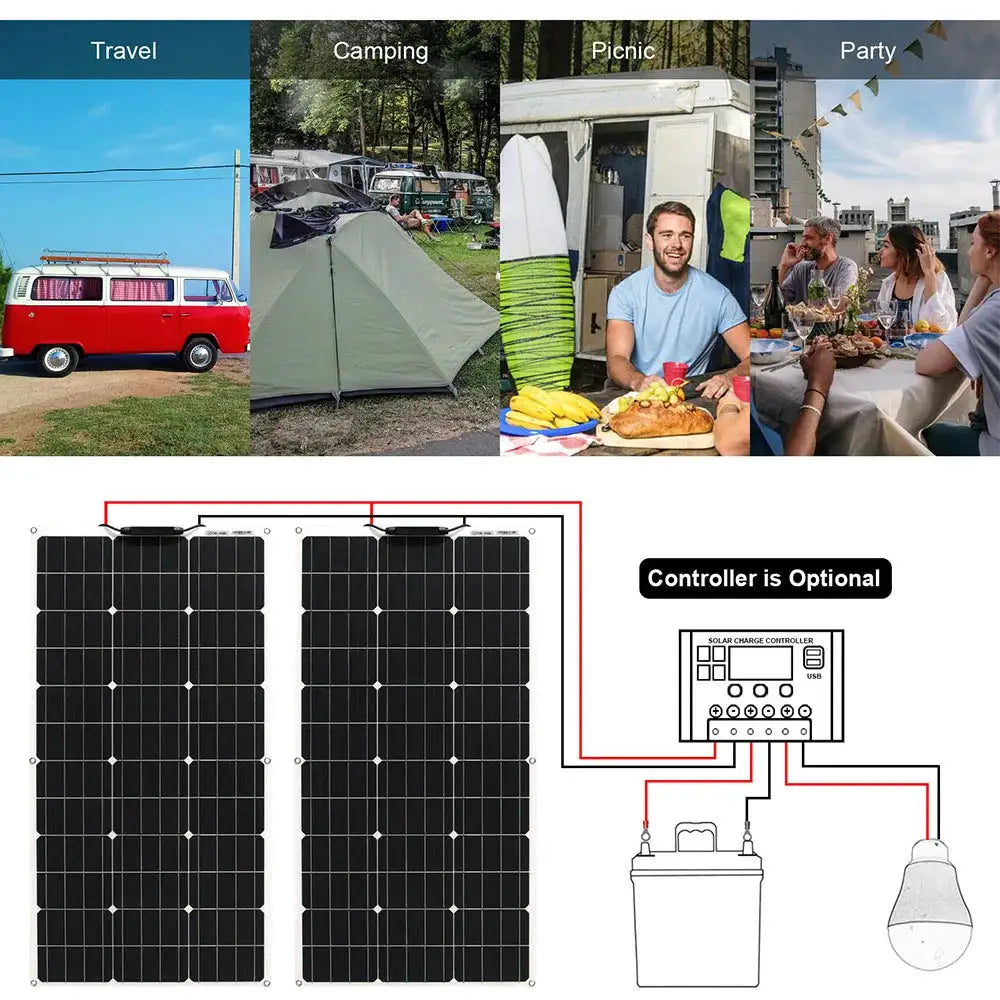

How to Use

1. Connect the battery terminals to the charge regulator first. Allow the screen to detect voltage. LED lights show 1 for 12V or 2 for 24V confirmation.
2. Link the solar panel positive and negative leads to the regulator inputs.
3. Attach your consumer load to the regulator output terminals.
4. Keep battery-to-regulator wires as short as possible to reduce voltage loss.

Ideal Uses

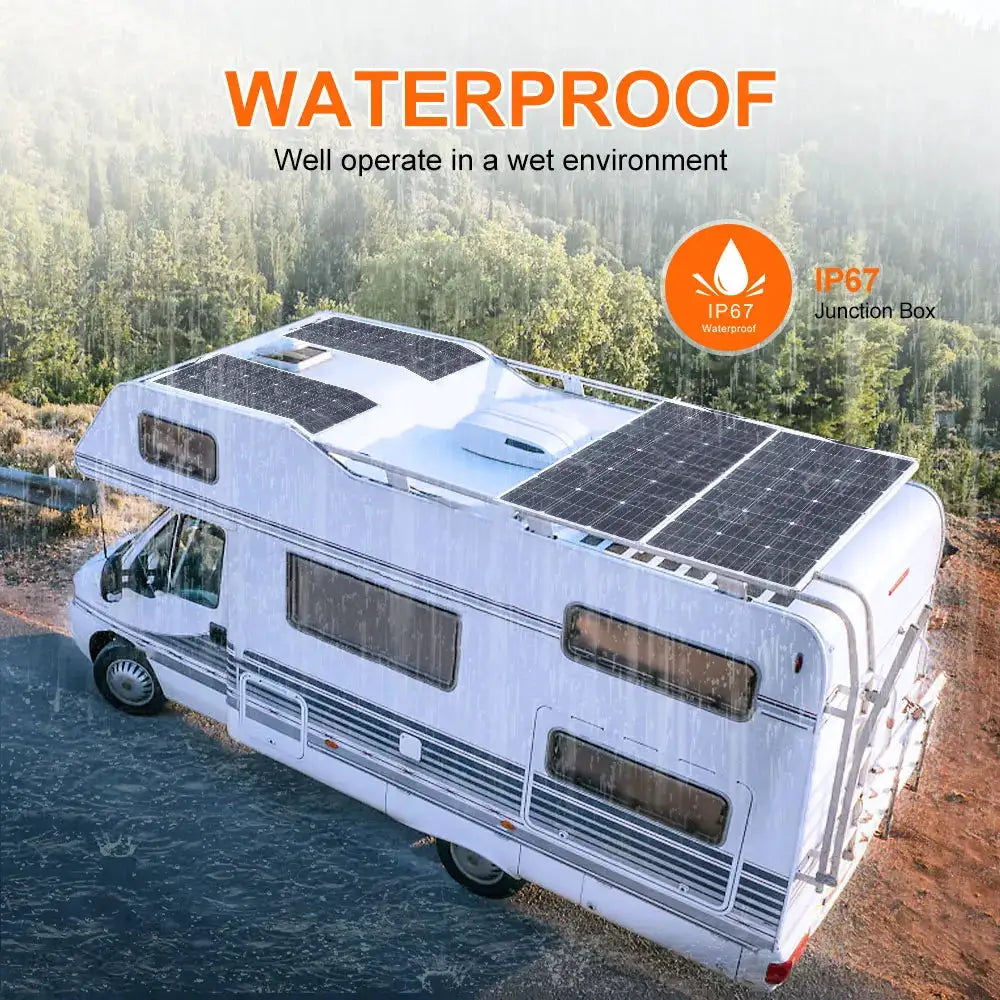

Power campervan lights and USB devices via a direct charge loop. Maintain house bank voltage on sailboats during idle seasons. Run remote monitoring equipment in agricultural fields. Charge auxiliary lighting trailers or utility carts. Backup power sources for off-grid telecom nodes and security systems.

Who It's For

Van lifers transforming cargo vans into living spaces. Skippers managing dual battery systems for engines and trolling motors. Homesteaders extending grid-tied backups. DIY electronics hobbyists building portable stations. Property managers needing low-maintenance outdoor energy taps.

5 Frequently Asked Questions

• Is this panel foldable?
  No, the module is flexible but does not fold. It conforms smoothly instead.
• Can I ship to remote European regions?
  We ship from Spain, Czech Republic, and Belgium addresses. Locations with postal codes starting with 35, 38, 51, 52 in Spain, 97 in France, and 9 in Portugal face logistic restrictions and cannot order.
• Does the controller work with lithium batteries?
  Lithium variants are not supported by the included regulator units.
• How many cells are in each panel?
  Each sheet contains 33 cells wired in series.
• Is customization available?
  Yes, the supplier offers customization options upon request.
