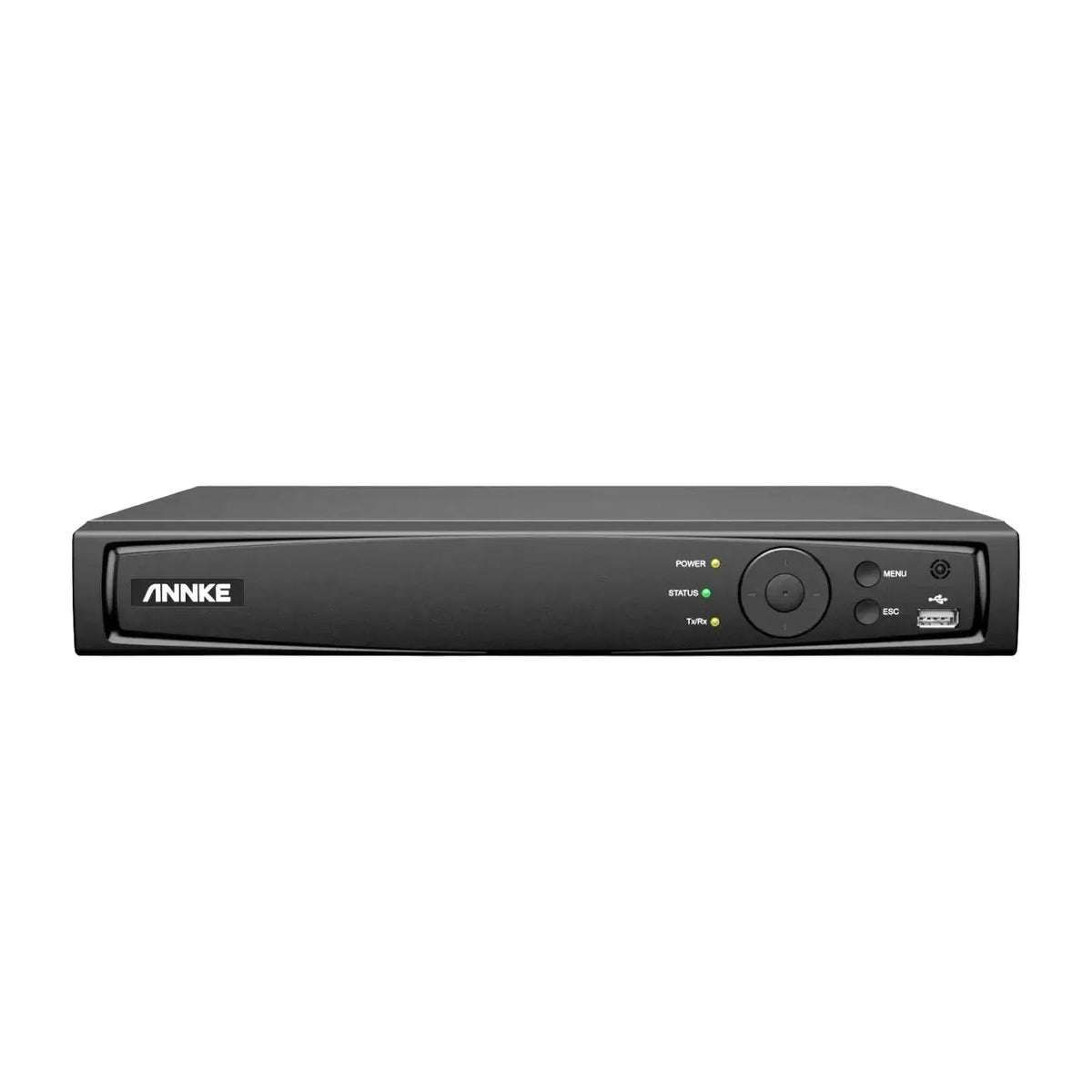

Annke 16CH PoE NVR Security Recorder
The Annke 16CH PoE NVR captures crystal clear security footage using eight built in PoE inputs and advanced H.265+ compression technology. Stream live feeds up to 12MP resolution on your phone. Detect people and vehicles instantly. Store eight terabytes locally. Monitor your property day or night. Remote access works via Annke Vision app. Connect cameras directly to the eight ports. Back up alerts by email. Upgrade your surveillance setup today.
SEO-Friendly Product Title
Annke 16 Channel PoE Network Video Recorder for Home Security
Key Features
-
Built-In Eight Port PoE Connect cameras directly without extra switches.
-
H.265+ Compression Saves storage space while keeping video clear.
-
Four K HDMI Output View crisp footage on any standard monitor.
Product Description
This network recorder handles sixteen camera channels with eight active PoE links. You manage everything through the Annke Vision app. The system supports human and vehicle detection. Smart alerts run on your schedule. Local backup stores data safely without monthly fees.
Product Overview
A reliable central hub for multi-camera surveillance setups. It processes twelve megapixel streams smoothly. You get complete control from your driveway or across town.
Key Benefits
-
Instant Mobile Alerts Know exactly when motion happens near doors or gates.
-
Reduced Bandwidth Usage Watch live streams smoothly even on slower connections.
-
Expanded Storage Options Add one seven inch drive that holds eight terabytes of history.
Features
Nickel safe casing protects internal components. The unit runs quietly under ten watts daily. Operating temperature stays stable from negative ten to fifty five degrees Celsius. Line crossing and intrusion detection trigger custom notifications. Two way audio is not included for this model. Playback handles multiple channels simultaneously.
Specifications
-
Video Resolution Records up to twelve megapixels at thirty frames per second.
-
Hard Drive Capacity Supports single SATA interface drives up to eight terabytes.
-
Network Ports One RJ45 Ethernet port and eight self-adaptive PoE jacks.
-
Physical Size Measures twelve point four inches wide by nine point four inches tall.
What’s Included
The package ships with the main recording unit, power adapter, mounting hardware, quick start guide, and ethernet cable.
How to Use
Plug eight compatible IP cameras into the front PoE ports. Attach a supported hard drive to the internal SATA slot. Power the unit using the supplied DC adapter. Download the Annke Vision application. Follow the on-screen steps to link your network and set recording modes.
Customer Benefits
You keep full ownership of your private footage. Automated filtering speeds up incident reviews. The compact chassis fits neatly in cabinets or wall mounts. You can add cameras later without replacing existing gear.
Ideal Uses
Perfect for residential perimeter monitoring. Business owners track employee parking lots. Warehouse managers watch loading docks. Property managers supervise multiple entries without hiring guards.
Who It’s For
Dome installers seeking reliable mid-tier recording equipment. Small business owners expanding camera counts. Homeowners upgrading standalone recorders to centralized systems.
5 Frequently Asked Questions
Does this recorder support third party protocols? Yes. It connects to compliant ONVIF network cameras. Integration varies by manufacturer firmware version.
Can I view recordings from outside my home network? Absolutely. Enable remote forwarding through the app. Ensure your broadband upload speed meets streaming minimums.
Will it work with older analog CCTV cameras? No. This device requires digital IP cameras with network interfaces.
How many simultaneous playback channels does it handle? You may view up to eight channels at once depending on selected resolution.
Is audio recording available on this model? Two way audio is not supported by this specific unit. Stick to visual monitoring for clear results.
NVR |
Video & Audio |
Decoding Format |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
8CH PoE |
Video Output |
HDMI up to 4K (4096 × 2160), VGA up to 1080p(1920 × 1080) |
Audio Input/Output |
1/1 RCA |
Incoming/outgoing Bandwidth |
80/80 Mbps |
Max Recording Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
Max Playback Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
Max Playback Channel |
8CH |
Max Playback Capacity |
1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity |
External Interface |
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
PoE |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
USB interface |
USB 2.0*2 |
Smart Function |
Deep learning |
8-ch Human and vehicle targets detection(Need IP camera support) |
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) |
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection(Need IP camera support) |
General |
Operating Power |
DC 48 V |
Power Consumption |
≤10 W (Without HDD and PoE) |
PoE: Max 25.5 W for Single Port |
Working Temperature |
14 °F ~ 131 °F/-10 °C ~+55 °C |
Dimensions (W X H X D) |
12.4” X 9.4” X 1.9”/315 X 240 X 48 mm |
Weight (Without Hard Disk) |
2.2 lbs/1 kg |
