Autel MaxiCOM MK906PRO MK906S PRO Diagnostic Scan Tool, Upgraded Ver. of MK906BT, MS906BT, MK900BT, MP900BT, Advanced ECU Coding, Bi-Directional Control, 36+ Services, VAG Guided Functions, OE-Level All System Diagnostic

Autel MaxiCOM MK906S Pro:

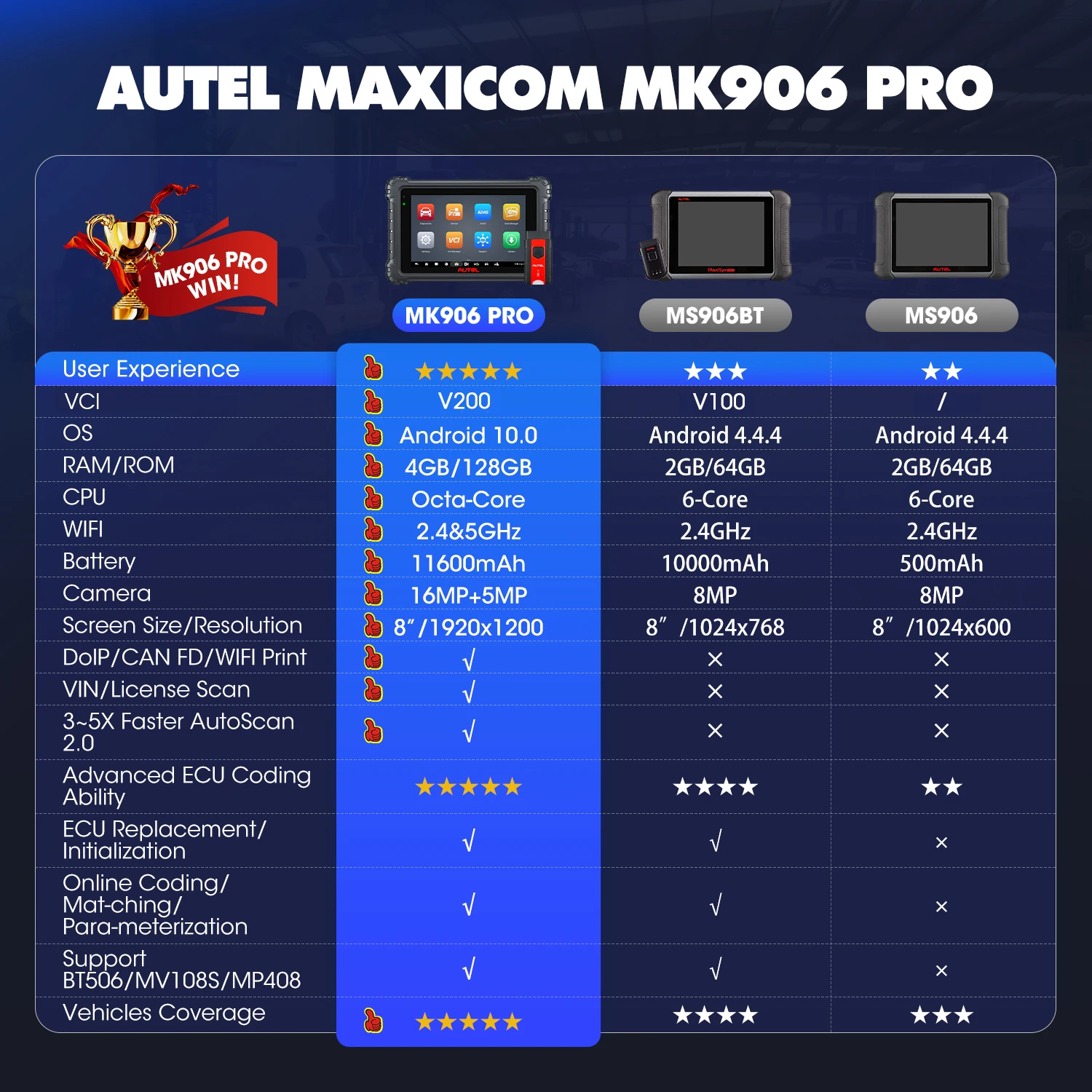

Autel MK906PRO MK906S PRO diagnostic scan tool, Updated from the old models MK906BT/ MS906BT/ MS906 based on Android 4.4.4, Autel MaxiCOM MK906S Pro has been directly upgraded to Android 10.0 OS which is Autel fastest OS version now, adopted Qualcomm 660 processor with 4G RAM & 128GB for super smooth operation, 8'' 1920*1200 touch screen, 16MP dual cameras enables ultra clear and detailed vehicle part info, 11600mAh battery supports 10 hours continuous work.

Enhanced Faster Hardware:

1. Latest Multitask-capable Andriod 10 OS: 5X faster operation speed than Android 4, runs more smoothly and fast than ever!

2. Qualcomm 660 Octa-core processor: Greatly increased the speed of running multiple tasks.

3. Substantial 128GB built-in Memory: More vehicle documents & customer data can be saved and conduct diagnostic tasks smoothly.

4. Autel Diagnostic Scanner with 16.0 Megapixel Rear and 16.0 Megapixel Rear Camera.

5. Upgraded 8.0-inch HD Touch Screen with 1920 x 1200 P Resolution: Clear and delicate screen for hassle-free browsing data.

6. MaxiVCI V200 wireless Bluetooth vehicle communication interface supporting the latest CAN FD & DoIP BUS protocols for high-speed CAN cover new vehicle models.

21+ Languages Support & 1 Year Free Update:

■ 1 Year Warranty and 1 Year Free Update.
■ Support 21+ Languages: English, Traditional Chinese, Spanish, French, German, Russian, Japanese, Korean, Polish, Portuguese, Swedish, Persian, Turkish, Thai, Vietnamese, Hebrew, Arabic, Indonesian English, Italian, Dutch...

( Please tell us about your S/N of machine to activate the language you need after you get it. Thanks~)

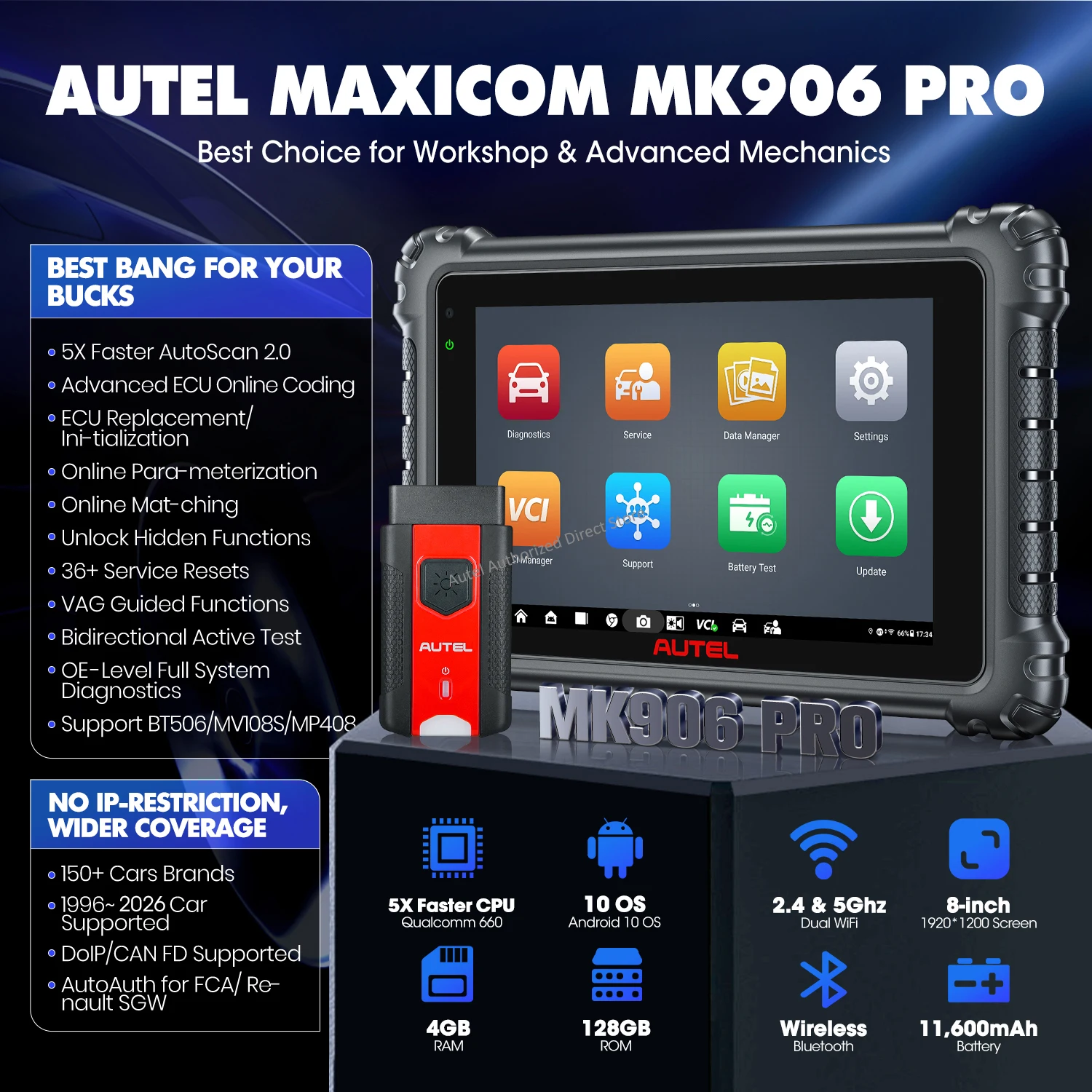

Autel MK906PRO Main Features:

• MaxiVCI V200 wireless Bluetooth vehicle communication interface supporting the latest communication protocols
• Same ECU Coding as MaxiSys Elite II/ MK908/ MK908P/ MS908S Pro
• VAG Guided Functions for step-by-step instruction
• OE-Level All System Diagnostics & Auto VIN/ Auto Scan 2.0/ Scan License
• 36+ Reset Services to solve 99 % car maintenance needs
• Read/Erase Codes, View Freeze Frame and Live Data
• Perform Active Tests (bi-directional controls), Coding and Adaptations
• AutoVIN/Scan VIN for rapid vehicle identification
• Compatible with MV108S camera, BT506 battery tester
• WiFi Printing can Now Print Without a PC Connection
• Cloud-based Reports and Data Management

ECU Coding: Customize the Vehicle Setting, Same As the Autel MS906PRO:

ECU Coding function is becoming increasingly practical in automotive repair. Same as MS908 / MK908, this Autel MaxiCOM MK906S Pro features this magic ECU Coding applied to ECU matching/code modification/functions activating/improving vehicle performance. This function can help technicians solve more problems & get more profits and meet customer’s needs.

Matching: Replace the ECU Modules
√ Online Coding: enable you to access the online data from the OEM server to reprogram adaptive data for high-level vehicles. Compatible with BMW, VW, Porsche, etc.
√Offline Coding: read the code from the original module, and then write it into the new module. Compatible with Ford, Mazda, Vauxhall, etc.

Modification: Customize Your Own Car
√Disable some unneeded functions: Such as deactivating the auto start-stop / changing the chimes / deactivating injector buzz sounds / deactivating seatbelt warning sounds / etc. Compatible with BMW, VW, Benz, etc.

Refresh Hidden Functions:

Such as auto start-stop / customizing interior lights / changing US-style daytime running lights / mirrors automatically folding and unfolding / activating cornering headlights with fog lights / etc. Compatible with BMW, VW, Skoda, etc.

Step-by-Step VAG Guided Function:

Specially designed for V~W/ Audi/ Skoda/ Seat/ Bently/ Man LD cars etc. For beginners or DIYers, follow up the instructions to get the job done easily and don't need to reply to a mechanic's suggestion all the time. For professional, provides step-by-step repair guidance to prevent the car setting damaged caused by the wrong operation.
Note: Please send VIN to check compatibility before your order.

OE Full System Diagnostics + Auto Scan 2.0:

The MK906pro scanner autel offers OE-level full system diagnostics, covering all vehicle modules including engine, transmission, ABS, SRS, BCM, TCM, etc. Reads/clears 8,000+ DTCs, retrieves ECU information, freeze frame data, and real-time live data for faster, more accurate troubleshooting. With latest Auto Scan 2.0, it achieves second-level scanning, reduces scan time by up to 50%, and improves shop efficiency. The 5-in-1 PID graphing clearly displays multiple data streams side-by-side or overlaid for quick comparison and fault finding.

Complete OBDII Functions:

1. Read Codes: Read and decode the DTCs to identify where the fault location is.

2. Erase Codes: Clear the fault codes after doing the repair according to the prompt of the scanner.

3. 4 in 1 Live Data Graph: The powerful graphing capability gives you the "real picture" of what's going on in the vehicle, which allows you to focus on any suspicious or symptom-specific data parameters. Multi-PID live data graphing in 1 screen for easy and intuitive diagnosis.

4. I/M Readiness: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5. Freeze Frame: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

6. Display ECU Info: Retrieve ECU information such as manufacturer, model, year and place of manufacture, etc.

7. O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests. (Note: the function is not supported by vehicles which communicate using a controller area network (CAN)).

8. On-Board Monitor Test: Retrieves and displays the results of On-Board Monitor tests after servicing or after erasing a vehicle’s control module memory.

9. Component Test: Also known as Active Test/Bi-directional Control, accurately figure out whether a specific system, component or subsystem in certain parts goes well or not.

10. Vehicle Information: Displays the VIN (vehicle identification number ), the CID (calibration identification), the CVN (calibration verification number), and other information of the vehicle.

11. Vehicle Status: Check the current condition of the vehicle, including communication protocols of OBDII modules, retrieved codes amount, status of the Malfunction Indicator Light (MIL), and other additional information.

36+ Reset and Maintenance Functions:

Autel MK906S Pro provides comprehensive service reset functions for vehicle maintenance. Including Oil Reset EPB Reset, SAS Reset, Airbag Reset, BMS Reset, Brake Bleed, TPMS Reset, DPF Regeneration, IMMO, Clutch, Trans Adaption, WIN DR ROOF, Headlamp, TEC Learn, A/F Setting, Injector Coding, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Language Change, Headlamp, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption, VIN, ACC, HV Battery, Transport Mode, A/C, Rain/Light Sensor, and More.

Oil Light Reset: reset the oil service lamp after changing the engine oil; re-calculate the optimal oil life change interval.Steering Angle Reset: reset the steering angle to zero to keep the car running straight.

Injector Coding: write the new injector code into the car system for the correct cylinder injection quantity.

Electronic Parking Brake Reset: help replace and reset the brake pad.
ABS Bleeding: help exhaust the air in ABS in an easy way.

Throttle Adaptation: initialize the throttle actuators to the default state.
Battery Matching: register the battery after replacement.

DPF Regeneration: help remove the particulate matter to keep the trap stable.
Tire Pressure Reset: reset the tire pressure.

Suspension Level Calibration: adjust the vehicle body height sensor for level calibration.

Headlight Matching: initialize the adaptive headlamp system.

Gearbox Matching: help complete the gearbox self-learning to improve gear shifting quality.

Sunroof Initialization: initialize the sunroof when to be locked off, or closed.
Tooth Learning: help to finish tooth learning after changing the crankshaft in the car engine.

Note: Services vary from car, please send us your car VIN to help you check compatibility first.

3000+ Bidirectional Active Tests:

Autel MK906S PRO bidirectional scan tool: 3000+ active tests for deeper and more precise diagnostics! It allows technicians to directly command vehicle components for real-time testing, including windows, sunroof, relays, A/C clutch, coolant pump, radiator fan, and more. Quickly pinpoint faulty parts, avoid unnecessary replacements, save time and repair cost. Please send VIN to us check compatibility.

For Example:
If a part doesn’t work and leads to failure, it could be a faulty component, relay, wiring, or command. By commanding the component to do active tests, like switch on/off, via this auto scanner you can quickly determine whether it’s a wiring, relay, or component issue without removing any parts.

• Cycle the a/c clutch on and off;
• Switch the headlights on and off;
• Adjust the window wipers;

Wide Coverage:

No need to worry about compatibility issues. The device currently supports 80+ car manufacturers and 160+ car brands worldwide. Also, you will be able to get more new car models through subsequent high-frequency software updates.

It is compatible with:
For Chrysler, Dodge, For Ford, For GM, For Jeep, For Abarth, For Alfa, For Citroen, For Fiat, For Lancia, For Opel, For Peugeot, For Porsche, For Renault, For Saab, For Vauxhall, For Volvo, For Aston Martin, For Audi, Bentley, For Benz, For Sprinter, For BMW, For Bugatti, For Ferrari, For Jaguar, For Lamborghini, For Land Rover, For Maserati, For Maybach, For Mini, For Rolls-Royce, For Seat, For Skoda, For Smart, For VW, For VW CV, For Dacia, For Ford EU, For LT3, For Acura, For Daewoo, For Daihatsu, For Honda, For Hyundai, For Hyundai CV, For Infiniti, For Kia, For Lexus, For Maruti Suzuki, For Mazda, For Mitsubishi, For Nissan, For Nissan GTR, For Samsung, For Scion, For Ssang Yong, For Subaru, For Suzuki, For Toyota, For Isuzu, For Mahindra, For Perodua, For Proton, For TATA, For HINO, For UD,For Fuso, etc.

Vehicle Coverage: https://www.autel.com/vehicle-coverage/coverage2
If you can not make sure wheater the device support for your car, please send your car VIN# to us to help you check compatibility first.

Newest Service Function Release - VIN/O...meter Check:

• Adds "VIN/O..meter Check" feature, which supports reading the mileage and Vehicle Identification Number (VIN) values stored in various control units of the vehicle.

• By comparing the values, it serves as reference information for the maintenance history of the vehicle module.

• Supported Manufacturers：Chrysler, Dodge, JEEP, Porsche, Hyundai, Kia, Genesis, Fiat, Alfa, Abarth, Lancia, VW, Audi, Bentley, Lamborghini, Seat, Skoda, Nissan, Infiniti, NissanGTR, Toyota, Scion, Lexus, Subaru, Suzuki, Ford, Mazda, Peugeot, Citroen, DS, LandRover, Jaguar, GM, Chevrolet, BMW, Mini, Renault, Dacia, Samsung, Volvo, Polestar, Benz, Maybach…

CAN FD & DoIP Latest Protocols, FCA AutoAuth:

Level-up of MK908 MS908S M906BT, same as Autel Ultra MS909 MS906MAX, MaxiCOM MK906SPRO car scanner diagnostic tool supports the latest CAN FD (for GM 2019+) and DoIP protocols (for BMW E/F/G Chassis, for Volvo models 2018+, for Land Rover & Jaguar 2017+). Besides, with the functions of FCA AutoAuth & Renault SGW, the MK906S PRO can perform full diagnosis & reset services directly on 2018+ FCA cars (Chrysler/Dodge/Jeep/Fiat) and Renault newest vehicles with SGW. No need for extra 12+8 adapters! Pls send us your car VIN# to check compatibility first.

10+ Premium Features to Boost Your Repair:

Why does Autel maxicom mk906s pro stands away from other diagnostic scanners? It packs elite functions usually found in $2,000+ tools: Battery Test with BT506: charging test and cranking test, Videoscope Support (MV105S/MV108S), Oscilloscope Compatibility, Scan VIN/license scan(way better than MS906BT/ MS908S/ MK908P/ Elite/ Elite 2), Wi-Fi Printing & Instant Pre/Post Reports, VAG Guided, Power Balance, Refresh Hidden Feature, Component Matching, and more. Save time. Save money.

Extended Module, More Comprehensive Diagnostic:

Battery Test: With the additional purchase of the MaxiBAS BT506 battery tester, can test battery, and cranking/charging systems.

Videoscope: With additional MV108 digital inspection camera, enables you to check unseen parts of the engine, fuel tank, braking system, spark plug holes, etc.

Oscilloscope: With the additional purchase of MaxiScope MP408, it can quickly acquire the circuit signal, and display the waveform for better data analysis.

Cloud Report Management: you can upload diagnostic reports to Autel Cloud and share reports with your customers through QR Code/email/text message easily.

Data Manager: In case of any issues, please reproduce the issue and go to Data Manager - Data Logging to upload data log to Autel server and send us the S/N(12 digital at back of the device), so that the Autel engineers could help you solve the issue.

Specifications:

• Operating System: Android 10.0
• Processor: Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
• Memory: 4GB RAM & 128GB On-board Memory
• Display: 8 inch TFT-LCD with 1920*1200 resolution & capacitive touch screen
• Connectivity: WiFix2(802.11a/b/g/n/ac 2x2 MIMO); BT v.2.1 + EDR; GPS; USB 2.0 (Two USB HOST Type A, one USB mini device); HDMI 2.0; SD Card (Support up to 256GB)
• Camera: Rear: 16 Megapixel, Autofocus with Flashlight; Front:16 Megapixel
• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
• Audio Input/Output: Microphone; Dual Speakers; 3-Band 3.5 mm stereo/standard headset jack
• Power and Battery: 11600mAh 3.8V lithium-polymer battery; Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
• Input Voltage: 12V/3A Adapter
• Operating Temp.: 0 to 50°C (32 to 122°F)
• Storage Temperature: -20 to 60°C (-4 to 140°F)
• Dimensions (WxHxD): 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
• Weight: 2.18kg (4.81 lb.)
• Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

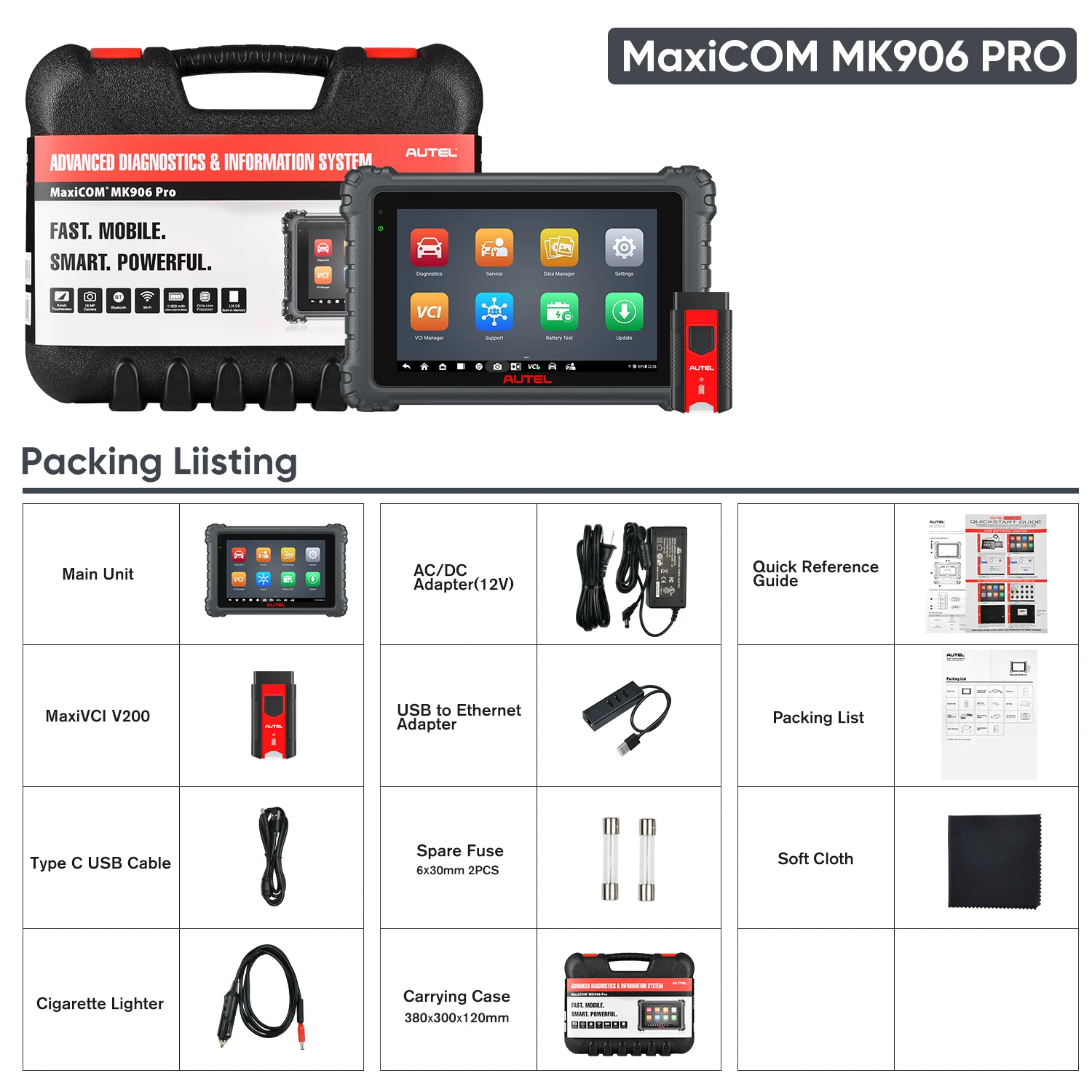

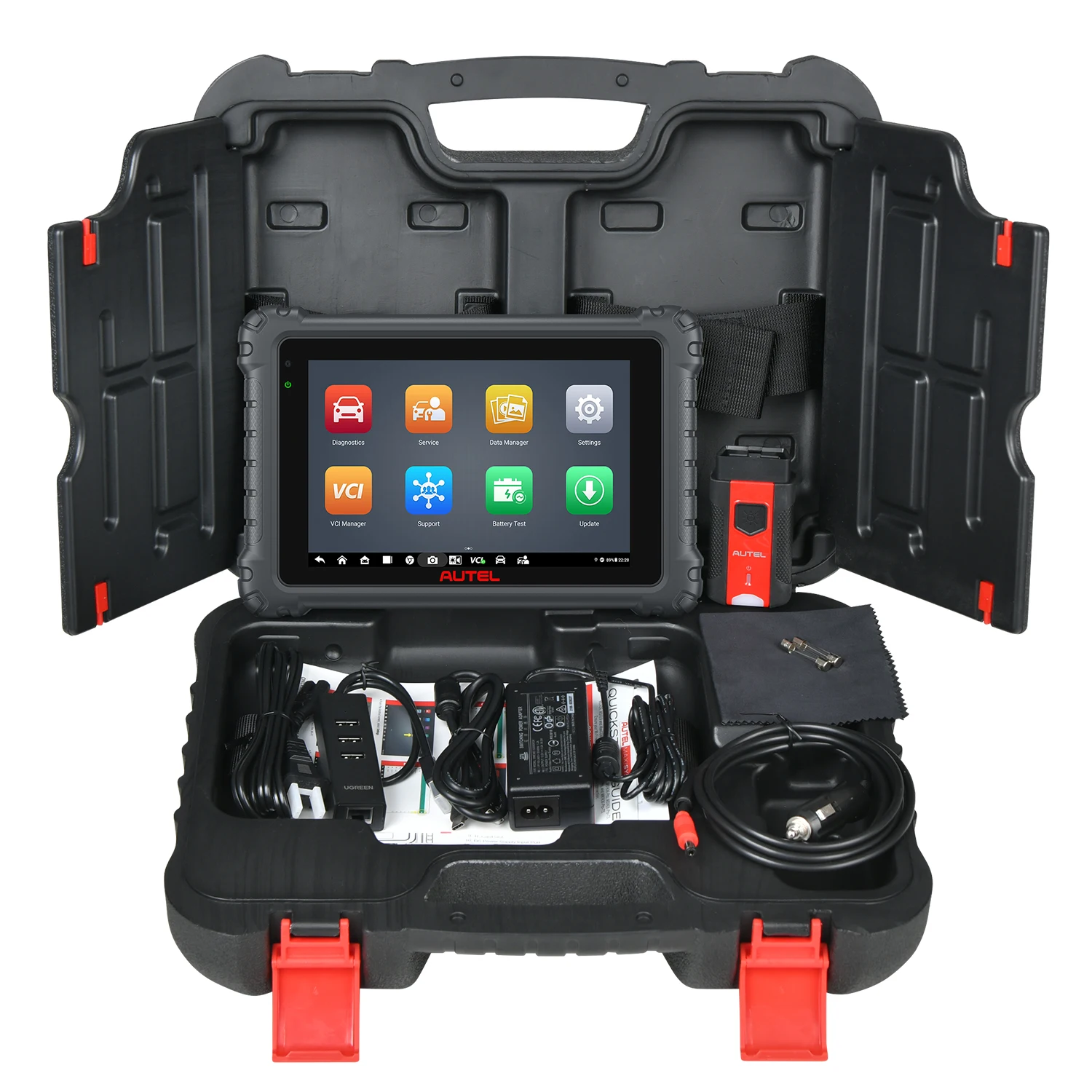

Autel MaxiCOM MK906S PRO Package List:

1 x Main Unit
1 x MaxiVCI V200
1 x AC/DC Adapter (12V)
1 x Type-C USB Cable
1 x Auxiliary Power Outlet Adapter
2 x Spare Fuse 6x30mm
1 x USB to Ethernet Adapter
1 x Quick Reference Guide
1 x Packing List
1 x Soft Cloth
1 x Carrying Case
