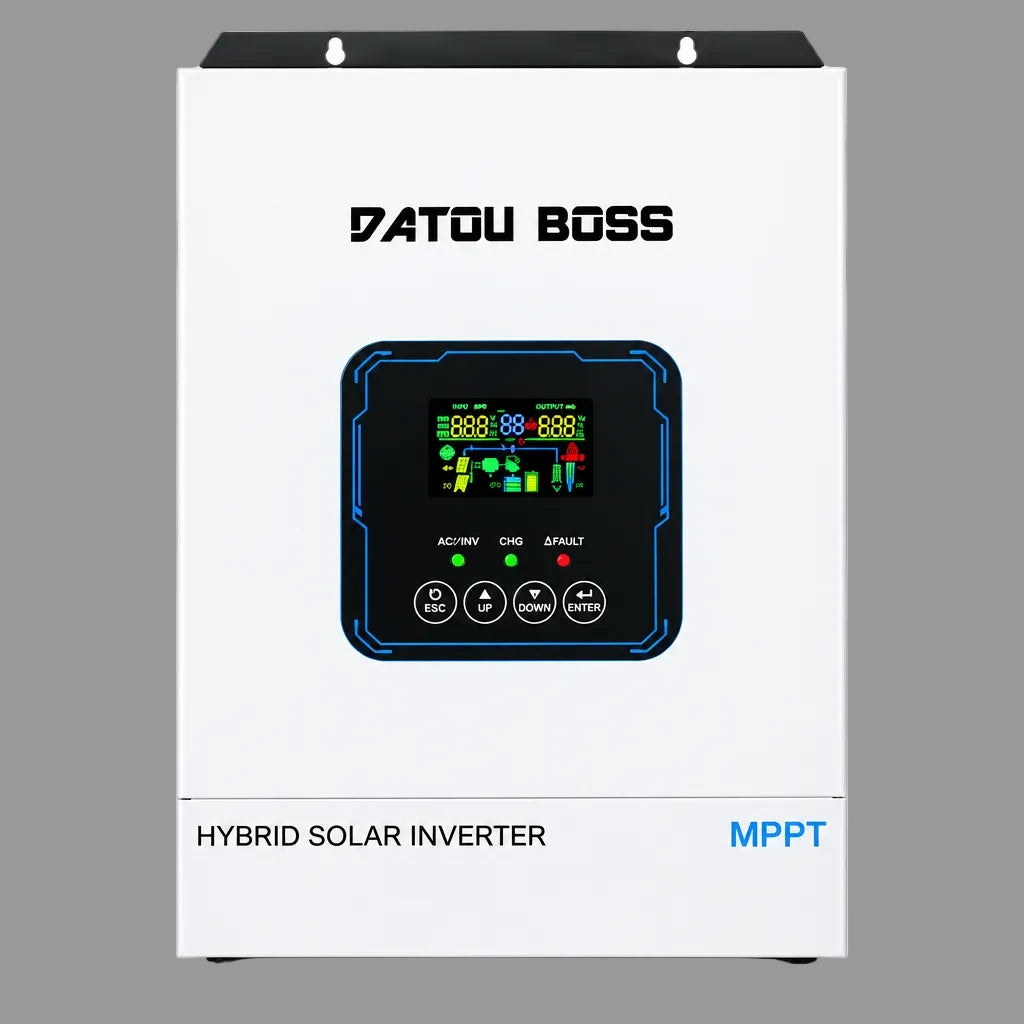

Datouboss 48V 5500W Solar Hybrid Inverter

Secure stable home power instantly. This all-in-one unit captures solar energy for your 48V battery bank. It converts stored energy into clean 100 to 120 volts for daily appliance use.

Key Features

• MPPT Charge Tracking: Maximum power point control pulls extra daytime sun energy before it dissipates.
• Pure Sine Wave Output: Delivers smooth electricity that protects sensitive digital gear from harmonic damage.
• Millisecond Backup: Transfers supply to battery mode in roughly 0.01 seconds during sudden grid drops.

Product Description

The Datouboss DT-4855U runs on 48 volts and distributes 5500 watts continuously. You can safely push heavy loads up to an 11000 watt surge limit without tripping protection circuits. The integrated MPPT circuit handles direct solar inputs reaching 8500 watts. High conversion efficiency over 98 percent minimizes wasted heat during peak daylight hours.

Product Overview

This hybrid inverter combines solar charging, power inversion, and static bypass switching into one compact chassis. It connects directly to your existing solar panel array and a compatible 48V lithium or flooded battery bank. The L+N+PE wiring layout aligns perfectly with standard North American residential breaker panels.

Key Benefits

You cut monthly utility expenses by storing affordable solar generation instead of buying peak-rate grid power. Your refrigerator, medical equipment, and home network remain untouched by voltage sags. Rapid transfer speeds guarantee zero downtime for critical systems.

Main Functions

The device auto-detects 50 or 60 Hz frequencies to match your regional grid standards. It prioritizes solar input while safely replenishing your battery cycle. It seamlessly injects backup power when mains fail. It routes surplus current through the marked bypass terminals to prevent overload.

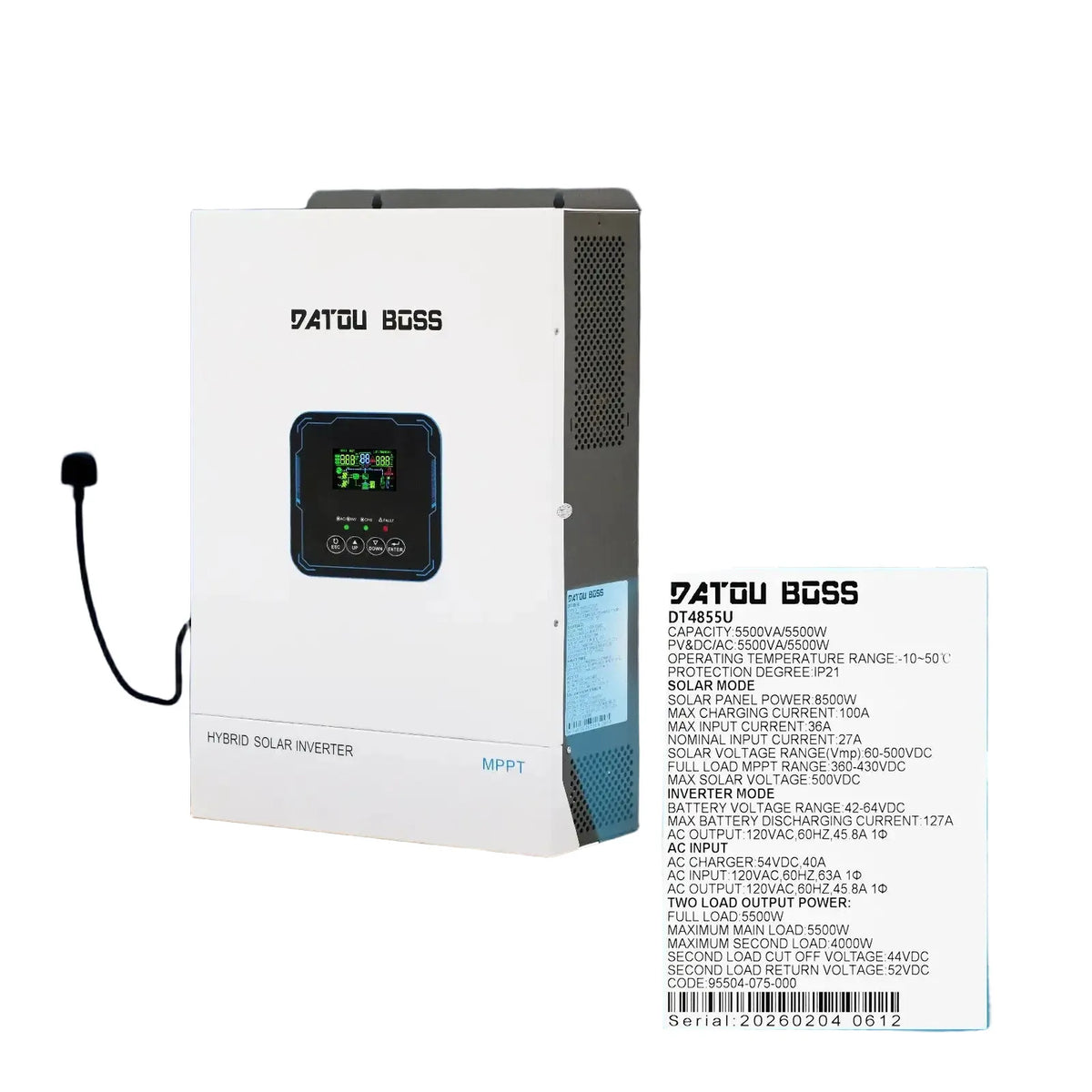

Specifications

• Rated Output: 5500 watts continuous delivery.
• Surge Capacity: Supports 11000 watt temporary peaks.
• Max Solar Input: Accepts up to 8500 watts of panel array power.
• Operating Temperature: Performs safely between minus ten and fifty-five degrees Celsius.

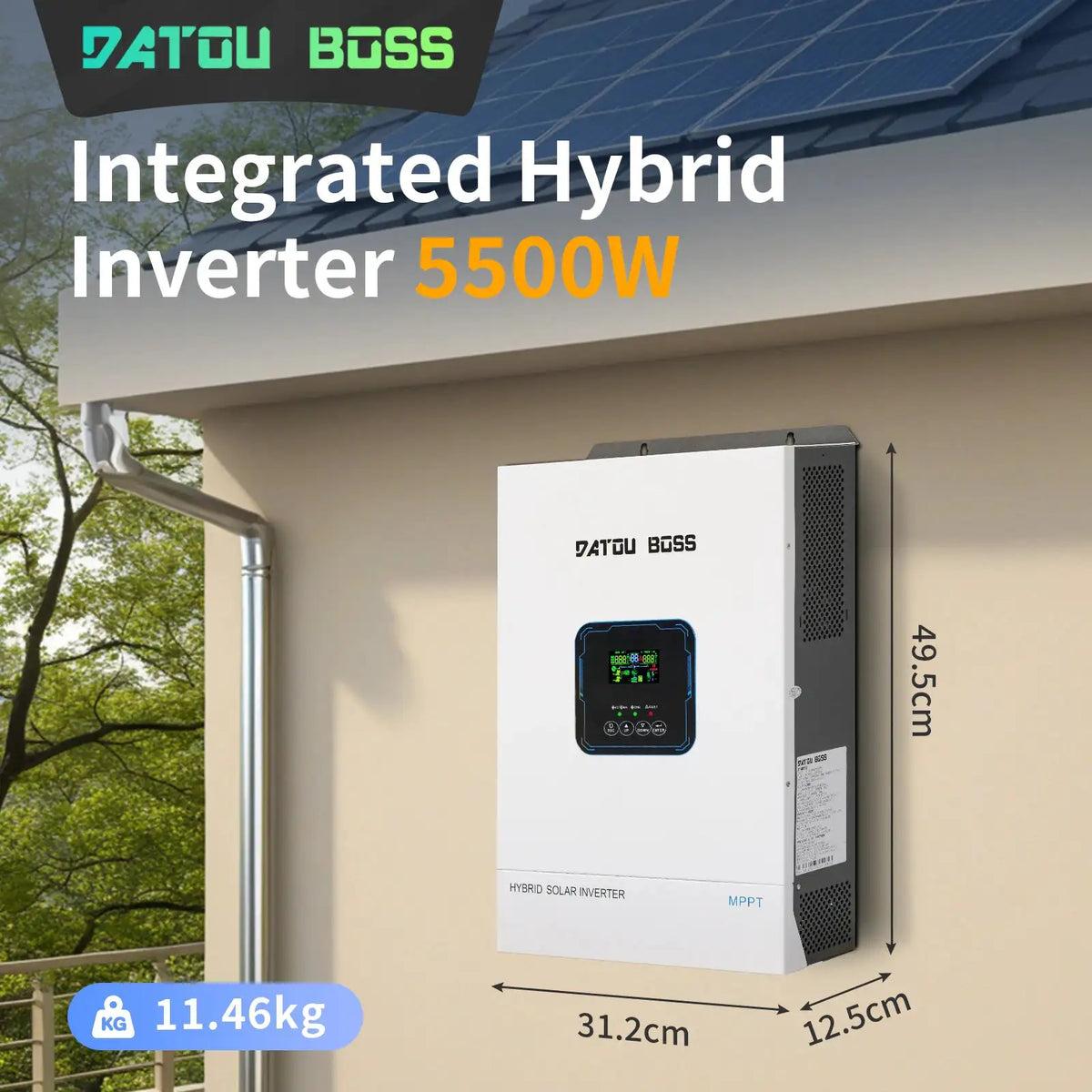

• Physical Size: Measures 56.5 by 39 by 20 centimeters.
• Net Weight: 11.63 kilograms for easy mounting.

What’s Included

Each shipment contains the complete DT-4855U inverter chassis. The primary control PCB arrives pre-installed and factory-tested for immediate deployment.

How to Use

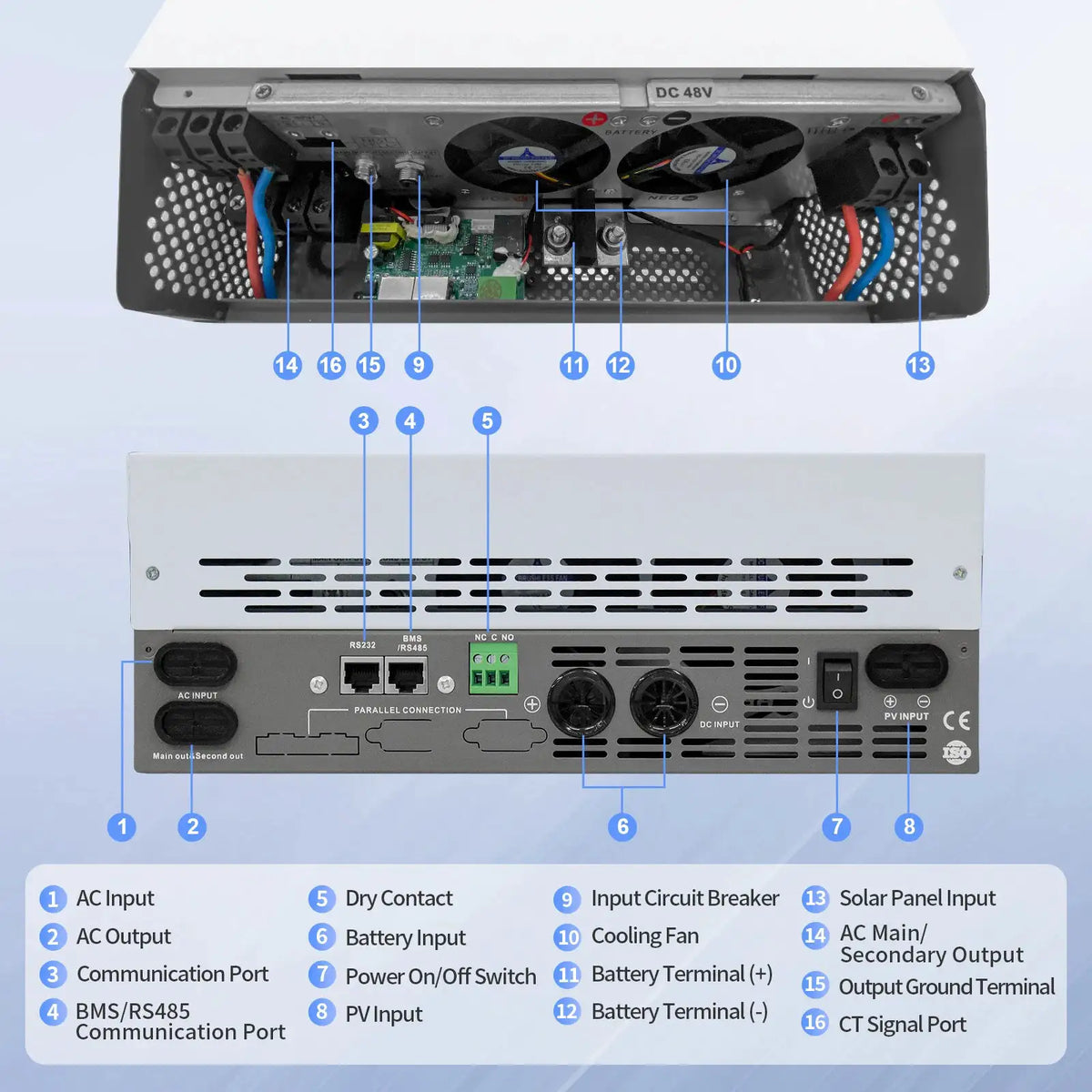

Wire your solar array to the designated positive and negative DC ports. Connect your 48-volt battery cables securely to the center terminal block. Attach your household load wires to the AC output sockets. Flip the main isolation switch last to initialize the system.

Customer Benefits

You reclaim independence from unstable municipal distribution networks during severe weather events. Clean waveform preservation dramatically extends the operational lifespan of your backup cells. Smart frequency matching ensures your modern electronics never encounter incompatible power cycles.

Ideal Uses

Install this inverter in remote cabin setups, small agricultural sheds, or dense urban properties experiencing frequent brownouts. It pairs flawlessly with rooftop photovoltaic roofs requiring intelligent load balancing.

Who It’s For

Independent homeowners, retail operators, and certified solar installers seeking a rugged power bridge that automates generation and storage effortlessly.

Frequently Asked Questions

• Does this model adapt to different grid frequencies? Yes, the firmware automatically scans and switches between 50 Hz and 60 Hz environments.
• What occurs during an unexpected power failure? The internal UPS mechanism redirects current to your battery reserves in roughly ten milliseconds.
• Can I connect a welding machine? You may run the welder within the 5500W continuous limit, though startup spikes must stay below the 11000W threshold.
• Is there a manual override for the backup switch? Operators can configure bypass routing through the rear terminal screws for maintenance work.
• How does extreme heat affect operation? The sealed chassis maintains stable inversion performance up to fifty-five degrees Celsius ambient temperature.
