SPECIFICATIONS

Adjustable Emissivity: 0.10-0.99

Battery Included: no

Brand Name: NJTY

Certification: CE,RoHS

Choice: yes

Display Type: DIGITAL

Distance-to-Spot Ratio: 12:1

Electronic: No

High-concerned chemical: none

Is Smart Device: no

Max Measuring Temperature: 120°C & Above

Model Number: JD-10

Origin: Mainland China

Power Supply: 2 X AAA 1.5V Batteries(Not Included)

Response Time: 0.5 Seconds

Semi-finishedproduct: No

Style: Handheld

Temperature Accuracy: ≥100°C: ±2%; ≤100°C: ±2°C

Temperature Range: -50°C to 800°C (-58°F to 1472°F)

Theory: Infrared Thermometer

Use: Household

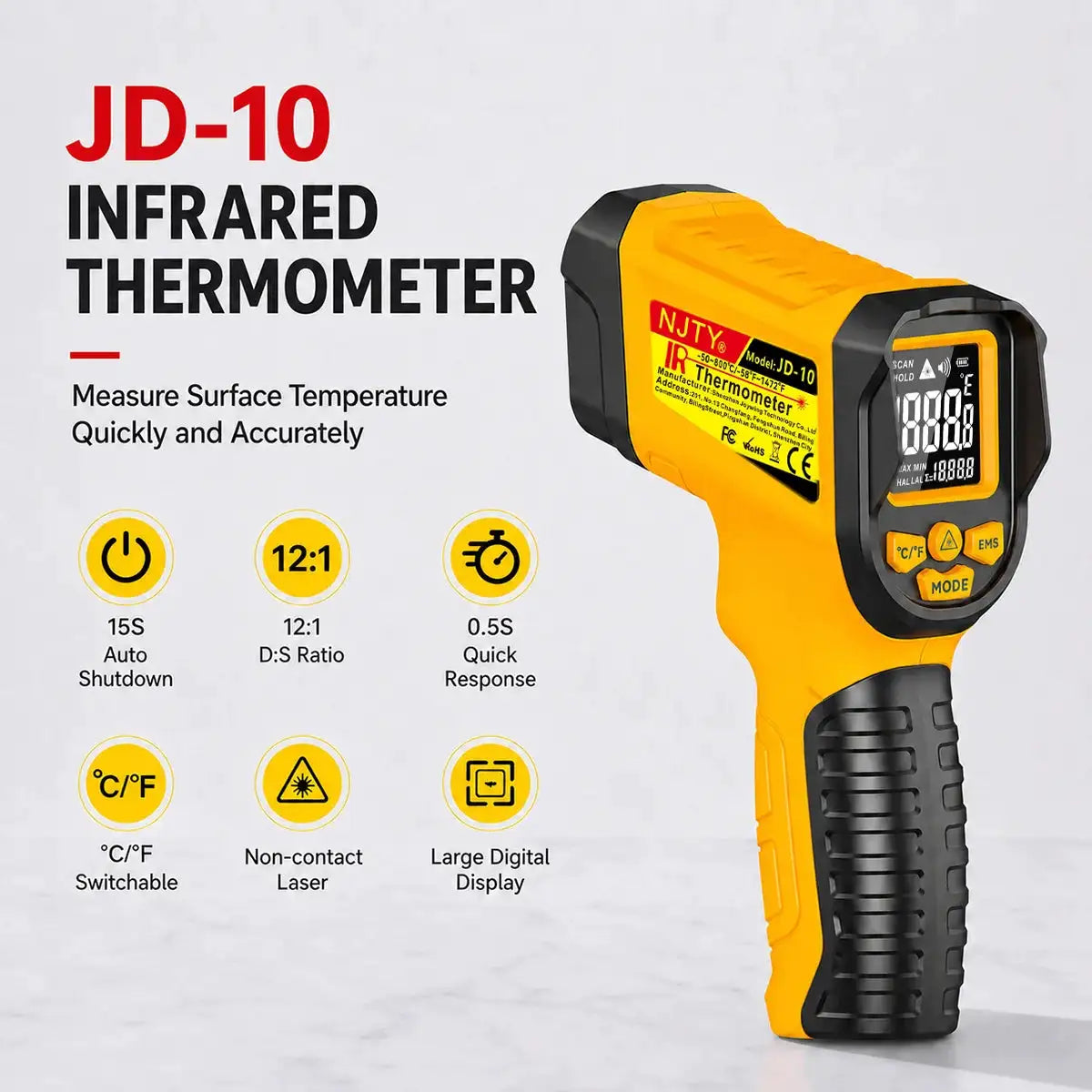

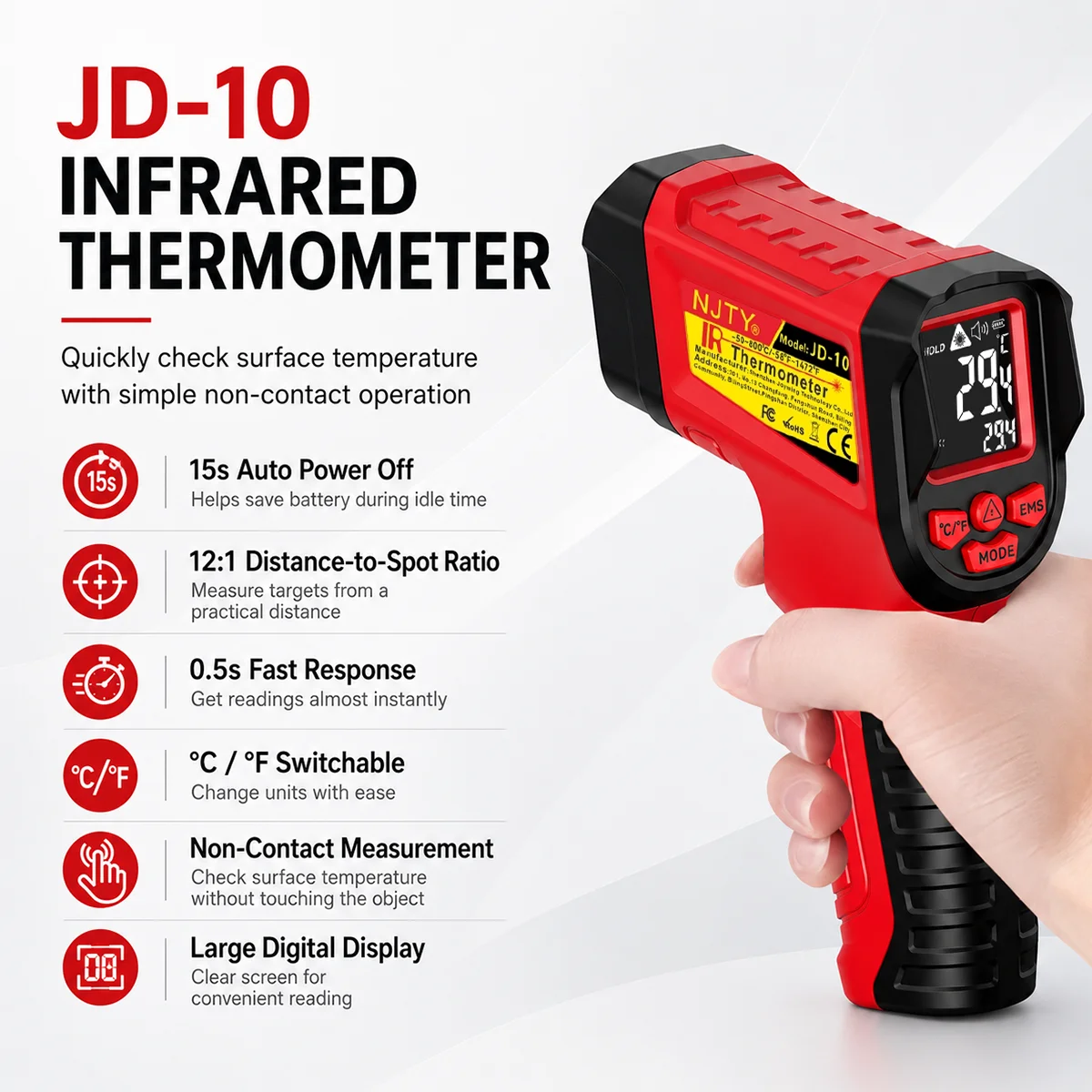

JD-10 Digital Infrared Thermometer Gun -50°C to 800°C Single Point Laser 12:1 Distance to Spot Ratio Adjustable Emissivity 0.10–0.99 0.5s Fast Response MAX MIN High Low Temperature Alarm Data Hold Backlit LCD °C/°F Non-Contact Surface Temperature Meter

Product Parameters

Model: JD-10

Product Type: Digital Infrared Thermometer

Temperature Range: -50°C to 800°C (-58°F to 1472°F)

Measurement Method: Non-Contact Infrared Surface Temperature Measurement

Laser Type: Single-Point Laser

Laser Class: Class II

Distance-to-Spot Ratio: 12:1

Response Time: 0.5 Seconds

Temperature Accuracy: ≥100°C: ±2%; ≤100°C: ±2°C

Resolution: 0.1°C / 0.1°F

Adjustable Emissivity: 0.10–0.99

Default Emissivity: 0.95

Temperature Unit: °C / °F Switchable

MAX Function: Supported

MIN Function: Supported

High Temperature Alarm: HAL

Low Temperature Alarm: LAL

Single Measurement: Supported

Continuous Measurement: Supported

Laser On/Off: Supported

Buzzer On/Off: Supported

Backlit Display: Supported

Low Battery Indicator: Supported

Automatic Power Off: Approx. 15 Seconds Without Operation

Power Supply: 2 × AAA 1.5V Batteries(Not Included)

Operating Environment: 0°C to 50°C, 10%–95% RH, Non-Condensing

Product Functions

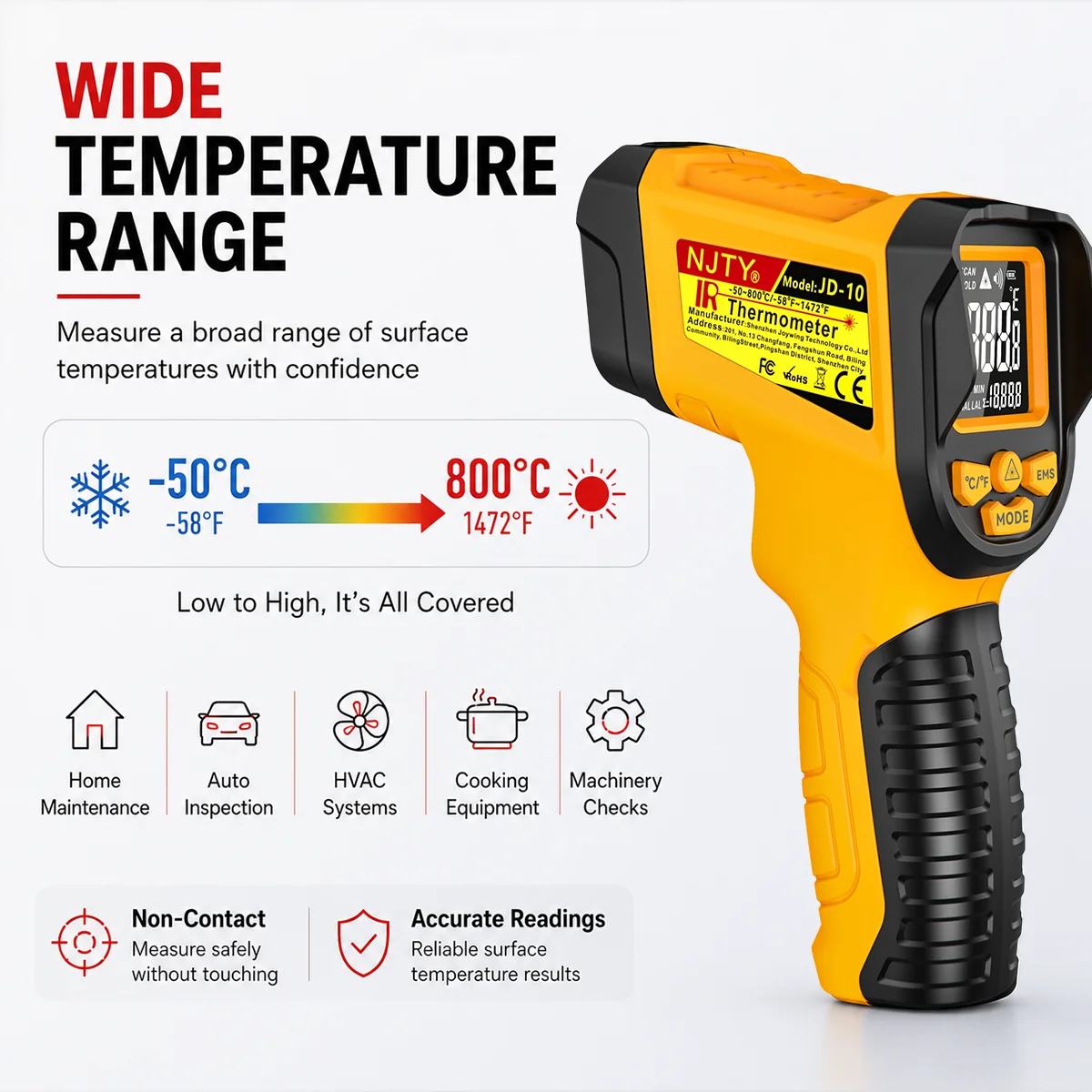

Wide -50°C to 800°C Temperature Range

Measure surface temperatures across a broad range from -50°C to 800°C (-58°F to 1472°F), making the JD-10 suitable for household maintenance, automotive inspection, HVAC systems, cooking equipment, machinery and other high- or low-temperature surface checks.

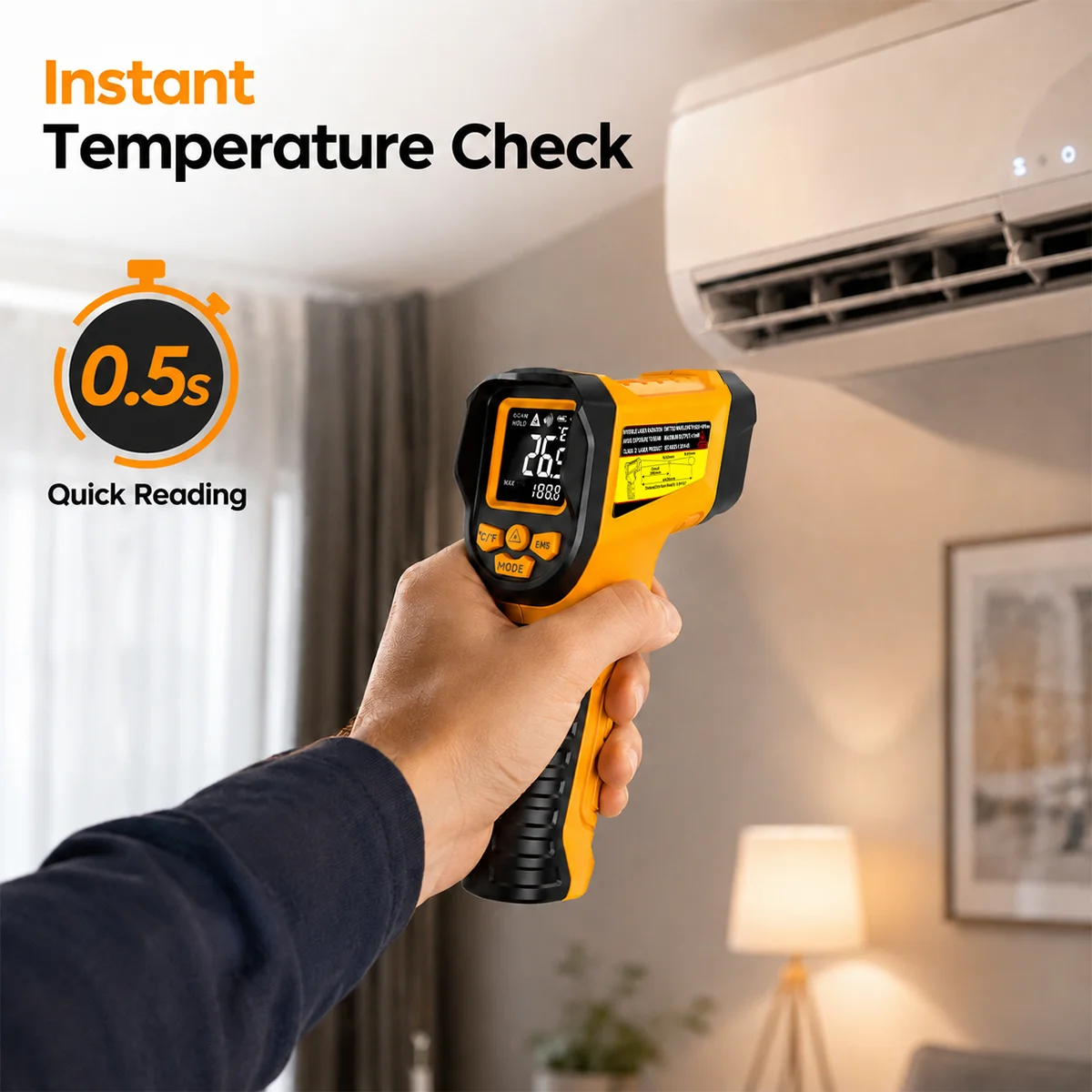

Fast 0.5-Second Response

Get temperature readings quickly with an approximately 0.5-second response time. The fast measurement speed makes it convenient for repeated inspections and checking multiple surfaces efficiently.

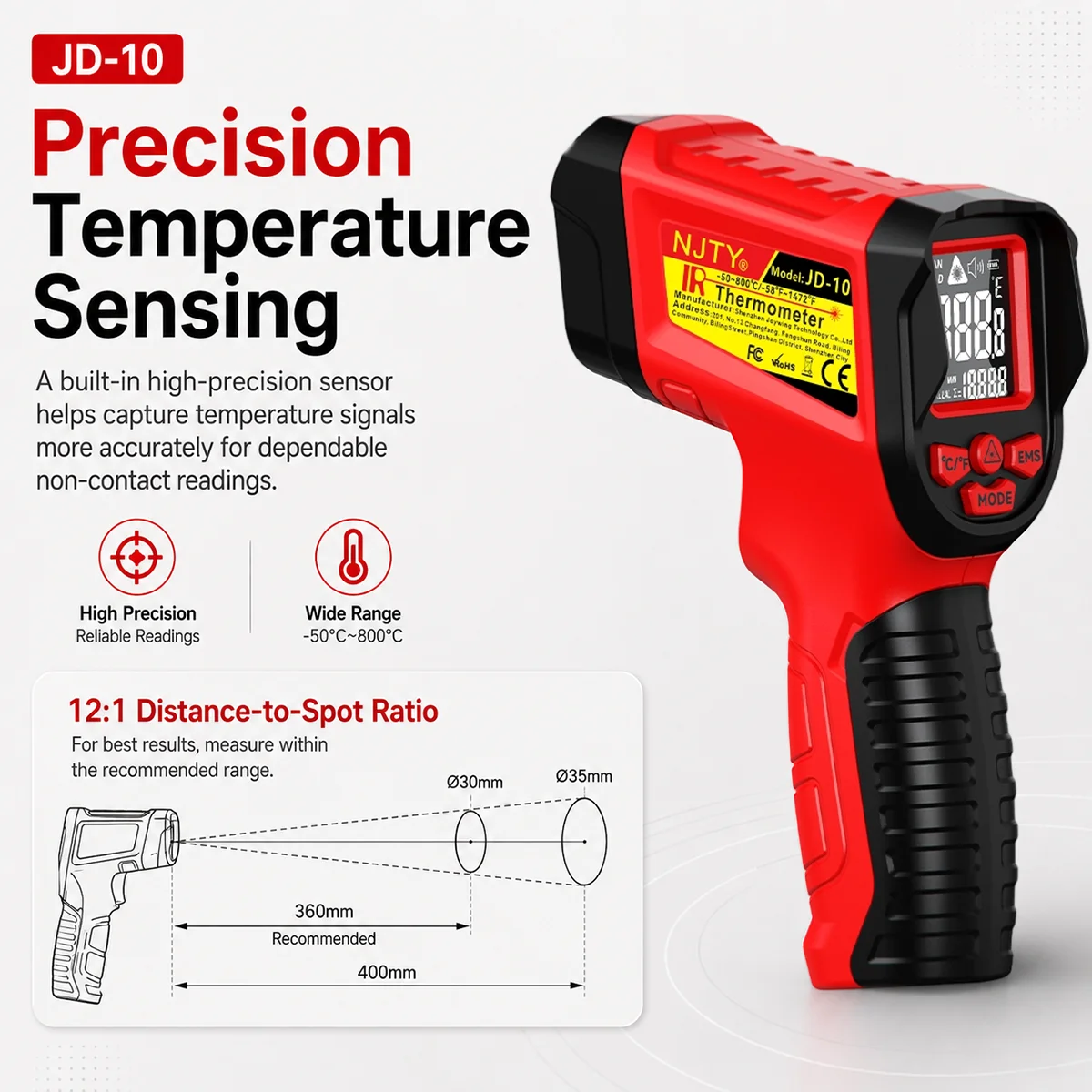

12:1 Distance-to-Spot Ratio

The 12:1 D:S ratio allows practical non-contact measurement while helping control the size of the measured area. At a distance of approximately 360 mm, the measurement spot is approximately 30 mm in diameter.

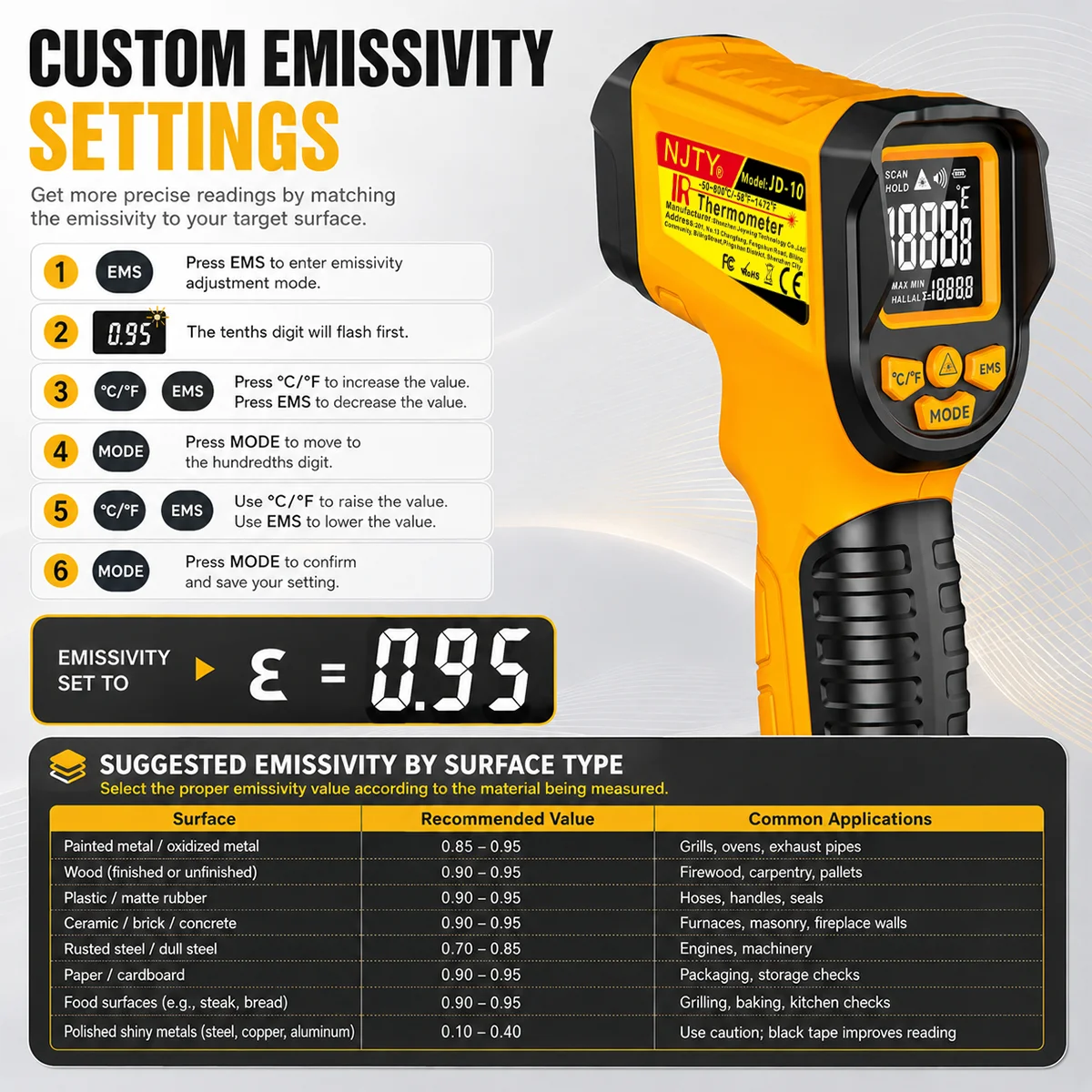

Adjustable Emissivity 0.10–0.99

Adjust the emissivity between 0.10 and 0.99 according to different surface materials. The default emissivity is 0.95, which is suitable for many organic, painted and oxidized surfaces.

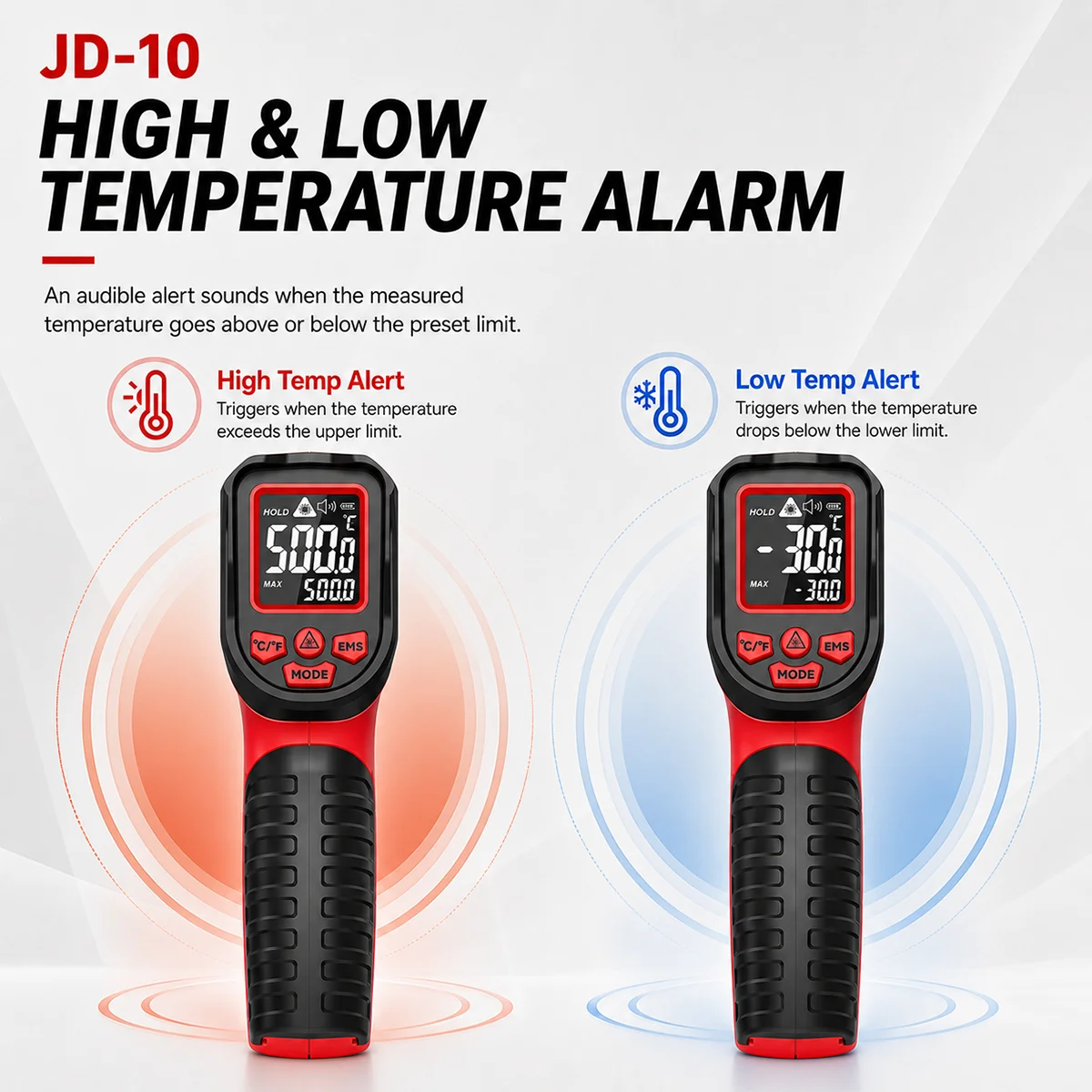

High & Low Temperature Alarm

Set HAL and LAL temperature limits according to your requirements. When the measured temperature exceeds the high limit or falls below the low limit, the thermometer provides an audible warning and corresponding display indication.

Single & Continuous Measurement

Pull the trigger for a single measurement or keep the trigger pressed for continuous temperature scanning, making it convenient to check temperature changes across larger surfaces.

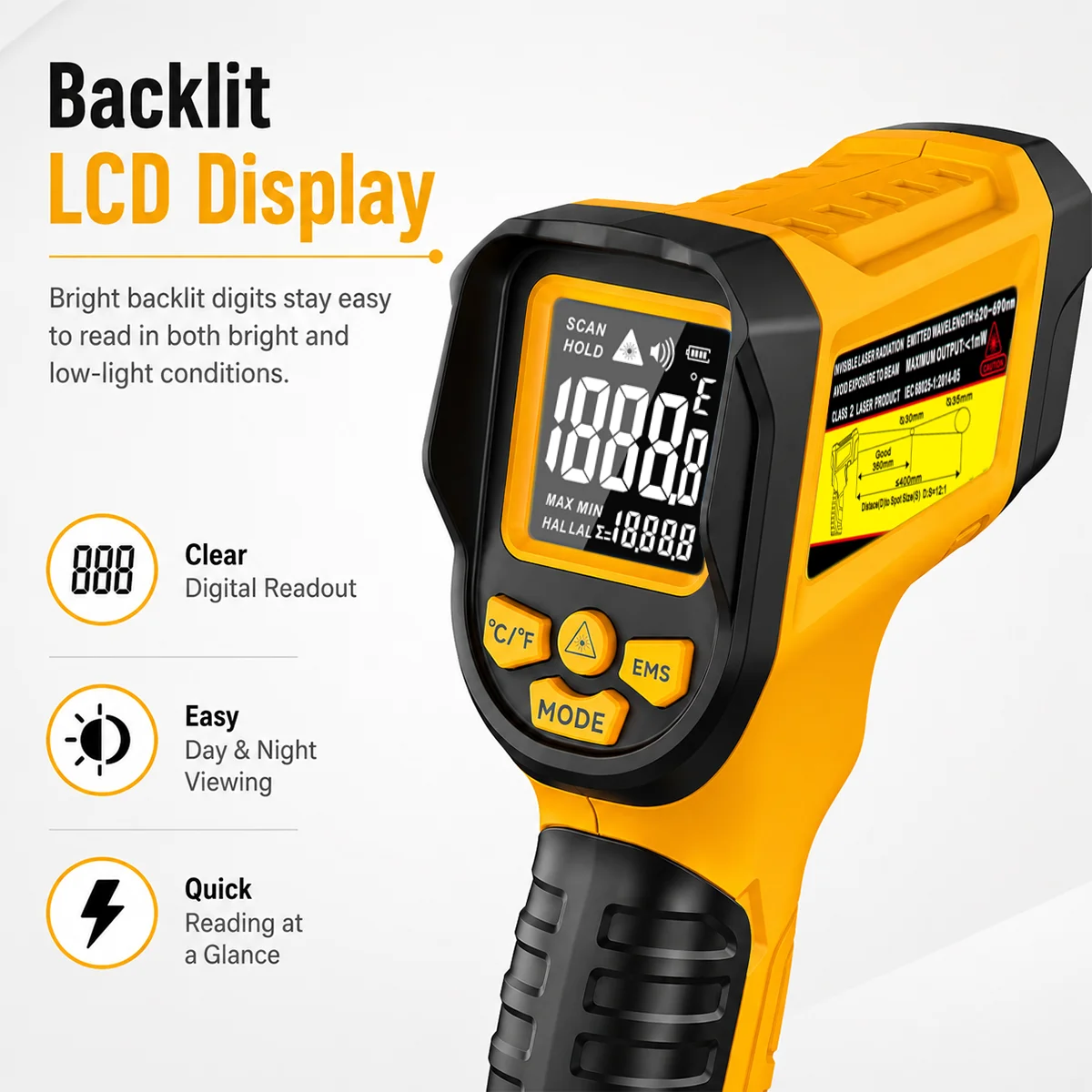

Clear Backlit LCD Display

The backlit digital display provides clear temperature readings in different lighting conditions, making the thermometer easier to use in workshops, garages, kitchens and other environments.

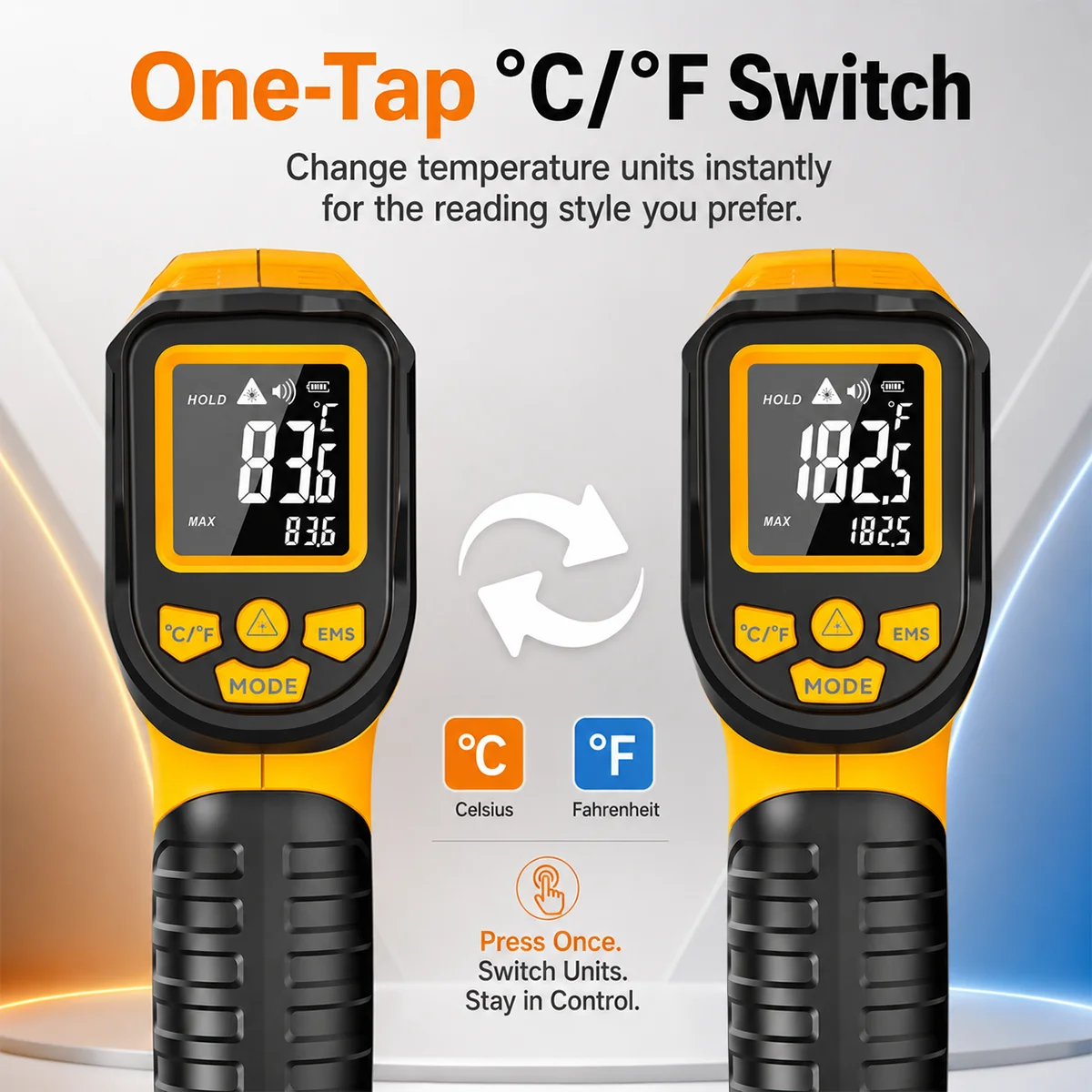

°C / °F Switchable

Switch easily between Celsius and Fahrenheit to meet different measurement habits and regional requirements.

Adjustable Buzzer

The buzzer can be switched on or off, allowing users to choose audible alerts according to the working environment.

Low Battery Indicator

The display provides a low battery warning to remind users when the batteries need to be replaced.

Approx. 15-Second Auto Power Off

The thermometer automatically powers off after approximately 15 seconds without operation, helping reduce unnecessary battery consumption.

Non-Contact Surface Temperature Measurement

Measure hot, moving or difficult-to-reach surfaces without direct contact. The JD-10 is designed for surface temperature measurement, helping improve convenience and safety in a wide range of inspection tasks.

Important Measurement Reminder

The infrared thermometer measures surface temperature rather than internal temperature and cannot measure the actual temperature of an object through glass. Steam, dust and smoke may also affect measurement accuracy.
