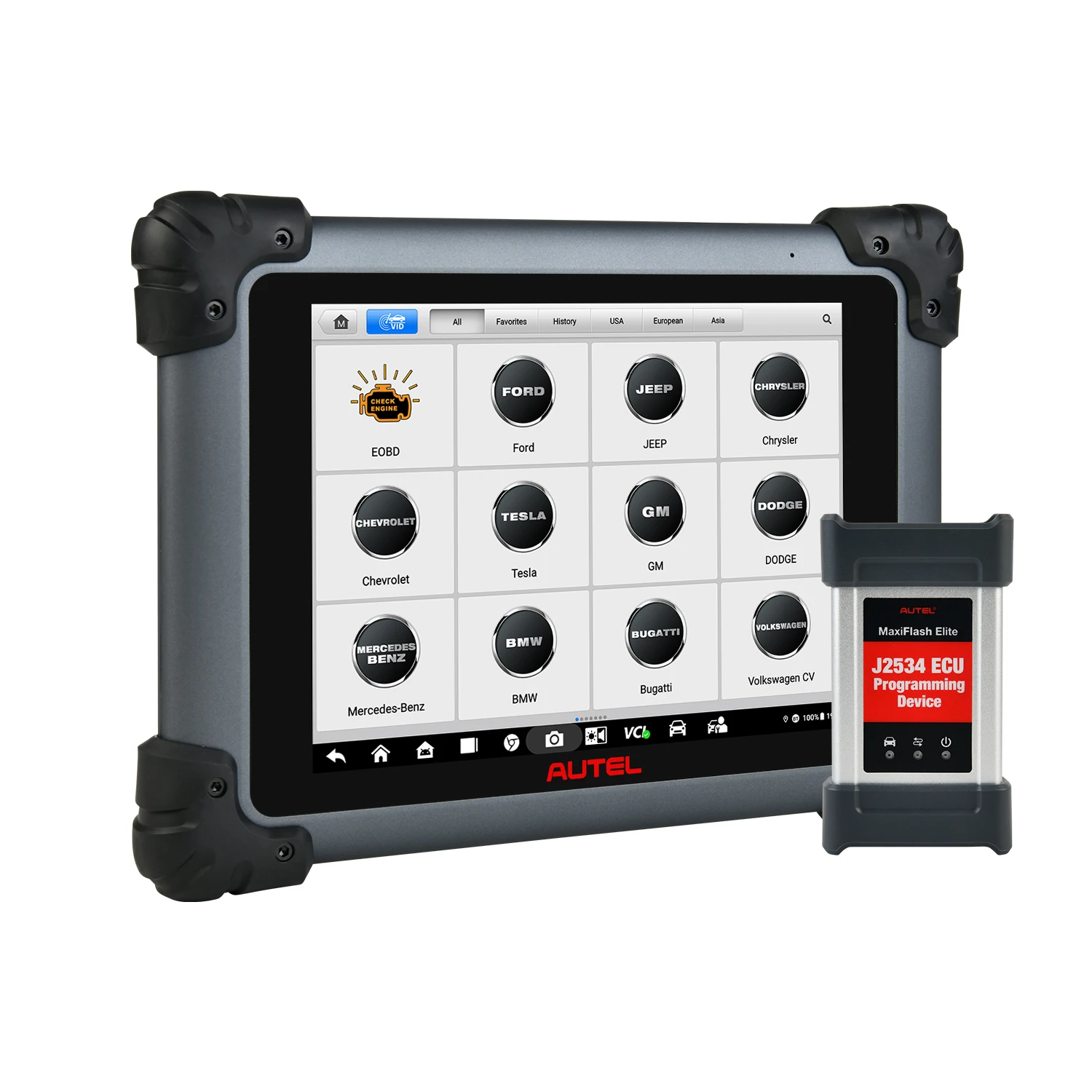

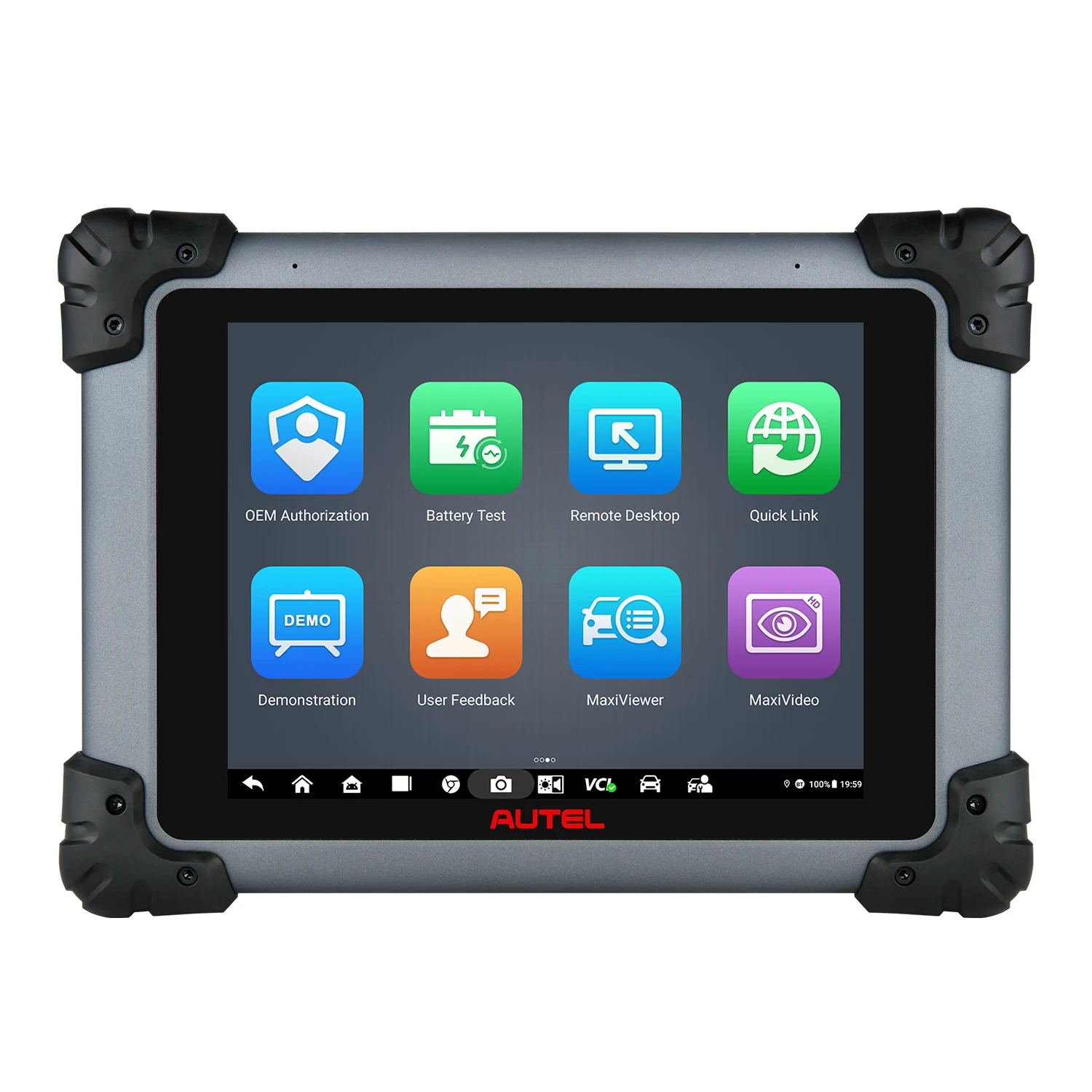

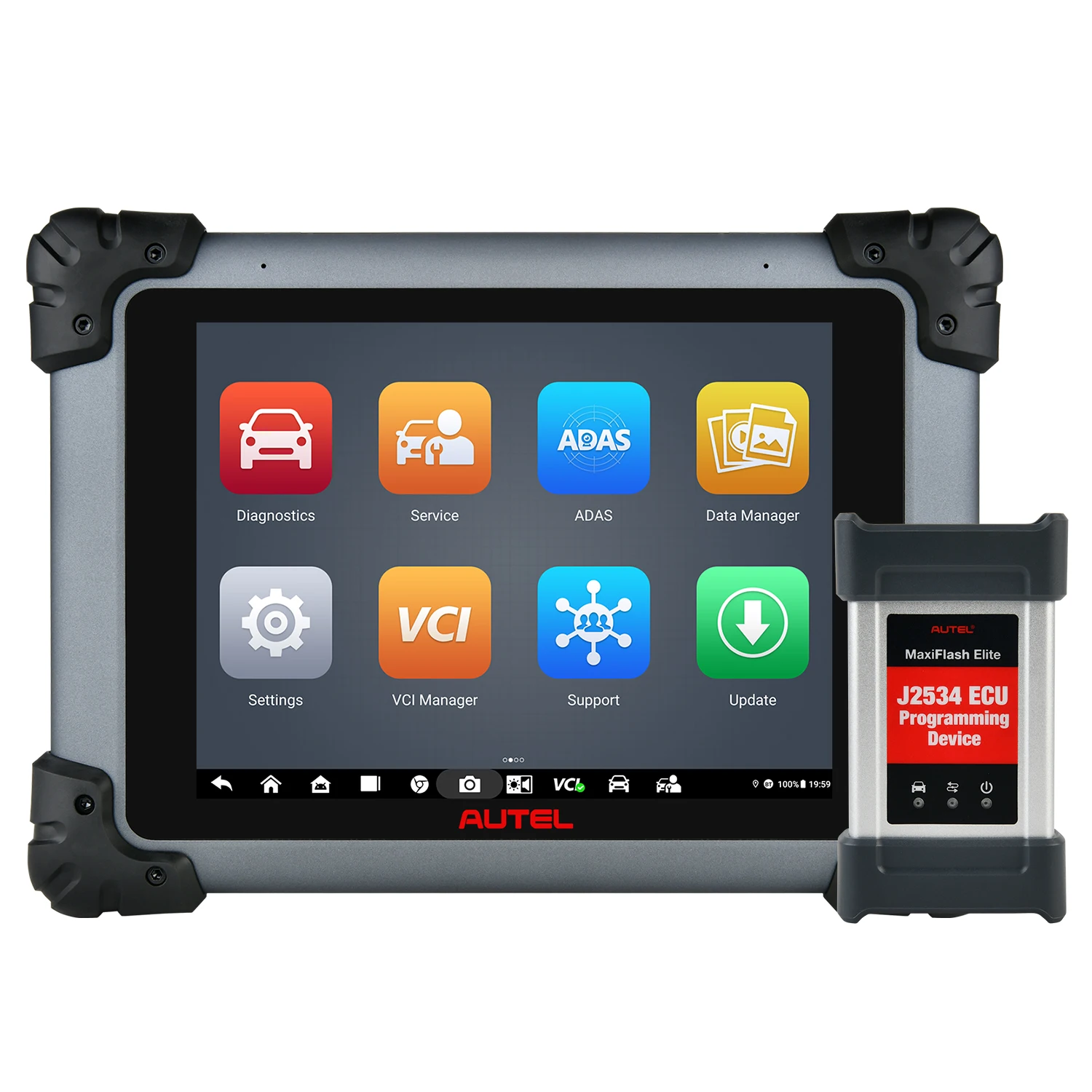

Autel MaxiSys MS908S Pro II:

MaxiSYS MS908S Pro II is a 9.7-inch touchscreen advanced diagnostic tablet powered by an Octa-core processor with 128GB of storage memory running on Android 10. Includes Bluetooth-enabled MaxiFlash VCI/ J2534 pass thru programming device. The MS908S Pro II can read/erase codes on all available systems, perform bi-directional active tests, view freeze frame data, view and graph live data, and perform adaptations and coding on U.S., Asian and European vehicles, 1996 and newer.

New！ Exclusive Live Data Fussion + VIN Check:

Live Data Fusion enables the integration of different system live data onto a single interface, facilitating dynamic display. Widely applied in maintenances requiring simultaneously monitor multi-systems live data, like: address U-code, ABS malfunctions, aftertreatment, etc. Reads VIN values stored in vehicle's various control units. By comparing the values, it serves as reference info for repair history of vehicle module.

Why does the Autel Scanner MS908S Pro II Stand out?

【Android 10】Android 10 runs faster and smoother.;
【Qualcomm 660 CPU】Core Processor has upgraded to Qualcomm 660 to enhance the diagnostic speed of the multitasking process;
【4G+128 GB Memory】More storage space to ensure the smooth multitask operation and keeps all the customer information, diagnostic data & files, and repair recordings;
【2048x1536 Screen Resolution】Provide you with a clearer and smoother viewing experience;
【16M Rear Camera】It able to capture details more clearly and record clearer video to analyze problems;
【2.4G & 5G Wi-Fi】 Far better in transmission rate, diagnostic distance, and anti-interference.

Newly ADD FUNCTIONS:

✅Full Systems Diagnostics for McLaren & Tesla: Autel MS908S Pro II can work on McLaren, Tesla new energy vehicles to complete full system diagnosis, which other scanners cannot do.
✅FCA SGW: MS908S Pro II scan tool can help you to log in to the FCA account and perform diagnostic functions such as clearing DTCs, bi-directional tests, and calibrations. Compatible w/ Fiat, Chrysler, Alfa Romeo, etc.
✅Battery Tests (Need BT506): Combined with the BT506 battery detector, MS908S Pro II can scan the BMS module, detect the battery type, aging condition, and storage condition, and give appropriate maintenance advice. Note: ✅BT506 needs extra purchases; Work with MV108S: This bundle includes Autel MV108S digital inspection camera. It can turn your MaxiSys MS908S Pro II scanner into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight.
✅Pre/Post-Scan & Wi-Fi Print: Pre- and post-scan reports keep your clients informed of the repair details and provide them with the evidence to settle insurance c~laims. You can easily print the above diagnostic reports wirelessly from your diagnostic scanner via a Wi-Fi printer.
✅Scan VIN & Scan License: Two methods provide faster access to car information such as car manufacturer, model year, model, body type and code, engine code, and assembly location. This saves more time than manually entering the VIN.
✅D-PDU/RP1210 Protocols: Adds the latest D-PDU/RP1210 Protocols to cover newer vehicles.

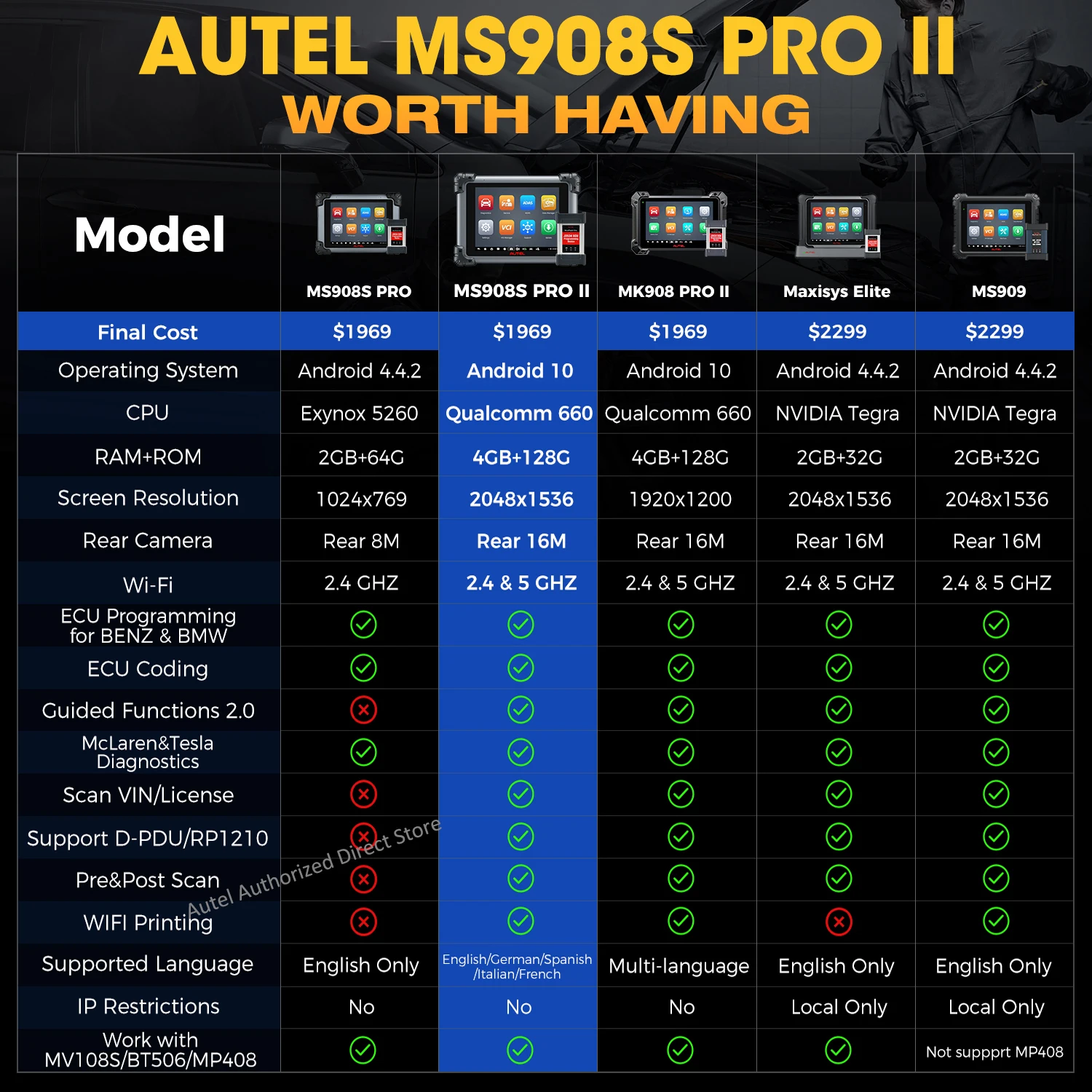

Better Than MK908 II/ MK908 PRO:

Autel MaxiSys MS908S Pro II has absolute advantages compared with Autel MK908 II and MK908P. ✅Best after-sale service, not only seller support but also local agents.✅MS908S Pro II supports ECU programming for Benz/BMW, ECU Coding for Benz/Audi, latest D-PDU/RP1210 Protocols, While MK908 II does not support.✅MS908S Pro II supports McLaren/Tesla diagnostic, scan VIN, scan License, WIFI-Print, latest Protocols, and battery tests (with BT506) while MK908P cannot do.

Highlights of MS908S PRO II:

【Upgraded of MK908P, MaxiSys Elite,MS908S Pro】Compare to Autel MK908P, autel MS908S Pro II with more functions (Autel Cloud/ Remote Expert (since 05-15-2021), wider vehicle coverage(support MACLAREN and TESLA diagnostic), and better technical s-upport (both online seller and US local agents support ). MS908S pro II same Functions as MaxiSys Elite But saves 500 Bucks.

【J2534 ECU Programming for BMW/Benz】Equipped 1000+ bucks valued J2534 programmer, Autel scanner MS908S Pro II is able to replace the existing software & firmware and program new ECUs (PCM, ECM) for specific BMW and Benz cars.

【Advanced Online ECU Coding】Upgraded from Autel MS906BT/ MK906BT/ MK906 Pro/ MS906S/ MK906 Pro/ MS906, Autel MS908S Pro II with online ECU Coding for software modifications to a vehicle, allowing the use of functions not available in the car when it left the factory. Online coding for VW/ Audi / Porsche/ Benz/BMW.

【VAG Guided & More High-end functions for VW/ Audi/ Skoda/ Seat】MS908S Pro II diagnostic scan tool with VAG Guided functions with simple step-by-step procedures for quick and accurate car diagnostics. Refresh Hidden can change the settings already in the software and turn on or off some functions according to your needs.

【36+ Services & Bidirectional Control】Oil Reset, EPB, TPMS, BMS, Brake Bleed, Injector Coding, SAS, Suspension, Throttle Matching, WIN DR ROOF, Seats, A/F, Lang Change, Headlamp, CHG Tire Size, TEC Learn, Cylinder, Trans Adaption, still growing. Active Tests to determine whether a specific subsystem or component in vehicles goes well.

【OE Full Systems】MaxiSYS MS908S Pro ii is able to access all available modules like Engine, ABS, SRS, Trans, EPB, Chassis, Steering, Emission System, Fuel system, TPMS and etc to read/clear codes, view live data in text or graph, retrieve freeze frame data, perform active tests and special functions for accurate diagnosis.

【10000+ Extensive Vehicle Coverage】KWP/CAN/UDS/OBDII, D-PDU/J2534/RP1210, 2018+ FCA SGW (AutoAuth); cover the overwhelming majority of vehicles made of US, Asian, and European.

One-Stop ECU Programming for BENZ/ BMW & J2534 Device Extended Programming Ability for Multi-cars

Coming with J2534 device, Autel MS908S Pro II is competent for ECU programming/ ECU Online coding/ adaption for BENZ/ BMW cars. It can program blank ECU, adapt existed ECU, components, get second-hand ECU working, get high-end features, etc.👍👉J2534 device ALONE can also work with P-C OE-softwares to program other cars, like Ford, GM,Honda, etc. 🚦📢👉OE-softwares need to BUY from car webs.

Advanced ECU Coding:

Automotive diagnostic scan tool MS908S Pro II features Advanced ECU Coding, so you can use it to customize your cars as needed by di.sabling some unneeded OEM settings (like auto start-stop, chimes, etc), or activating the hidden features pre-programmed to car computer to get high-end functions (like US-style daytime light,etc).👉Compatible with BENZ, BWM, VW, Audi, Skoda, etc.

VAG Guided & Refresh Hidden for VW/ Audi/ Skoda/ Seat:

Guided Functions provides step-by-step guidances to complete complex service operations for VAG cars, like: Bently, VW, Audi, Skoda, Seat, etc.

OE Level All Systems Diagnostics:

Autel MaxiSys MS908S Pro II comes with lined connection through USB cable and wireless connection through the MaxiVCI to prevent the inconvenience of short cable.

As a professional auto diagnostic tool, MS908S Pro II can access ALL available vehicle modules including but not limited to ECM, PCM, EPS, PDM, BCM, TPM, SCCM, RADIO, etc., to retrive diagnostic fault codes and view live data in graph and text, to pinpoint which cylinder has a misfire, check transmission temperature, oil temperature & pressure, camshaft position sensor status and etc.

➢ ECU Information -provides the retrieved ECU information in detail.
➢ Read Codes -displays detailed information of DTC records retrieved from the vehicle control module.
➢ Erase Codes -erases DTC records and other data from the ECM.
➢ Live Data -retrieves and displays live data and parameters from the vehicle's ECU.
➢ Active Test -provides specific subsystem and component tests.

Bi-Directional Control / Active Test:

Autel MS908S Pro II auto diagnotic tablet comes with bi-directional control capability for specific car systems which allows you to test various systems or parts by reading the engine ECU data, or by monitoring the operation of the actuators, such as solenoid tests, pump motor tests, relay, or switch, between two operating states.

For example: You connect a fuel pressure gauge, cycled the key and cranked the engine but you couldn’t figure out anything regarding the fuel pressure. With the actuation test function of this diagnostic tool, you can send a fuel pump command on instruction and see the proper fuel pressure, figuring out if there is a problem with the fuel pump circuit or pump.

36+ Service Functions:

Autel MS908S Pro II can perform various useful both time and money saving service and special functions like Oil Reset / EPB / TPMS / BMS / Brake bleed / Aftertreatment / IMMO keys/ Injector /SAS / Suspension/ Throttle/ WIN DR ROOF/ Seats/ Odometer/ Lang change / Headlamp / CHG Tire Size / TEC learn / ABSSRS / Cylinder / VGT Learn / Speed & PTO / Clutch / Trans Adaption/ Airbag Reset / A/F Setting / Power Balance(to test injectors) / Crankshaft Position Variation Learn / E G R Relearn / Window / Door and Roof Control / Gearbox Matching / Sunroof Initialization / Tooth Learning, and etc.

10+ High-end Functions:

Added advanced functions, like: ✅Most Frequent Updates ✅ Pre & Post-Scan ✅Pro Battery Test (BT506 Required) ✅Guided Functions ✅Power Balance ✅Component Matching ✅Online Account ✅Autel Cloud Report ✅WIFI Printing, etc. Autel MS908S PRO II suits for 99% of vehicles, incl. Top-end cars McLaren, Tesla, Ferrari, Lamborghini,etc.

Smart Auto VIN & Auto Scan:

Get rid of manual input and use the Auto IN/Scan VIN/Scan License feature to automatically read the vehicle identification number, and then you can perform the diagnostics for the vehicle you get.

Pre- and Post-Scan Reports & Wi-Fi Print:

1.Pre & Post Scan: Pre- and post-scan reports keep yo ur clients informed of the repair details and provide them with the evidence to settle insurance c~laims.

2. Wi-Fi Printing: You can easily print the above diagnostic reports wirelessly from your diagnostic scanner via a Wi-Fi printer.

Videoscope & Battery Test:

Autel diagnostic scanner MS908S PRO II has 2 expanded functions and enhances the ways to work.

1. Videoscope Module: Connecting with Autel MV105/108, Autel MS908S PRO II can use with a video inspection scope to examine difficult-to-reach areas normally hidden from sight.

2. Battery Test: Working with Autel BT506, it enables technicians to view the health status of the vehicle's battery & electrical system and perform testing and display accurate results.

Wide Vehicle Coverage:

Autel MS908S Pro II car diagnostic scanner has wide vehicle coverage and can work on 80+ US, European & Asian makes and models to scan all available systems to read & erase codes, live data, freeze-frame, active tests, ECU information, matching, etc. Thanks to the latest D-PDU/ RP1210 protocols, MS908S Pro II can support more new vehicles including 150 car brands, greatly boost your maintenance business.

Specifications:

• Operating System: Android 10.0

• Processor: Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)

• Memory: 4GB RAM &128GB On-board Memory

• Display: 9.7 inch LED capacitive touch screen with 2048x1536 resolution

• Connectivity: Wi-Fi (802.11 a/b/g/n/ac); USB 2.0 (2 USB TYPE-A ports and a Mini USB port); BT V5.0 + BR/EDR; SD Card (Support up to 64GB); HDMI

• Camera (rear): 16 Megapixel, AF with Flashlight

• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)

• Audio Input/Output: Microphone; Dual Speakers; 3-Band 3.5 mm stereo/standard headset jack

• Power and Battery: 11000 mAh 3.7 V lithium-polymer battery; Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C

• Input Voltage: 12V (9-24 V)

• Power Consumption: 6.5W

• Operating Temp: 0 to 50°C (32 to 122°F)

• Storage Temp: -20 to 60°C (-4 to 140°F)

• Dimensions(WXHX D): 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)

• Weight: NW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.)

• Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN,GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939,SAE J1708, Fault-Tolerant CAN

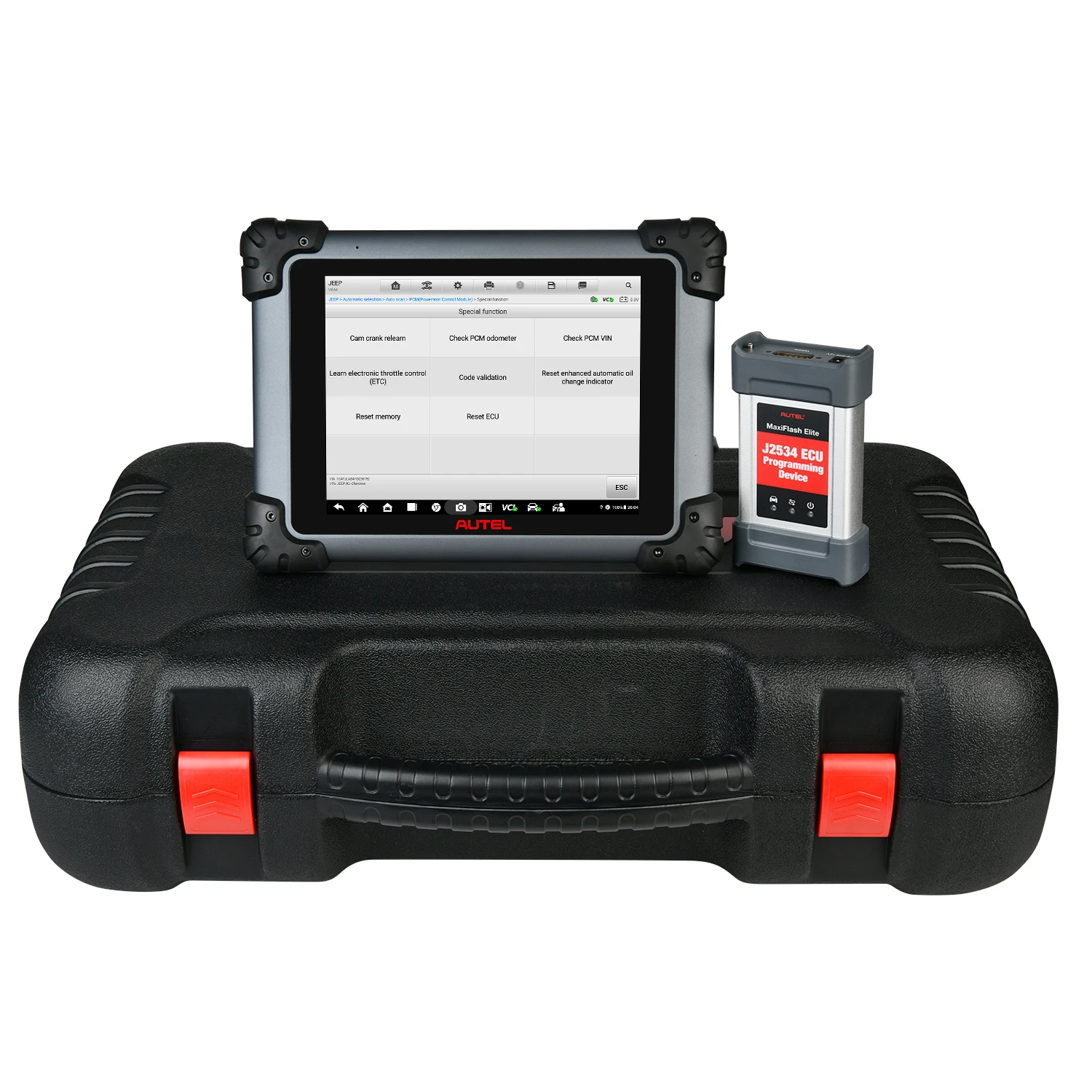

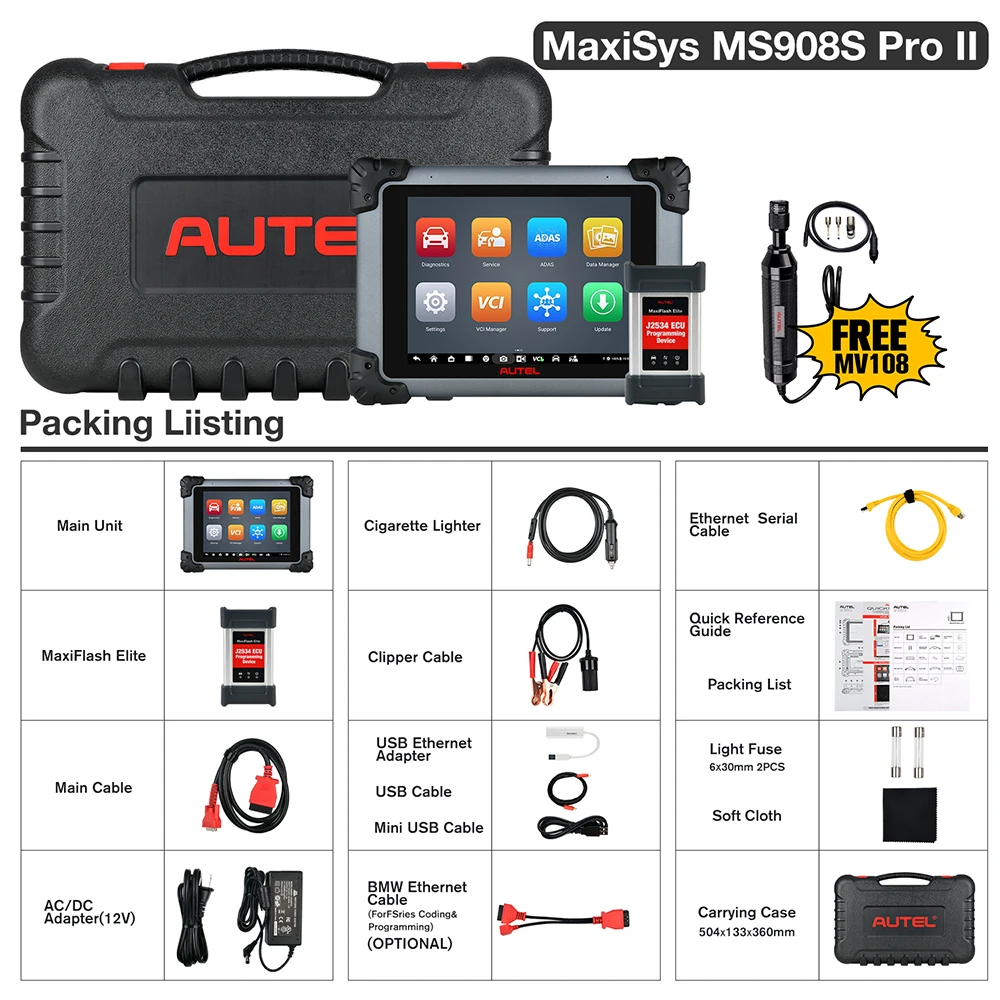

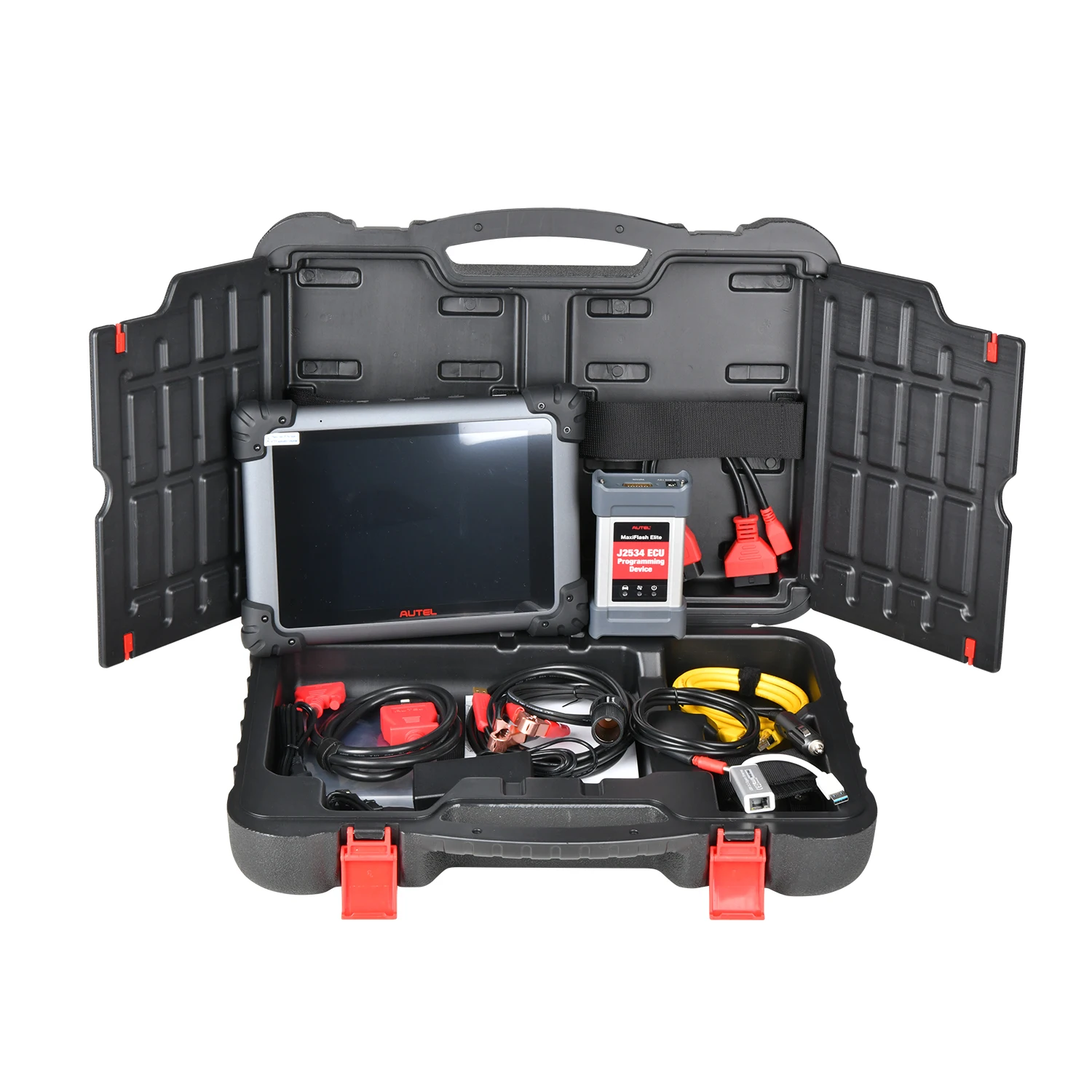

Autel MaxiSys MS908S Pro II Package Listing:

1* Main Unit
1* MaxiFlash Elite
1* Main Cable
1* USB Cable
1* Mini USB Cable
1* AC/DC Adapter(12V)
1* Cigarette Lighter
1* Spare Fuse 6 x 30 mm (2 pcs)
1* Clipper Cable
1* USB to Ethernet Adapter
1* BMW Ethernet Cable (For F-Series Coding Programming)
1* Ethernet Serial Cable
1* Quick Reference
1* Guide Packing List
1* Soft Cloth
1* Carrying Case 504×133×360mm
