Active Area (A.A.): 164.90mm(L)*100.00mm(W)
Backlight: LED
Backlight lifetime (Average): >30,000 Hours
Brand Name: Snow brocade
Choice: yes
Color: 65K 65536 colors
Display Mode: 800*480
Extended IO: 8 Digital extended GPIO
High-concerned chemical: none
Layout size: 181mm(L)*108mm(W)*9.3mm(H)
Model Number: NX8048P070-011C/R
Origin: Mainland China
RTC: Built-in RTC Support (Battery type: CR1220)
Resolution: 800*480 pixel,800x480
Serial Port: 4Pin_2.54mm
Serial Port Mode: 3.3V/5.0V TTL
Touch type: Resistive/Capacitive
Type: Graphic
USB interface: NO
Visual Area (V.A.): 154.08mm(L)*85.92mm(W)
is_customized: Yes
semi_Choice: yes

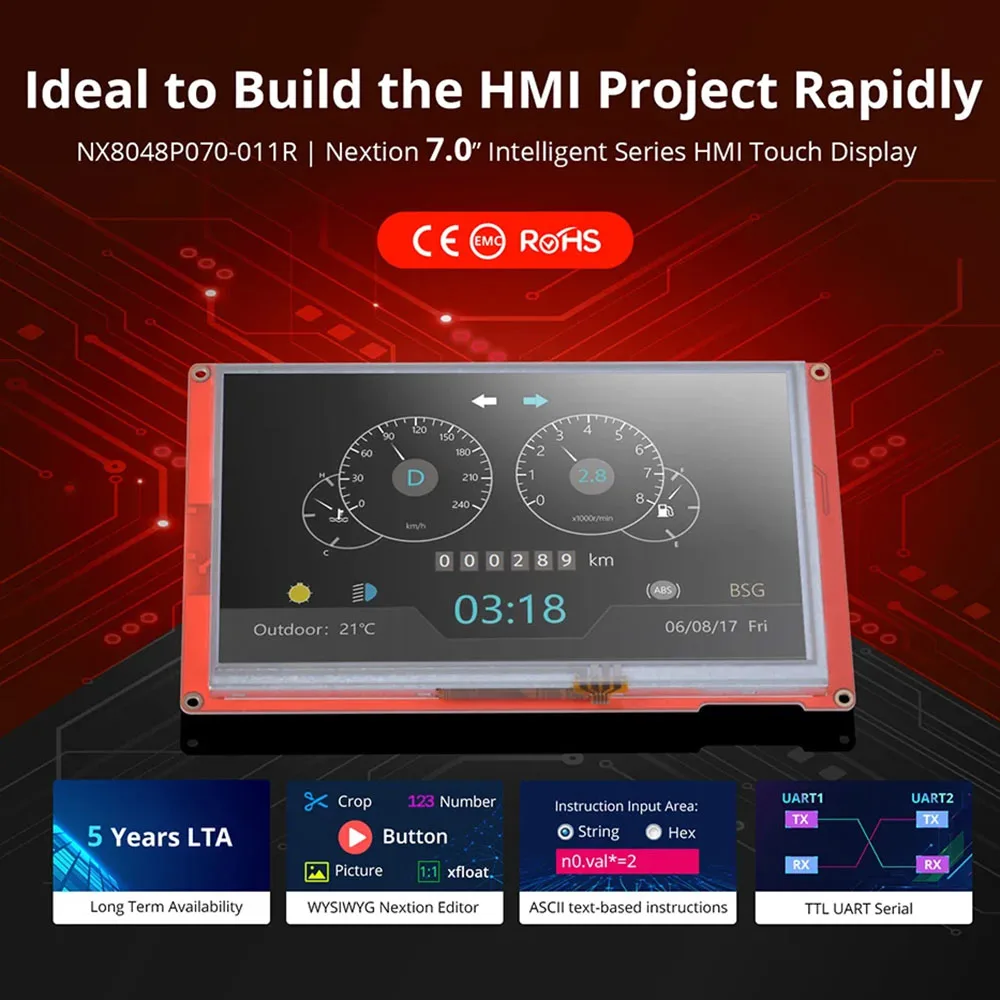

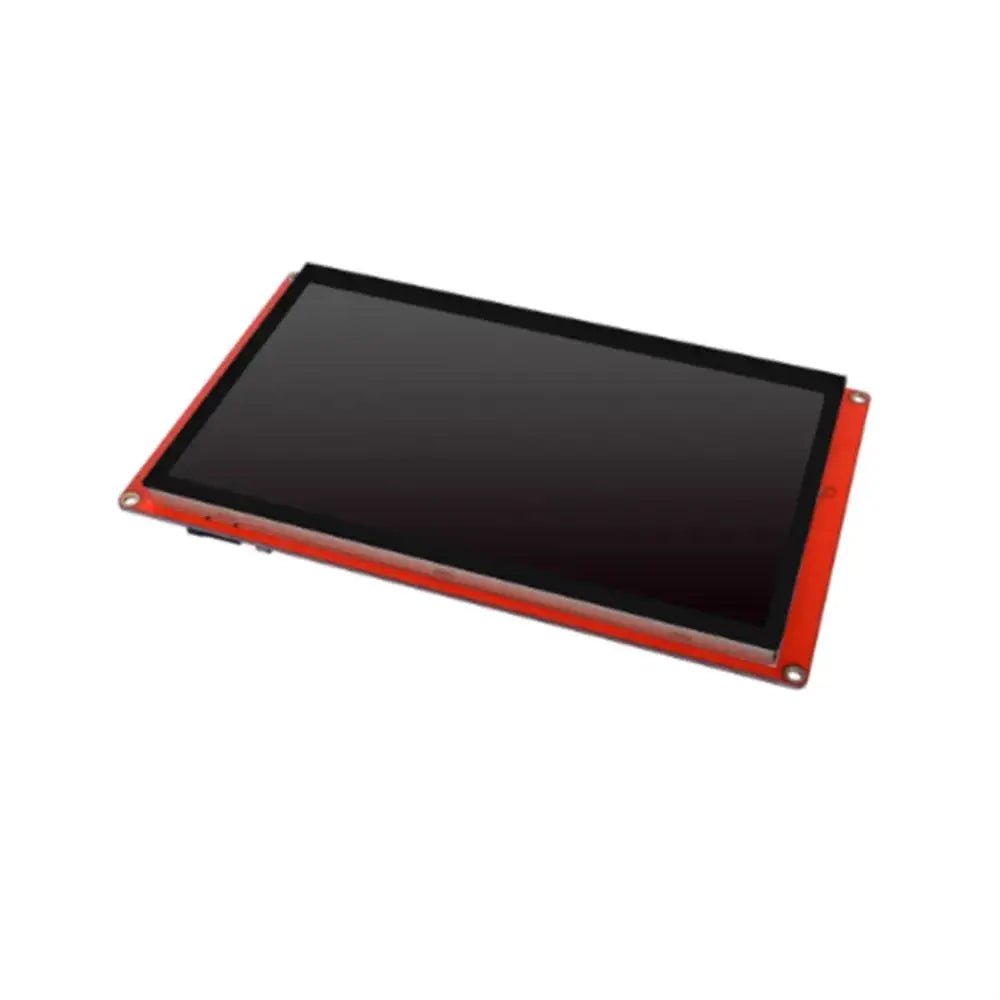

NEXTION 7.0'' Intelligent LCD Touch Display Module NX8048P070-011C/R Multifunction HMI Resistive/Capacitive Without Enclosure
Nextion is a Human Machine Interface (HMI) solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text based instructions. The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. What's more and new? The audio, video and animation play functions enriches user's project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc. You can develop the HMI GUI project via the free latest Nextion Editor software ver 0.58 or above, the easy Drag-and-Drop components and simple ASCII text based instructions will dramatically reduce your HMI project development workloads.
Hardware Features

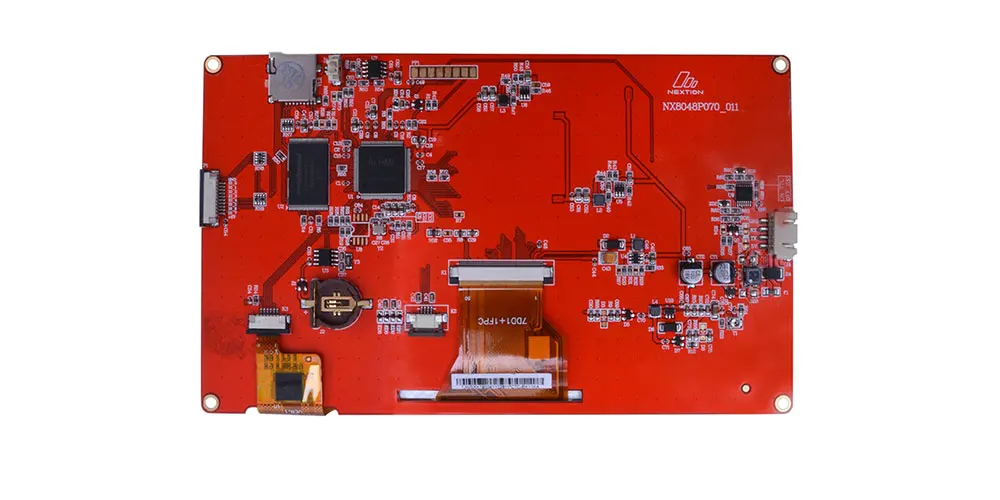

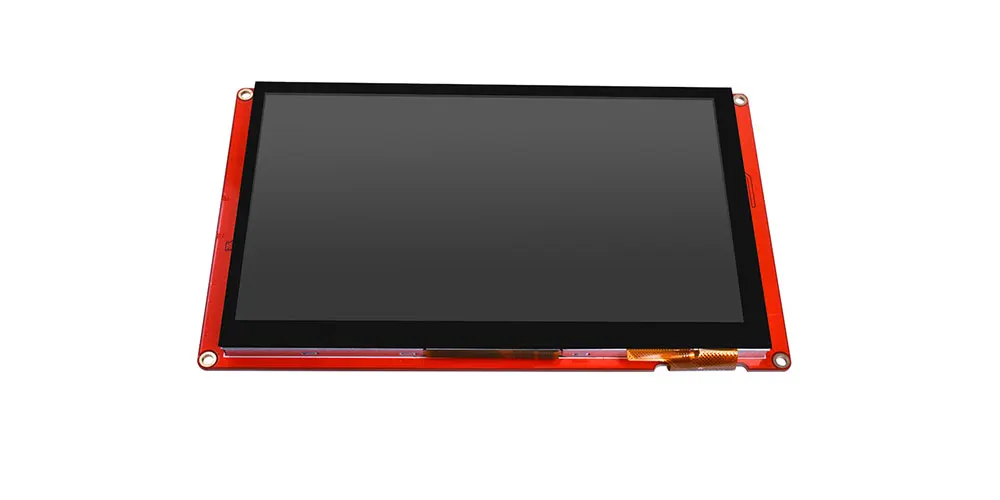

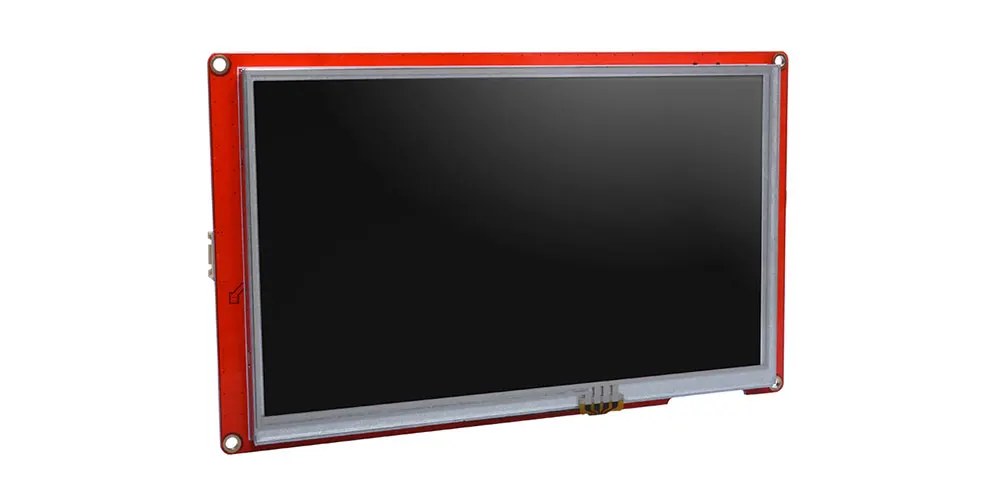

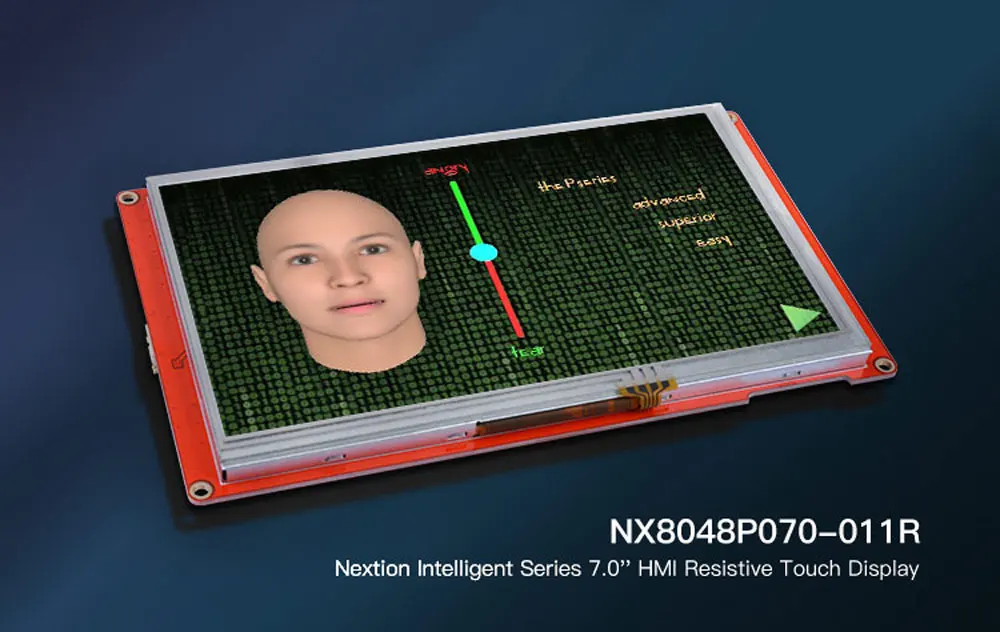

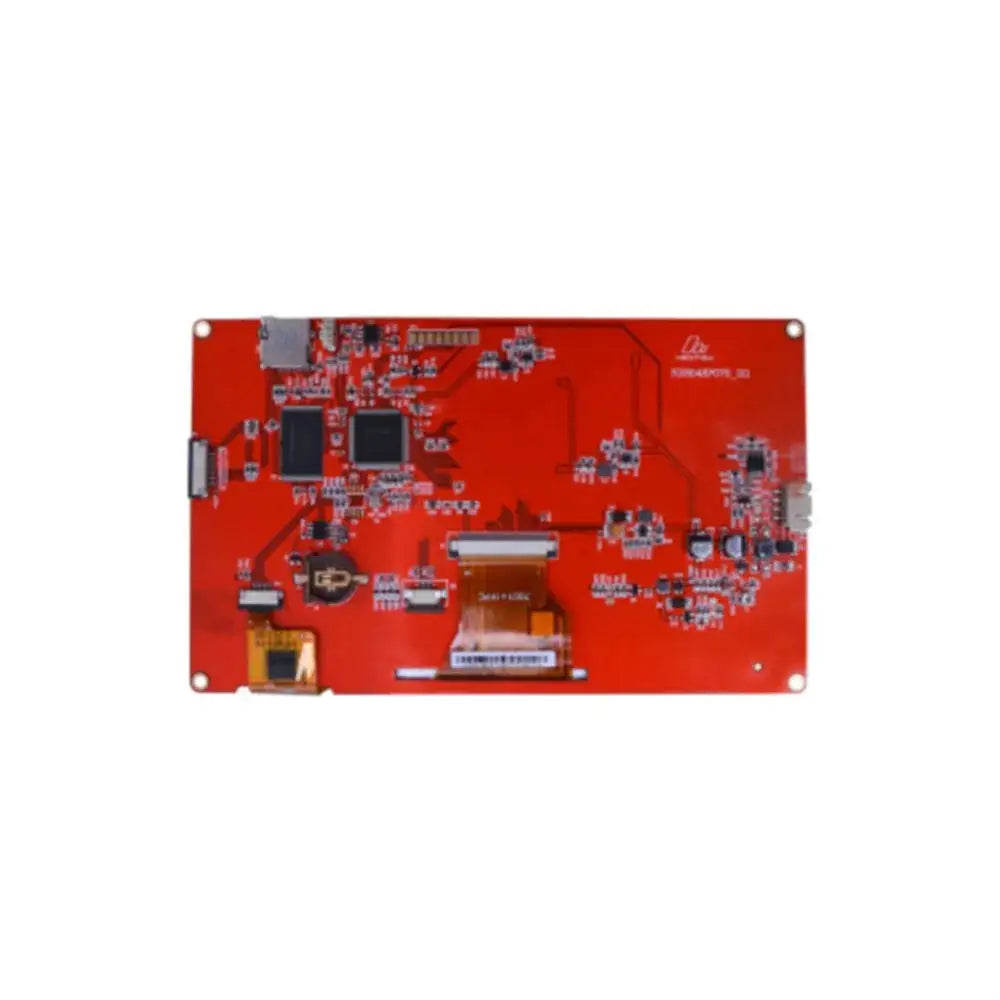

NX8048P070-011C(7.0'' IPS RGB 65K capacitive touchscreen), NX8048P070-011R(7.0'' IPS RGB 65K Resistive touchscreen) - Onboard MCU 200MHz and up to 128MB for HMI project - Built-in RTC,EEPROM, 8 digital GPIOs (2 PWM capable) - 4 pins (+5V, TX, RX, GND) TTL serial interface - 300 nit Brightness with 1% interval adjustment - Audio interface - CE and RoHS Compliant - Model: NX8048P070-011C(HMI Capacitive Touch Display) and NX8048P070-011R((HMI Resistive Touch Display)
