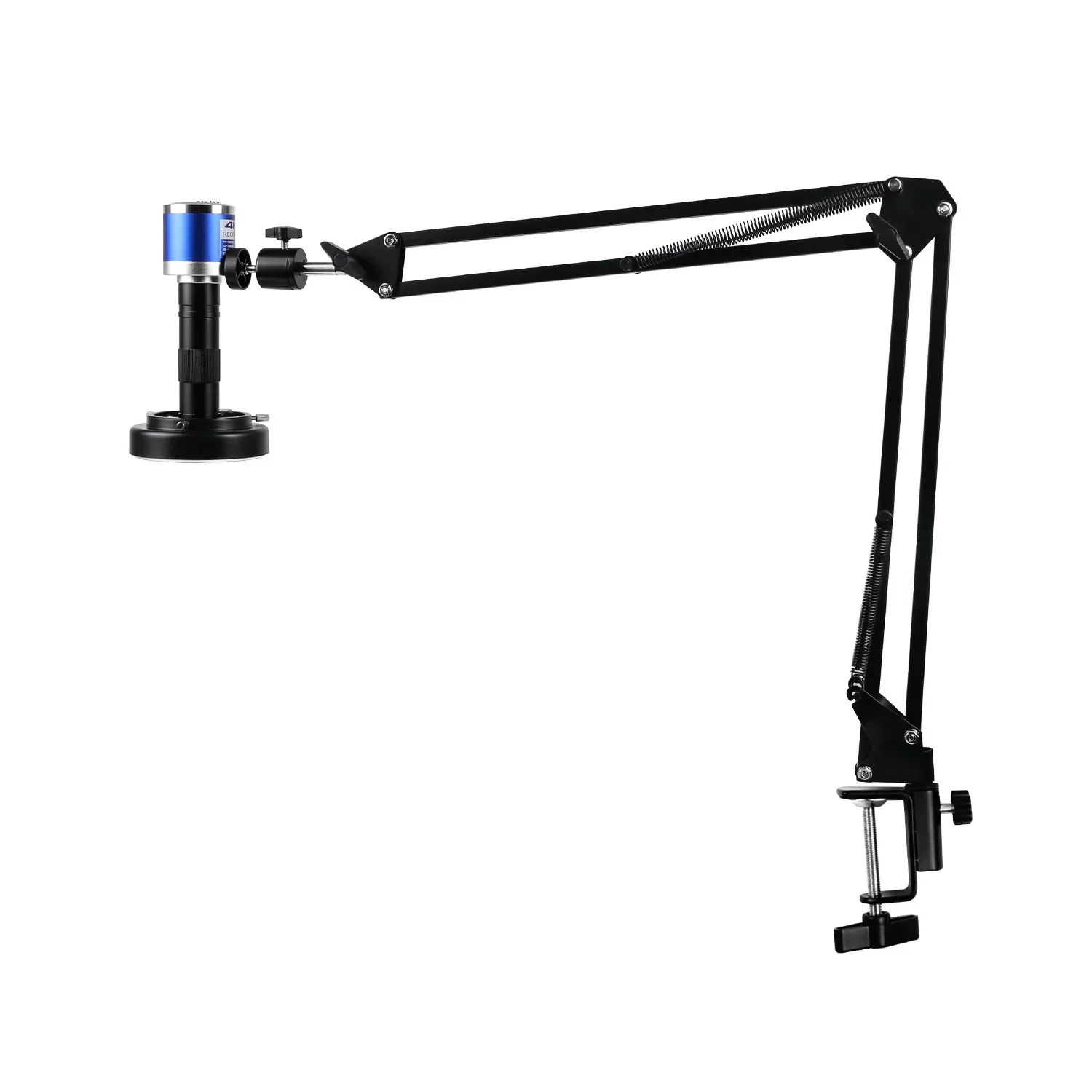

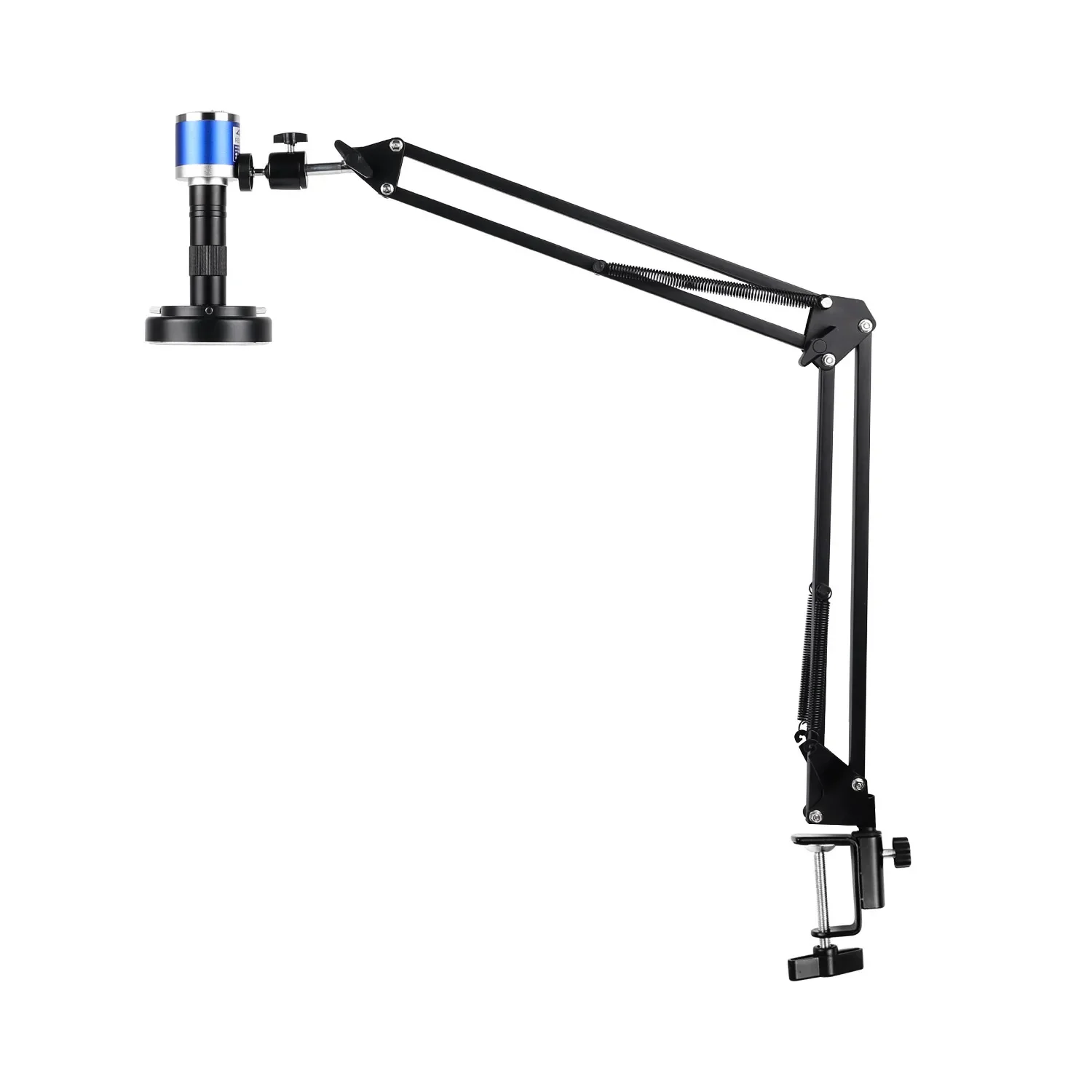

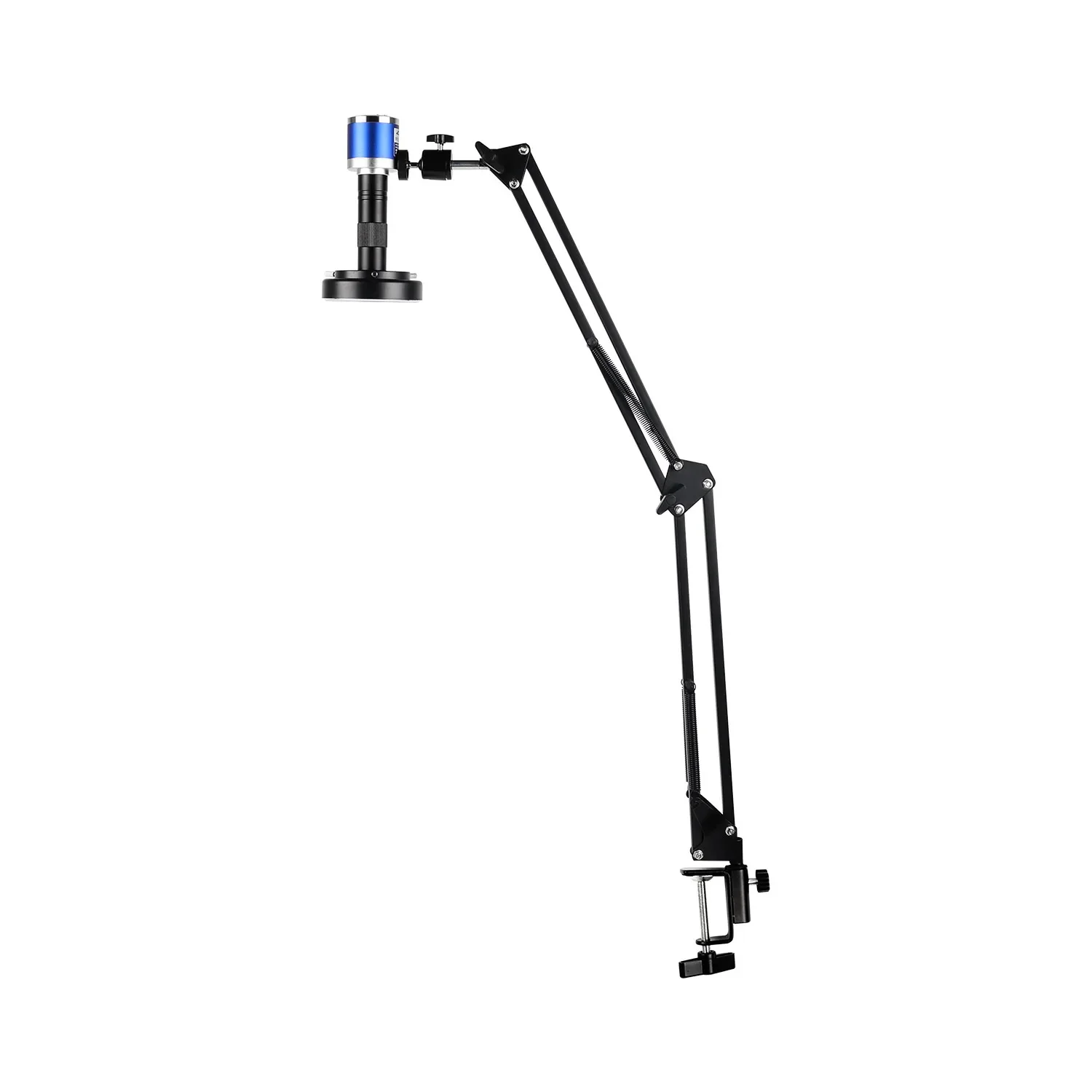

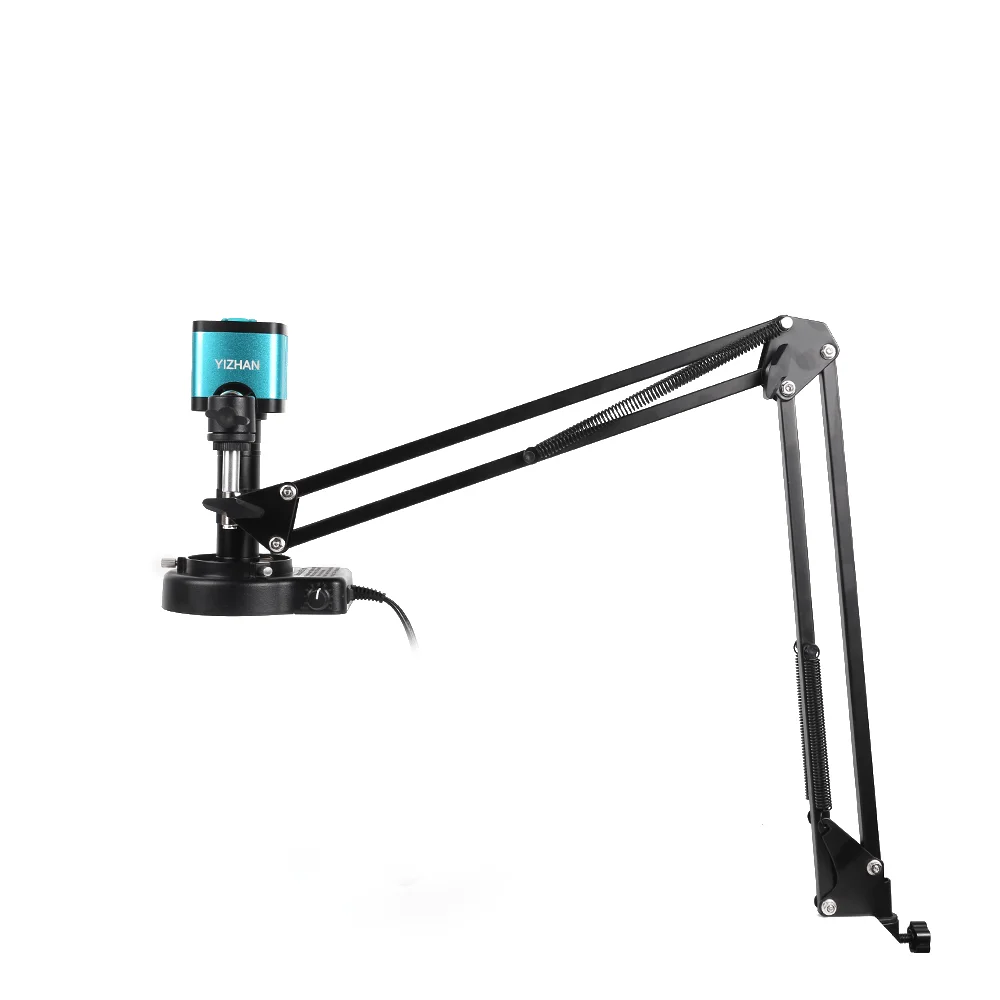

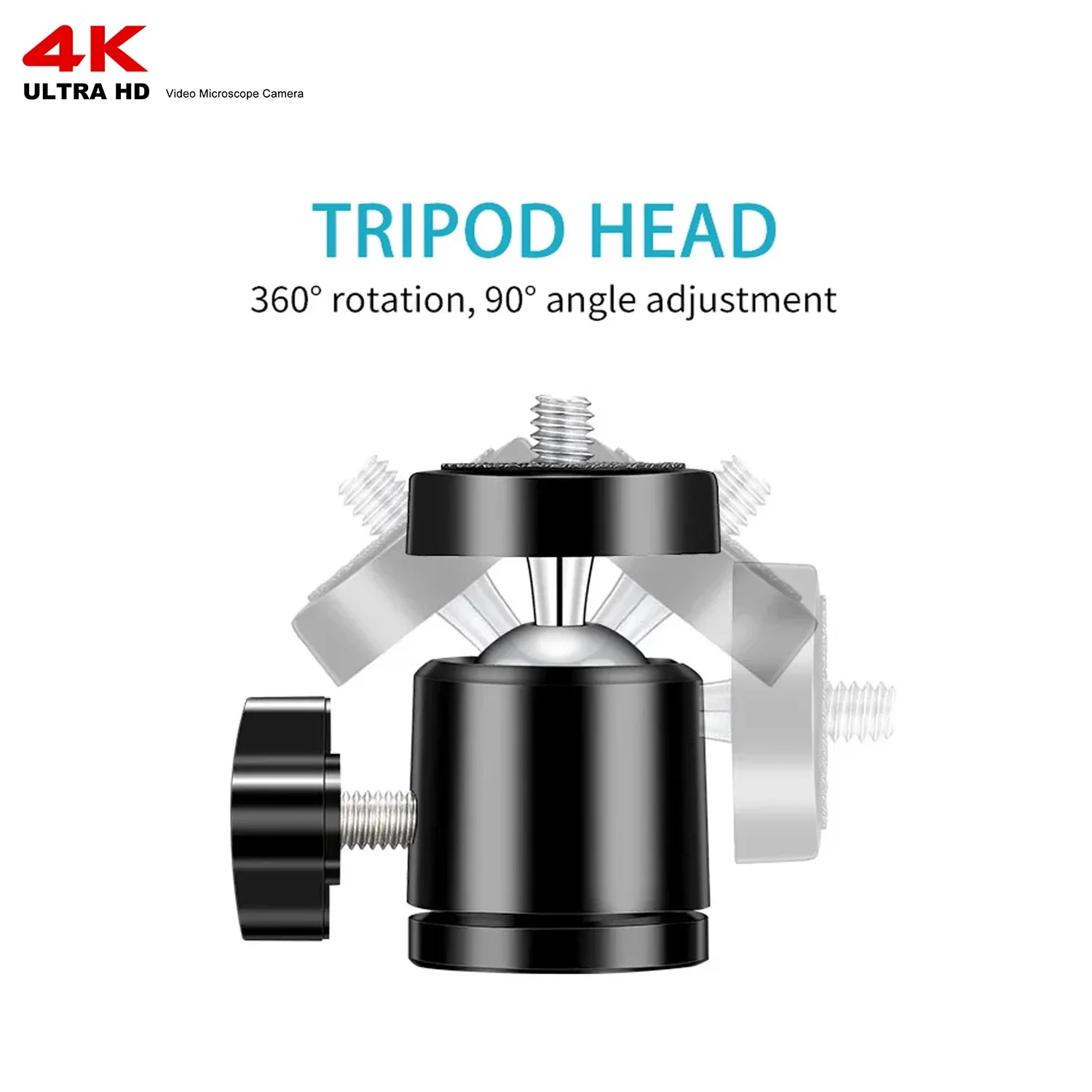

YIZHAN Digital microscope, the bracket can be rotated Lifting to suit your needs, while the lens supports 1-150 continuous zoom. It can definitely be a fine helper for your daily work. QC inspection, Education purpose inspection, Print industrial, Industrial inspection, PCB material, Jewellery & stamp collection, Textile Industrial, Biological inspection

Microscope software download address：(Please contact customer service after purchase to obtain the download link.)

If you cannot accept the shaking amplitude of the stand in the video, please do not purchase. Thank you for your cooperation.

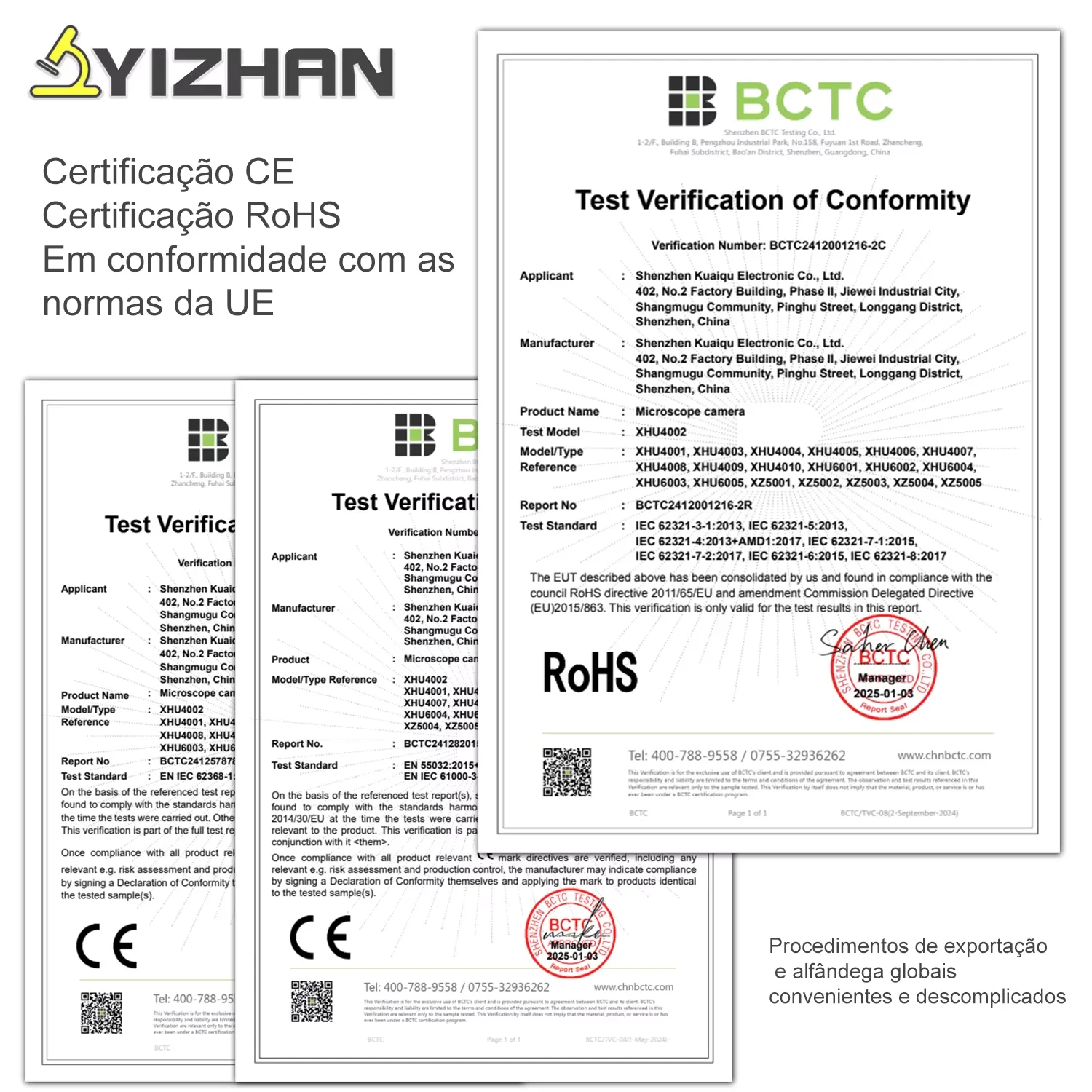

Our microscope camera comes with independent CE and RoHS certification.Fully compliant with EU safety and environmental protection standards.Smooth customs clearance for European and global markets, safe and reliable quality for long‑term use.

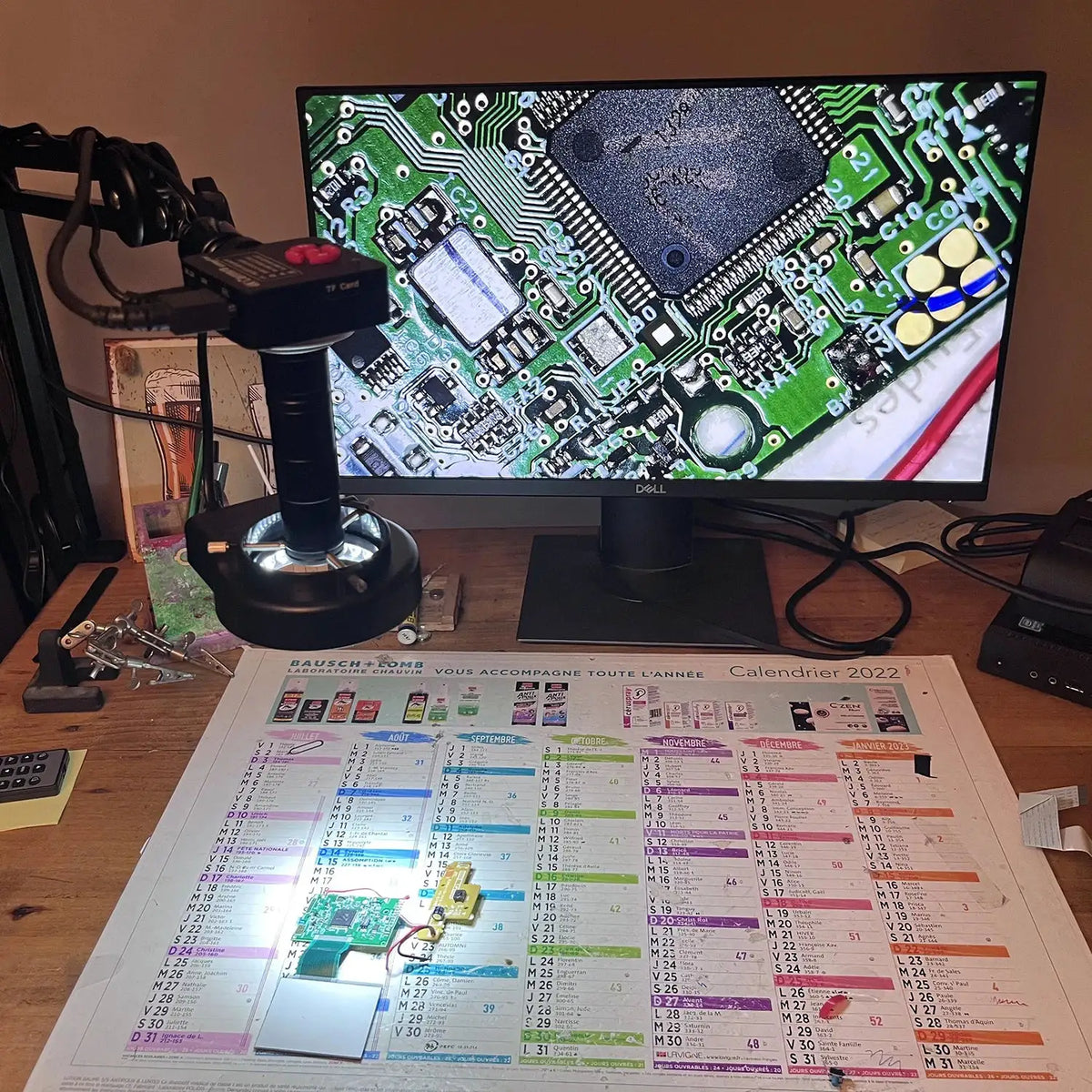

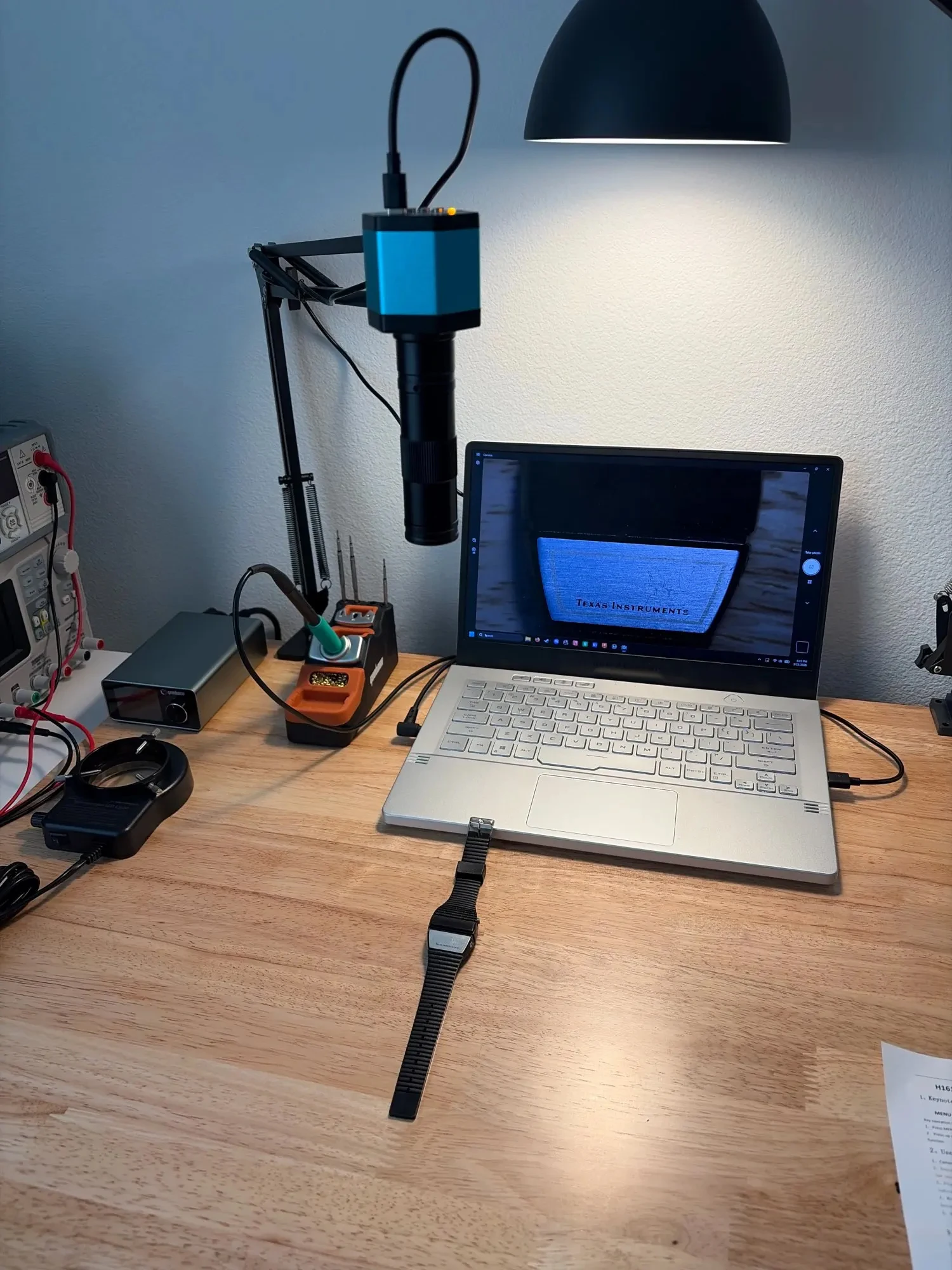

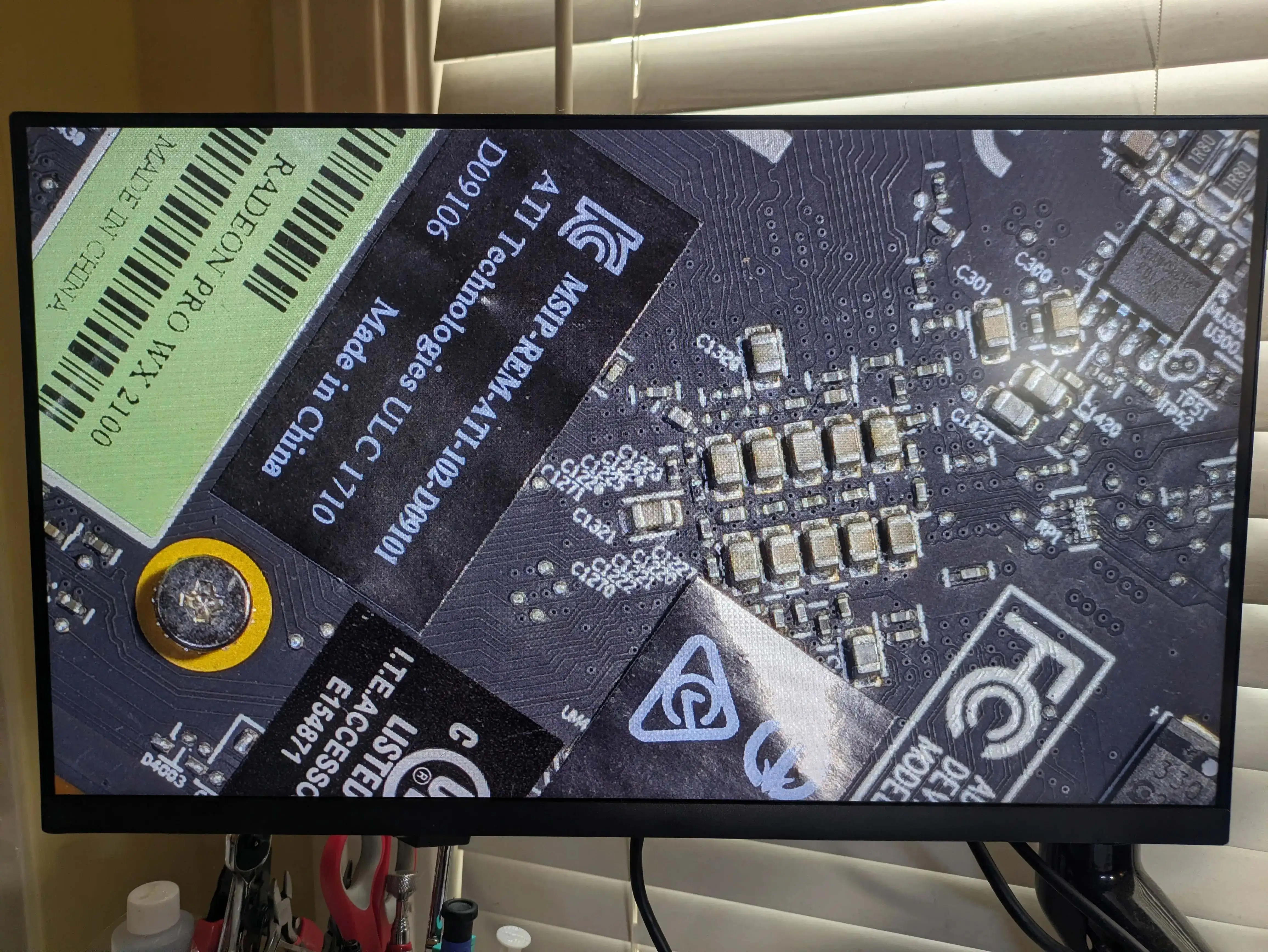

YIZHAN precision electronic repair microscope / microscope camera applicable scenarios:

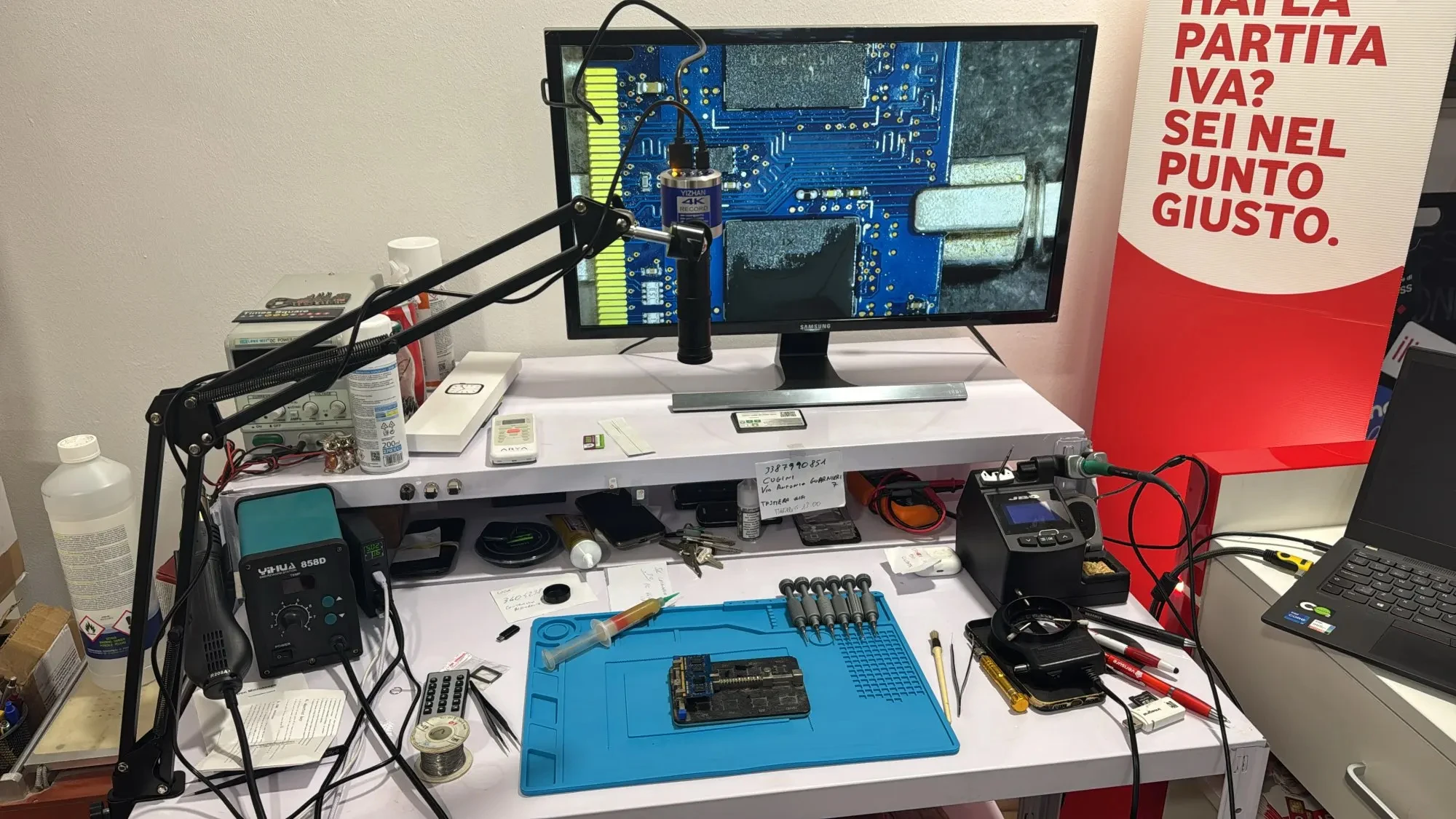

1️⃣ Precision electronic repair
✔ Mobile phone/computer motherboard chip welding ✔ Micro circuit board defect detection ✔ SMT patch component precise positioning
▸ The lens magnification is optional, and it can be matched with a ring LED cold light source to easily capture micron-level defects such as solder joint cracks and component cold soldering, and say goodbye to the blurred vision of traditional magnifying glasses.
2️⃣ Industrial equipment maintenance
✔ Mechanical parts wear analysis ✔ Precision mold detection ✔ Micro gear set assembly calibration
▸ Long working distance design, no obstruction of operating space, single-handed adjustment of focal length, helping engineers to quickly complete troubleshooting.
3️⃣ Watch and jewelry finishing
✔ Swiss movement gear calibration ✔ Jewelry claw fine-tuning ✔ Antique cultural relics restoration
▸ Rotatable + metal shockproof bracket, meet the needs of sitting/standing multi-posture operation, 24-hour continuous observation without fatigue, so that the 0.1mm gem setting error can be seen.
4️⃣ Quality inspection and scientific research
✔ PCB gold wire quality inspection ✔ Material surface microstructure observation ✔ 3D printed finished product defect screening
5️⃣ Medical equipment maintenance and calibration
6️⃣ Automotive/aviation precision manufacturing
7️⃣ Teaching and skills training
8️⃣ Artwork restoration and miniature model making
9️⃣Non-cellular medical observation, surgical observation

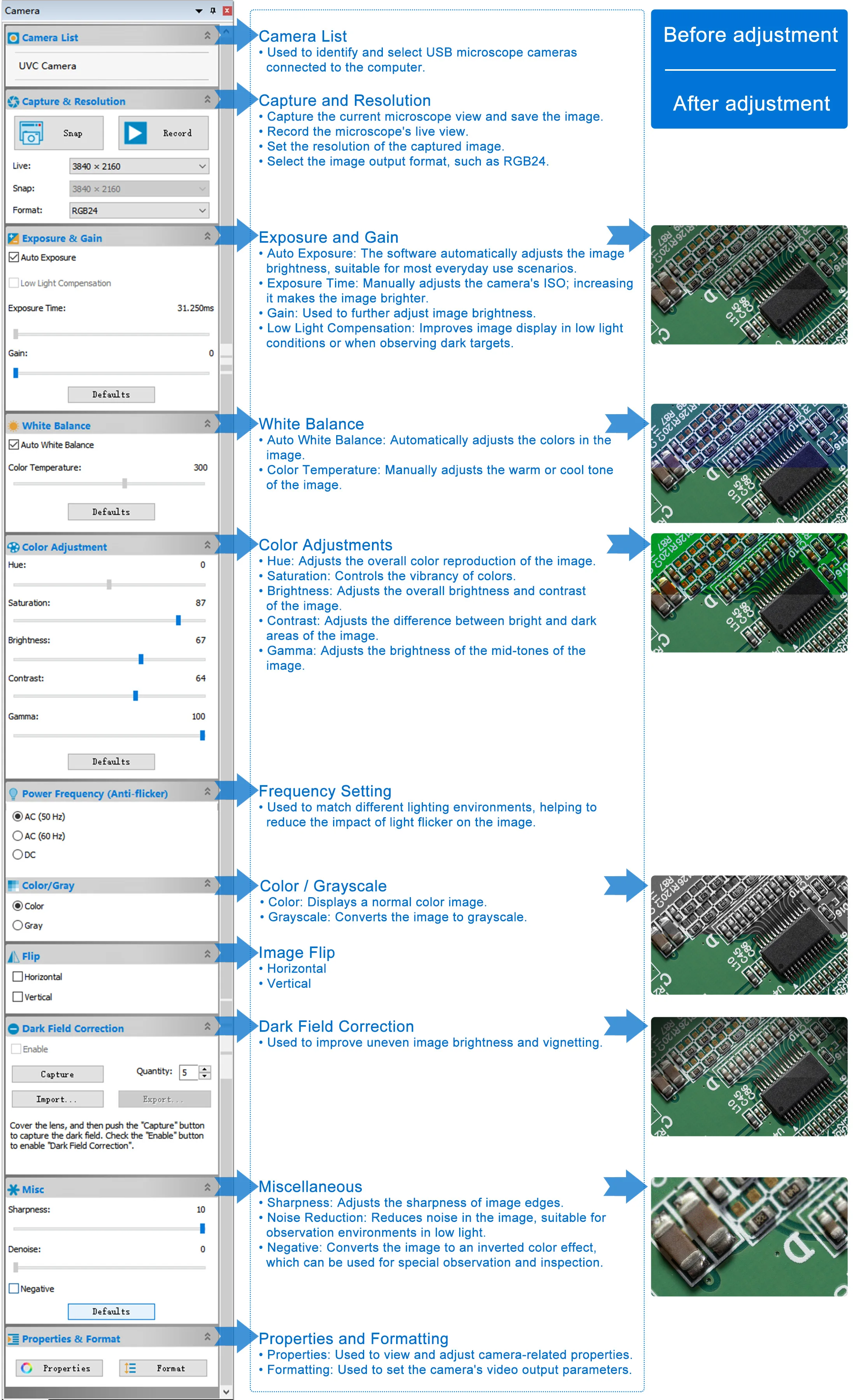

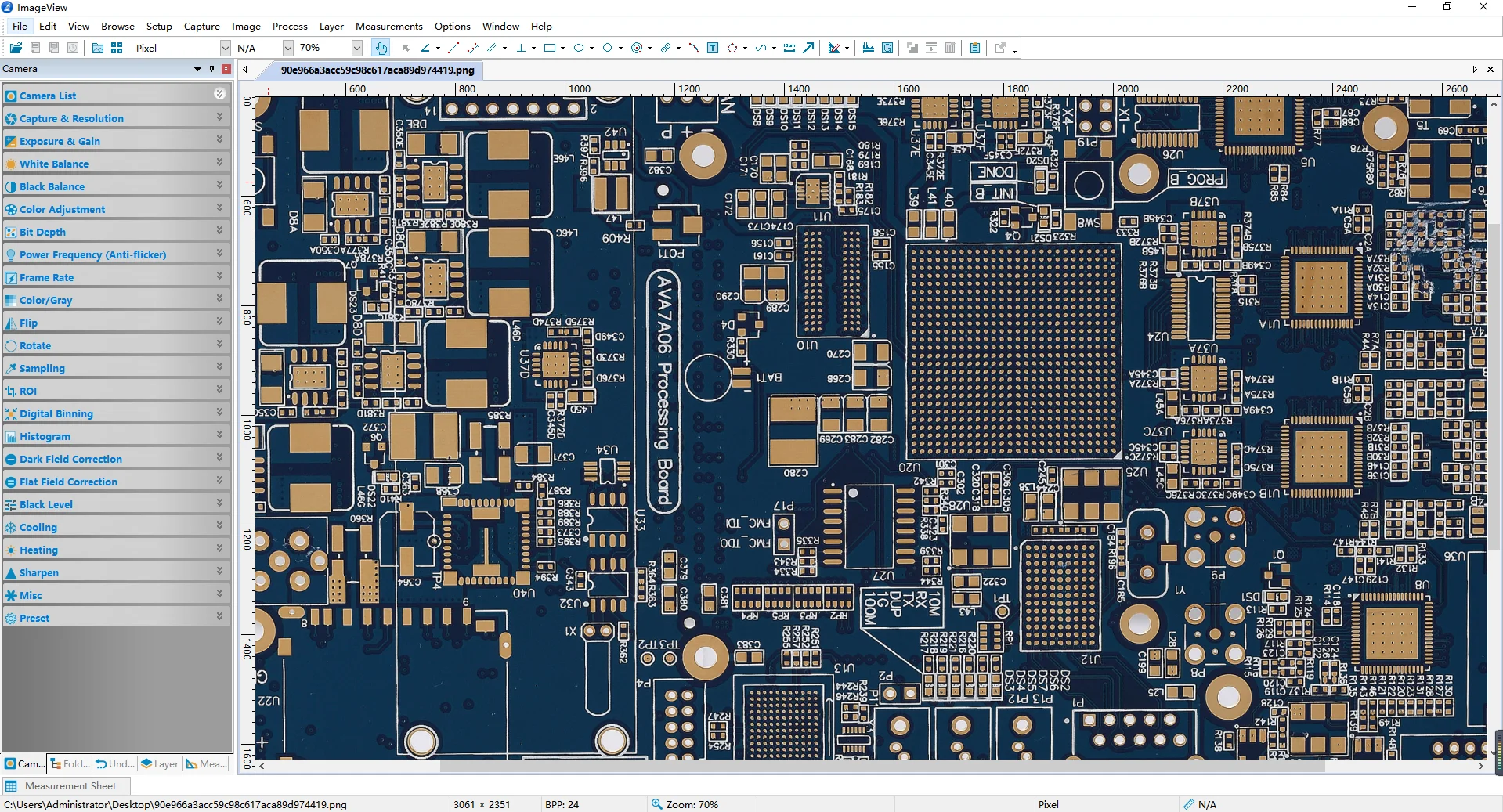

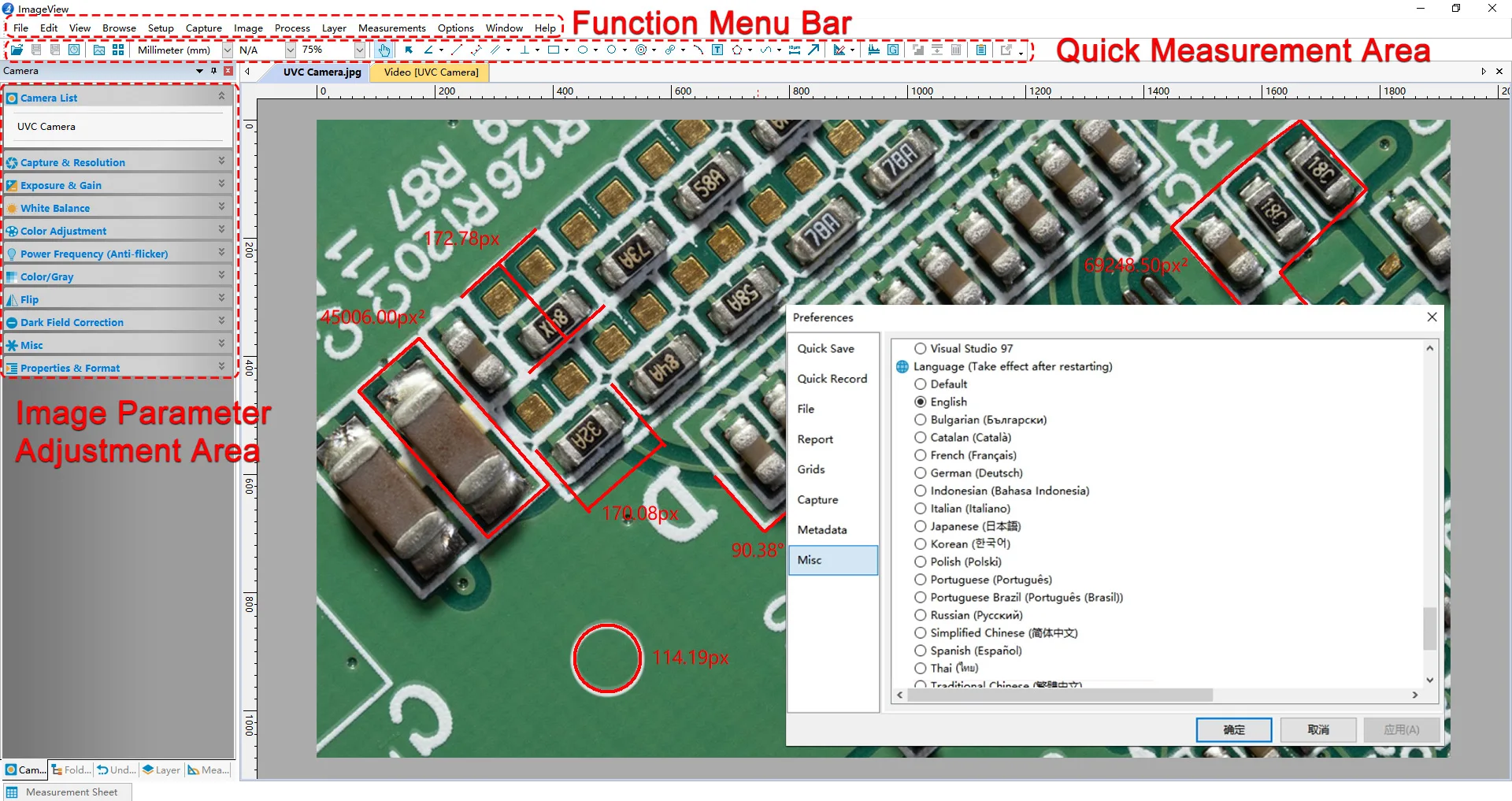

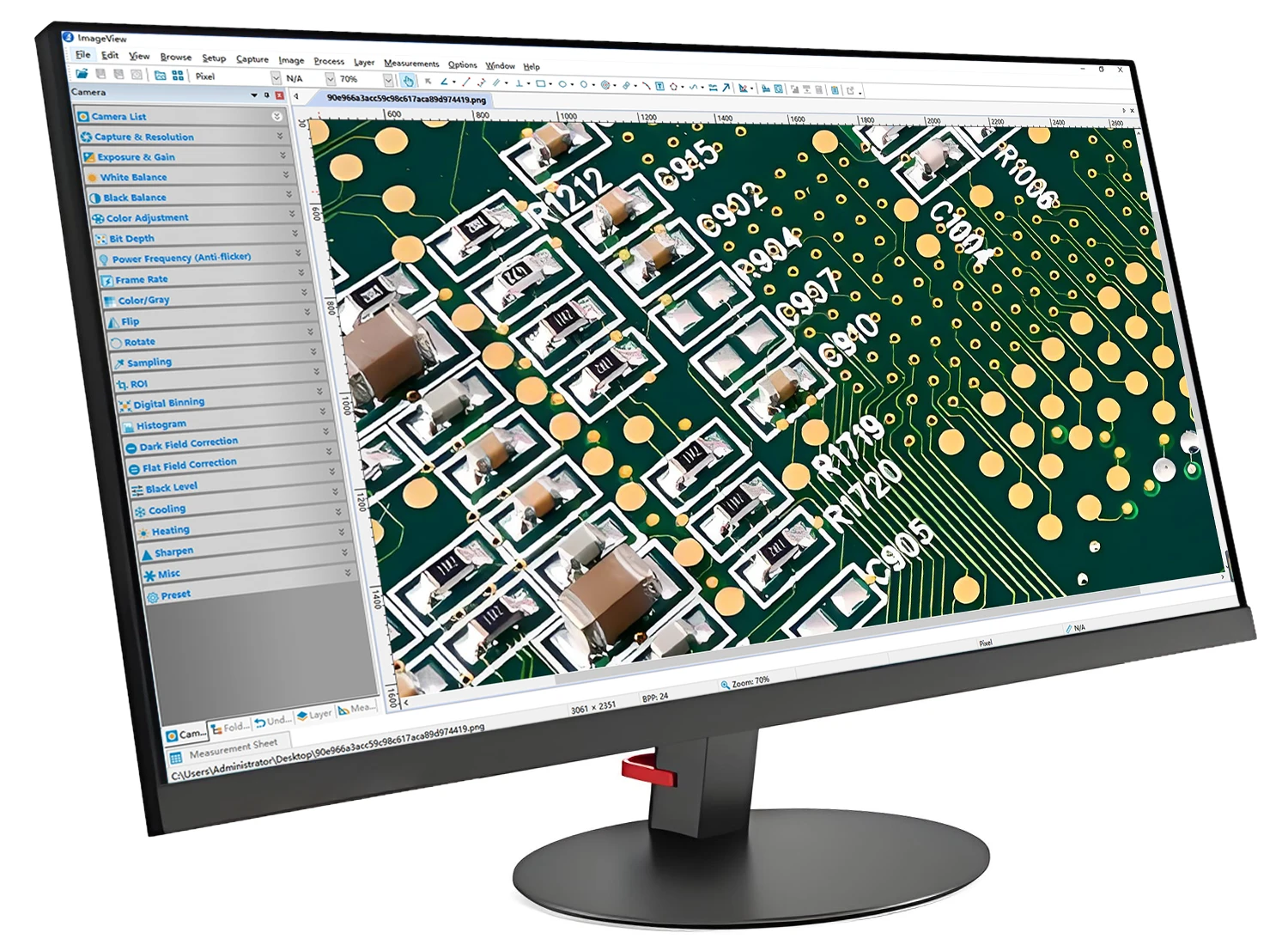

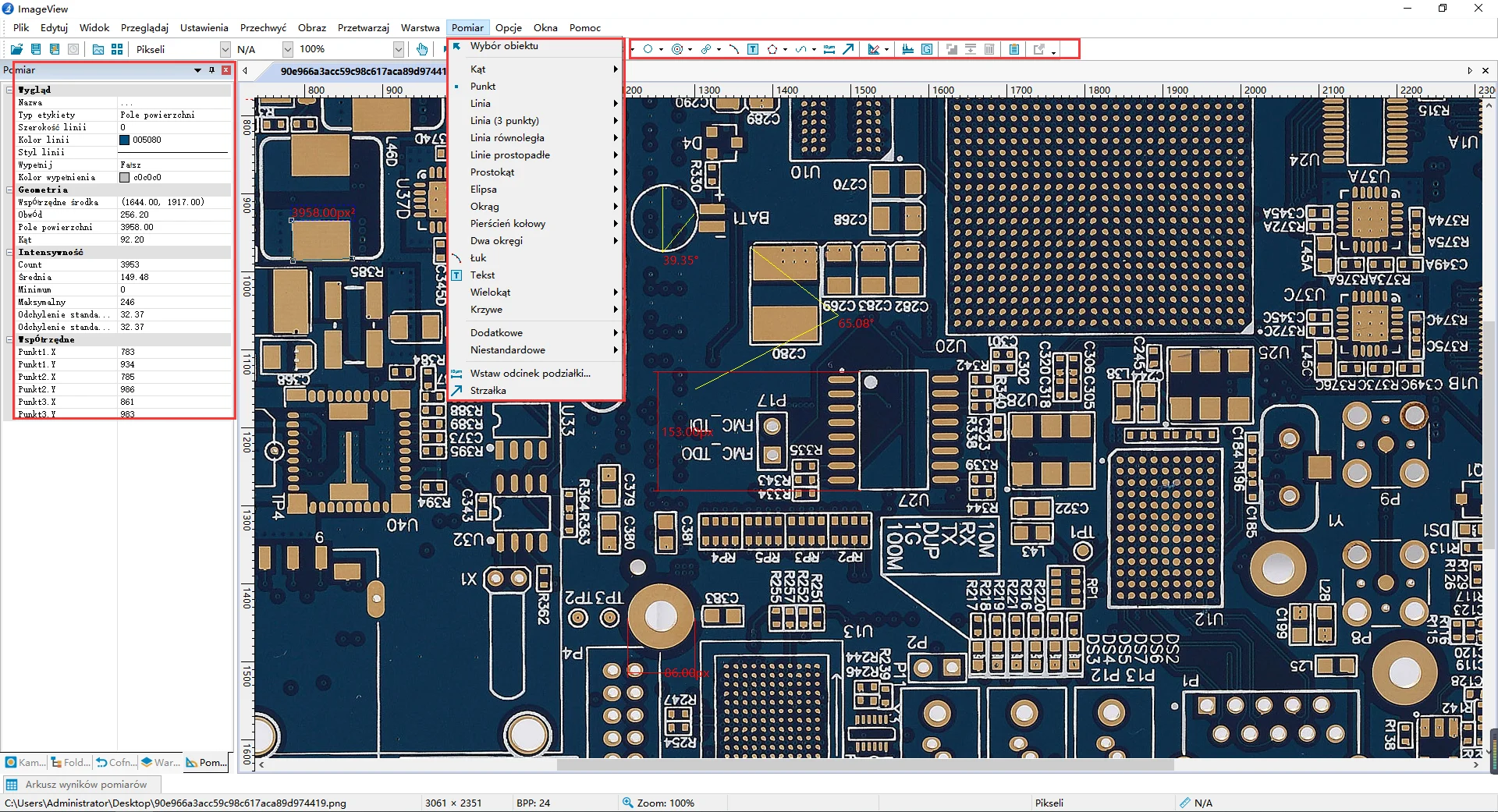

🔥YIZHAN Professional Microscope Imaging & Measurement Software

Our professional microscope software provides a powerful and intuitive solution for industrial inspection, quality control, repair, and laboratory applications. With high-resolution live imaging, image adjustment, recording, and precision measurement functions, users can easily observe, capture, analyze, and measure microscopic details.

3840×2160 4K Live Preview Support, Built-in capture and recording functions enable quick documentation of inspection results.

Video Recording
Image Saving & Analysis

Advanced Image Adjustment Functions
Capture and Resolution
• Capture the current microscope view and save the image.
• Record the microscope's live view.
• Set the resolution of the captured image.
• Select the image output format, such as RGB24.
Exposure and Gain
• Auto Exposure: The software automatically adjusts the image
brightness, suitable for most everyday use scenarios.
• Exposure Time: Manually adjusts the camera's ISO; increasing
it makes the image brighter.
• Gain: Used to further adjust image brightness.
• Low Light Compensation: Improves image display in low light
conditions or when observing dark targets.
White Balance
• Auto White Balance: Automatically adjusts the colors in the
image.
• Color Temperature: Manually adjusts the warm or cool tone
of the image.
Color Adjustments
• Hue: Adjusts the overall color reproduction of the image.
• Saturation: Controls the vibrancy of colors.
• Brightness: Adjusts the overall brightness and contrast
of the image.
• Contrast: Adjusts the difference between bright and dark
areas of the image.
• Gamma: Adjusts the brightness of the mid-tones of the
image.
Frequency Setting
• Used to match different lighting environments, helping to
reduce the impact of light flicker on the image.
Color / Grayscale
• Color: Displays a normal color image.
• Grayscale: Converts the image to grayscale.
Image Flip
• Horizontal
• Vertical
Dark Field Correction
• Used to improve uneven image brightness and vignetting.
Miscellaneous
• Sharpness: Adjusts the sharpness of image edges.
• Noise Reduction: Reduces noise in the image, suitable for
observation environments in low light.
• Negative: Converts the image to an inverted color effect,
which can be used for special observation and inspection.
Properties and Formatting
• Properties: Used to view and adjust camera-related properties.
• Formatting: Used to set the camera's video output parameters.

Supported measurement functions:
Length Measurement
Angle Measurement
Polyline Measurement
Area Measurement
Polygon Measurement
Arc Measurement
Multiple Measurement Units Support

The software supports 10 commonly used measurement units to meet different application requirements:
px | m | cm | mm | μm | nm | pm | in | mil | Å

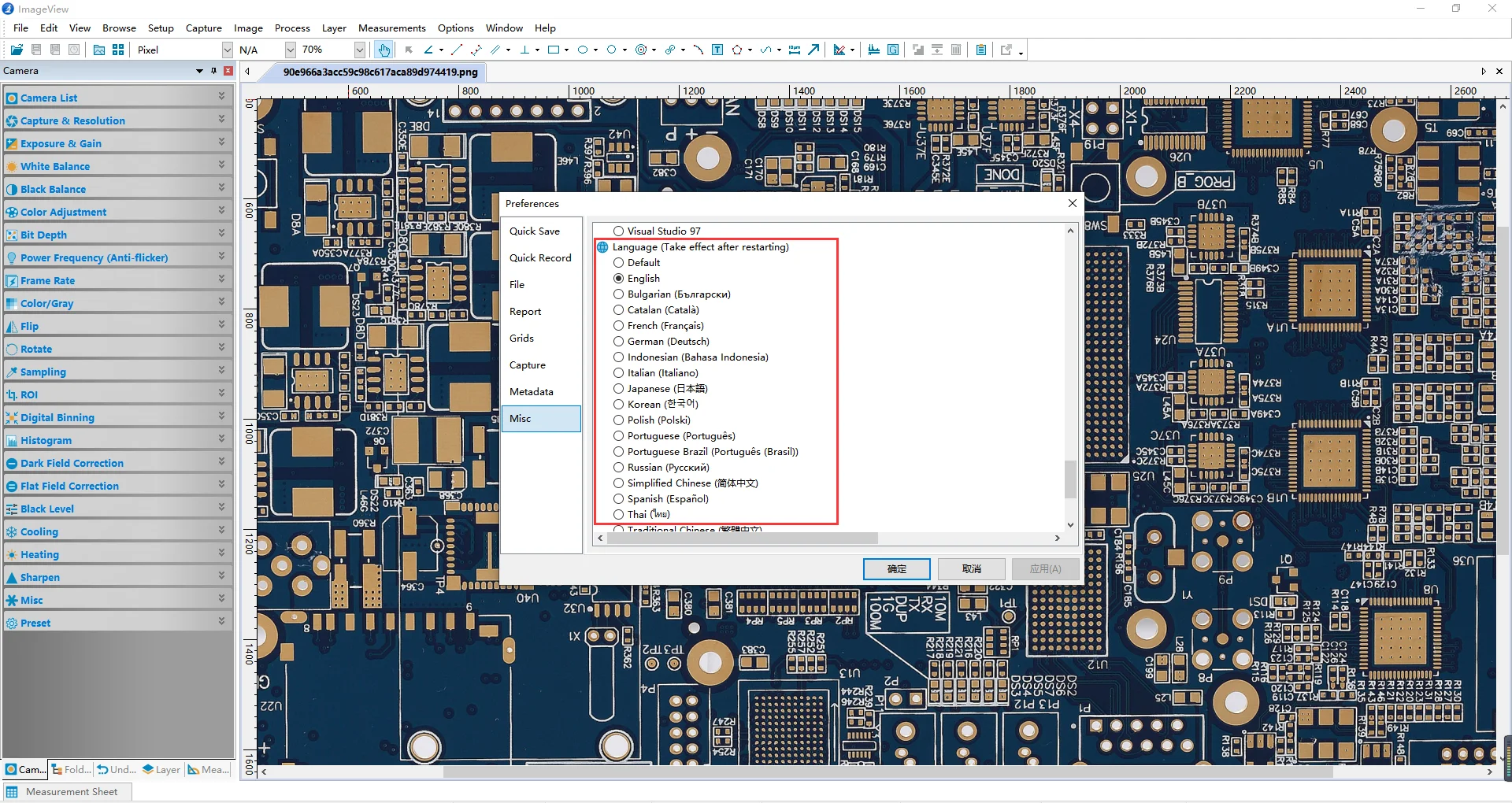

Software supports 19 languages, providing a convenient operating experience for customers across different countries and regions.

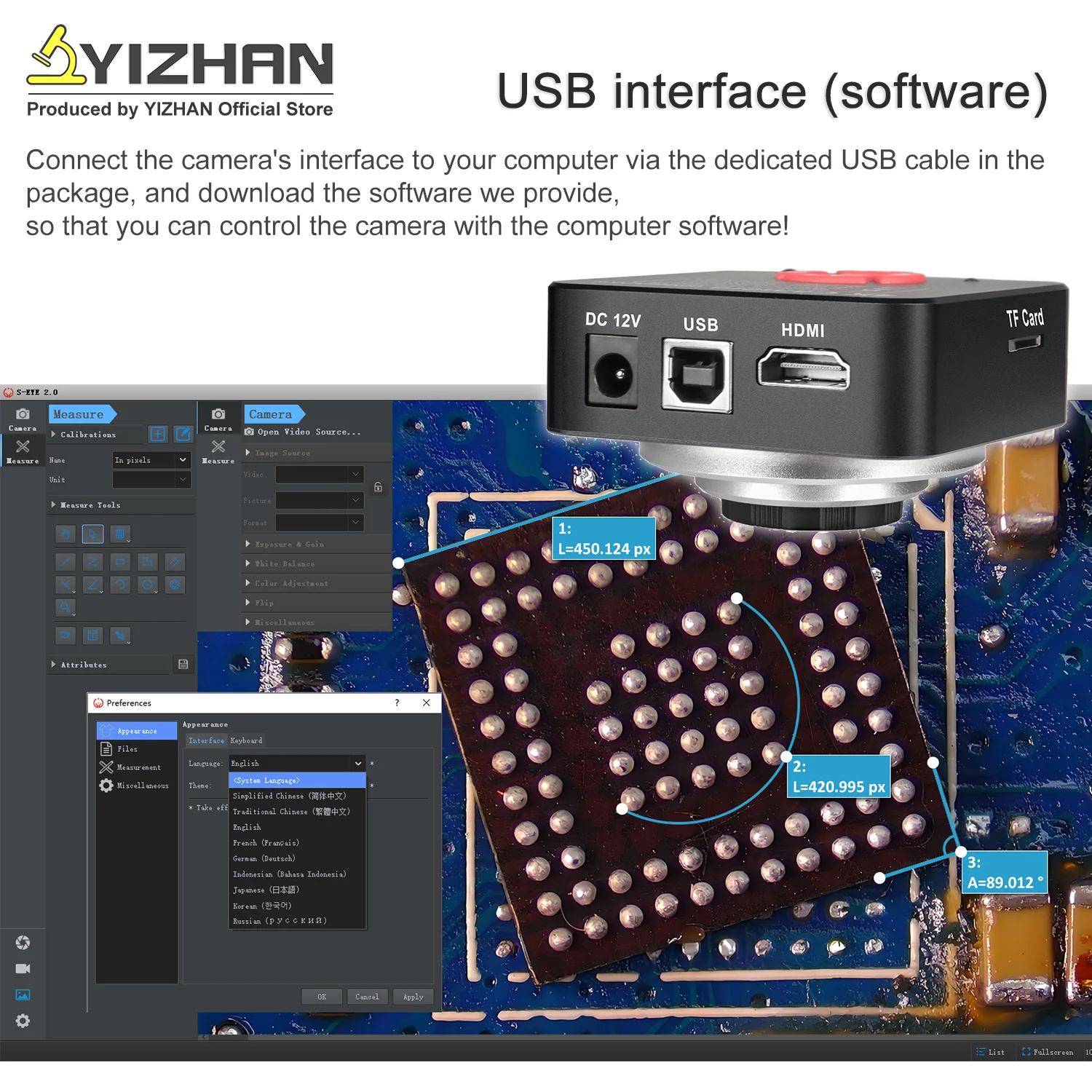

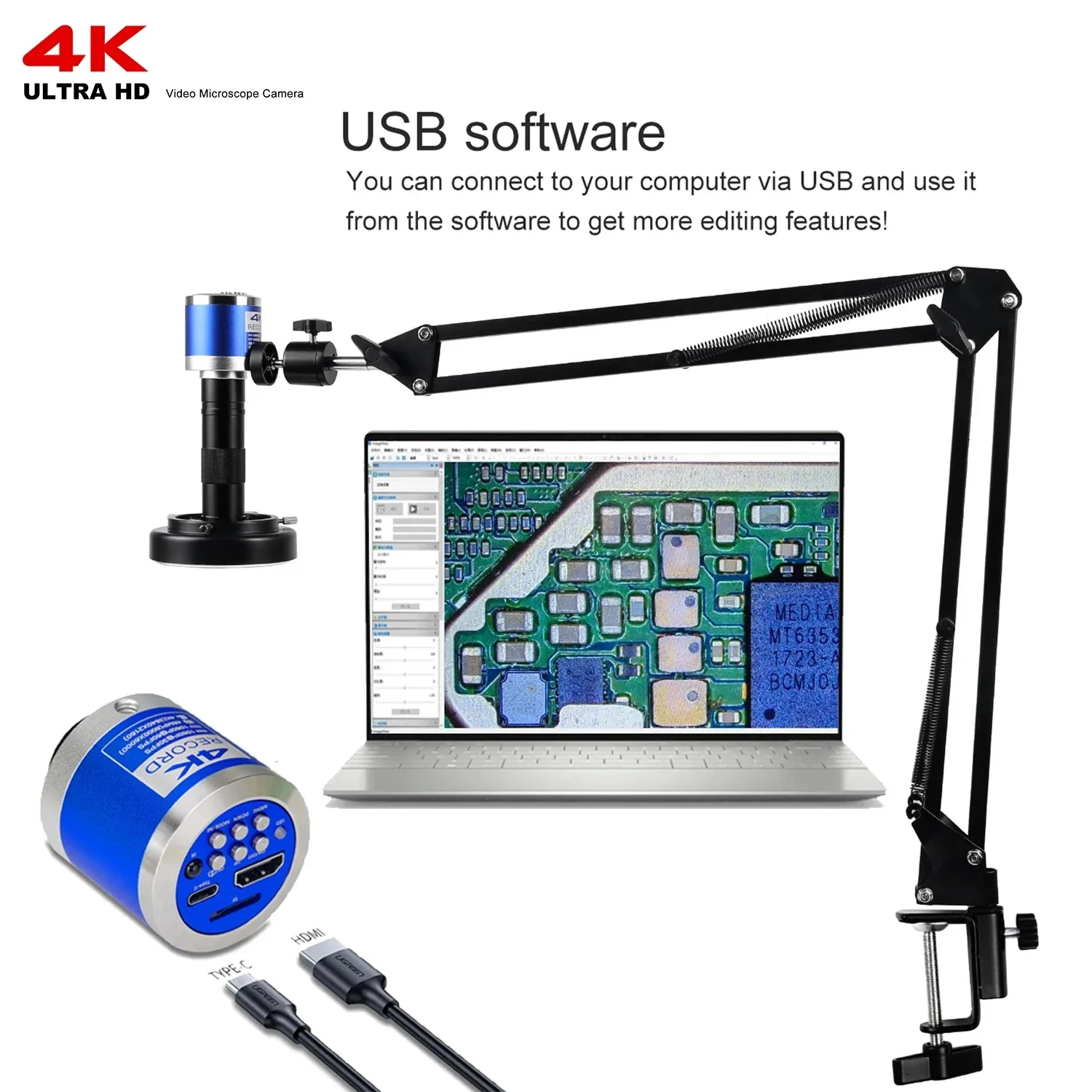

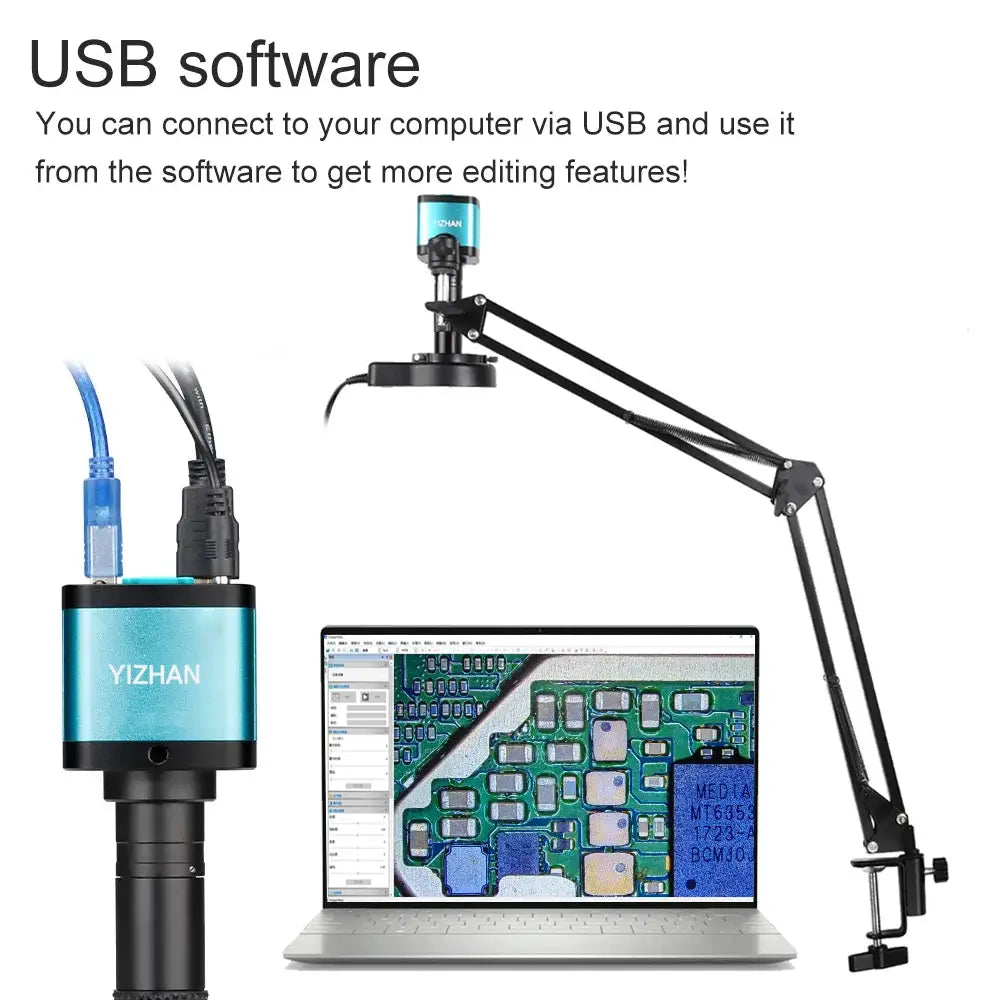

🔥USB Connection Guide

This device only supports Windows computers.Tablets and Android devices are not compatible.For Mac devices, users need to find and install compatible software by themselves.
1.Please turn off your computer’s built-in camera first to avoid device conflict.
2.Connect the microscope camera to your PC via USB cable.
3.If the computer cannot recognize the device, please change another USB port.
4.After successful recognition, select the microscope camera in the software device list, then you can start working.

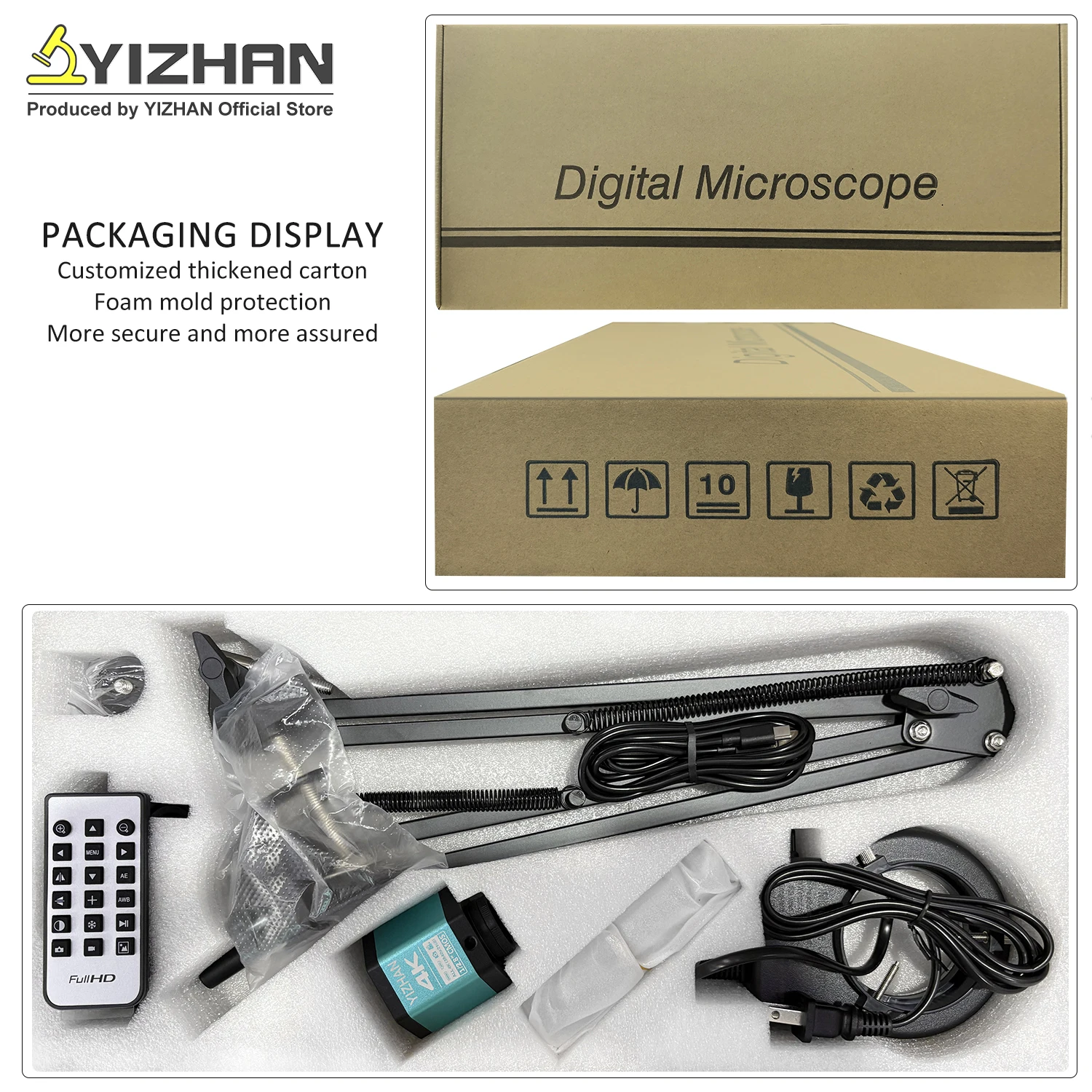

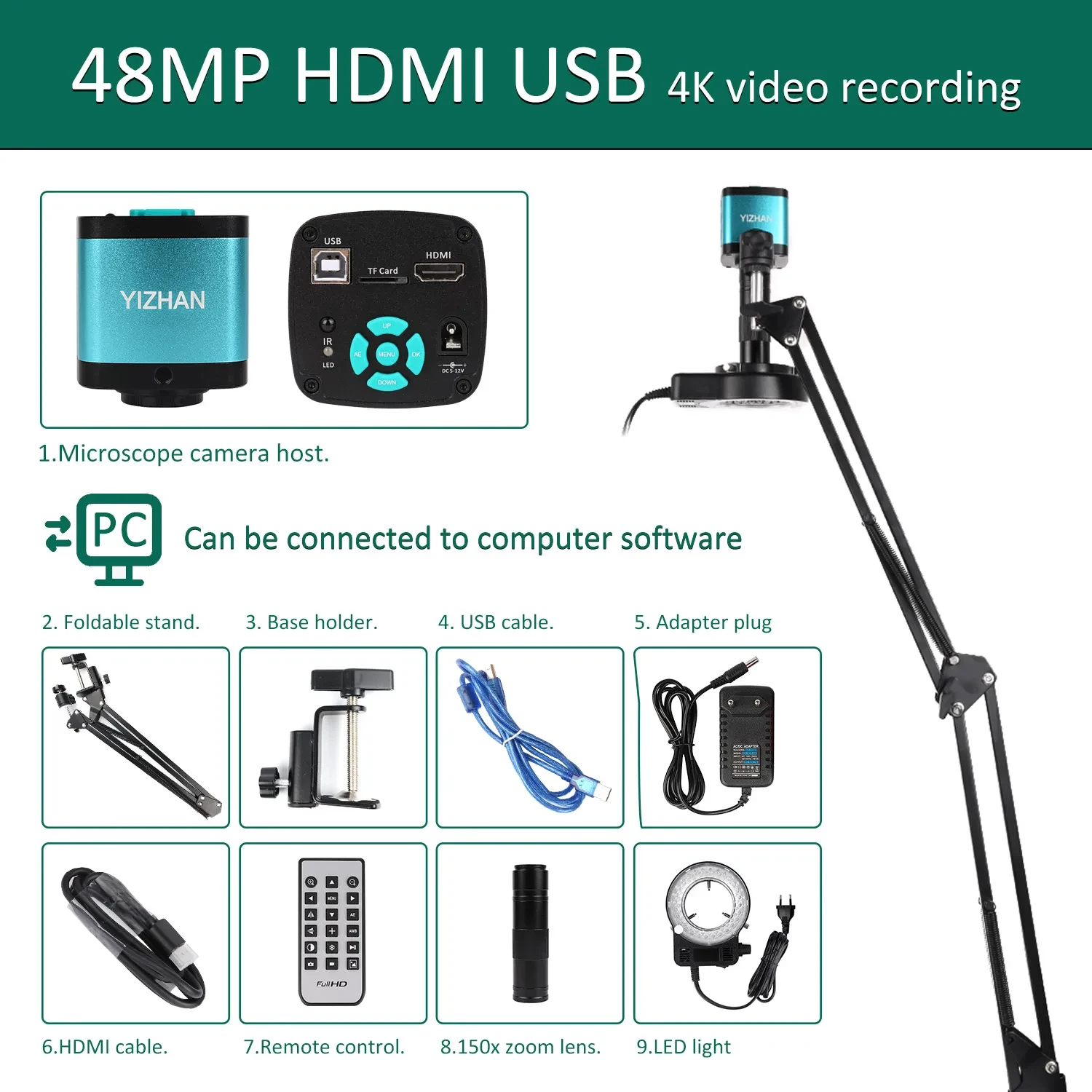

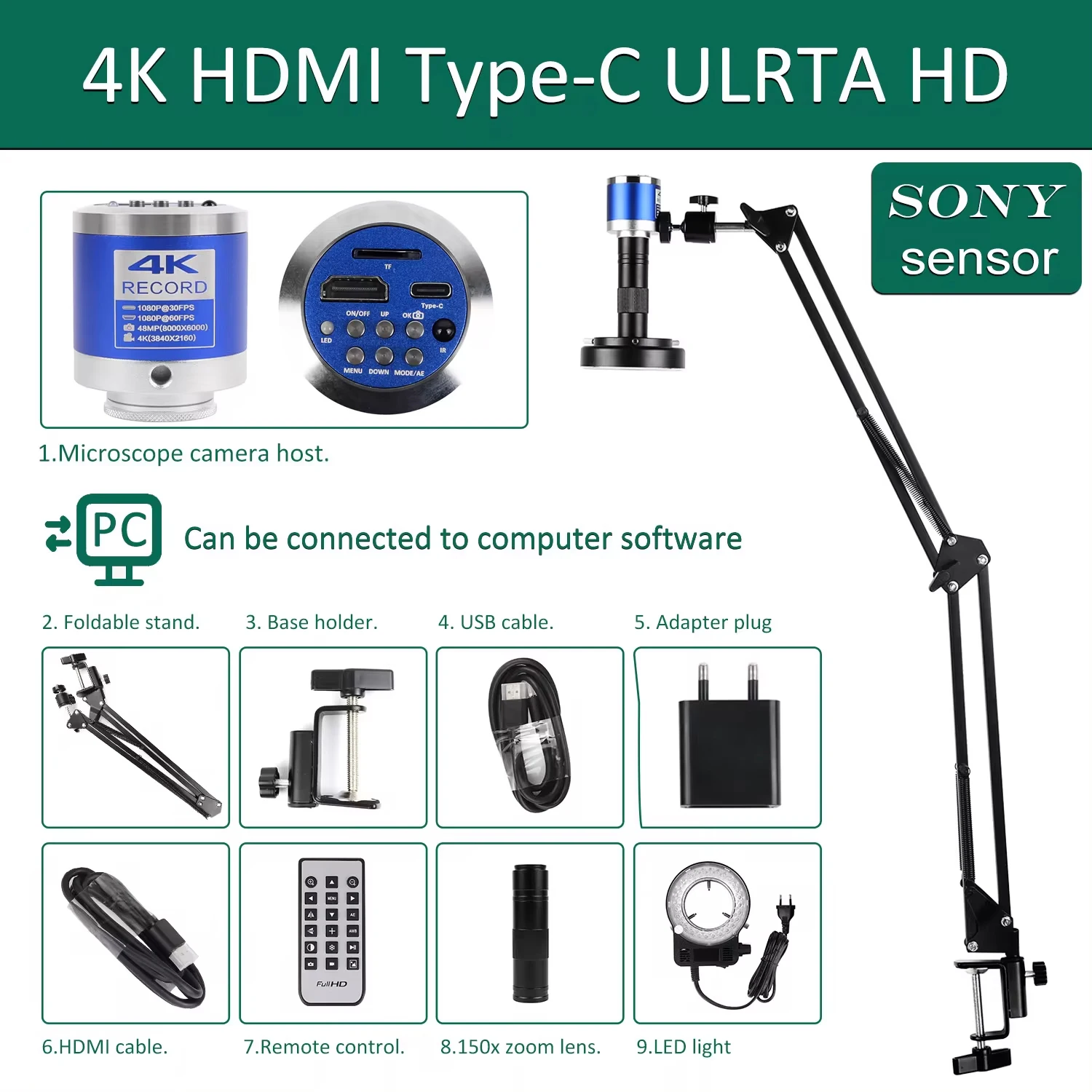

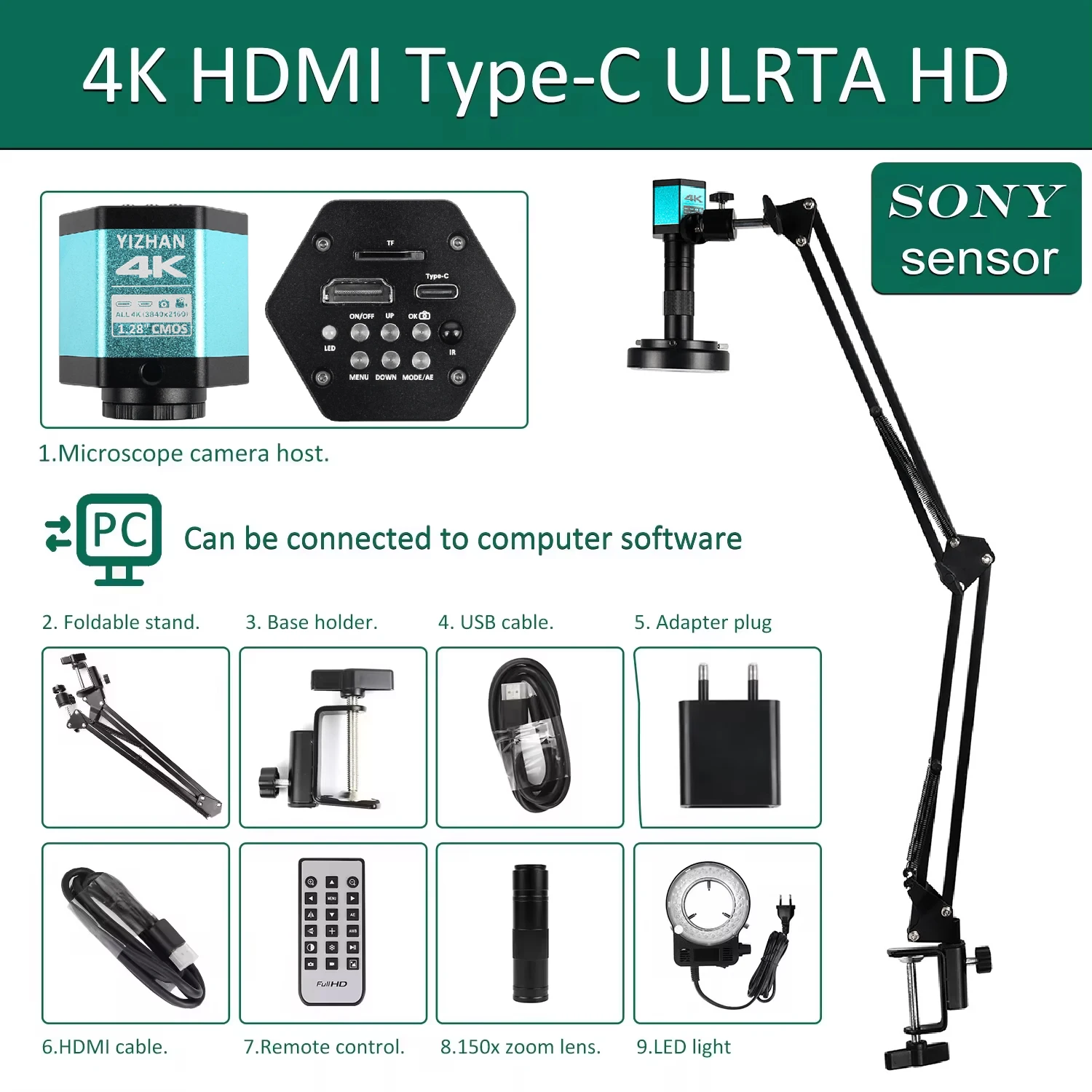

📦Packing List

1* Camera + Accessories
1* Lens
1* Stand (Optional)
1* Lighting

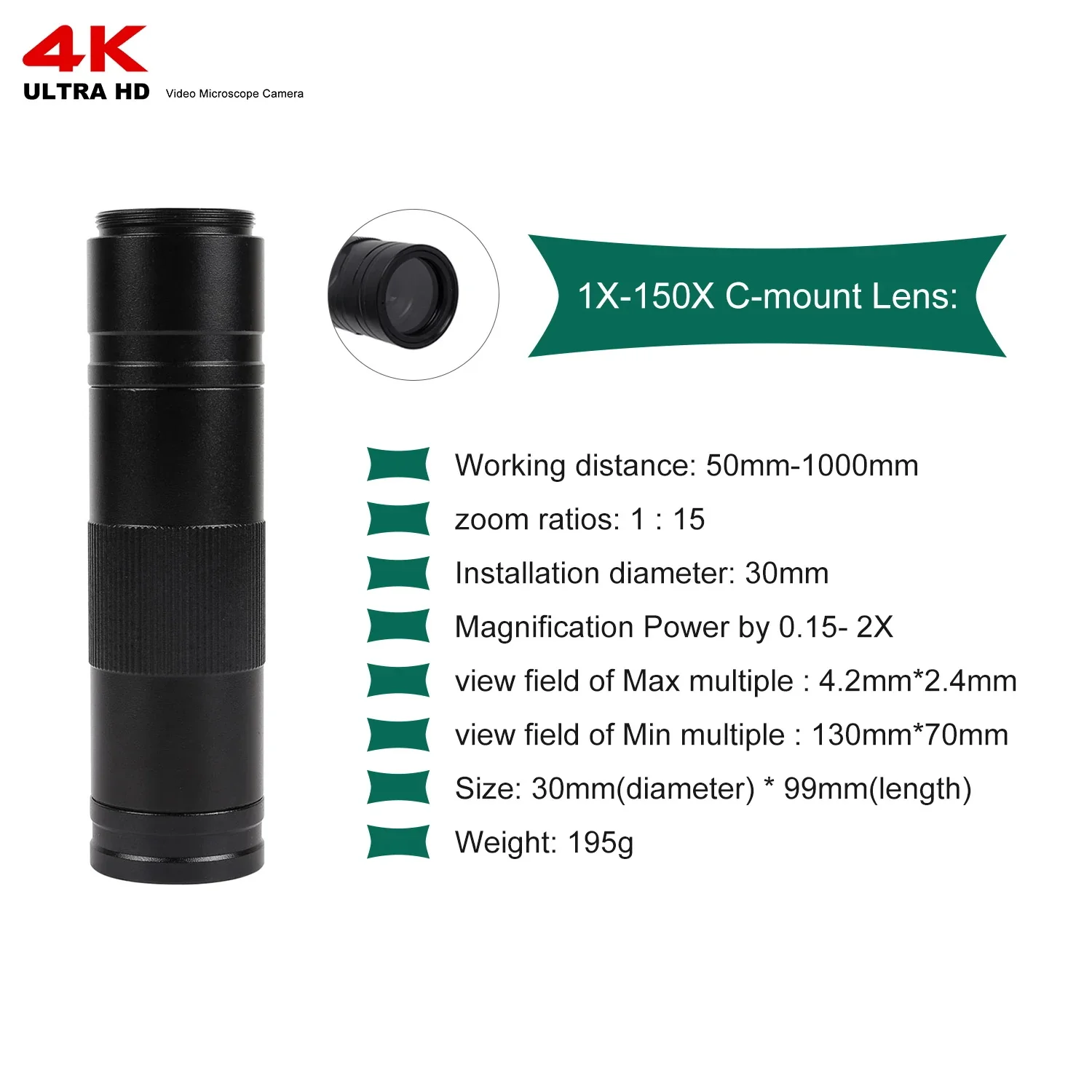

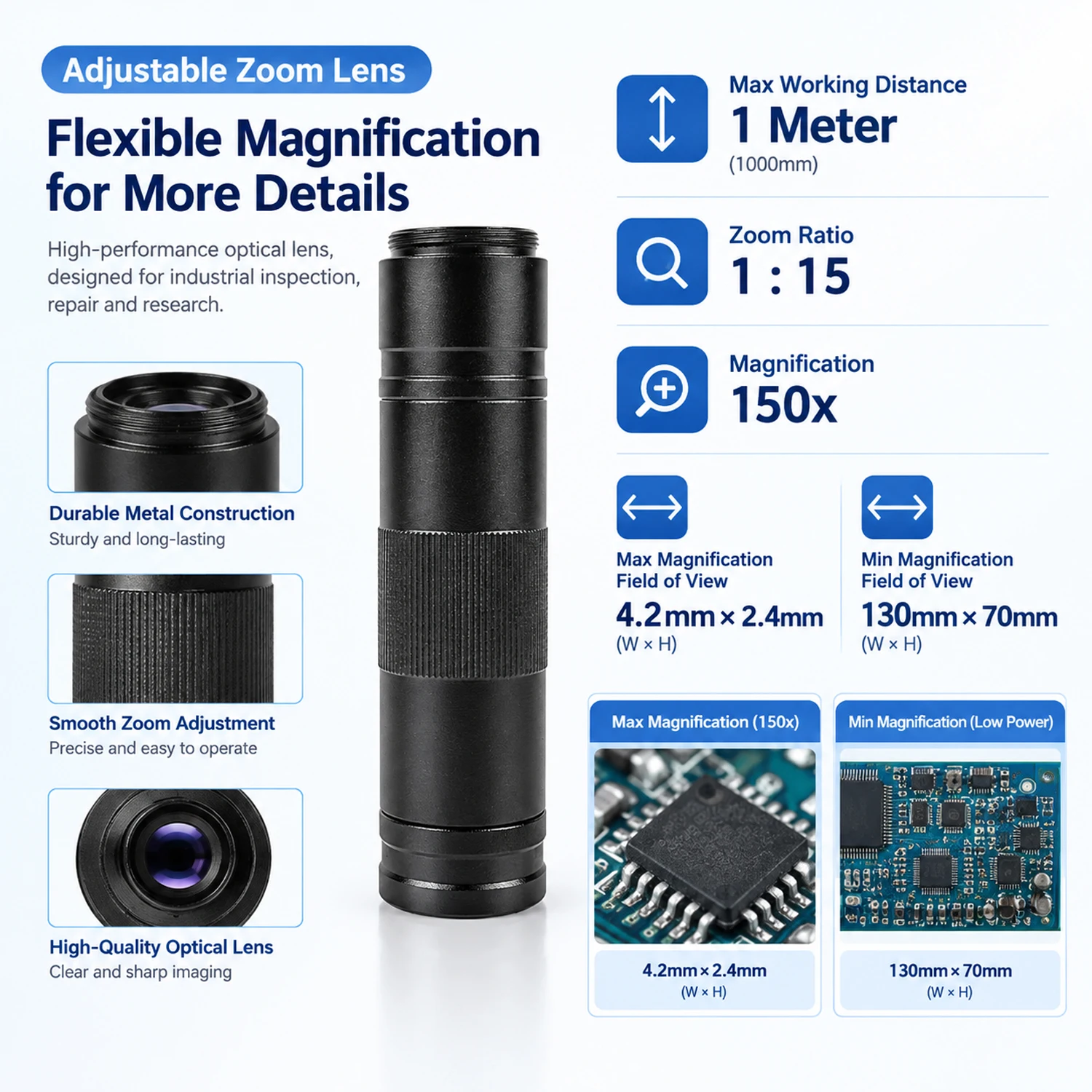

1X-150X C-mount Lens:
Working distance: 50mm-1000mm
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

56 bright white LED bulbs：
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Working distance:400mm

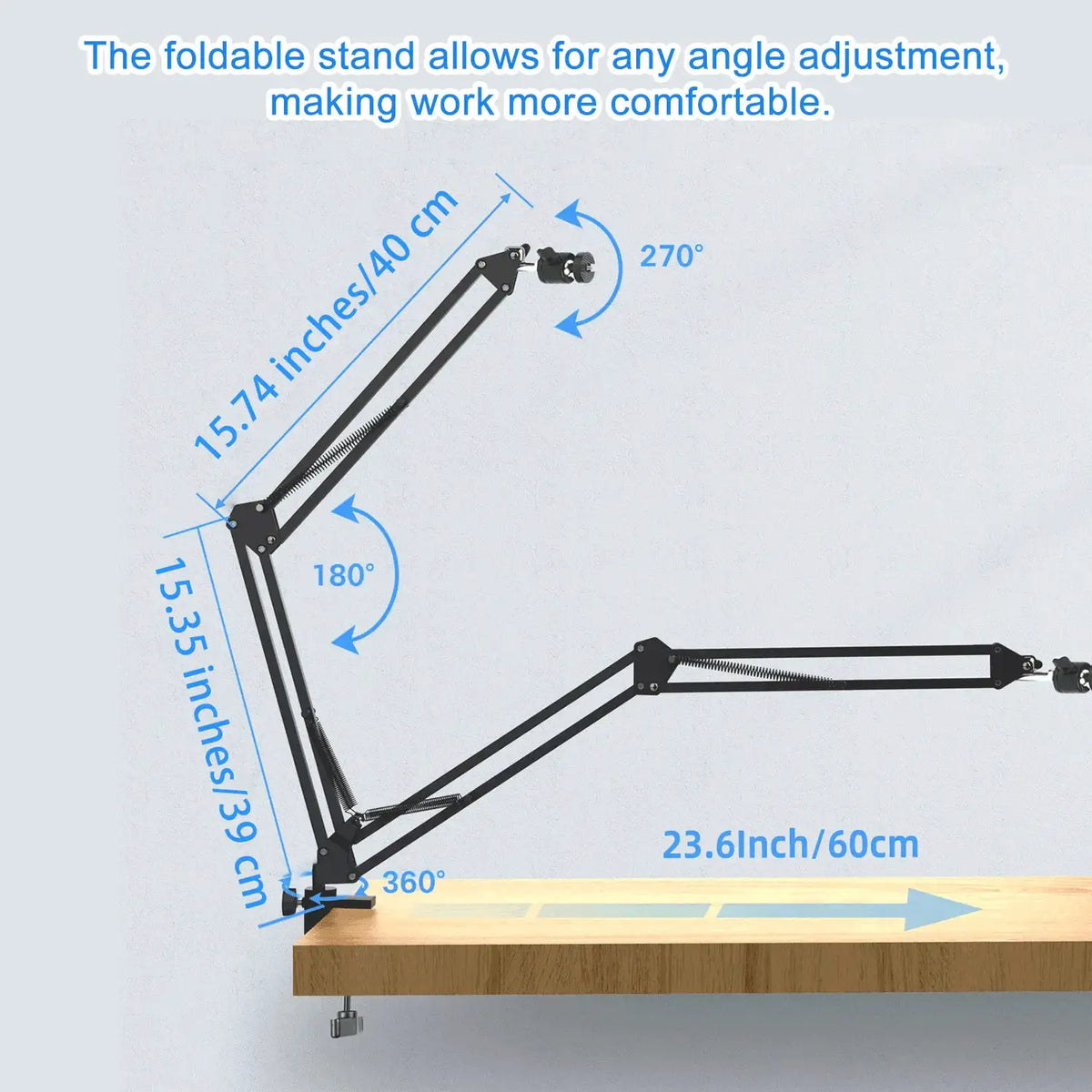

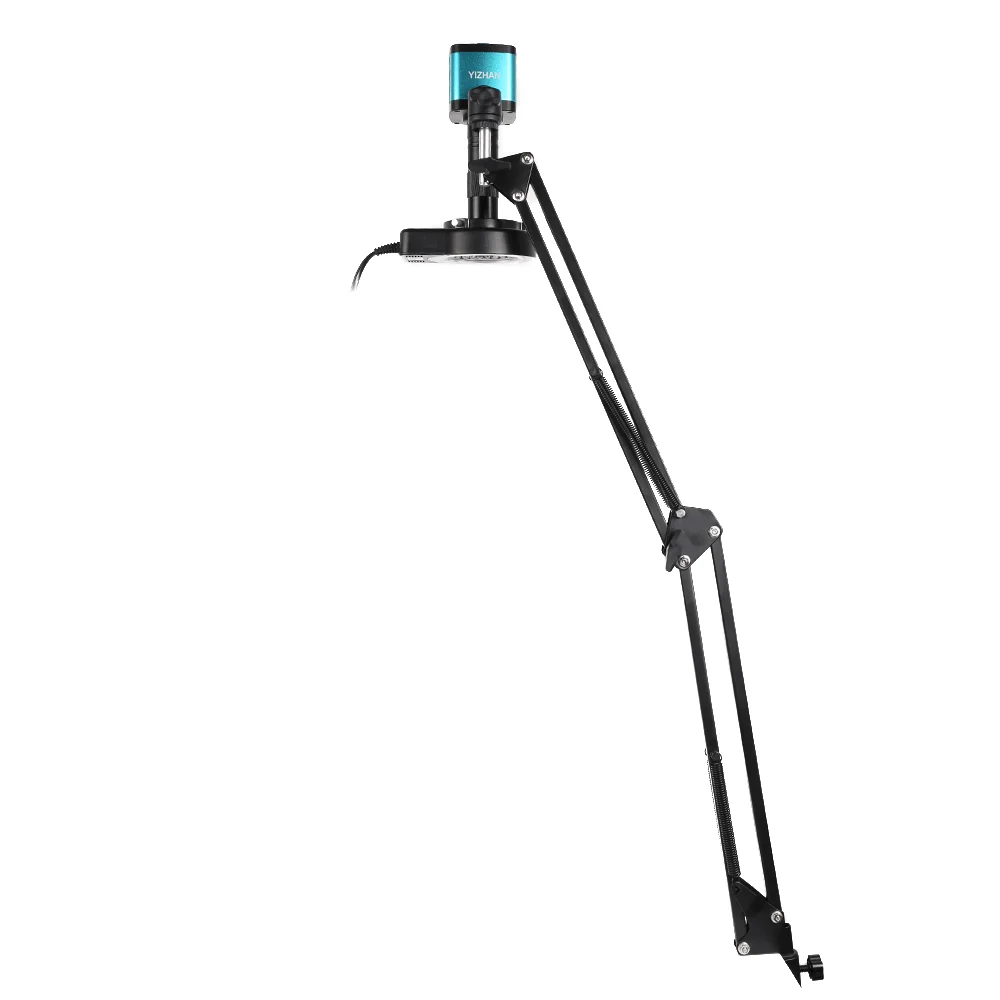

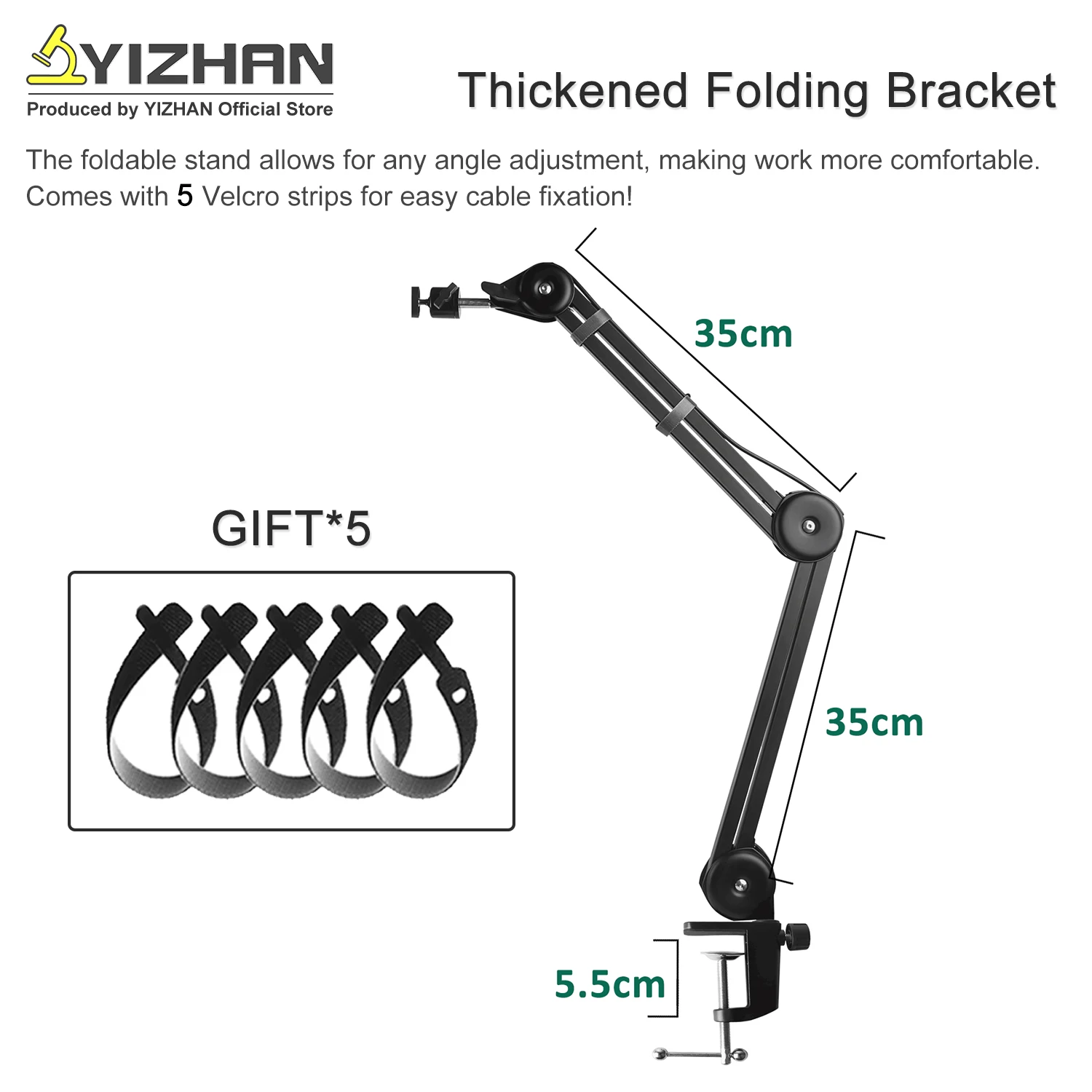

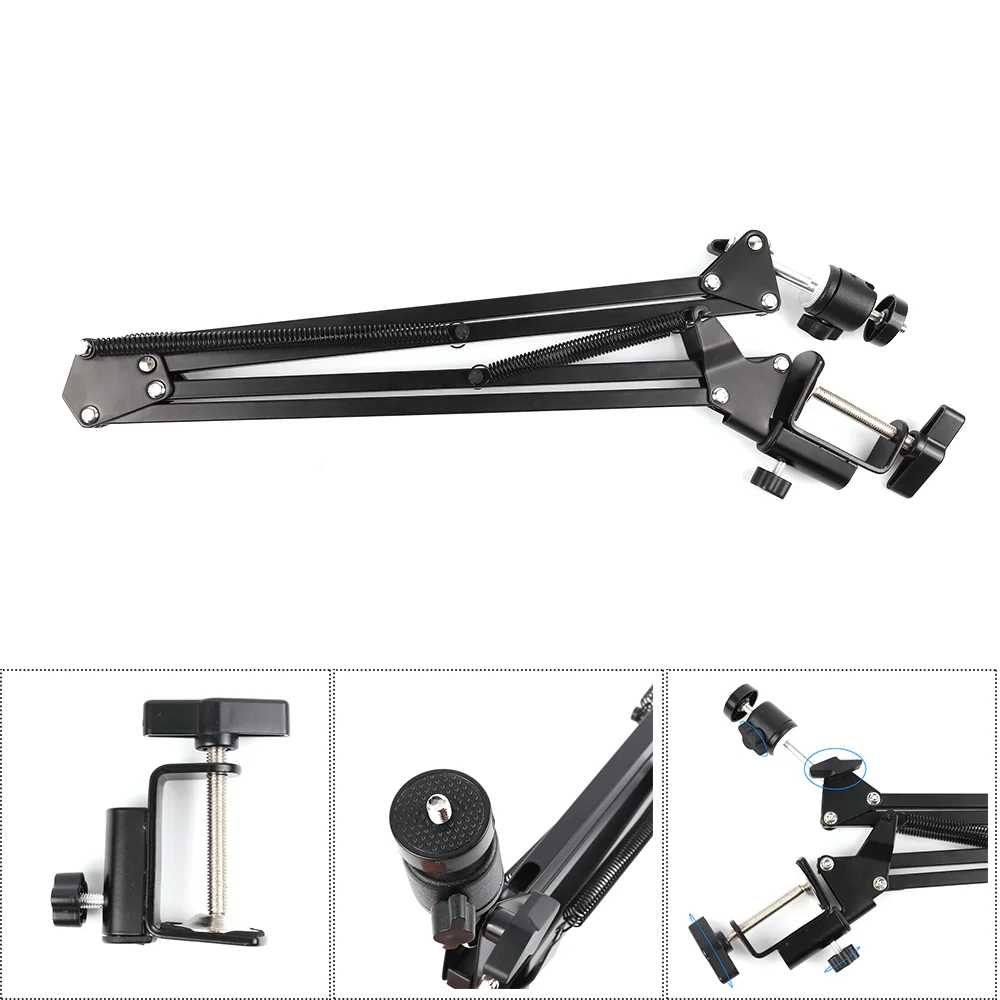

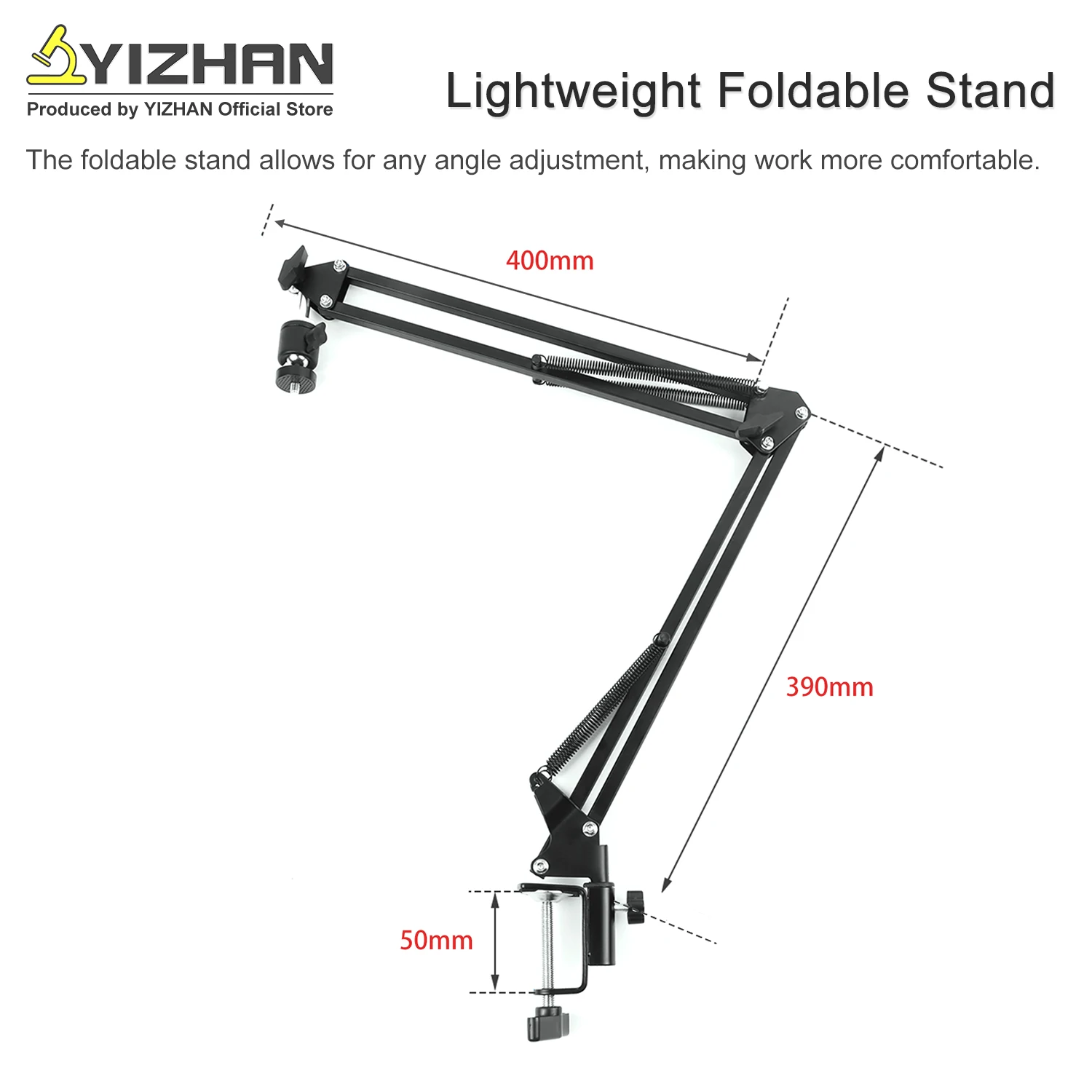

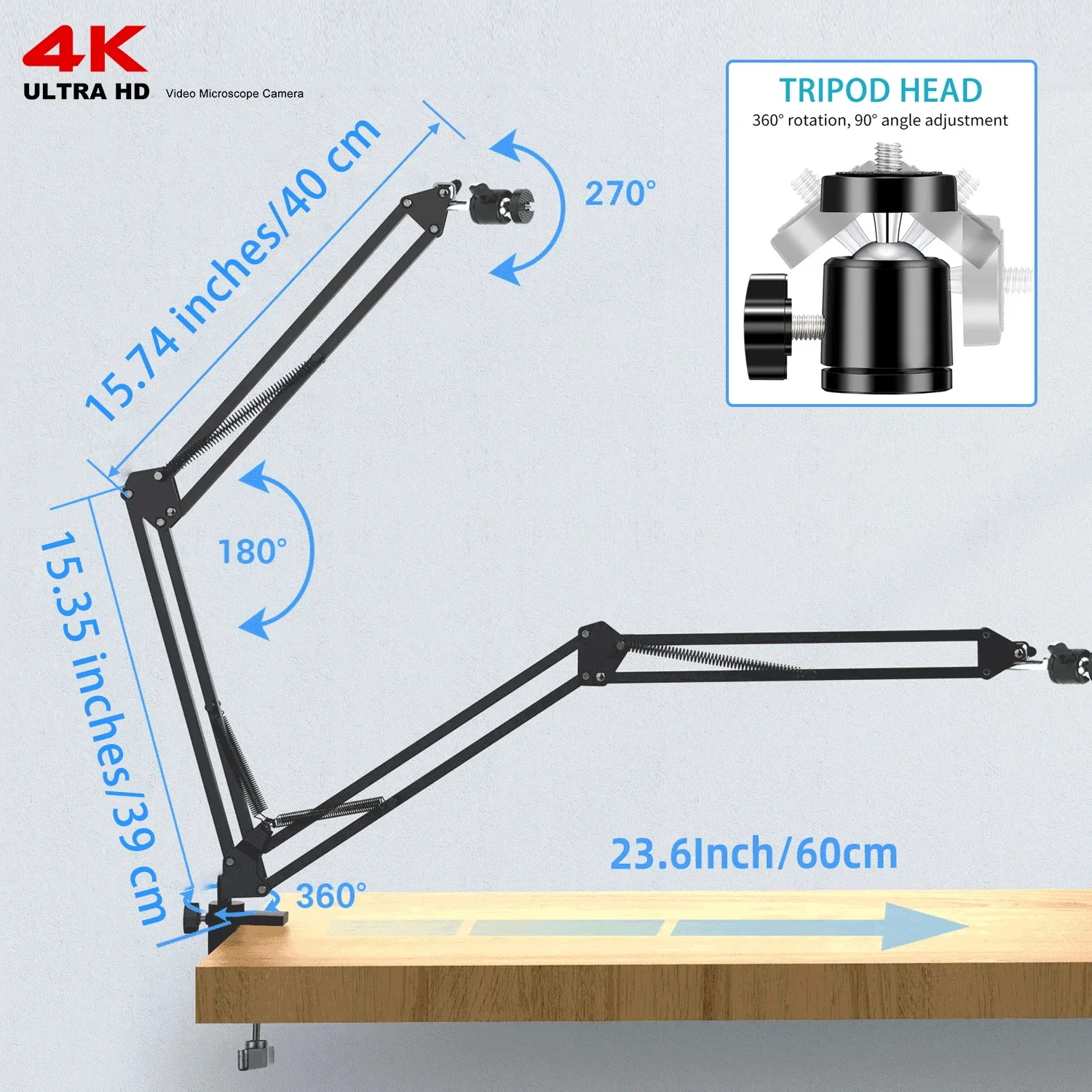

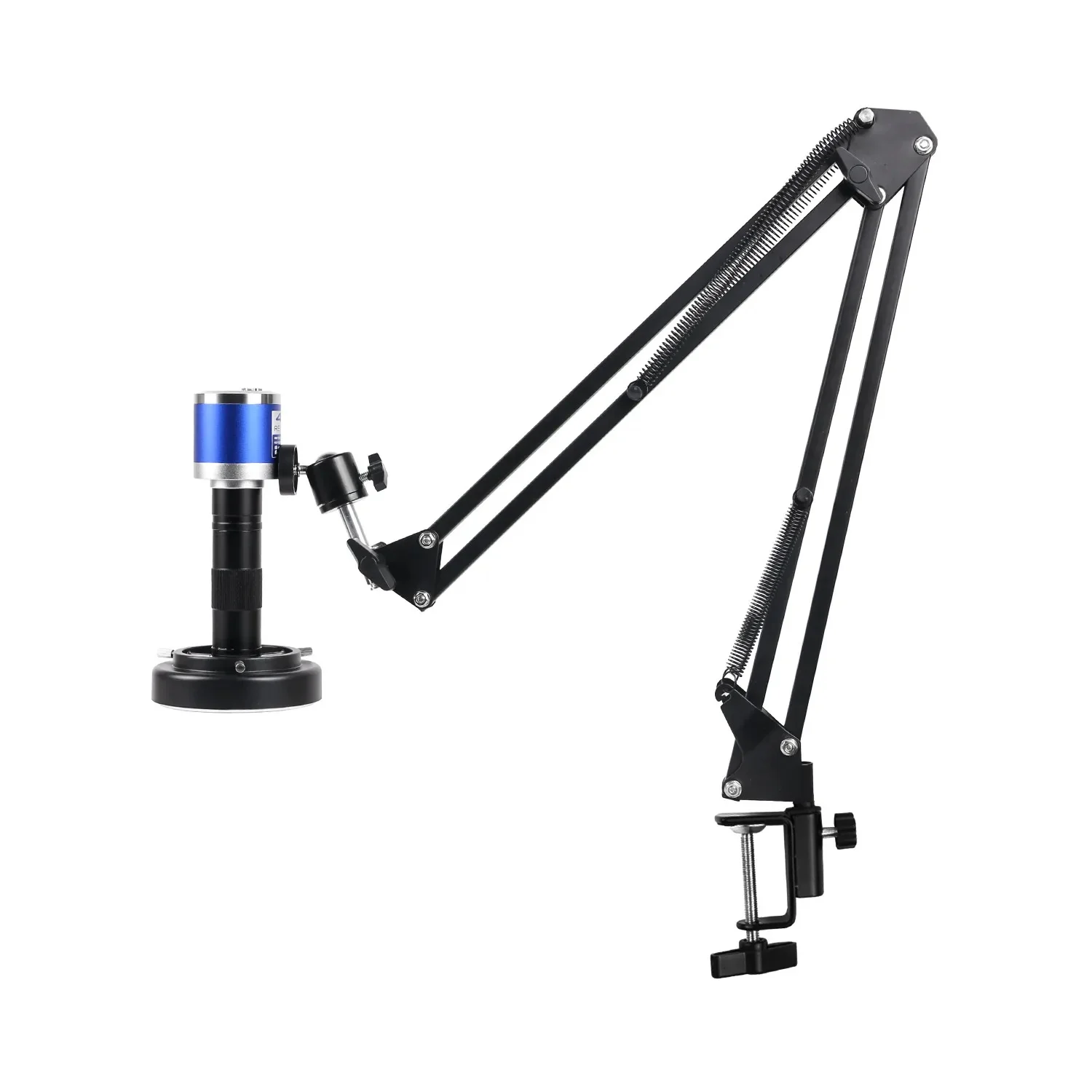

Adjustable bracket ：

size: 400mm+390mm / 350mm+350mm
Maximum thickness of bracket installation: 50mm
It is recommended that when the working distance exceeds 40cm, please use a work desk lamp to fill in the light.

YIZHAN XHU4002

4K 48MP Microscope Camera (HDMI USB)
Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel Panasonic sensor
Frame rate: 1920*1080 60F/S @ HDMI output
Video save Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A

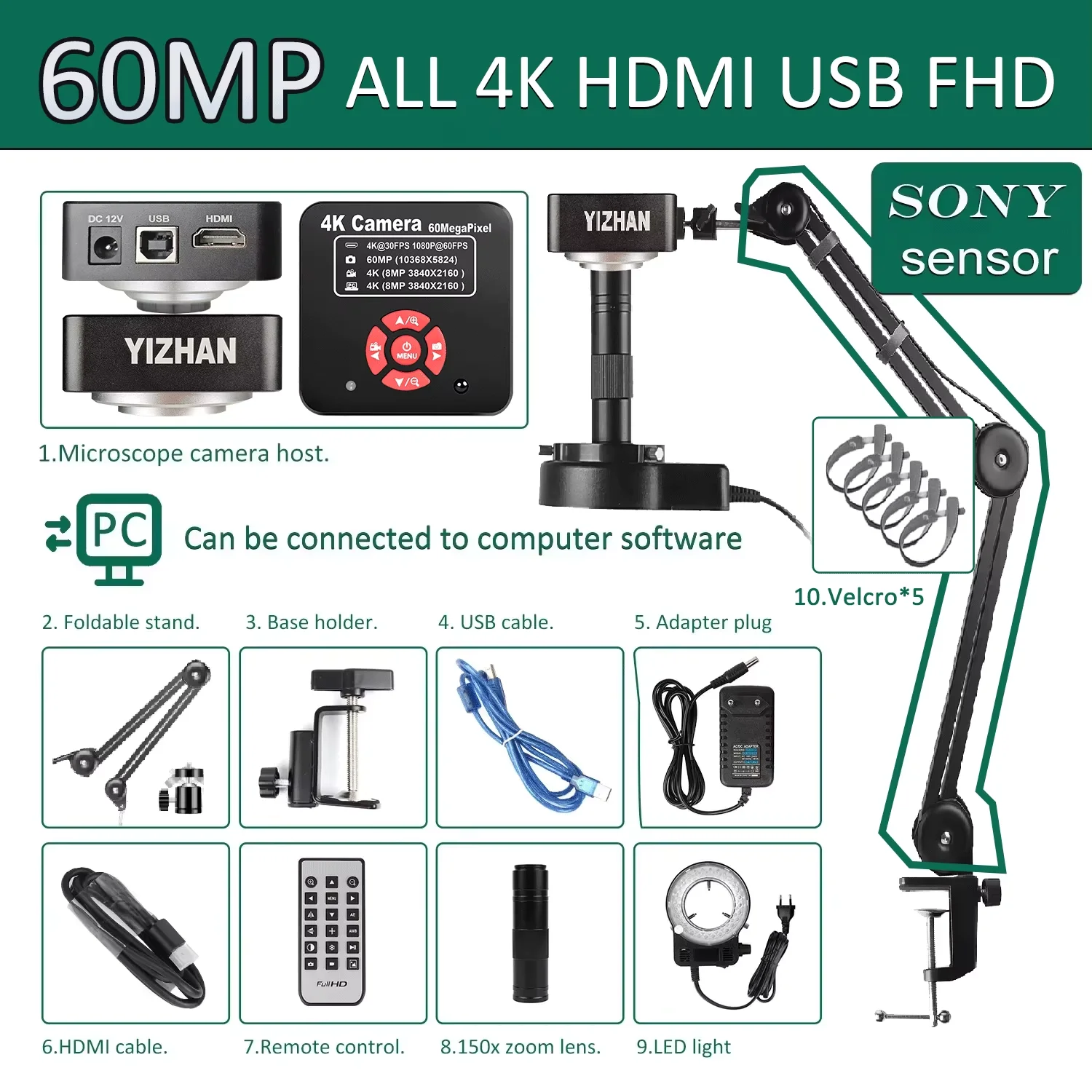

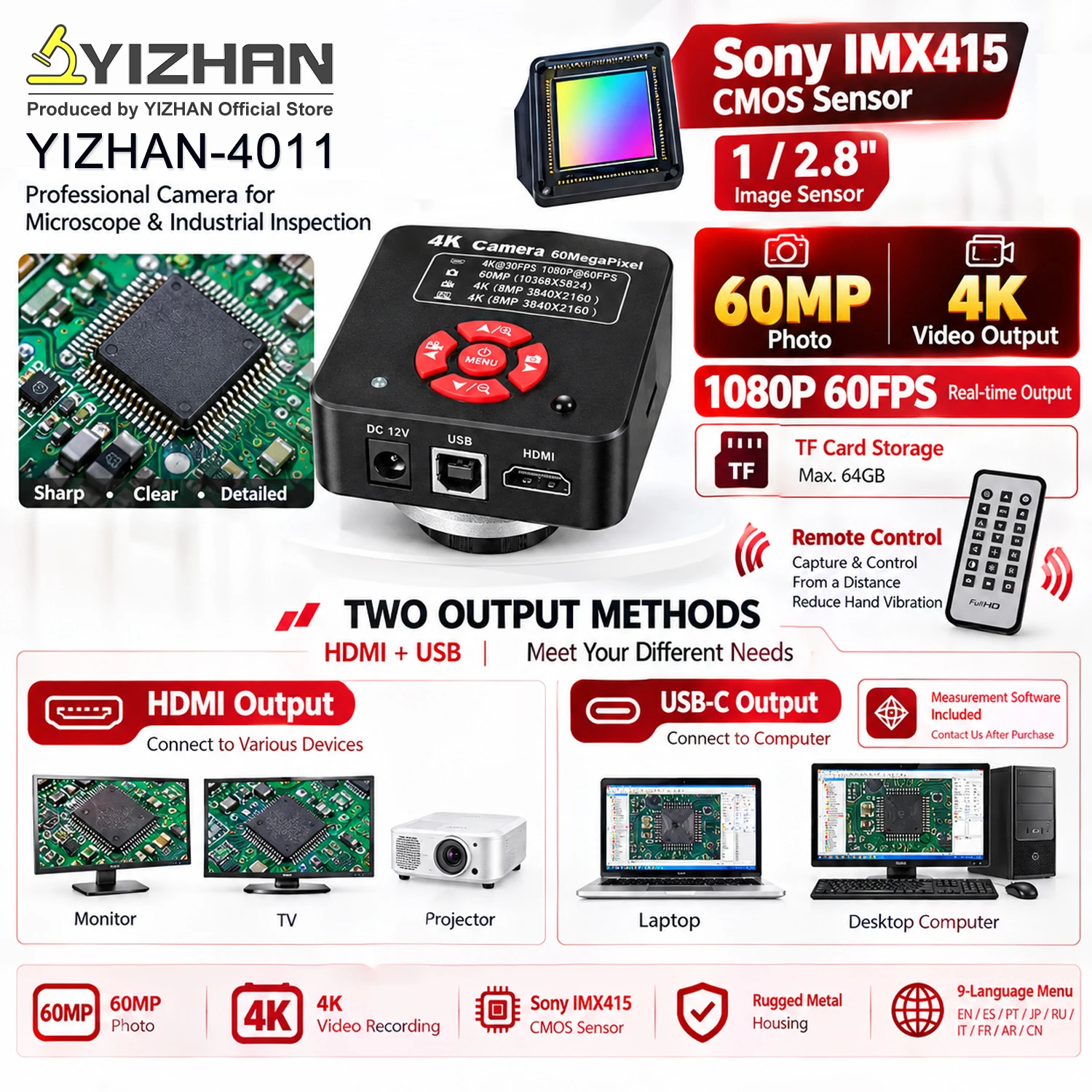

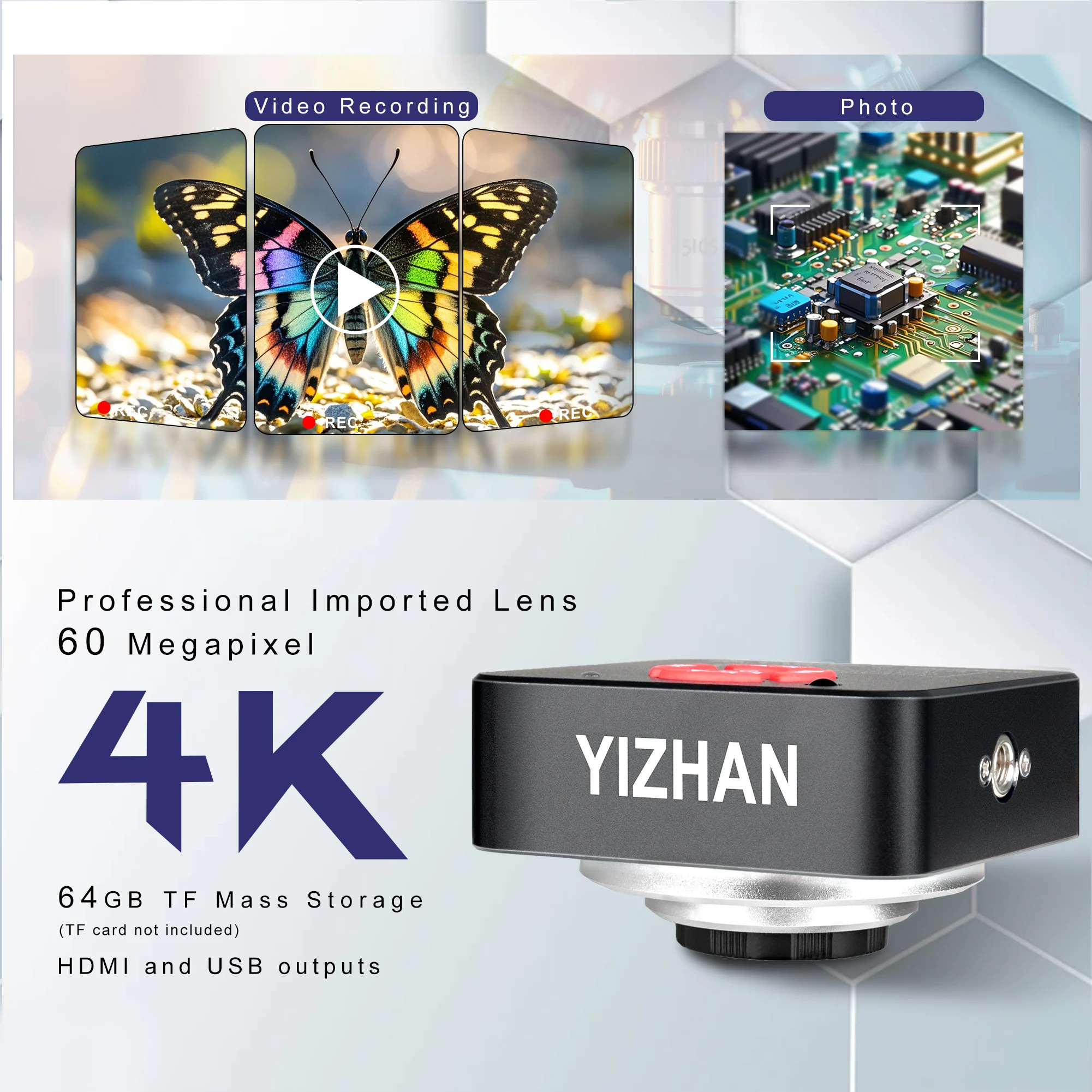

60MP Full 4K HDMI USB Camera

60MP 60FPS Sony Chip
Video Interface：HDMI USB-PC TF Card
Record：4K/1080p
Photo：Max 60MP(10368x5888)/4K
HDMI:4K/1080p
USB:4K/2K/1080p
Lens:CS
working voltage:12V
working current:190mA
optical format:1/2.7"
pixel size:1.5um*1.5um
scanning mode:progressive
shutter mode:electronic shutter"
dynamic range:69dB
S/N radio:40dB

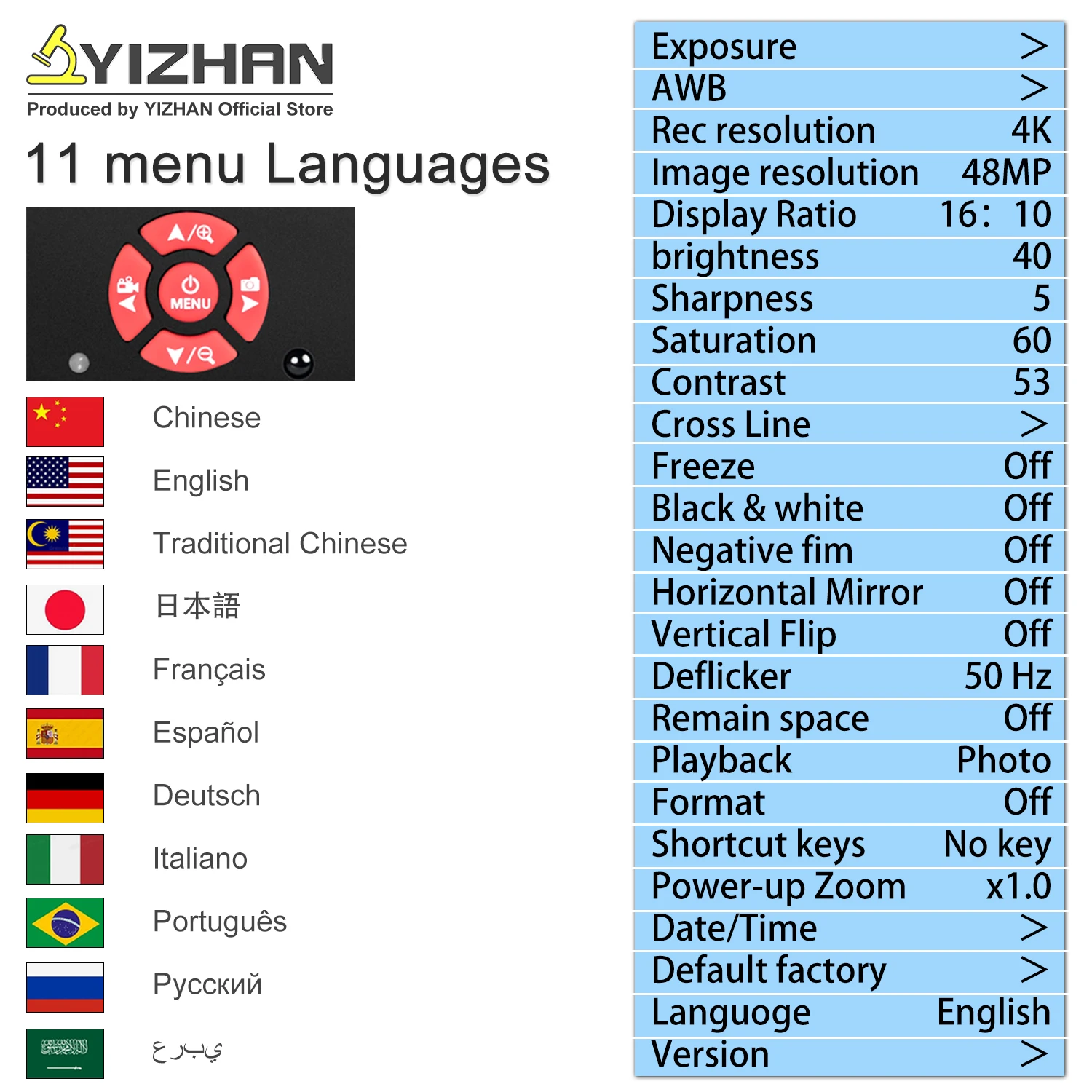

OSD language:11 languages: Chinese/English/Traditional Chinese/Japanese/French/Spanish/German/Italian/Portuguese/Russian/Arabic
AWB mode:One-shot white balance/manual/auto
Cross:Support 4 groups: 32 horizontal and vertical lines
line:Color/line width adjustable"
B/W:√
negative:√
mirror flip:√
Freeze:√

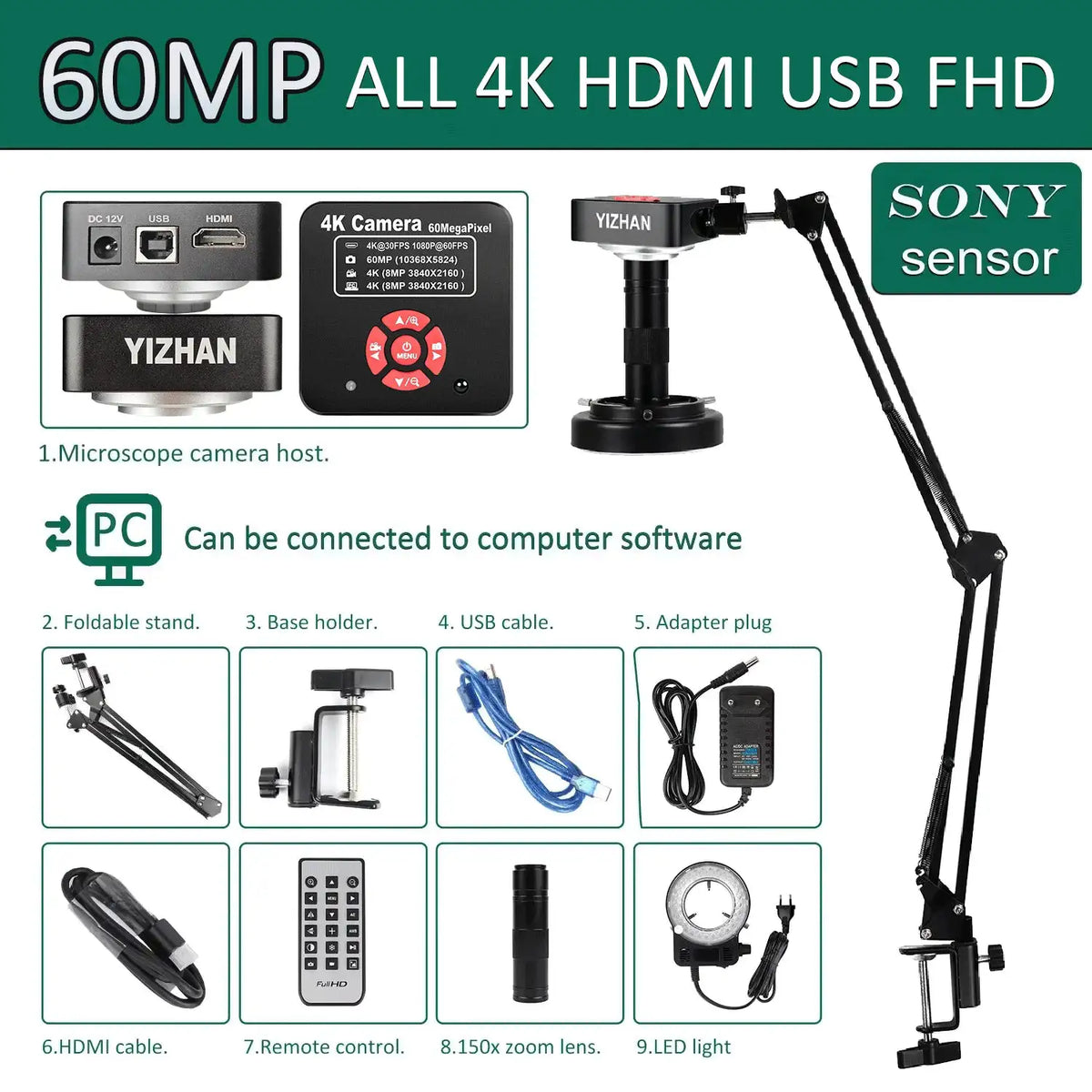

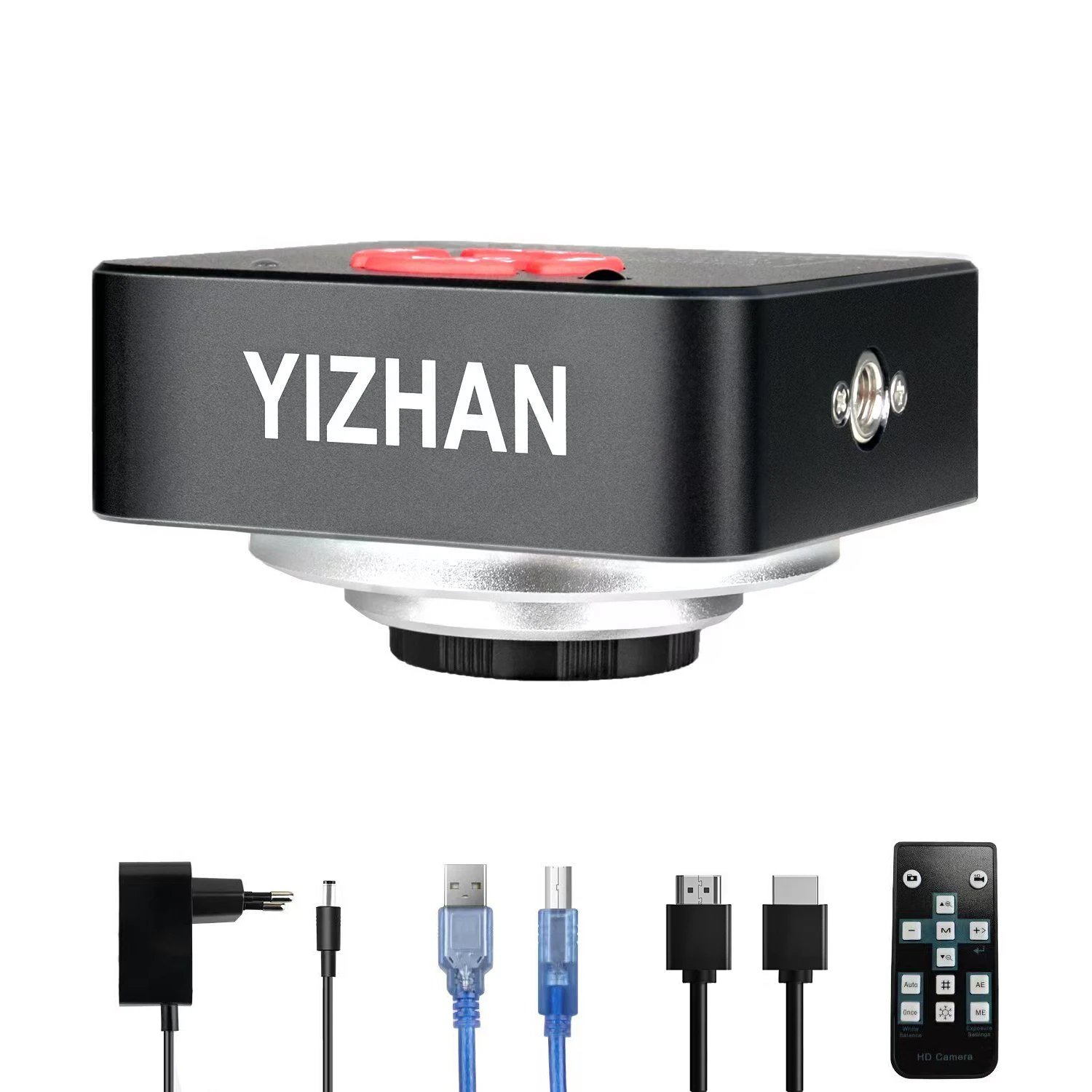

Packing List of camera set:
1* Camera body
1* Power adapter
1* HDMI cables
1* USB cable
1* Remote control (no battery due to logistics requirements)

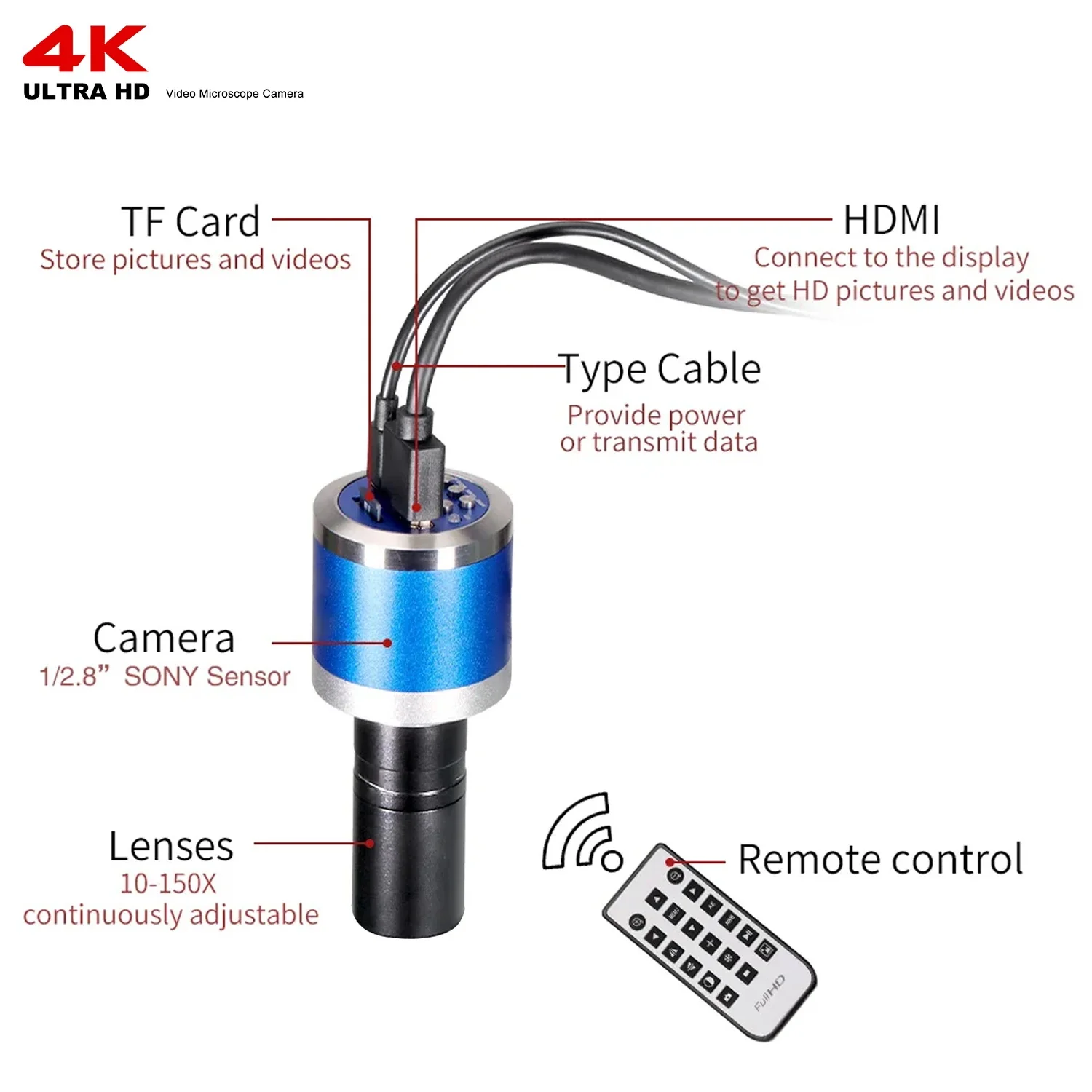

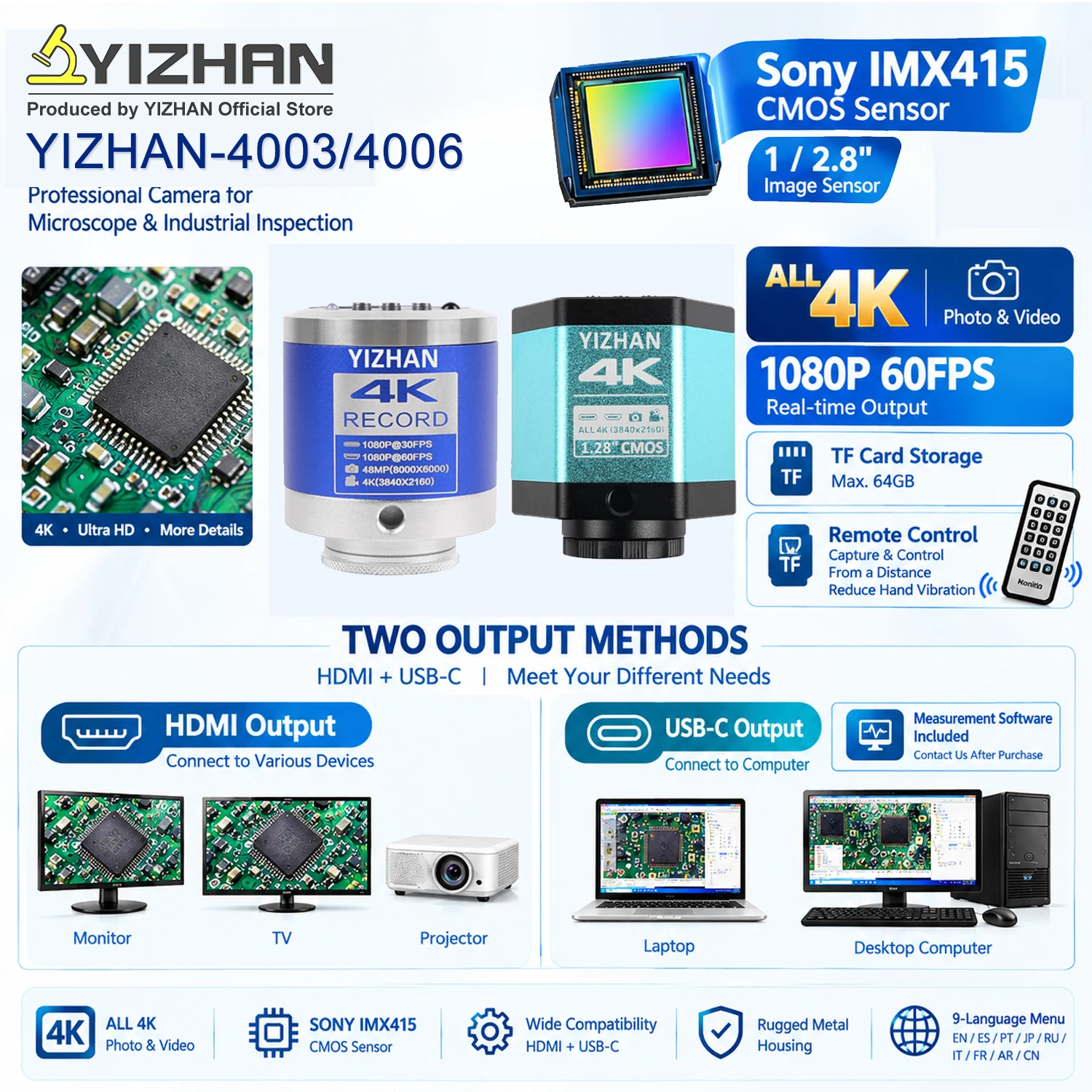

Full 4K Chip Upgrade Camera

◆Using Sony sensor; Chip Upgrade
◆Using a 1/2.8-inch image sensor, the viewing angle is wider than that of 1/3-inch;
◆HDMI 1080P 60 frames image output;
◆TYPE-C driver-free output 1080P 30 frames image output;
◆4K video recording;
◆48 million photos, JPG format;
◆One-click freeze/thaw function;
◆1080P video recording;
◆Electronic zoom function;
◆Supports manual/automatic exposure/one-click exposure, exposure compensation value adjustment;
◆Supports manual/automatic white balance/one-click w
hite balance, red, green and blue are adjustable;
◆Provides 16 line functions, with adjustable line color, thickness and position;
◆Provide center crosshair display/off;
◆Support TF card storage, up to 64GB;
◆Support remote control operation, take pictures without shaking and the image will be clearer;
◆Support Chinese, Traditional Chinese, and English menu languages;

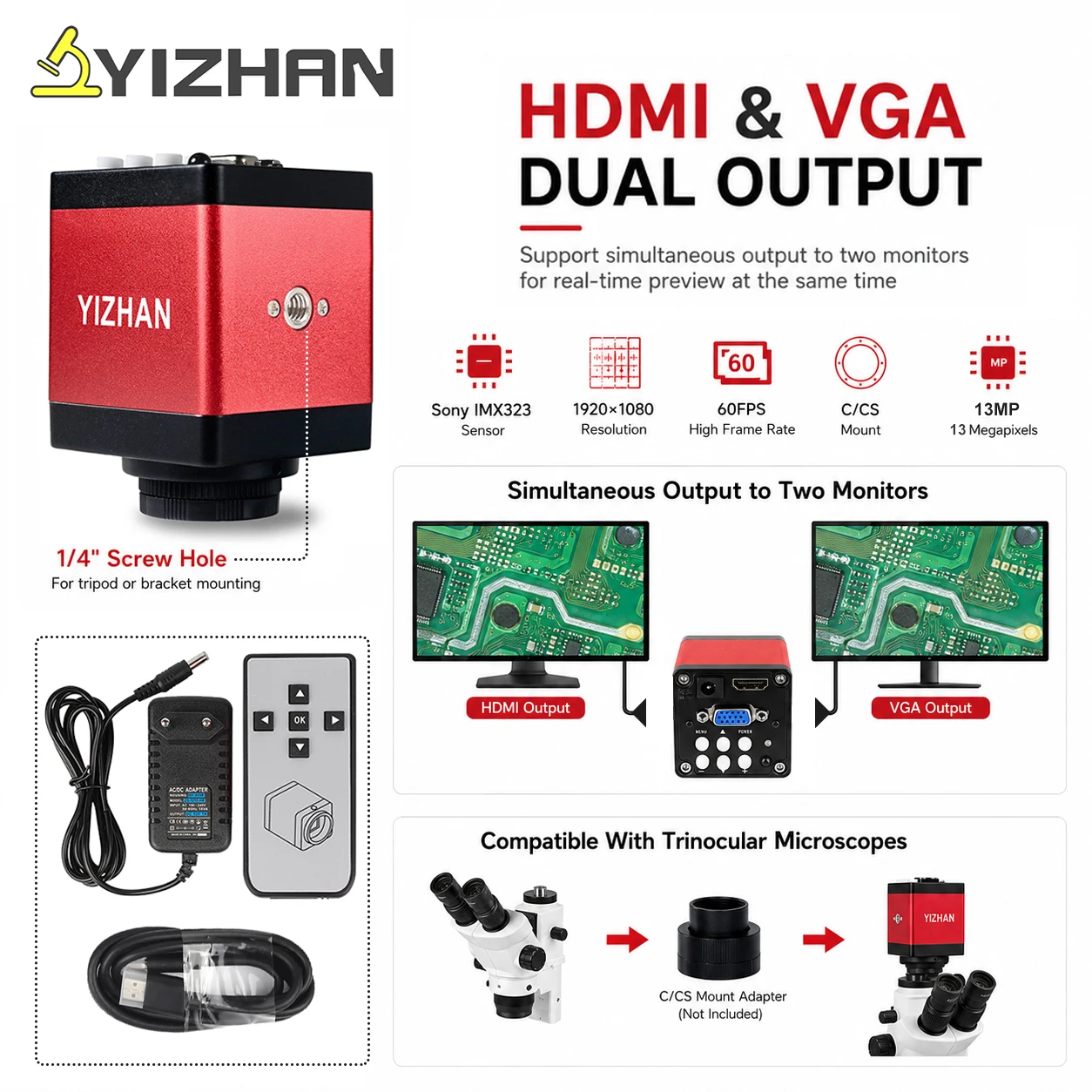

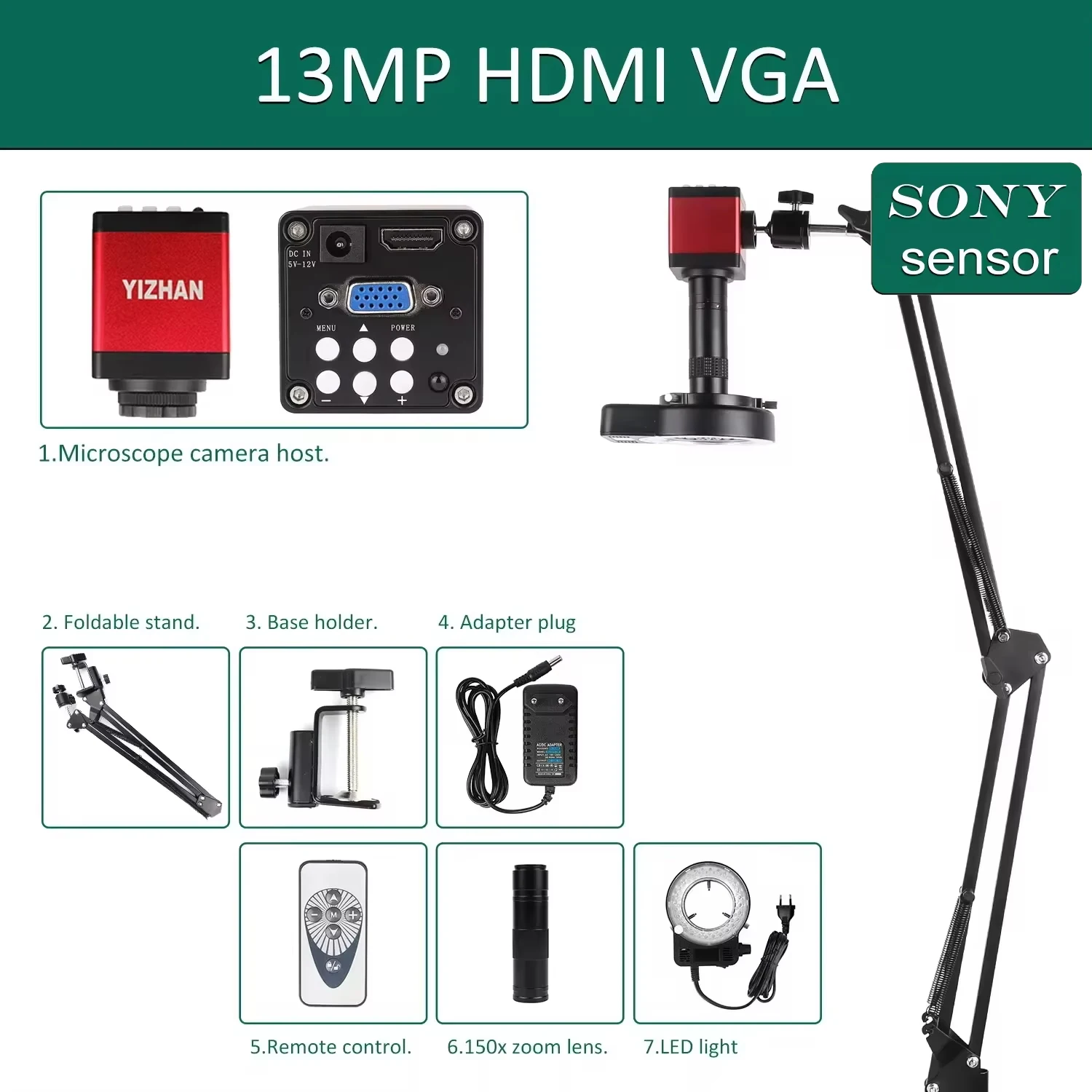

1080P HDMI VGA CAMERA

The sensor: Sony imx323
Pixel array:13MP
Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
TV Lines:1200TVLine
FPS of max image:60FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English, Spanish, Portuguese, Japanese, Russian, Italian, French, Arabic, Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

Frequently Asked Questions and Answers：

Q: Software cannot be downloaded!
A: Contact customer service to obtain the software download address.

Q: How to install the device!
A: Refer to our provided installation video.

Q: No image after device installation!
A1: Check if the dust cover on your lens has been removed.
A2: Contact customer service and provide the video.

Q: SD card cannot record or take photos/cannot be read in HDMI mode!
A: Ensure the memory card is no larger than 64GB, format the memory card to FAT32, restore the camera to factory settings, and try again.

Q: Why isn't the remote control working!
A: The logistics company requires that the remote control not be shipped with batteries. The battery model is CR2025, which can only be used in HDMI mode. The remote control cannot be used in USB mode (software is required).

Q: What should I do if the device is not working!
A: Contact the store's customer service; we will provide a reasonable solution.

Q: Do you support customization? Are there discounts for wholesale prices?
A: We support customization! However, there is a minimum quantity requirement. Wholesale prices will be discounted.
