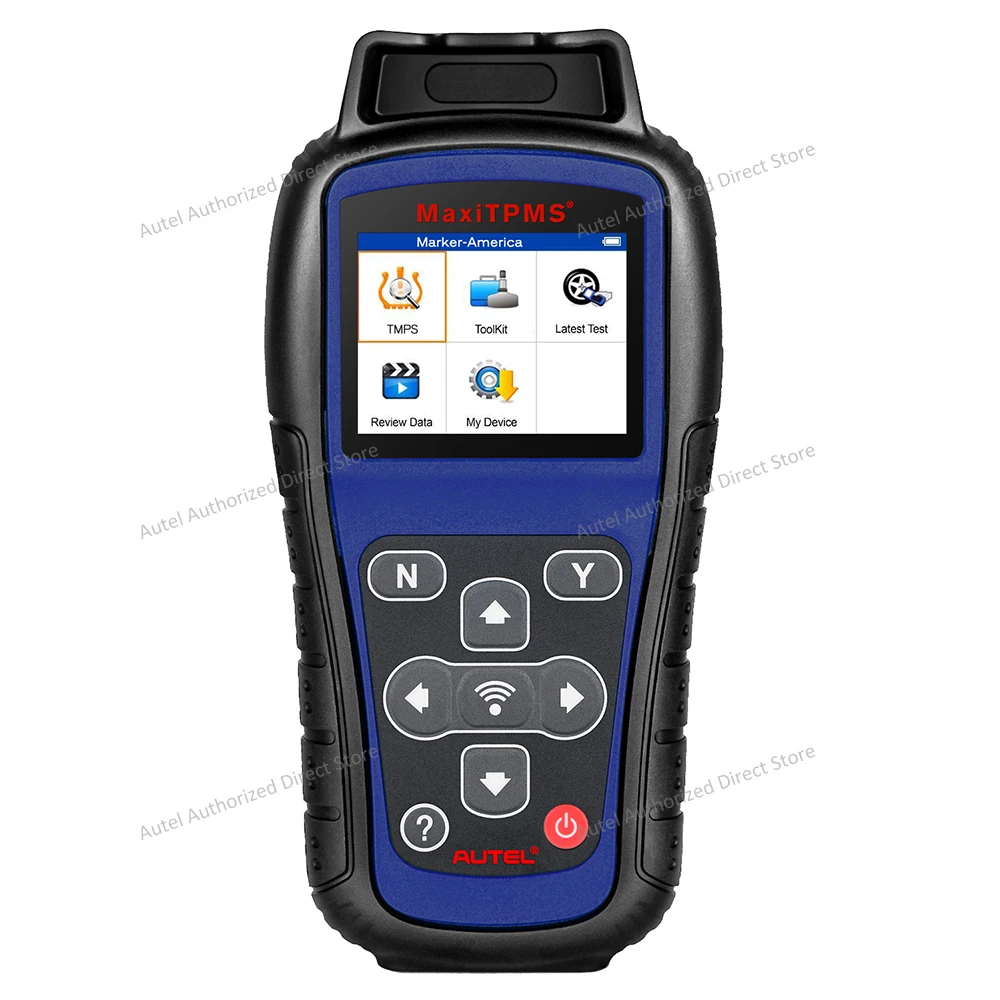

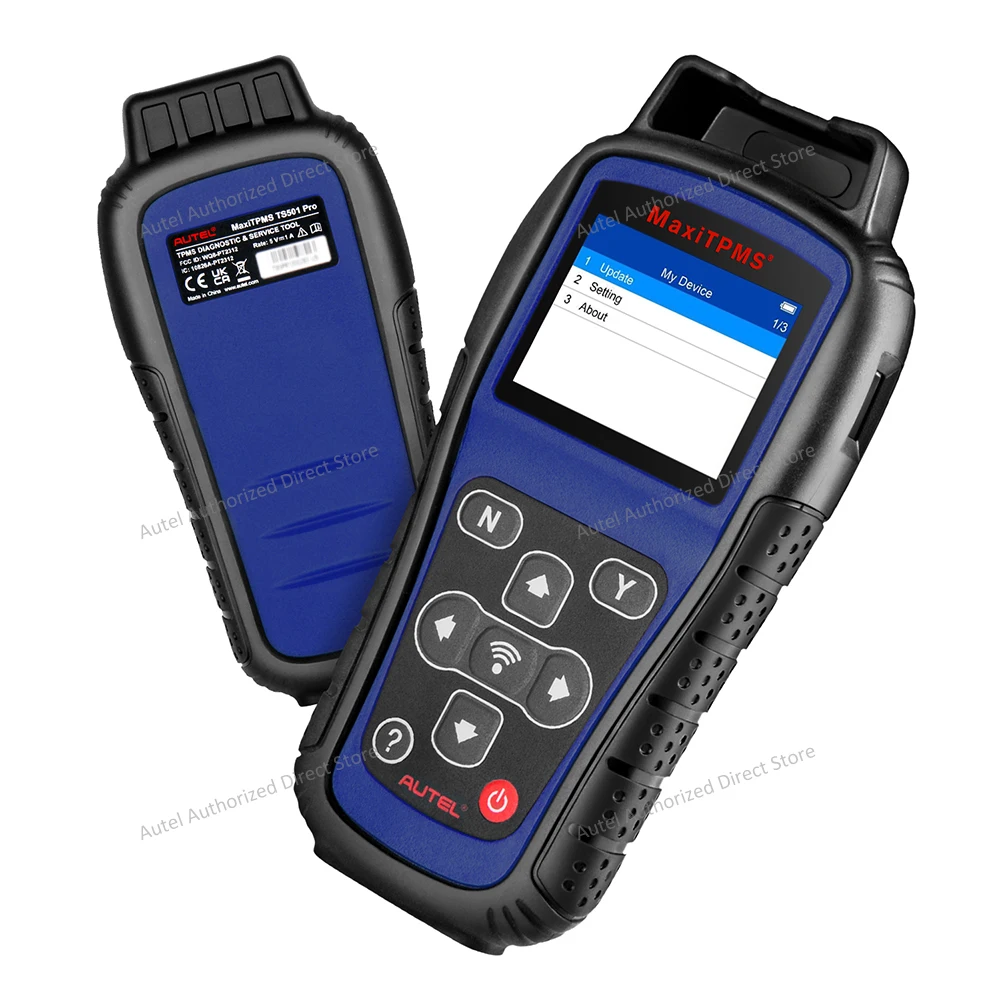

Autel MaxiTPMS TS501 PRO TPMS Tools:

The MaxiTPMS TS501 Pro is a new generation of TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-Sensors, and conduct sensor position relearn. It is an ideal solution for TPMS diagnostic and service needs.

Multiple languages：

Support 19+ Languages: English, German, Spanish, French, Chinese traditional, Japanese, Polish, Portuguese, Russian, Italian, Korean, Dutch, Swedish, Hungarian, Turkish, Czech, Danish, Finnish, Croatian.
(Please leave the S/N of machine to authorize the language you want after you receive it.)

Autel MaxiTPMS TS501 PRO Highlights:

● Easy vehicle identification
● Activate TPMS sensors
● Read sensor data
● TPMS diagnose, one step for complete TPMS health check
● Read/clear TPMS DTCs; on-screen DTC description
● Program MX-Sensor by auto creating sensor ID
● Read Sensor ID by OBD and copy ID into MX-Sensor
● Relearn by OBD function
● Relearn procedure guide on the tool
● Check Key FOB
● Tire Type/Pressure selection
● TPMS Toolkit (other function)
● Built-in rechargeable li-ion battery
● Strong housing with protective rubber boot
● Print TPMS sensor data via PC
● USB Internet updatable
● Historical test records
● Lifetime Software Update

TS510 PRO TPMS Diagnostic & Service Tool Main Features:

【Newest TPMS Tool, Upgrade of TS501, TS408S, TS401】Autel TS501 PRO has packed almost all TPMS functions including one-step TPMS health check, read & clear TPMS codes, on-screen DTC description, reset TPMS warning light, activate/relearn both OE and aftermarket TPMS sensors, read sensor data, program Autel MX-Sensors, and unique features like check key fob frequency, Tire Type/ Pressure Selection for faster & better TPMS repairs & services.

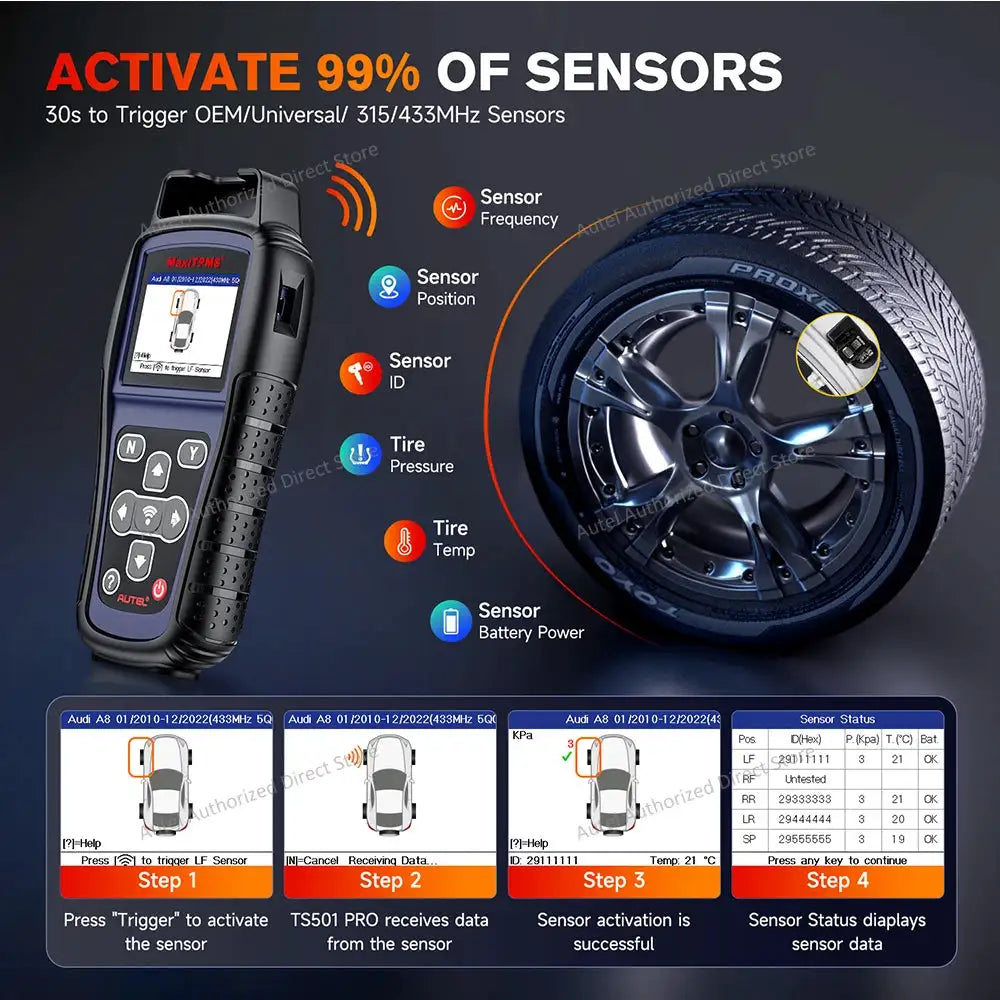

【Activate/ Relearn TPMS Sensors】To turn off the TPMS warning light after replacement, you need to relearn the sensors! Autel TS501 PRO TPMS reset tool can wirelessly activate & relearn all OE or aftermarket TPMS sensors, and provides you with 4 ways of on-tool relearn procedures: Stationary Relearn, Automatic Relearn, OBD Relearn, and Copy Relearn. Over 50% of vehicles provide two or more relearn options.

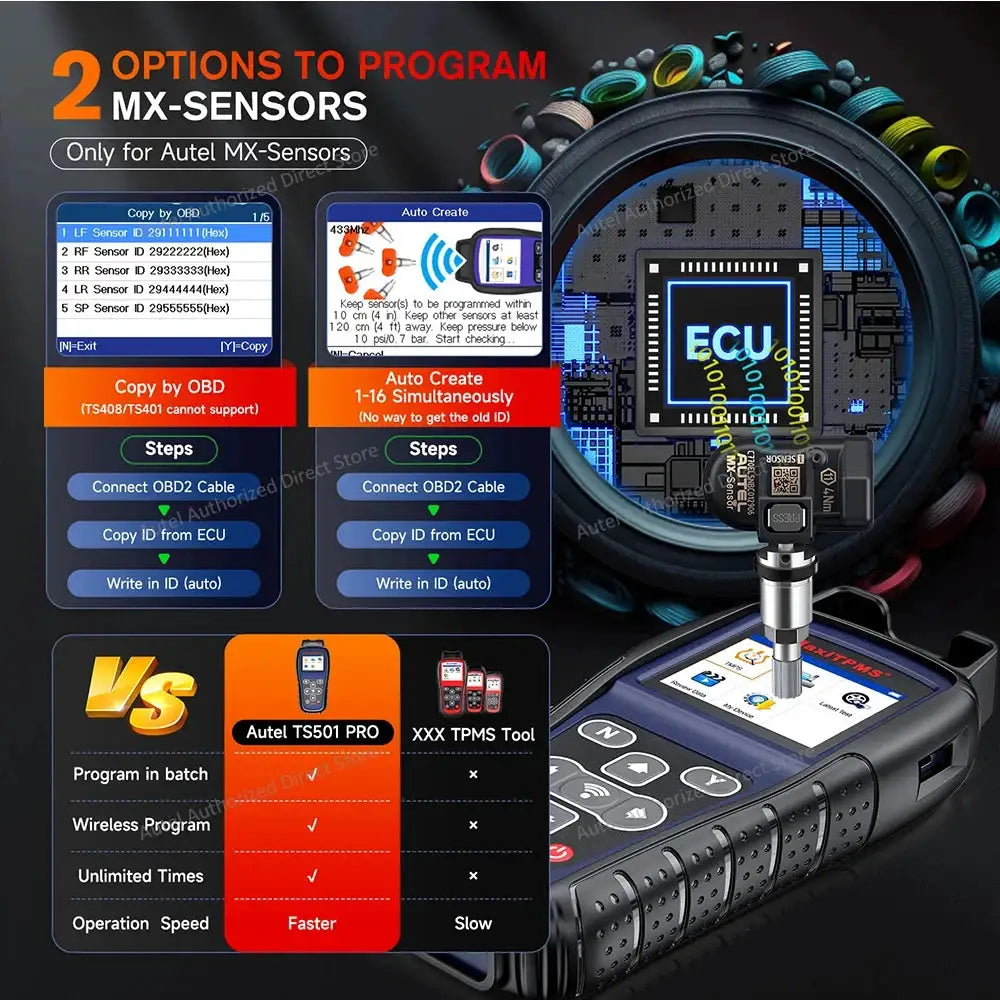

【Program Autel MX-Sensors】Autel TS501 PRO TPMS programming tool allows both DIYers and auto technicians to program sensor data to Autel MX-sensors (315/433MHz) in no time! TS501 PRO comes with 2 TPMS sensor programming options: 1. Auto Create 1-16 Sensors, 2. Copy by OBD( Not included in TS408) to replace faulty sensors with low battery life or not functioning well. ✅NOTE: TS501 PRO can only program Autel MX-sensors. It can NOT program other brand sensors.

【TPMS Diagnosis】The TPMS application performs functions including TPMS Diagnose, Program Sensor, Position Relearn, Information (OE and MX-Sensor data and vehicle OBDII port location diagram), and Tire Type/Pressure Selection (tire pressure placard value change).

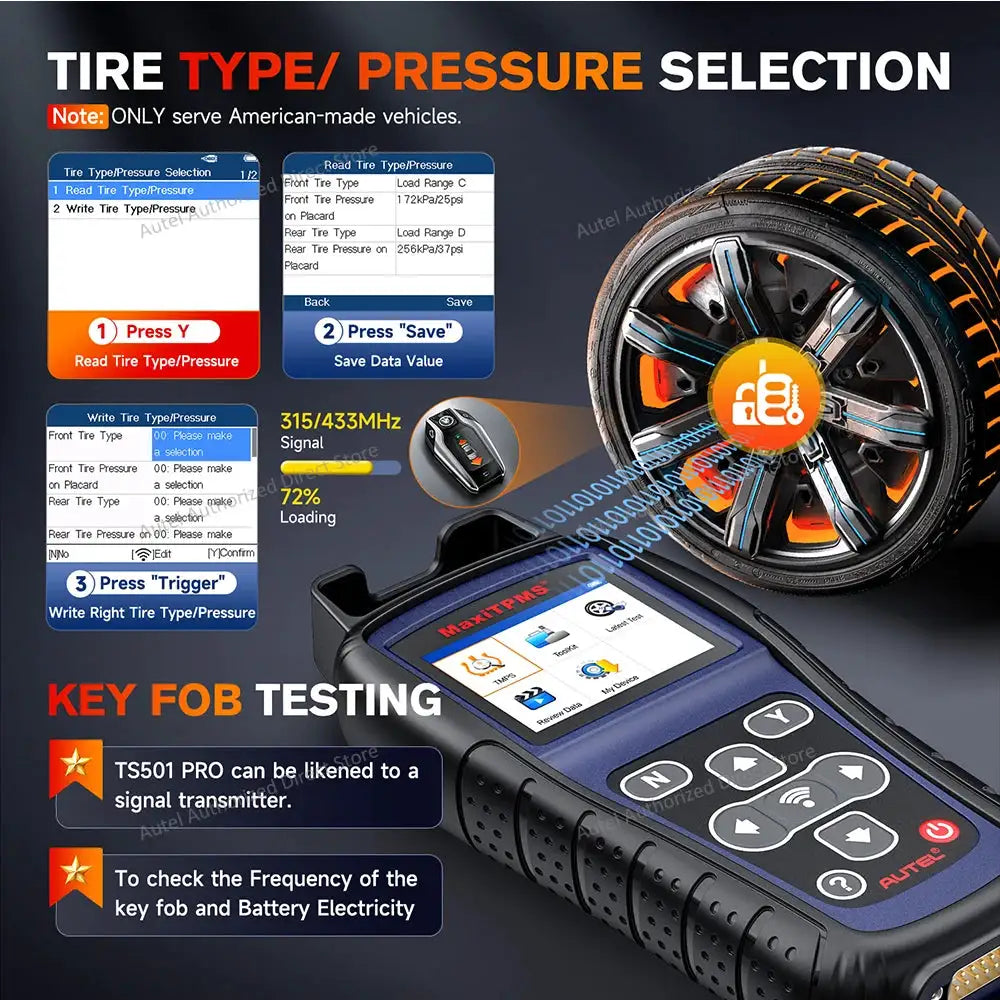

【Tire Type/Pressure Selection】 If all TPMS faults are cleared and the four tires are inflated to the reference pressure listed on the placard, but the TPMS Malfunction Indicator Lamp (MIL) is still on, you may need to use this function to select your tire type and set the right tire pressure value.

Autel MaxiTPMS TS501 PRO TPMS Programming Tool:

New Release TS501 PRO: Upgraded From TS501. To Max Your TPMS diagnostic capability, Autel has upgraded old ver. of TS501 to newest TS501 PRO with more functions & wider coverage. Inherited all functions of the old ver. TS501/ TS408S/ TS408/ TS401, Autel also endows TS501 PRO more new features at same cost: Tire Type/Pressure Selection; Frequency Test; RKE & RF Monitor; Update via USB; Smoother UI, which makes the functionality of TS501 PRO close to that of the Autel TS508!

Superior to TS501/ S408S/ TS408/ TS401. Upgraded of TS501/ TS408/ TS401, Autel TS501 PRO automotive diagnostics tool can perform TPMS diagnose and comprehensive TPMS health check in one step, and read/clear TPMS DTCs as well as on-screen DTC description; Read Sensor ID by OBD; Relearn by OBD function. All of these funtions are not supported by TS408/ TS401, and let you lose important TPMS health diagnosis & check!

TS501 PRO Specifications:

Display: TFT color display (320 x 240 dpi)
Power: 3.70 V Li-polymer battery
Operating Temp.: -20 to 60 °C (-4 to 140 °F)
Storage Temp.: -10 to 45 °C (14 to 113 °F)
Dimensions (W x H x D): 105 mm (4.13”) x 215 mm (8.46”) x 37 mm (1.46”)
Weight: 0.39 kg (0.86 lb.)

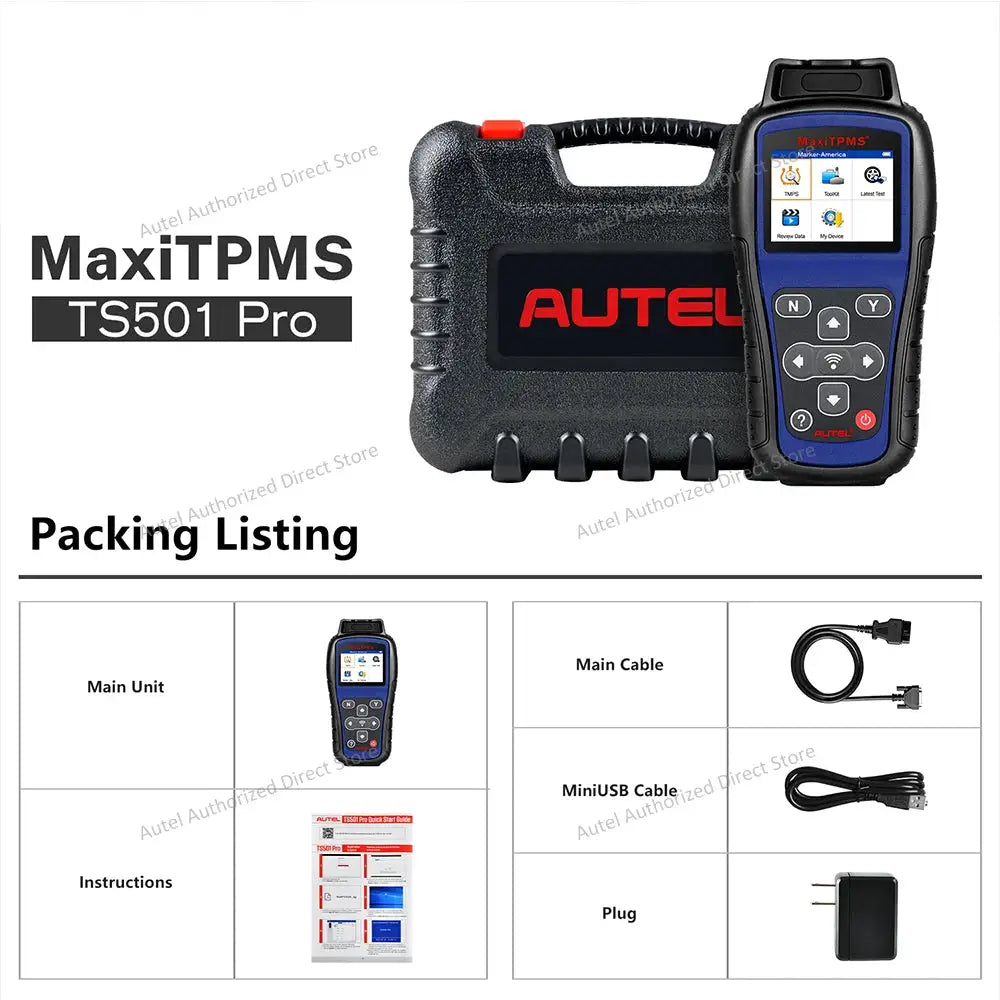

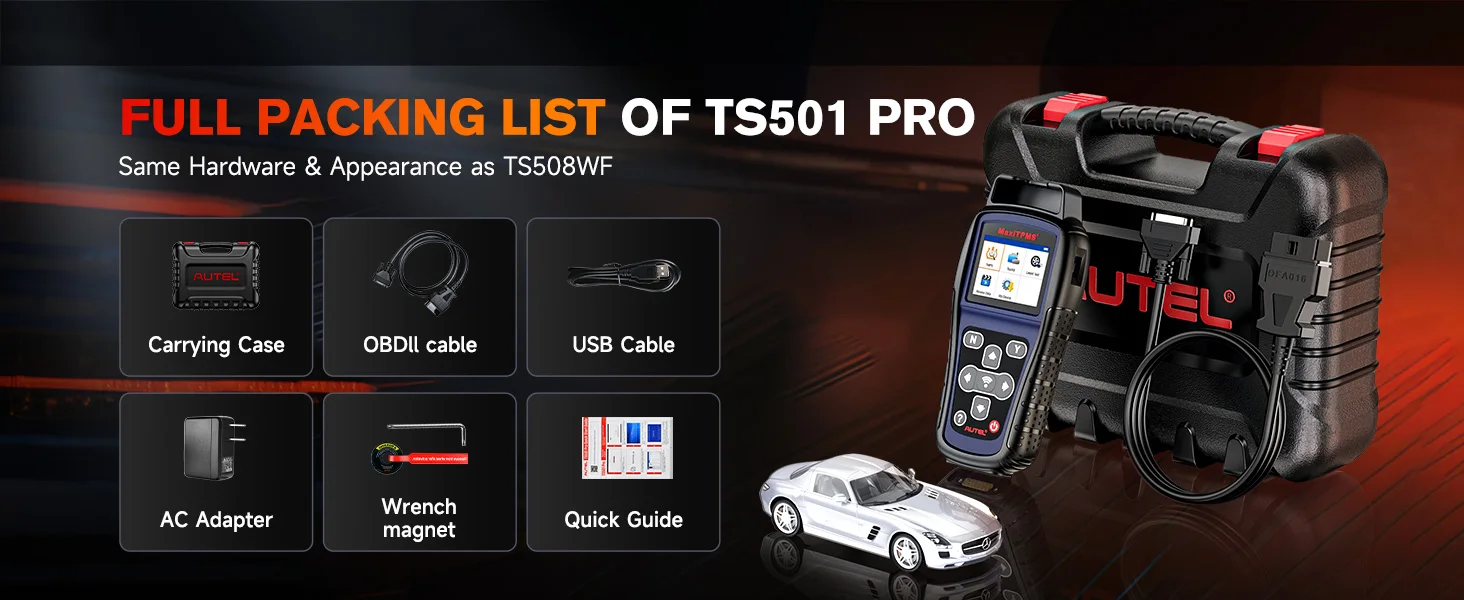

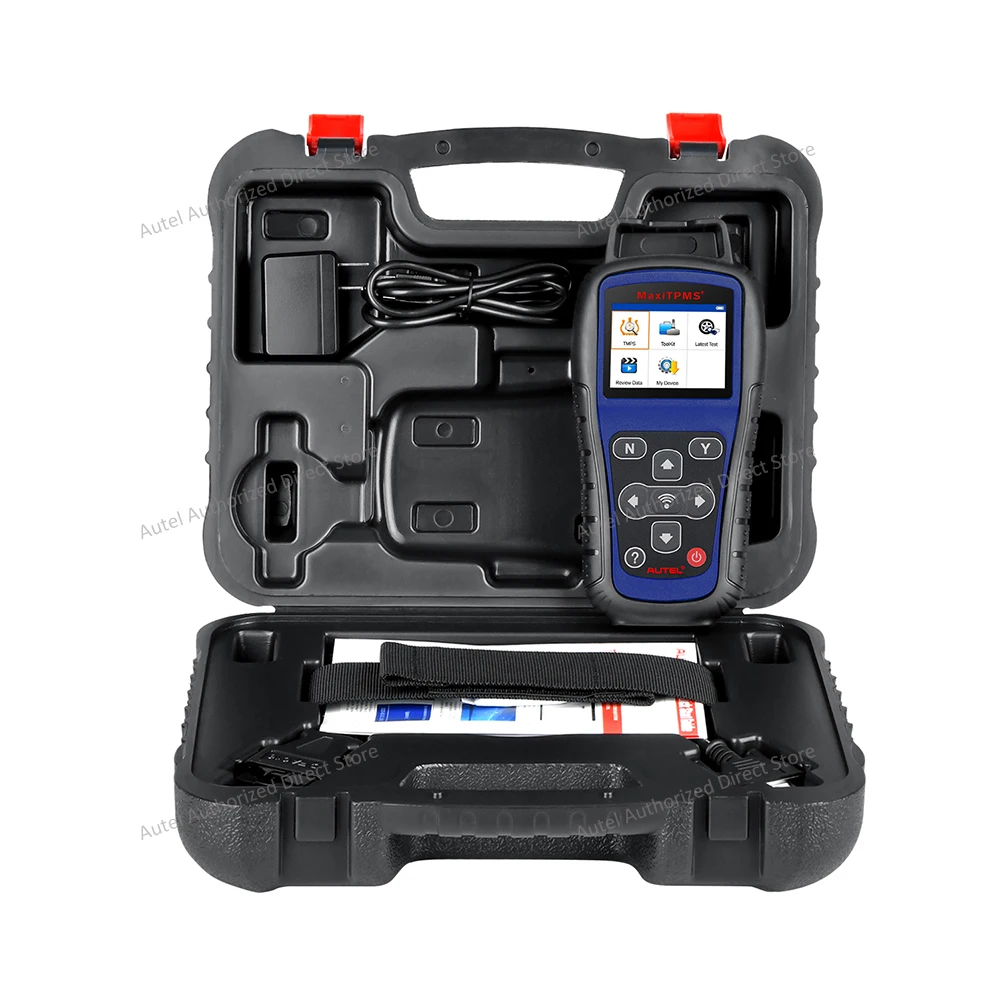

TS501 PRO Package List:

1*TS501 PRO Main Unit
1*Power Adapter
1*USB Cable
1*OBDII Cable
1*Quick Start Guide
1*Carry Case
