AC Input Voltage Range: 77~132Vac
Brand Name: PowMr
Certification: CE
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Feature: Low Frequen Inverter
Feature 1: 48V Inverter
Feature 2: solar panel
High-concerned chemical: none
Is Smart Device: Yes
MPPT Input Voltage Range: 60~245Vdc
Max. PV Array Power: 5400W
Model Number: POW-RELAB
Nominal Battery Voltage: 48Vdc
Nominal Output Voltage: 110Vac/220Vac
Origin: Mainland China
Output Frequency: 50Hz/60Hz
Output Type: SINGLE
Size: 545*400*200mm
Waveform: Pure Sine Wave
is_customized: Yes
Introduction:
Mode |
POW-RELAB 5KU-SPLIT |
POW-RELAB 10KU-SPLIT |
Rated Output Power |
5000W |
10000W |
Nominal Output Voltage |
110Vac(N-L1/N-L2)/ 220Vac(L1-L2) |
|
Peak Power |
15000W |
30000W |
Bypass Mode |
Integrated |
|
Nominal DC Input Voltage |
48Vdc |
|
Battery | ||
Battery Type |
SEL, GEL, FLD, AGM, LiCoMnNiO2, LiFePO4 |
|
Battery Capacity |
Up to 500Ah |
|
Max. AC Charging Current |
50A |
105A |
Max. PV Charging Current |
100A |
|
|
Battery Undervoltage Warning Voltage |
Mild discharge: 46V; Loaded discharge: 46V @ load < 20% / 44V @ load < 50% / 42V @ load ≥ 50% |
|
|
Battery Overvoltage Warning Voltage |
62.4V |
|
PV Input | ||
Max. PV Array Power |
5400W |
|
|
MPPT Input Voltage Range |
60~245Vdc |
|
Operating temperature |
-10°C to 50°C |
|
Noise |
＜45dB |
|
Dimensions (LxWxH) |
545*400*200mm |
|
Net weight |
27.4kg |
50.7kg |

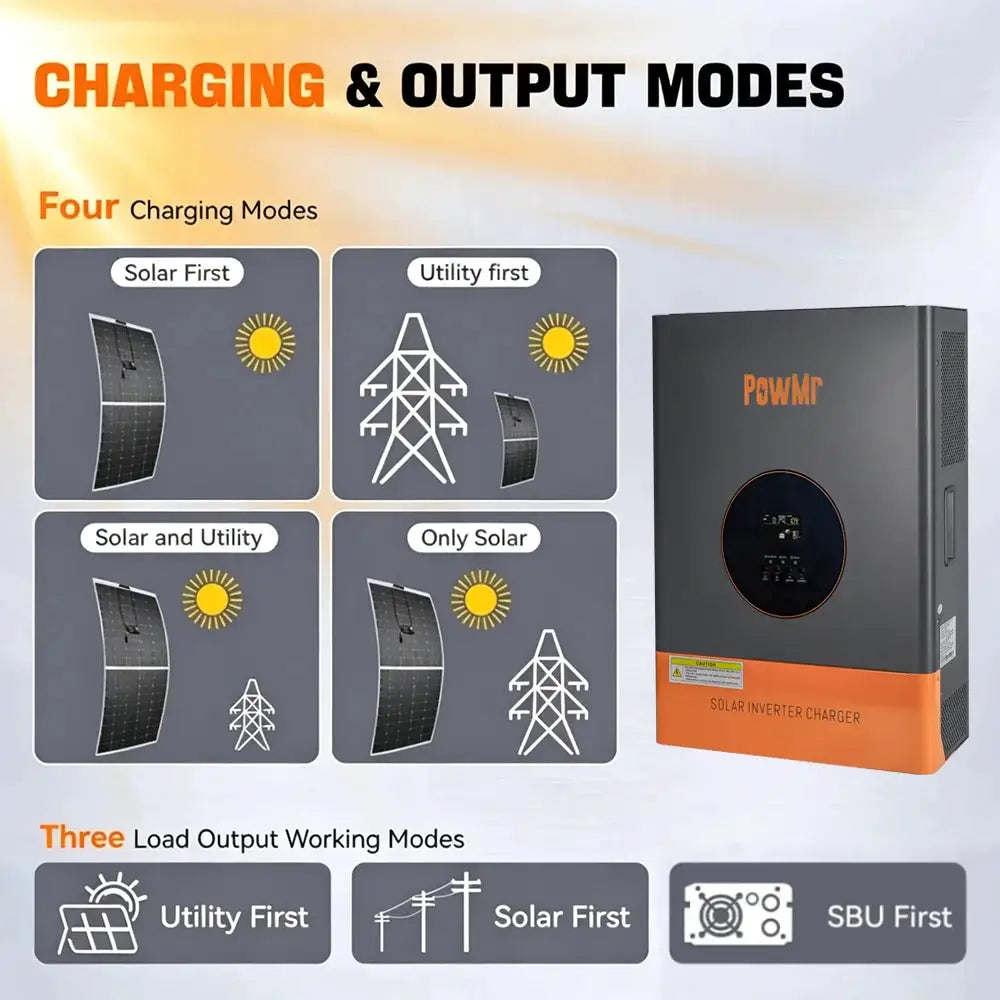

The PowMr POW-RELAB-SPLIT 10KU is a 10kW low-frequency split-phase solar inverter-charger all-in-one unit integrating a pure sine wave inverter, solar charging, and mains charging. Supporting single-phase 110V or split-phase 220V dual AC outputs, it easily powers split-phase equipment. Three operating modes (Mains Priority, Inverter Priority, Energy Saving) enable flexible energy dispatch, with hybrid solar and mains/generator charging. Featuring a built-in AC output circuit breaker, multiple protection functions, precise alarm mechanisms, and RS232/RS485 communication with BMS battery management. Suitable for residential and commercial energy storage applications, reliably driving household appliances such as refrigerators and air conditioners.
