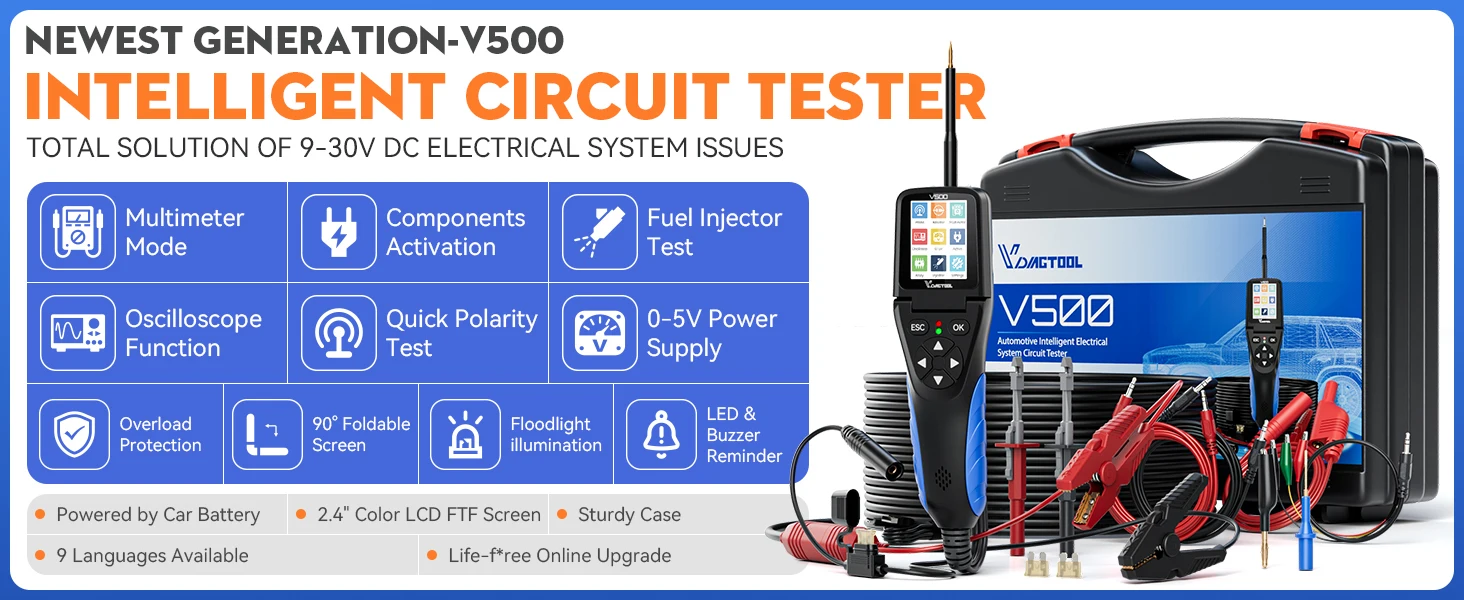

Full-Featured Intelligent Probe Tester

As the upgraded model of V200/V200Pro, V500 power circuit probe tester integrates the functions of a circuit tester, relay tester, oscilloscope, and multimeter into one tool, designed for troubleshooting any DC 9–30V automotive electrical issues. Key functions include:

✅Multimeter & Oscilloscope Function: Perform voltage measurements and waveform analysis.

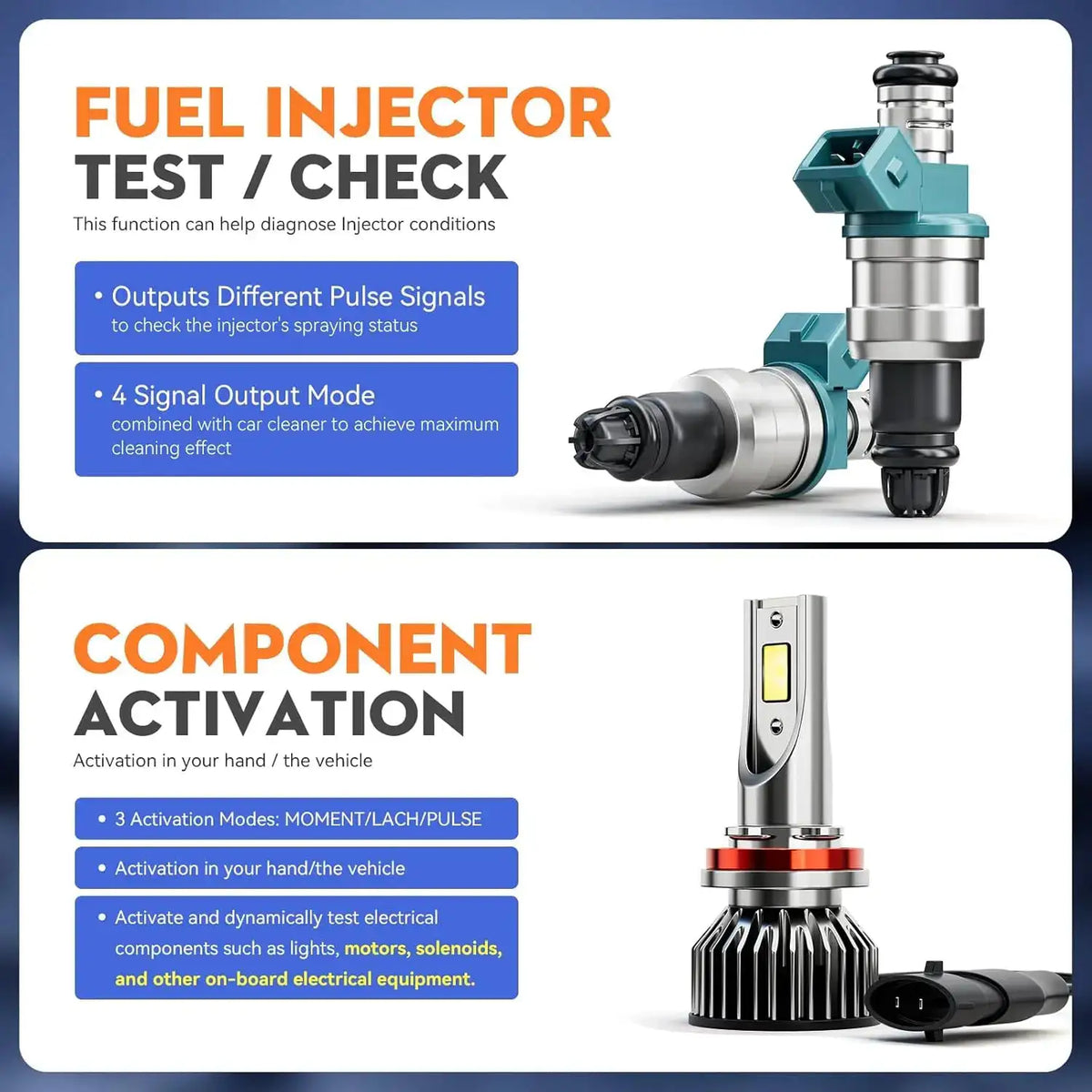

✅Fuel Injector Test：quickly check injector operation

✅Component Activation：activate lights, motors, fans, relays, and more

✅0–5V Power Supply: Simulate sensor signals or power low-voltage circuits.

✅AC/DC Voltage, Diode & Resistance Test ：accurate electrical measurements

✅Polarity Test：detect positive/negative connections

✅Continuity & Signal Circuit Test ：check wiring and sensor signals

✅Poor Ground Check：identify weak or faulty ground connections

✅Relay, Fuse & Trailer Light Test：locate blown fuses or faulty relays

✅Overload Protection: Safeguard the device and vehicle electronics during use.

✅90° Foldable Screen & Floodlight: View results clearly even in low-light conditions.

✅LED & Buzzer Reminder: Get visual and audible alerts for efficient diagnostics.

✅Powered by Car Battery: No need for external power—convenient and portable.

✅2.4" Color LCD Screen: Sharp and intuitive display for easy reading.

✅Sturdy Case & Multi-Language Support: Durable design with interface available in 9 languages.

✅Lifetime Online Upgrade: Enjoy continuous software improvements at no extra cost.

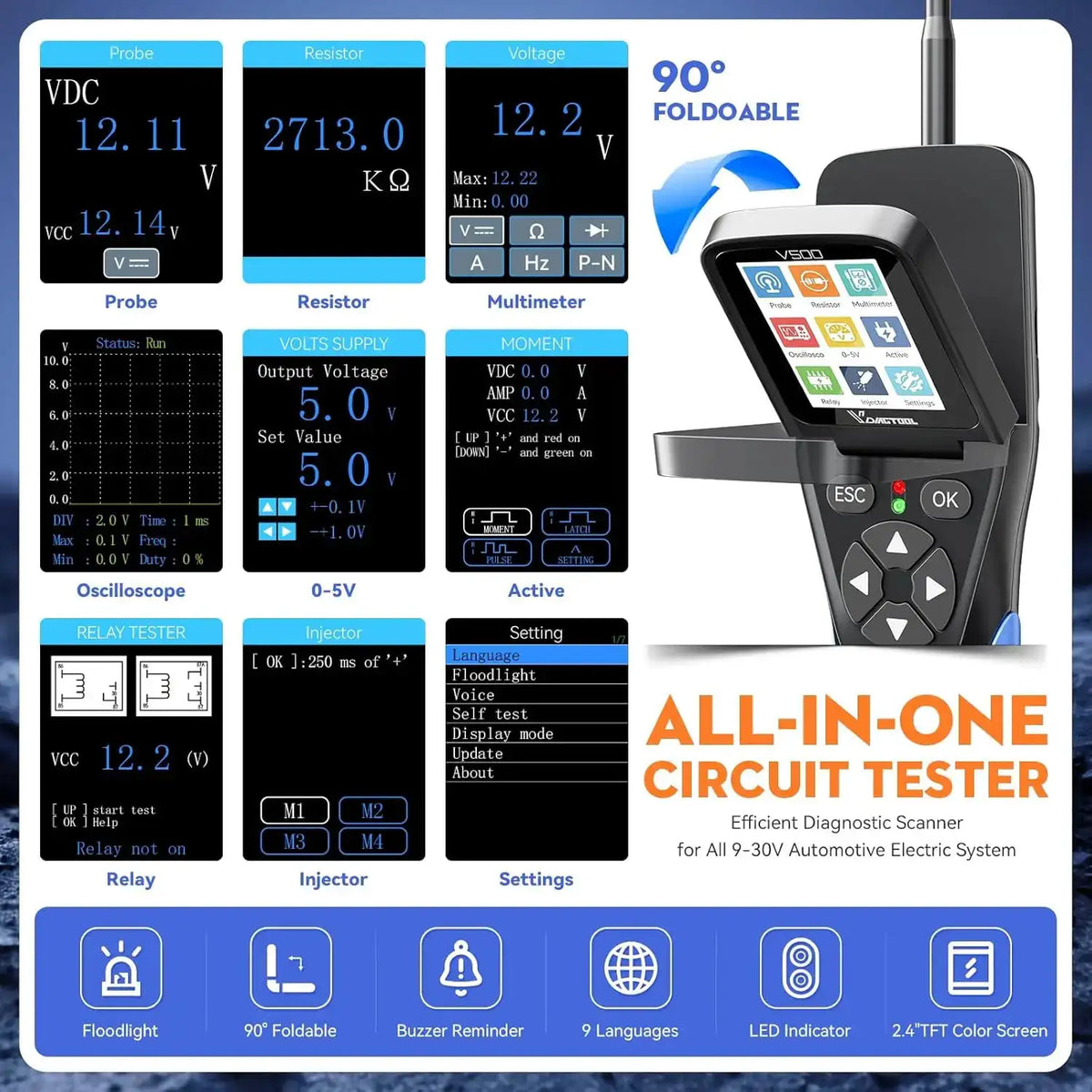

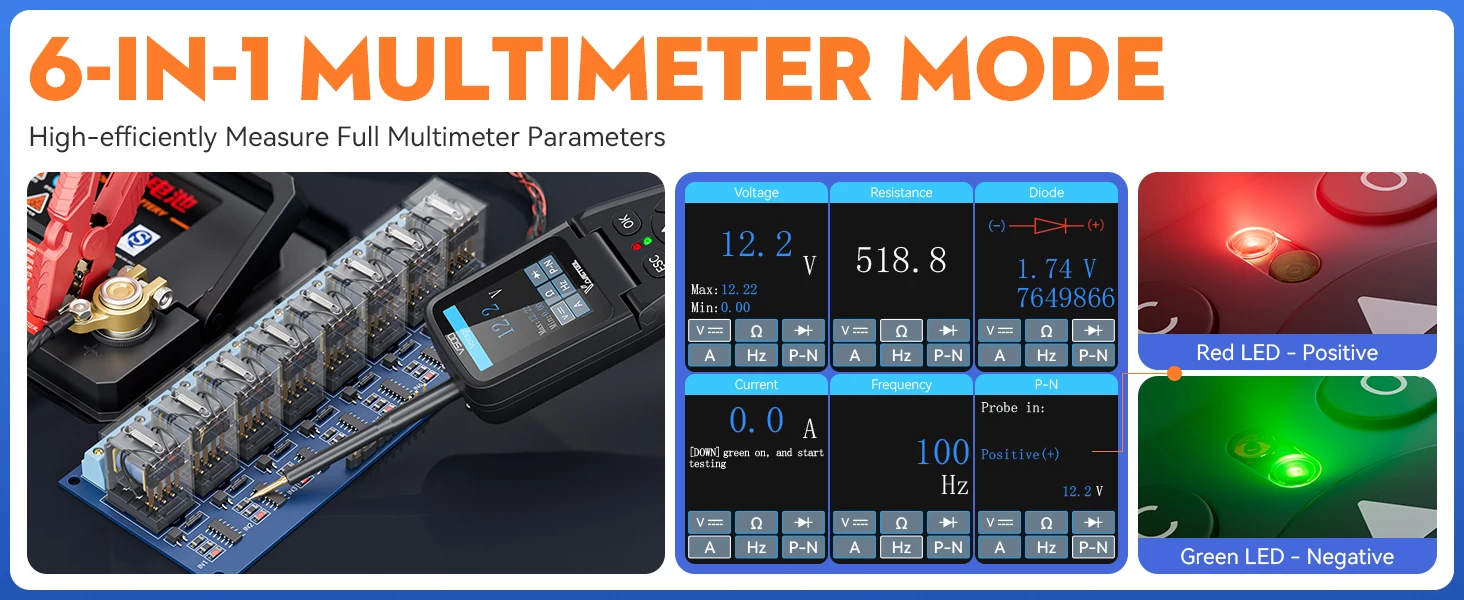

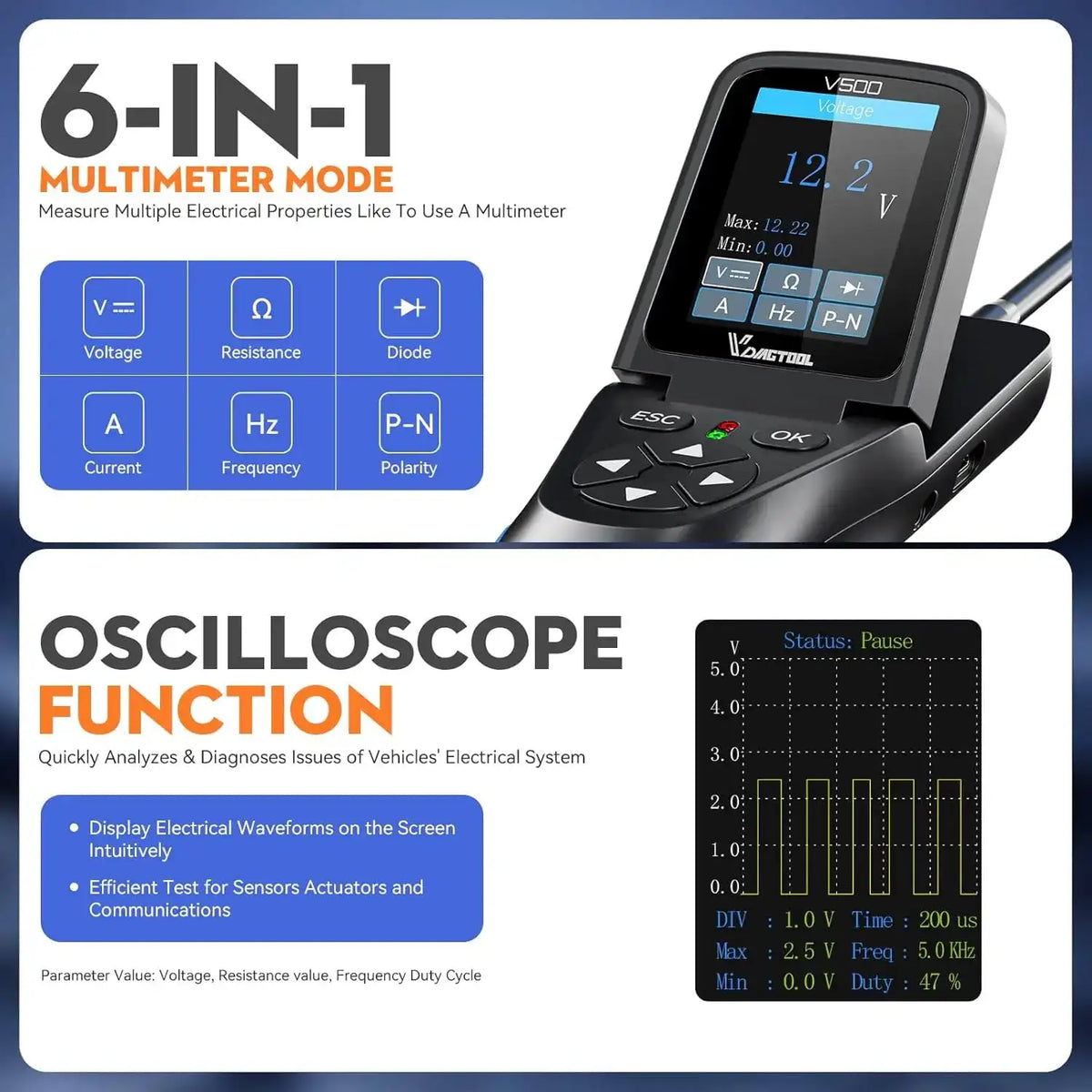

6-IN-1 Multimeter & Oscilloscope Function

VDIAGTOOL V500 circuit probe tester works more powerfully than others. Multimeter mode contains voltage(VDC), resistance(OHM), diode(DIO), current(AMP), frequency & polarity(P-N). The oscilloscope function features clear real-time waveform diagrams to test various voltage signals with 4 arguments: AC/DC voltage, resistance value & frequency duty cycle, making it advanced for detecting sensors & actuators, circuit connectivity & bad grounds.

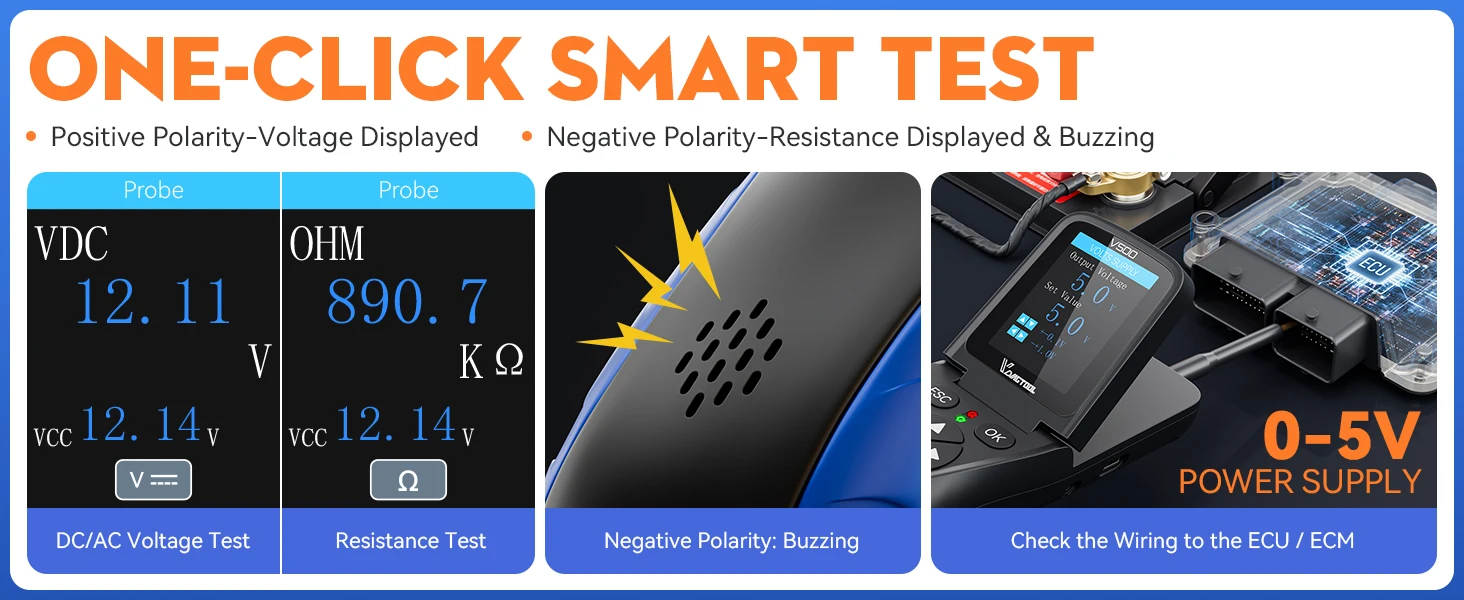

ONE-CLICK Smart Test & Quick Polarity Test

VDIAGTOOL V500 intelligent power circuit tester automatically measures voltage, resistance, and polarity without switching modes. Just turn it on and start testing.
Touch the negative terminal, and the green LED lights up with a beep.
Touch the positive terminal, and the red LED turns on.

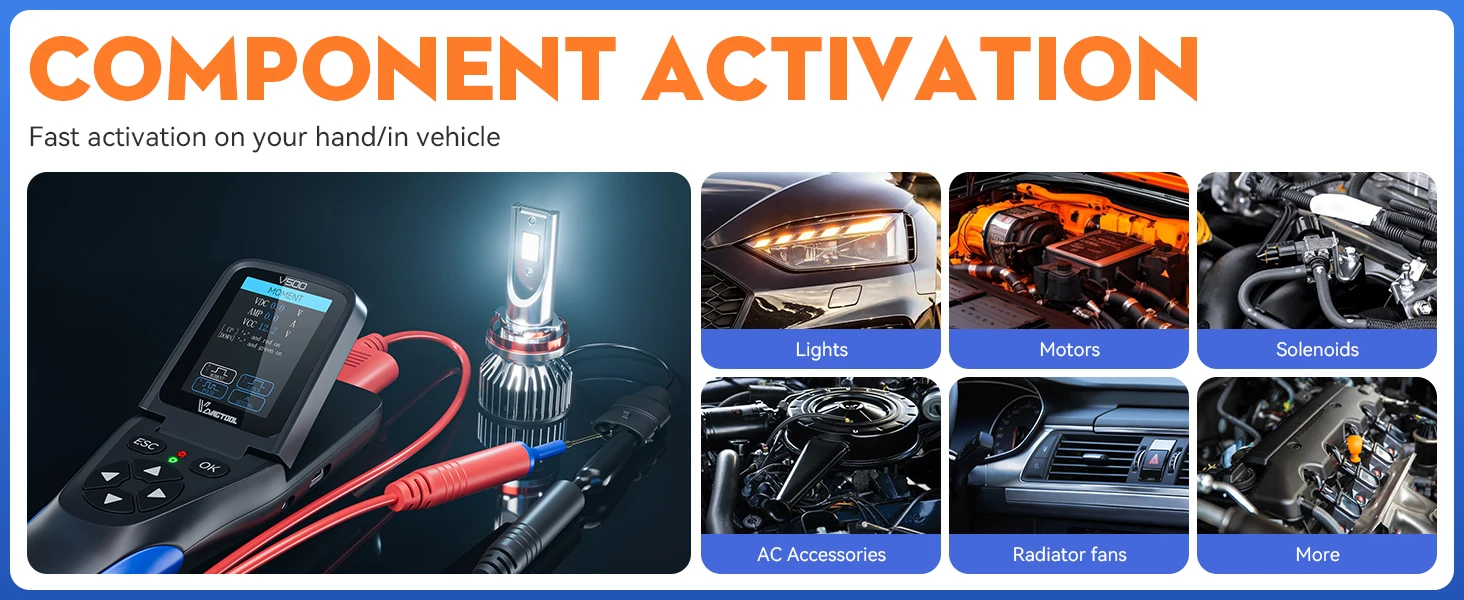

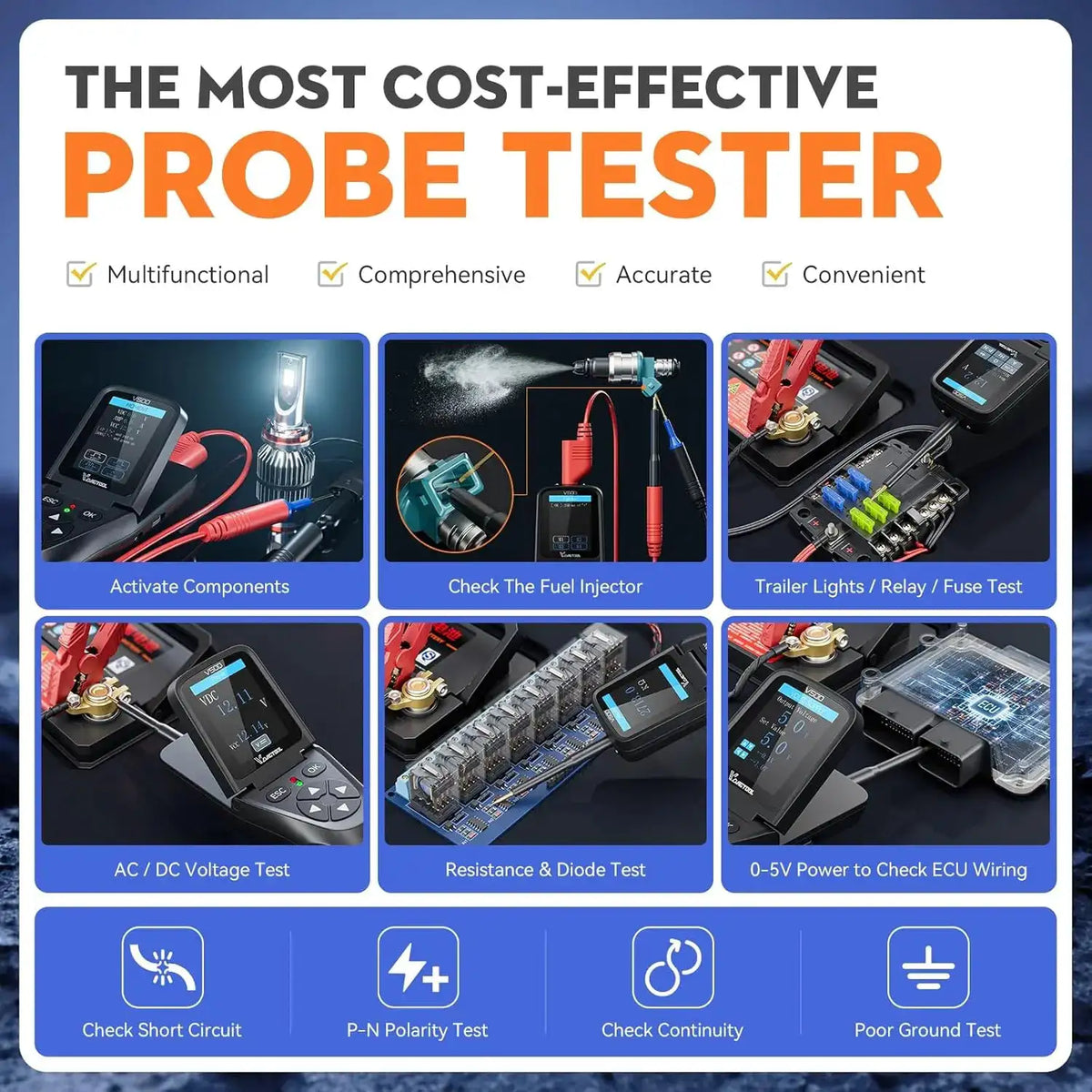

Component Activation & Sensor/Signal Circuit Test

VDIAGTOOL V500 automotive circuit tester activates vehicle components such as lights, motors, wipers, radiator fans, relays, and fuel injectors. Three activation modes are available: Momentary (short test), Latch (continuous output), and Pulse (simulated signal).

VDIAGTOOL V500 also tests sensors and signal circuits. This allows checking voltage, continuity, and wiring, helping technicians quickly pinpoint the root cause of electrical problems.

Relay/Fuse/Trailer Light Test & Bad Fuses Location

VDIAGTOOL V500 is more than just a power circuit probe — it's your all-in-one relay, fuse, and trailer light tester.V500 helps you diagnose faults faster, safer, and more accurately — keeping your vehicle always ready for the road.

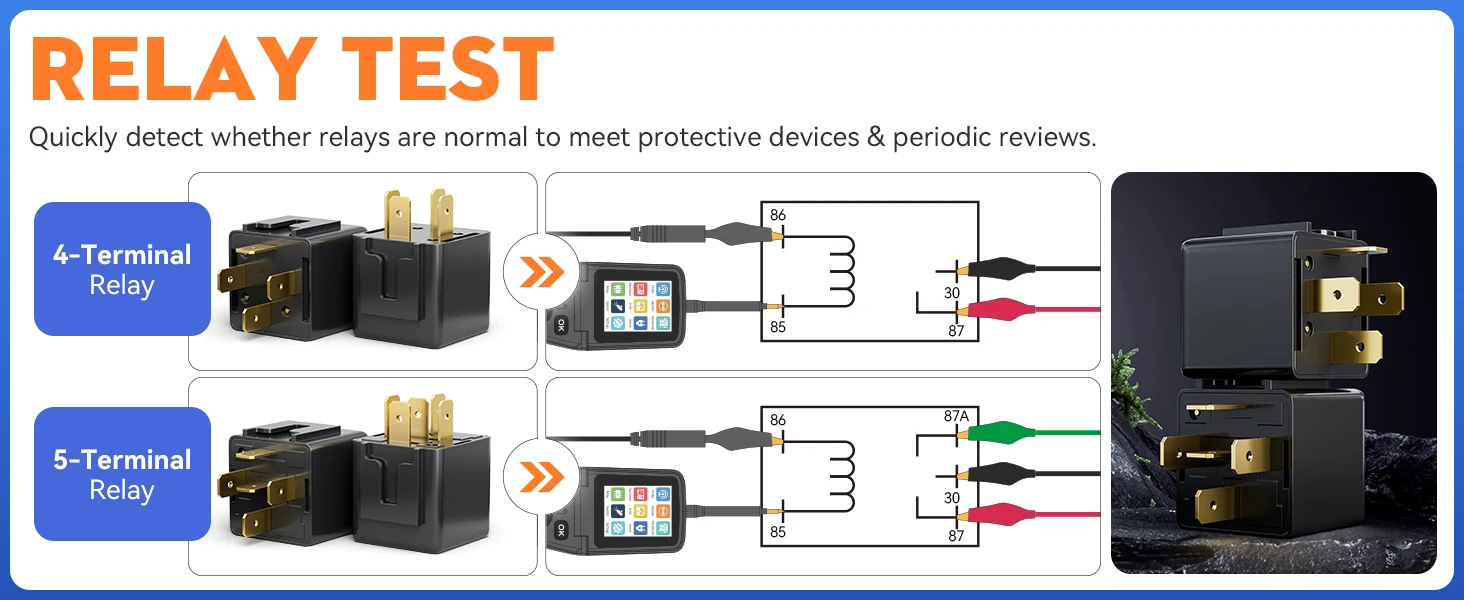

🔸 Relay Test: Quickly check whether 4-pin or 5-pin relays are working properly. Helps you identify faulty relays in seconds and ensures your electrical system functions safely.

🔸 Fuse Test: Locate blown fuses instantly without removing them one by one. Save time and avoid vehicle breakdowns caused by hidden fuse failures.

🔸 Trailer Light Test: Easily test trailer lights and wiring connections to ensure they are working perfectly before hitting the road — no more surprises during your trip.

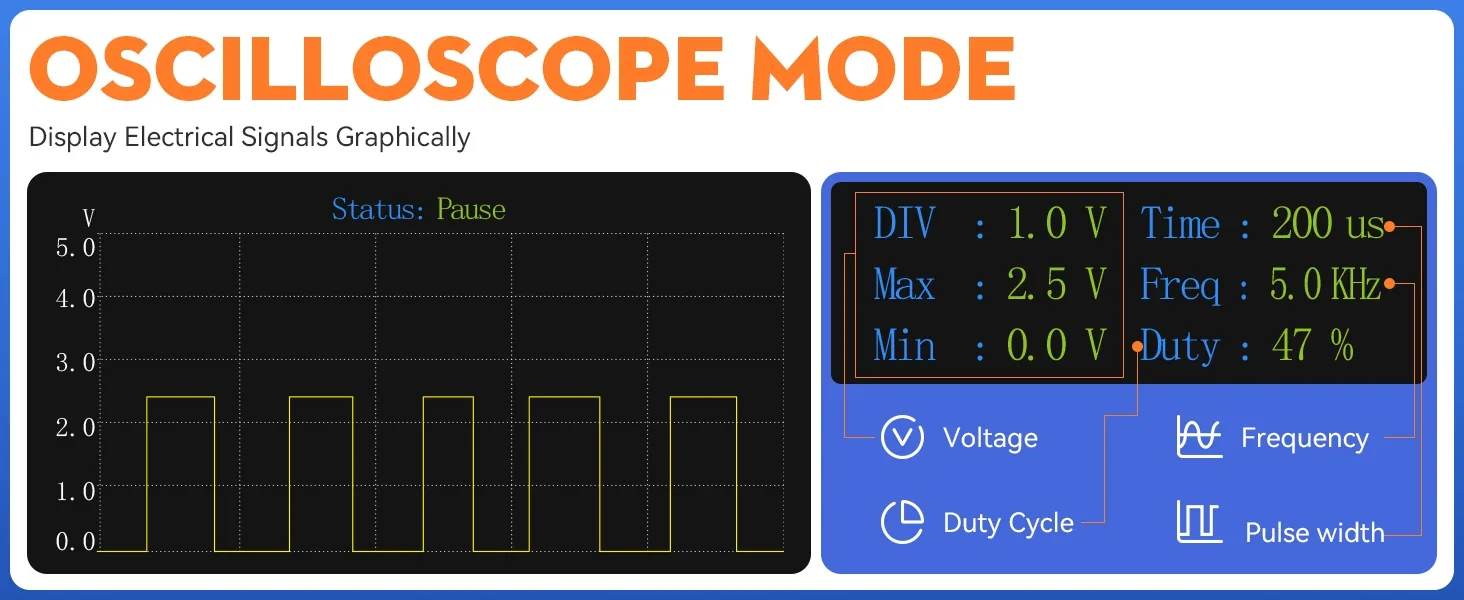

VDIAGTOOL V500 Professional Circuit Probe Tester with Oscilloscope Mode

1. Real-time Waveform Display

• Graphical representation of electrical signals
• Visualize voltage patterns over time
• Identify intermittent issues and signal anomalies

2. Key Measurement Parameters:

• Voltage Characteristics: Peak-to-peak, maximum, minimum measurements
• Frequency Data: Accurate frequency reading for sensor signals
• Duty Cycle Information: Precise percentage calculations
• Time-based Analysis: Microsecond-level timing accuracy

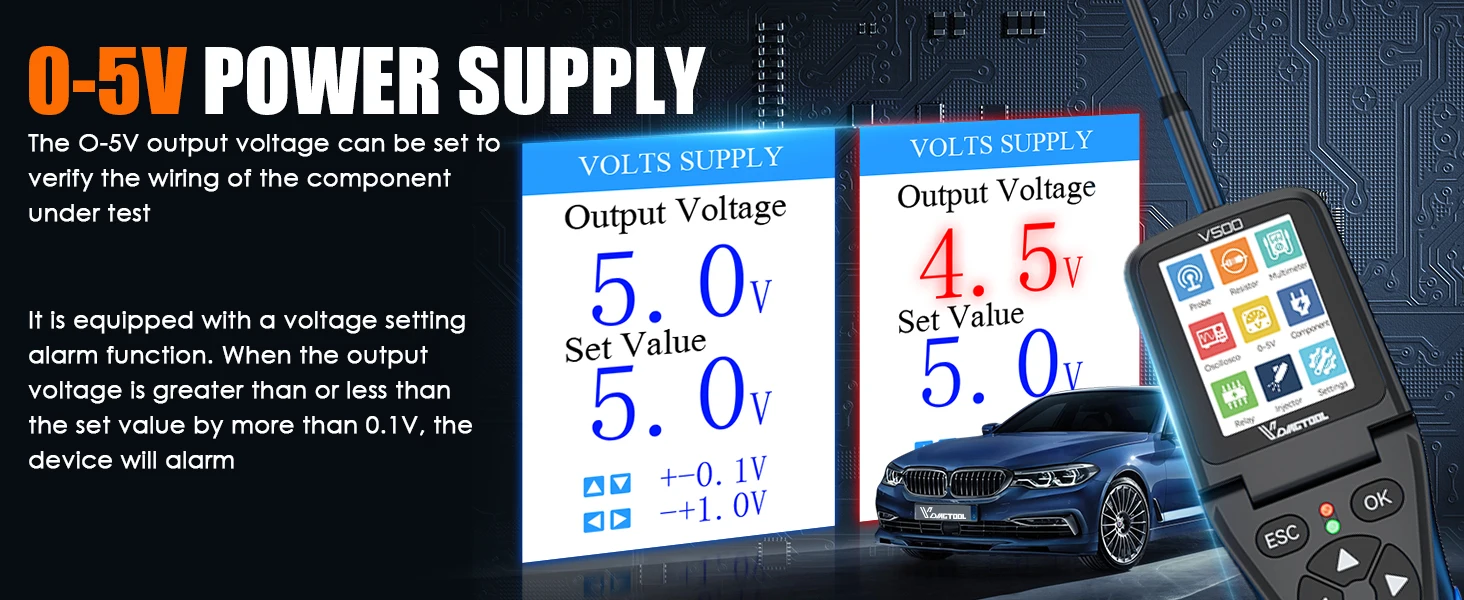

VDIAGTOOL V500 0-5V Power Supply

The 0–5V power supply module provides a stable, adjustable low-voltage source for circuit diagnosis. Customers can use the module to quickly locate faults, prevent component damage from misoperation, and simplify circuit debugging and optimization. Key features include:

1.Stable power output for low-voltage circuits

2.Analog signal input for circuit testing and simulation

3.Seamless integration with other test equipment

VDIAGTOOL V500 Circuit Probe Tester | 9–30V Universal DC Automotive Diagnostic Tool

• Cars - Complete electrical system diagnosis for all passenger vehicles
• SUVs - Full-range testing for SUV electrical systems and accessories
• Trucks - Heavy-duty electrical diagnostics for commercial trucks
• Motorcycles - Compact vehicle electrical system testing
• Excavators - Construction and heavy equipment electrical diagnostics
• Boats - Marine electrical system testing and troubleshooting
• Tractors - Agricultural equipment electrical maintenance

VDIAGTOOL V500 Probe Tester Featuring Intuitive 9-Language Support to Make Automotive Diagnostics Accessible Worldwide.

English, Chinese, French, Spanish, German, Russian, Italian, Portuguese, Polish

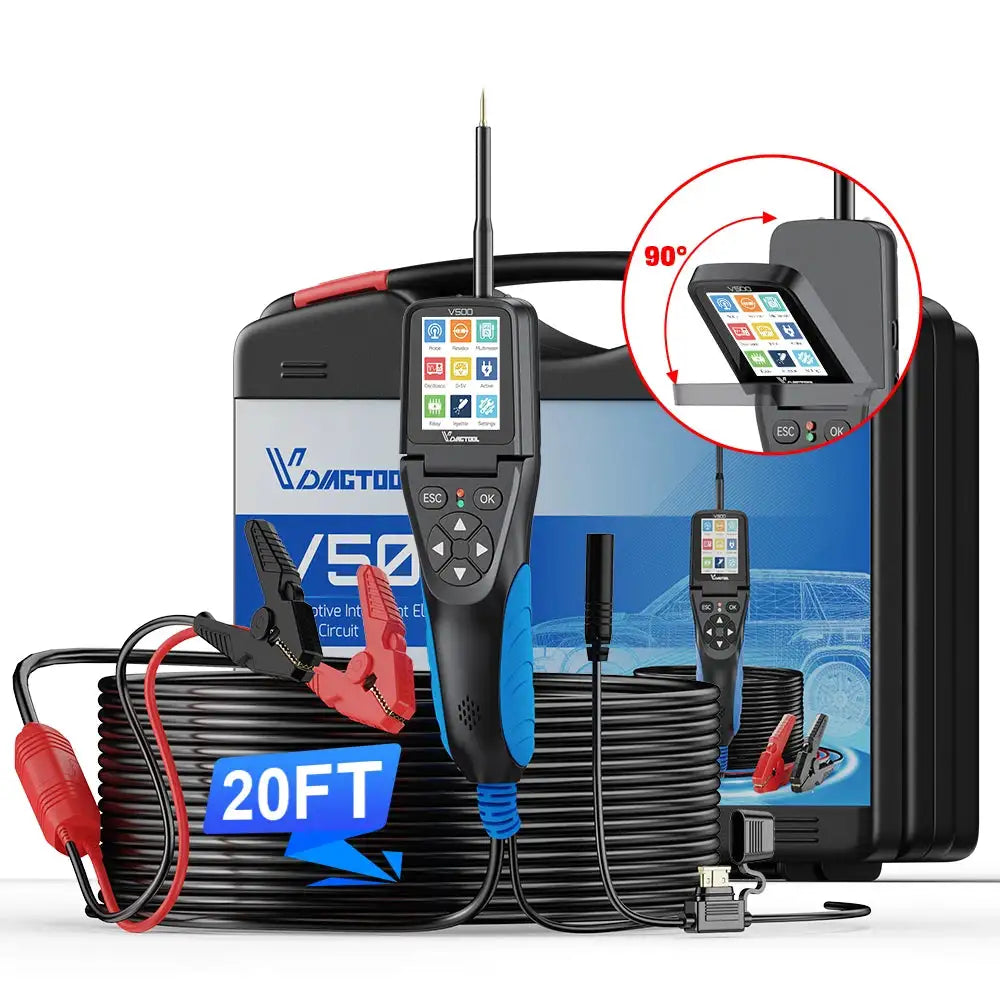

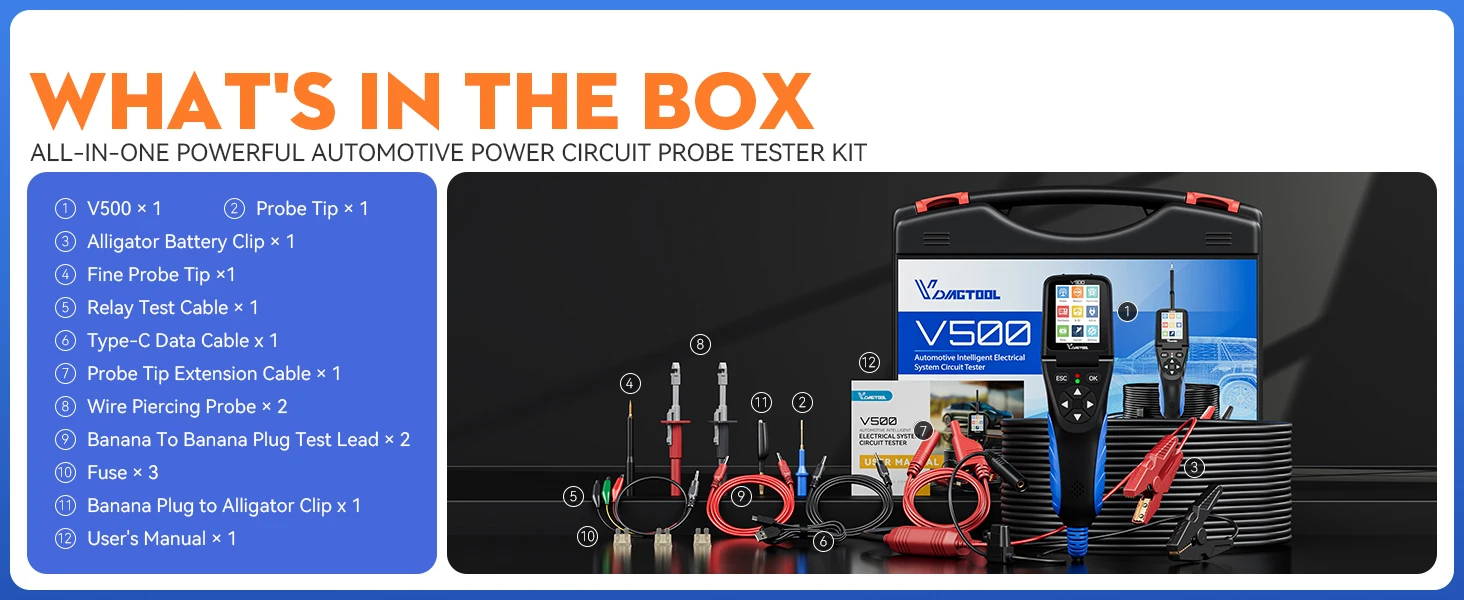

VDIAGTOOL V500 Autootive Diagnostic Tool Product List：

V500 Main Unit × 1
Probe Tip × 1
Alligator Battery Clip × 1
Fine Probe Tip × 1
Relay Test Cable × 1
Type-C Data Cable × 1
Probe Tip Extension Cable × 1
Wire Piercing Probe × 2
Banana to Banana Plug Test Lead × 2
Fuse × 3
Banana Plug to Alligator Clip × 1
User's Manual × 1
