150X Lens: 1000mm Working distance
Battery Included: no
Bearing inspection: Yes
Boom arm microscope: Yes
Brand Name: KUAIQU
Certification: CE,FCC,RoHS
Die & mold inspection: Yes
Drawtube: Monocular
Electronics rework: Yes
FPC inspection: Yes
Features: High Definition,Digital
Gear inspection: Yes
Gem grading: Yes
Gemstone microscope: Yes
H1605C-Dark blue shell: 1/2.8" Sony imx415 Sensor,4K photography,4K video recording;,4K HDMI output,4K Type-C driver free output
H1633-Light blue shell: 1/2.8" Sony imx415 Sensor,60MP photography,4K video recording;,4K HDMI output,4K Type-C driver free output
H3602-Red shell: 1/2.8" Sony imx323 Sensor,1080P HDMI output,1080P VGA output
High-concerned chemical: none
Jewelry microscope: Yes
Magnification Ratio: 500X & Under
Material: Metal
Measurement microscope: Yes
Mechanical parts inspection: Yes
Metal surface inspection: Yes
Model Number: 2003
Origin: Mainland China
PCB dimensional inspection: Yes
PCB inspection: Yes
PCB manufacturing quality control: Yes
PCB repair: Yes
PCB rework and repair: Yes
PCB solder joint defect detection: Yes
PCB solder joint inspection: Yes
PCB trace inspection: Yes
PCBA inspection: Yes
Phone motherboard repair: Yes
Plating layer inspection: Yes
Power Source: Usb rechargeable
Precision jewelry inspection: Yes
SMD component inspection: Yes
SMD soldering repair: Yes
SMT assembly inspection: Yes
SMT inspection: Yes
Semi-finishedproduct: No
Soldering: Yes
Theory: Video Microscope
Tool edge inspection: Yes
Tool inspection: Yes
Watch movement inspection: Yes
Watch repair: Yes
electronic component documentation: Yes
metalworking: Yes
mobile phone PCB repair: Yes
🔥150X Microscope Kit
The advantages of this 150X microscope kit are its long working distance and large field of view, yet its light filtering performance is relatively weak. It is suitable for the following applications: PCB soldering and rework, mobile phone/tablet motherboard repair, plastic part and mold inspection, overall PCB examination, electronic component testing, electronics repair, and more.
If you need a high-magnification lens to observe reflective metal objects, you can try our 215X microscope kit. If you want a microscope kit that supports zooming in and out while keeping the lens stationary, our 180X microscope kit is recommended.

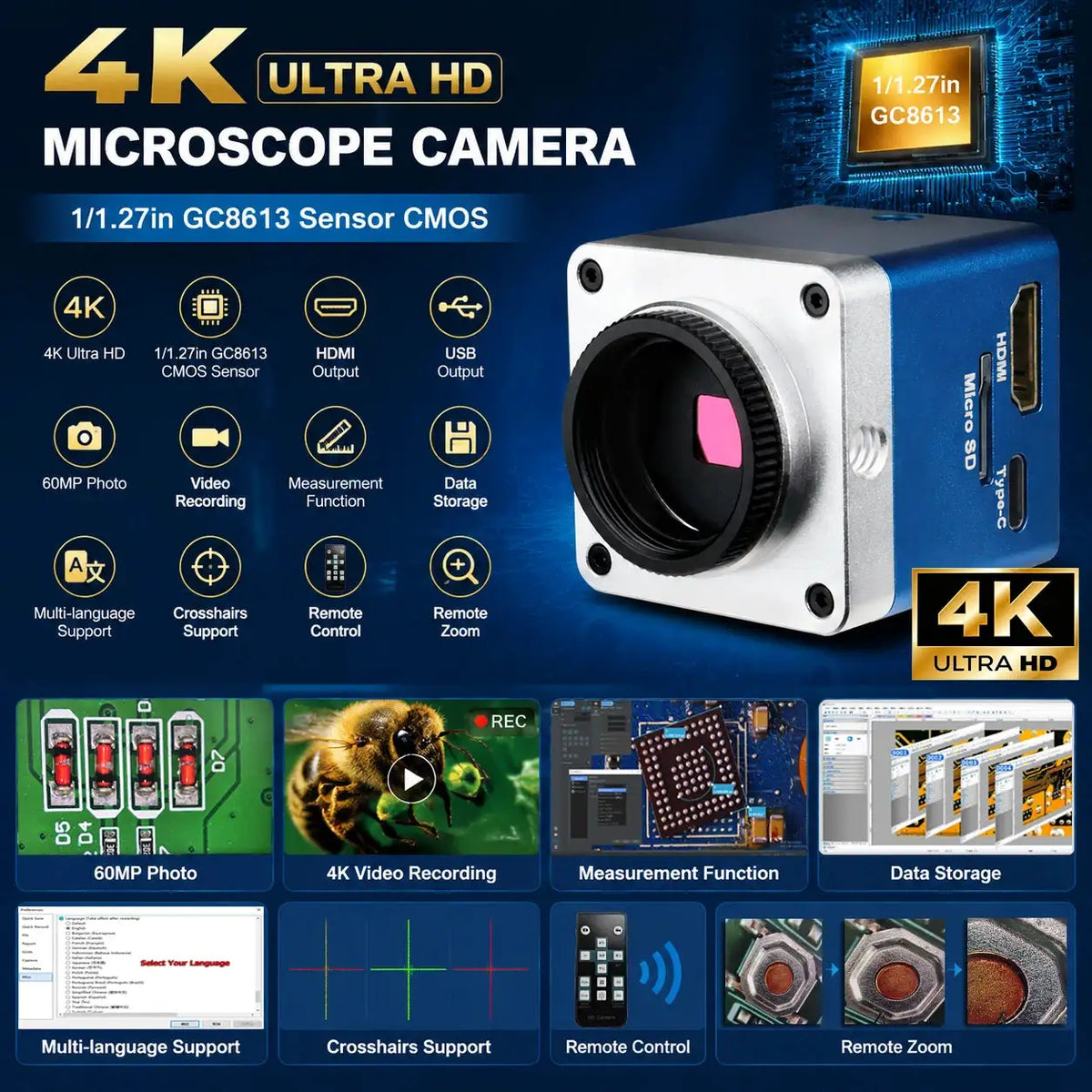

🔥4K 60MP GC8613 HD Camera
◆ Using 8.29 million pixel CMOS image sensor;
◆ Using 1/2.7 inch image sensors;
◆ HDMI 3840 * 2160 30 frames/1080P 60 frames image output;
◆ Type-C driver free output 3840 * 2160 30 frame image output;
◆ 4K video recording;
◆ 4K photography
◆ 60 million photos, JPG format;
◆ One click freezing/unfreezing function;
◆ 48 million pixel photography and 4K video recording;
◆ Electronic zoom function;
◆ Support manual/automatic exposure/one key exposure and exposure compensation value adjustment;
◆ Support manual/automatic white balance/one button white balance, red, green and blue can be adjusted;
◆ Provide 16 lines with adjustable color, thickness and position;
◆ Provide central crosshair display/closing;
◆ Support TF card storage, with a maximum of 64GB;
◆ Support remote control operation, and take pictures without shaking images more clearly;
◆ Support English Arabic, Russian, Japanese, Portuguese, Italian, Spanish, German, French menu languages;
◆ Support the saving of shutdown setting parameters;
◆ Aluminum alloy shell processed by CNC precision milling technology;
🔥Connect to PC via USB for operation.
You can first switch the language to your preferred one in the PC software. It allows you to take photos, record videos and adjust the video image more conveniently. There is also an additional measurement function, which will be of great help to your work.

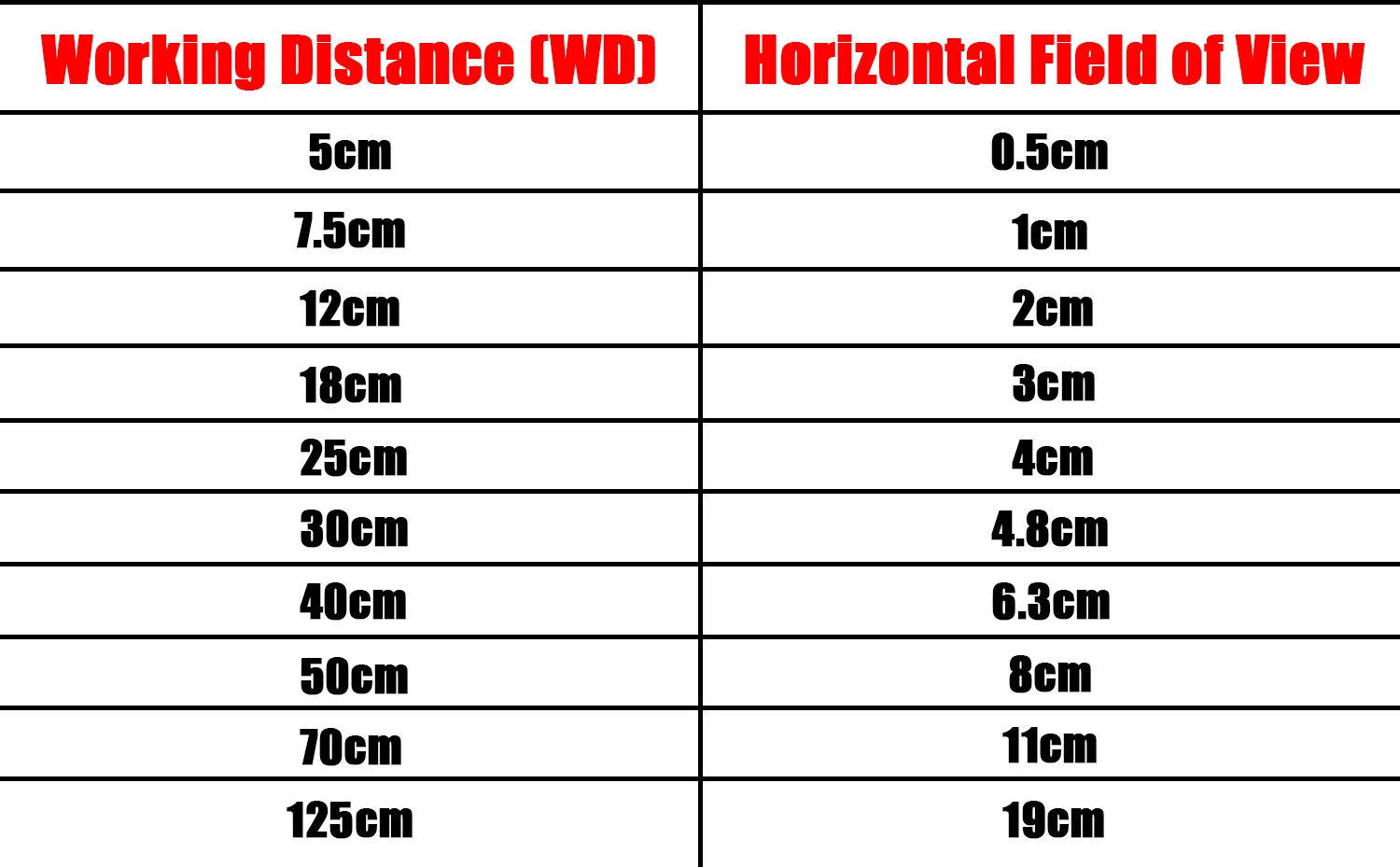

🔥Working Distance of this Microscope Kit and Horizontal Width when used with PC Software
🔥Effect of Exposure Adjustment on the Image
Whether you connect the device to a monitor or TV via HDMI, or connect it to a computer via USB, exposure is a key parameter. Properly setting the optimal value will help you obtain the best image quality.
How to adjust:
Under unchanged lighting conditions, turn on Auto Exposure and increase the gain value when ambient light is insufficient. When ambient light is too strong and causes overexposure, turn on Auto Exposure and lower the gain value.
🔥Function of White Balance
Correct light color cast and restore the true original color of objects.
1, Different light sources (indoor yellow lights, fluorescent lamps, natural overcast light and ambient lights) all have inherent color cast. White balance can correct yellowish, bluish and reddish tones in the image.
2, Under any ambient light environment, it ensures white paper, white housings and white electronic components are captured without yellow or cold tint. It calibrates the overall image color with white as the reference standard.
3, When shooting circuit boards, metal accessories and product appearances, the presented colors are exactly the same as what the naked eye sees, without color distortion or color cast. It is perfectly suitable for taking photos and recording videos for product display.
🔥FULL HD Sony imx415 Sensor Camera Parameter
◆ Using 8.29 million pixel Sony CMOS image sensor;
◆ Using 1/2.8 inch image sensors;
◆ HDMI 3840 * 2160 30 frames/1080P 60 frames image output;
◆ Type-C driver free output 3840 * 2160 30 frame image output;
◆ 4K video recording;
◆ 4K photography
◆ One click freezing/thawing function;
◆ Electronic scaling function;
◆ Support manual/automatic exposure, adjust exposure compensation values;
◆ Support manual/automatic white balance, adjustable in red, green, and blue;
◆ Provide 16 line drawing functions, with adjustable line colors, thickness, and positions;
◆ Provide center crosshair display/close;
◆ Supports TF card storage, with a maximum support of 64GB;
◆ Support remote control operation, taking photos without shaking and clearer images;
◆ Support Chinese and English menu languages (default English);
◆ Support saving shutdown settings parameters;
◆ sturdy metal casing;

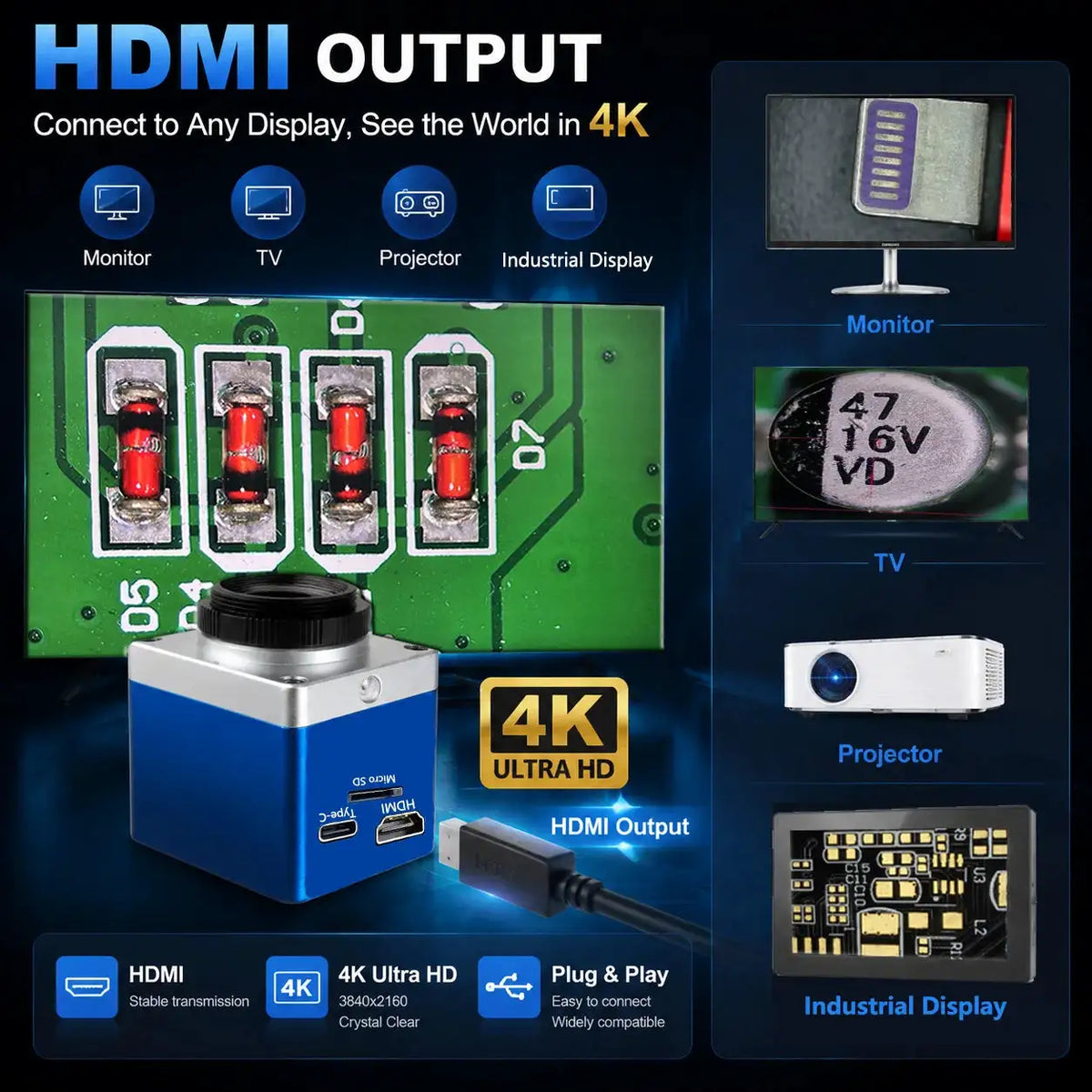

🔥Connect Display Via HDMI
1. It Can capture pictures and videos and save them on TF cards
2. It can capture up to 8M 8000X6000 HD images
3. 4K (30fps) /1080P(60pfs) MOV video is available

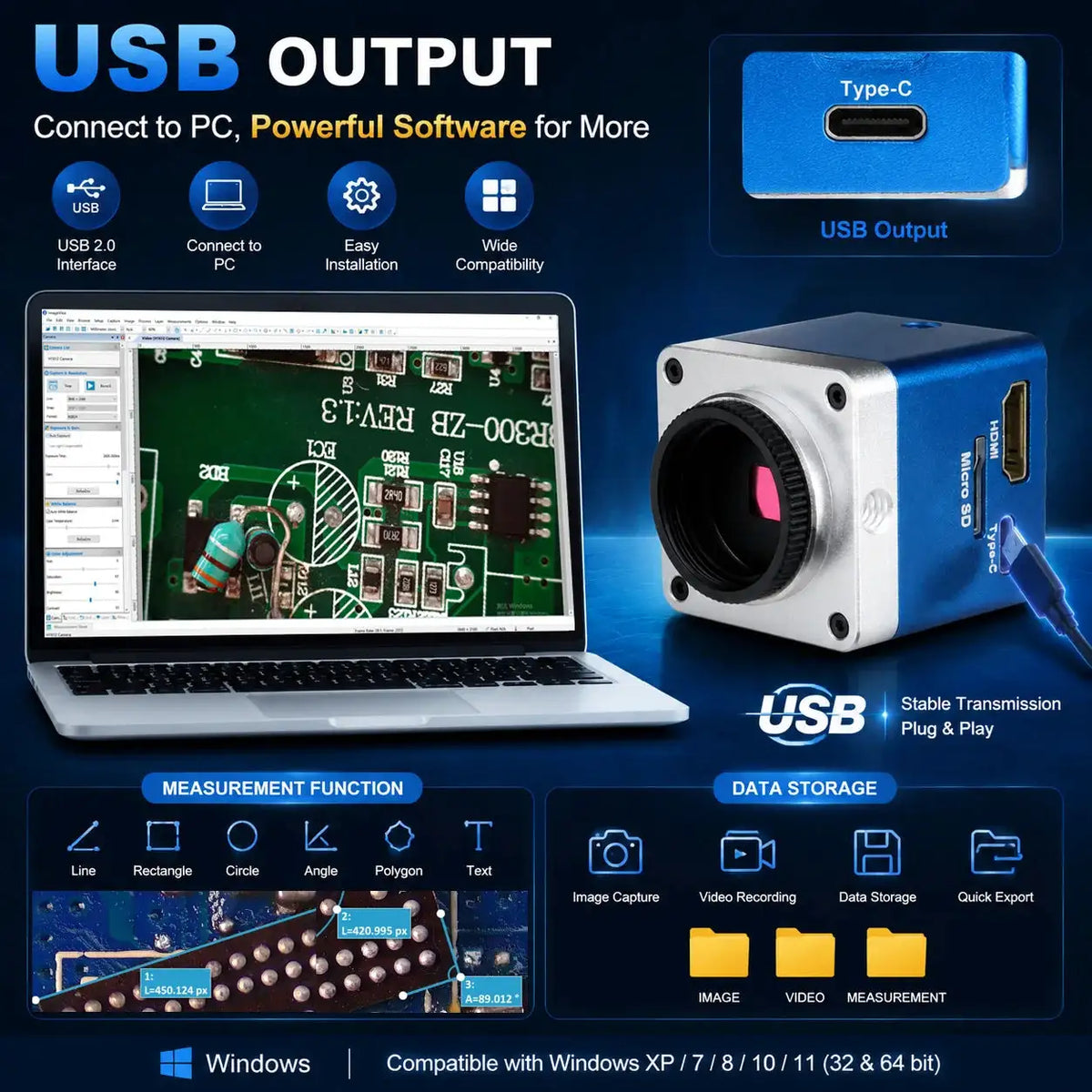

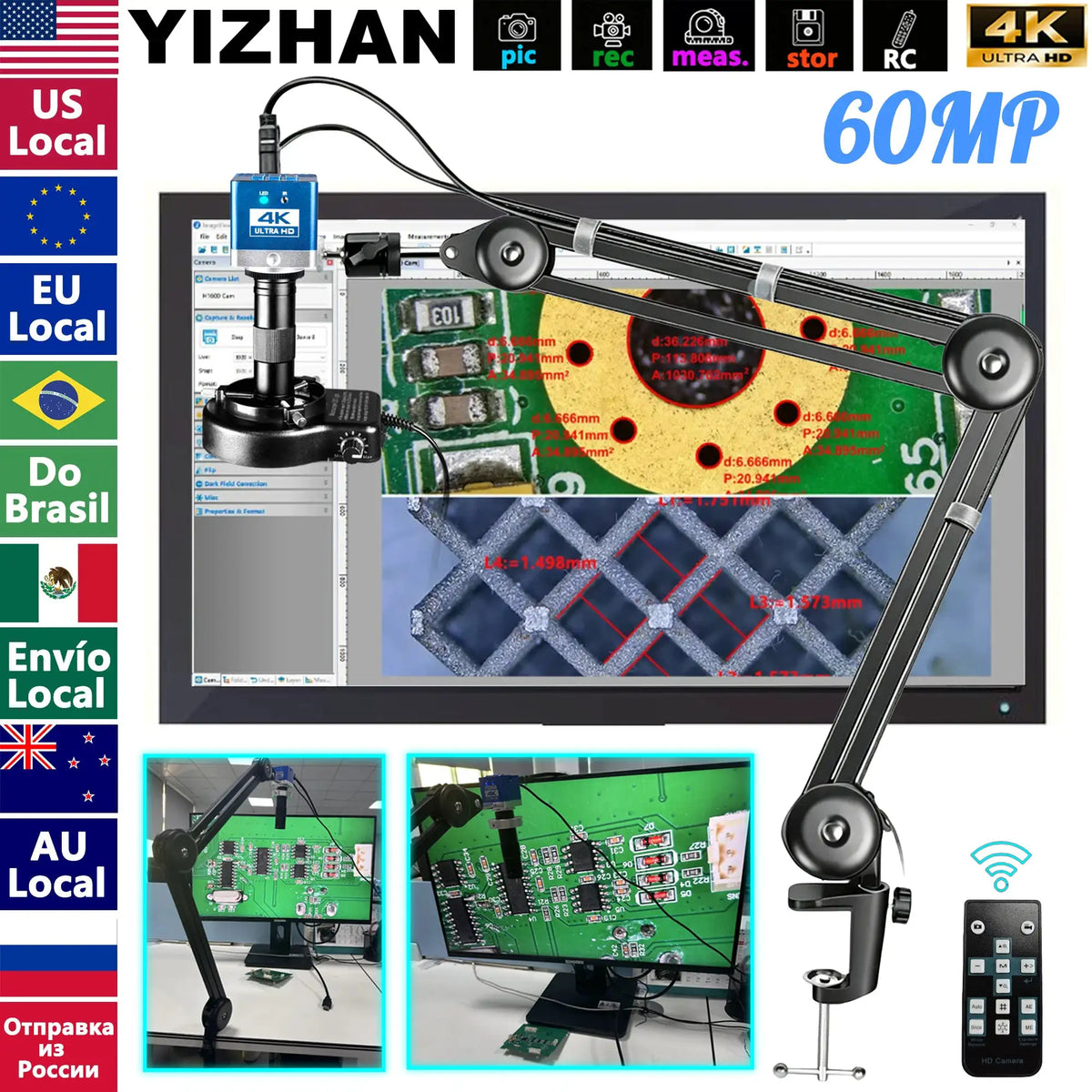

🔥Connect computer via Type-C
1. Install the ImageView on your computer
2. Through the ImageView program, you can get point spacing, parallel lines, vertical lines, line spacing, Angle, circle, radius, radian, rectangle, ellipse, concentric circles, center distance, and other measurement tools.
🔥Application Scenarios:
PCB inspection, electronic component documentation, mobile phone PCB repair, SMD soldering repair, PCB rework and repair, PCB dimensional inspection, PCB solder joint defect detection, SMT assembly inspection, PCB manufacturing quality control, PCB repair, Electronics rework, Phone motherboard repair, Soldering, SMT inspection, SMD component inspection, PCBA inspection, FPC inspection, PCB solder joint inspection, PCB trace inspection, metalworking, Tool inspection, Tool edge inspection, Die & mold inspection, Mechanical parts inspection, Bearing inspection, Gear inspection, Metal surface inspection, Plating layer inspection, Jewelry microscope, Gemstone microscope, Watch repair, Precision jewelry inspection, Gem grading, Watch movement inspection, Dentistry, SA care, Vet care, Pet care, Animal med, Vet med
🔥1X-150X zoom C-mount lens：
Working distance: 50mm-1000mm
Zoom ratio: 1:15
Magnification: 0.15-2X (approx. 1-150X on display)
Maximum magnification field of view: 4.2mm*2.4mm
Minimum magnification field of view: 130mm*70mm
Size: 30mm (diameter) * 99mm (length)
Weight: 195g
🔥4K UHD GC8613 sensor Reinforced Microscope Set Package including
List of packing：
1 * Microscope camera
1 * Microscope lens
1 * LED light
1 * Reinforced Folding bracket
1 * Instruction manual
1 * Type-C cable
1 * HDMI cable
1 * Power cord
1 * Free Software (not included in the package, please contact customer service for assistance)
1* Remote control

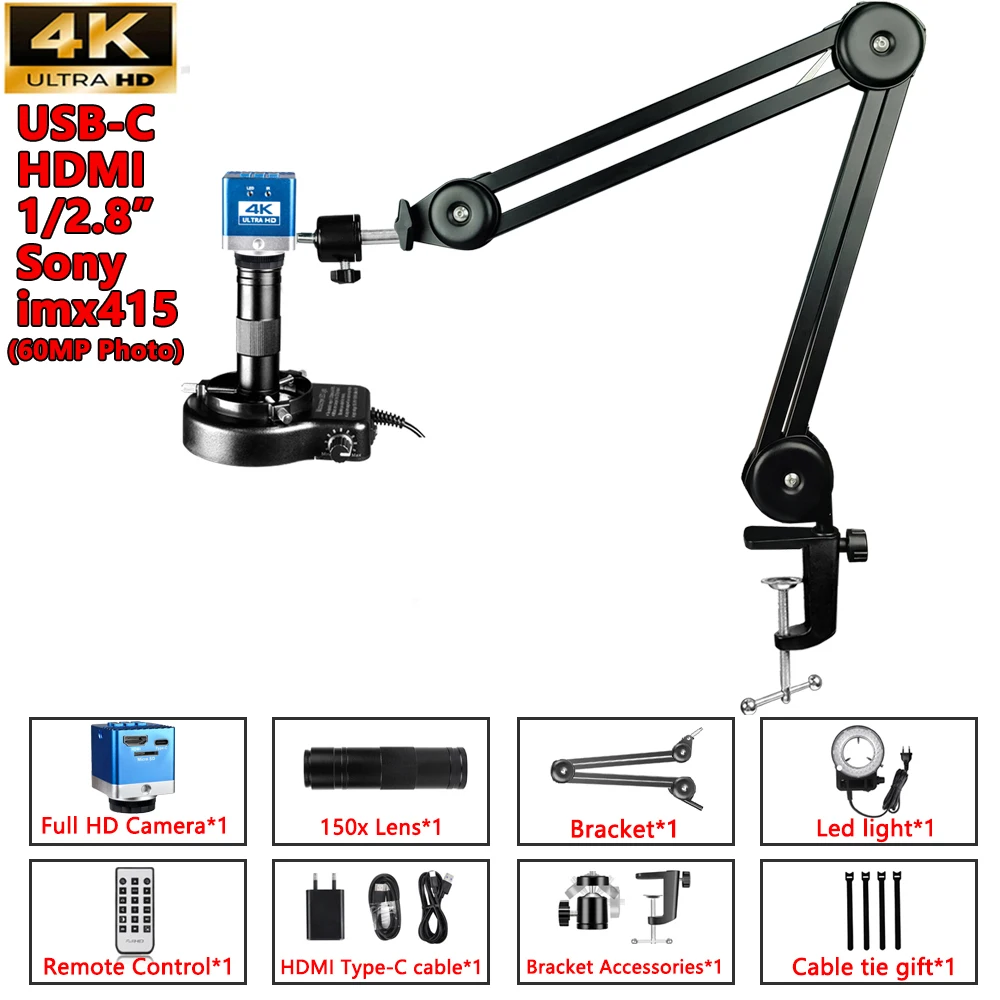

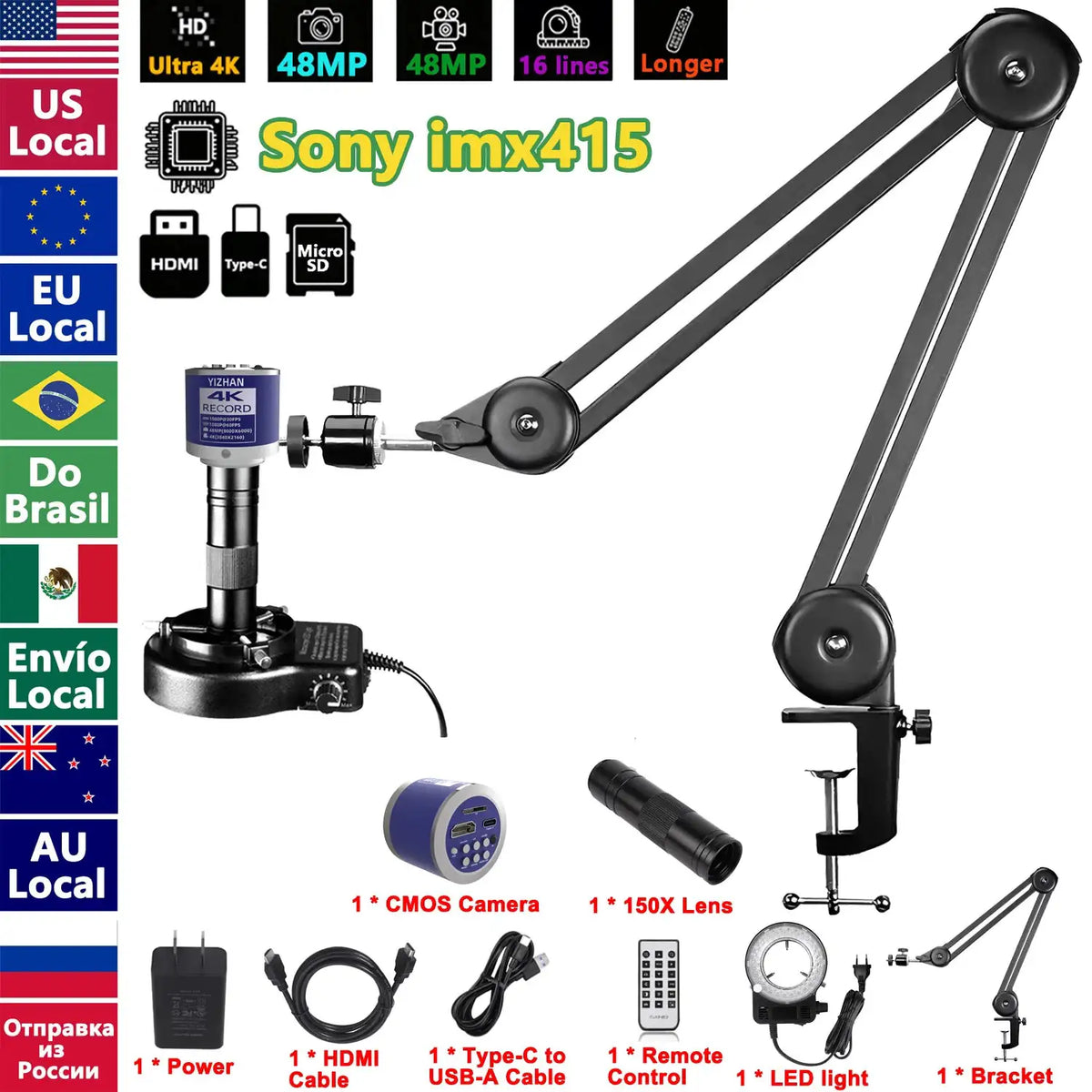

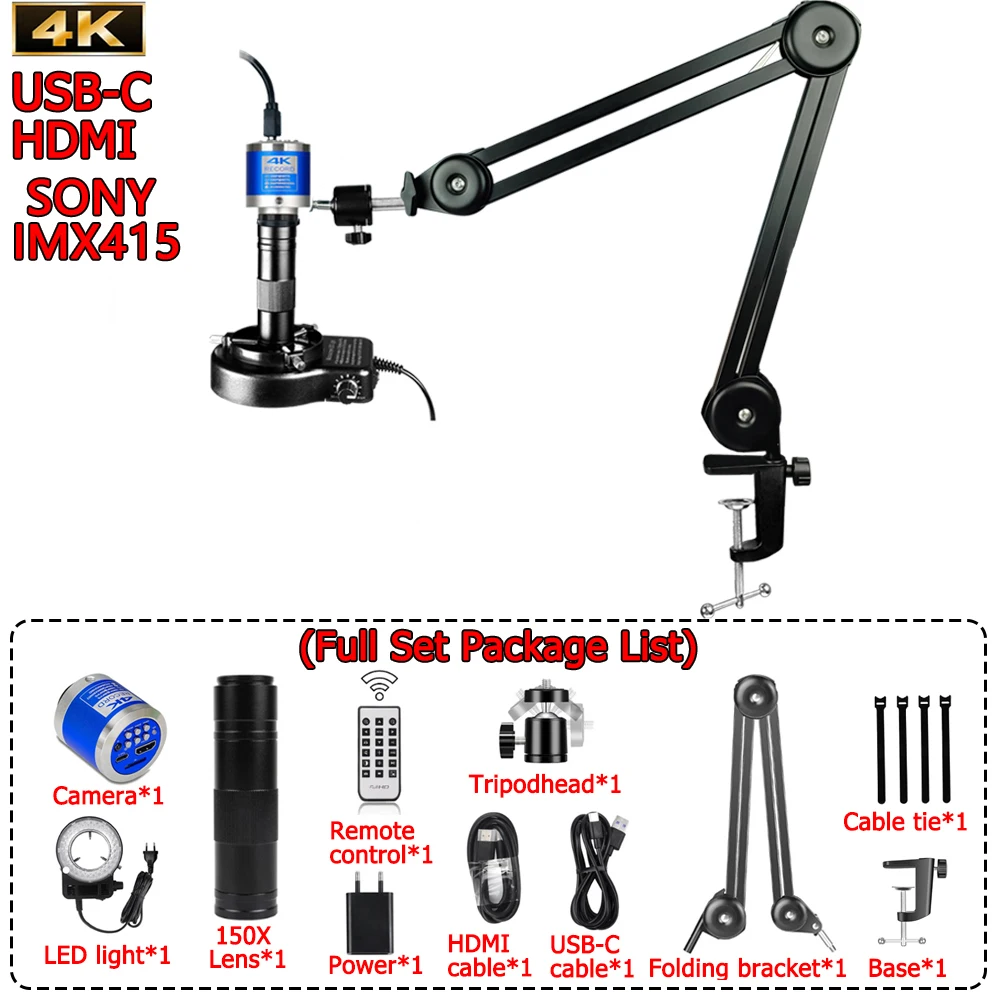

🔥4K UHD Sony imx415 sensor Reinforced Microscope Set Package including
List of packing：
1 * Microscope camera
1 * Microscope lens
1 * LED light
1 * Reinforced Folding bracket
1 * Instruction manual
1 * Type-C cable
1 * HDMI cable
1 * Power cord
1 * Free Software (not included in the package, please contact customer service for assistance)
1* Remote control

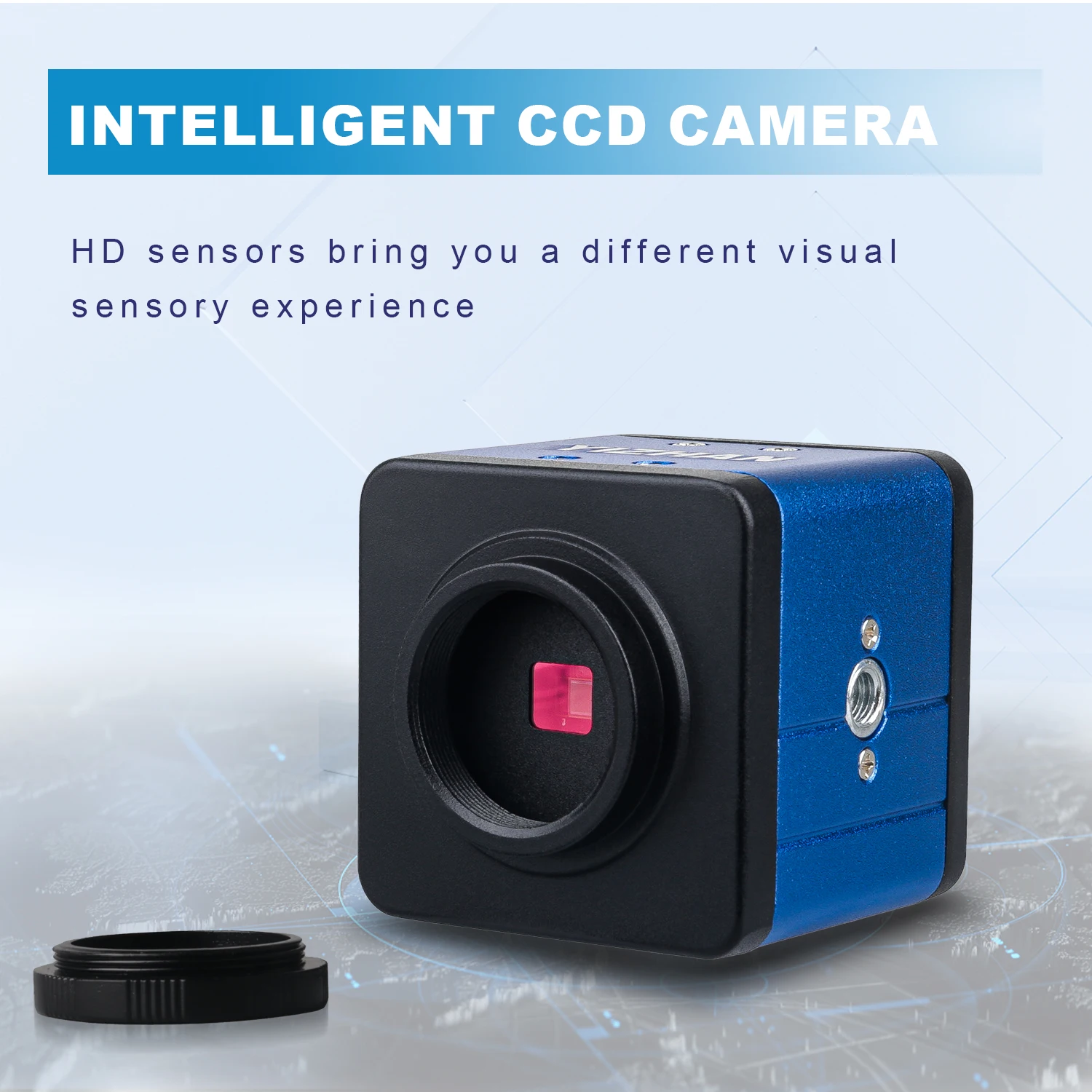

🔥HDMI VGA 60FPS 1080P Camera
Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
Pixel array:13MP
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

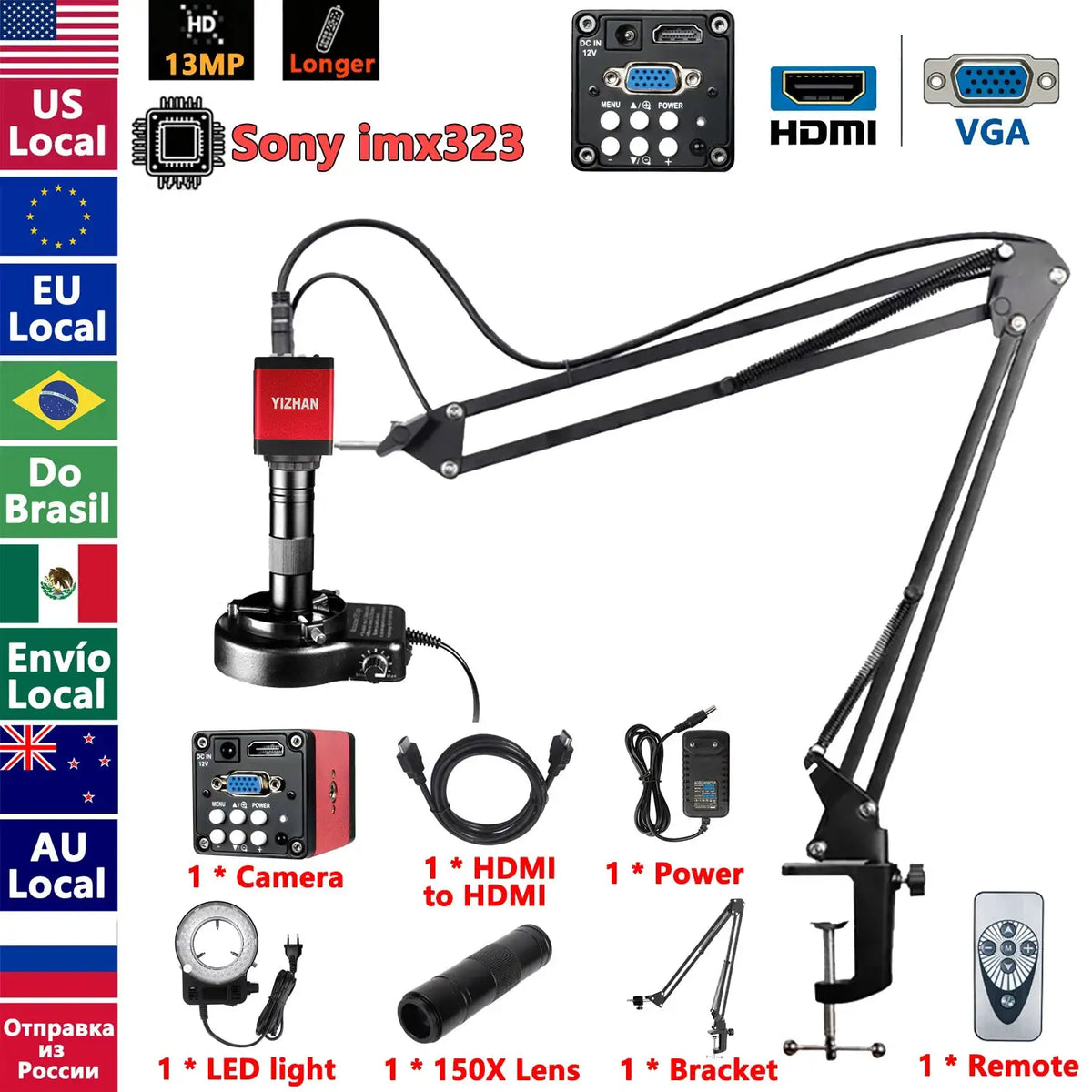

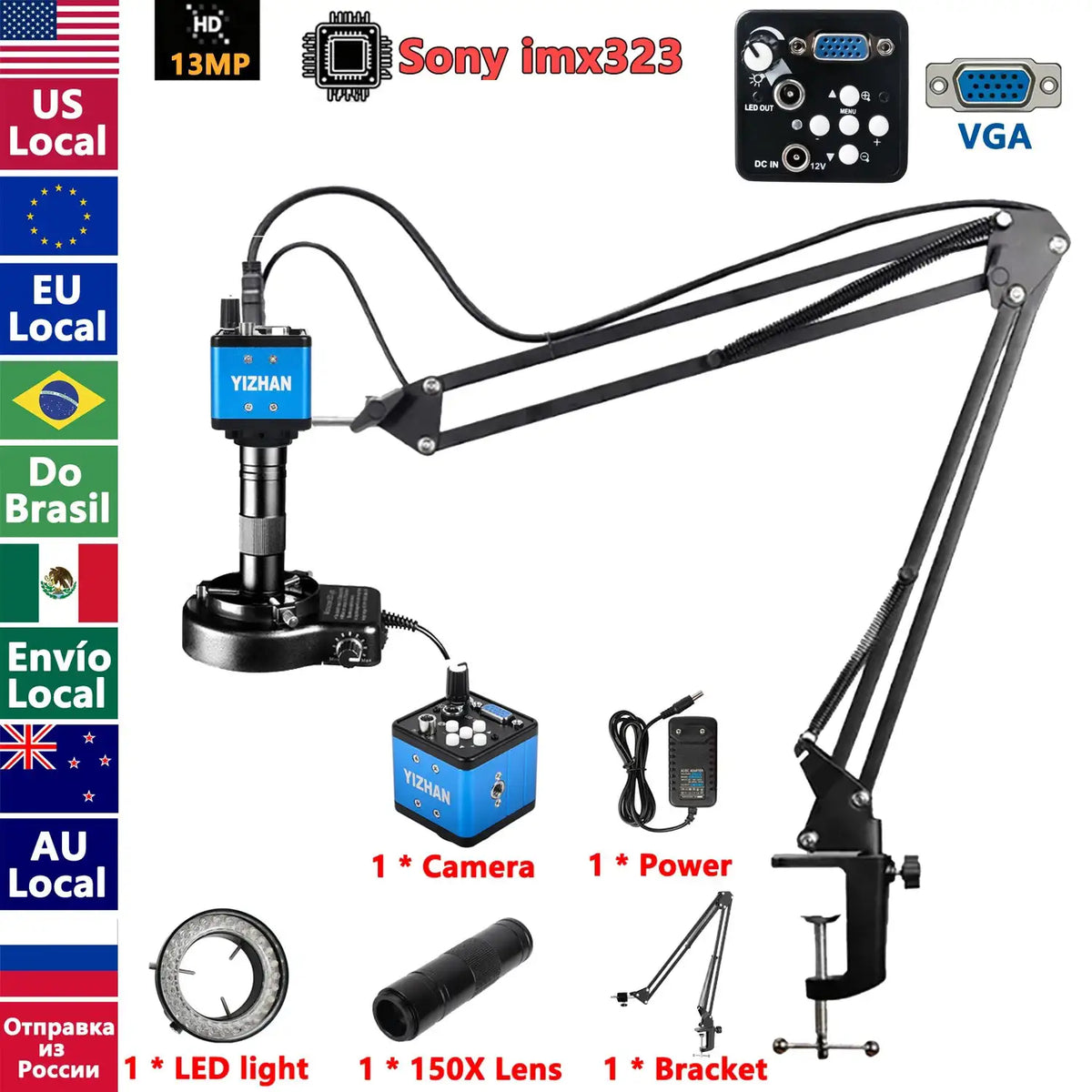

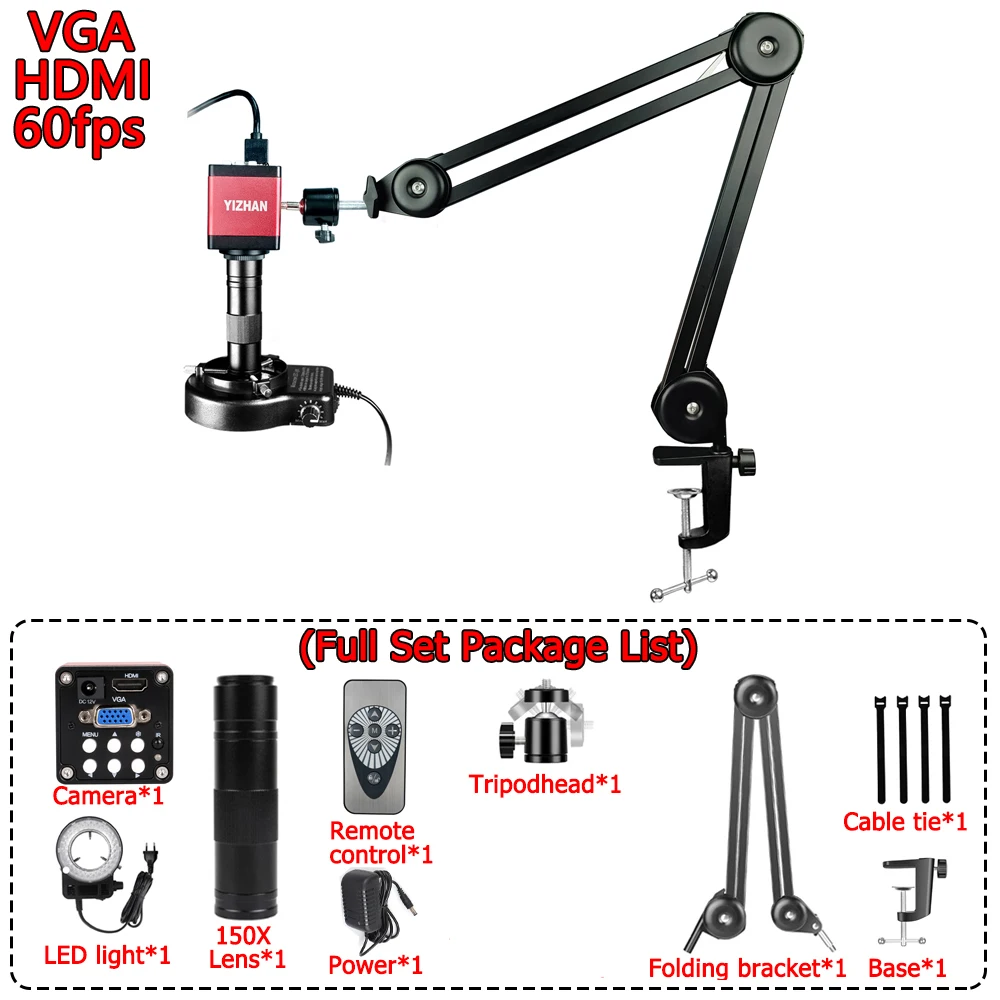

🔥13MP GC2083 sensor Reinforced Microscope Set Package including
1 * Microscope camera
1 * Microscope lens
1 * LED light
1 * Reinforced Folding bracket
1 * HDMI cable
1 * Instruction manual
1 * Power cord
1* Remote control

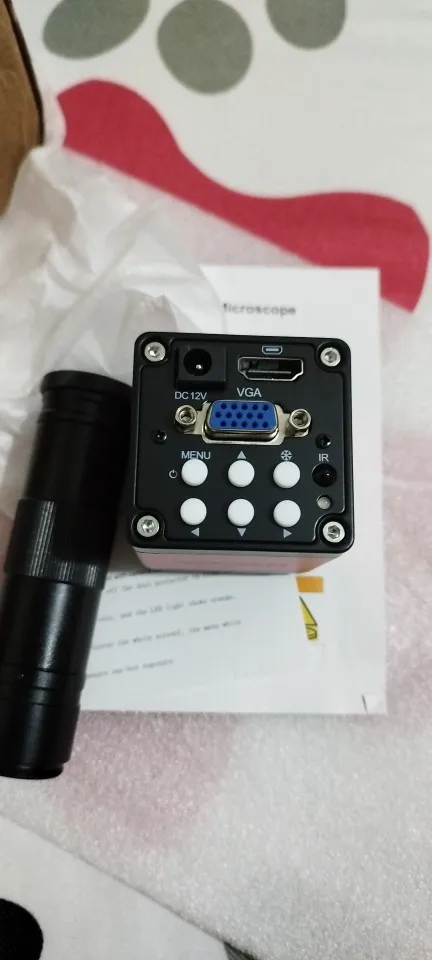

🔥VGA 30FPS 1080P Camera
Chip: Sony imx323
Output display resolution: 1920*1080/1600*1200/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600 (supports various displays on the market)
Overall dimensions: 70*50*50mm
Video interface: VGA
Lens: CS
Working voltage: 12V
Working current: 150mA
Optical format: 1/2.7""
Pixel size: 3.0um*3.0um
Pixel array: 1920*1080
TV line: 1200TV line
Maximum image frame rate: 30FPS
Scan mode: progressive scan
Shutter mode: electronic shutter
Dynamic range: 60dB
Wireless signal-to-noise ratio: 45dB
OSD language: English/Chinese
AWB mode: one-time white balance/manual/auto
HDR: Adjustable
Crosshair: supports 8 colors/adjustable line width
Black and white: allowed
Negative: allow
Mirror flip: supports left/right/up/down
Freeze: Allowed
Compare: Allow
Manually set brightness, contrast, sharpness, saturation: Allowed
🔥Enhanced Bracket
🔥Product Show
Shop OurLum with confidence—secure payments, fast shipping, easy returns, order tracking, and reliable support.
At OurLum.com, we don’t just promise quality—we guarantee it. Every product is carefully selected and tested to meet real-life needs, and your satisfaction is 100% backed by our no-hassle return policy. If it doesn’t work for you, we’ll make it right—fast. Shop confidently knowing you're getting trusted products, secure checkout, and real support when you need it. Because at OurLum, your peace of mind comes first
Very good communication. I requested the software that works with the camera and received it immediately.

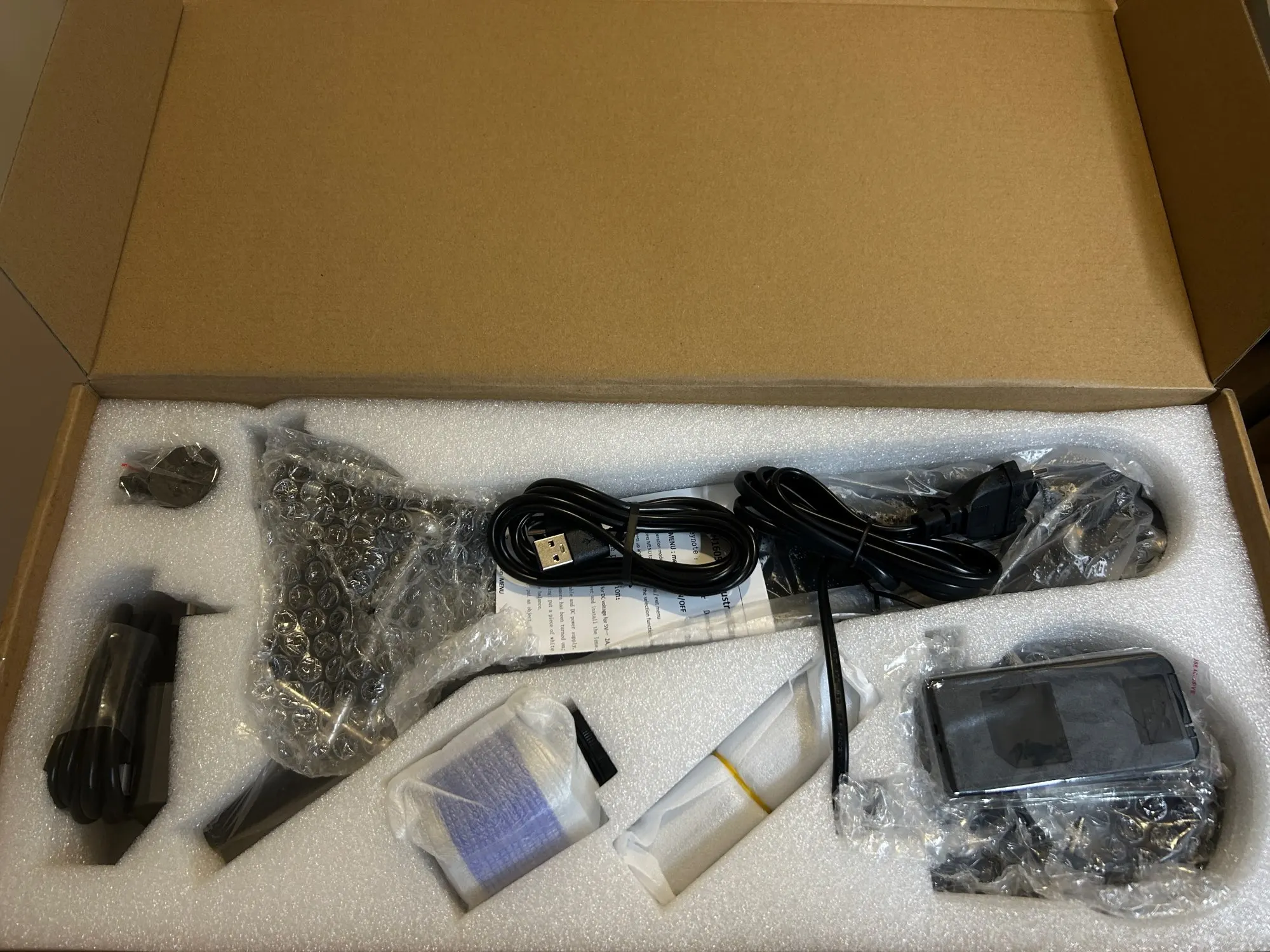

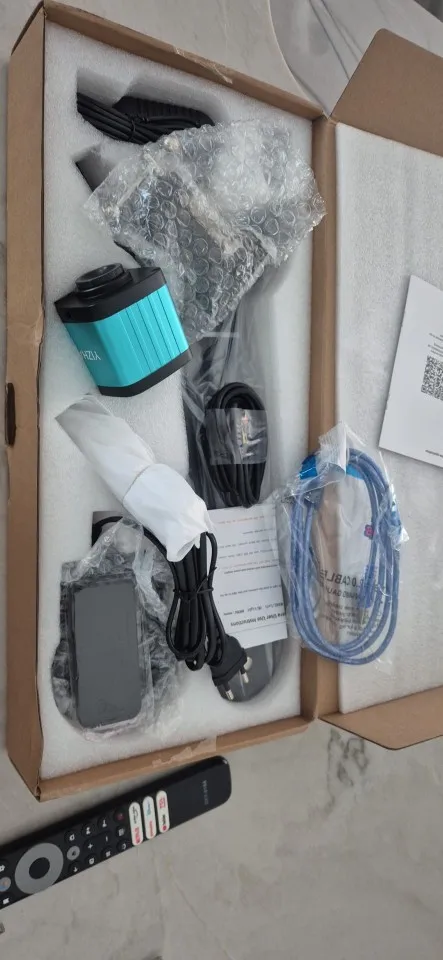

The equipment is very well protected.
Easy assembly.
Operation and definition of nickels.

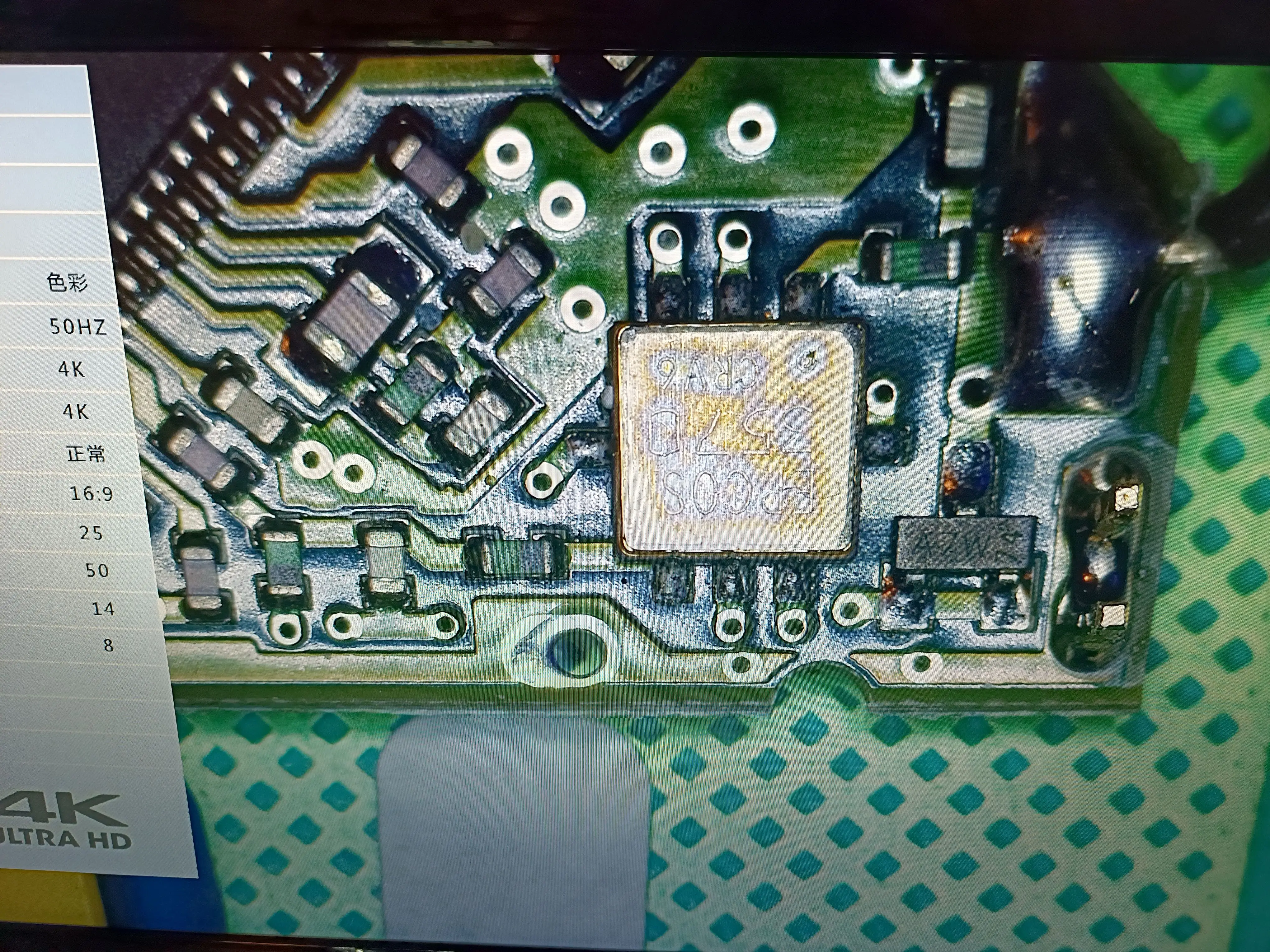

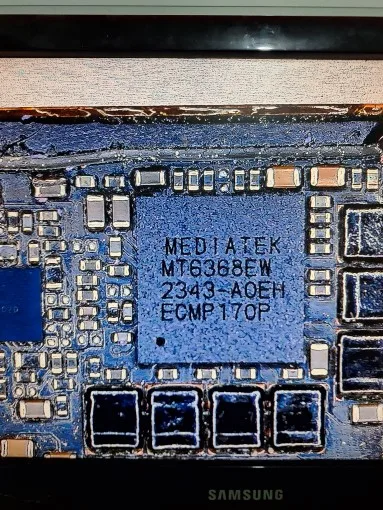

Excellent, it's more than enough to see the circuits, even though I didn't buy the 4K model, the image is perfect.
