Battery Included: no
Bearing inspection: Yes
Boom arm microscope: Yes
Brand Name: Nice-power
Certification: CE,RoHS
Die & mold inspection: Yes
Drawtube: Monocular
Electronics rework: Yes
FPC inspection: Yes
Features: High Definition,Portable,Digital
Gear inspection: Yes
Gem grading: Yes
Gemstone microscope: Yes
High-concerned chemical: none
Jewelry microscope: Yes
Magnification Ratio: 500X & Under
Material: Metal
Measurement microscope: Yes
Mechanical parts inspection: Yes
Metal surface inspection: Yes
Model Number: 2003
Origin: Mainland China
PCB dimensional inspection: Yes
PCB inspection: Yes
PCB manufacturing quality control: Yes
PCB repair: Yes
PCB rework and repair: Yes
PCB solder joint defect detection: Yes
PCB solder joint inspection: Yes
PCB trace inspection: Yes
PCBA inspection: Yes
Phone motherboard repair: Yes
Plating layer inspection: Yes
Power Source: Usb rechargeable
Precision jewelry inspection: Yes
SMD component inspection: Yes
SMD soldering repair: Yes
SMT assembly inspection: Yes
SMT inspection: Yes
Semi-finishedproduct: No
Soldering: Yes
Theory: Video Microscope
Tool edge inspection: Yes
Tool inspection: Yes
Watch movement inspection: Yes
Watch repair: Yes
electronic component documentation: Yes
metalworking: Yes
mobile phone PCB repair: Yes
🔥The main differences between microscope cameras

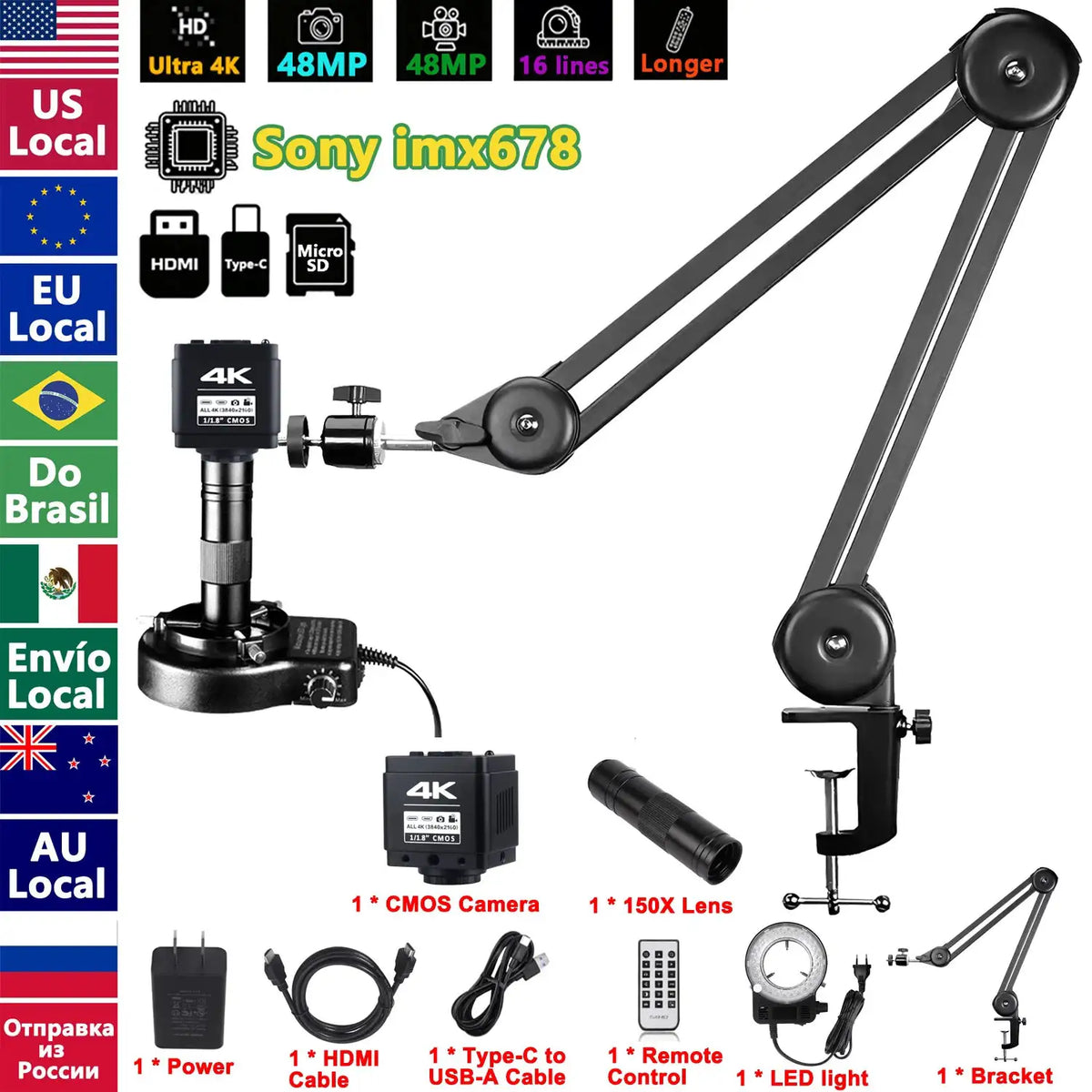

🔥150X Microscope Kit
The advantages of this 150X microscope kit are its long working distance and large field of view, yet its light filtering performance is relatively weak. It is suitable for the following applications: PCB soldering and rework, mobile phone/tablet motherboard repair, plastic part and mold inspection, overall PCB examination, electronic component testing, electronics repair, and more.
If you need a high-magnification lens to observe reflective metal objects, you can try our 215X microscope kit. If you want a microscope kit that supports zooming in and out while keeping the lens stationary, our 180X microscope kit is recommended.
🔥4K UHD 1/1.8in Sony imx678 Sensor Microscope Camera Usage Effect Reference
After assembling the microscope, the first step is to prioritize using the one-click exposure function. Then, place a piece of white paper horizontally directly below the lens and perform a one-click white balance. In most cases, this will achieve the most suitable results for your working environment.(Don't forget to turn on the LED light)
🔥4K SONY IMX678 Ultra HD Camera(48MP photography)
◆Using 8.29 million pixel Sony CMOS image sensor;
◆Using 1/1.8 inch image sensor;
◆HDMI 3840*2160 30 frames/1080P 60 frames image output;
◆USB2.0 driver-free output 3840*2160 30 frames of image output;
◆4K video recording;
◆4K photo taking
◆One-button freeze/thaw function;
◆Electronic zoom function;
◆Support manual/automatic exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance, red, green, blue adjustable;
◆Provide 16-line drawing function, line color, thickness, position adjustable;
◆Provide center crosshair display/off;
◆Support TF card storage, maximum support 64GB;
◆Support remote control operation, no shaking when taking pictures, clearer images;
◆Support Chinese and English menu languages (default English);
◆Support shutdown setting parameter saving;
◆Sturdy metal shell;
🔥Specifications:
Specifications:
Sensor: 1/1.8-inch Sony 8.29 million pixel CMOS sensor
Pixel size: 2µm × 2µm
HDMI output: 3840*2160 30 frames/1920*1080 60 frames
USB output: 3840*2160/2560*1440/1920*1080/1280*720/640*480/424*240/320*240 (MJPG)
Lens interface: C/CS
Exposure: automatic/manual
Exposure compensation: support
White balance: automatic/manual, support R, G, B adjustable
Storage: maximum support 64GB
Input voltage: DC 5V
Line drawing: support 16 straight lines, color, thickness and position adjustable
Center line: support
Menu language: English/Chinese/Traditional
Remote control: support
Packaging size: 145*130*70mm
🔥You may be wondering what the actual difference is between different microscope chips.
Both use a 150X lens, and the stand and LED lights are exactly the same. As you can see, under the same distance and with the same accessories, the microscope kit with the Sony IMX678 chip produces more vibrant colors and a wider field of view than the one with the Sony IMX415 chip.
🔥HDMI connects to the display
1. It Can capture pictures and videos and save them on TF cards
2. It can capture up to 8M 8000X6000 HD images
3. 4K (30fps) /1080P(60pfs) MOV video is available
🔥USB-C/USB connection to computer
1. Install the ImageView on your computer
2. Through the ImageView program, you can get point spacing, parallel lines, vertical lines, line spacing, Angle, circle, radius, radian, rectangle, ellipse, concentric circles, center distance, and other measurement tools.
🔥Connect to PC via USB for operation.
You can first switch the language to your preferred one in the PC software. It allows you to take photos, record videos and adjust the video image more conveniently. There is also an additional measurement function, which will be of great help to your work.
🔥Effect of Exposure Adjustment on the Image
Whether you connect the device to a monitor or TV via HDMI, or connect it to a computer via USB, exposure is a key parameter. Properly setting the optimal value will help you obtain the best image quality.
How to adjust:
Under unchanged lighting conditions, turn on Auto Exposure and increase the gain value when ambient light is insufficient. When ambient light is too strong and causes overexposure, turn on Auto Exposure and lower the gain value.
🔥Function of White Balance
Correct light color cast and restore the true original color of objects.
1, Different light sources (indoor yellow lights, fluorescent lamps, natural overcast light and ambient lights) all have inherent color cast. White balance can correct yellowish, bluish and reddish tones in the image.
2, Under any ambient light environment, it ensures white paper, white housings and white electronic components are captured without yellow or cold tint. It calibrates the overall image color with white as the reference standard.
3, When shooting circuit boards, metal accessories and product appearances, the presented colors are exactly the same as what the naked eye sees, without color distortion or color cast. It is perfectly suitable for taking photos and recording videos for product display.
🔥Application Scenarios:
PCB inspection, electronic component documentation, mobile phone PCB repair, SMD soldering repair, PCB rework and repair, PCB dimensional inspection, PCB solder joint defect detection, SMT assembly inspection, PCB manufacturing quality control, PCB repair, Electronics rework, Phone motherboard repair, Soldering, SMT inspection, SMD component inspection, PCBA inspection, FPC inspection, PCB solder joint inspection, PCB trace inspection, metalworking, Tool inspection, Tool edge inspection, Die & mold inspection, Mechanical parts inspection, Bearing inspection, Gear inspection, Metal surface inspection, Plating layer inspection, Jewelry microscope, Gemstone microscope, Watch repair, Precision jewelry inspection, Gem grading, Watch movement inspection, Dentistry, SA care, Vet care, Pet care, Animal med, Vet med
🔥4K GC8613 HD Camera(60MP photography)
◆ Using 8.29 million pixel CMOS image sensor;
◆ Using 1/2.7 inch image sensors;
◆ HDMI 3840 * 2160 30 frames/1080P 60 frames image output;
◆ Type-C driver free output 3840 * 2160 30 frame image output;
◆ 4K video recording;
◆ 4K photography
◆ 60 million photos, JPG format;
◆ One click freezing/unfreezing function;
◆ 48 million pixel photography and 4K video recording;
◆ Electronic zoom function;
◆ Support manual/automatic exposure/one key exposure and exposure compensation value adjustment;
◆ Support manual/automatic white balance/one button white balance, red, green and blue can be adjusted;
◆ Provide 16 lines with adjustable color, thickness and position;
◆ Provide central crosshair display/closing;
◆ Support TF card storage, with a maximum of 64GB;
◆ Support remote control operation, and take pictures without shaking images more clearly;
◆ Support English Arabic, Russian, Japanese, Portuguese, Italian, Spanish, German, French menu languages;
◆ Support the saving of shutdown setting parameters;
◆ Aluminum alloy shell processed by CNC precision milling technology;
🔥4K SONY IMX415 HD Camera(48MP photography)
◆ Using 8.29 million pixel Sony CMOS image sensor;
◆ Using 1/2.8 inch image sensors;
◆ HDMI 3840 * 2160 30 frames/1080P 60 frames image output;
◆ Type-C driver free output 3840 * 2160 30 frame image output;
◆ 4K video recording;
◆ 4K photography
◆ One click freezing/thawing function;
◆ Electronic scaling function;
◆ Support manual/automatic exposure, adjust exposure compensation values;
◆ Support manual/automatic white balance, adjustable in red, green, and blue;
◆ Provide 16 line drawing functions, with adjustable line colors, thickness, and positions;
◆ Provide center crosshair display/close;
◆ Supports TF card storage, with a maximum support of 64GB;
◆ Support remote control operation, taking photos without shaking and clearer images;
◆ Support Chinese and English menu languages (default English);
◆ Support saving shutdown settings parameters;
◆ sturdy metal casing;
🔥13MP GC2083 HD Camera
Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
Pixel array:13MP
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dBAWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P
🔥1X-150X Zoom C-mount Lens:
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
🔥Microscope bracket
Shop OurLum with confidence—secure payments, fast shipping, easy returns, order tracking, and reliable support.
At OurLum.com, we don’t just promise quality—we guarantee it. Every product is carefully selected and tested to meet real-life needs, and your satisfaction is 100% backed by our no-hassle return policy. If it doesn’t work for you, we’ll make it right—fast. Shop confidently knowing you're getting trusted products, secure checkout, and real support when you need it. Because at OurLum, your peace of mind comes first
Great!! 👌
It arrived in Guatemala 🇬🇹 7 days after ordering, super happy with the delivery speed and the quality of the product!
I am very please with this microscope. there is a bit of unsharpness in the corners, but i have had much more expensive microscopes be worse than this. the quality and feel seems quite good and the resolution is great. thank you.

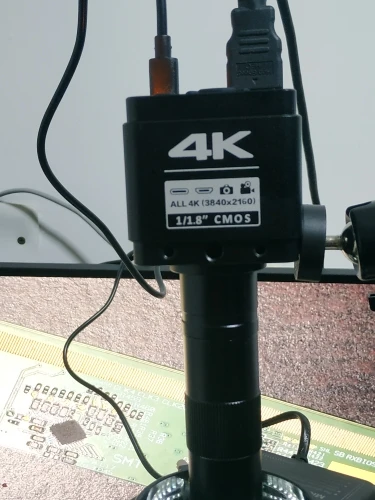

4K Electronic Digital Microscope for PCB Soldering/Phone Repair, HDMI USB IMX678 Chip Industrial Camera with Software/150X Lens
Received in just 2 days. good 4k quality. the stand is strong, but still too unstabilized.

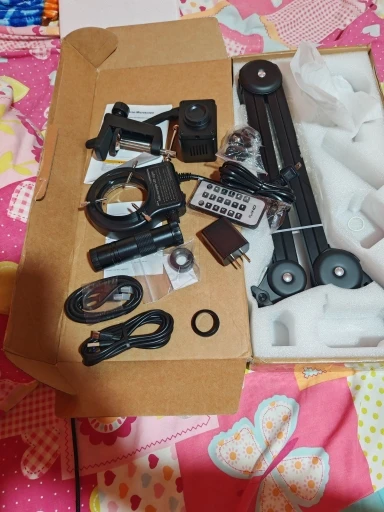

The microscope arrived after 2 days, which made me very happy. Packaged professionally. The quality of the equipment is excellent. This additional 0.5 lens sharpens the entire screen and makes working even better. I recommend it.
Perfect!
I am very satisfied with the seller and the equipment; it works perfectly. You can order with your eyes closed.
Very good product. Fast shipping and delivery. Working fine
Delivery took almost a month with meestExpress within Ukraine.
It arrived at the MMPO on September 1st and was picked up from the post office on the 27th.
Everything else is great.
Very good quality. Superb.
Ok
Delivery was very fast. there is no overheating at all even after an hour of using it just a little bit warm on touch 42 degree celsius. i ordered sony imx678 with 150x main lens and additional 0.5x barlow lens. the camera is true 4k over hdmi and usb c. communication with the seller was very fast also. they sent me the software over the email. in imageview program that they sent me you can set picture to be 2560x1440 there is no delay in picture . if you use it over usb c and 4k there is slight delay in picture. in 4k over hdmi there is no delay at all.
A reasonably good way to magnify the internal mechanisms of watches. The arm is surprisingly stable, but the LED lamp is really difficult to attach. Adjusting the height and aiming is also awkward. Additionally, the image is flat; with a binocular (stereo) microscope you can see more depth.
Good magnification only the focus you need to ajust alone.
The equipment works very well, I am still testing it. The image displayed on the monitor is excellent and has a lot of detail.
It has basic optics, but for me it's enough because it leaves space to work well and comfortably.
About the store, I can only say that it is one of the best I have found on AliExpress. The service has been excellent, with constant attention to the customer, providing solutions to complete the purchase and ensure it arrives at home.
Imx678 camera is great but the arm for it is trash and wobly

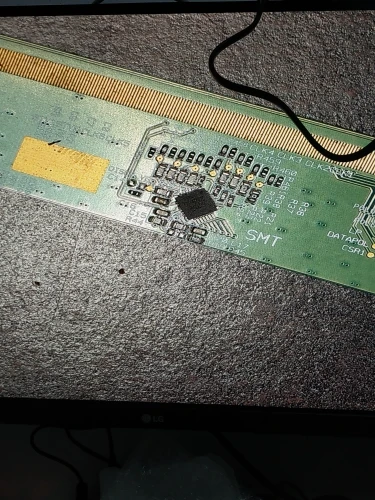

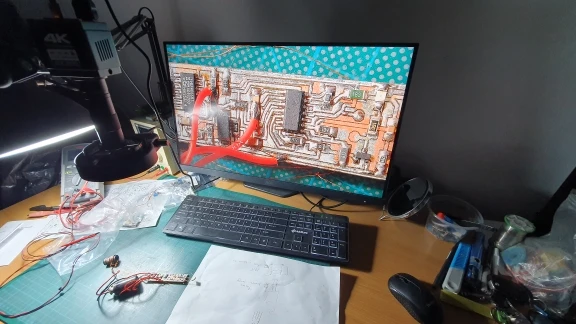

Everything is fine. A handy tool for examining boards and soldering. I don't know about the more expensive models, but this one is quite satisfactory. Maybe the more expensive ones will be even better, but for soldering and trimming, this one shows everything quite well.
