Battery Included: no
Brand Name: YIZHAN
Certification: CE
Drawtube: Monocular
Features: High Definition,Handheld,Portable,Digital
Features 1: Maximum working distance of lens 100CM
Features 10: kids microscope
Features 11: jewelry microscope
Features 12: microscope binocular
Features 13: magnifier microscope
Features 2: microscope for soldering
Features 3: HDMI usb microscope
Features 4: microscope for smartphone
Features 5: soldering microscope
Features 6: microscope usb
Features 7: stereo microscope
Features 8: camera hdmi microscope
Features 9: microscopes
High-concerned chemical: none
Is Smart Device: Yes
Magnification Ratio: 500X & Under
Material: Aluminium alloy
Model Number: Rzz4 1605-B Blue
Origin: Mainland China
Power Source: Others
Resolution Range: 180 NM - 500 NM
Semi-finishedproduct: No
Theory: Video Microscope
YIZHAN Model: YIZHAN-4002-150
Maximum working distance of lens 100CM!

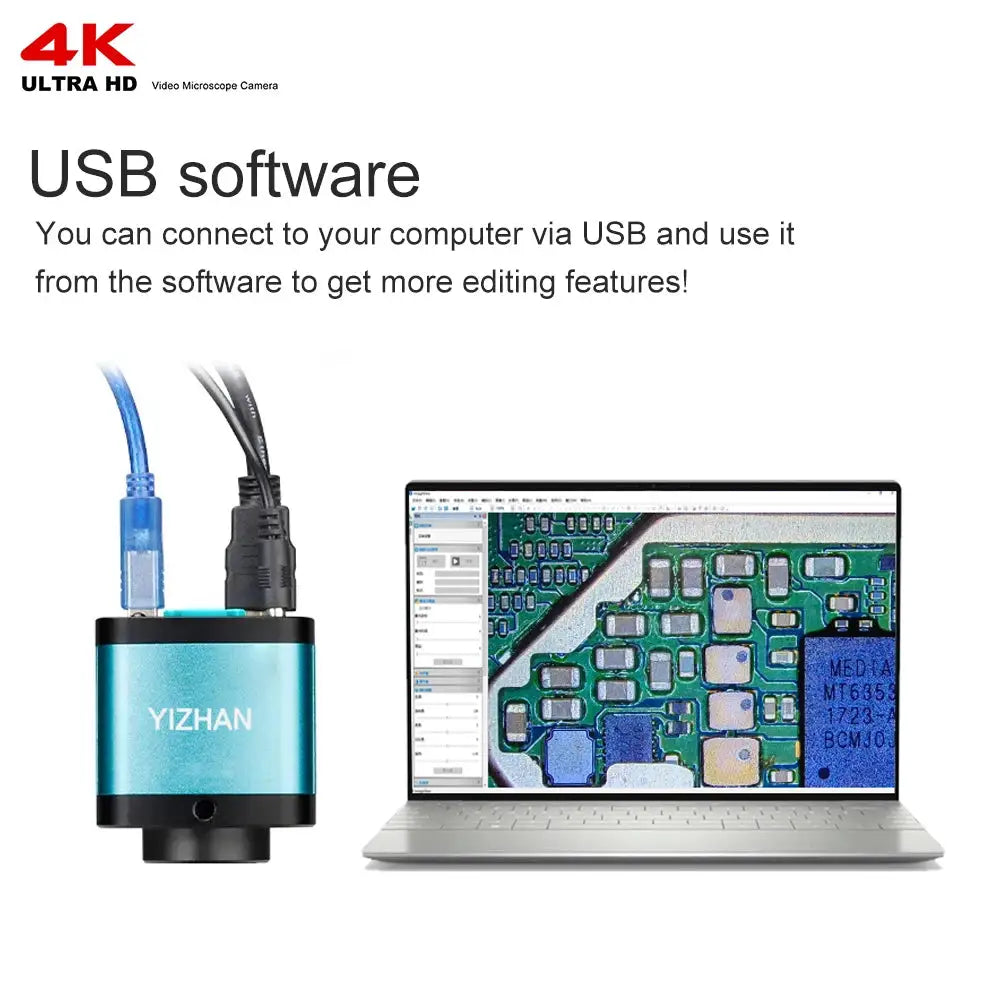

Software download addresshttps://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?usp=sharing

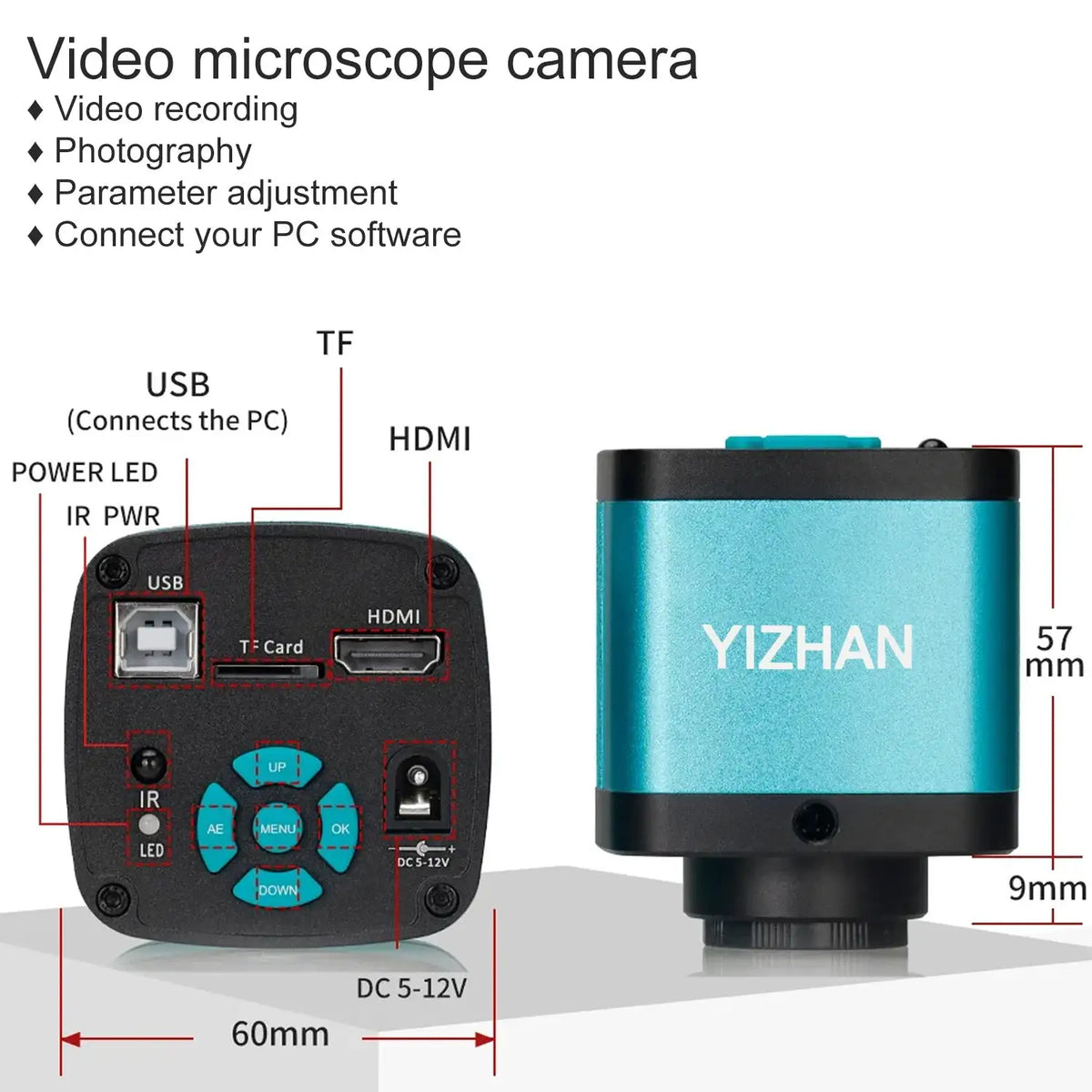

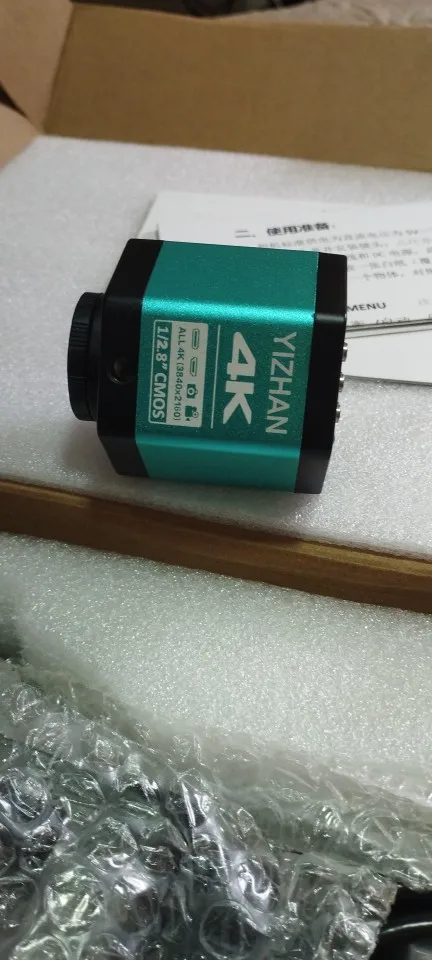

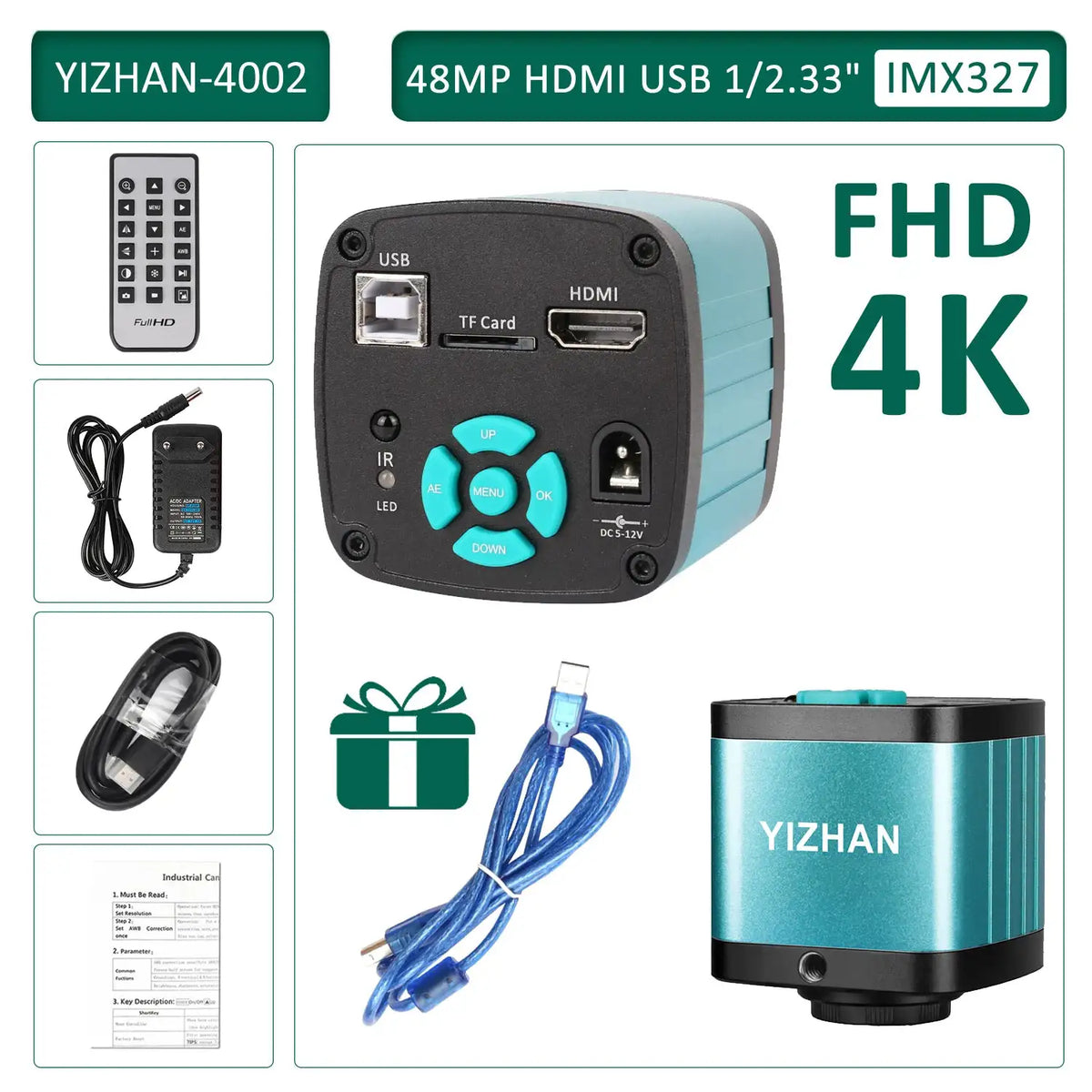

48MP HDMI USB 4K Camera:
Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel Sony sensor
Frame rate: 1920*1080 60F/S @ HDMI output
Video save Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A

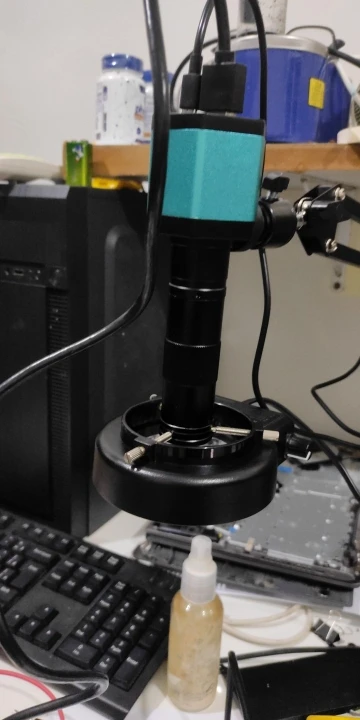

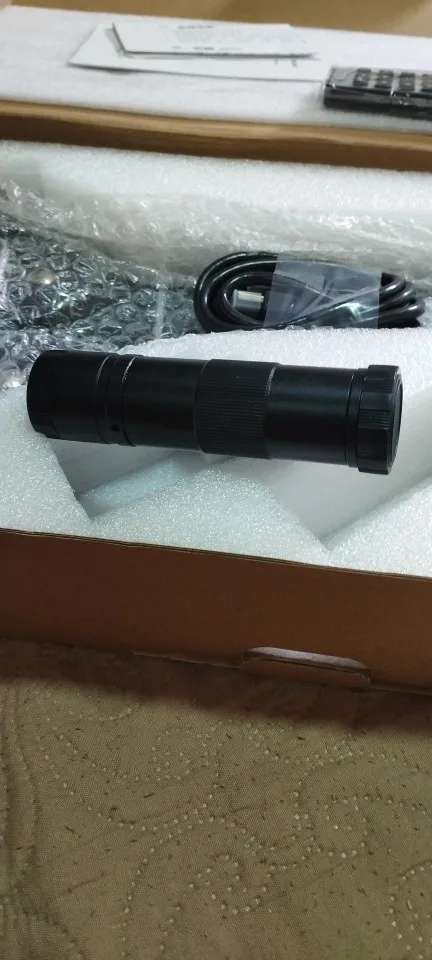

1X-150X Zoom C-mount Lens:
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g
56 bright white LED bulbs：
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Working distance:400mm

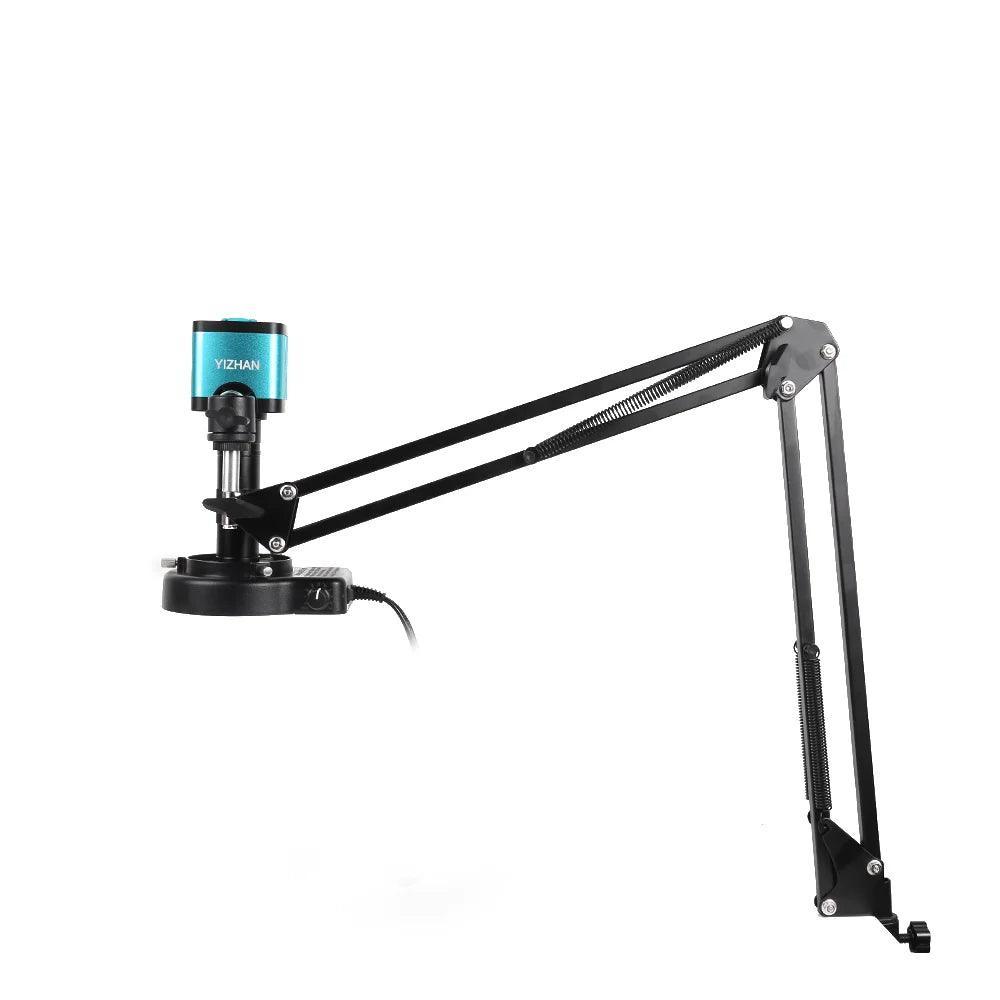

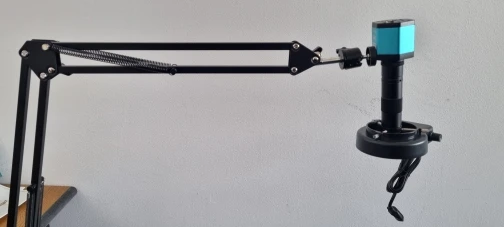

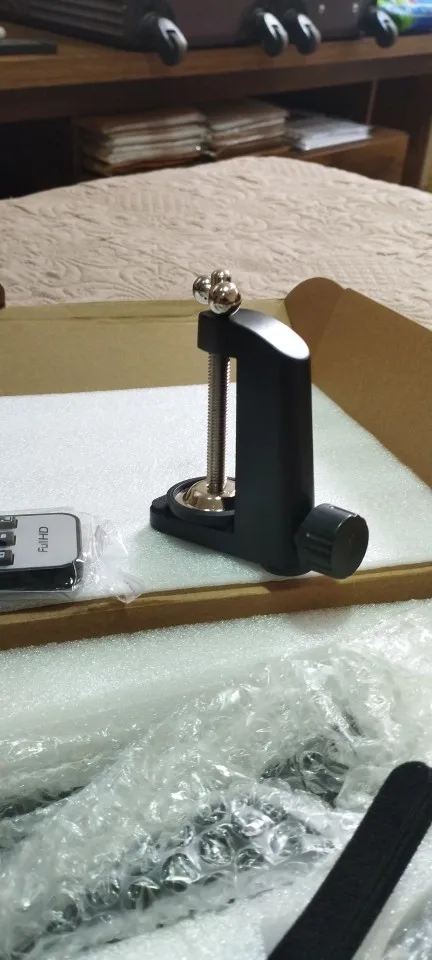

Adjustable bracket ：
size: 340mm+320mm
Maximum thickness of bracket installation: 50mm
It is recommended that when the working distance exceeds 40cm, please use a work desk lamp to fill in the light.

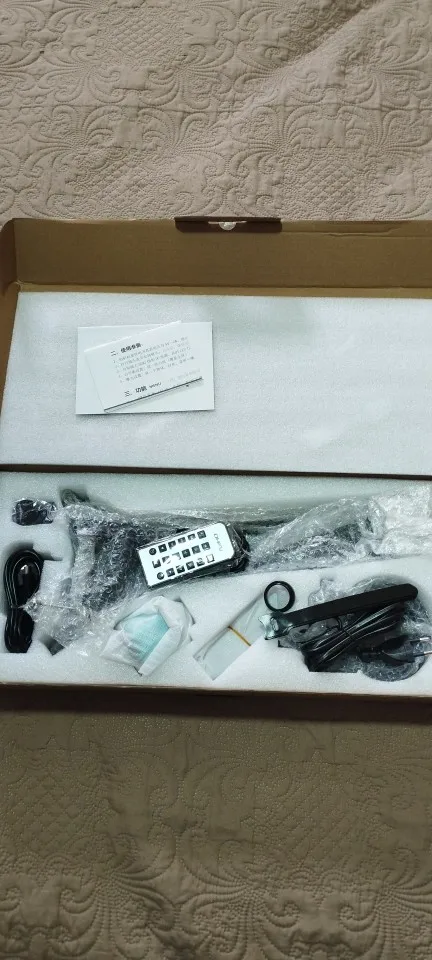

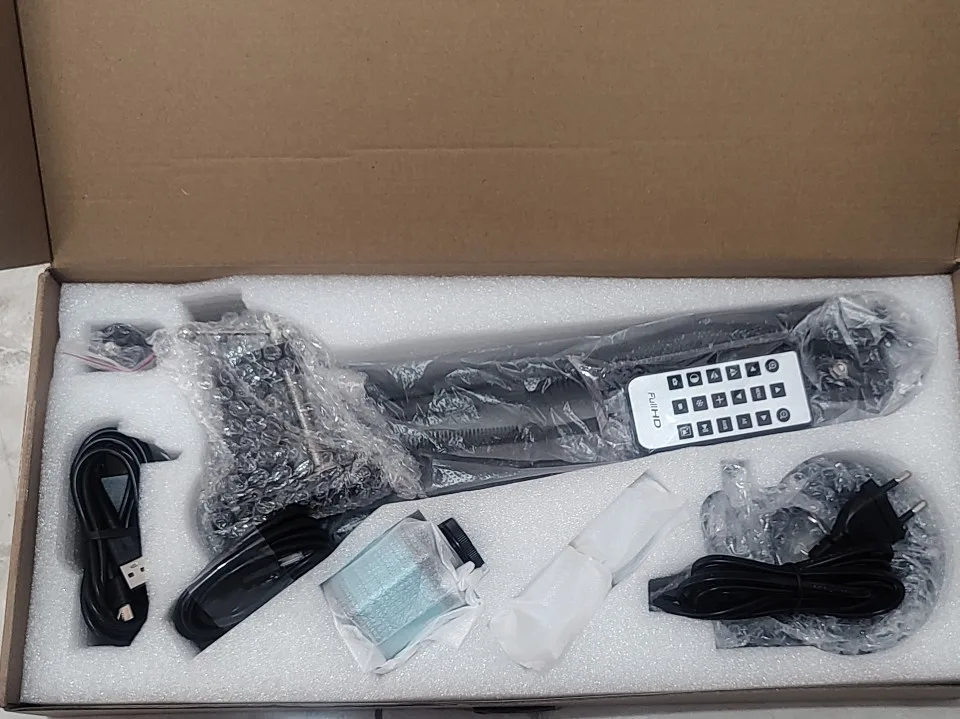

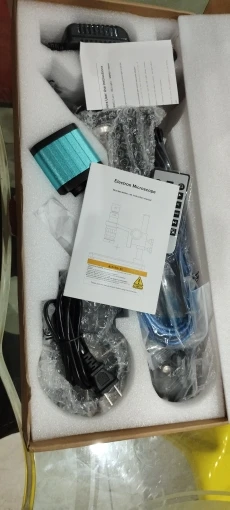

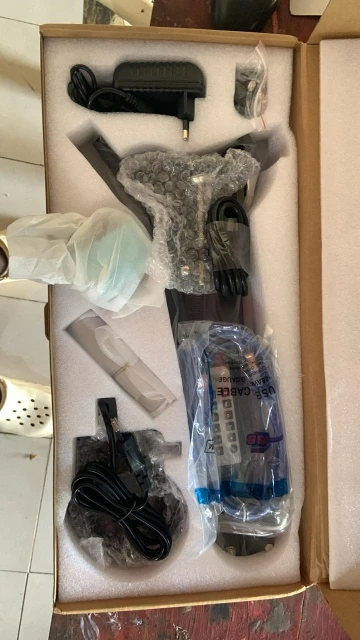

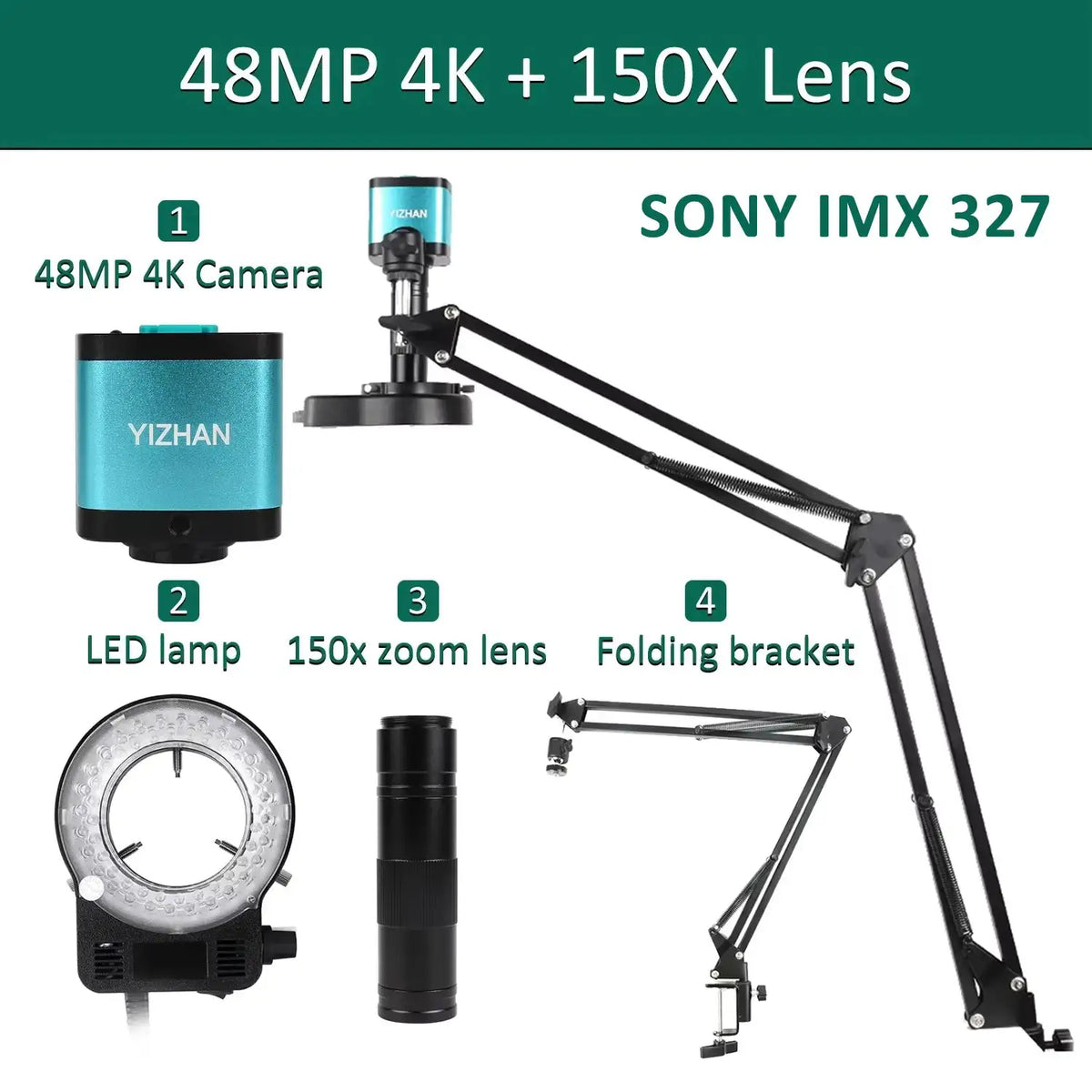

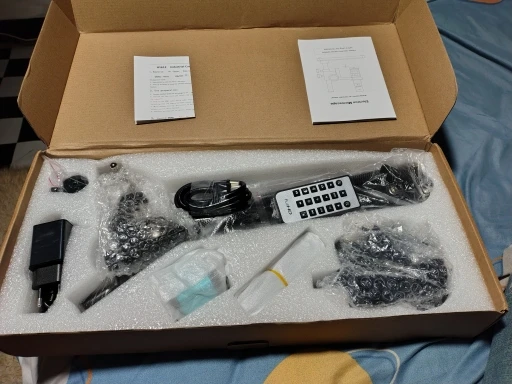

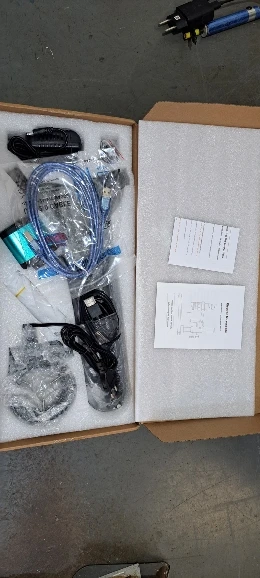

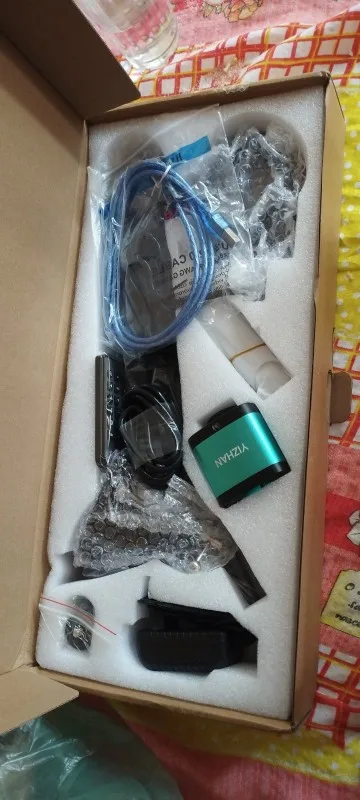

List of packing：

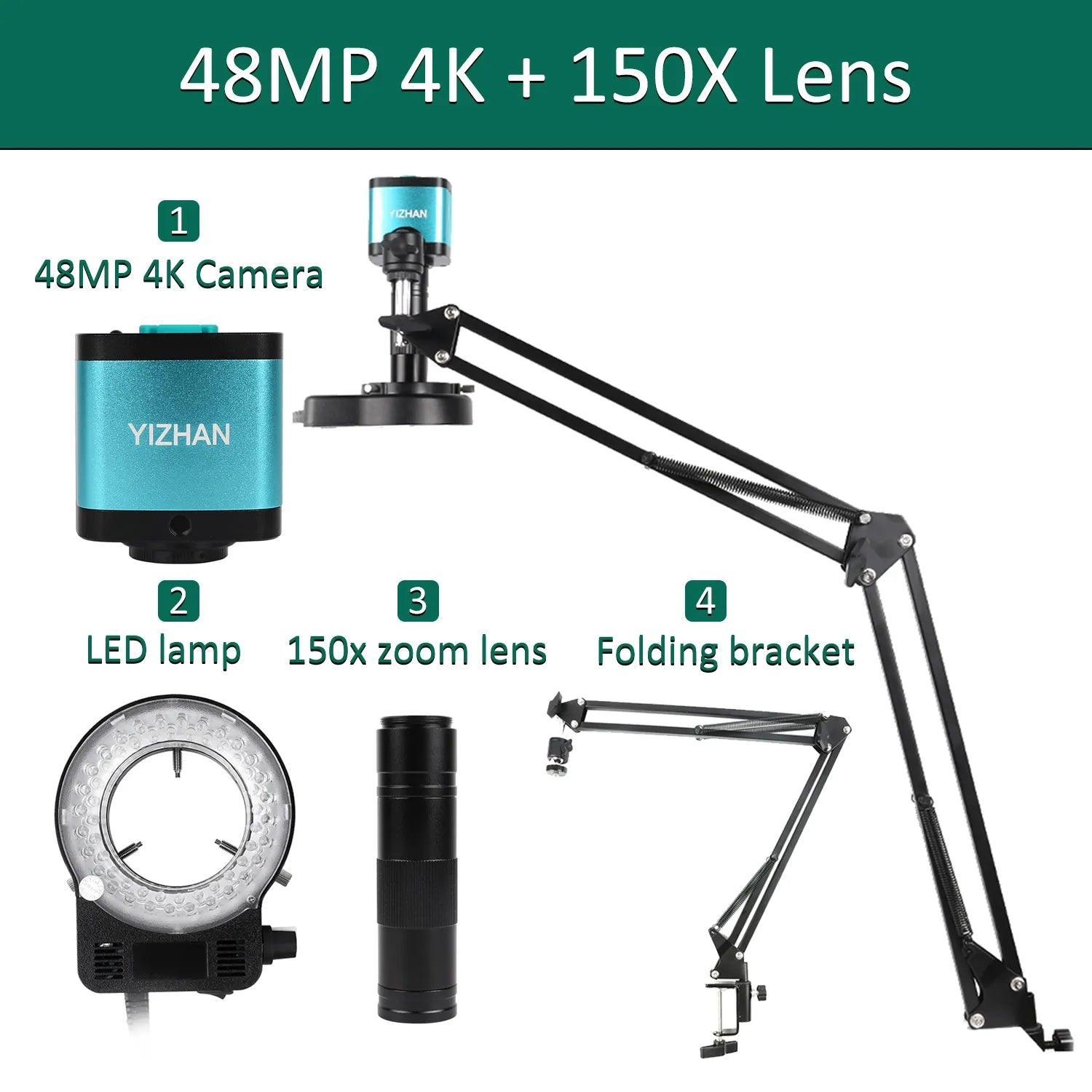

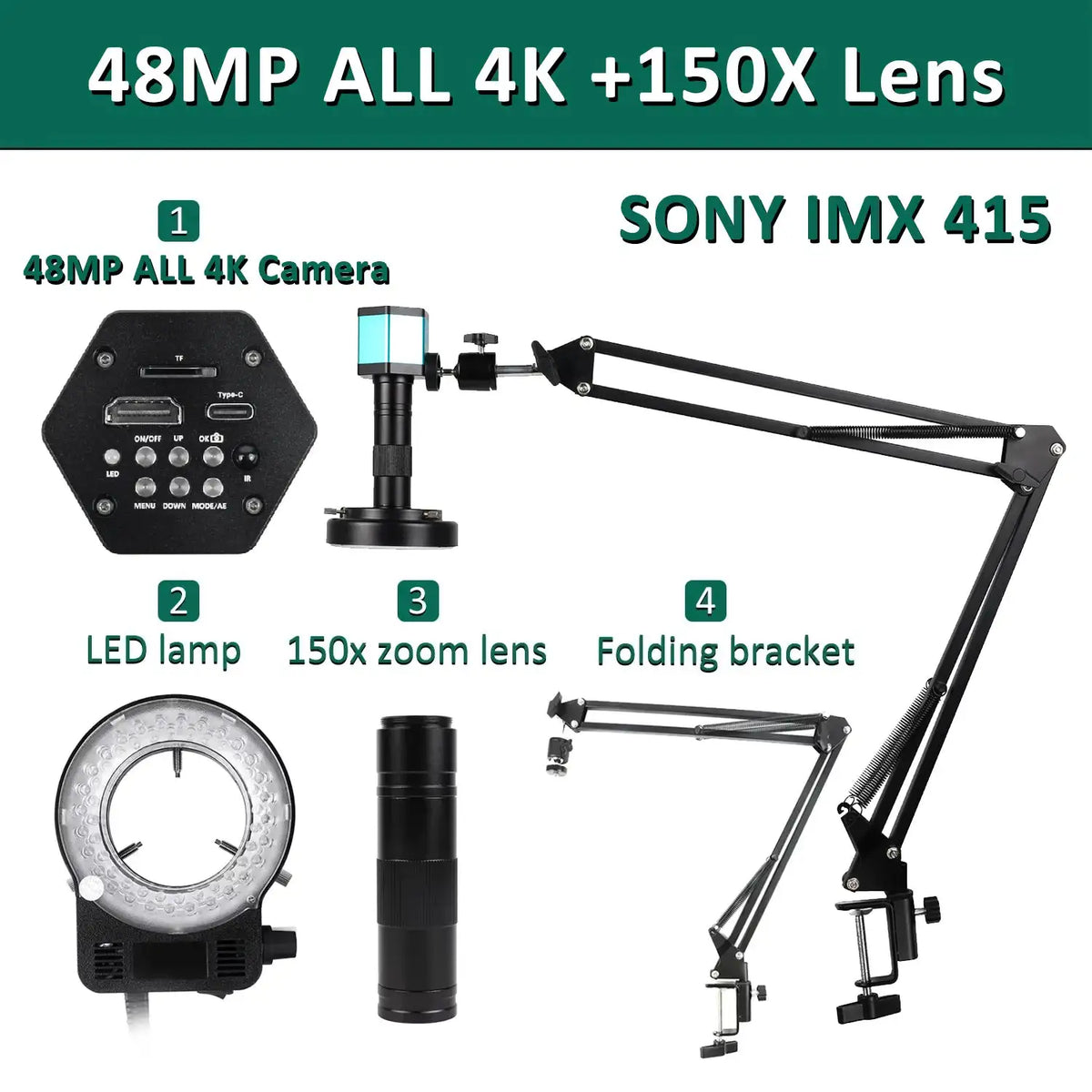

FUll Set：
1 x Microscope Camera
1 x Power Adapter
1 x IR remoter
1 x HDMI Lines
1 x USB Lines
1 x 150X lens
1 x 56 led ring light
1 x Stand

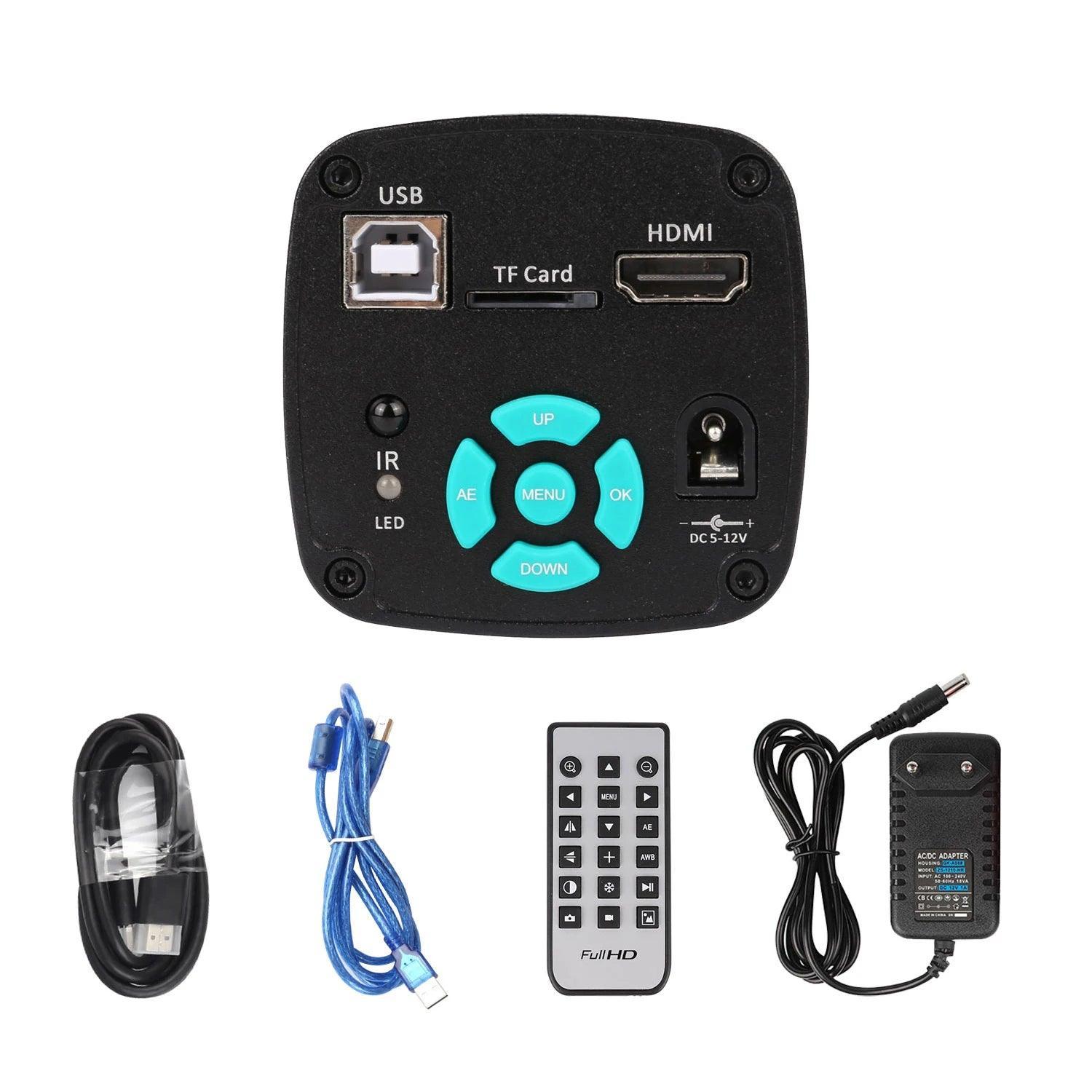

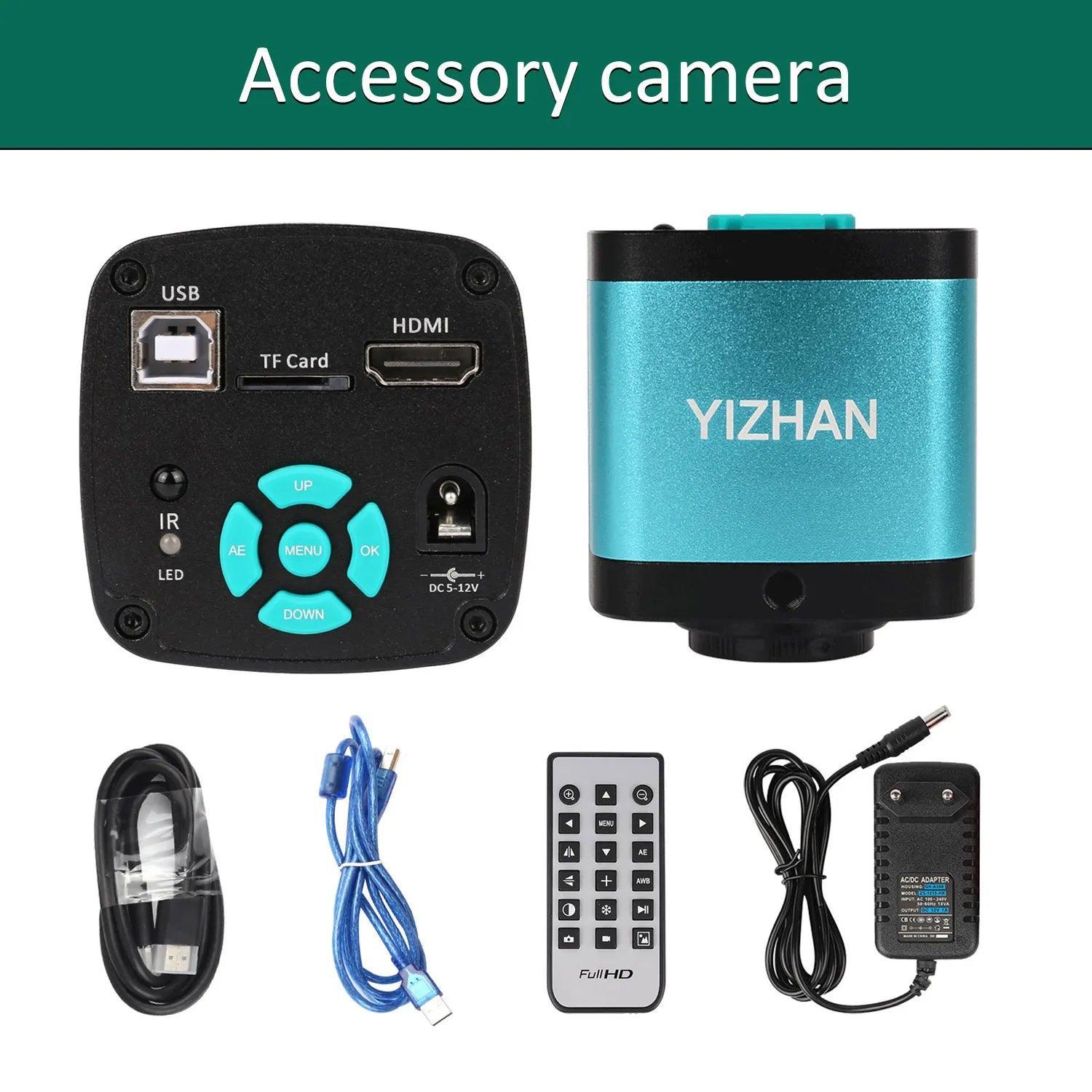

Only camera：
1 x Microscope Camera
1 x Power Adapter
1 x IR remoter
1 x HDMI Lines
1 x USB Lines
Note: If the logistics shows that your delivery address cannot be sent, please contact the store customer service actively. We can establish an exclusive payment link for you to send it to your address. In addition, we also support sending the package to China.
About Shipment
1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. All orders will be shipped out within 3 working days after we have successfully received your payment.
3. We offer regular Post Air Mail and have set up free shipping methods.
4. Since the trade is trans-national, as well as airmail is the cheapest shipping method, it will take a long time for delivery. If you don’t want to wait such a long time, please choose Express and pay the fee.
5. We are not responsible for your Customs duty.
Return & Refund
1. If items are found in bad condition when received, please contact us freely. We can refund the money or resend a new one to you.
2. If you are not satisfied with the product because of personal preference, you can return it to us within 7 days. You need to pay the freight.
3. All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your po#.
About Guarantee
12 months warranty
If you are not satisfied when you receive your item or with quality problem, please contact us, we can offer return or resend warranty but please offer evidence to show the problem actively.
About Feedback
We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
Shop OurLum with confidence—secure payments, fast shipping, easy returns, order tracking, and reliable support.
At OurLum.com, we don’t just promise quality—we guarantee it. Every product is carefully selected and tested to meet real-life needs, and your satisfaction is 100% backed by our no-hassle return policy. If it doesn’t work for you, we’ll make it right—fast. Shop confidently knowing you're getting trusted products, secure checkout, and real support when you need it. Because at OurLum, your peace of mind comes first

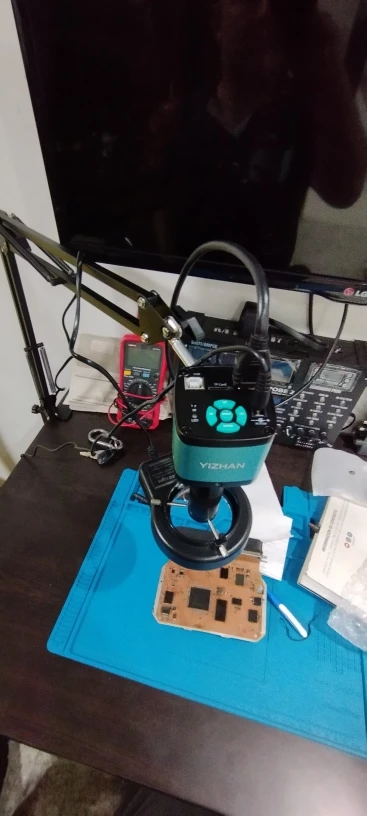

Very good equipment! I recommend it.
Things must be told as they are. And this microscope surprised me in a very positive way; the quality, shipping time, and image are excellent. Thank you very much. Highly recommended.
Excellent quality, clear image, loved it, highly recommended, tested and approved
Great

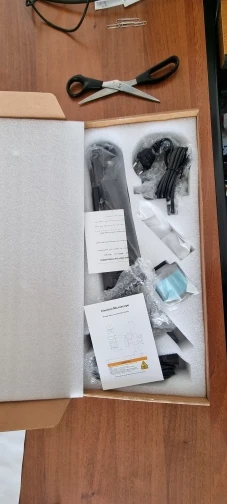

everything arrived in excellent condition

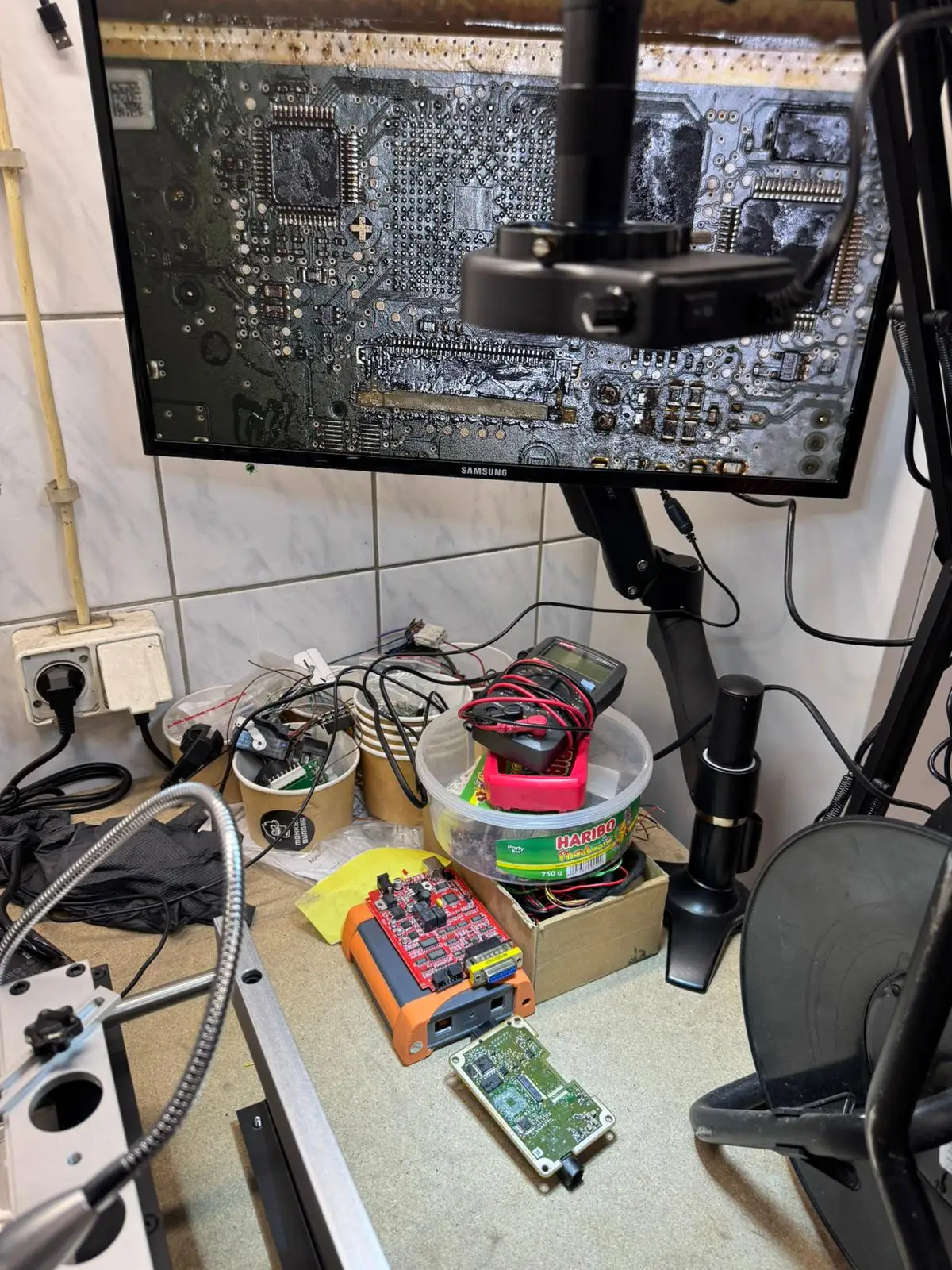

Great quality, very good image, and it has improved my maintenance tasks by 10 times!
Everything arrived as described... I recommend it to everyone...!!!
This was the best purchase I've ever made in my life. Attention, technicians, buy it and you won't regret it. I confess that I am very happy; it exceeded all my expectations. It arrived in 2 weeks, but I received it in 32 days due to the AGT tax and the INACOM authorization document. It was a struggle, but it was worth it, man.

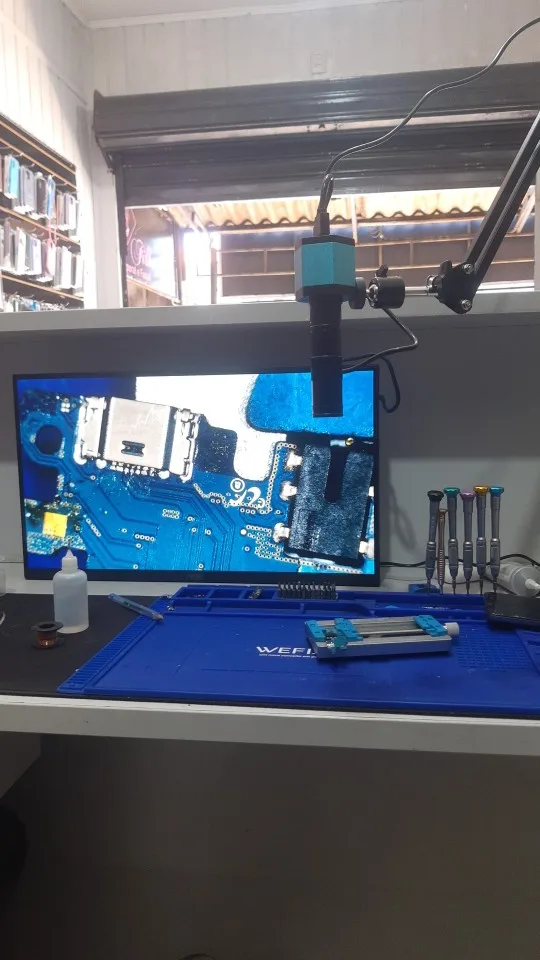

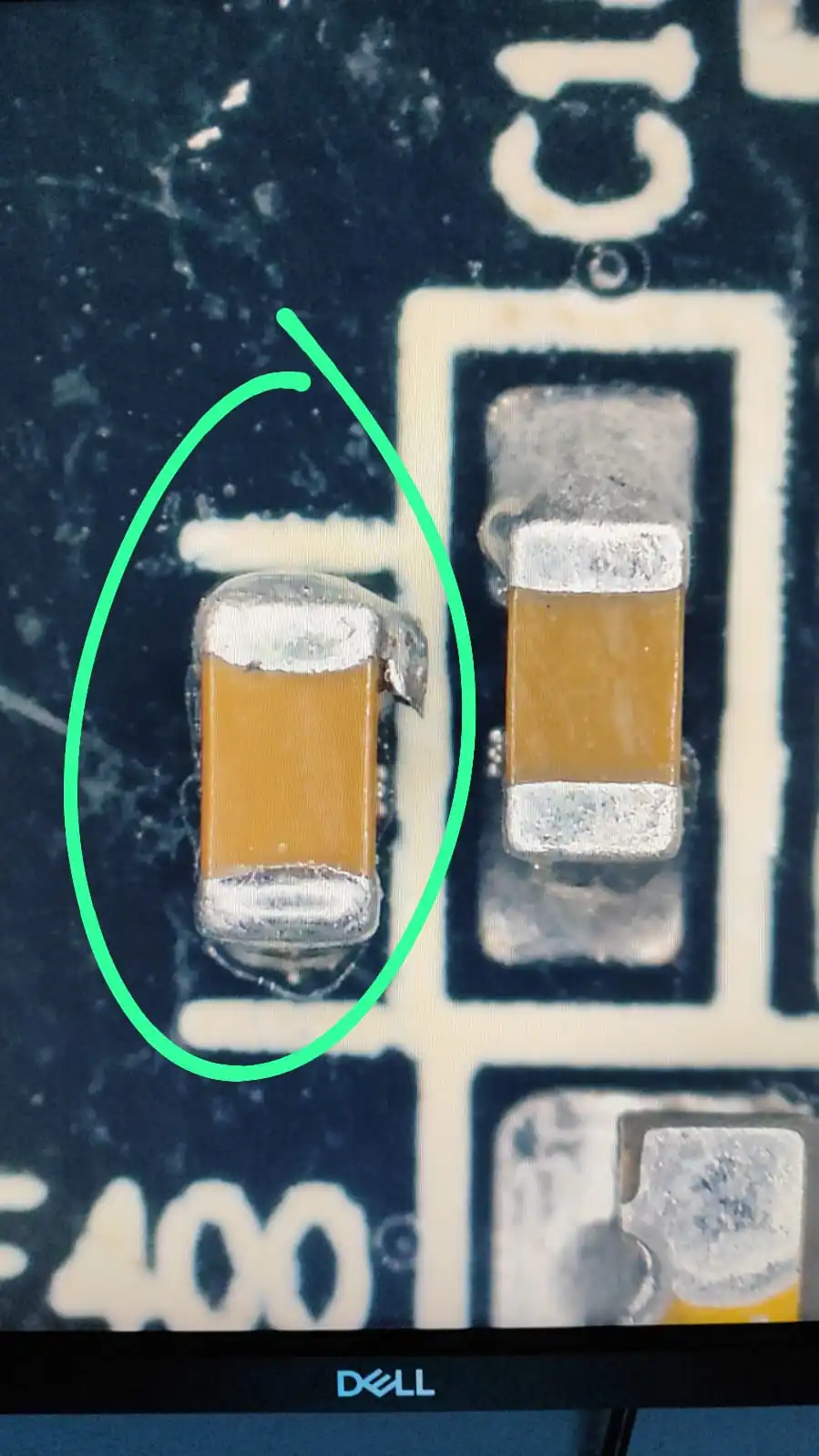

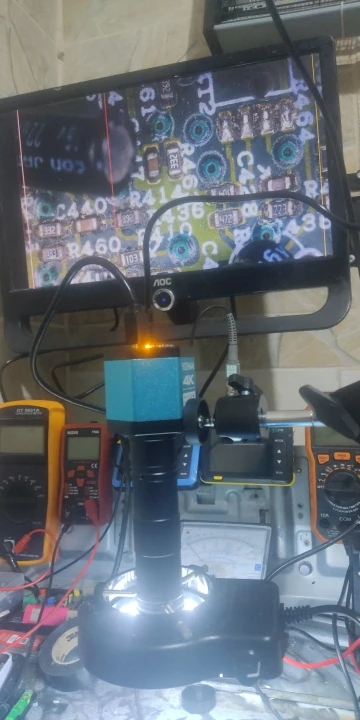

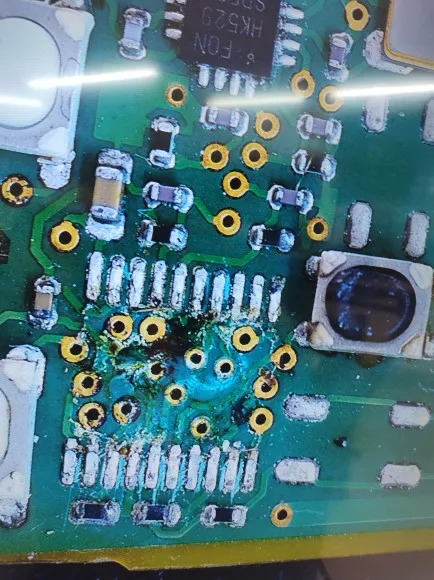

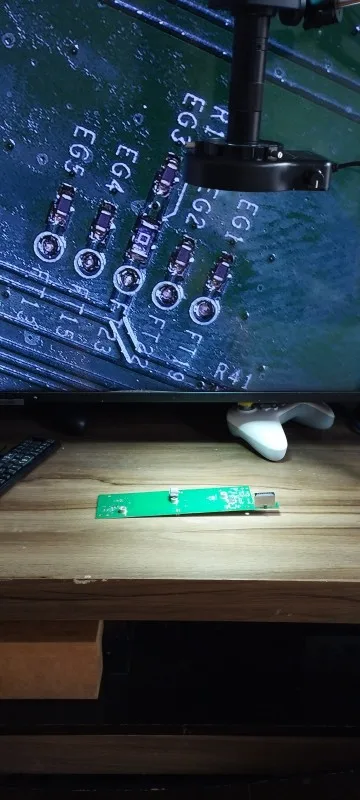

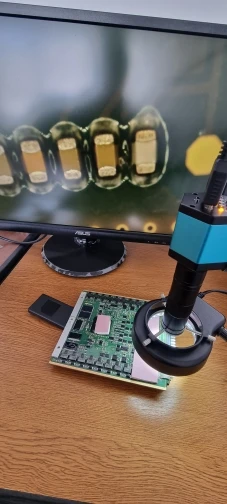

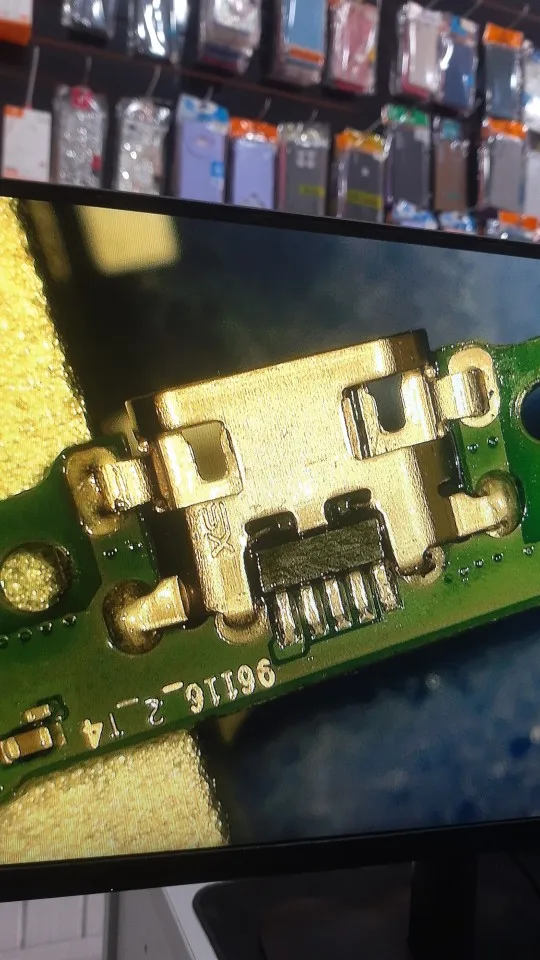

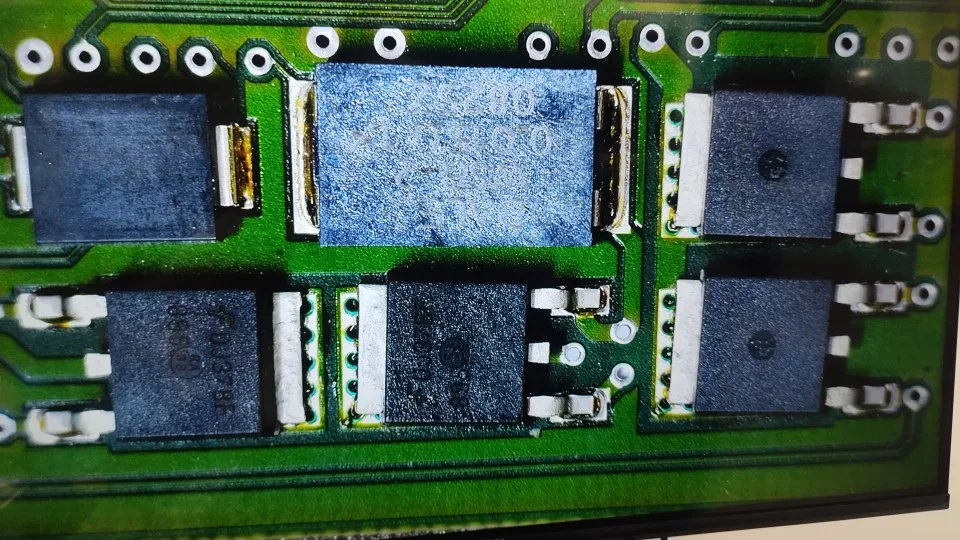

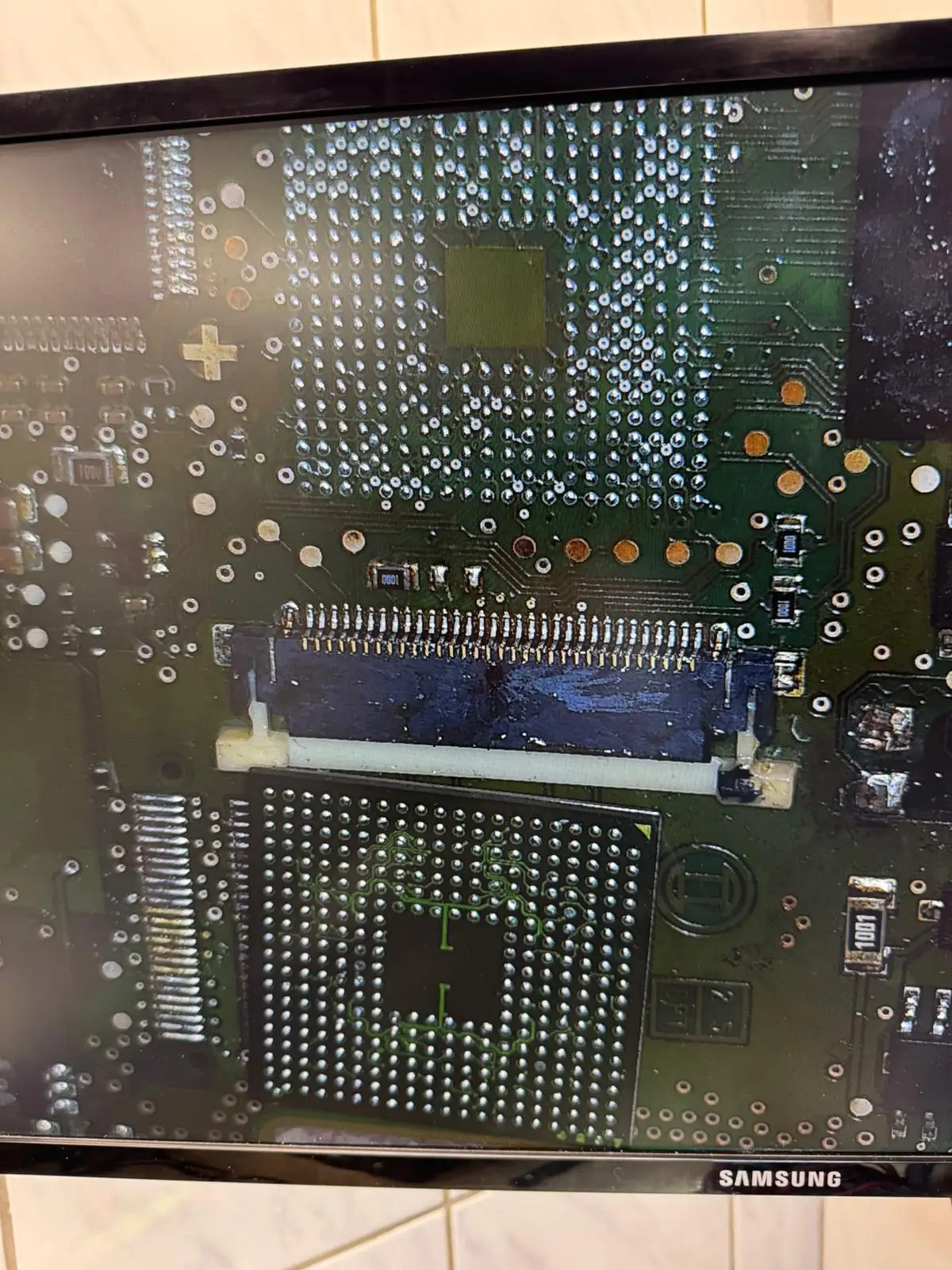

It has very good resolution and is functional for SMD component repairs; don't expect the quality of a trinocular, but it does help quite a bit.
It arrived 6 days late.
Good product.
Package okay. Fast delivery!
Very good and delivery was extremely fast.

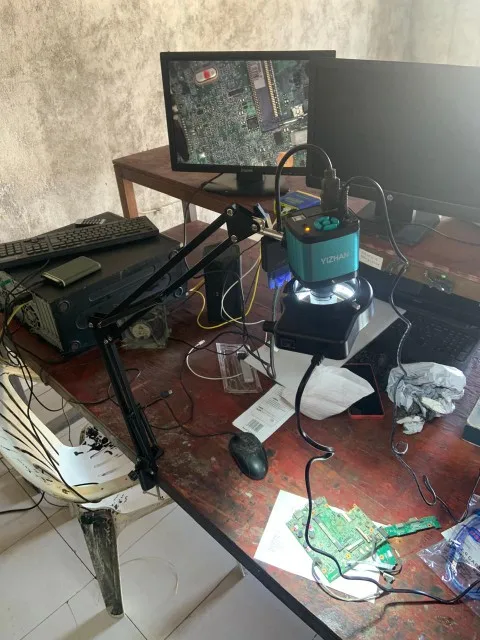

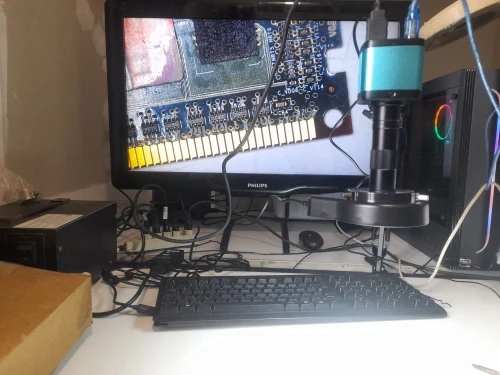

Cost-benefit is okay. I bought a monitor just for it, it wasn't 4K, and it only records in 4K, while the monitor only supports Full HD. If you're going to buy one, you need to improve the lighting in your environment. As for the adjustable stand, I found it bad for my use; it could have a wall-mounting option, but I'll figure that out myself. The vibration of the desk makes it wobble. But the camera is acceptable and the price is average for the market.
Everything working ok
Awesome product, way better than expected. Easy to use unfortunately no battery came with the remote but that’s no big deal
Wow took 3 days to get here so must be stock in ontario. Works great, instructions are lacking to put together. Unit works great
Item is as described. Works perfectly. I am very satisfied. Should have bought it years ago. From ordering to delivery, everything was great. Would buy something again immediately.
Everything arrived perfectly, I found it sensational, I recommend it to everyone from Aliexpress.

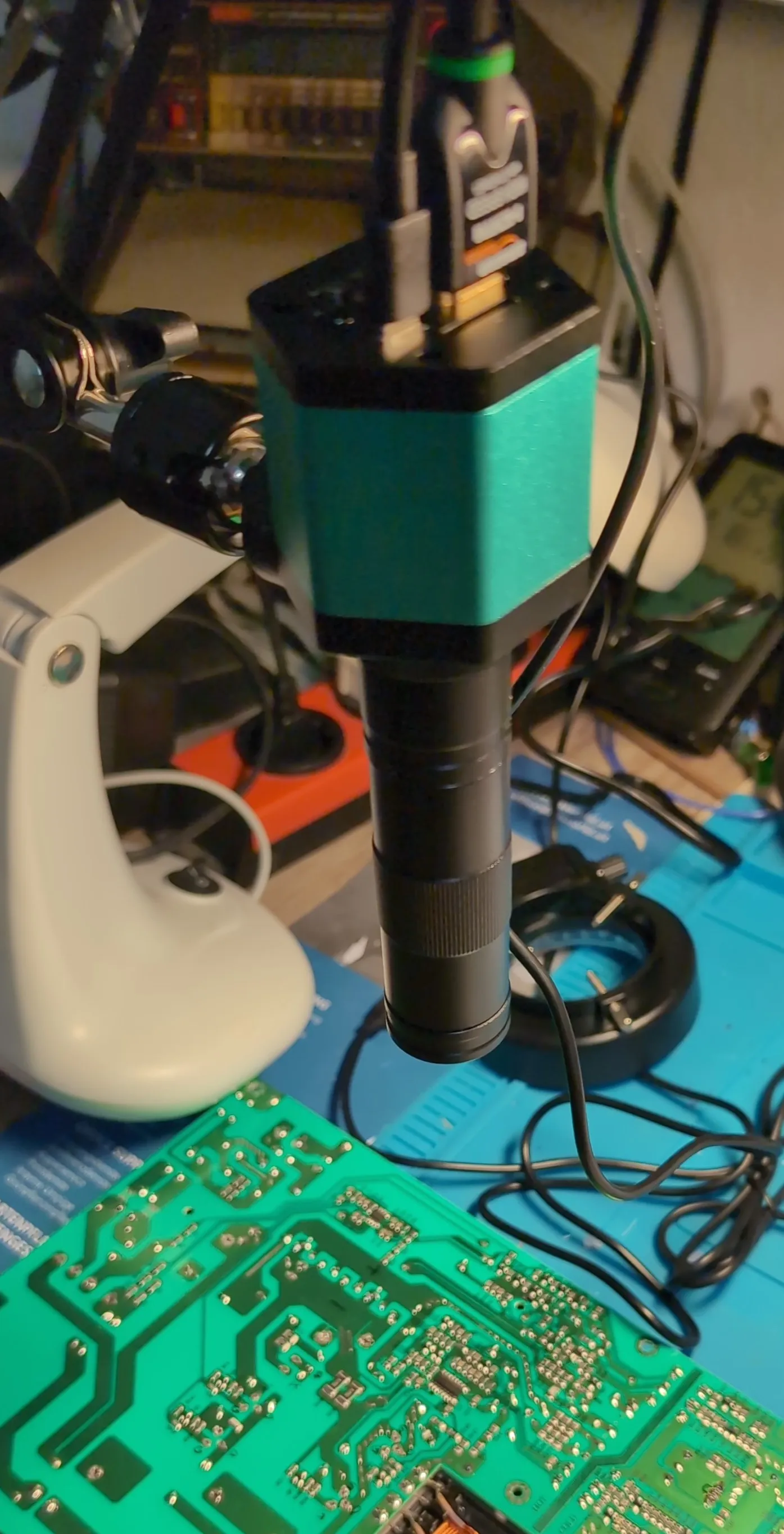

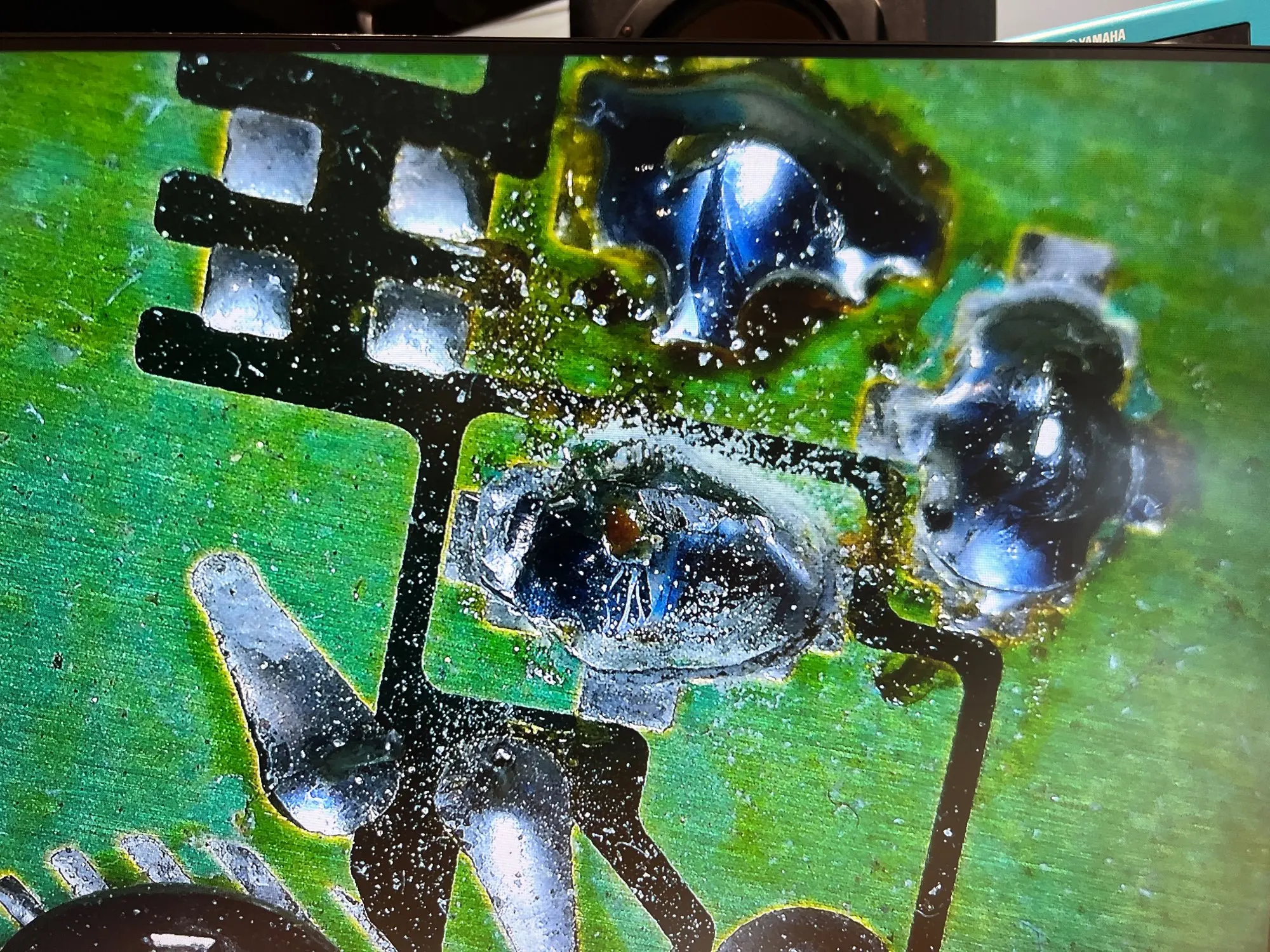

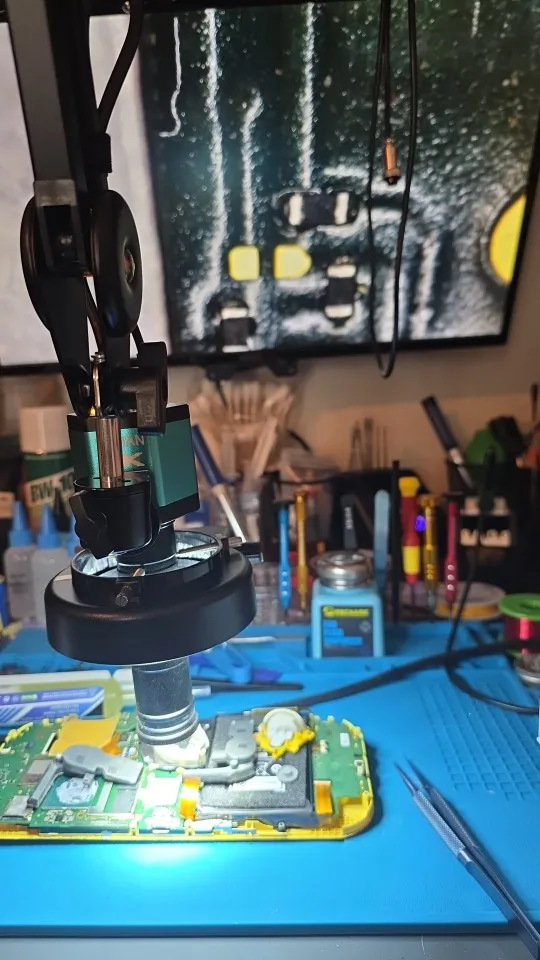

This microscope is great and has nice quality, zoom is good for microsoldering work that i do! 🔬 ✨ # Microscope # Quality # Zoom # Microsoldering # Work

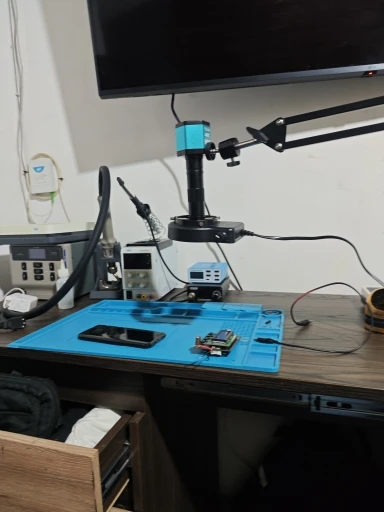

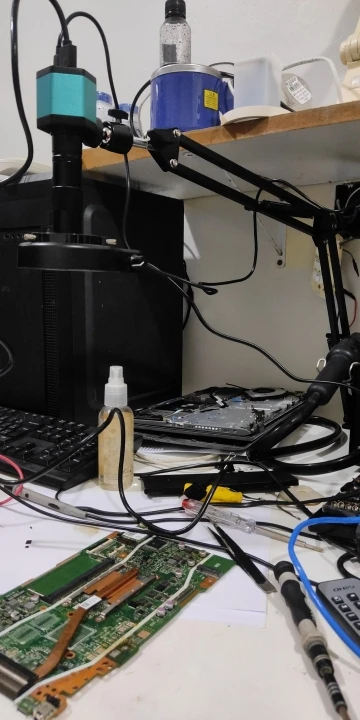

Great tool for the workbench, I already knew the product from a friend who had it, bought from the same source, happy with my purchase.
