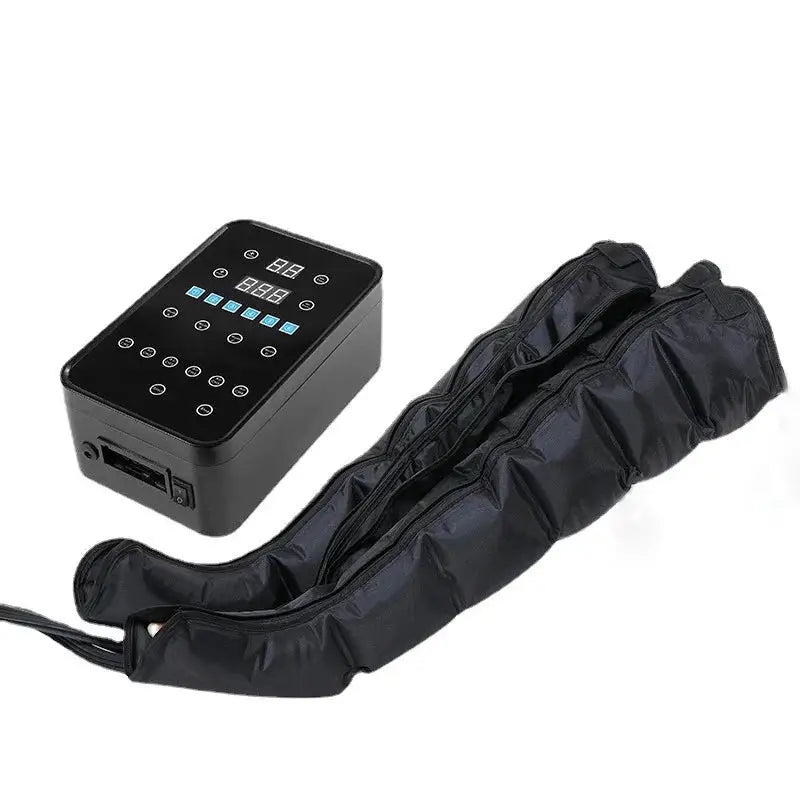

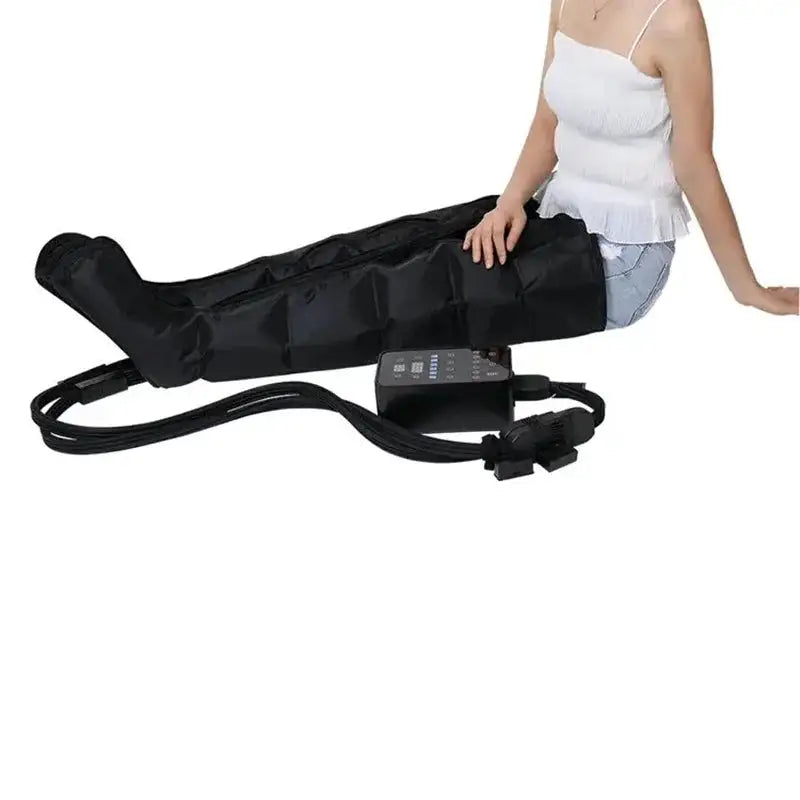

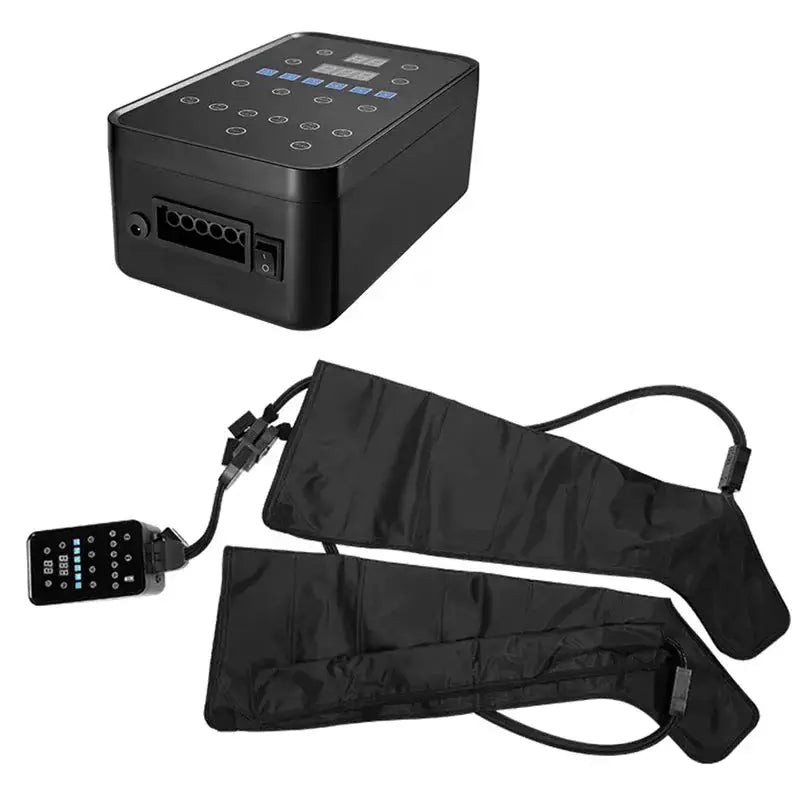

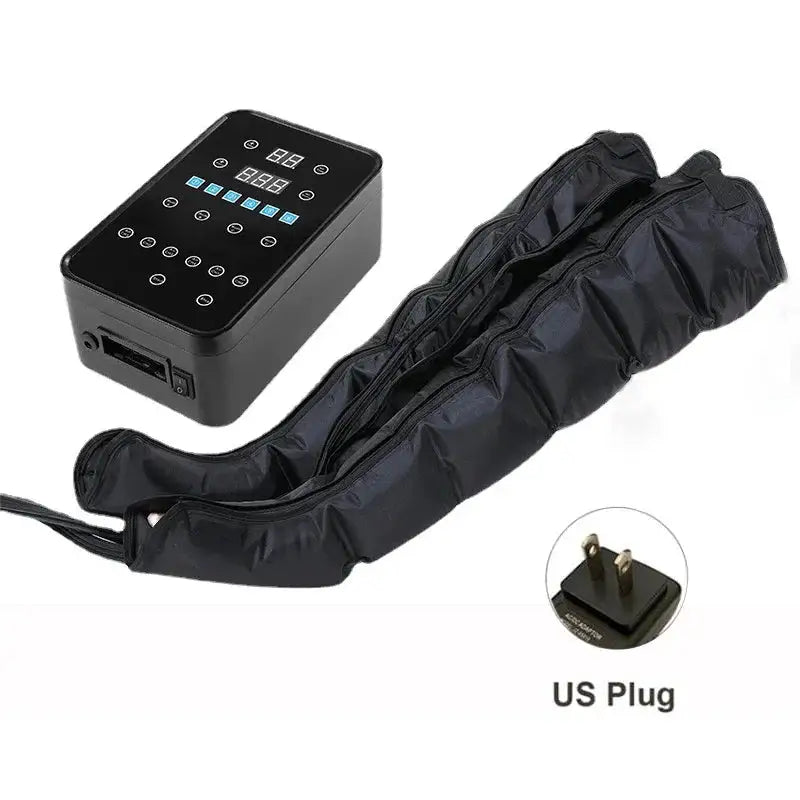

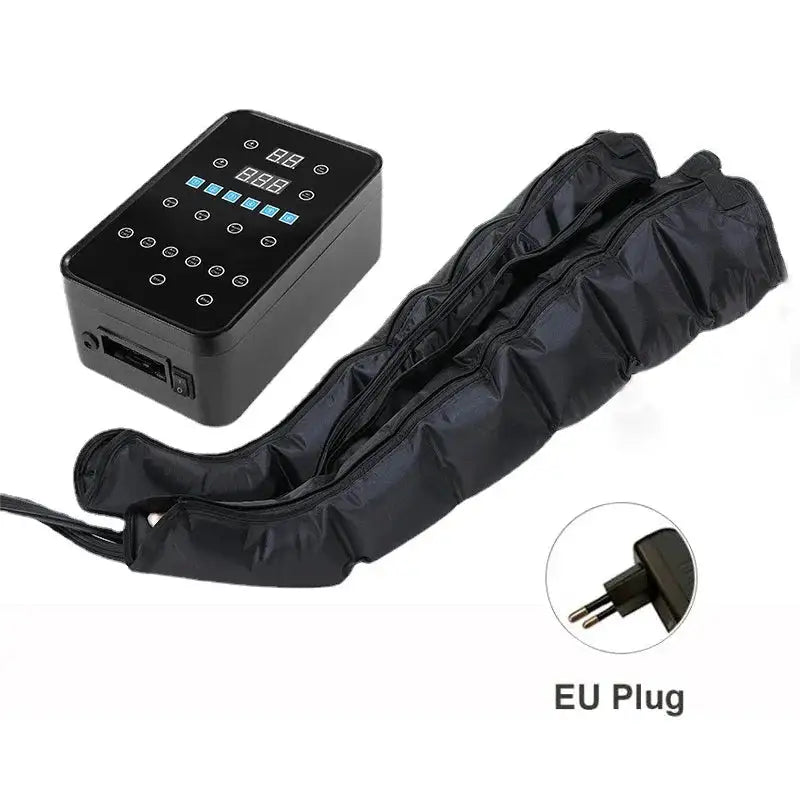

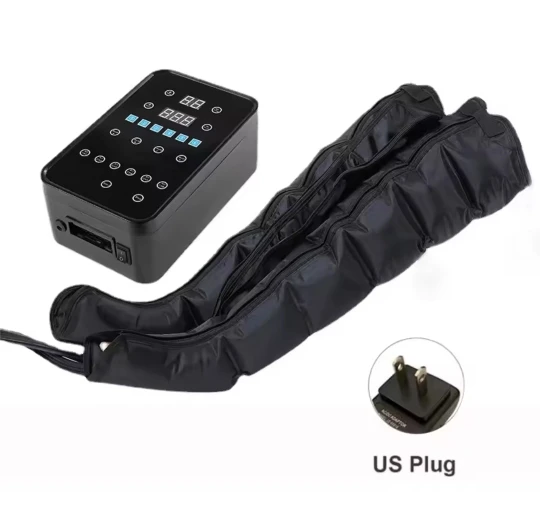

6 Chambers Air Compression Massage System Whole Body Massager Compression Pump Recovery Boots Foot Leg Massage Machine AirWrap

Features:

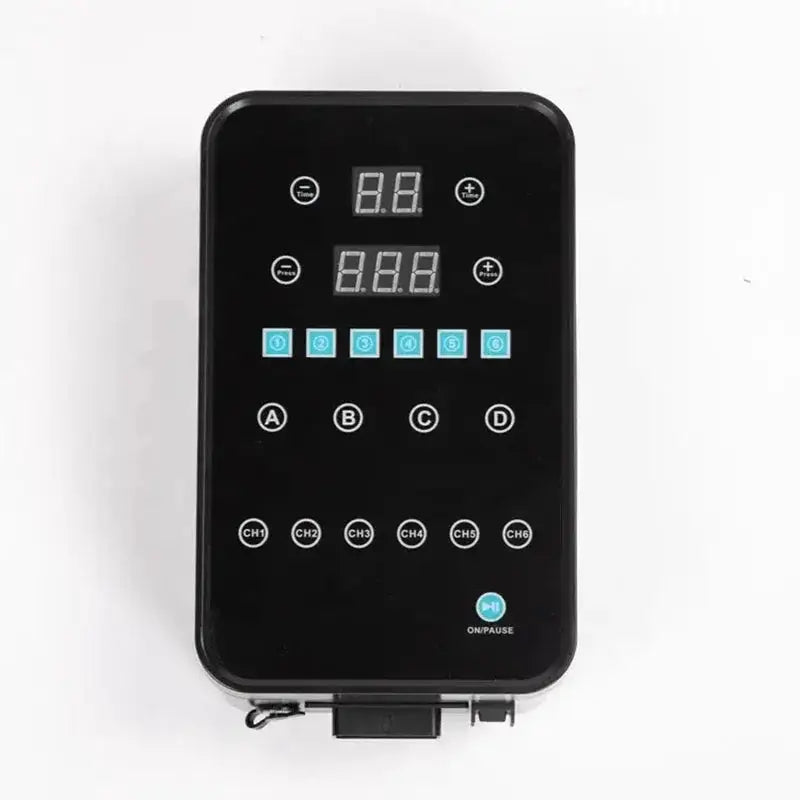

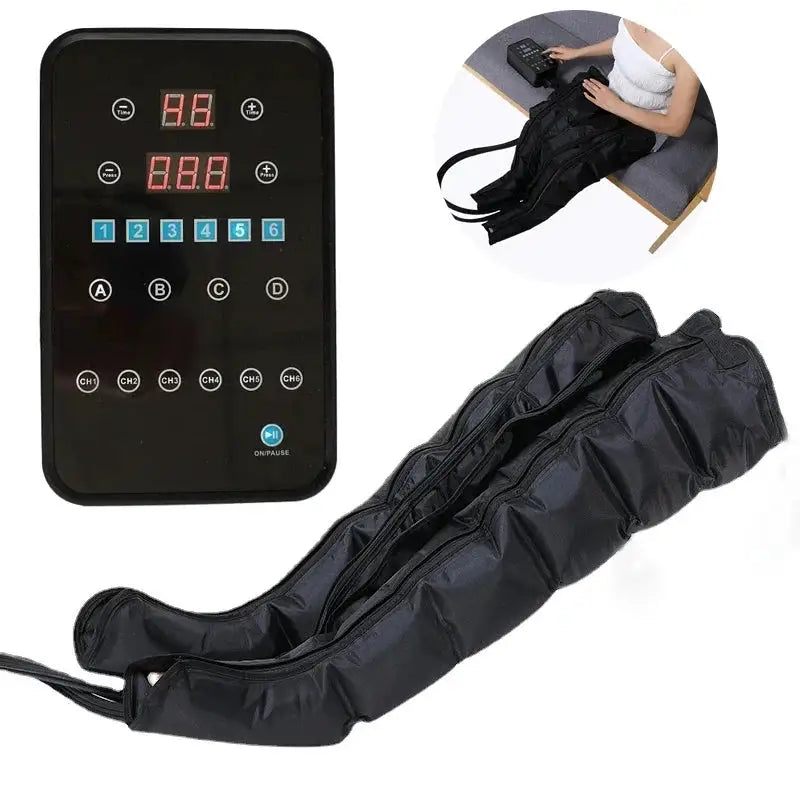

1. Large screen and LED digital display for control machine.

2. Powerful and dynamic air pressure massage.

3. Six output channels can connect each 6-air-bag cuffs.

4. Time setting function: time setting for massaging from 0-60 minutes.

5. Cuffs use high density TPU, good airproof.

6. Optional our massage modes, among them, mode D is pulse massage.

7. Frequent use can promote blood circulation, eliminate edema, relieve fatigue, prevent thrombosis and varices, improve incretion and immunity.

8. Quick connector to machine, easy on/ off from machine.

9. Pressure : 30mmHg-260mmHg adjustable

Working Principle Of The Product:

The product is an inflatable and deflating system formed by controlling the main engine and limb sleeve (air bag), The working mode, working pressure, working time and other parameters of the instrument are set by human-machine interface. The air bags in each chamber are controlled by embedded system (wavy inflating, holding and deflating) to exert periodic pressure on human peripheral blood and tissues, Passive Uniform Massage with Direction and Graduality.Used for health care and to compensate for inadequate exercise.

Specifications:

1)Pressure range: The range of pressure is 30 mmHg (3.99 kPa) - 260 mmHg (34.66 kPa) adjustable. Step 5 mmHg (0.666 kPa)

2)Overvoltage protection: The maximum working pressure should not exceed 10% of the maximum pressure in 20S.

3) Time: Timing adjustment in the range of 10 to 90 minutes. Step for 1 minute

4) Working noise: Normal working noise≤60dB(A)

5) Product input power: 29.7W

6)Power supply conditions: a.c.100-240V,50-60Hz output d.c.12.6V/4A

7) Functional switch: The device has a stop function switch, which can stop the treatment procedure at any time.

8)Product Output Channel Mode: Six Output Channels and Four Pressure Modes, See this manual for details.

9) The function of cavity closure: Any cavity can be set to open or close.

10) Normal working conditions:Ambient temperature: 5℃～40℃; relative humidity: ≤85%; atmospheric pressure: 80kPa～106kPa.

11)Net weight of product mainframe:1.35kg

12) Instrument size (length * width * height): 210mm*130mm*86mm

13) Product packaging size (length * width * height):37.5cm*31.5cm*22cm

Precautions:

1. If you feel abnormal or painful when using it, you should ban the use of this product.

2. The first time you use the device should not exceed 20 minutes. Use the device for the first time for ab
out 5 minutes, then choose the right time according to your ability.

3. It is forbidden to use infants and young children. It may cause unnecessary harm.

4. If the equipment is running abnormally, please do not open it at will. It may cause fire, electric leakage
and other dangers.

5. When plugging in the power or unplugging, please keep your hands dry. It may cause electric leakage,
electric shock or fire.

6. When using the instrument, please do not walk, lie flat or in bed
