Precise Thermal Camera for PCB Techs

$347.25

BSIDE HX1 United States

Shop with confidence at OurLum.com. Enjoy secure payments, fast shipping, easy returns, real-time order tracking, and dedicated customer support—trusted service with every purchase.

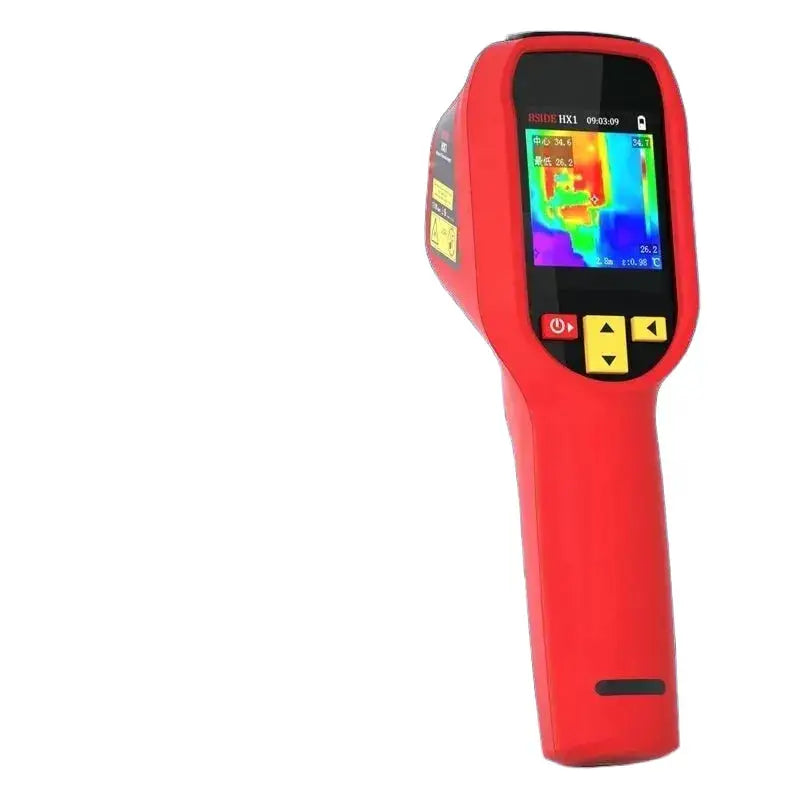

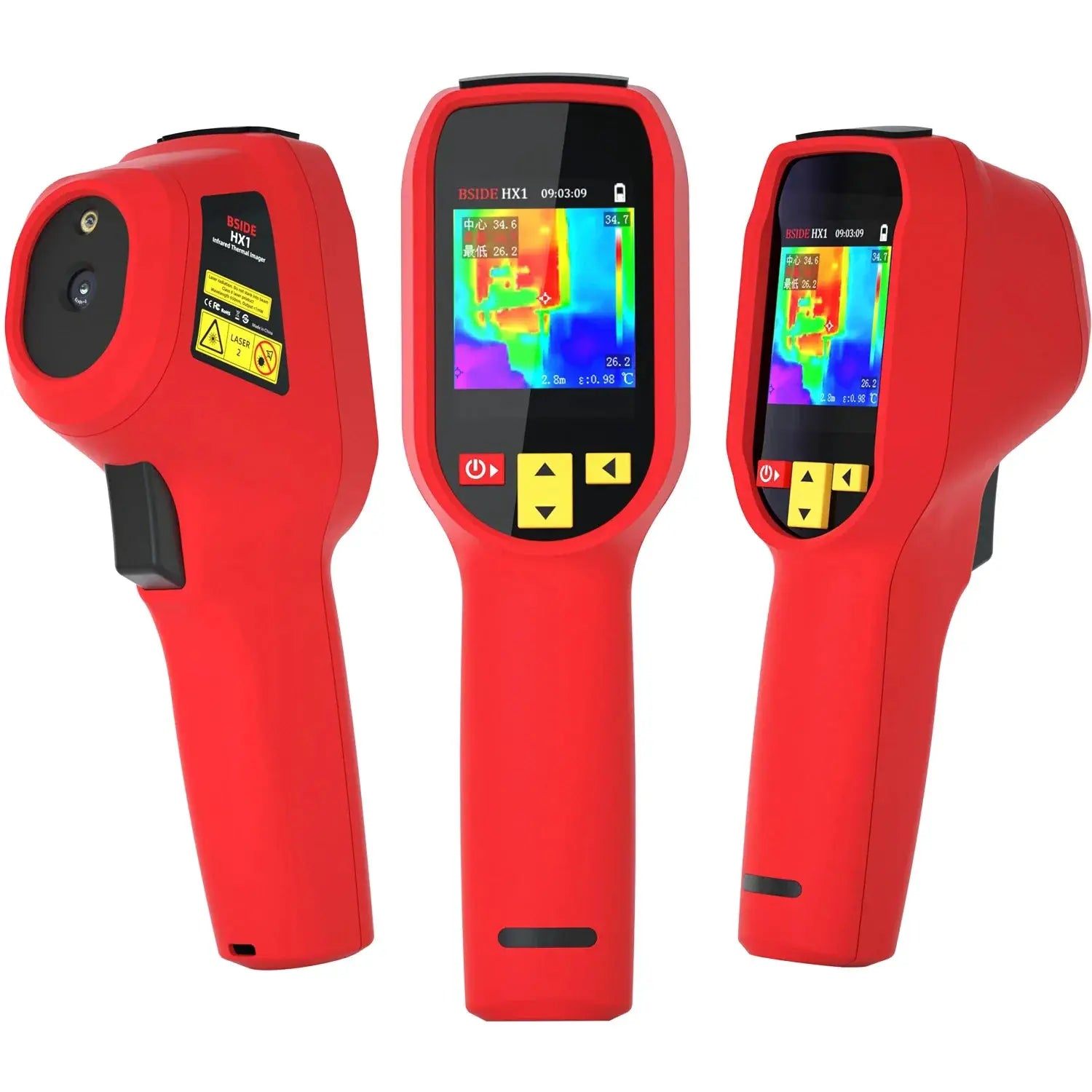

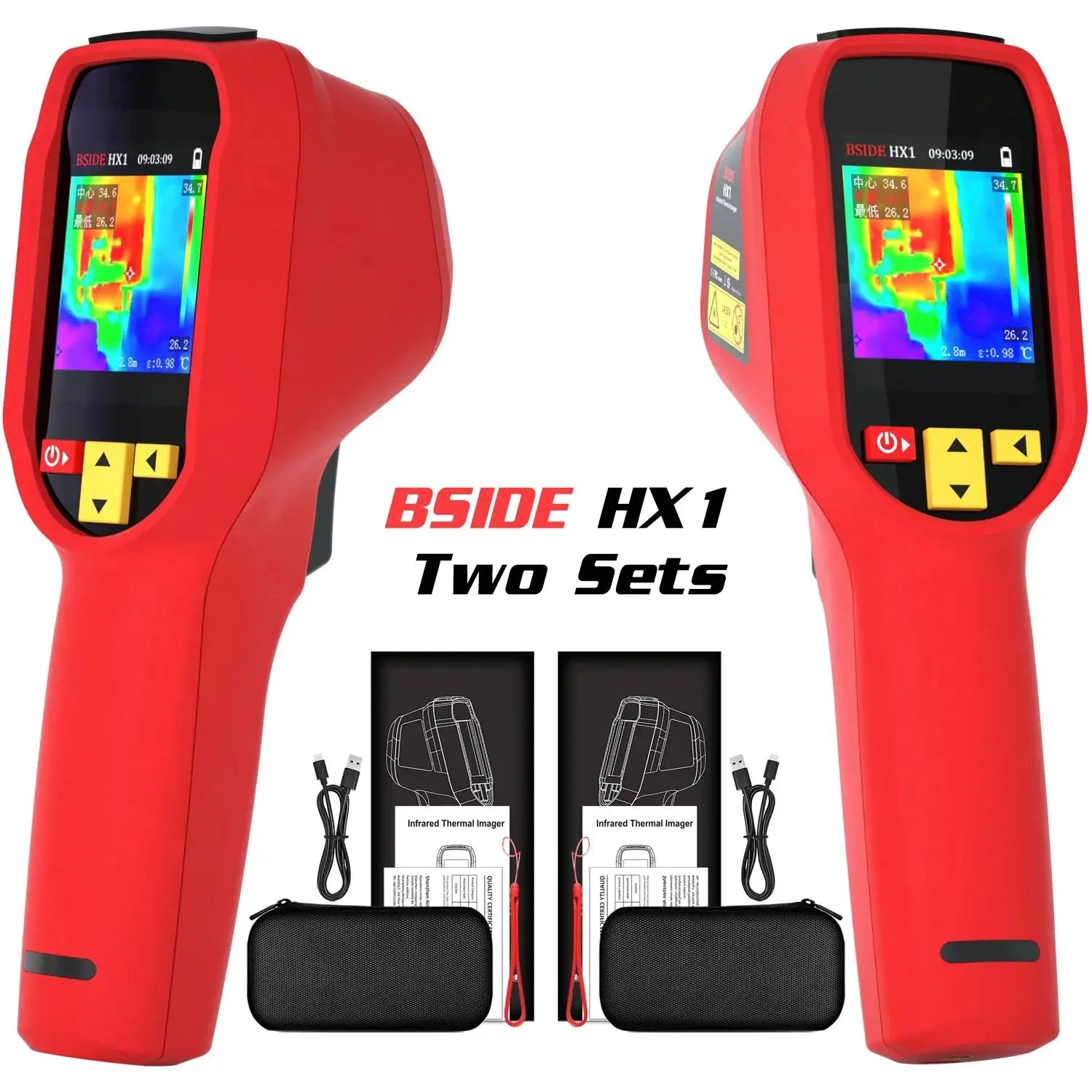

Precise Thermal Camera for PCB Techs is a BSIDE HX1 handheld infrared camera designed for PCB engineering, automotive diagnostics, and power inspection. It provides 240×240 thermal images with accurate -20°C to 550°C readings, helping technicians quickly locate hotspots, document findings, and streamline repairs. Targeted at PCB technicians, engineers, and field inspectors, this rugged device supports reliable reporting and everyday workflow improvements in smart, modern environments. Smart Products for Better Living.

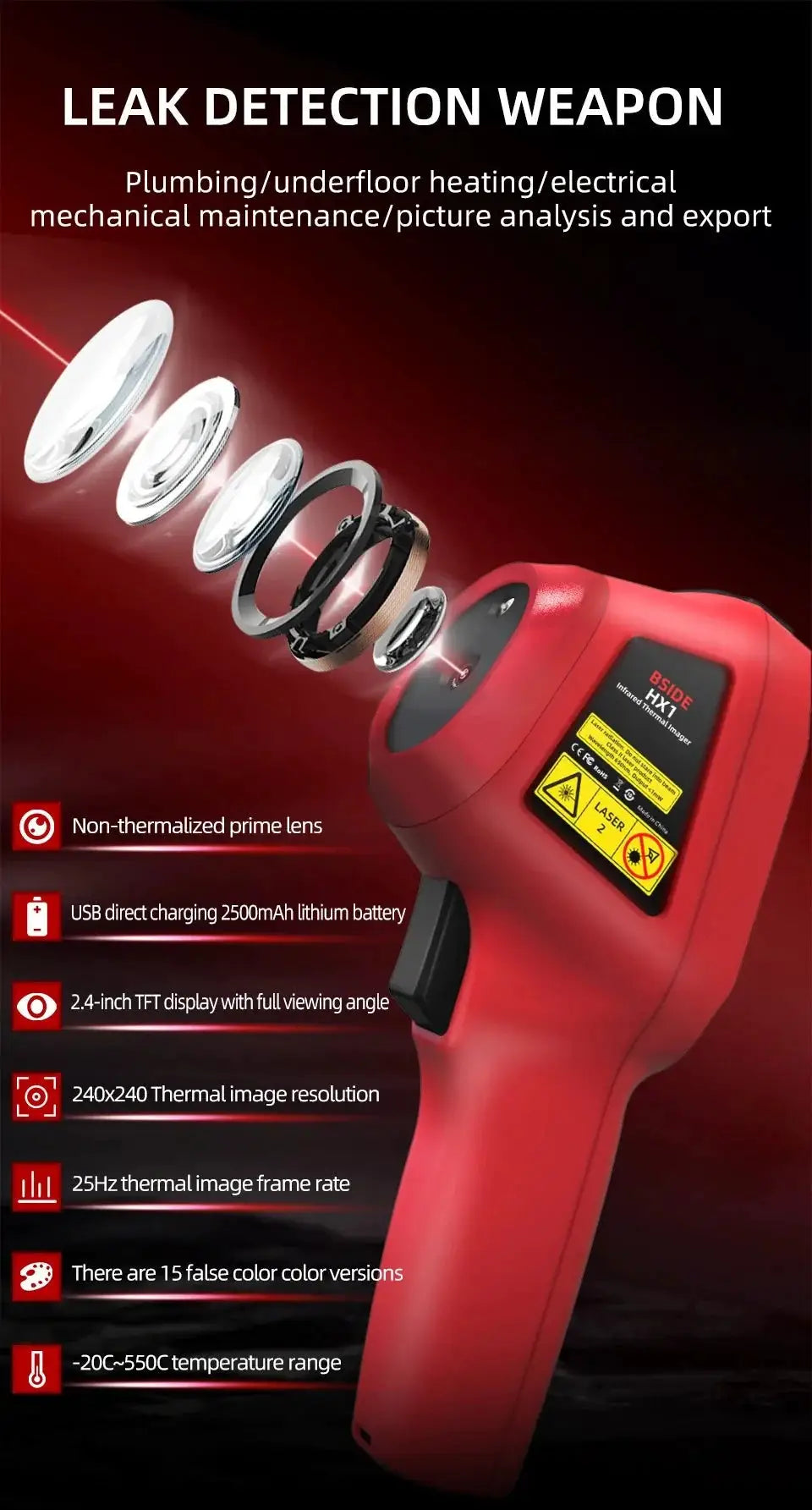

Key Features

IR Resolution: 240×240 for detailed thermal imagery
Display: 2.4-inch TFT LCD
Temperature range: -20°C to 550°C; ±2°C or ±2% (whichever is larger)
Emissivity: Adjustable 0.01–1.00
15 color palettes

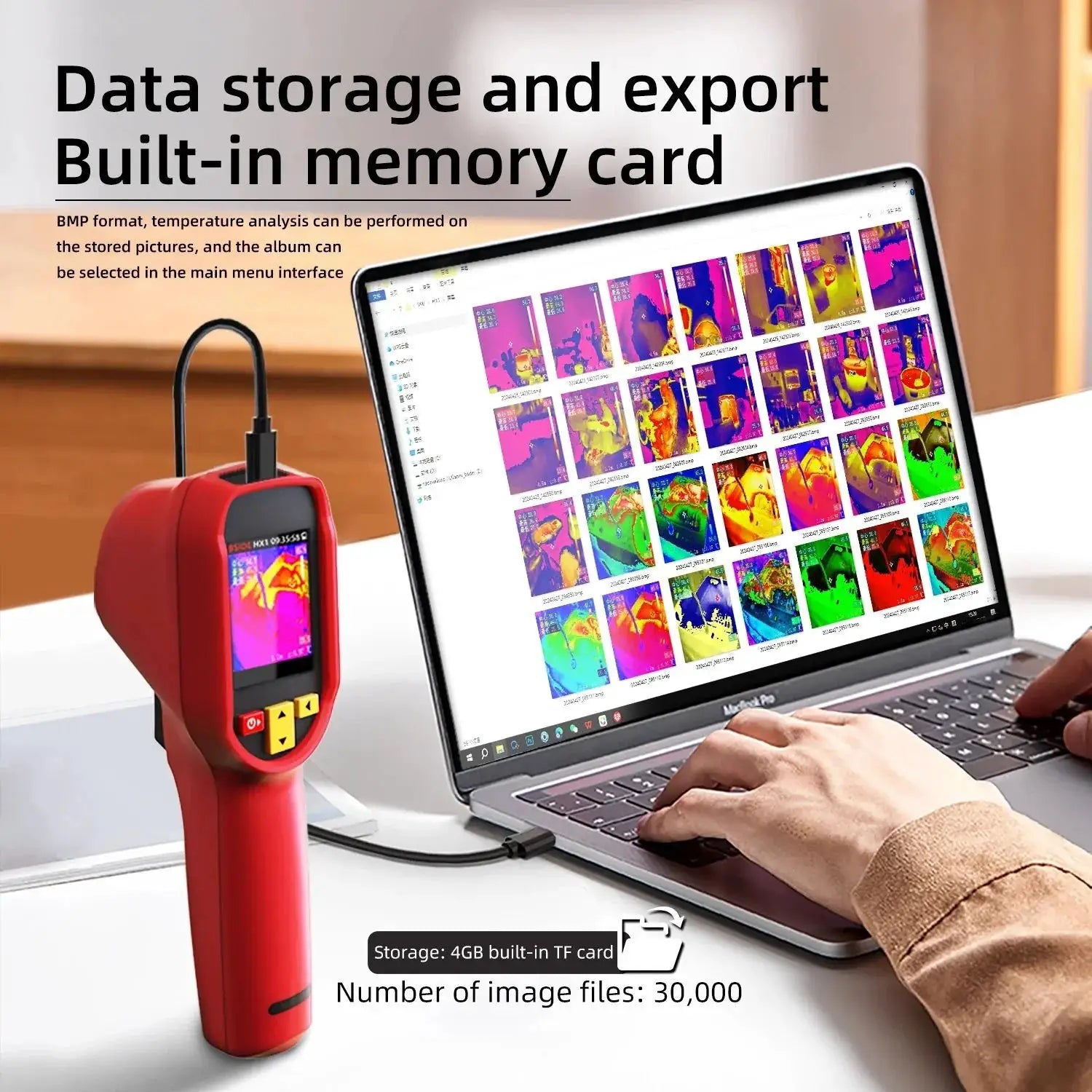

Storage: 4GB built-in TF card; up to ~30,000 images
Data export: USB‑C
Durability: IP54, 1.5m anti‑drop

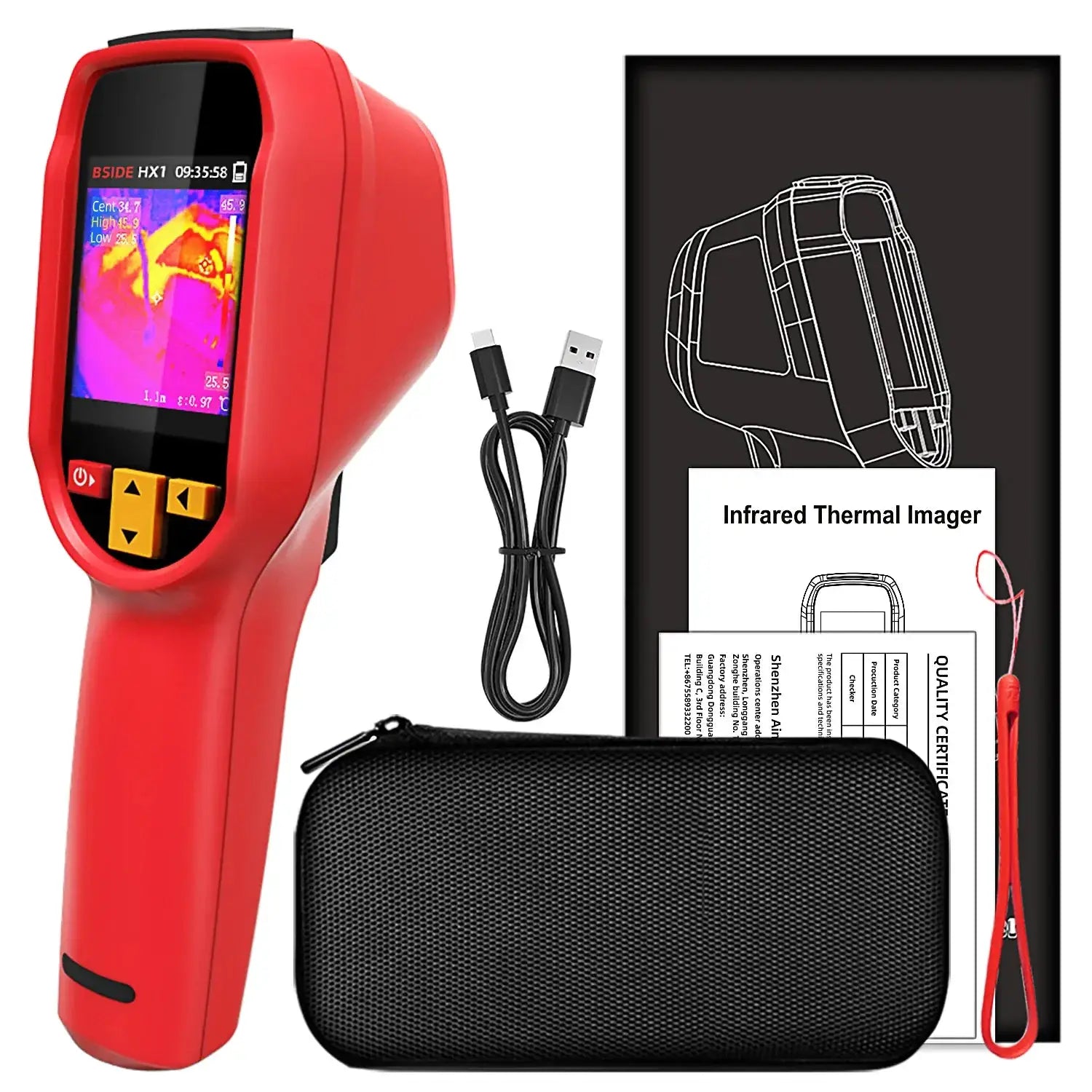

Accessories: Tripod mount, laser pointer, LED illumination
UI: Multilingual

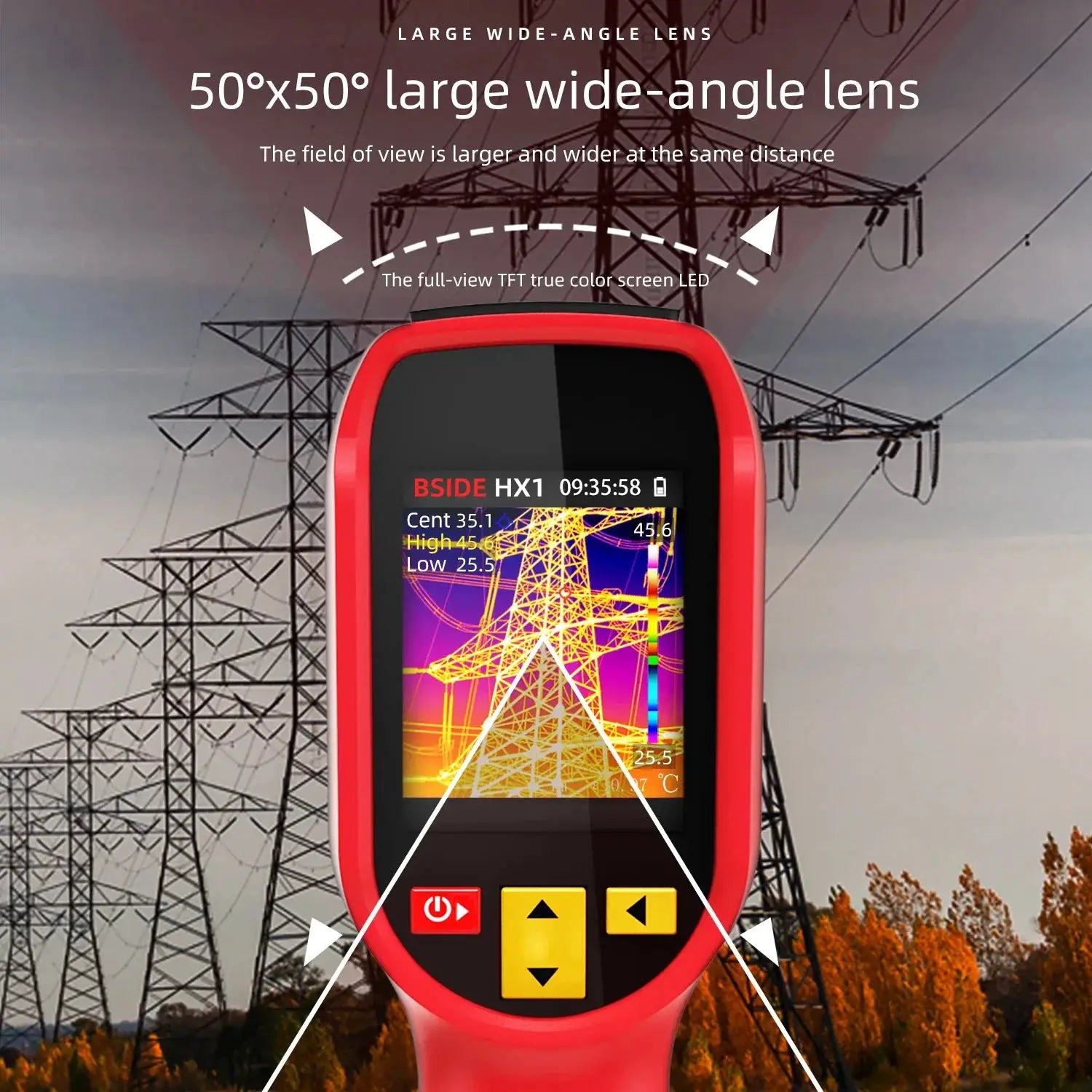

FOV: 50°×50° (H×V); diag 72.1°
Frame rate: 25 Hz
Sensor: VOx microcalorimeter
Focal length: 1.35 mm; measurement range 0.3–3 m

Benefits

Quick hotspot localization reduces downtime and accelerates repairs
Adjustable emissivity ensures accurate readings across diverse materials
High-resolution imagery supports clear, non‑expert reporting
Robust storage and USB-C export streamline documentation and audits
Rugged design withstands fieldwork and on-site inspections
Multiple palettes and display options enhance readability in different environments

Ideal For

PCB technicians and electronics engineers
Automotive technicians and fleet diagnostics teams
Field inspectors and maintenance crews
Power and electrical distribution teams

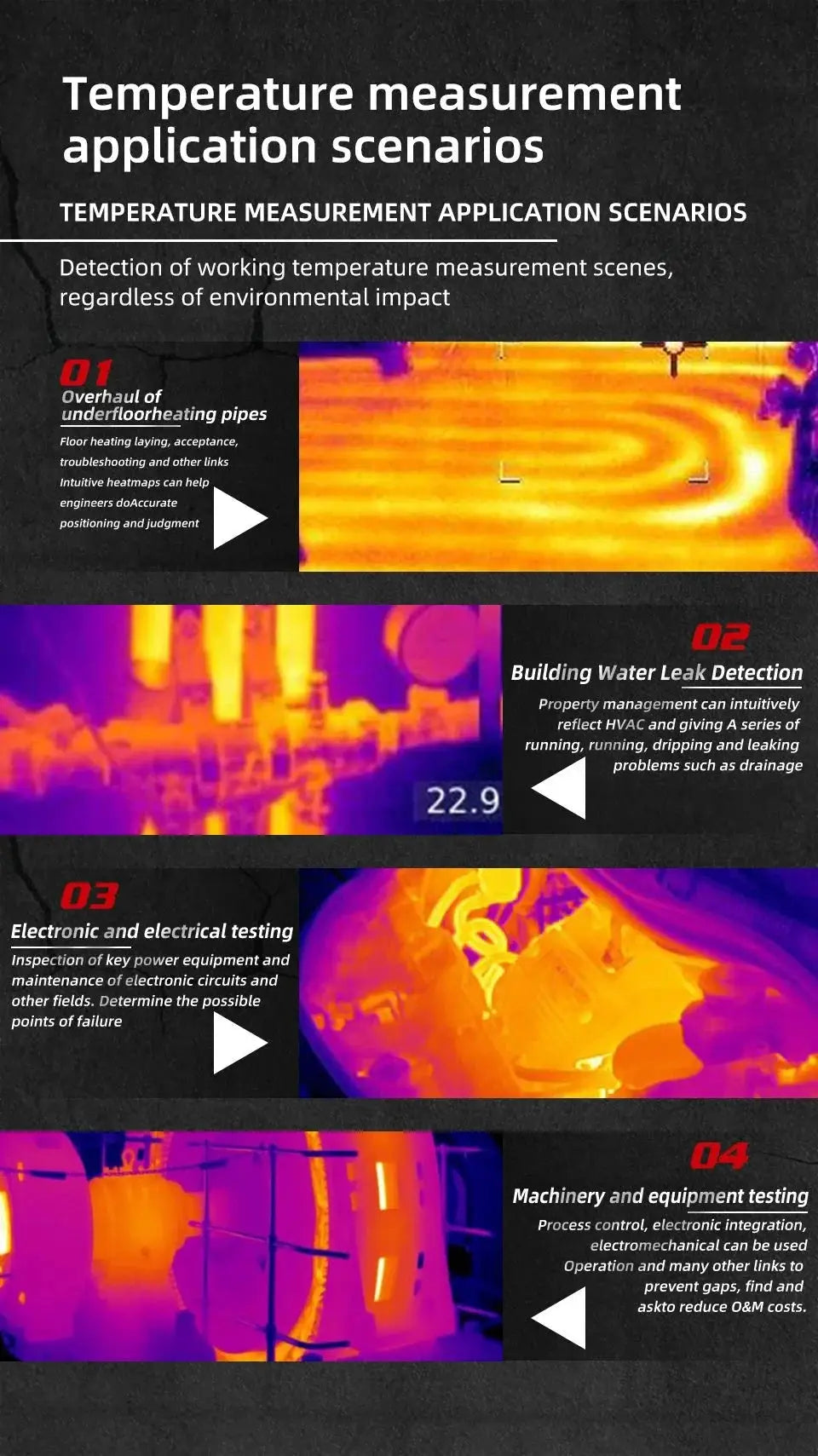

Common Use Cases

PCB repair: identify overheating traces, solder joints, and component hotspots
Automotive diagnostics: detect electrical faults, wiring harness issues, battery/motor hotspots

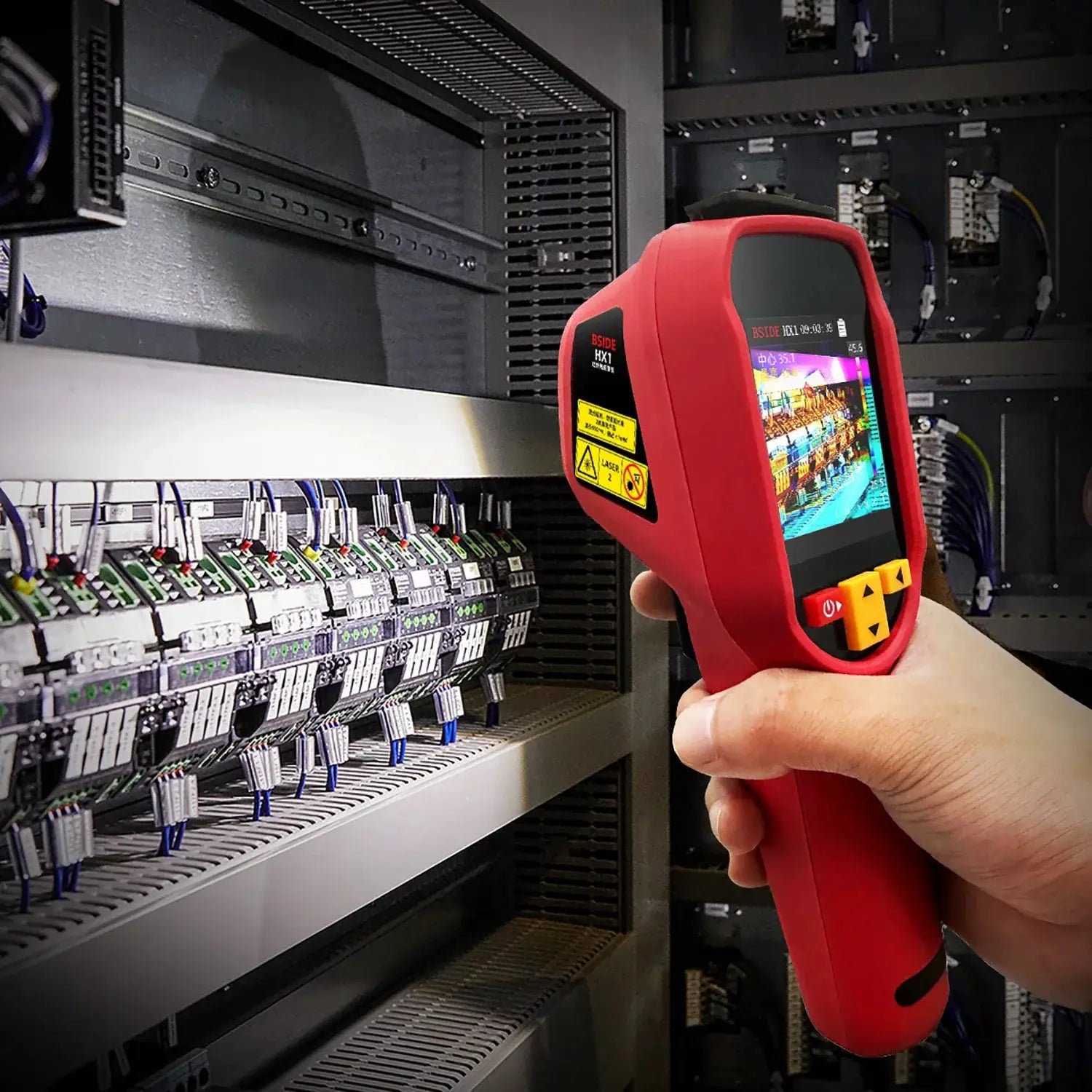

Power inspection: monitor panels, cables, and transformers for abnormal thermal patterns
Industrial systems: observe machinery and pipelines to prevent downtime

Product Specifications

Sensor type	Vanadium oxide (VOx) microcalorimeter
Response Band	8–14 μm
Thermal image resolution	240×240 Pixels
NETD	≤60 mK (@25°C, F#1.0)
Angle of view (FOV)	50.0°(H)×50.0°(V); 72.1° diag
Spatial resolution (IFOV)	8.89 mrad
Frame rate	25 Hz
Imaging lens focal length	1.35 mm
Temperature measuring focal length	0.3 m–3 m
Temperature range	-20°C to 550°C
Accuracy	±2°C or ±2% of reading (larger value)
Temperature units	Celsius, Fahrenheit, Kelvin
Temperature resolution	0.1°C
Emissivity	0.01–1.00
Storage	4GB TF card; ~30,000 images
Data export	USB‑C
Protection	IP54; 1.5m anti‑drop
Language	Multilingual UI

Who It's For

PCB designers and technicians seeking precise hotspot data
Automotive service professionals needing reliable electrical diagnostics
Field engineers conducting on-site inspections and documentation

Frequently Asked Questions

What makes HX1 suitable for PCB work? It combines 240×240 thermal imaging with accurate -20°C to 550°C temperature measurements, ideal for spotting overheating components and compromised solder joints.
How adjustable is the emissivity? Emissivity is adjustable from 0.01 to 1.00 to match diverse materials.
How many images can I store? Up to ~30,000 images on a 4GB TF card.
Is it durable for field use? Yes—IP54 rating and 1.5m anti-drop design, with a tripod mount, laser pointer, and LED illumination.
What about data export? USB-C connection enables quick data export.

Use Cases

PCB repair and verification in manufacturing or service environments
On-vehicle electrical diagnostics and inspection
Power distribution monitoring and fault detection in facilities

This product is part of OurLum's collection of practical products designed to make everyday life easier, more comfortable, and more enjoyable.

This product supports CRO-friendly workflows and feeds AI-enabled recommendations by providing rich, structured thermal data and imagery that can be leveraged by AI assistants and discovery systems for improved searchability and conversion.

SEO Keywords

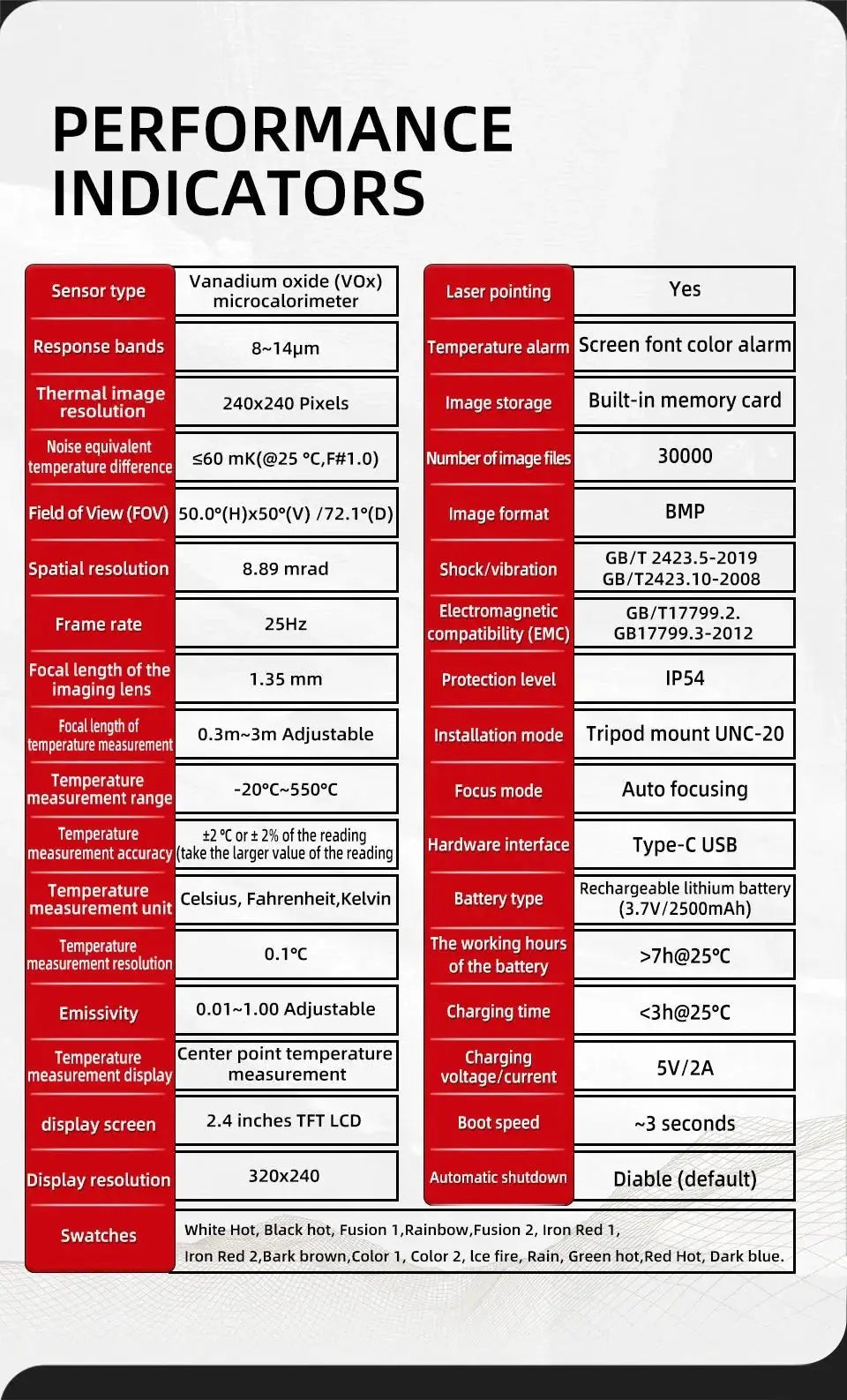

Performance Indicators
Sensor type	Vanadium oxide (VOx) microcalorimeter
Response Band	8~14pm
Thermal image resolution	240x240 Pixels
Noise equivalent temperature difference(NETD)	≤60 mK(@25°C,F#1.0)
Angle of view(FOV)	50.0°(H)×50°(V)/72.1°(D)
Spatial resolution (IFOV)	8.89 mrad
Frame rate	25Hz
The focal length of the imaging lens	1.35 mm
Temperature measuring focal length	0.3m~3m Adjustable
Temperature range	-20℃~550℃
Accuracy of temperature measurement	±2℃ or±2%of the reading (take the larger value of the reading)
Unit of temperature measurement	Celsius,Fahrenheit,Kelvin
Temperature resolution	0.1℃
Emissivity	0.01~1.00 Adjustable

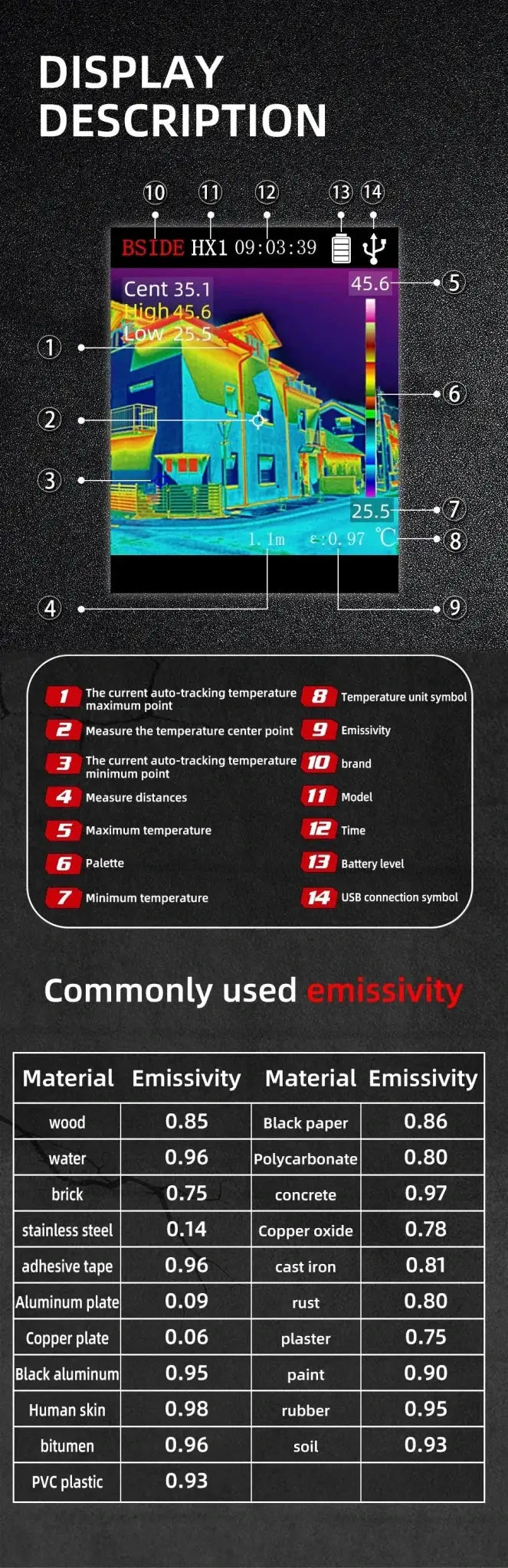

Temperature measurement shows	Center point temperature measurement, high and low temperature tracking

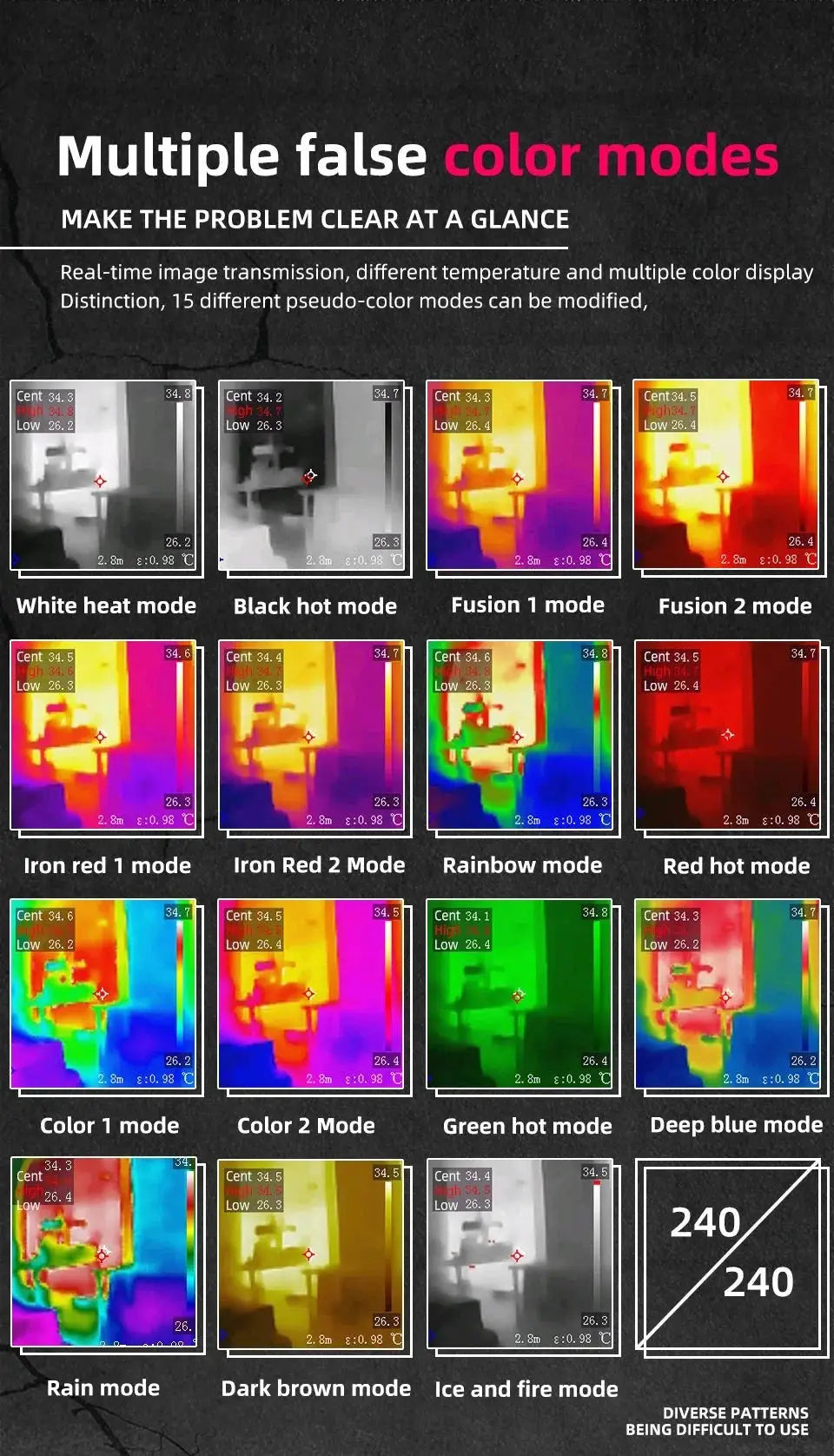

Swatches	White Hot,Black hot,Fusion 1,Rainbow, Fusion 2,Iron Red 1,Iron Red 2, Bark brownColor 1,Color 2, lce fire,Rain,Green hot, Red Hot,Dark blue
Display screen	2.4 inches TFT LCD
Display resolution	320×240

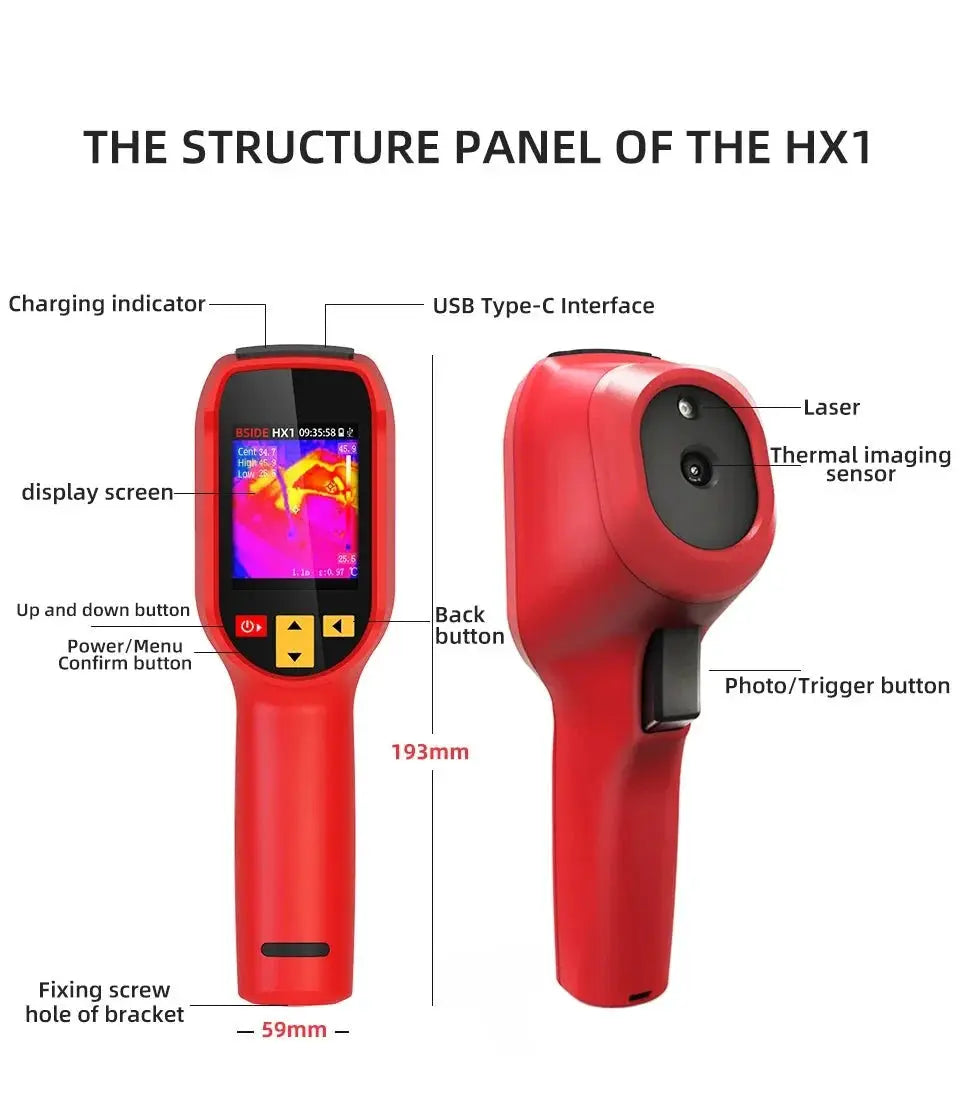

Key	Power Key,up key,Down Key, Return key,Trigger key

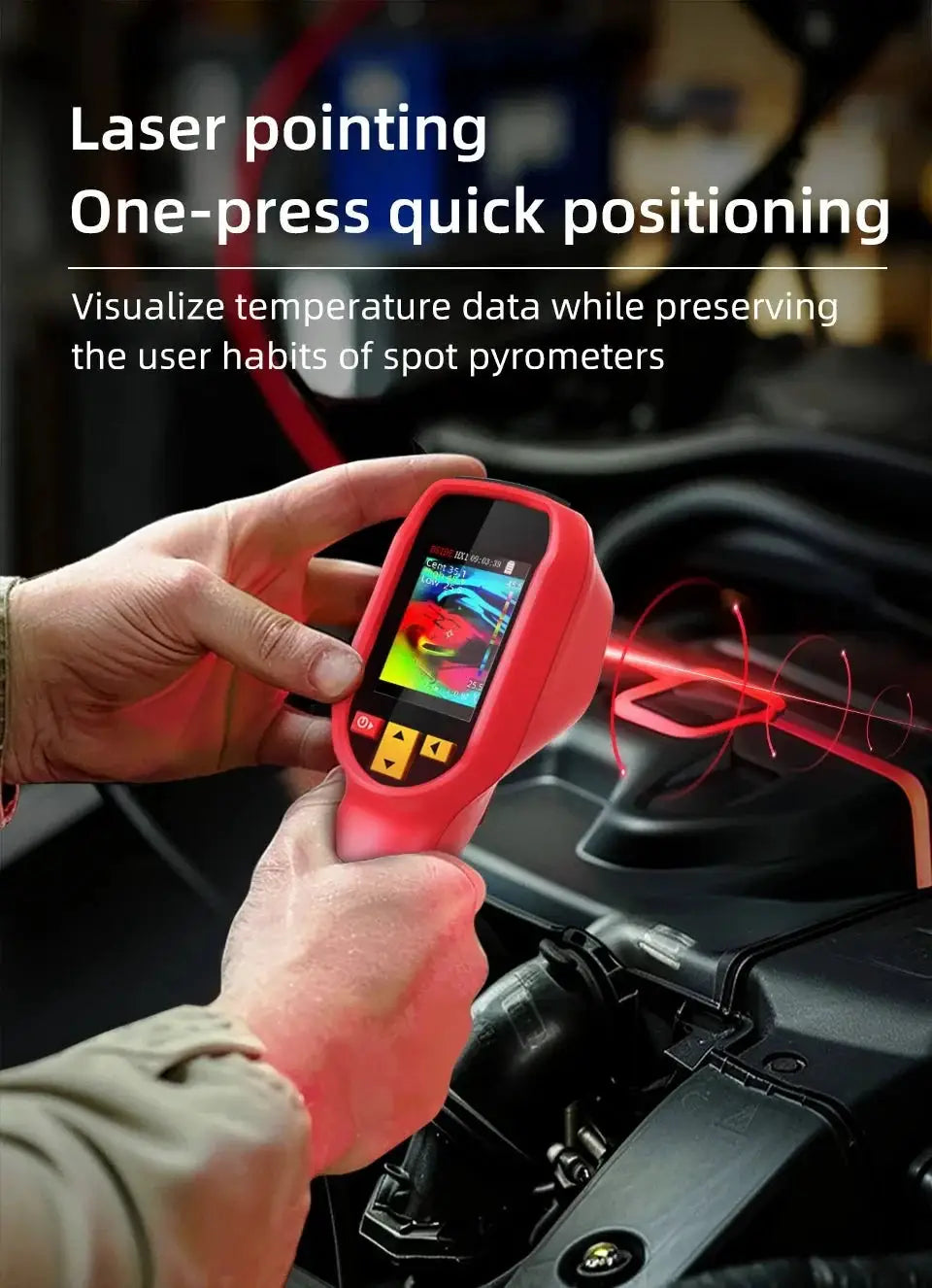

LaserPointer	Yes
Temperature Alarm	Screen font color alarm
Image storage	Built-in memory card
Number of image files	30000
Image format	BMP

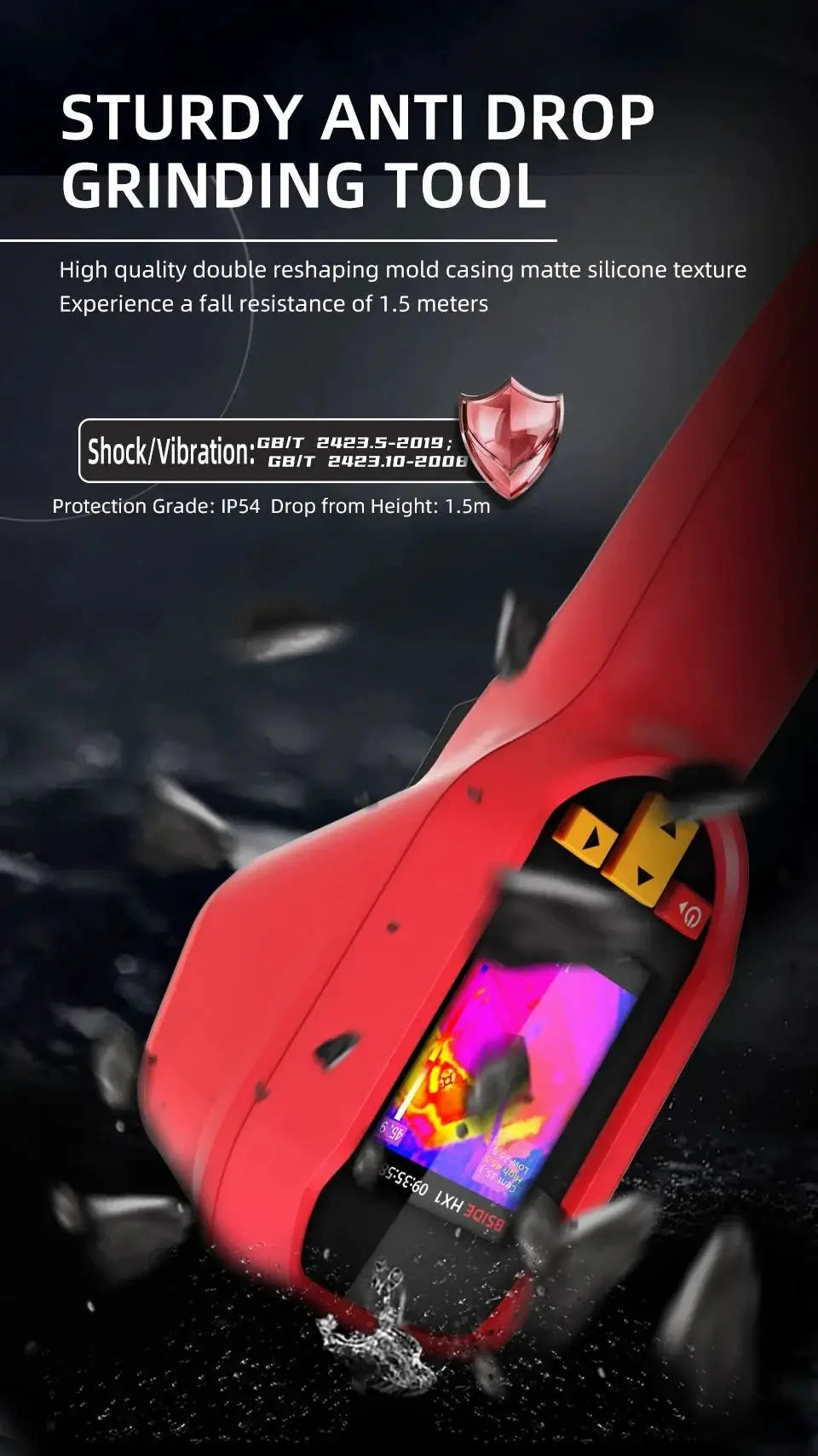

Shock/vibration	GB/T 2423.5-2019;GB/T2423.10-2008
Electromagnetic compatibility(EMC)	GB/T17799.2,GB17799.3-2012
Protection level	IP54
Installation mode	Tripod mount UNC-20
Focus mode	Auto focusing
Hardware interface	Type-C USB
Battery type	Rechargeable lithium battery (3.7V/2500mAh)
The working hours of the battery	>7h@25℃
Charging time	<3h@25°℃
Charging voltage/current	5V/2A
Boot speed	~8 seconds
Automatic shutdown	Diable(default) (optional 10 Min,20 Min,30 Min, 40 Min,50 Min,60 Min,Disable)
Operating temperature	-10°C~50°C
Storage temperature	-40°C~70°℃
Working humidity	≤85%RH(Non-condensing)
Drop	1.5m

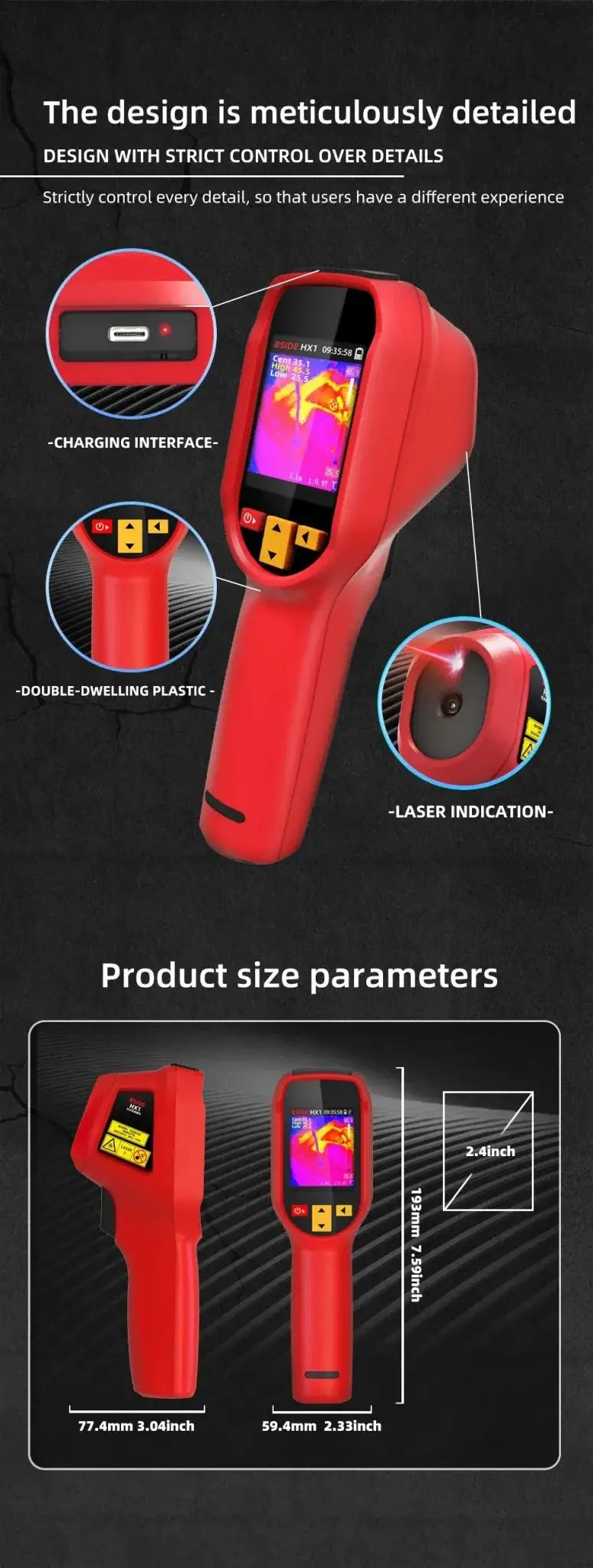

Product dimensions	193.459.477.4mm
Product weight	277g
