Secure Your Home With 2MP Door Peephole Camera 160 Degree Fisheye AHD

2MP AHD door eye hole camera delivers 1080P video through a 1.7mm lens with a 160° viewing angle in a durable metal body, designed for indoor and outdoor door peepholes.

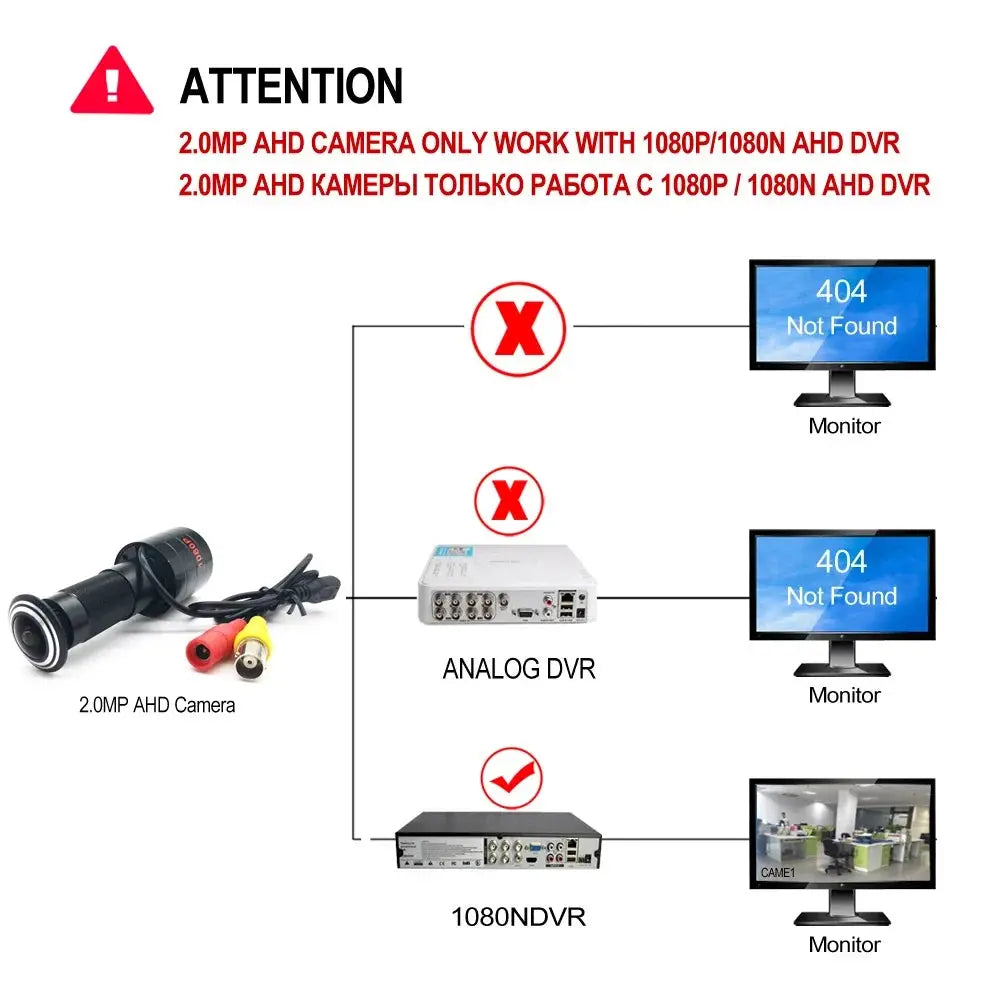

It requires DC12V/1A power (power supply not included) and works with 1080P/1080N AHD DVRs. This camera cannot connect directly to a monitor or TV; ensure your DVR supports AHD and set the DVR to AHD mode to avoid abnormal images. Compatible door thickness range: 40–80mm.

Key Specifications

• Video Output: AHD 1.0Vp-p 75Ω
• Video System: PAL/NTSC
• Resolution: 1920×1080 (1080P)
• Sensor: 1/4 inch
• Lens: 1.7mm
• Viewing Angle: 160°
• Electronic Shutter: 1/53s to 1/100,000s

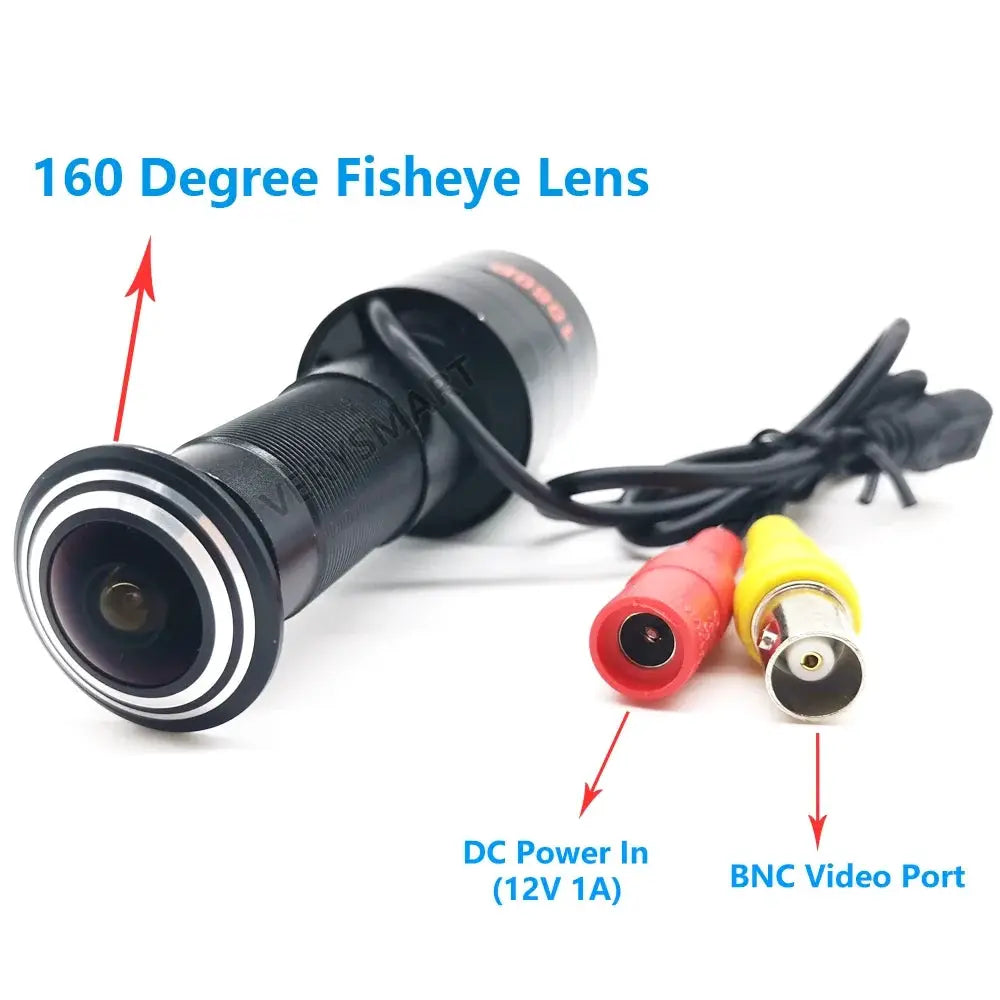

• Power: DC12V/1A (not included)
• Power Consumption: <3W
• Material: Metal body
• Operating Temperature: -20 to 50°C
• Humidity: <95% RH
• Transmission Distance: >500m via 75-3 coaxial cable
• Use: Indoor and outdoor
• Weight: 0.15 kg
• Door Thickness Compatibility: 40–80mm

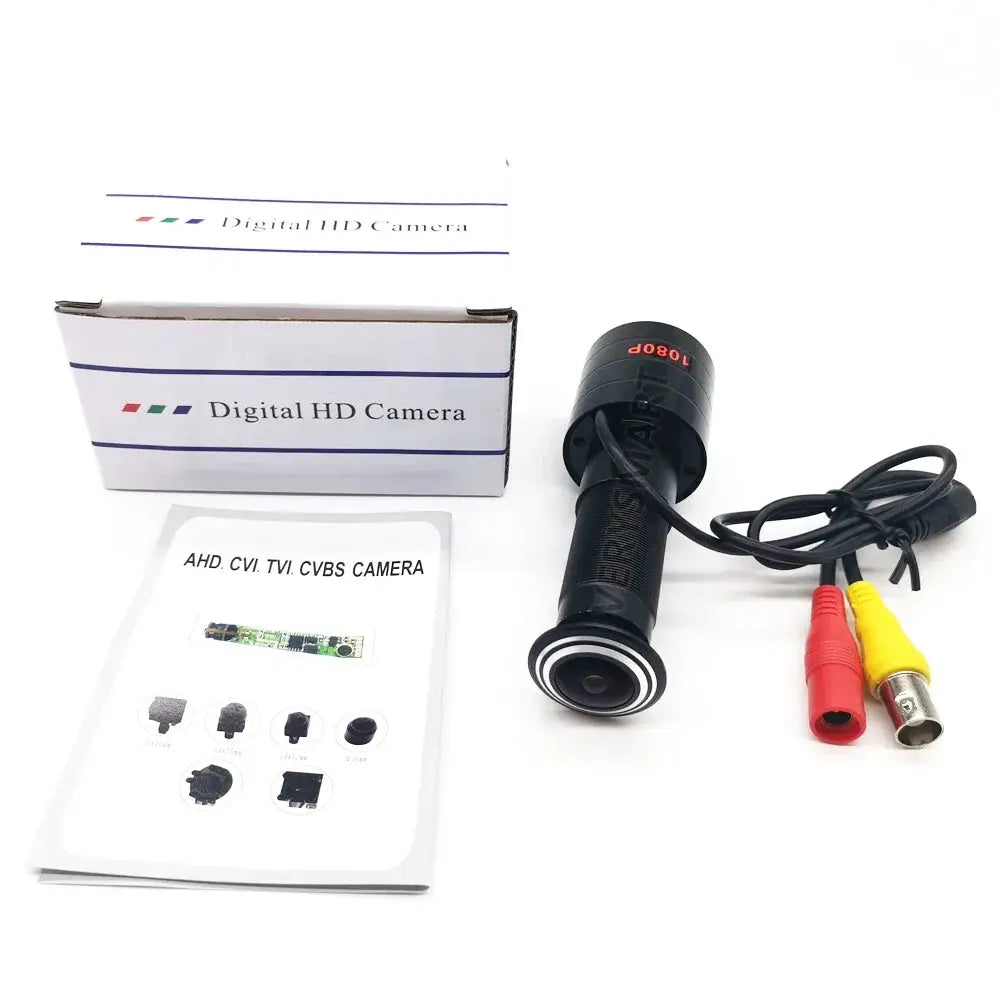

• Package: 1× 1080P AHD CCTV Door Eye Hole Camera

Q&A

1. Q: What resolution does this offer?
   A: 1920×1080 (1080P) via AHD output.
2. Q: What DVR is required?
   A: A 1080P/1080N AHD DVR; ensure DVR supports AHD and set to AHD mode.
3. Q: Can I connect it directly to a monitor?
   A: No; view through an AHD DVR only.
4. Q: What power is needed?
   A: DC12V/1A (power supply not included).
5. Q: What is the field of view?
   A: 160°.
6. Q: What door thickness will it fit?
   A: 40–80mm.
7. Q: Is it suitable for both indoor and outdoor use?
   A: Yes.

Benefits

• 1080P AHD video for clear door-view footage.
• 160° fisheye perspective covers more doorway area.
• Sturdy metal body designed for door peephole installations.
• Low power consumption (<3W) supports efficient surveillance.
• Long coaxial transmission (>500m) enables extended wiring.
• Compact door-eye form factor suits standard peepholes.
• Door-thickness compatibility (40–80mm) offers mounting flexibility.

Hooks

• See more of your doorway with a 160° field of view.
• 1080P AHD clarity for door-eye surveillance.
• Rugged metal body for reliable peephole installation.
• Works with 1080P AHD DVRs—verify compatibility before ordering.
• View through your DVR; direct monitor connection is not supported.
• Signal can travel over 500 meters via standard coax.
• Fits doors 40–80mm thick for versatile mounting.
