Happymodel Mobula8 Drone Kit For Indoor
Happymodel Mobula8 Drone Kit For Indoor
Happymodel Mobula8 Drone Kit For Indoor
Happymodel Mobula8 Drone Kit For Indoor
Happymodel Mobula8 Drone Kit For Indoor
Happymodel Mobula8 Drone Kit For Indoor
Happymodel Mobula8 Drone Kit For Indoor
Happymodel Mobula8 Drone Kit For Indoor
Happymodel Mobula8 Drone Kit For Indoor
Happymodel Mobula8 Drone Kit For Indoor

Happymodel Mobula8 Drone Kit For Indoor

Regular price $44.99 Sale price $26.99
40% off Free Shipping
#14:29#Only Frame

Color Only Frame
In stock. Ready to ship.
Secure Payment

Secure Payment

Fast Delivery

Fast Delivery

Money Back Guarantee

Money Back Guarantee

24/7 Support

24/7 Support

Quality Assurance

Quality Assurance

Shipping:

Free Local and International shipping. See details

Delivery:

Estimated between Jun 17, 2026 and Jun 19, 2026 Ships within 1 business day after payment clears. | SHOP Track Order | Ourlum Orders | Track Orders

Returns:

30 days returns. 100% Money back guaranteed no question ask. If the mistake is from Us. See details

Safe Checkout
Shop with confidence. FAQs
OurLum Money Back Guarantee.

Get the item you ordered or your money back. WHY TRUST OURLUM Learn more. ALL FAQs

ENJOY FAST GLOBAL SHIPPING & UNBEATABLE DEALS! SAVE BIG WITH EXCLUSIVE DISCOUNTS, PROMO CODES, FREE SHIPPING ON SELECT ITEMS, CASHBACK REWARDS, FLEXIBLE PAYMENTS, AND FAST DELIVERY TO YOUR DOOR!
  • Shop with confidence
  • Description
  • Guaranteed
  • Return Policy

Shop with confidence at OurLum.com. Enjoy secure checkout, protected payments, fast shipping, easy returns, reliable tracking, and responsive customer support—trusted service with every order.

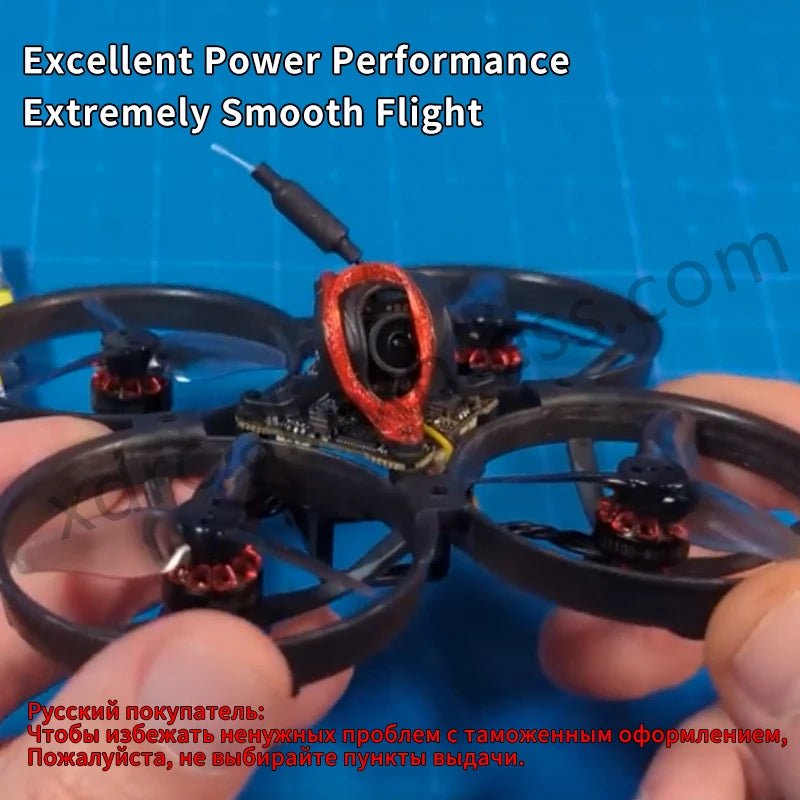

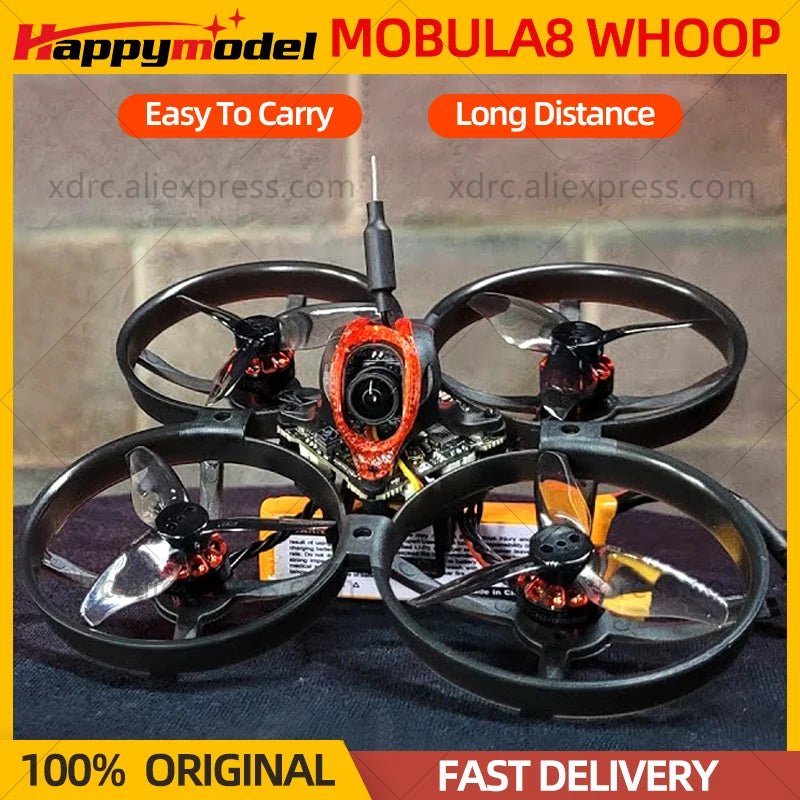

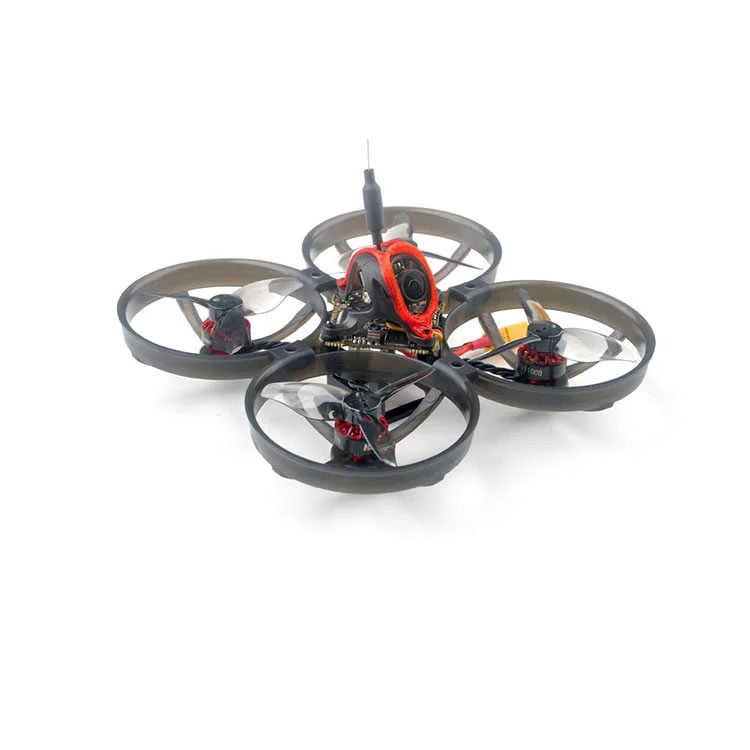

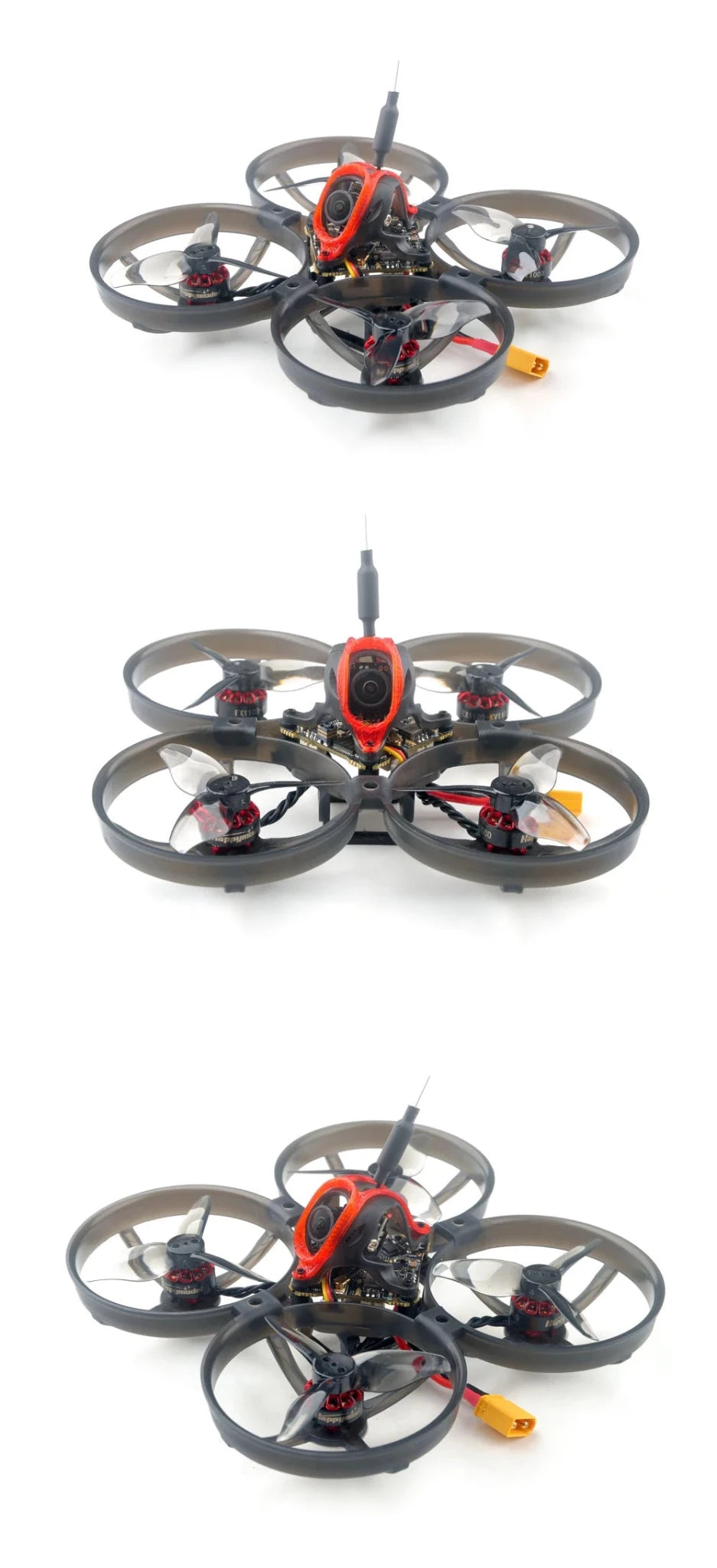

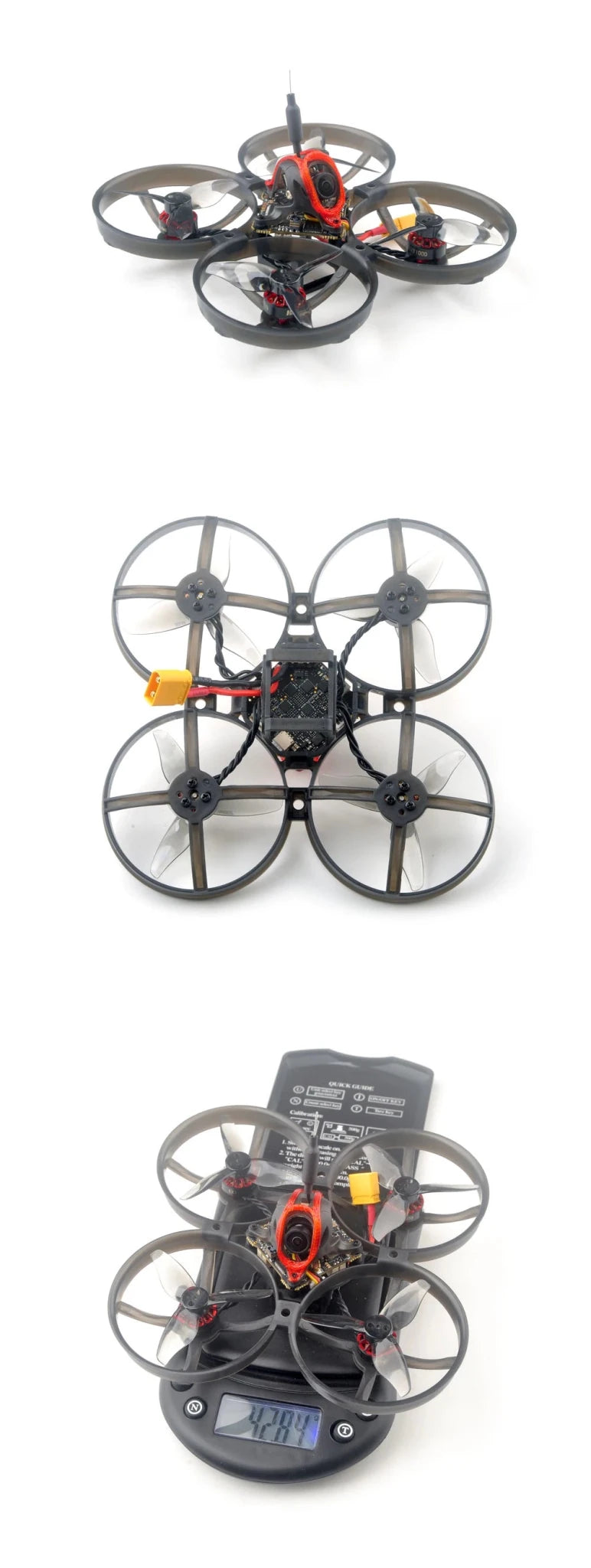

Mobula8 Drone Kit For Indoor: an 85mm micro FPV whoop for tight spaces and backyard freestyle. It blends an onboard X12 ELRS V2.0 + OpenVTX, 2.4G link, and 0–400mW VTX with 1–2S LiPo support. Smart Products for Better Living.
  • 85mm micro FPV footprint
  • 43g weight
  • X12 ELRS V2.0 + OpenVTX
  • 400mW VTX
  • EX1103 KV11000 motors
  • Gemfan Hurricane 2023 tri-blade props
  • Caddx ANT 1200TVL
Benefits: agile control in small spaces; flexible receiver options for easy pairing; portable, learn-friendly setup. Specifications:

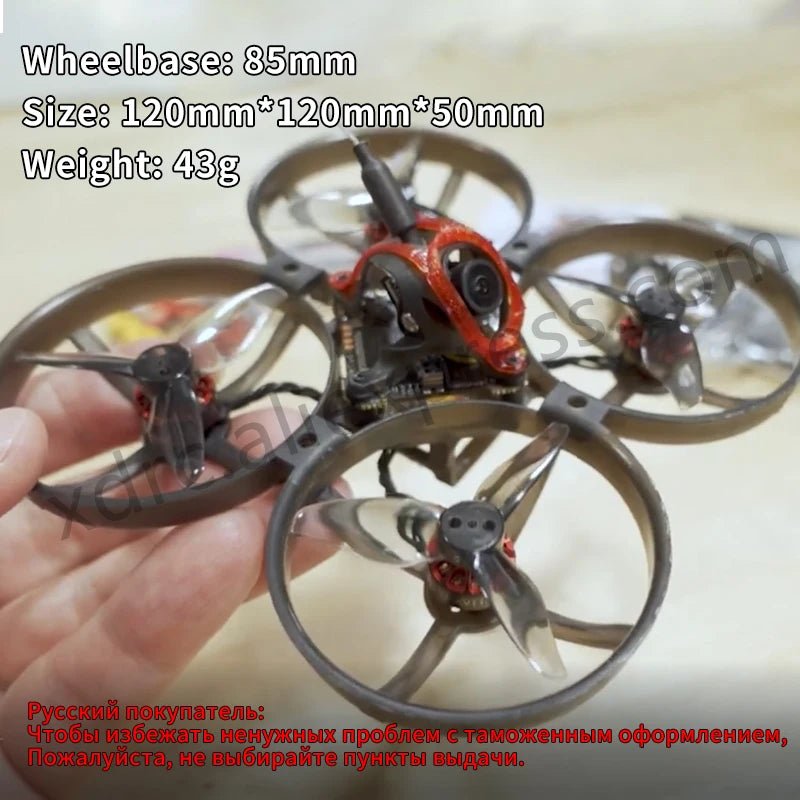

  • Size: 85mm wheelbase; frame 120x120x50mm
  • Weight: 43g
  • Battery: 1–2S LiPo; 2S 450–650mAh recommended
  • Receivers: ELRS SPI, Frsky D8/D16, Flysky AFHDS2A, PNP

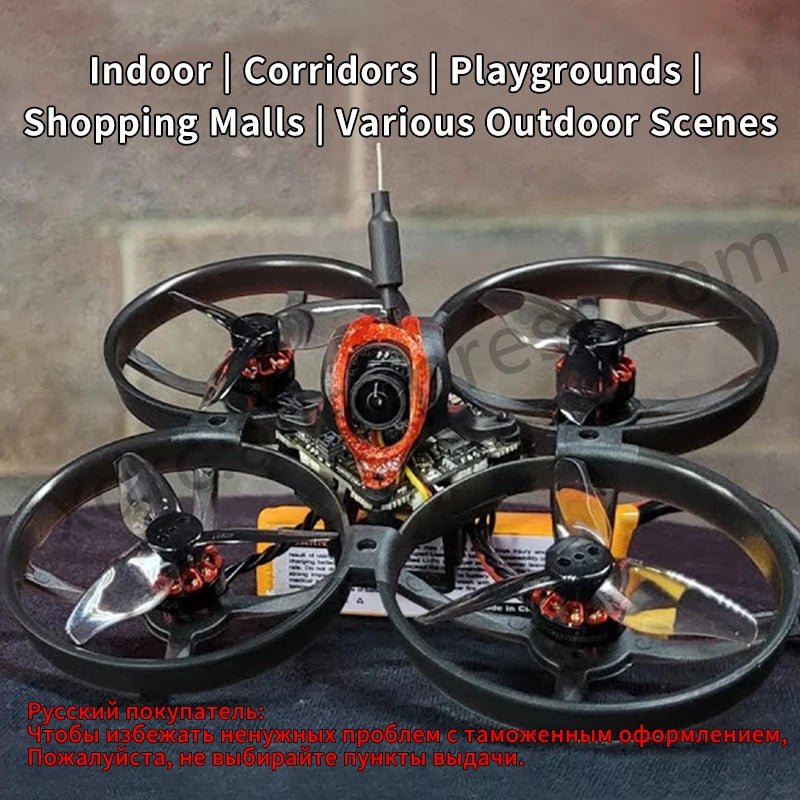

Who It's For: indoor pilots and micro FPV enthusiasts seeking a compact, adaptable kit. Frequently Asked Questions Q1: What is the Mobula8? A: An 85mm micro FPV drone for indoor/backyard use. Q2: What batteries does it support? A: 1–2S LiPo; 2S 450–650mAh recommended. Q3: What video gear? A: Caddx ANT 1200TVL camera; 5.8G OpenVTX up to 400mW. Q4: How about receivers? A: ELRS/Frsky/Flysky/PNP options. Use Cases: - Indoor tight-space freestyle - Backyard practice - Travel-ready micro FPV kit This product is part of OurLum's collection of practical products designed to make everyday life easier, more comfortable, and more enjoyable.

Item Name

Qty

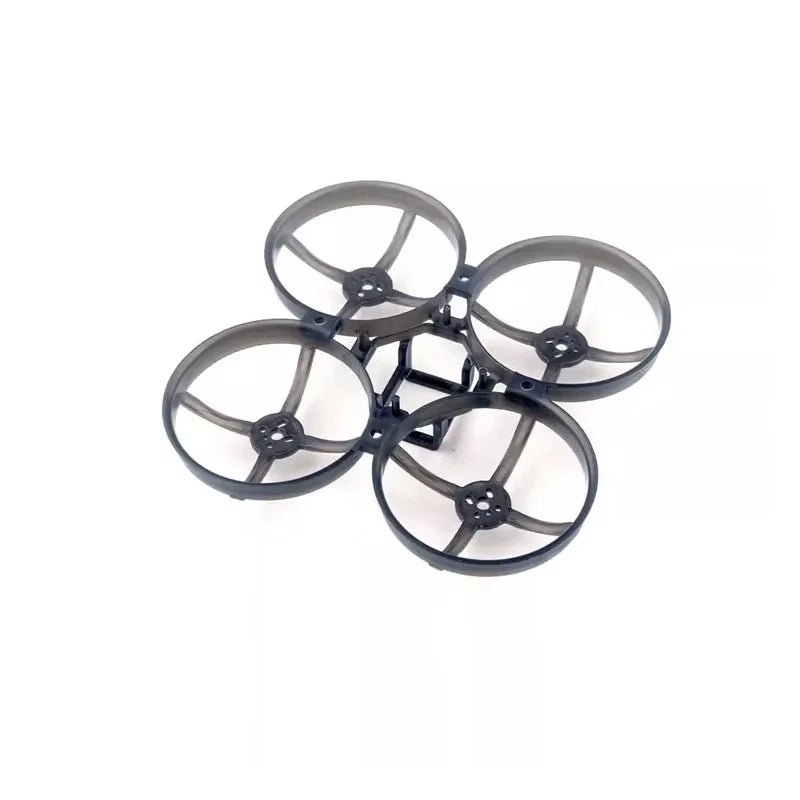

Mobula8 Frame

1

Option1: X12 ELRS V2.1 flight controller built-in SPI ELRS 2.4G receiver

1

Option2: X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver

Option3: X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver

Option4: X12 PNP V1.1 flight controller without onboard receiver

Option5: X12 PNP V1.1 flight controller with TBS CRSF NANO RX

EX1103 KV11000 brushless motor

4

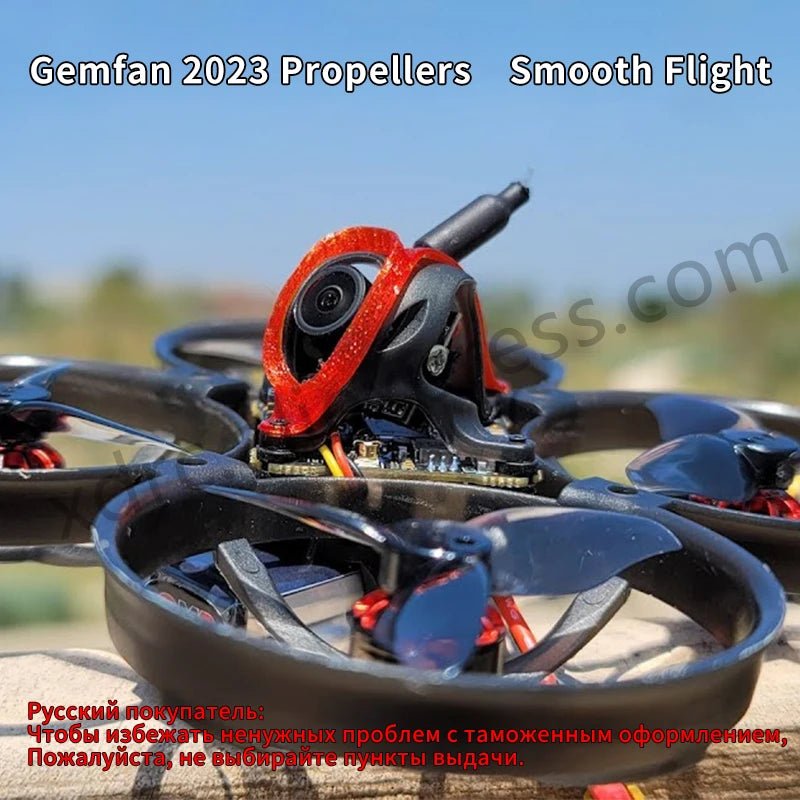

Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw)

1

Caddx ANT 1200TVL Camera

1

Onboard 5.8G Openvtx 0mw~400mw VTX

1

Canopy for 14mmx14mm camera

1

Screw driver

1


Motor

Mode: EX1103 KV11000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S

Propellers

Weight:0.88g
Material: PC
Pitch:2.3inch
Props Dia:52.17mm
Center Thickness:5mm
Center Hole Dia:1.5mm

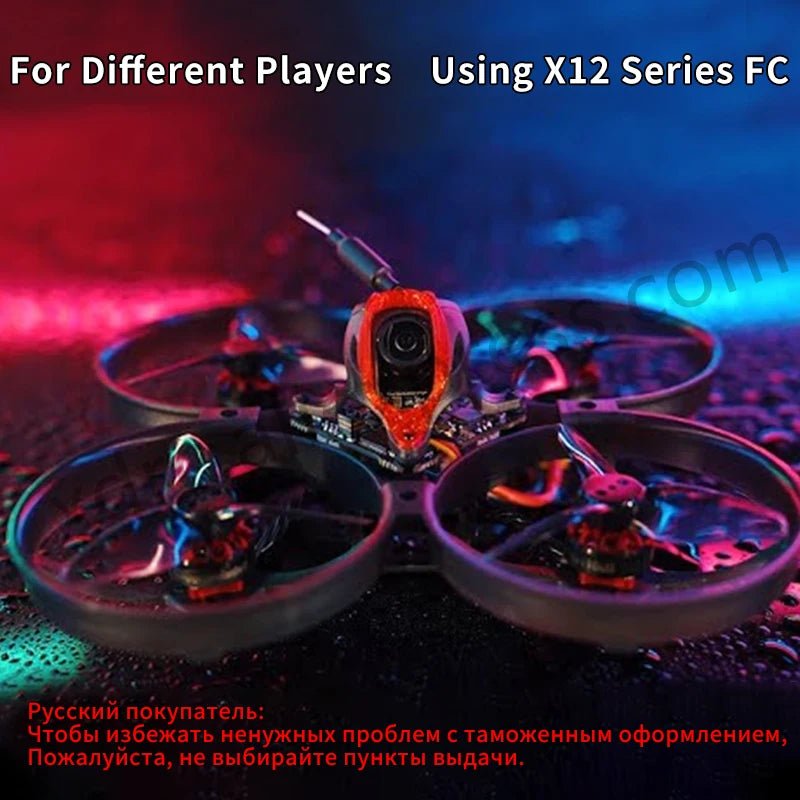

Flight controller

X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR
X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver Target: CRAZYBEEF4FS
X12 PNP V1.1 flight controller without onboard receiver Target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM20689 or ICM42688P(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
Built-in voltage detection
Built-in current sensor

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Firmware target: Z_H_30
Default protocol: DSHOT300
Support Bluejay firmware

Onboard SPI ExpressLRS 2.4GHz Receiver

Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna: SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn't flash separately ExpressLRS firmware
Could flash FC firmware to support ExpressLRS v3.0 TX module

Onboard SPI Frsky D8/D16 receiver Version

SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8/D16 modelChannels: 8ch/16ch
No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support

Onboard SPI Flysky receiver Version

SPI BUS receiver
Protocol: AFHDS-2A
Channels: 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 200meter
Failsafe support

PNP Version
(without onboard receiver)

Full UART1 for external Receiver
Support CRSF/GHOST/SBUS/IBUS/DSMX protocol
IR1 pad(invert RX1) used for SBUS input

External TBS CRSF Nano receiver version

Original TBS CROSSFIRE Receiver,CRSF Protocol, Official TBS transmitter compatible

Onboard 5.8g OPENVTX

Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)

Caddx ANT 1200tvl camera

Image Sensor: 1/3″ CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio: >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm
Min. Illumination: 0.001Lux@F1.2
Auto Gain Control: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Weight: 2g (N.W.)
