SPECIFICATIONS

AC Voltage: 0.01V~10V

Auto Measurement: Yes

Automatic Capacitance Range: 2nF-1mF

Automatic Resistance Range: 0.1Ω-10MΩ

Battery Included: Yes

Brand Name: L.AOL.AU

Charging Port: Typ-C

Charging Voltage: Standard 5V 1A

Choice: yes

DC Voltage: 0.01V~10V

DIY Supplies: Electrical

Diode Test: Yes

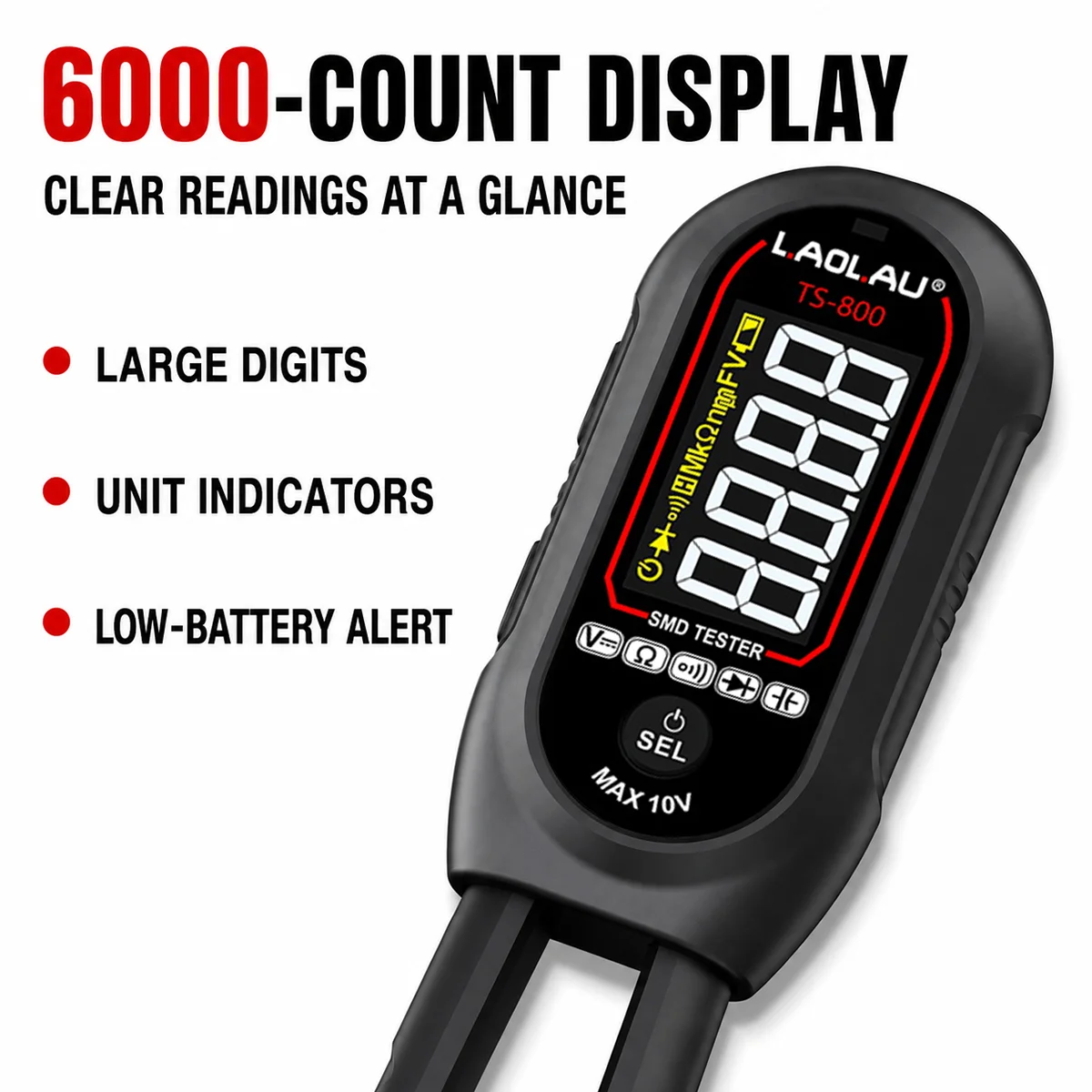

Display: LCD Digital Display

Display Type: Digital Display

High-concerned chemical: none

Measuring Capacitance Range: 1nF~60mF

Measuring Resistance Range: 0.1Ω~60MΩ

Model Number: TS800

Operating Mode: Auto Range

Origin: Mainland China

Overload Protection: Max. 36V DC

Semi-finishedproduct: No

TS800 Smart Digital Tweezers Multimeter SMD Electronic Component Tester Auto Range Voltage Resistance Capacitance Diode Continuity Tester LCD Data Hold Type C Rechargeable Precision Measuring Tool ALL-IN-ONE TESTING FOR MODERN ELECTRONICS

01｜SMART AUTO MEASUREMENT

Intelligent Auto-Ranging for Faster Testing
Automatically selects the appropriate measurement range for resistance and capacitance, making everyday electronic testing faster and easier.

02｜5-IN-1 ELECTRONIC TESTING

Voltage • Resistance • Capacitance • Diode • Continuity
One compact tool covers essential electronic measurements for PCB inspection, component testing, repair and DIY projects.

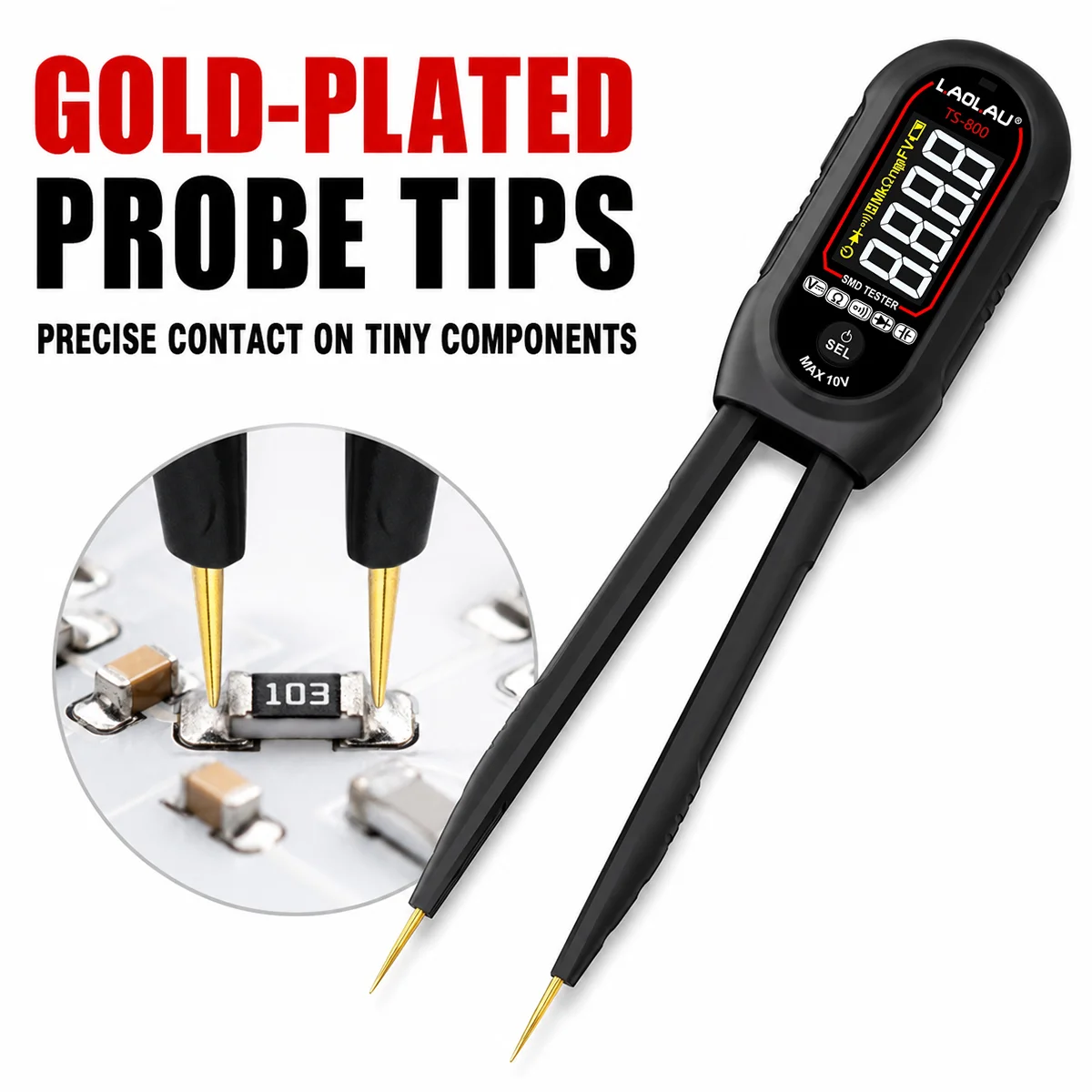

03｜PRECISION TWEEZER PROBES

Built for SMD Components & Precision Electronics
Integrated tweezer-style probes make it easy to grip and test small components, ideal for SMD, PCB and delicate electronic work.

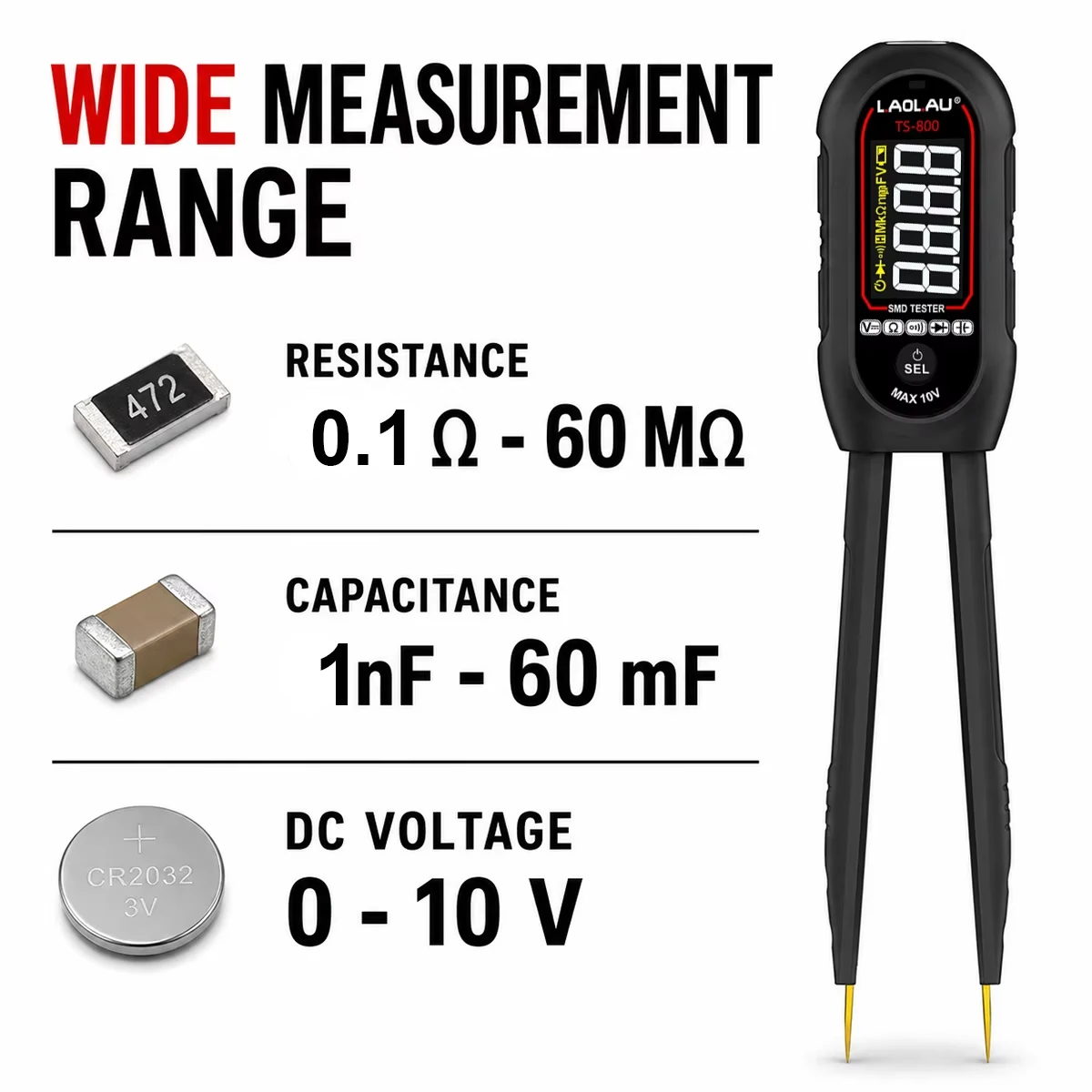

04｜WIDE MEASUREMENT RANGE

0.01V–10V • 0.1Ω–60MΩ • 1nF–60mF
Wide testing ranges handle everything from tiny electronic components to high-resistance and large-capacitance measurements, with manual mode for greater control.

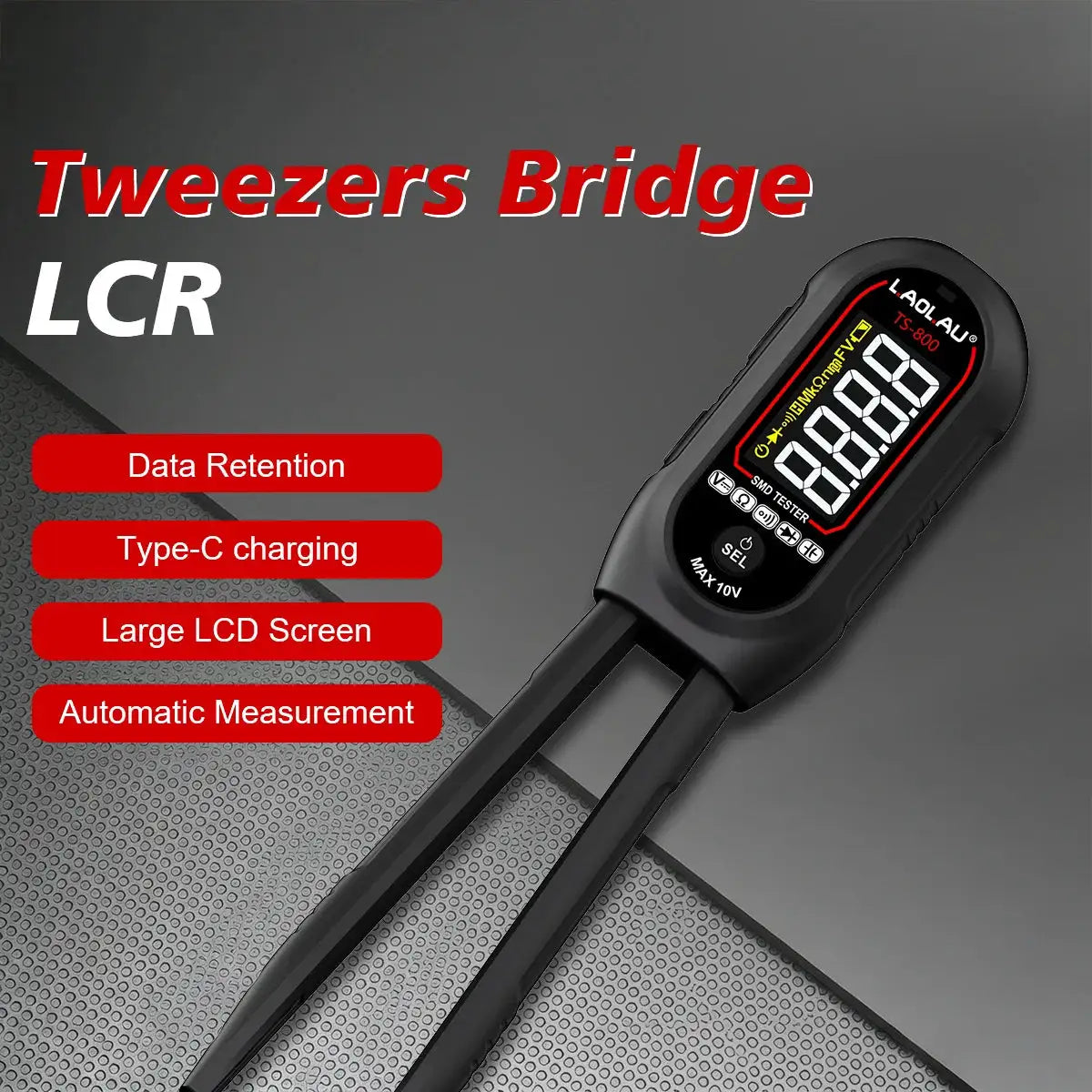

05｜RECHARGEABLE & EASY TO USE

Type-C Charging • Data Hold • Low Battery Alert • Clear LCD
Recharge conveniently via standard 5V Type-C, hold readings on screen and monitor battery status for reliable testing wherever you work.

Product Parameters

Model: TS800;

Product Type: Smart Digital Tweezers Multimeter;

Display: LCD Digital Display;

Voltage Measurement Range: 0.01V–10V;

Voltage Accuracy: ±(1.0%+5);

Resistance Measurement Range: 0.1Ω–60MΩ;

Resistance Accuracy 0.1Ω–1kΩ: ±(0.8%+5);

Resistance Accuracy 1kΩ–1MΩ: ±(0.8%+3);

Resistance Accuracy 1MΩ–60MΩ: ±(3.0%+10);

Capacitance Measurement Range: 1nF–60mF;

Capacitance Accuracy 1nF–10mF: ±(3.5%+20);

Capacitance Accuracy 10mF–60mF: ±(5.0%+3);

Automatic Resistance Range: 0.1Ω–10MΩ;

Automatic Capacitance Range: 2nF–1mF;

Diode Test Open-Circuit Voltage: 3.2V;

Diode Test Display: Forward Voltage Drop;

Continuity Buzzer Threshold: Approximately 50Ω;

Measurement Mode: Automatic Measurement and Manual Function Selection;

Data Hold: Supported;

Low Battery Indication: Supported;

Charging Port: Type-C;

Charging Voltage: Standard 5V;

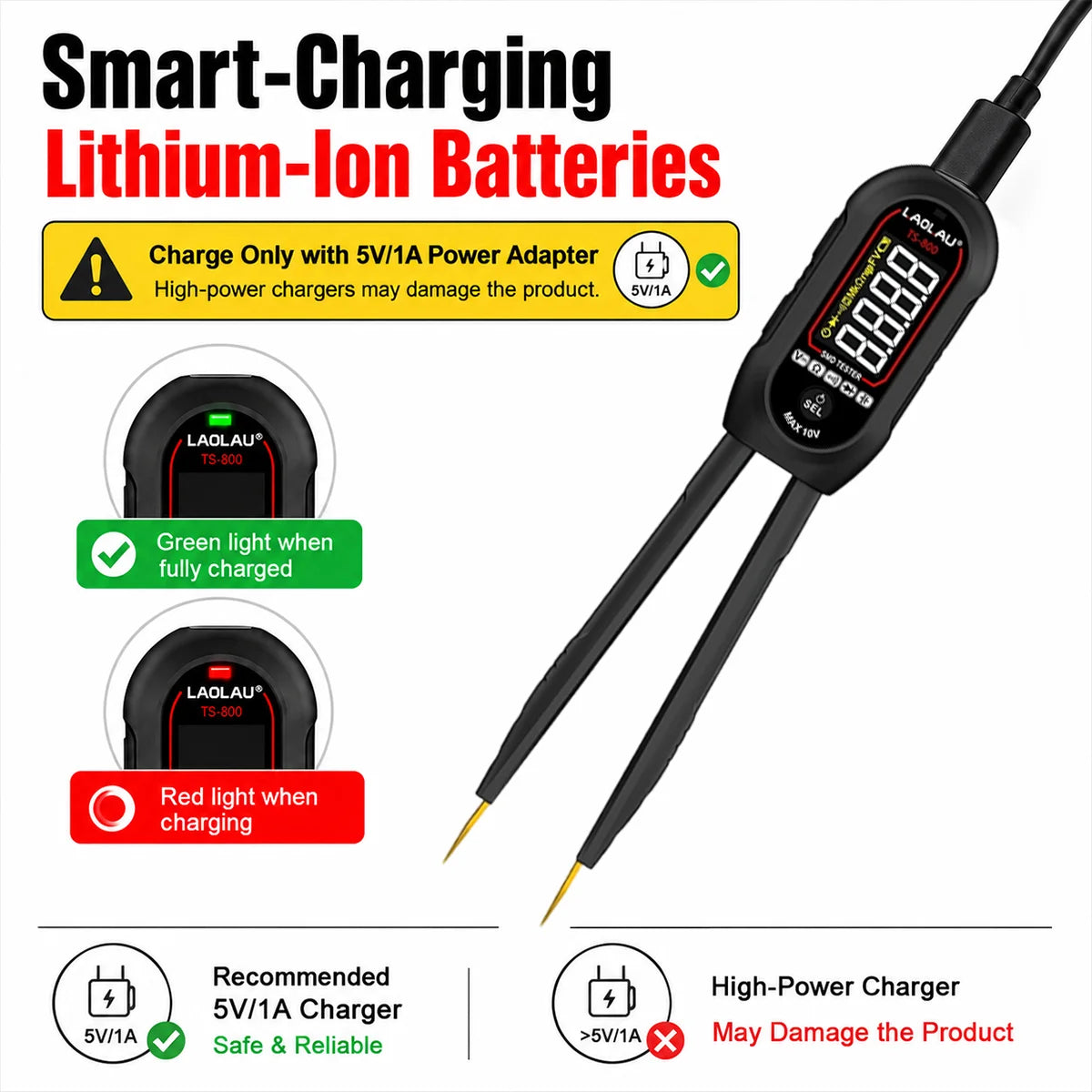

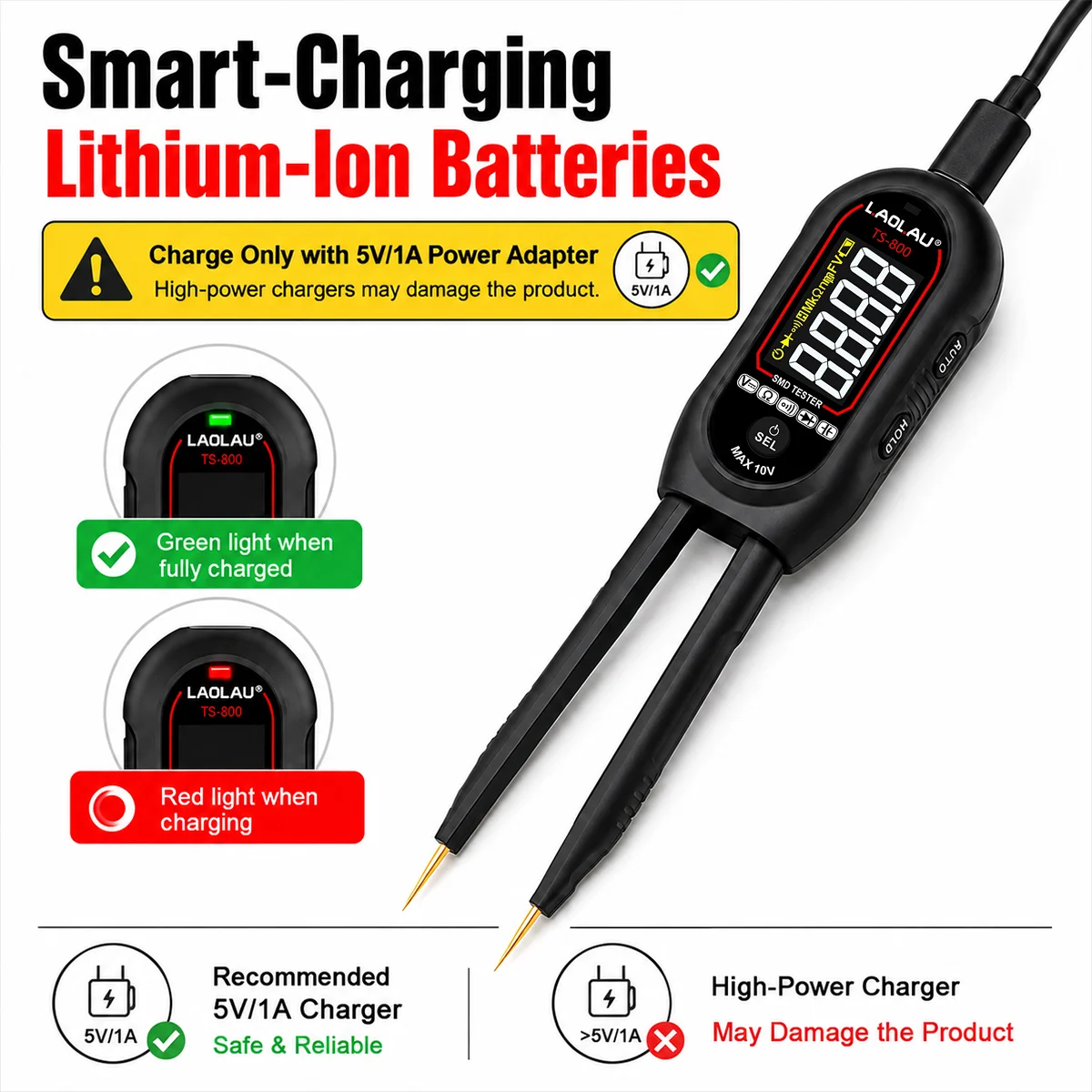

Charging Indicator: Red During Charging and Green When Fully Charged;

Overload Protection: Maximum Input DC Voltage 36V;
