Tips: This KM100 KM100X is the Gobal version.

Please Note:

1. In the US/CA aera, KM100 not support AKL for Toyota, Ford, and GM cars.
2. KM100 only support some BMW cars, you had better choose IM508 or IM608 series.
3. KM100 not support Mercedes-Benz, for BMW and Mercedes-Benz, you need to choose IM508 or IM608 series.
4. Not support Renault AKL.
5. For the following special local car brands, they do not have by default. If you need these car brands, it will need to purchased separately, pls feel free to contact us, thanks.
- AU vehicle: Fordau, Holden.
- Brazil/Latin vehicle: FaitBrazil, GMBrazil, maruti Suzuki, Mahindra.
- Indian vehicle: maruti Suzuki, Mahindra, TATA, India Datsun.

Autel MaxiIM KM100 KM100X:

MaxiIM KM100 is an advanced key and immobilizer touchscreen tablet capable of smart key creation and IMMO learning via OBD. This 5.5-inch, Android touchscreen tablet with Bluetooth VCI can program the Autel Key as a smart key replacement for more than 700 vehicles and offers IMMO programming capability for multiple vehicle brands including BMW, Audi, Volkswagen, Toyota, Honda, and General Motors. Additional innovative features include key renewal and Transponder Editing of 20 supported protocols.

KM100 Highlights:

● Programs Autel's Key universal key as a smart key replacement for more than 700 vehicles
● 60-Second Key Generation (Autel Universal Key Only)
● IMMO Key Learning via OBD on 90% of vehicles, for Audi, Volkswagen, Honda, General Motors, etc
● Chip Read & Write, Cloning 20 Supported protocols and Frequency Detection (Compatible with Dual-Band 315M/433M and 868M/915M);
● Transponder Generation/ Simulation/ Conversion between ID63 and ID83;

IMMO Key Learning:

The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBDII connection. The application retrieves vehicle IMMO information and performs IMMO-related functions. For example:
● Read PIN;
● Key Learning;
● Remote Control Learning;
● Remote Control Add;
● All-Key-Lost;
● IMMO data backup/restore;
● IMMO ECU Reset/ Adaptation/ Refresh/ Coding;
● And More...

60S Key Generation:

Autel stands out as a high-speed, ultra-efficient programmming tool, especially for DIYers who value speed and simplicity.
“Click-and-go” with just a few steps, get lightning-fast Key generation! 1) AutoVIN reads car make/model/year instantly (one touch, no typing); 2) Step-by-step menu guide show options clearly from the beginning to end (smart as AI); 3) Quick jump to functions, directly to the corresponding immo matching (all automatic!) √ More vehicles serviced in less time. √ Cut 50% time required by other IMMOtools.

Complete Transponder Functions, Perform transponder generation/simmulation and conversion between ID63 and ID83:

● Transponder Reading: give you the access to some basic information pertaining to the key, including chip type, IMMO type, transponder ID, locking status, and code mode.

● Transponder Cloning: Autel KM100X key programmer supports various transponder types for cloning and editing, You are able to use this function to detect the transponder and vehicle information in order to decrypt a code which shall be used to directly clone and generate a functional transponder for your vehicle. The whole process saves the trouble of using the old OBD approach.

● Transponder Editing: read and edit transponder information such as its configurations and EEPROM data. Choose an IMMO type (which can be accessed by the transponder reading function) and start editing according to your needs.

● IMMO Data Processing: load the IMMO related ECU information of a vehicle to calculate a password and other IMMO information, which will be written into the transponder of the vehicle, the processed transponder can be used to start the vehicle, in other words, you now have an extra key available.

Scan VIN/License, Quickly Get VIN for 90% Cars:

Similar to flagship-level Autel scanners MK908 II, MK908 PRO II, Elite, Elite II, Ultra, MS909, MS919, this Autel scanner KM100E can read and record your vehicle’s VIN number from license plates or barcode scans, with only one tap! You’ll instantly get details e.g. make, model, year, and engine specifications. This feature is only available in high-end Autel scanners.

10+ Hot & Special Functions, All- in-one Tool Solutions for Auto Keys!

10+ Hot & Special Functions, All- in-one Tool Solutions for Auto Keys!
Apart from professional features such as Universal Key Generation, Complete IMMO Key Learning, Autel MaxiIM KM100 KM100X also supports 10+ hot and special functions:

✅1. IMMO Data Processing: load the IMMO related ECU information of a vehicle to calculate a password and other IMMO information, which will be written into the transponder of the vehicle, the processed transponder can be used to start the vehicle, in other words, you now have an extra ke-y available.

✅2. Key Unlocking (Key Renewal): enables you to renew a used smart key to unlock a new car, which is achieved by renewing the firmware of the used smart key via cable connection, working on 36 vehicle makes.

✅3. Toyota Smart Un-locking: With this function, you can unlock other Toyota models with your Toyota smart key. Unlocking of the 4D 40/80 bit and 8A 128 bit original Toyota smart chips is supported.

✅4. Button Adjustment: assign the button functions of the Autel universal ke-y.

✅5. Universal Ke-y Information Detection: especially designed to read the Autel universal key information, including the serial number, key ID, and IMMO version, etc.

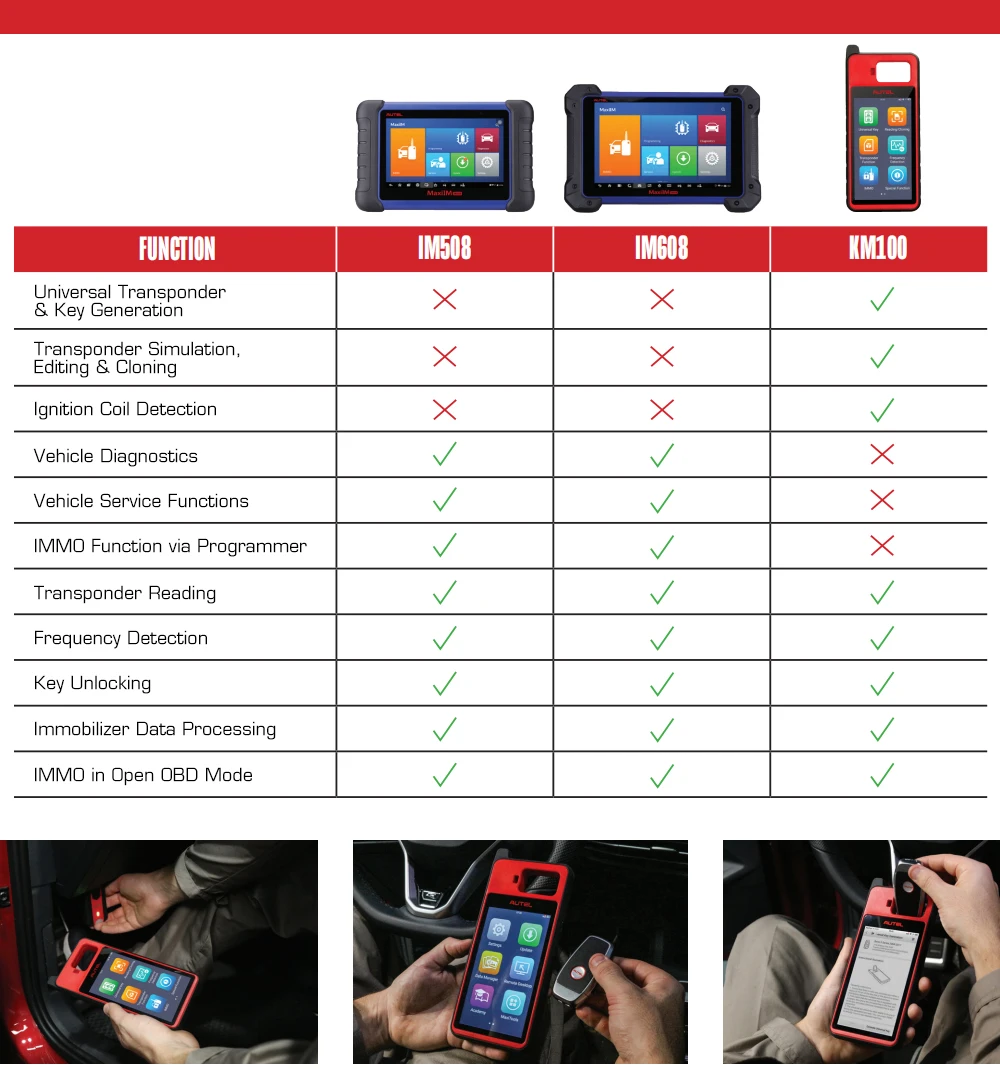

✅6. Ignition Coil Detection: enables the key tool to gather the data of the IMMO protocol and transponder type of the vehicle, while Autel old models IM508/ IM608 cannot support this special functions.

✅7.Frequency Detection: Supports smart key frequency detection for a wide range of vehicle models, and displays frequency data on the screen in text and graph.

Specification:

● Dimensions (WxHxD): 200mm(7.9") x 89 mm (3.5") x 22 mm (0.87")
● Weight: 352.7g (0.8 lb)
● Screen: 5.5-inch screen with 1280 x 720 resolution
● Processor: Rockchip PX30
● Operating System: Android™ 9.0
● Memory: 2GB RAM + 64GB ROM
● Battery: 4950mAh
● VCI: V200

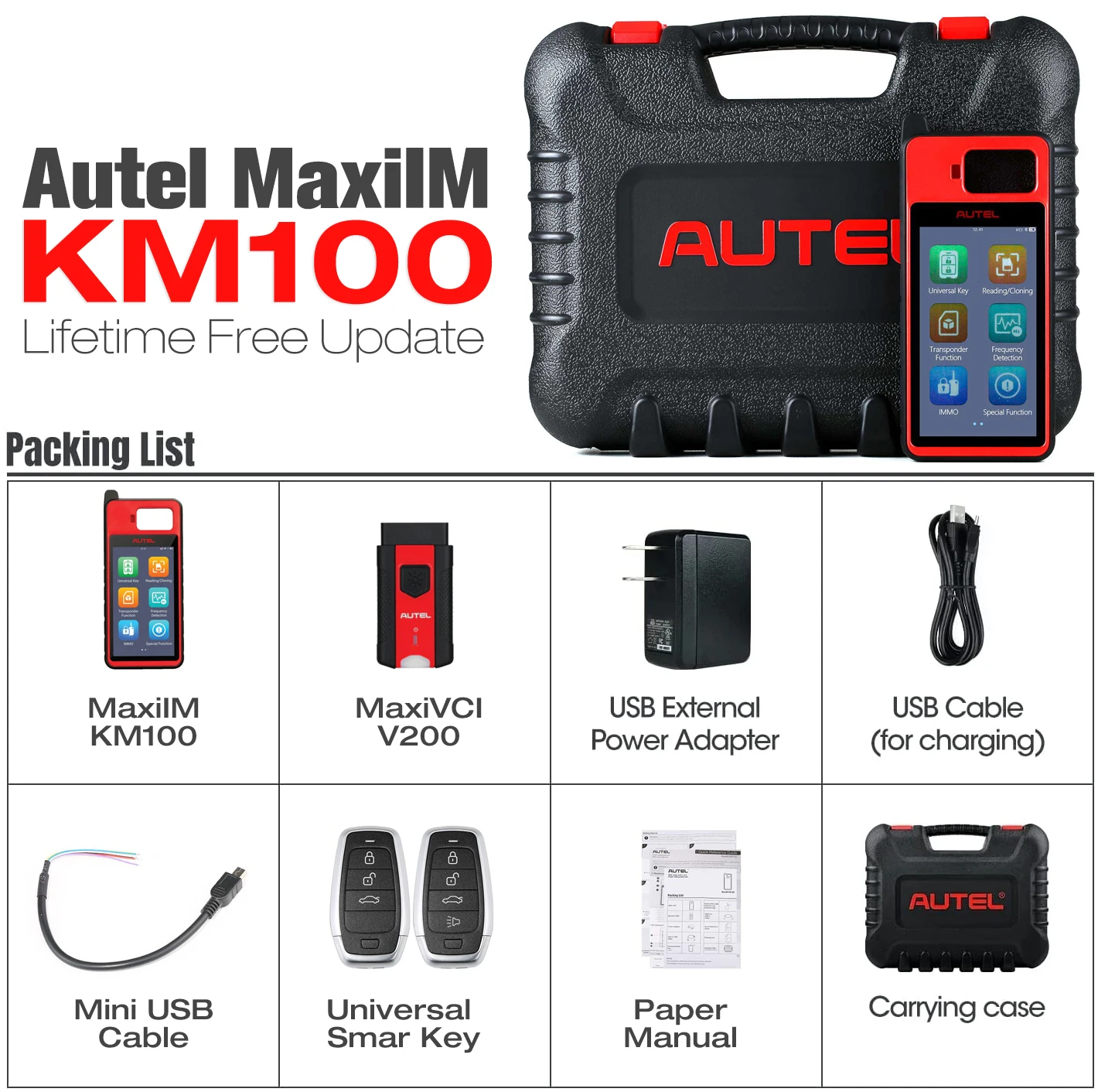

Packing List:

● 1pc x KM100 Main Unit
● 1pc x MaxiVCI V200
● 1pc x Power Adapter
● 1pc x Type-C USB Cable

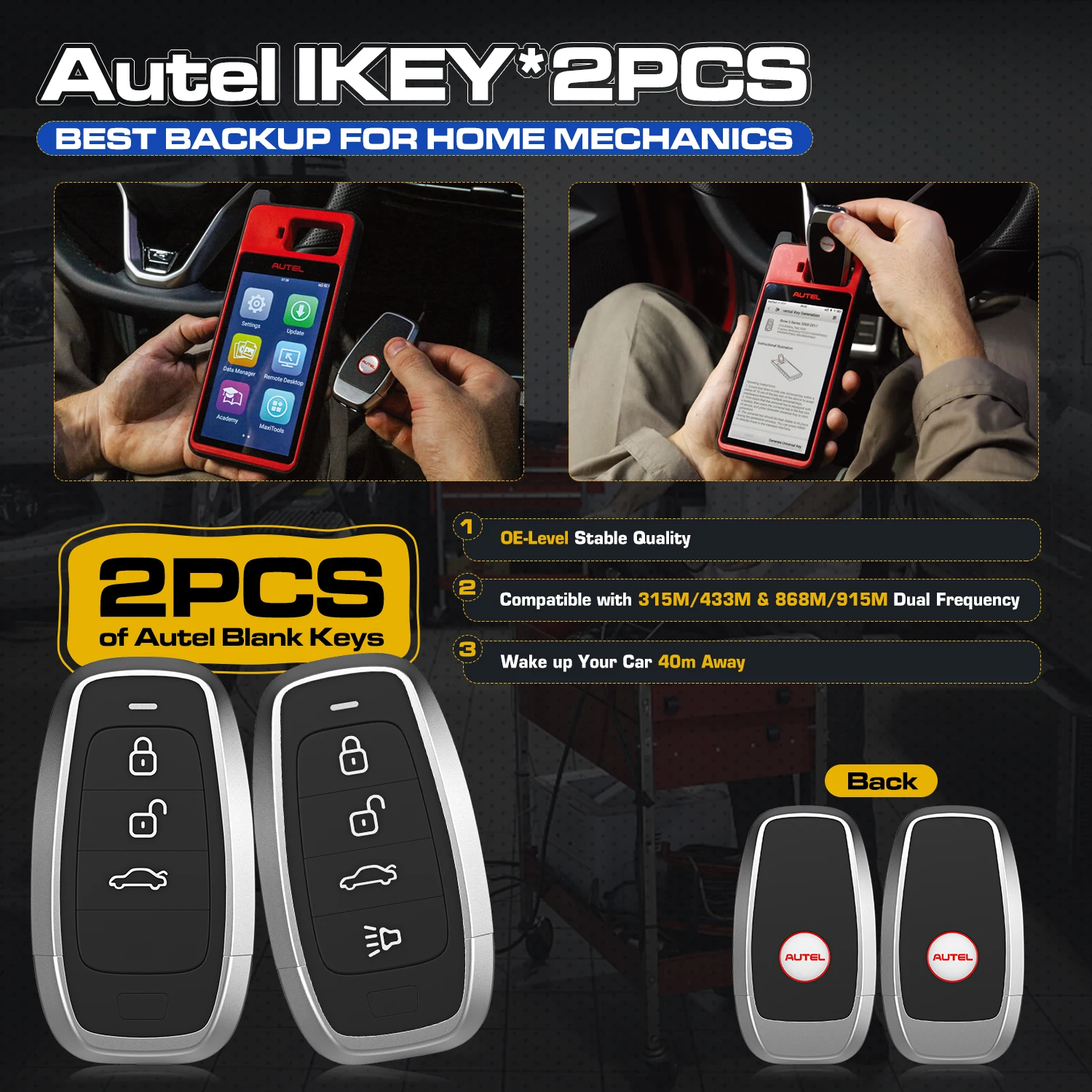

● 2pcs x Universal Keys
● 1pc x Custom Mini USB Cable(for key programming)
● 1pc x USB-C to USB-C Cable
● 1pc x Quick Reference Guide
● 1pc x Packling List
● 1pc x Carrying Case 330x262x100mm
