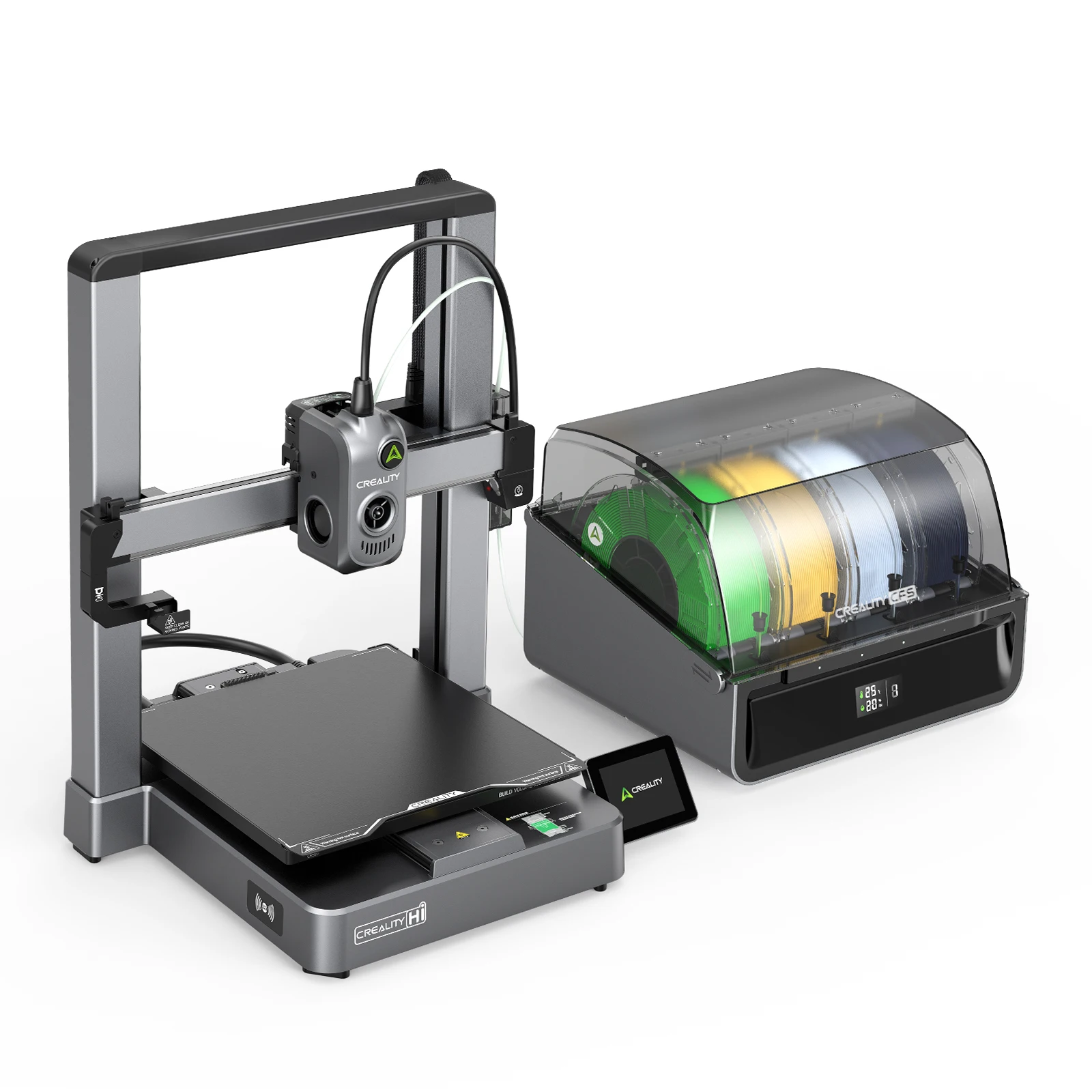

Creality Hi and Creality Hi Combo SPECIFICATIONS
Printer Body
Build Volume : 260x260x300mm
Speed
Printing Speed : ≤12000 mm/s
Acceleration : 300 mm/s typical speed500 mm/s max speed
Physical Dimensions
3D Printer Dimensions : 409x392x477 mm
Printer Package Dimensions : 650x460x560 mm
Combo Package Dimensions : 650 x460 x240 mm
3D Printer Net Weight : 8.75 kg
Combo Net Weight : 13.31 kg
3D Printer Gross Weight : 11.58 kg
Combo Gross Weight : 19.14 kg
Heatbed
Build Plate : Two-sided epoxy flexible build plate
Heatbed Temperature : ≤100 ℃
Toolhead
Extruder : Direct drive extruder
Hotend : All-metal & integrated
Extruder Gears : Steel

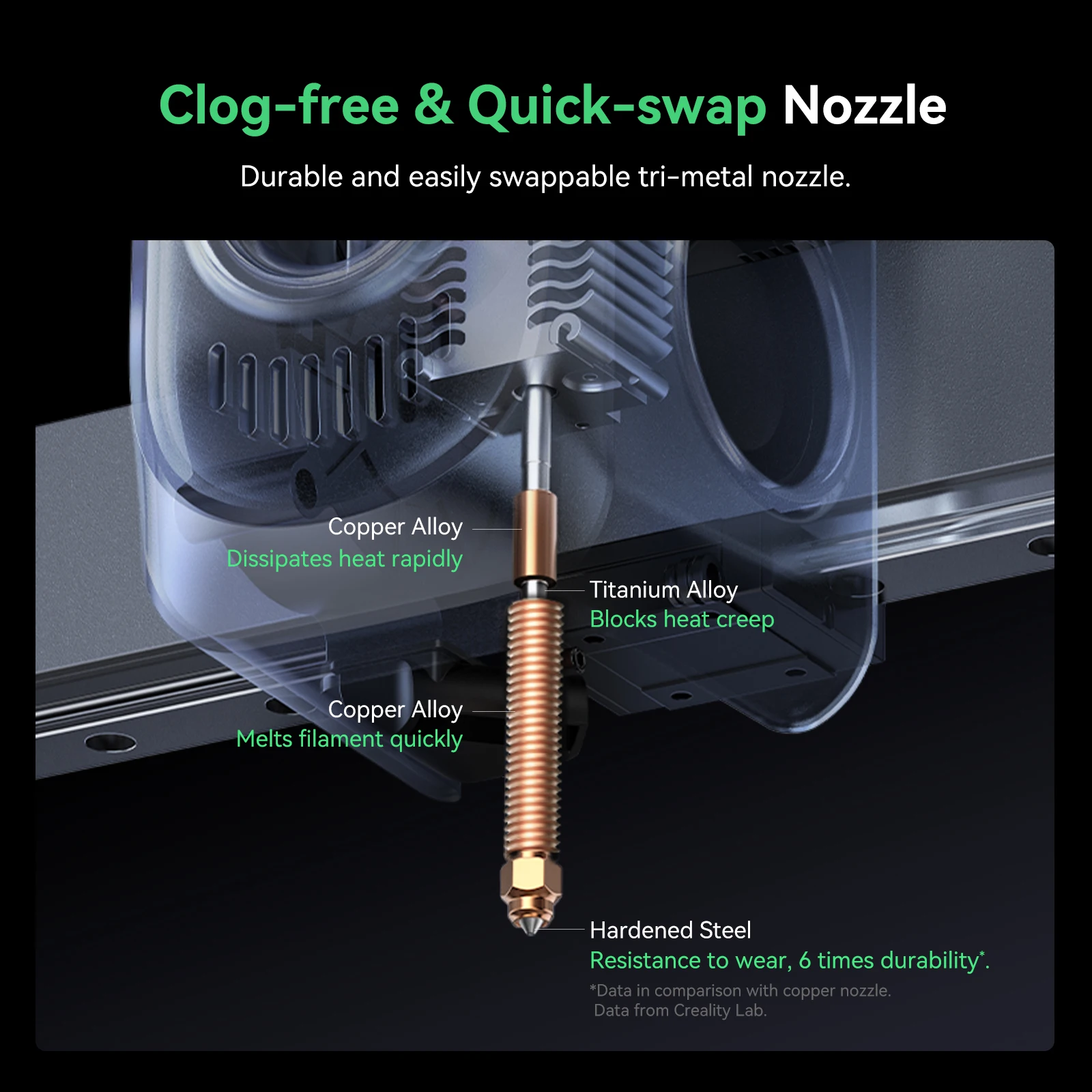

Nozzle : Durable tri-metal nozzle
Nozzle Temperature : ≤300℃C
Nozzle Diameter (Default) : 0.4 mm
Nozzle Diameter (Optional) : 0.6 mm, 0.8 mm
Filament Cutter : Built-in
Filament Diameter : 1.75 mm
Cooling
Part Cooling Fan : Closed-loop Control
Hotend Fan : Closed-loop Control
Electrical Requirements
Input Voltage :AC 100~240V/50 Hz
Rated Power : 1150W@220V; 390W@110V
Sensors
Monitoring Camera : Yes
Filament Run-out Sensor : Yes
Filament Tangle Detection : Yes
Auto Filament Relay : Yes (with CFS)
Supported Filaments : Hyper-PLAVPLAPETG/ABS/PLA-CF
Electronic Parts

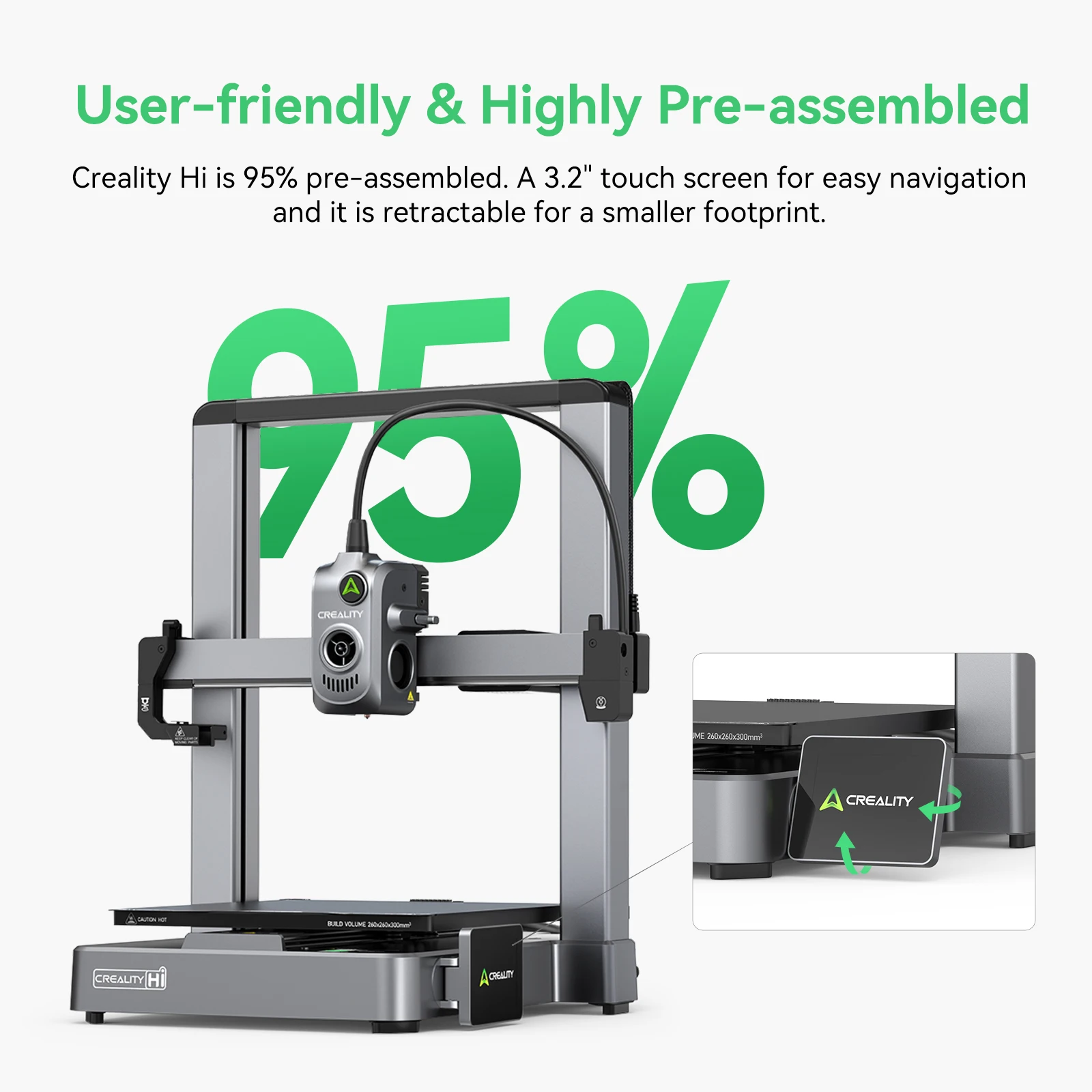

Display Screen : 3.2"color touch screen (320x240px)
File Transfer : USB drive/WiFi
File Storage : 8GB
User Interfaces : Touch screen, Creality Cloud App, PC program
MCU: Dual-core ARM Cortex-A7 microprocessor
Software
Slicing Software : Creality Print 5.1 and newer versions
Supported Languages : English, German, Spanish, French ,Italian, Portuguese, Turkish, Russian, Japanese, Chinese
Others
Leveling Method : Leveling with strain gauge

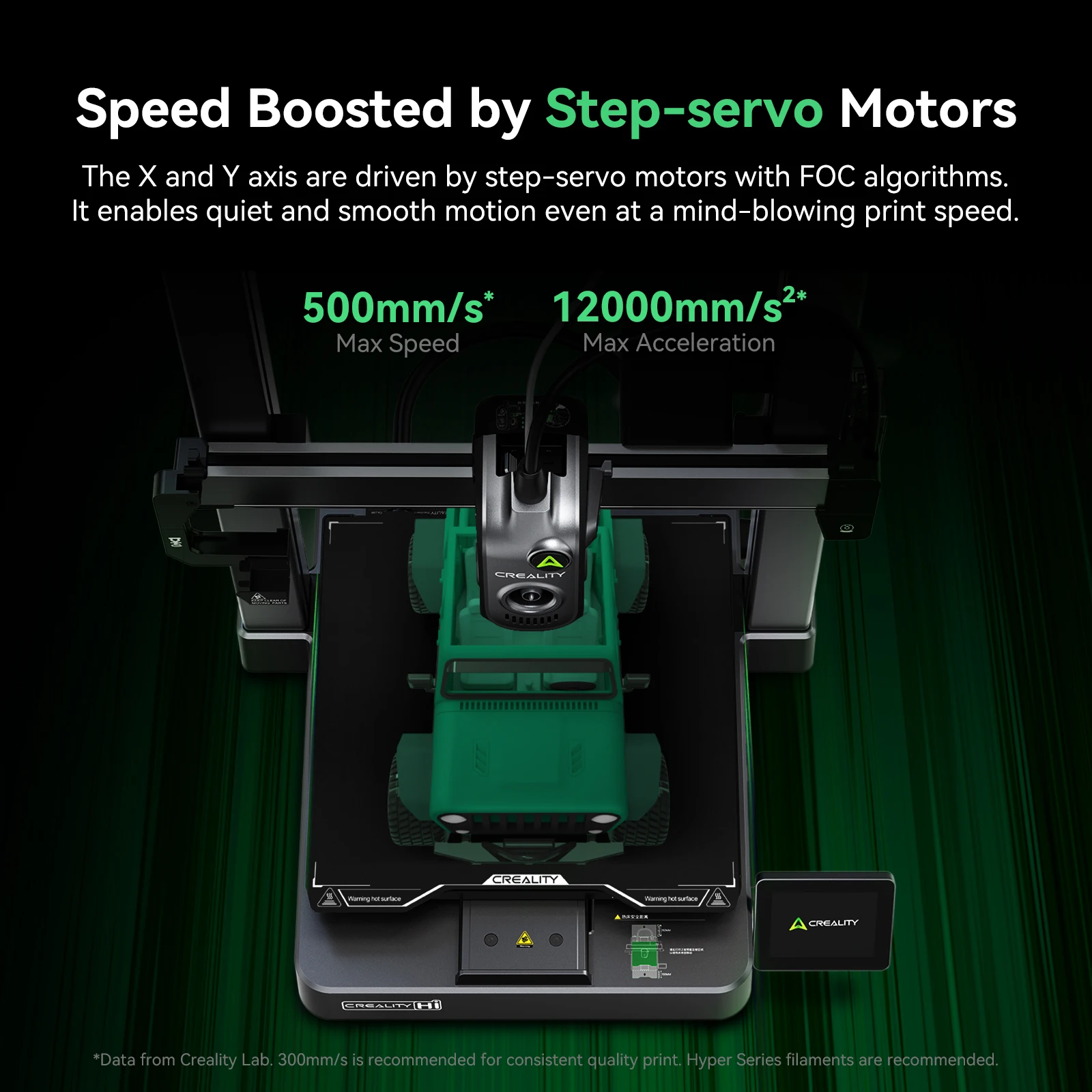

XYZE Motor : Step-servo motor for X/Y axis ; step motor for others
Input Shaping (G-Sensor) : Yes
Lighting Kit : Yes
CFS Connection : ≤4 (Separate power source required for 2 and more units)
