ESP32-C6 1.8inch Touch AMOLED Display Development Board, 368 × 448 Resolution, Supports Wi-Fi 6, BLE 5 And Zigbee

ESP32-C6 1.8inch Touch AMOLED
Display Development Board

Embedded with SH8601 Display Driver & FT3168 / FT6146 Capacitive Touch Chip

Version Options

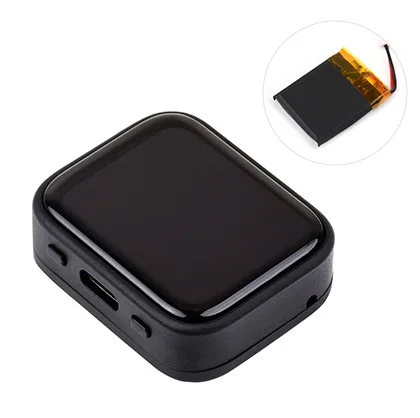

ESP32-C6-Touch-AMOLED-1.8-EN
Standard version, without Lithium Batt

ESP32-C6-Touch-AMOLED-1.8
Comes with a 3.7V Lithium Batt
(can be installed inside the case)

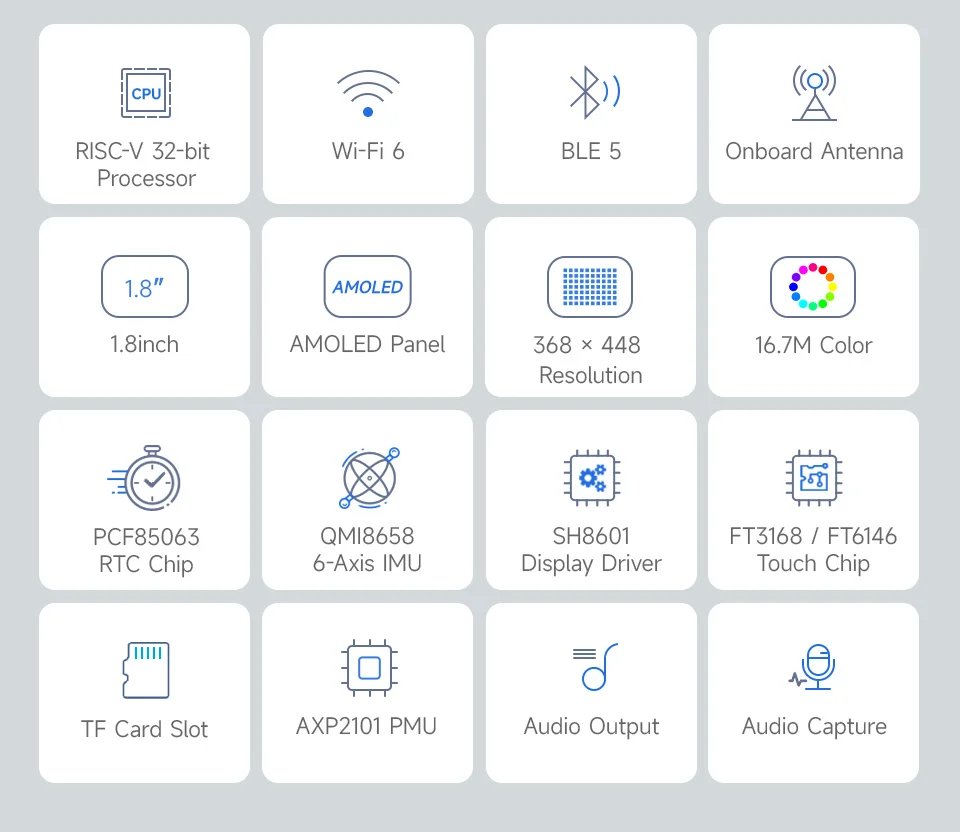

Features

ESP32-C6-Touch-AMOLED-1.8 is a high-performance, highly integrated microcontroller development board designed by Waveshare. Tiny size with onboard 1.8inch capacitive AMOLED display, highly integrated power management IC, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC, low power audio codec IC, and so on, which makes it easy for you to develop and integrate it into the products quickly.

Key features include:

Equipped with a ESP32-C6 high-performance RISC-V 32-bit processor with up to 160MHz operating frequency
Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, provides superior RF performance, with onboard antenna
Onboard 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM and external 16MB Flash memory
Type-C port, easier to use
Onboard 1.8inch capacitive touch AMOLED display for clear color picture display, 368 × 448 resolution, 16.7M color
Built-in SH8601 display driver and FT3168 / FT6146 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
Onboard PCF85063 RTC chip, powered by Lithium Batt through AXP2101 chip for uninterrupted power supply, with reserved RTC Batt pads for connecting a backup Batt, ensuring RTC function during the replacement of the main Batt
Onboard PWR and BOOT programmable buttons for easy custom function development
Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
Adapting 1-ch I2C, 1-ch USB and 1-ch UART pads for external devices connection and debugging, enabling flexible peripheral configuration
Onboard TF card slot for expanded storage, fast data transfer, and transfer flexibility, suitable for applications such as data recording and media playback, simplifying circuit design
Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, Batt charging, Batt management, and Batt life optimization, etc.
Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.

AMOLED Specifications

DISPLAY PANEL	AMOLED	DISPLAY SIZE	1.8inch
RESOLUTION	368 × 448 pixels	COLOR	16.7M
BRIGHTNESS	350cd/㎡	CONTRAST RATIO	100000:1
COMMUNICATION INTERFACE	QSPI	DISPLAY DRIVER	SH8601
TOUCH	Supported	TOUCH IC	FT3168 / FT6146

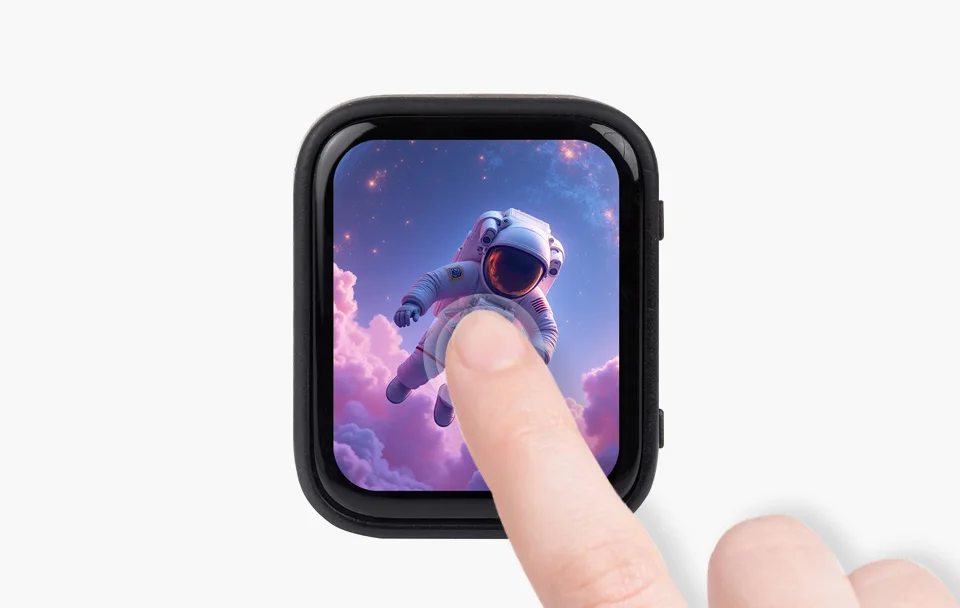

Tiny Size, Touch More Possibilities

Suitable For Various Smart Device Development, Enabling Human-Machine Interaction Function, Supports Connecting To A Batt For Independent Operation

Adopts AMOLED Screen

The Next-Generation Display Technology, Compared To Those Traditional LCD Displays, The AMOLED Screen Features Precise Light-Control Capability, Representing More Delicate Colors, More Picture Details, And More Vivid Video Image

178° Wide Viewing Angle

Excellent Display Performance, 16.7M Color, Wide Viewing Angle

Onboard Audio Codec Chip

Supports High-Quality Audio Processing, Providing Clear And High-Quality Audio Input And Output

Supports Offline Speech Recognition And AI Speech Interaction

Allows Access To Online Large Model Platforms Such As DeepSeek, Doubao, Etc

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Wi-Fi 6 And BLE 5 Support

Supports Wi-Fi 6, Bluetooth 5, And IEEE 802.15.4 (Zigbee 3.0 And Thread), Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

Dedicated Black Case, Unique Design

With Removable Back Cover For Easy Embedded Into The Projects And DIY Design

What's On Board

ESP32-C6
The SoC with WiFi and Bluetooth, up to 160MHz operating frequency
QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
PCF85063
RTC chip
AXP2101
Highly integrated power management IC
ES8311
Low power audio codec IC
Speaker
Backup Batt pads
for connecting backup Batt, ensuring RTC function during the replacement of the main Batt

MX1.25 Lithium Batt header
MX1.25 2PIN connector, for 3.7V Lithium Batt (optional), supports charging and discharging. (To fit inside the case, a Batt size of 3.85 × 24 × 28 mm is recommended)
16MB NOR-Flash
for storing data
Microphone
for audio capture
Onboard antenna
supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
Reserved GPIO pads (pitch 1.5mm)
Adopting available I/O function pins for easy expansion
BOOT button
for device startup and function debugging
USB Type-C port
ESP32-C6 USB interface, for programming and log printing
PWM button
for system power supply ON/OFF, supports custom functions

Pin Definition

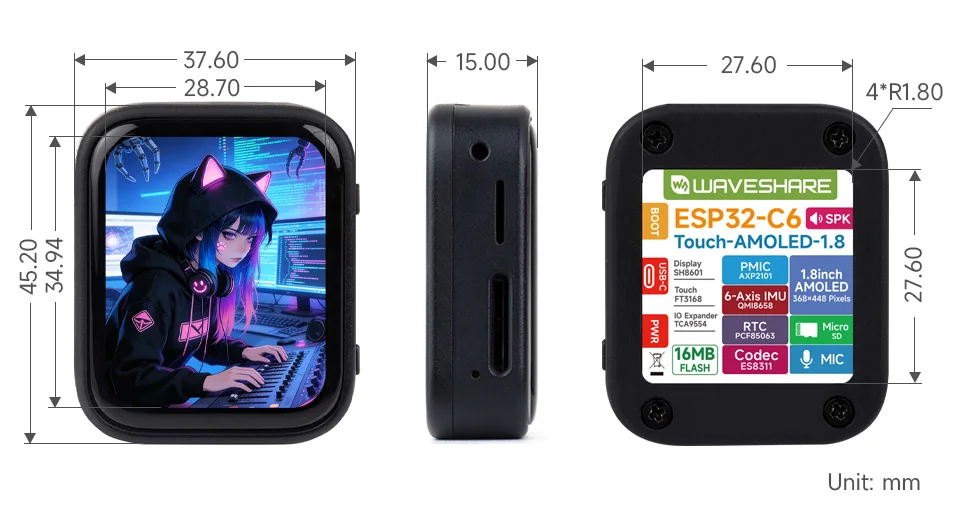

Outline Dimensions
